The (Shunt-Source) S-Reg Voltage Regulator

Posted 19th December 2016 at 12:09 PM by rjm (RJM Audio Blog)
Updated 4th May 2017 at 12:39 AM by rjm (added BOM)

S-reg voltage shunt-source regulator for line-level audio circuits.

This is designed to accept rectified 12x2 VAC input, producing +/-12 V output split rails.

Features soft-start and over-current protection, standard configurations for load currents up to 50 mA. High performance: 80 dB ripple rejection up to 100 kHz.

update: BOM uploaded
update: web page (stub)
Attached Thumbnails
Click image for larger version

Name:	sreg.png
Views:	135
Size:	129.3 KB
ID:	2132   Click image for larger version

Name:	pcb-sreg-10f2-brd.png
Views:	148
Size:	9.5 KB
ID:	2148   Click image for larger version

Name:	pcb-sreg-10f2-sch.png
Views:	397
Size:	11.1 KB
ID:	2149   Click image for larger version

Name:	DSC_0063s.jpg
Views:	81
Size:	240.3 KB
ID:	2267   Click image for larger version

Name:	DSC_0079s.jpg
Views:	133
Size:	320.7 KB
ID:	2268

Attached Files
File Type: asc sreg10e.asc (5.0 KB, 125 views)
File Type: zip pcb-sreg-10f5-bom.zip (88.2 KB, 11 views)
rjm's Avatar
rjm
diyAudio Member
Views 611 Comments 2 rjm is offline
Old

RJM Audio in 2017 [modular simplicity]

Posted 19th December 2016 at 01:11 AM by rjm (RJM Audio Blog)
Updated 28th December 2016 at 12:50 AM by rjm

The time of year where I like to draw up some plans for the next 12 months.

This year’s output looked something as follows,

At the end of all this I find myself sitting on four different voltage regulator circuits, several variants of the transistor output diamond buffer, five phono stages variants, and a couple of nebulous ideas about developing a discrete voltage gain amplifier.

I'm considering how to package this all up in such a way as to best appeal to diyaudio builders of widely varying application needs and skill levels while keeping a simple...
rjm's Avatar
rjm
diyAudio Member
Views 357 Comments 0 rjm is offline
Old

RJM Audio desktop wallpaper

Posted 2nd December 2016 at 07:45 AM by rjm (RJM Audio Blog)

16:9 4K

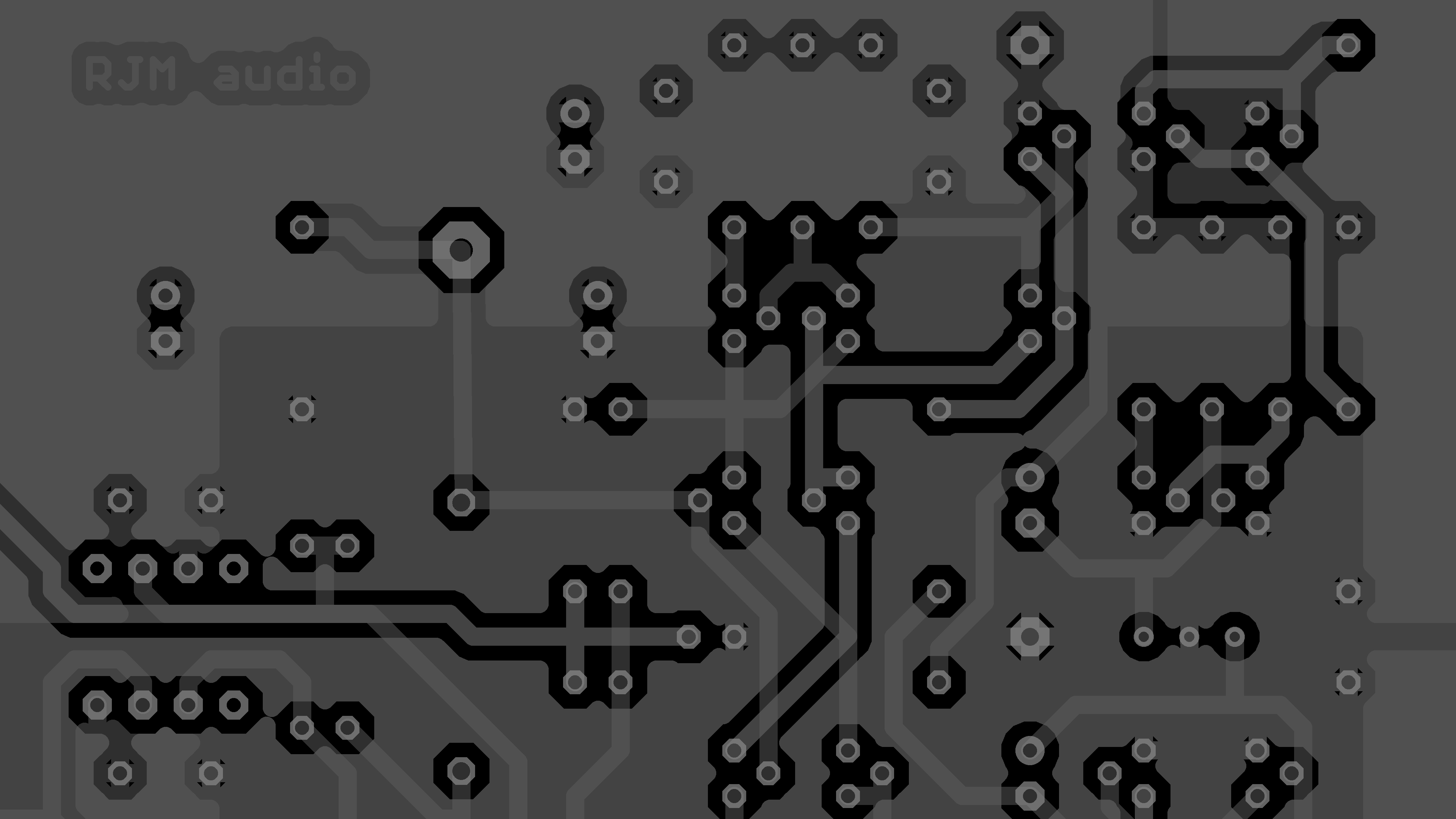

rendered from VSPSX phono stage Eagle .brd output
Attached Thumbnails
Click image for larger version

Name:	vspsx-10a-traces 4k bw.png
Views:	177
Size:	143.2 KB
ID:	2097
Attached Files
rjm's Avatar
rjm
diyAudio Member
Views 224 Comments 0 rjm is offline
Old

Sapphire Line Preamplifier

Posted 24th July 2016 at 01:11 AM by rjm (RJM Audio Blog)
Updated 26th July 2016 at 11:45 PM by rjm

Although the original Sapphire headphone amp can be configured as a line stage, or use as-is as a line stage, I've gone ahead and made a new circuit variant with a new set of boards.

The Sapphire Line (in development) combines the shunt-series regulator, bboard 2.0 buffer and an op amp voltage gain stage. Same basic idea as the Sapphire of course, but with a much less beefy output stage so the low noise regulator can be added and everything still fits on the board.

rev 10e - now with support for 2520 op amp modules
Attached Thumbnails
Click image for larger version

Name:	Sapphire LIne 10d LTSpice.png
Views:	535
Size:	107.4 KB
ID:	2029   Click image for larger version

Name:	sapphire line 10e brd.png
Views:	363
Size:	21.9 KB
ID:	2033   Click image for larger version

Name:	sapphire line 10e.png
Views:	532
Size:	17.5 KB
ID:	2034
Attached Files
File Type: asc Sapphire Line 10d.asc (10.1 KB, 212 views)
rjm's Avatar
rjm
diyAudio Member
Views 638 Comments 0 rjm is offline
Old

VSPSX phono stage design idea

Posted 24th June 2016 at 12:48 AM by rjm (RJM Audio Blog)
Updated 18th April 2017 at 11:15 PM by rjm

The original VSPS is getting up in years, and could do with a bit of an update.

The VSPSX adds the foursquare shunt-source voltage regulator and bboard v2.1 output buffer.

Development thread here.

[updated attached content to rev. 1.0a4]

Two mistakes in previous BOM:

C4 was a 5mm lead spacing Wima MKP but the board spacing is only 2.5mm. The part is changed to Wima MKS with 2.5mm lead spacing.

R22,23 was incorrectly given as 47.5k, it should have been 4.7k and has been since updated to 10k. This is not a critical value, the circuit will work with any of the resistances.

[further work]

The boards have been revised to 1.2a. The new design is posted to the development thread.
Attached Thumbnails
Click image for larger version

Name:	pcb-vspsx-10a-brd.png
Views:	112
Size:	21.0 KB
ID:	2094   Click image for larger version

Name:	vsps-10a-gerber.png
Views:	106
Size:	207.3 KB
ID:	2096   Click image for larger version

Name:	DSC_6187_01 sm.jpg
Views:	99
Size:	361.6 KB
ID:	2107
Attached Files
File Type: asc VSPSX-10a.asc (13.4 KB, 93 views)
File Type: zip pcb-vspsx-10a4-bom.zip (168.8 KB, 14 views)
rjm's Avatar
rjm
diyAudio Member
Views 602 Comments 0 rjm is offline
Old

Bboard buffer 2.0 (yet another version "2")

Posted 13th May 2016 at 08:22 AM by rjm (RJM Audio Blog)
Updated 27th May 2016 at 12:47 AM by rjm

A little bit of the sapphire headphone amp output stage, and a little bit of the LSK489 application note of all things (scroll down to Fig 10.).

Yes, this is probably the third "version 2" of this line buffer I've posted... I keep tossing it out and starting over. This variant looks pretty good: though the transistor count is a little high for such a basic function the performance is definitely there.

The main innovation re. the sapphire circuit is to replace the bias set resistors with diodes made out of the Vbe of transistors Q9 and Q10. This generates more voltage than is ideal, but can be handled by using largish values for the emitter resistors R13 and R14. Since this is a line stage buffer and not a headphone amplifier the output impedance of about 30 ohms and the limited output current swing are not critical flaws. It will drive 600 ohms at 0 dB with 0.001% THD. The whole circuit draws just 150 mW. The input impedance is a very high ~15 Mohms...
Attached Thumbnails
Click image for larger version

Name:	bboard 20.png
Views:	357
Size:	91.5 KB
ID:	1965   Click image for larger version

Name:	bboard2.1.png
Views:	221
Size:	95.8 KB
ID:	1972
Attached Files
File Type: asc bboard buffer 20.asc (4.6 KB, 179 views)
File Type: asc bboard buffer 21.asc (4.6 KB, 169 views)
rjm's Avatar
rjm
diyAudio Member
Views 727 Comments 0 rjm is offline
Old

Supermatched JFETs

Posted 29th March 2016 at 05:10 AM by rjm (RJM Audio Blog)
Updated 18th April 2016 at 11:52 PM by rjm

Truth be told, for a self-biased jfet audio circuit like the CrystalFET the main reason we need to used matched jfets is to ensure that the signal gain is the same in both channels. The operating point of the amplifier stage (the voltages and currents) can be allowed to vary a little so long as the transconductance, g_m is the same, as this is directly proportional to the open loop voltage gain, A, as

A = g_m R_l (transconductance x load resistance)

Now, yes, ideally you would find two jfets with identical saturation current and pinch off voltages, ensuring not just the same gain but also the same operating point. In practice though you are usually binning parts that are close to each other based on some reference parameter like the pinch off voltage (V_gs0) that you hope closely correlates with the signal gain. This is not quite as good though as the calculating the actual transconductance of the particular device in the circuit it is to be used in. And since...
Attached Thumbnails
Click image for larger version

Name:	supermatchB.png
Views:	199
Size:	33.5 KB
ID:	1953
Attached Files
rjm's Avatar
rjm
diyAudio Member
Views 747 Comments 5 rjm is offline
Old

Matching JFETs

Posted 8th March 2016 at 01:29 PM by rjm (RJM Audio Blog)
Updated 6th May 2016 at 09:27 AM by rjm

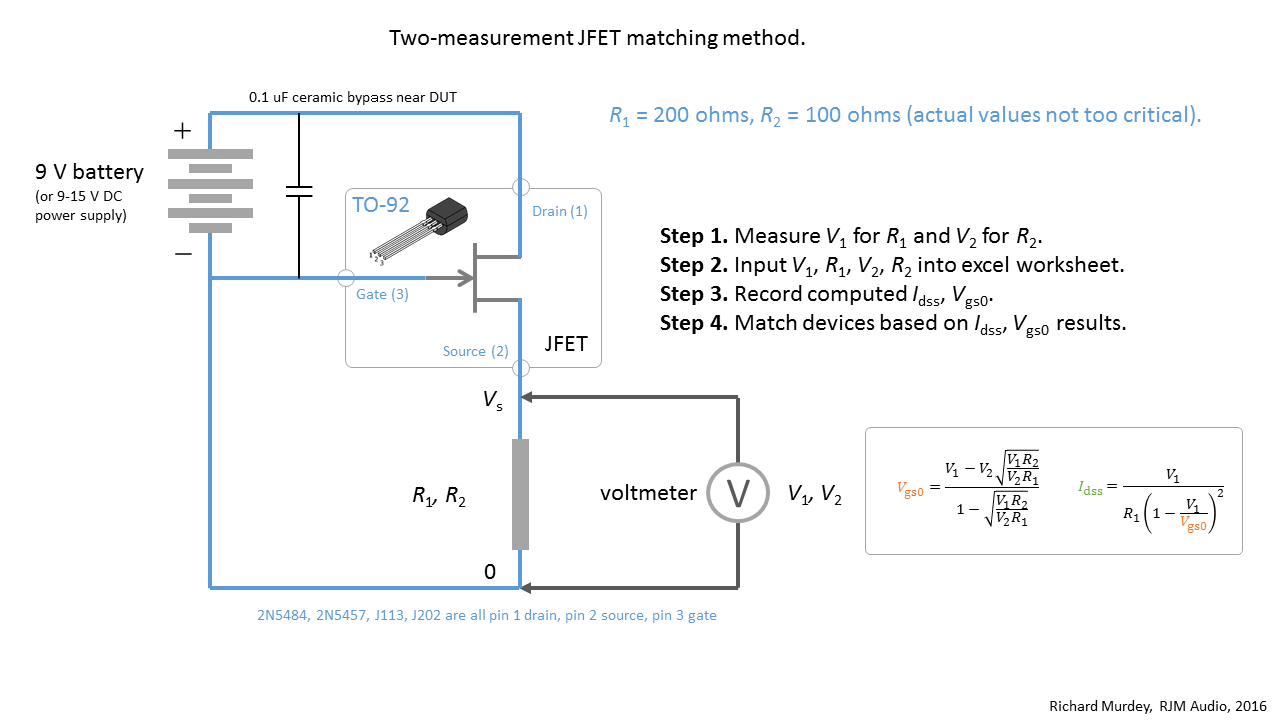

with only two resistors, a 9 V battery, and a voltmeter...

The current-voltage relationship for a jfet device is approximately a quadratic expression defined by just two parameters, the saturation current, I_dss, and the pinch-off voltage, which I'll call V_gs0.

I = I_dss (1-V/V_gs0)^2

In principle, therefore, to characterize the device all we need is two data points (I1, V1) and (I2, V2) to solve the expression above for I_dss and V_gs0. We don't need to measure I_dss or V_gs0 directly.

All you need to do is connect the jfet device-under-test (DUT) as shown, and measure the voltages across two different source resistances. That's it. The excel worksheet computes the I_dss and V_gs0 values for you (or you can do it by hand, the formulas are provided.)

The math is a bit messy, but if you can solve a quadratic expression it's easy enough.

*****

Note: I found it was important to include...
Attached Thumbnails
Click image for larger version

Name:	two measurement jfet match 1.3.png
Views:	764
Size:	65.9 KB
ID:	1895
Attached Files
File Type: zip two measurement jfet match 1.3.zip (67.3 KB, 107 views)
rjm's Avatar
rjm
diyAudio Member
Views 1462 Comments 6 rjm is offline
Old

CrystalFET Phono Stage

Posted 3rd March 2016 at 05:55 AM by rjm (RJM Audio Blog)
Updated 21st April 2017 at 01:46 AM by rjm

Development thread here. Web page here.

CrystalFET is a J113 jfet-based two-stage phono preamp, with passive equalization and on-board MOSFET-based shunt voltage regulator.

Jfets Q1 and Q3 should be matched between channels, and for best results the value of drain resistors R2 and R9 should be selected based on the jfet pinch off voltage of Q1 and Q3 respectively.

rev. 1.4e (final version) removes some unneeded resistors and tidies up the board layout a little. The resistors have been renumbered.
Attached Thumbnails
Click image for larger version

Name:	IMGP6761.jpg
Views:	517
Size:	263.9 KB
ID:	1889   Click image for larger version

Name:	IMGP6764.jpg
Views:	270
Size:	192.5 KB
ID:	1890   Click image for larger version

Name:	DSC_6236.jpg
Views:	276
Size:	262.8 KB
ID:	1897   Click image for larger version

Name:	crystalFET 1.3a response.png
Views:	201
Size:	22.7 KB
ID:	1934   Click image for larger version

Name:	pcb-crystal-14e-sch.png
Views:	444
Size:	18.3 KB
ID:	2007

Click image for larger version

Name:	pcb-crystal-14e-brd.png
Views:	260
Size:	18.5 KB
ID:	2008   Click image for larger version

Name:	CrystalFET-14e.jpg
Views:	160
Size:	394.8 KB
ID:	2023
Attached Files
File Type: zip pcb-crystal-14e-bom.zip (246.7 KB, 52 views)
File Type: asc Crystal 14.asc (11.2 KB, 150 views)
rjm's Avatar
rjm
diyAudio Member
Views 2033 Comments 6 rjm is offline
Old

Voltage Regulators for Line Level Audio. Part 11 : The Crystal M Shunt

Posted 20th February 2016 at 01:49 AM by rjm (RJM Audio Blog)
Updated 22nd February 2016 at 09:35 AM by rjm

A while back I did a series of blogs on voltage regulators. Back with a new entry today: The Crystal M, configured here for 40 V DC output and a 25 mA load.

The circuit is based on two p-channel MOSFETs, the top one is a constant current source, the bottom one a constant voltage source. As the load current changes, the voltage source adjusts its current to balance.

It's lifted directly on the Salas shunt design (as reworked by me for my own jFET phono stage), but the circuit can also be considered a distant, DC-coupled relative of the Zen amp.

I trick, I discovered, to getting it to work nicely - the attached screencap shows it well-behaved while handling a full-swing output current pulse - is the source resistor R10. This resistance dials-down the current gain of the MOSFET, damping out the overshoot.
