Finally - a cheap FLAC player with digital out

Posted 8th February 2017 at 01:30 PM by abraxalito
Updated 24th May 2017 at 01:05 AM by abraxalito

I've been looking for something like this on Taobao for a few years now. A cheap player which includes a digital output so I can pair it up with one of my DACs. There have been cheap players, and there have been FLAC players but never cheap FLAC players - the cheapest prior to this one being a media player around 500rmb. This one goes into the pocket change category as its just 88rmb. What's more it includes Bluetooth. Order placed - will update after I've played with it.

https://item.taobao.com/item.htm?spm...cket=18#detail

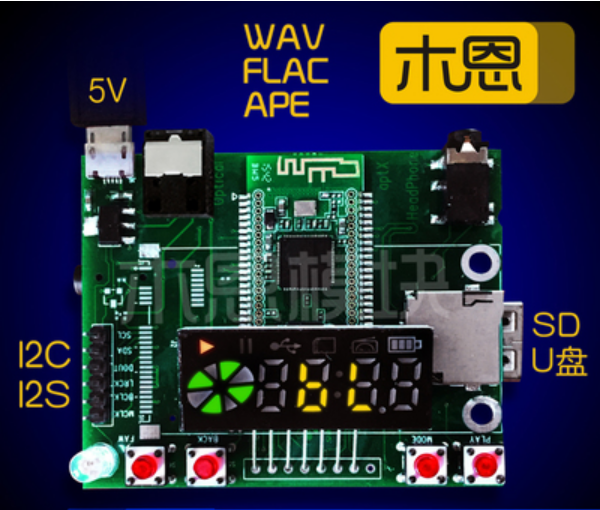

Just received this - the heart of the beast is the Actions Semi ATS2825, some information about its features is available here : https://www.actions-semi.com/en/productview.aspx?id=195.
Whereas a connector for headphones (top right) is shown on the photo, this doesn't support any analog out (my board has no connector fitted there). Its purely digital output - a header for I2S and...
Attached Thumbnails
Click image for larger version

Name:	FLACplayer.png
Views:	359
Size:	340.5 KB
ID:	2240
abraxalito's Avatar
diyAudio Member
Posted in Uncategorized
Views 864 Comments 4 abraxalito is offline
Old

Sanwu FLAC and Bluetooth player has a significant flaw

Posted 16th March 2016 at 12:59 AM by abraxalito
Updated 17th March 2016 at 03:18 PM by abraxalito

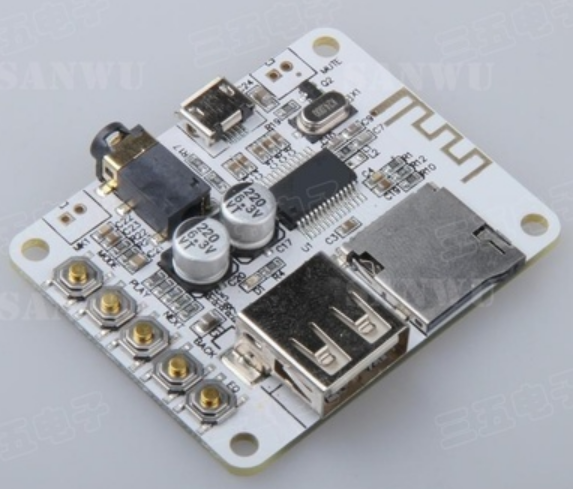

I was going to write a post praising this player for the superb value for money (its the only cheap single-chip FLAC player I've found) but this morning it produced an alarming series of whistles and pops from what I presume is a corrupt file on my TFcard. So now its only recommended if you're sure you have perfect data on your card - it doesn't seem to mute the audio when an error is found.

Apart from this major howler at just 30rmb its great, providing as it does FLAC, WAV and mp3 support along with Bluetooth running from a USB power source at 5V. The audio performance is decent when run through my modified XuanZu headamp as preamp - the level is rather low otherwise and I suspect it needs a high-impedance buffer for best dynamics.

I put the TFcard which gave the player hiccups into my PC reader and uploaded the 'problem' file to Audacity. No glitches noticed there so looks like I might have to dig a bit deeper to find out what went wrong. I shall try playing...
Attached Thumbnails
Click image for larger version

Name:	sanwuflac.png
Views:	1597
Size:	303.8 KB
ID:	1838
abraxalito's Avatar
diyAudio Member
Posted in Uncategorized
Views 3205 Comments 4 abraxalito is offline
Old

An LC filter for supplying a line stage

Posted 19th February 2016 at 01:33 AM by abraxalito
Updated 22nd February 2016 at 01:51 AM by abraxalito

I've designed LC filters for classAB amp power supplies before - for those applications iron powder toroids work fine for the Ls. However for the power supply in my latest DAC design I wanted more supply rejection and this calls for higher value inductors - in the tens of mH. Creating a 10mH inductor on a toroid takes way too long and is hugely fiddly as the wire length needed is substantial and I don't have any specialized winding machine. So toroids are really out of the question at such values.

I have some largeish inductors in the right range wound on bobbin cores but when I checked the DCR it was a little high, 20ohms or so. As I might need up to 100mA, a 2V drop is too great. In any case, in LTspice this resulted in rather an overdamped response - what I really needed is something in the range 1 to 2 ohms. The solution seemed to be use ferrite cores of the kind normally used to make transformers. Which means breaking a kind of informal rule I made for myself about not...
Attached Thumbnails
Click image for larger version

Name:	4thLC.jpg
Views:	263
Size:	22.4 KB
ID:	1802   Click image for larger version

Name:	P60222-085432.jpg
Views:	230
Size:	399.1 KB
ID:	1808
abraxalito's Avatar
diyAudio Member
Posted in Uncategorized
Views 654 Comments 0 abraxalito is offline
Old

Highly affordable digital audio CPU board

Posted 8th January 2016 at 04:02 AM by abraxalito

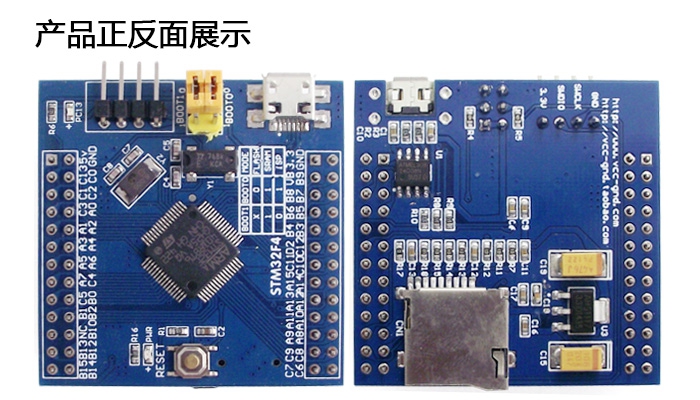

STM's lowest cost ARM Cortex M4 CPU is now available on a very low cost evaluation board here - https://item.taobao.com/item.htm?spm...cket=13#detail

Its quite a good fit for audio purposes because there are a couple of I2S interfaces with a dedicated audio PLL. There's plenty of RAM (64k) and according to the benchmarks, it'll do the equivalent of around 100MIPs. Its also respectably low power when running out of RAM - use the flash memory accelerator though and its not quite so frugal.
Attached Thumbnails
Click image for larger version

Name:	STM32F401board.jpg
Views:	285
Size:	230.7 KB
ID:	1768
abraxalito's Avatar
diyAudio Member
Posted in Uncategorized
Views 702 Comments 0 abraxalito is offline
Old

BBftB headphone amp PSU

Posted 14th October 2015 at 02:57 AM by abraxalito

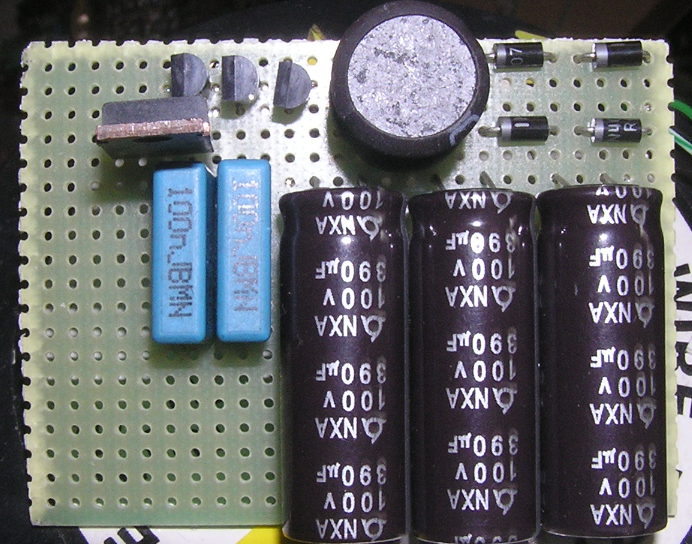

Here's the power supply I've lashed up to feed the balanced SE classA amp.

Its fed from a 5VA EI transformer with a 65VAC secondary. One 390uF cap follows the rectifier, then there's a 30mH choke, two 390uF caps beyond that.

A series regulator is made from a string of 3 TL431s as reference (the max from a single one is 36V - I've gone for a total of 78V) and that's followed by a 2SK213 simply because I had no other high voltage transistor to hand. There's an RC filter feeding the gate of the MOSFET to reduce the output noise from the shunts (68k,200nF).

Output ripple isn't visible on my scope but I plan to feed the output into my AC millivoltmeter and see what its giving out in terms of noise.
Attached Thumbnails
Click image for larger version

Name:	BBftBpsu.png
Views:	235
Size:	699.6 KB
ID:	1745
abraxalito's Avatar
diyAudio Member
Posted in Uncategorized
Views 820 Comments 2 abraxalito is offline
Old

Taobao headphone amp is an FX box

Posted 14th September 2015 at 01:19 PM by abraxalito

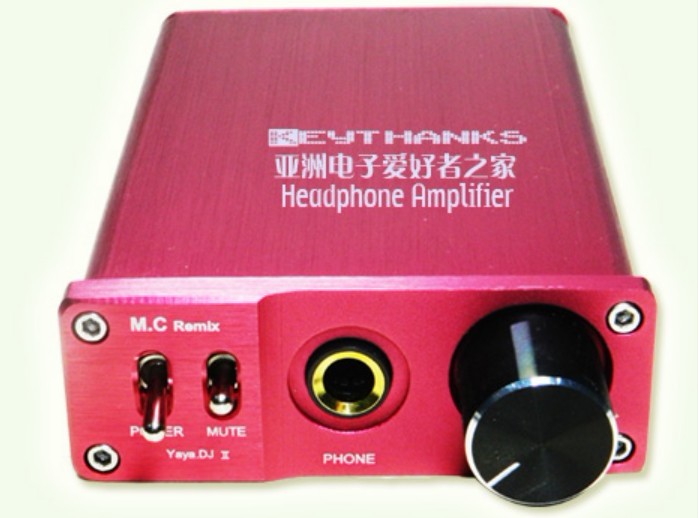

I bought this amp because the case attracted me - no pics on the Taobao page were giving away anything about the insides, quite unusual. After receiving it I couldn't resist having a quick listen and it turns out its a hardwired tone control with bass and treble turned up to the max, about +16dB wrt 1.3kHz. What a surprise! - no matter as I was going to strip out the innards anyway to use as a test platform for my amp.
Attached Thumbnails
Click image for larger version

Name:	fxb.jpg
Views:	229
Size:	59.5 KB
ID:	1716
abraxalito's Avatar
diyAudio Member
Posted in Uncategorized
Views 618 Comments 0 abraxalito is offline
Old

Can you identify this opamp from its simplified schematic and PSRR plot?

Posted 10th September 2015 at 01:28 AM by abraxalito
Updated 21st September 2015 at 12:23 AM by abraxalito

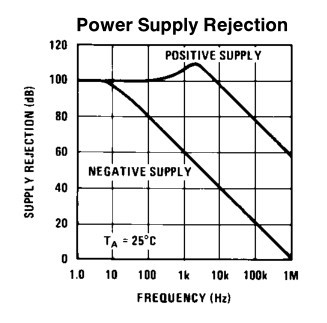

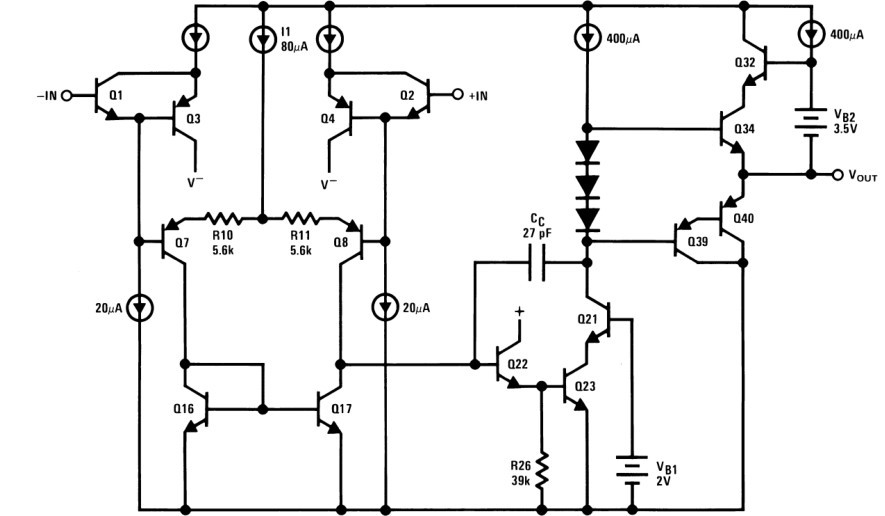

In my search for opamps with better real-world PSRR behaviour, I came across this beauty. For now I'll just post up its simplified schematic and PSRR plot - if any of you know of it please put your deduction in the comments. I may add more clues later if nobody nails it early on.

The reason I find this part interesting is its cascoded output stage - I believe this is what leads to the 'hump' in the positive rail PSRR. I've never seen that behaviour on any other device.

Well over a hundred views now and not one single stab at the answer. Its the industrial-strength version of the now obsolete LM308, a Bob Widlar special with super-beta input stage. The output stage cascode I take it isn't primarily to improve the PSRR rather its due to the high maximum operating voltage (72V). TI does still have the DS on its website though it doesn't put in an appearance in parametric search as its been obsolete for a while. Even more interesting is its decompensated variant which...
Attached Thumbnails
Click image for larger version

Name:	exhibitA.jpg
Views:	562
Size:	57.2 KB
ID:	1713   Click image for larger version

Name:	exhibitC.jpg
Views:	527
Size:	25.9 KB
ID:	1715
abraxalito's Avatar
diyAudio Member
Posted in Uncategorized
Views 893 Comments 1 abraxalito is offline
Old

Headphone amps designed for PSRR

Posted 28th August 2015 at 04:38 AM by abraxalito
Updated 6th September 2015 at 10:57 PM by abraxalito

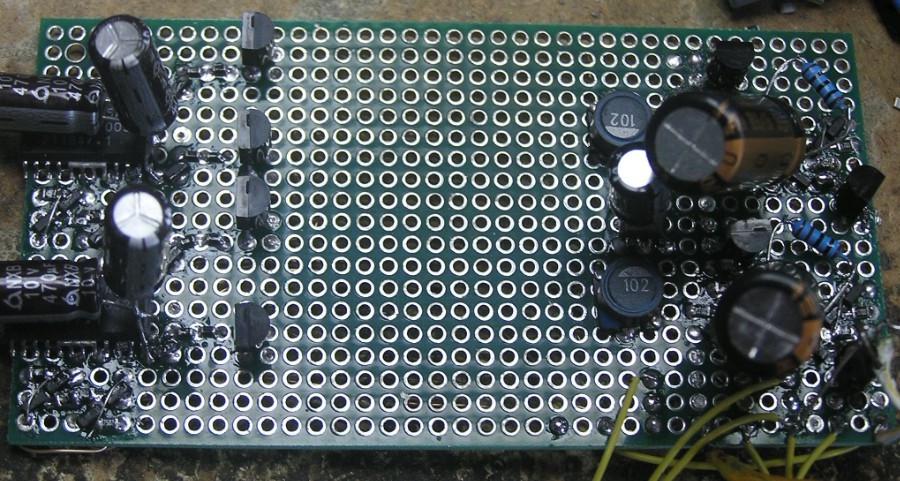

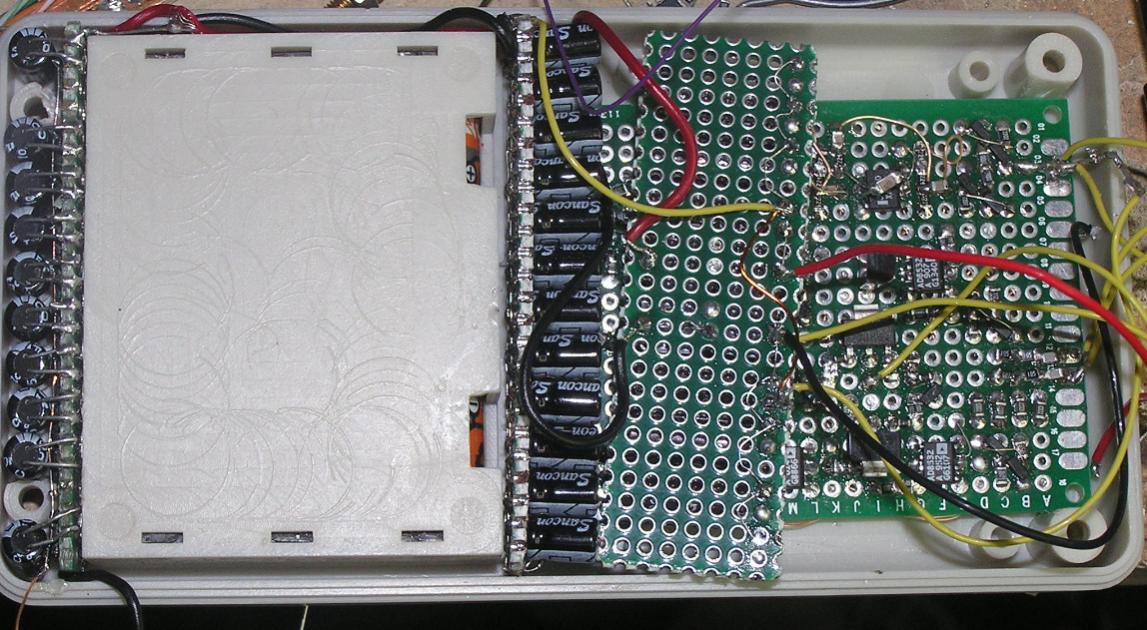

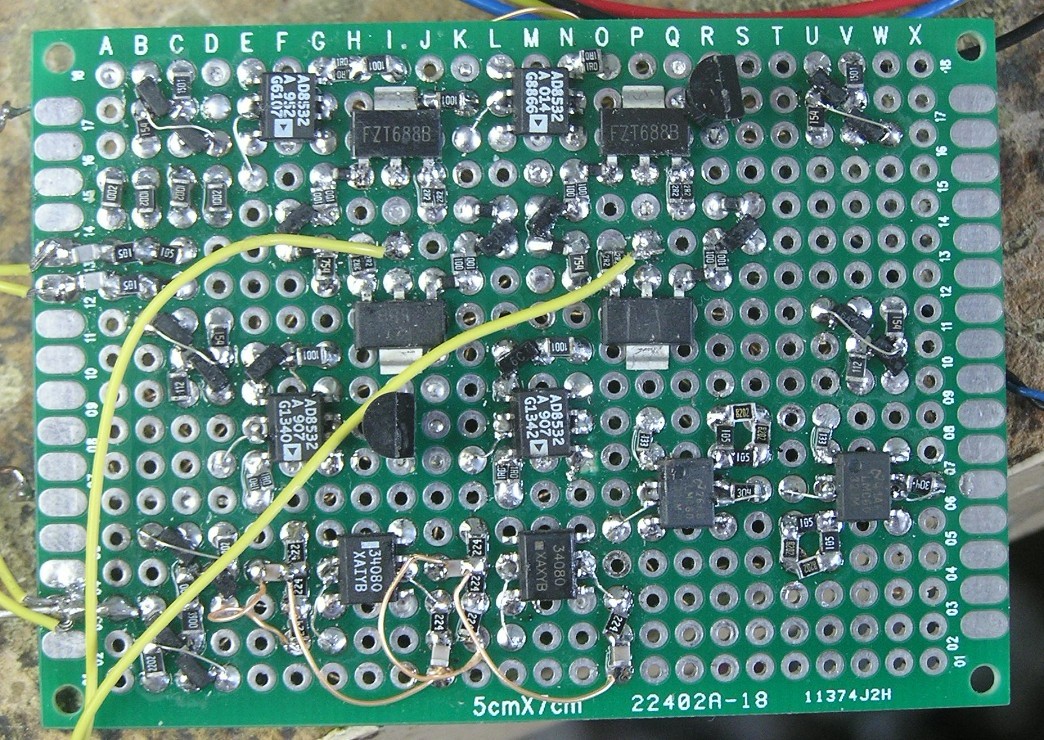

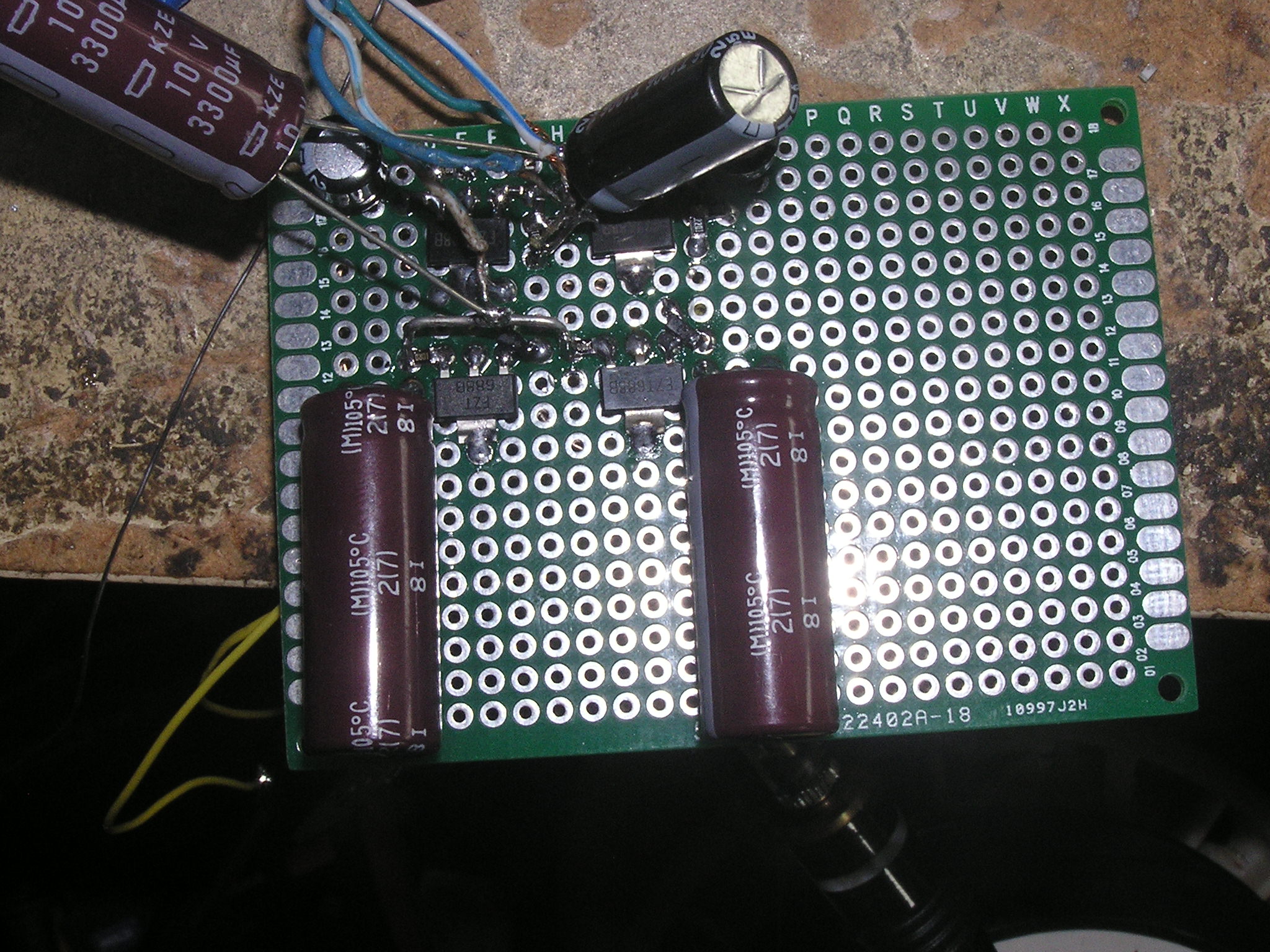

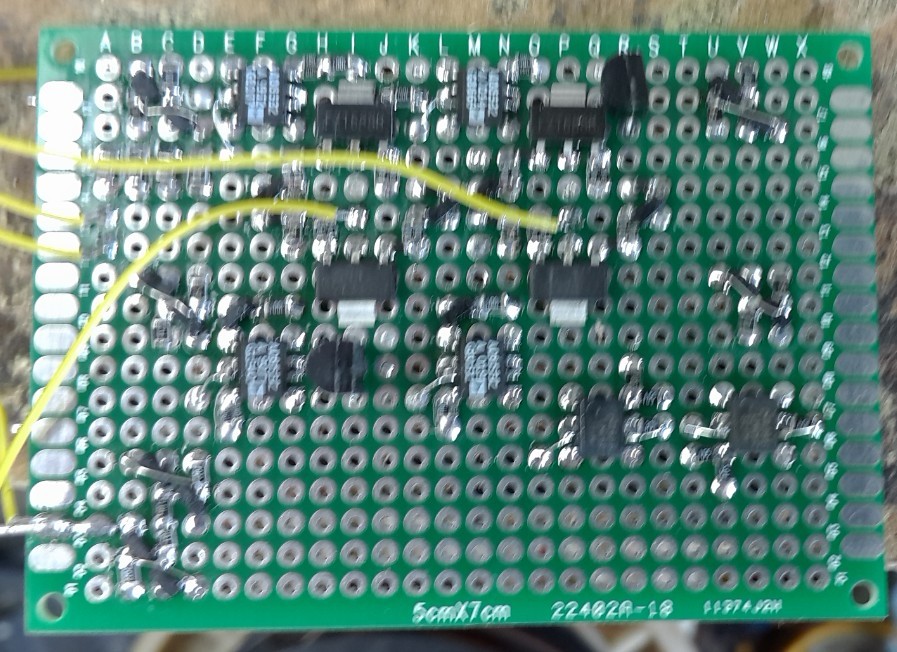

Since acquiring and modding my Taobao headphone amp I've been enamoured of creating a much more portable headphone solution to deliver aural nirvana but on the move. Whereas transformers are a very practical solution for a desktop amp, steel and copper is not only bulky but also jolly heavy and hence a no-no for anything pocket-sized.

How else to get the dynamics I'm seeking though? For these amps I'm toying with different solutions to getting better PSRR, particularly in the all-important bass region which tends to suffer in commercial portable amps. The OPS (output stage) is what needs most attention in any classAB amp - the signal stages can all be classA but for efficiency (and hence battery life) the output stage can't be conducting all the time.

A fully discrete output stage where the output devices are cascoded looks to be one solution but initially I'm looking for a simpler, more cost-effective solution with lower overhead on the supplies if possible....
Attached Thumbnails
Click image for larger version

Name:	psrrprots.jpg
Views:	133
Size:	197.3 KB
ID:	1693   Click image for larger version

Name:	P1010018.JPG
Views:	175
Size:	676.8 KB
ID:	1695   Click image for larger version

Name:	3genHA.jpg
Views:	186
Size:	199.8 KB
ID:	1700   Click image for larger version

Name:	3agenHA.jpg
Views:	146
Size:	350.7 KB
ID:	1701
Attached Images
File Type: jpg PRv1.jpg (154.6 KB, 795 views)
abraxalito's Avatar
diyAudio Member
Posted in Uncategorized
Views 850 Comments 0 abraxalito is offline
Old

Cost optimized active crossover

Posted 7th April 2015 at 07:03 AM by abraxalito

I've driven the BOM cost of this board down quite hard by choosing some 'disrespected' opamps to build it around - TL084s. They go for 0.5RMB on Taobao (about $0.08, same as a recycled TDA1387). Listening so far is positive but I've got no audiophile opamp reference to check it against. In terms of bang for the buck though, its going to be very hard to beat. All filter caps are NP0 ceramics, resistors are bog-standard thick film 0805s.

What's different about this build for me is its fully balanced and classA operation in order to cancel power supply noise. To get classA operation from TL084s means the feedback/filter networks must be very high impedance so as to draw under 100uA peak currents. Opamps aren't used as output buffers, rather I've gone for emitter followers loaded by two-transistor CCSs.

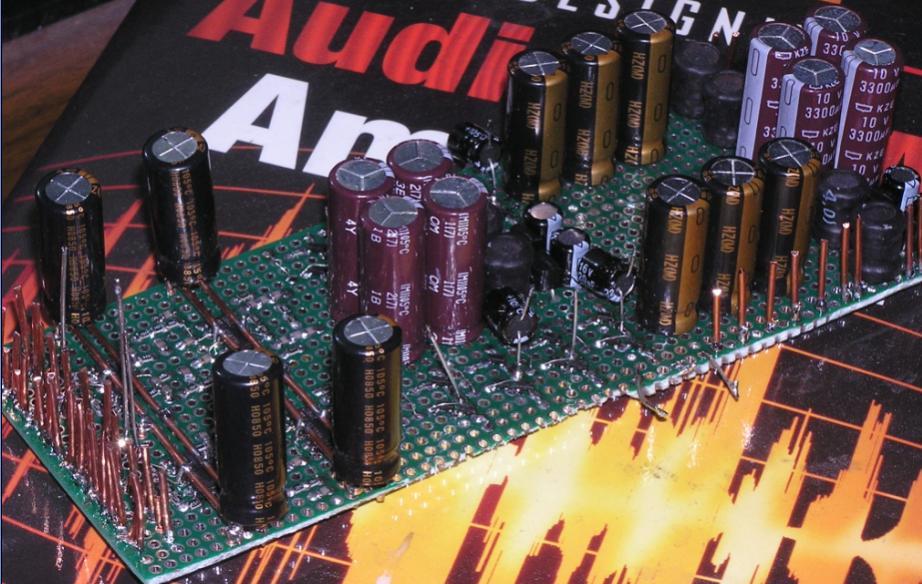

The picture is my second prototype, using the best (aka lowest ESR) caps I could get hold of - Nichicon HZ and Nippon Chemi KZE. All the copper wires sticking up around...
Attached Images
File Type: jpg MkIIAXO.jpg (103.6 KB, 238 views)
abraxalito's Avatar
diyAudio Member
Posted in Uncategorized
Views 852 Comments 0 abraxalito is offline
Old

Supercapacitor b*ll*cks

Posted 16th February 2015 at 12:50 AM by abraxalito
Updated 6th September 2015 at 05:28 AM by abraxalito (Red Wine it isn't, just the same designer)

Here's something very misleading in the 6moons preview of Vinni Rossi's (of Red Wine Audio fame) latest supercapacitor powered kit. They have 18 * 350F supercaps in the box and they say '...the total rating becomes a whopping 6300F'. However each capacitor is only 2.7V so presumably to get any audio signal at all out, they need to operate these caps in series. Caps in series don't multiply, they divide so the total capacitance drops by a factor of 18. Hence only 19.4F. Not a small difference from 6300F or did I miss something?

https://www.6moons.com/audioreviews2/vinnierossi/3.html (the text at this link has since been updated to remove the 'total rating...whopping' remark).

I think I may have missed something - they aren't using all the supercaps all the time, rather there are 9 discharging and 9 charging. So the total capacitance in the audio circuit at any time is 350/9 = 39F. Still an impressive amount of capacitance but the problem is that the ESRs add too....
abraxalito's Avatar
diyAudio Member
Posted in Uncategorized
Views 1649 Comments 9 abraxalito is offline
