Wayne's BA 2018 linestage

[mpmarino]

For reference..

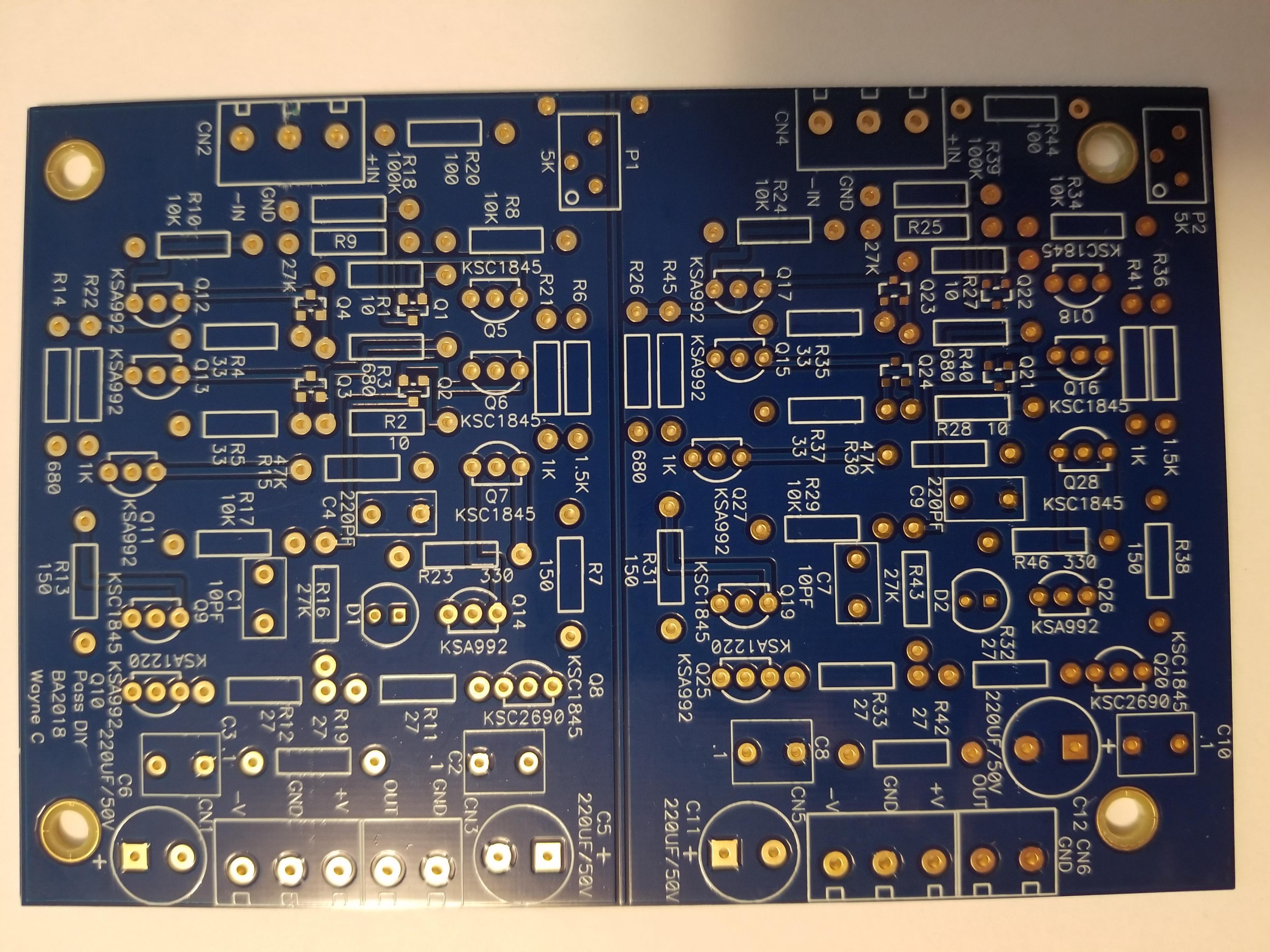

As delivered from the DIY store.



[6L6]

Ooohh!! That looks great! (I haven’t received my blue one yet.)



[flamethrower1]

Received mine as well, looking forward to this build



[poseidonsvoice]

That stereo/mono balanced board looks great! Something for me to order in the future (for a balanced build of course).

Special thanks to 6L6 for sending me the pink boards for my Wayne BA2018/MOFO build.

Best,
Anand.



[Russellc]

I received my board today too, along with keratherm for making my Aleph J and M2 1/2 and 1/2 monoblocks.

Russellc



[Mod Man]

Was there a Bill of Materials for Wayne's preamp? I can't seem to find one and I thought I remembered having one. Maybe 6L6 provided all the parts for the BA boards and we didn't need one???



[6L6]

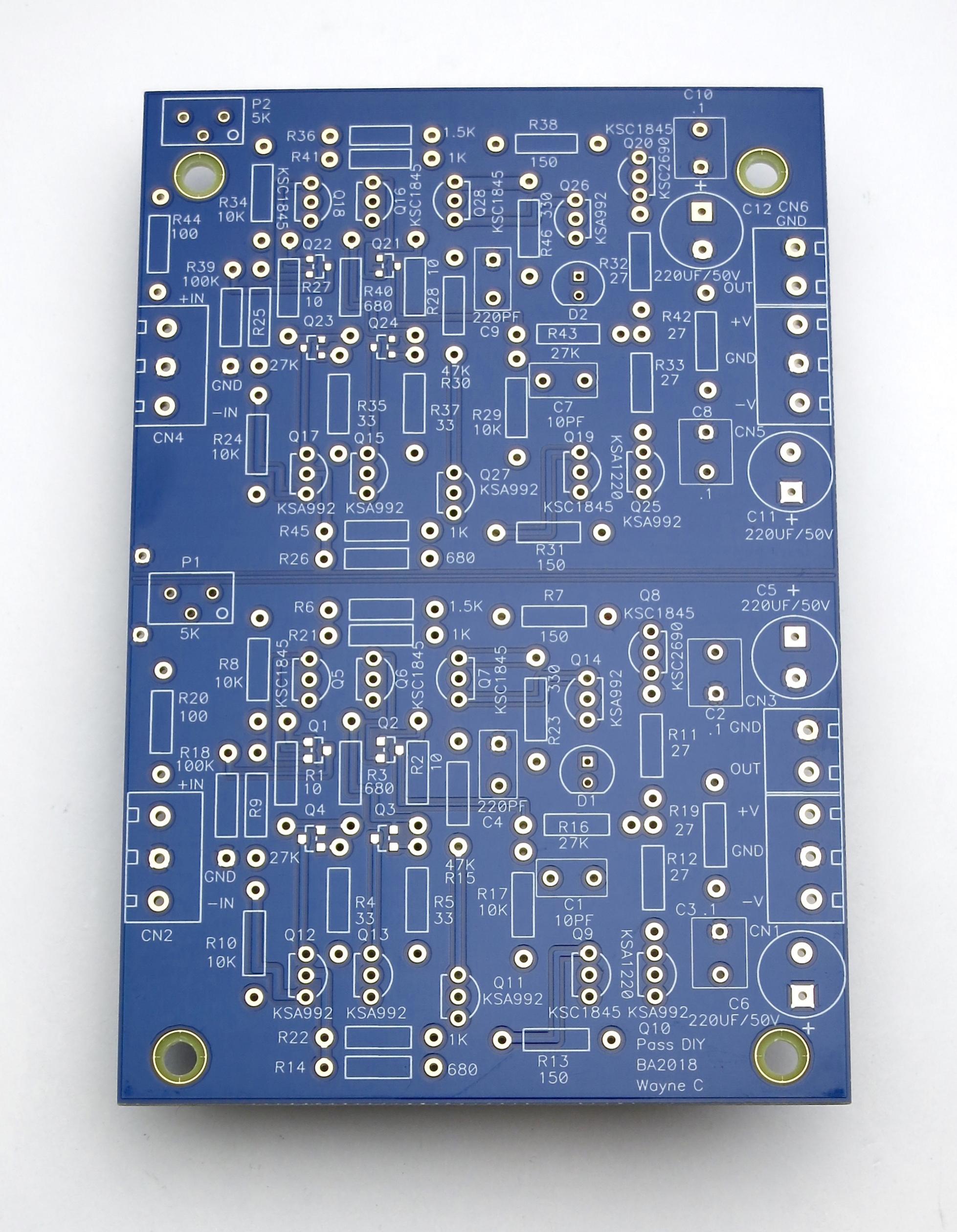

Here's a good photo of the stereo PCB from the store.



[Dudeisms]

Was there a Bill of Materials for Wayne's preamp? I can't seem to find one and I thought I remembered having one. Maybe 6L6 provided all the parts for the BA boards and we didn't need one???

6L6 did kits back then.



[avdesignguru]

Just ordered parts from Digi-Key (Mouser Is out of stock on the NPN transistors). Here's my BOM:

https://www.digikey.com/BOM/Create/CreateSharedBom?bomId=8225410

Note: part numbers are one channel but quantities are both channels



[poseidonsvoice]

avdesignguru,

You sir are a gentleman! Thanks!

Best,
Anand.



[twitchie]

@avdesignguru - change the KSA992 to this one to match the KSC1845 in shape (bent legs) as well as hFE (C-grade)

KSA992FTA ON Semiconductor | Discrete Semiconductor Products | DigiKey



[avdesignguru]

Good catch. Thank you. Done.



[pfarrell]

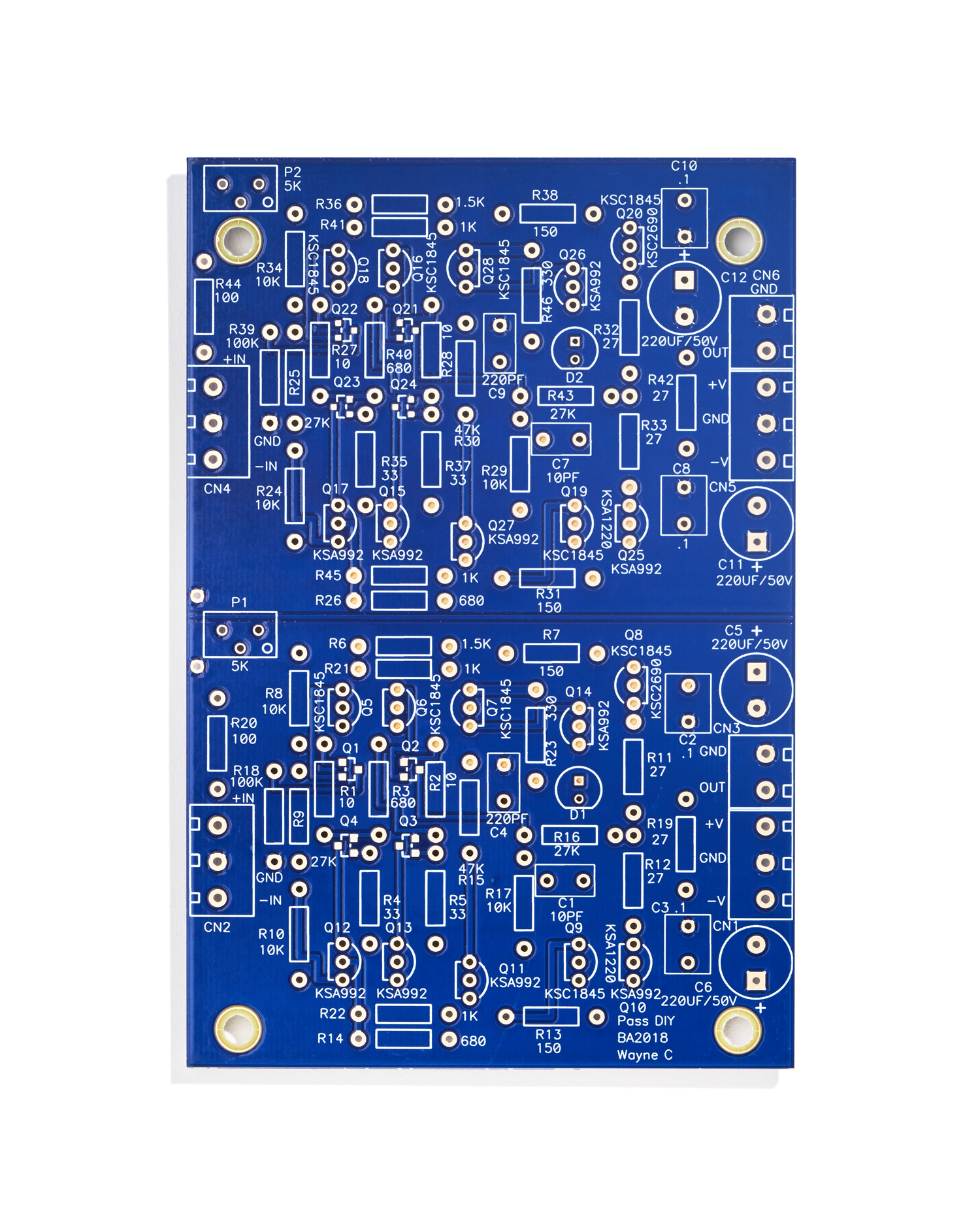

Image for the store....Glorious!



[6L6]

Ooohhhhh!!!! Very nice!!



[twitchie]

Just out of curiosity ... is the shadow real or 'added'? The bottom left corner looks sharp but the other 2 corners look rounded. In any case, beautiful indeed!

Will it drive an F4? (don't need to answer that)



[6L6]

To clipping? No. This has gain of about 4. (12db)



[pfarrell]

Just out of curiosity ... is the shadow real or 'added'? The bottom left corner looks sharp but the other 2 corners look rounded. In any case, beautiful indeed!

Thanks!

Shadow is real—you are seeing the dimensional thickness of the board....bottom right and top left corners...



[Adams_Leo]

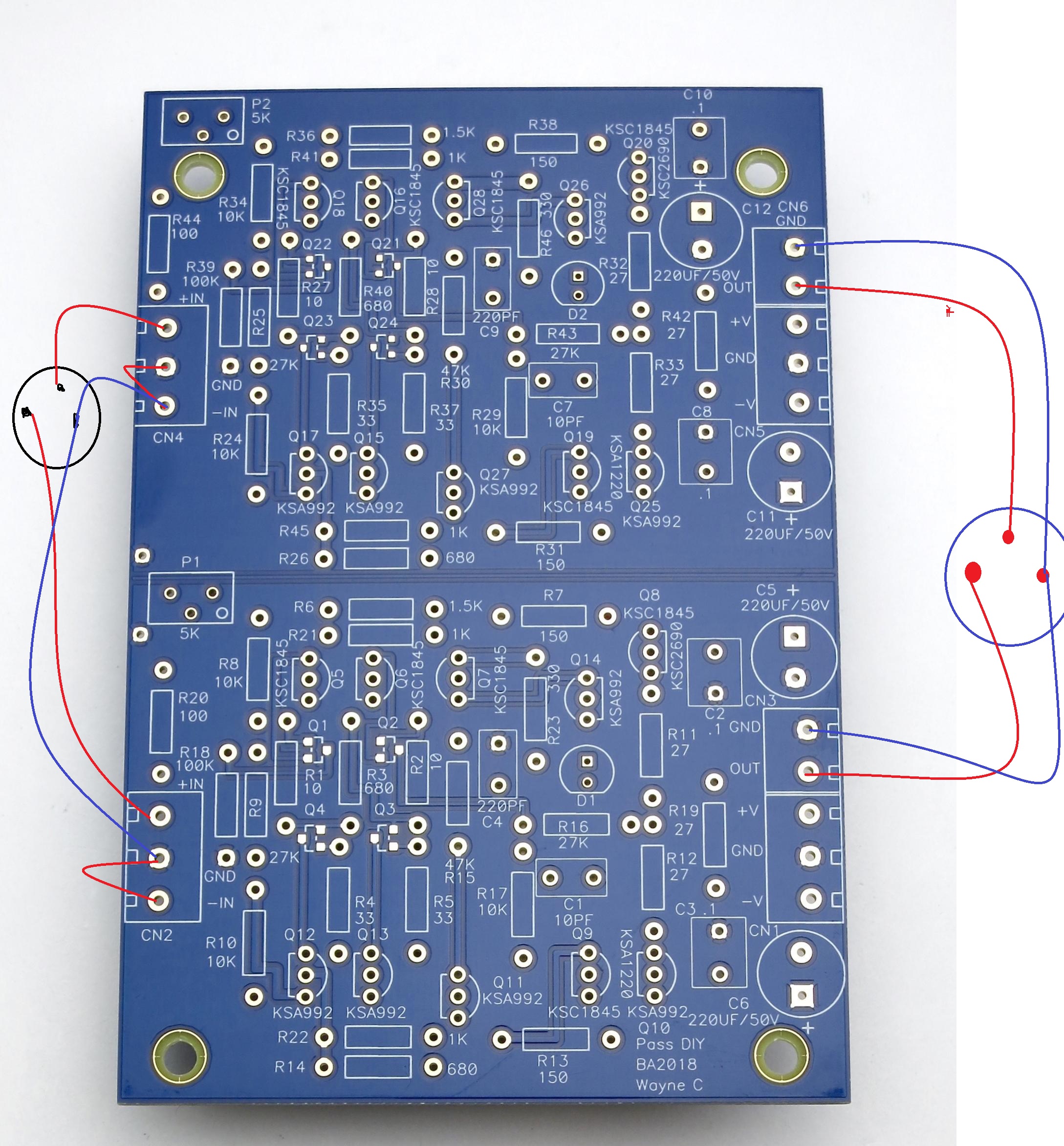

a little bit confuse,how to run the banlance connection? I mean banlance input and output.did it like wire connections?
Best Regards
leo



[wayne]

That will work.



[Gaz2613]

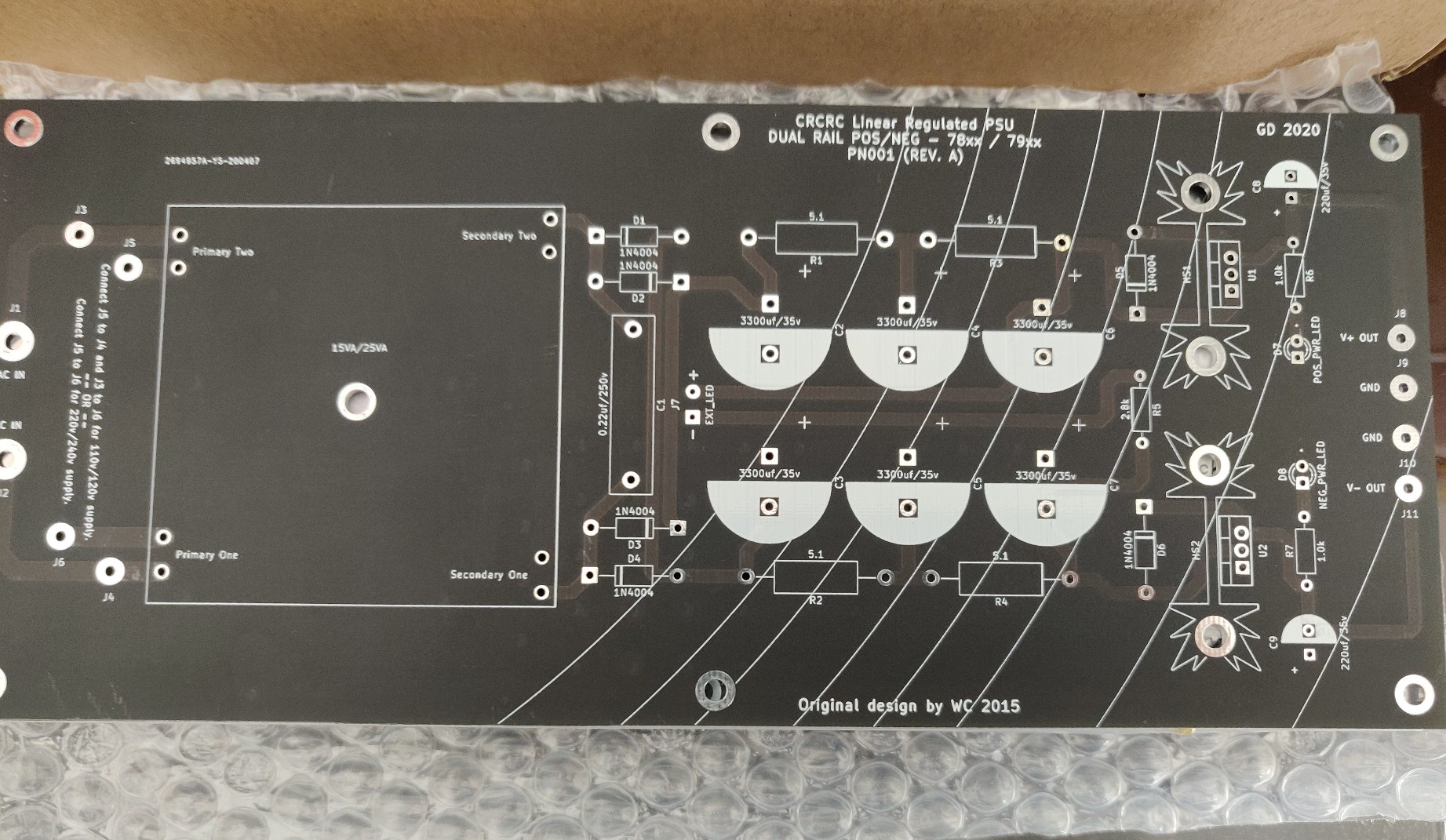

I got the PSU boards today from the fab house but it looks like one of their machines malfunctioned while silkscreening the caps. The boards themselves look absolutely fine but I've raised a complaint with them.
