The Holy Grail Follower Output Stage

[lhquam]

I have plenty of more work to do:
There will be a BOM and Build Guide for the "baseline" implementation of the ZD25-Mini which has no unnecessary components.
The complete Build Guide will explain optional connectors and ways to use the PCB.



[ACnotDC]

PayPal and PM sent



[lhquam]

Hi @lhquam

Thanks for the list.

Are the shipping fees of $26 usd accurate, I’m finding it odd that it’s cheaper to send your package to Australia and Europe at $22…Canada and US are neighbours after all. Thanks.

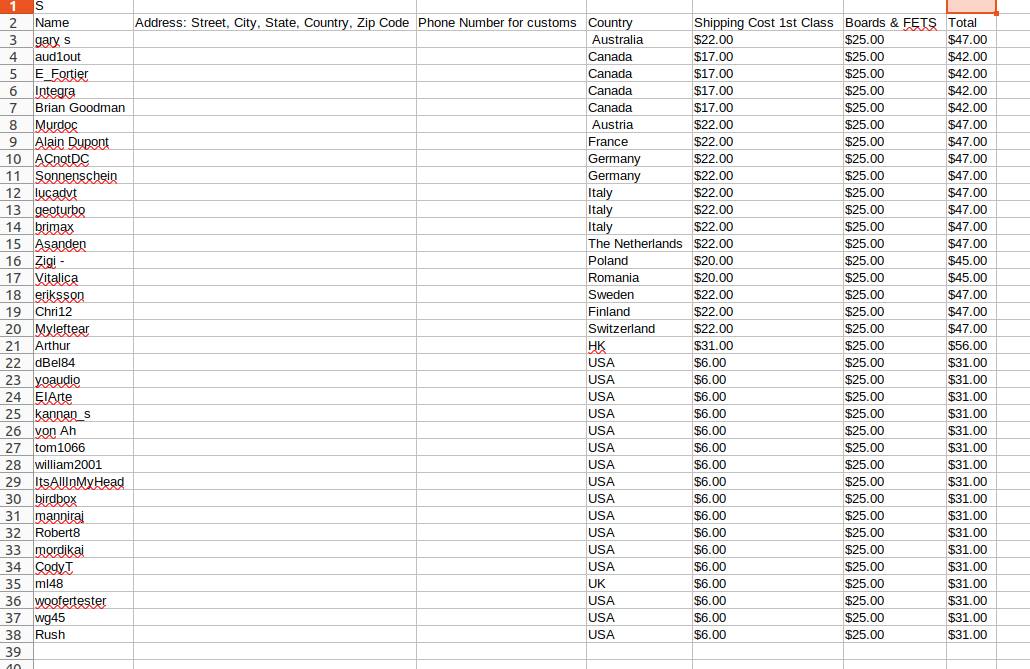

You were correct. The shipping fee for Canada should be $17, not $26. Here is the corrected spreadsheet.



[yoaudio]

Payment sent.



[e_fortier]

Payment and PM sent.



[Zen Mod]

Boyz, don't forget some Beer money



[arthur]

Hi
Please check my payment and pm
THANKS



[yoaudio]

Boyz, don't forget some Beer money

Or coffee



[Vunce]

Has anyone tried uploading the gerbers to a boardhouse?

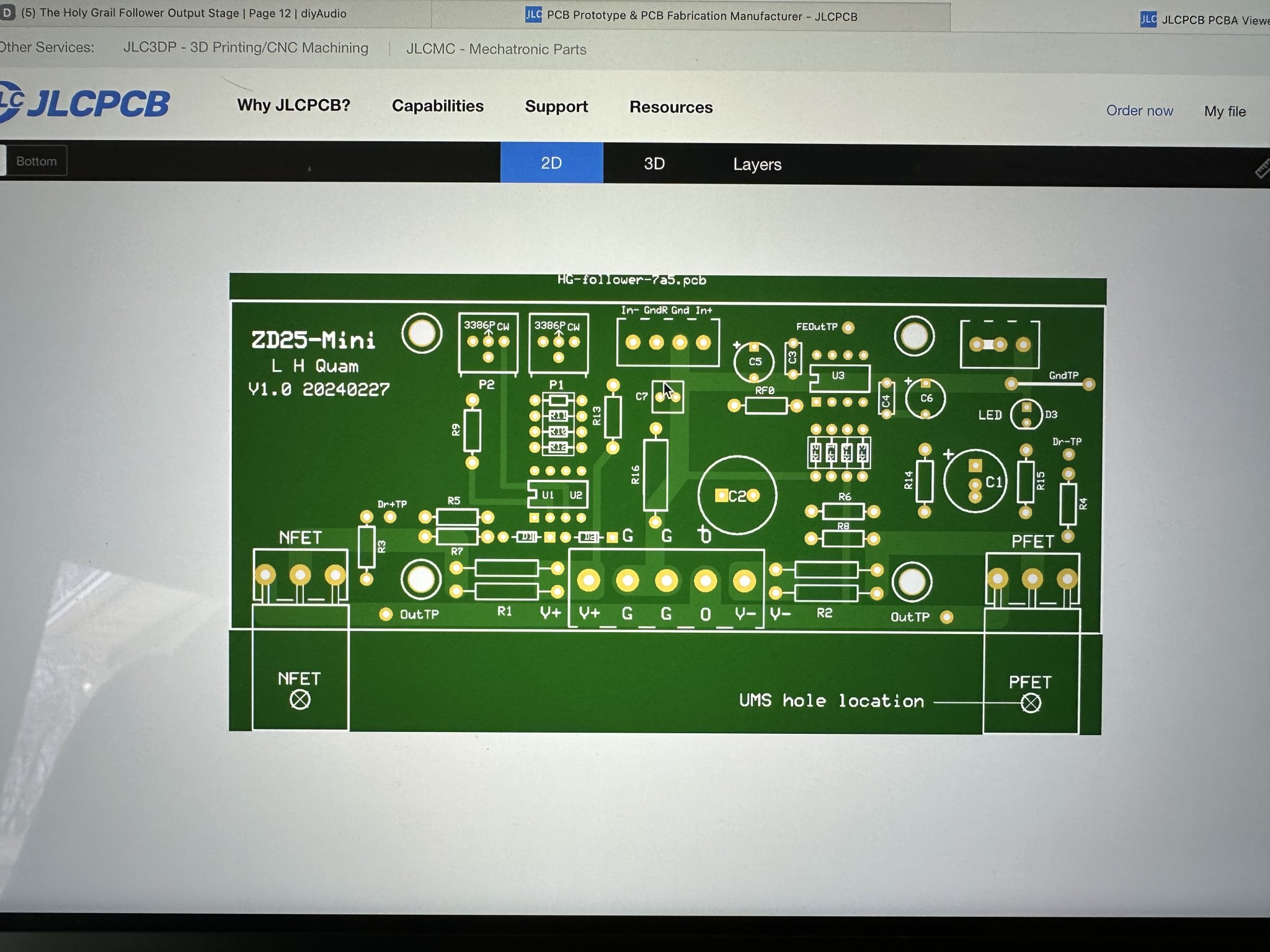

I used JLCPCB and see no component label designators on one set of Gerbers, the other 'JLC' Gerbers has the board outline that includes the dead area the mosfets overhang.



[TungstenAudio]

I uploaded the JLC gerber zip file to JLCPCB. Looks Ok so far. The built-in gerber viewer matched the pics here.



[eriksson]

Payment and PM sent.
I appreciate the work you've put in.



[Vunce]

This is what I see?

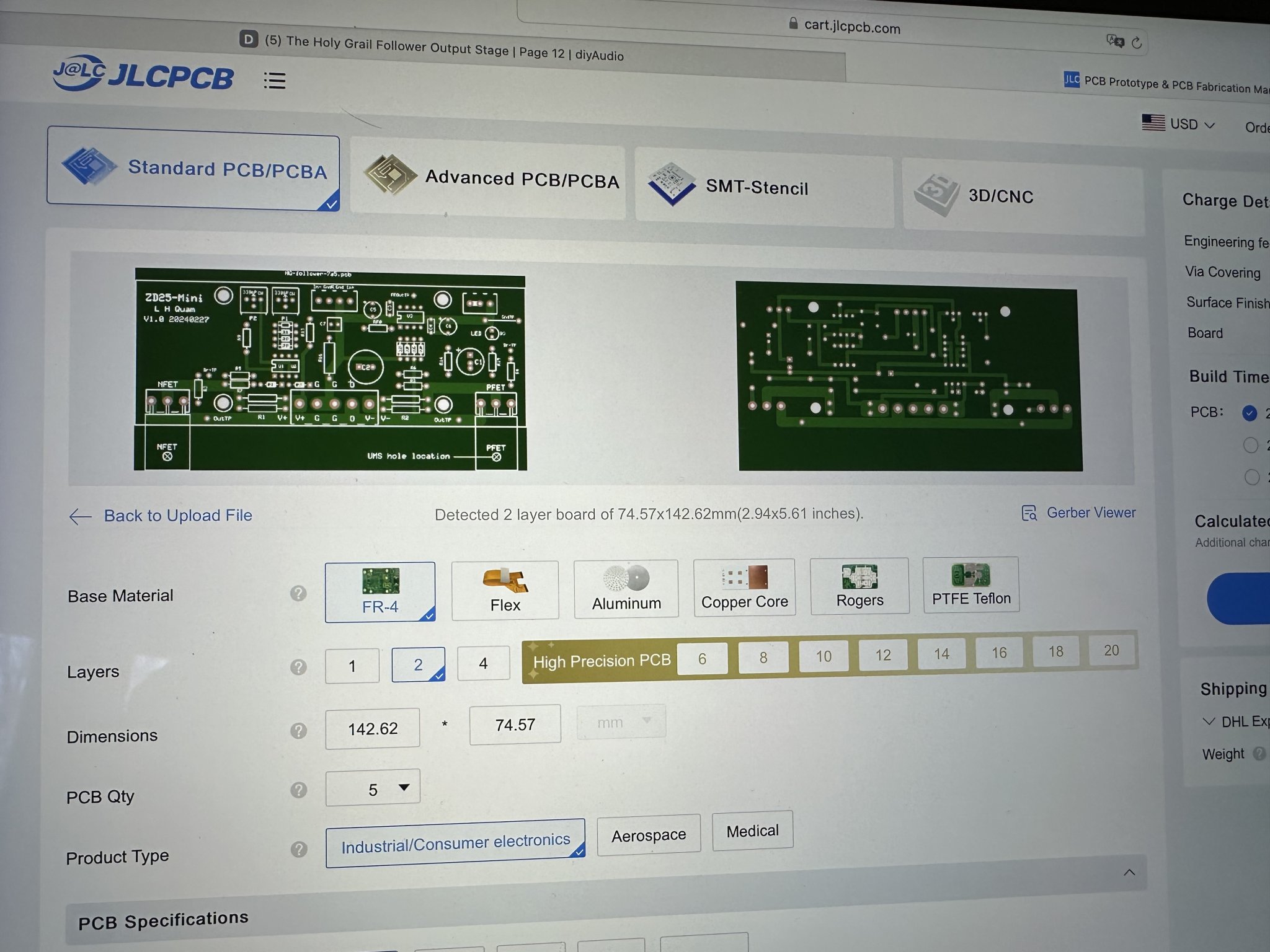

The board height includes the mosfet area. (74.57mm instead of 53.37mm)



[e_fortier]

I see the same thing but I’ve ordered the PCB and FET. Ihquam has ordered 100 PCB so he’s got plenty left.



[lhquam]

Has anyone tried uploading the gerbers to a boardhouse?

I used JLCPCB and see no component label designators on one set of Gerbers, the other 'JLC' Gerbers has the board outline that includes the dead area the mosfets overhang.

I missed that. I will fix the dead area problem.



[Vunce]

Thank You lhquam, no rush. 🙏
I'm sure you have more important things to take care of.



[lhquam]

I checked the JLC-ZD25-Mini.zip Gerber files. My understanding is that JLC uses the .FAB layer for the board outline, which is correct. The silkscreen layer (.SST) does extend outside the board outline.



[Sonnenschein]

Payment sent
Thank you



[brian.goodman]

Payment sent.
Thanks for rechecking the Canadian shipping charges and for your efforts on this project to date.



[gary s]

I have plenty of more work to do:
There will be a BOM and Build Guide for the "baseline" implementation of the ZD25-Mini which has no unnecessary components.
The complete Build Guide will explain optional connectors and ways to use the PCB.

Great work you are doing on this - much appreciated.



[myleftear]

Boyz, don't forget some Beer money

🤜🏻🤛🏻👍🏻
