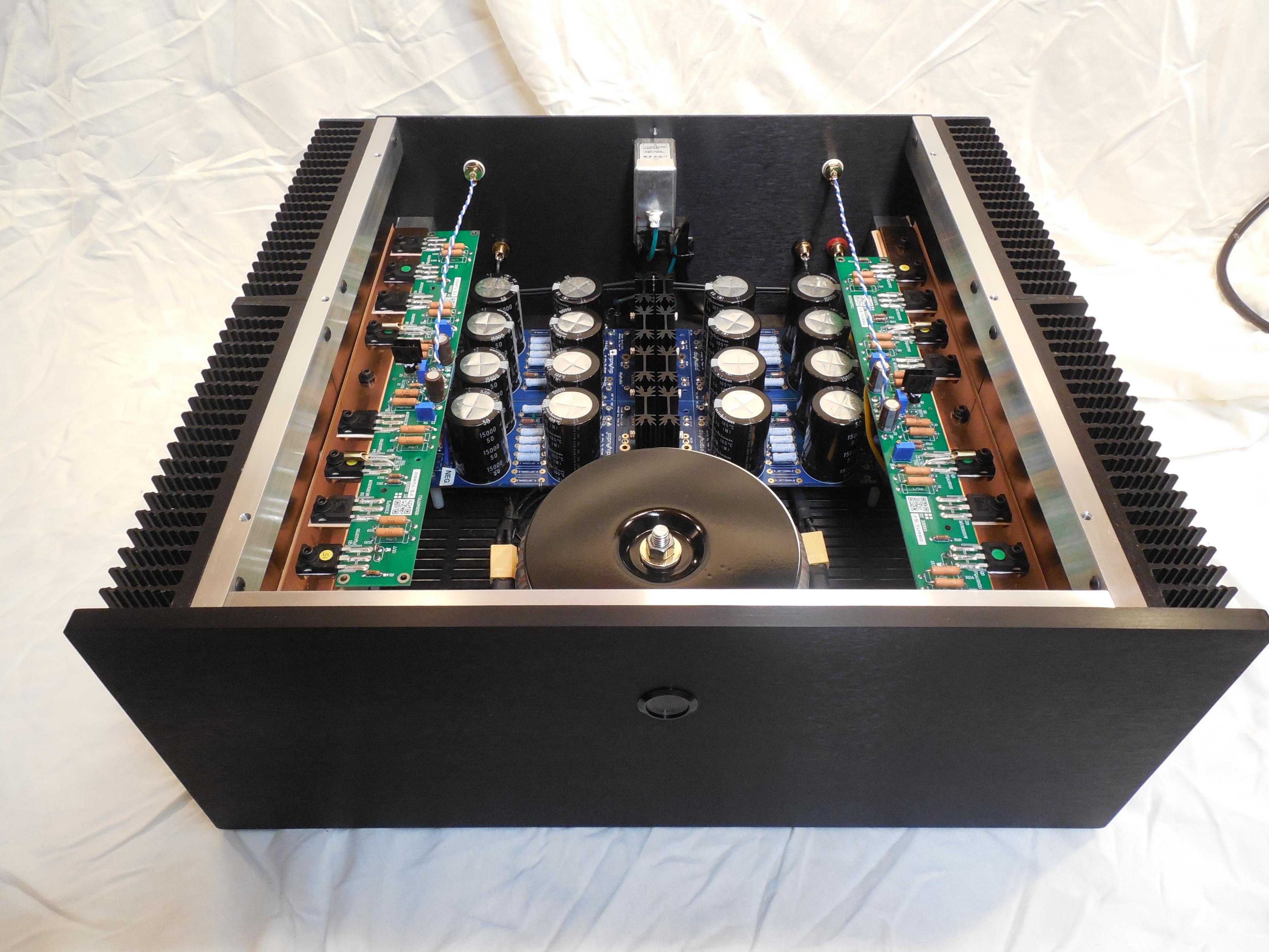

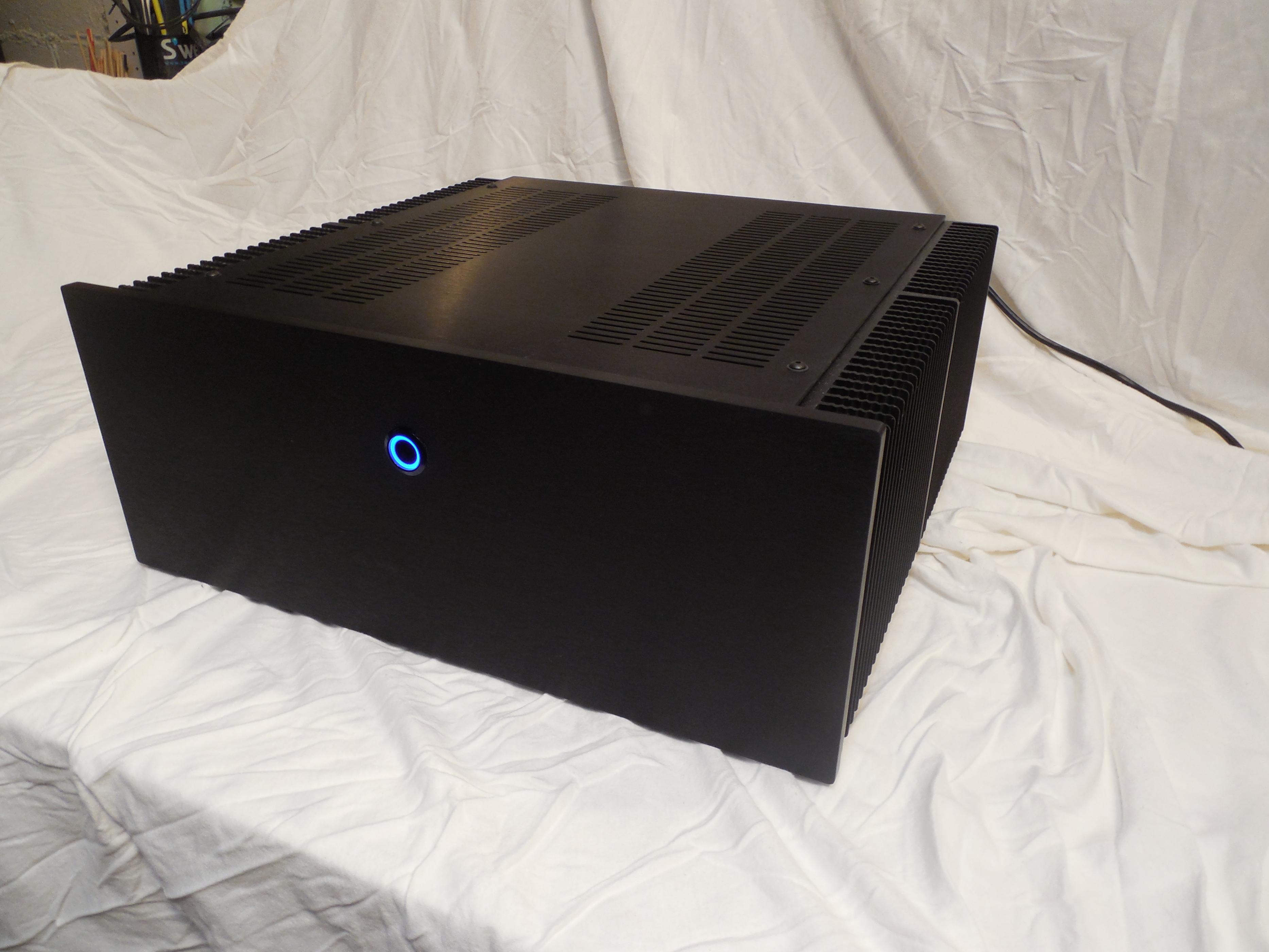

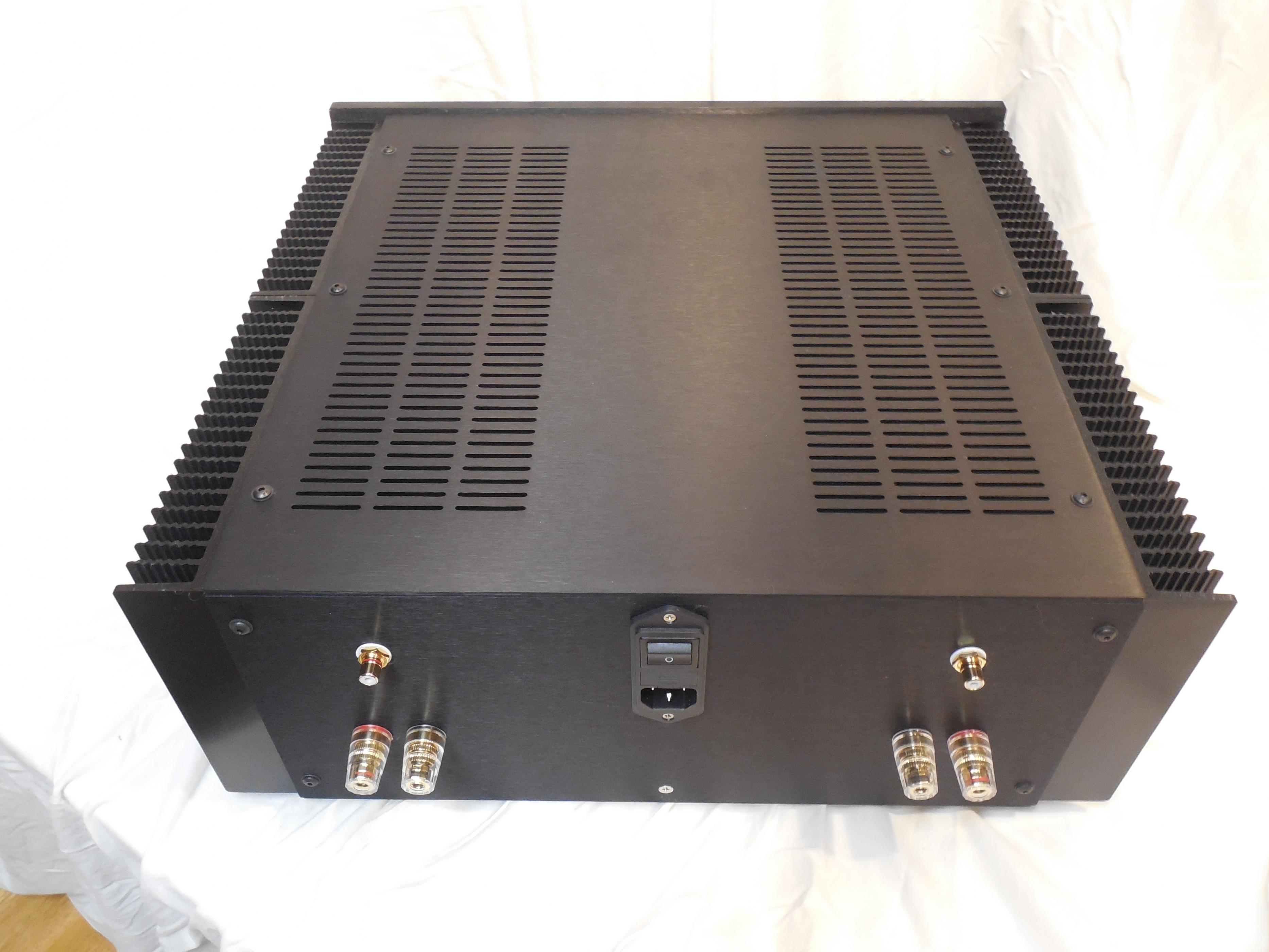

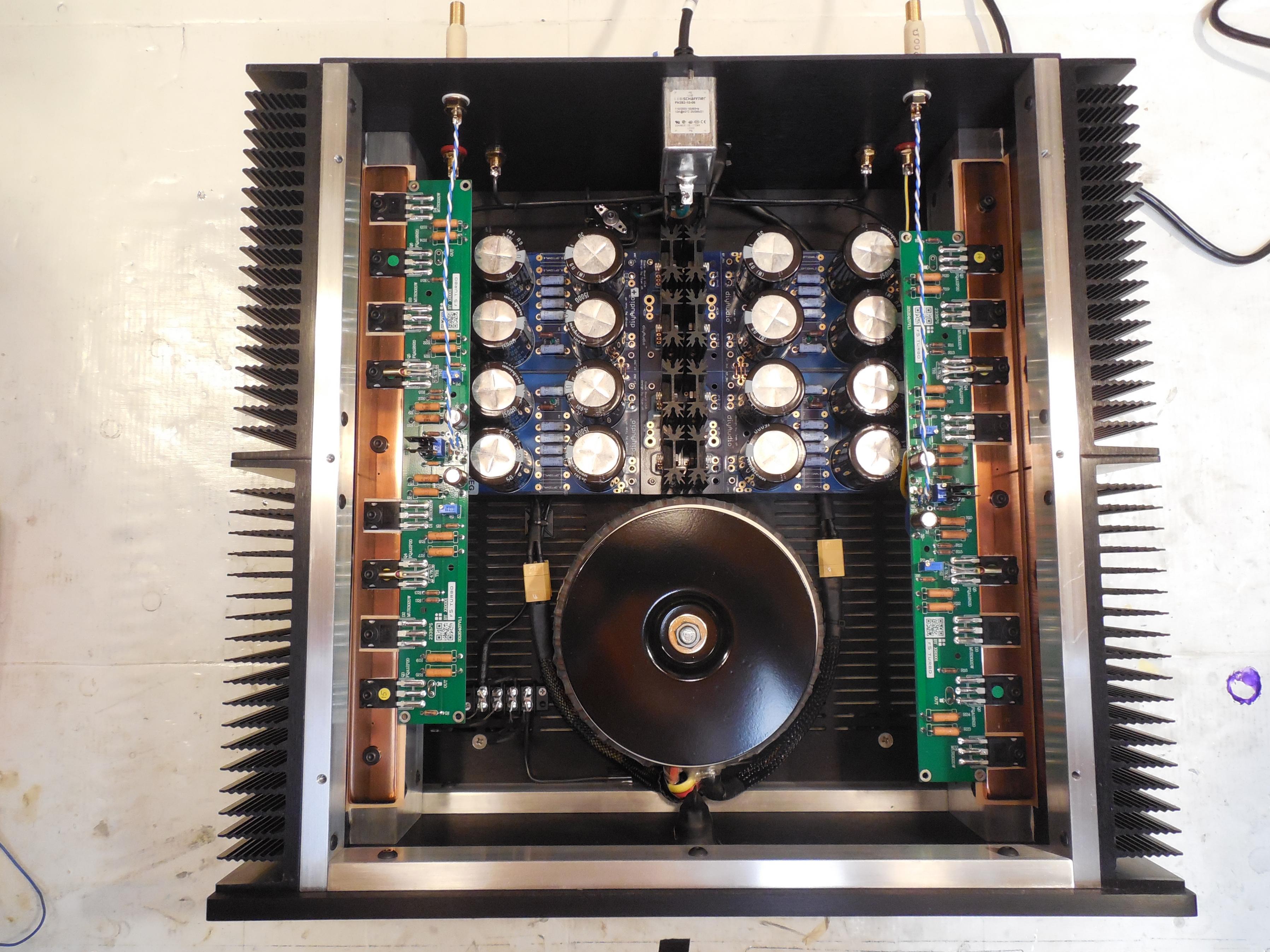

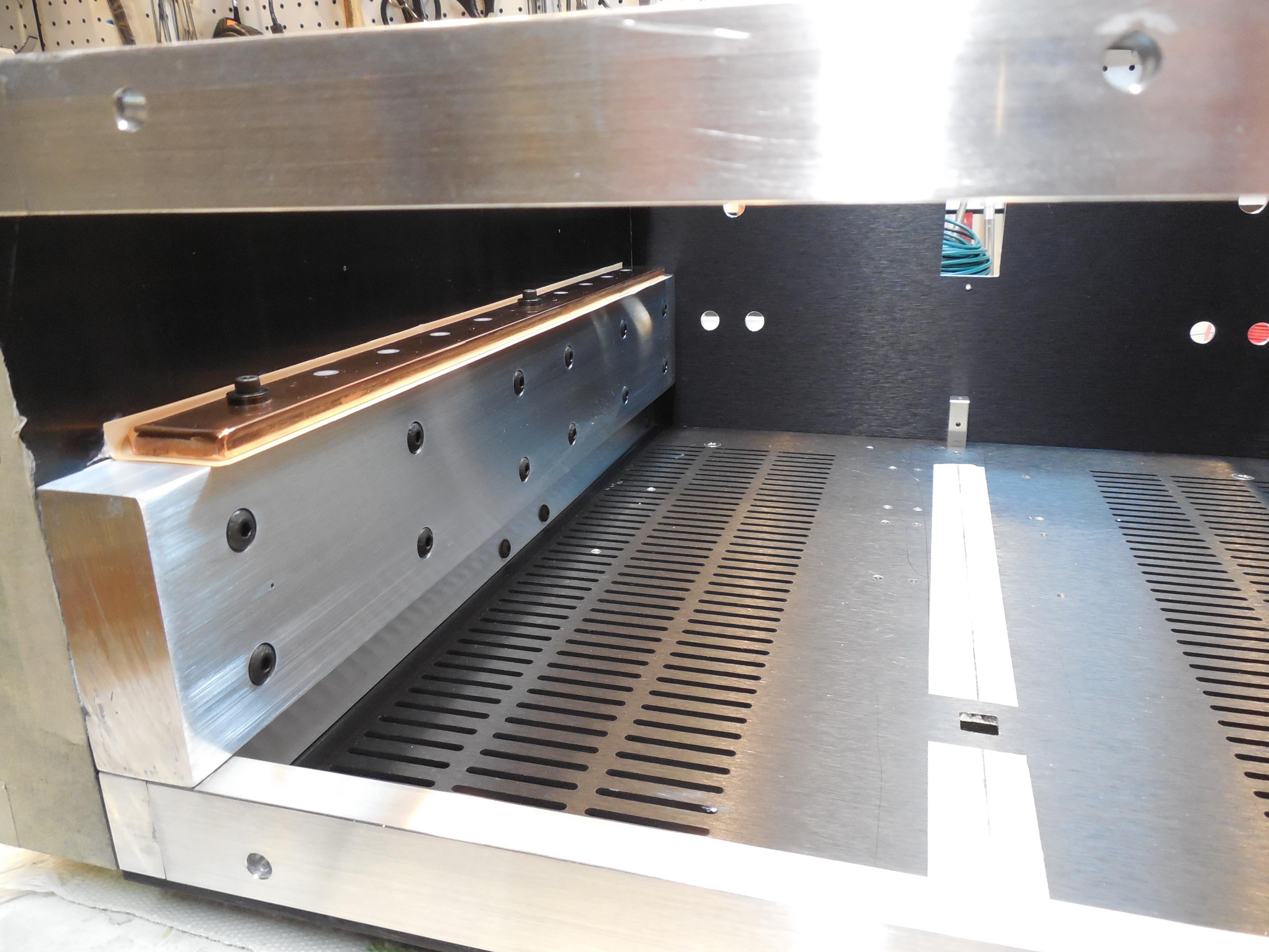

Pictures of your diy Pass amplifier

[ElFishi]

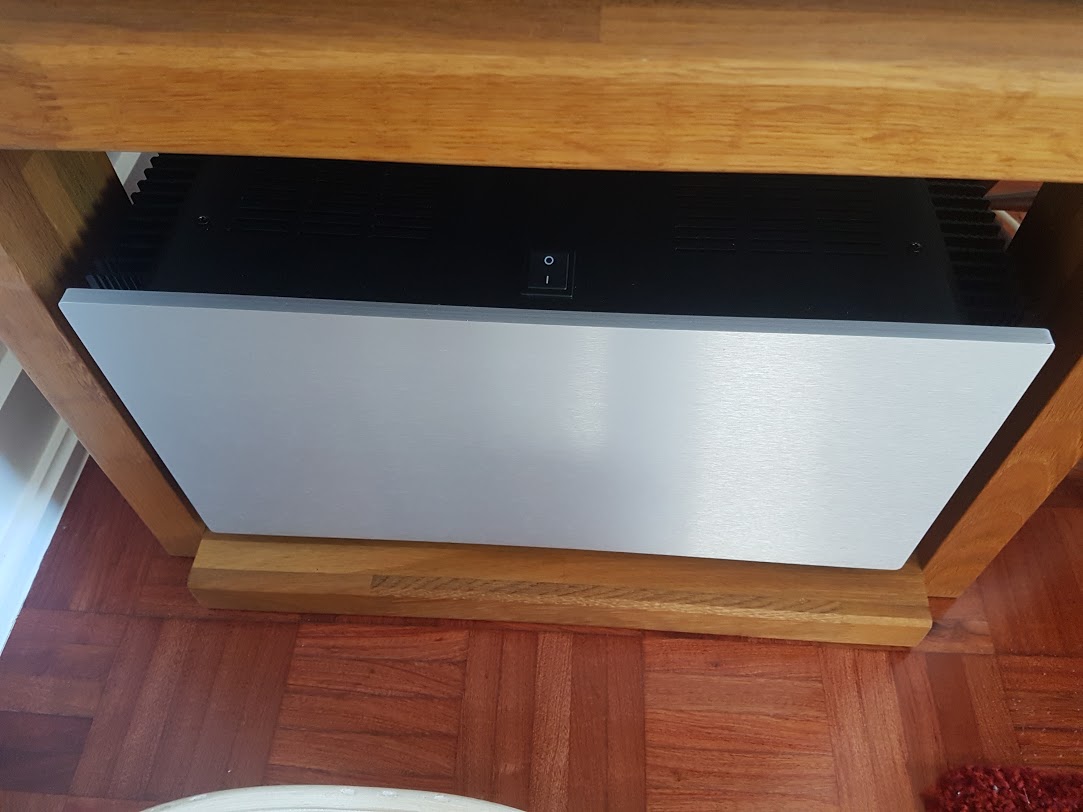

A quick update to my F4. An easy access power switch! My wife was really tired of having to reach around the amp to turn it on and off and ordered me to install an "easy switch"! 😀😀

no pic.
can you upload to diya, pls?



[Carlp]

no pic.
can you upload to diya, pls?

+1



[Zen Mod]

..



[ElFishi]

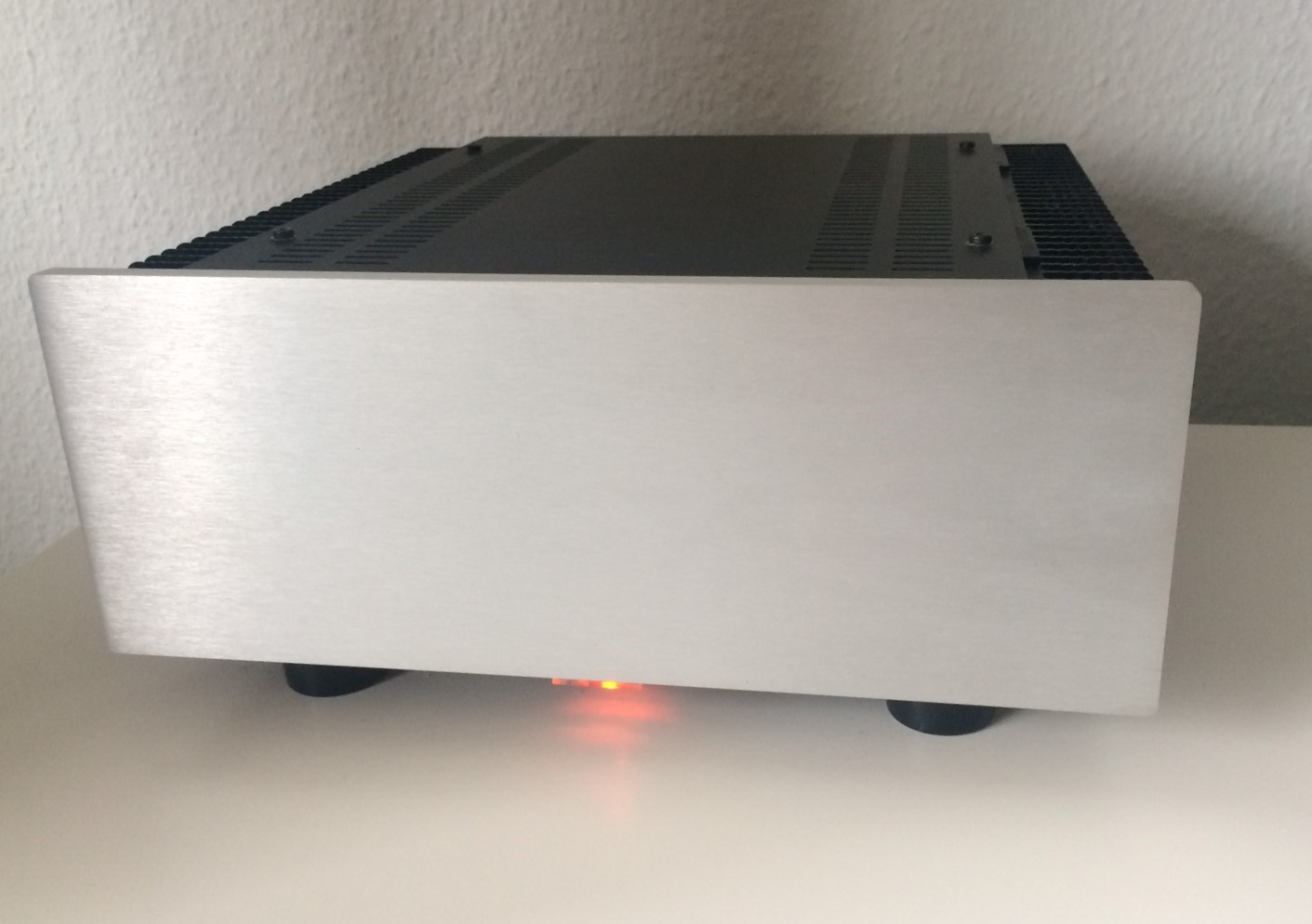

I've done that , on bottom , slightly higher feet and white led glowing down

Same here 🙂

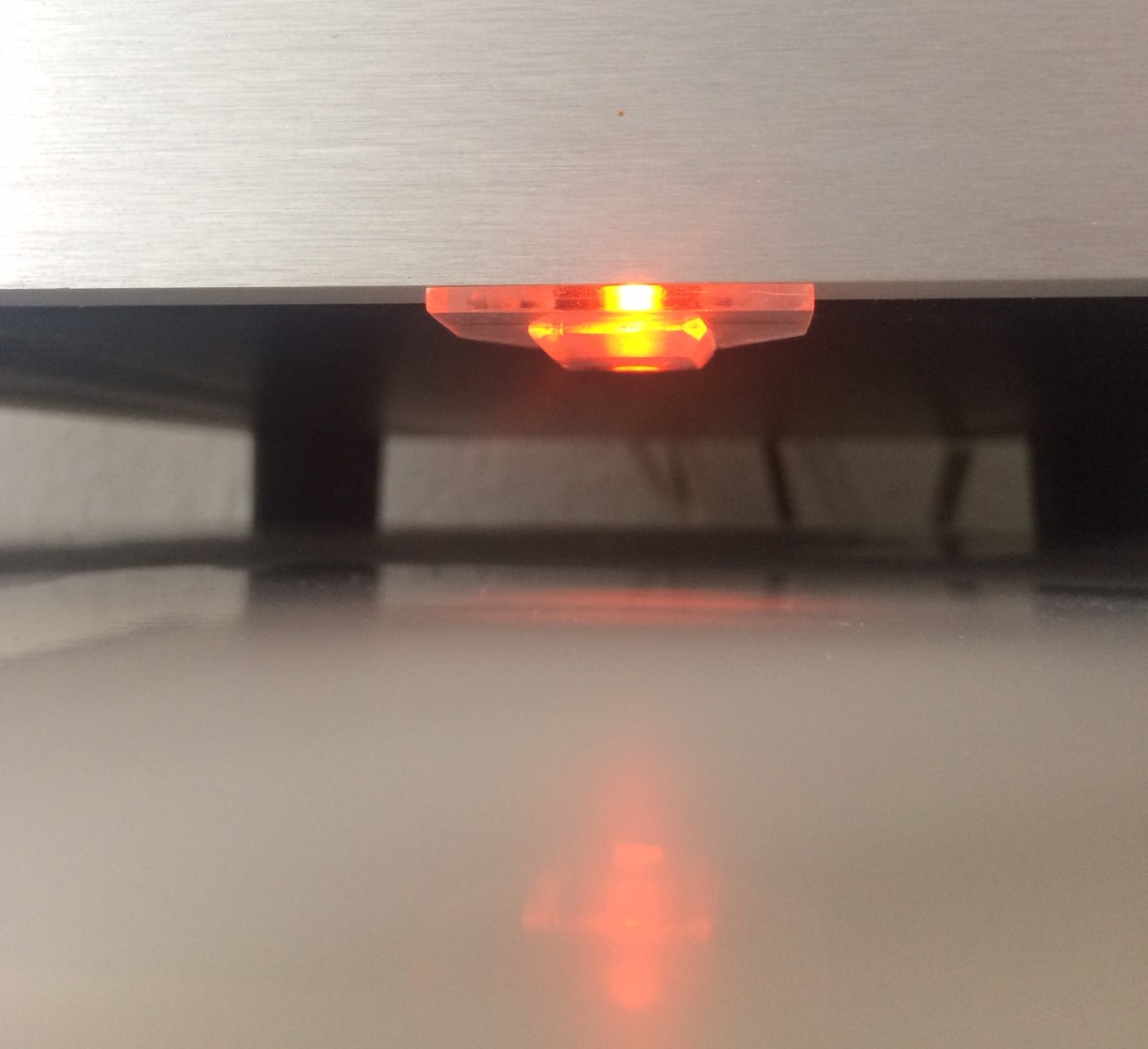

Switch is still on the back, but LED is on the bottom. Added a piece of perspex to guide the light to the front.
Just don't have the tools (and the guts) to drill the front plate.



[Carlp]

..

Thx ZM. I still can't see the original image for some reason.



[AndrewT]

A quick update to my F4. An easy access power switch! My wife was really tired of having to reach around the amp to turn it on and off and ordered me to install an "easy switch"! 😀😀

An externally hosted image should be here but it was not working when we last tested it.

Masantos.
Attach pictures using the forum's ATTACH


How to attach images to your posts.



[MASantos]

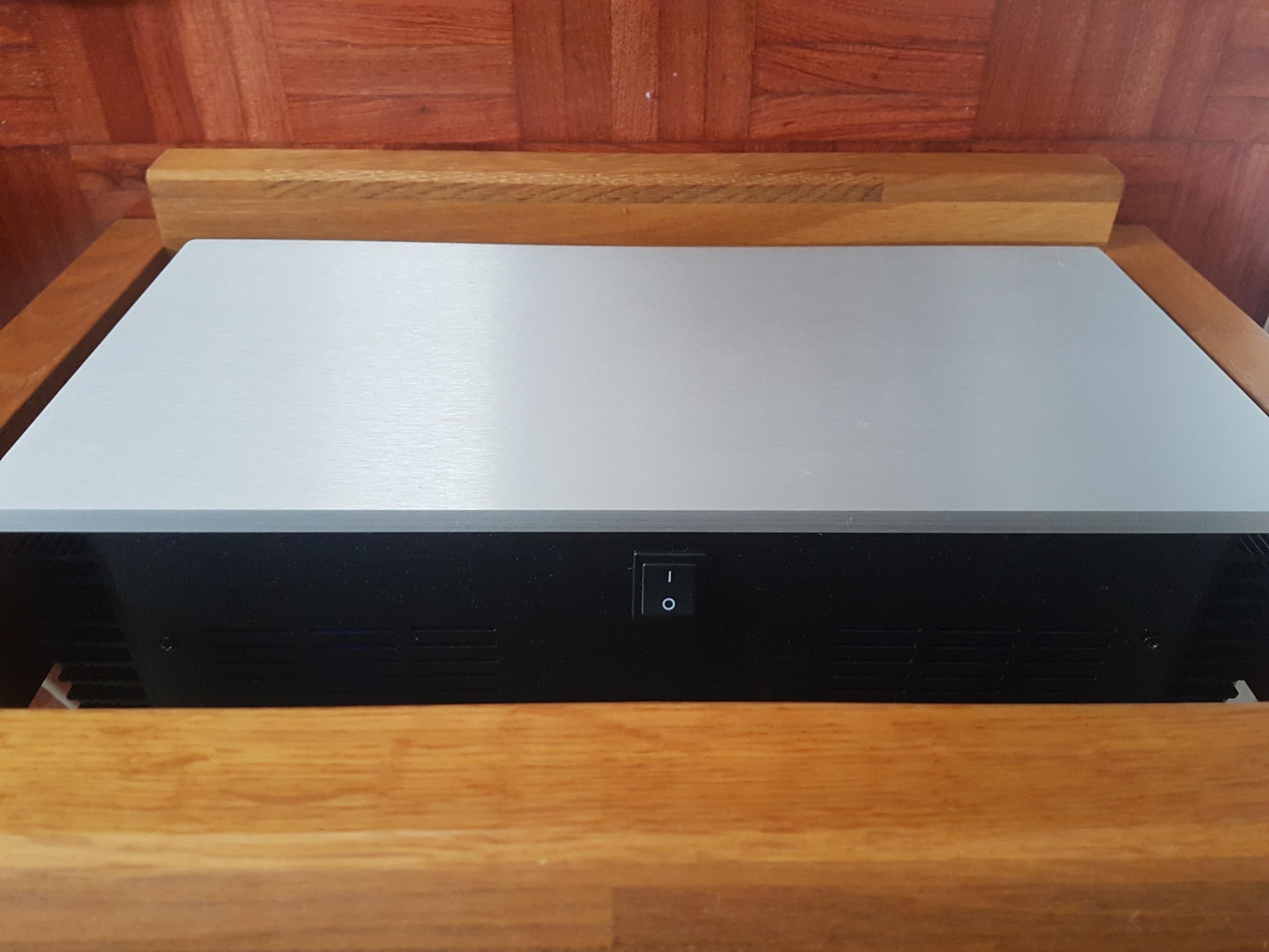

Here is the pic! Upside down but you get the idea!

ZM, i wanted to put the switch on the bottom but the toroidal is up front and in the way. I would also have to drill through the metal internal base so alot of extra work.



[coolnose]

In the ground next to the toroidal transformer you can see an Arduino Nano, where the two 1-Wire temperature sensors (18ds20) and the Display go. The temperature sensors can be seen on the second picture from above.
The Display has an RGB backlight - when the amplifier is cold, the display is blue, when it is at the right temperature, the display is red.

An externally hosted image should be here but it was not working when we last tested it.

The trigger input is handled by the Arduino as well I guess ?



[FX200]

The trigger input is handled by the Arduino as well I guess ?

Yes, that's correct.



[WBS]

A quick update to my F4. An easy access power switch! My wife was really tired of having to reach around the amp to turn it on and off and ordered me to install an "easy switch"! 😀😀

What? You let your wife touch your equipment?! 😱

Just kidding. My wife gets to play music also. 😀



[2 picoDumbs]

What? You let your wife touch your equipment?!

What type of equipment are we talking about here?
Hahaha



[Rodeodave]

Case stack for some upcoming builds 😀



[AndrewT]

Makes a nice bike stand



[Mod Man]

Here's another F5turbo v2 finished up last night. Bias to the "fraidy-cat" setting.
Thank you Nelson Pass.

[]



[vdi_nenna]

Super nice!



[zman01]

Mod Man,

Beautiful build!



[WBS]

Very nice job!!!



[Zen Mod]

Fugly!

😉



[MASantos]

Looks like a DIY case using the modushop heatsinks am I correct? Really nice build!



[Eric]

10 points for neatness! I'm still working on technique to avoid a rat's nest of wires...
