100W Ultimate Fidelity Amplifier

[still4given]

No, it's not tested just simulated.
Regards

Make a layout and I will test it.



[apexaudio]

Make a layout and I will test it.

I will, but V10 first



[still4given]

I will, but V10 first

Sure, layout?



[olafk]

I will test A10, so I can make a layout this weekend, ok?

Other problem: I have a few 6N1P, no ECC88 or 12AU7. Can I use the 6N1P to build a V10? And if possible, what changes are needed?

regards Olaf



[still4given]

I have used 6N1P in place of ECC88. It draws more current on the heater but the pinout is the same.

Please share the layout when you're ready.

Thanks, Terry



[olafk]

Hi Terry, ok.
I will make a layout for A10. Very nice project, I'm really curious to see how the amplifier compared to A9 sound.

regards Olaf



[apexaudio]

Hi Terry, ok.
I will make a layout for A10. Very nice project, I'm really curious to see how the amplifier compared to A9 sound.

regards Olaf

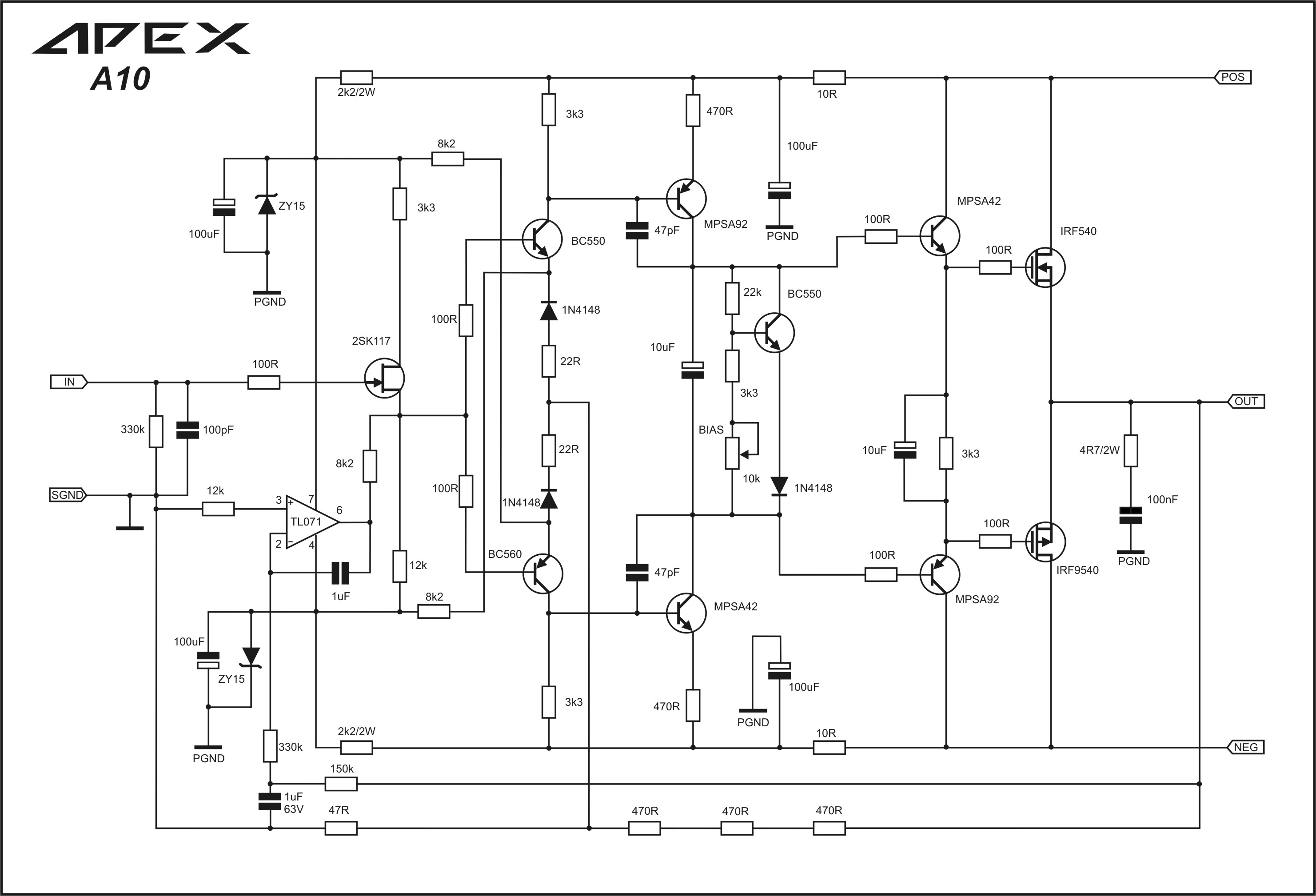

A10 or V10, A10 use 2SK117 FET input.



[still4given]

I want to build both.



[olafk]

I'm too. But A10 first.



[apexaudio]

I'm too. But A10 first.

You can use A10 pcb for test V10 with tube out of bord.
Regards



[still4given]

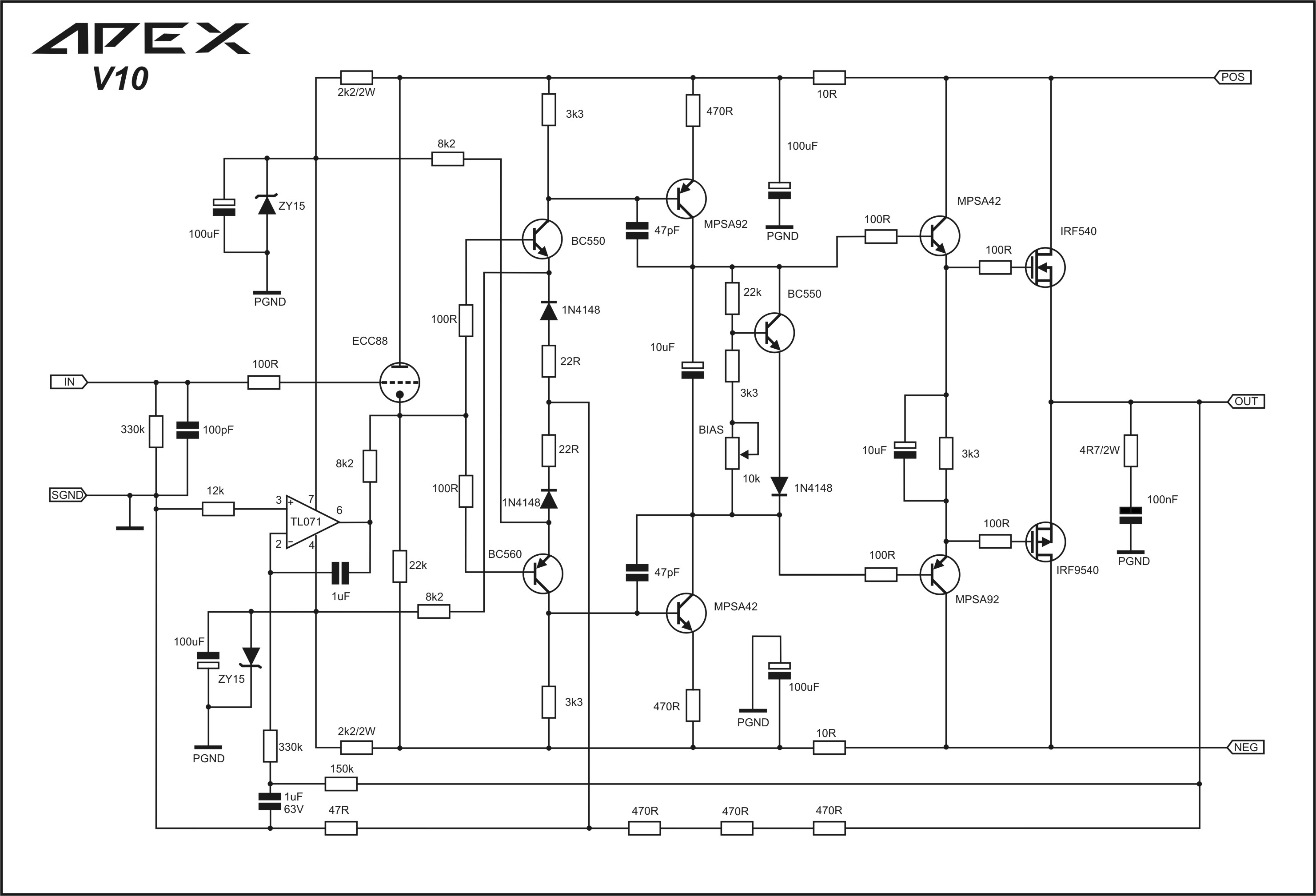

V10 needs a heater circuit for the tube. Am I correct in assuming it only uses half the tube?

Thanks, Terry



[apexaudio]

V10 needs a heater circuit for the tube. Am I correct in assuming it only uses half the tube?

Thanks, Terry

Yes, 6,3V to pins 4 and 5 of ECC88. Single tube (dual triode) can be use for stereo amp.
Regards



[still4given]

Sounds good. Maybe you can do a stereo preamp using one tube. That would be very interesting.



[apexaudio]

Sounds good. Maybe you can do a stereo preamp using one tube. That would be very interesting.

I do that long time ago.



[still4given]

I do that long time ago.

Awesome! Is it for sharing?



[apexaudio]

Awesome! Is it for sharing?

Yes

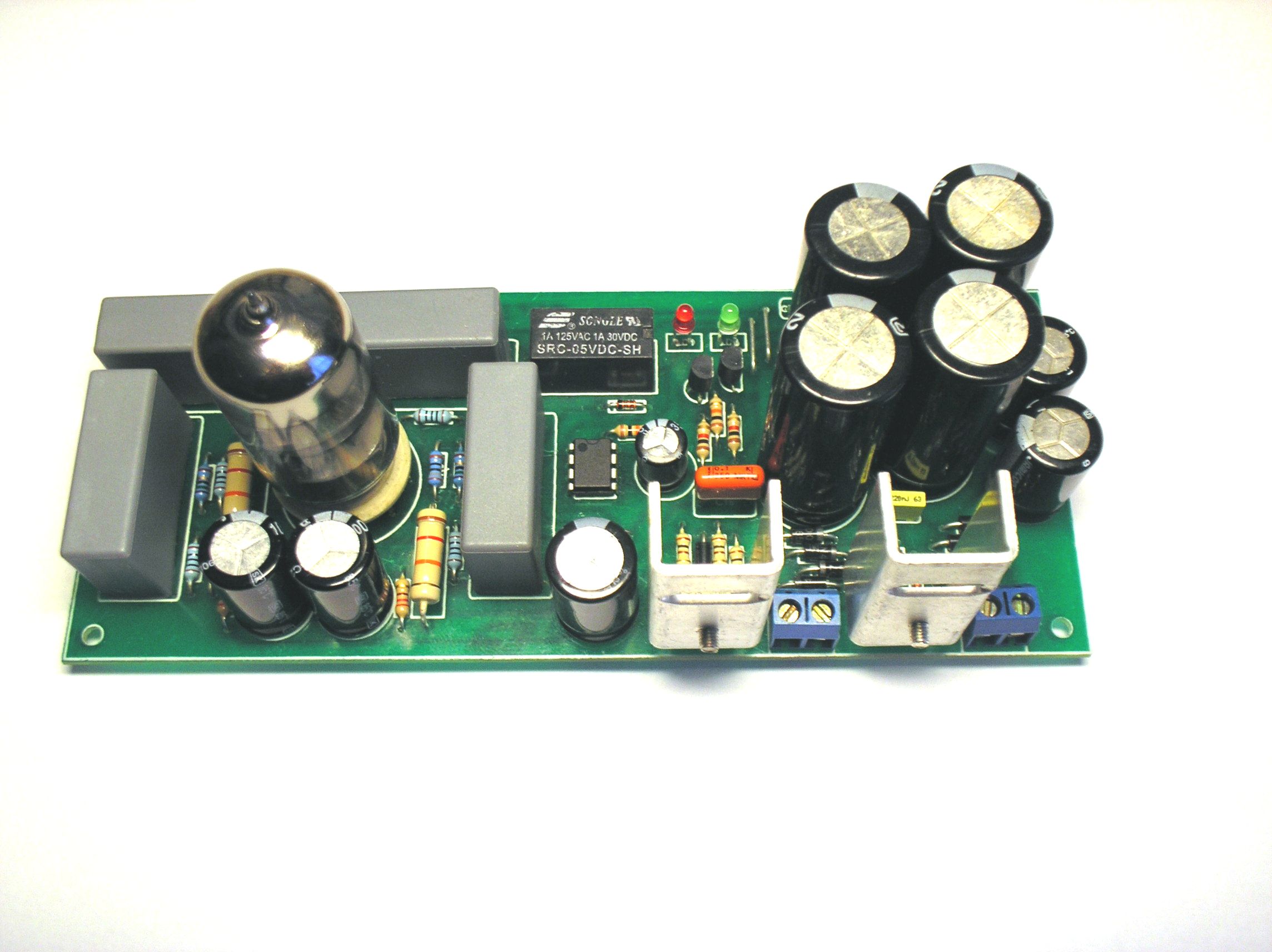

http://www.diyaudio.com/forums/analog-line-level/162125-tube-ss-preamp-3.html



[still4given]

Looks interesting. Pretty high voltage. I'll have to order some caps. I don't have any that high.



[apexaudio]

Looks interesting. Pretty high voltage. I'll have to order some caps. I don't have any that high.

You can use 250V caps instead 400V.



[apexaudio]

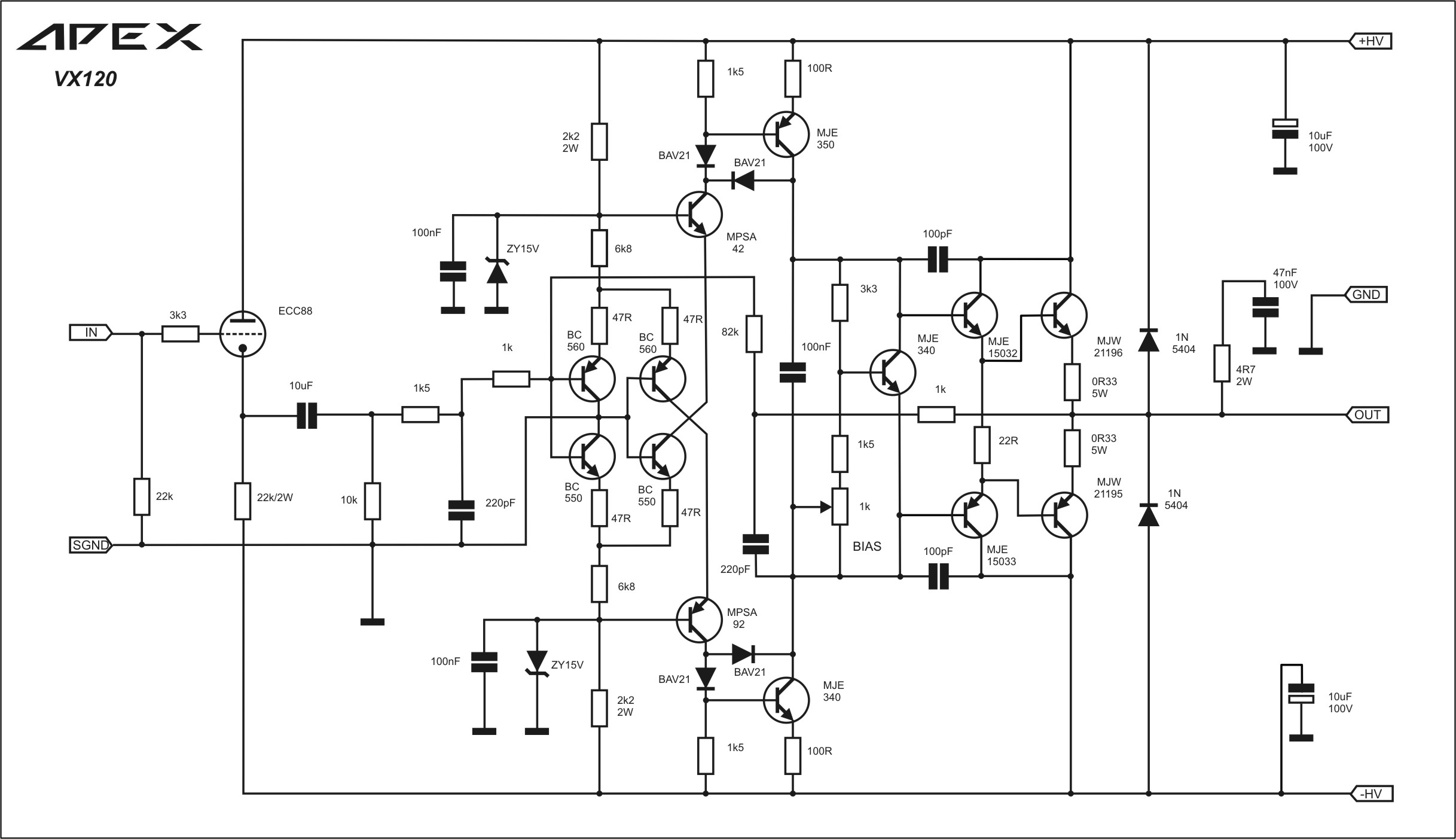

VX120 is Tube/SS VFA amp, V10 and V12 is CFA.



[apexaudio]

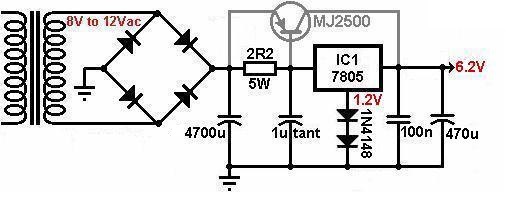

Tube heater PSU
