to GOD be all the glory. my latest project based on this forum. i read notes on ir class d layout and there has been an improvement on noise issues . this is more silent than my previous designs .
works well but care has to be taken when soldering smd parts . some are too close to each other, maybe some day i will order a pre soldered board 😎
have fun all
works well but care has to be taken when soldering smd parts . some are too close to each other, maybe some day i will order a pre soldered board 😎
have fun allAttachments
-

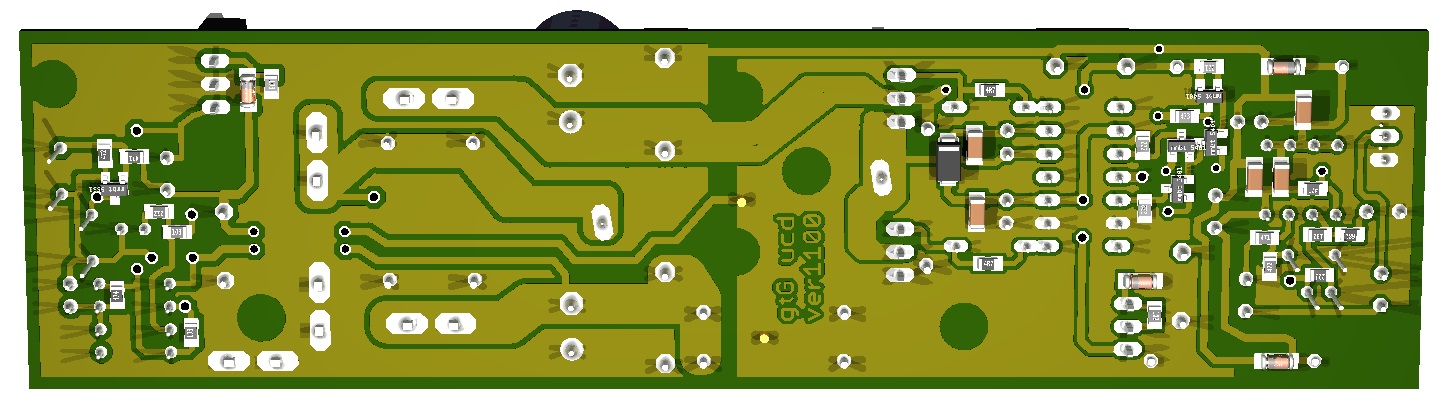

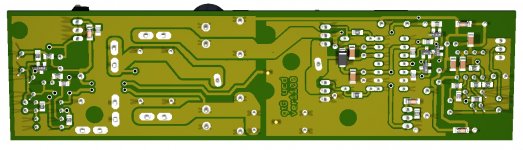

gtG ucd 1100 rev 1.0 with protect semi smd bottom.jpg -
gtG ucd 1100 rev 1.0 with protect semi smd part list.pdf
-
gtG ucd 1100 rev 1.0 with protect semi smd pcb bottom.pdf
-
gtG ucd 1100 rev 1.0 with protect semi smd pcb top.pdf
-
gtG ucd 1100 rev 1.0 with protect semi smd components 2.pdf
-
gtG ucd 1100 rev 1.0 with protect semi smd schematic.pdf
-

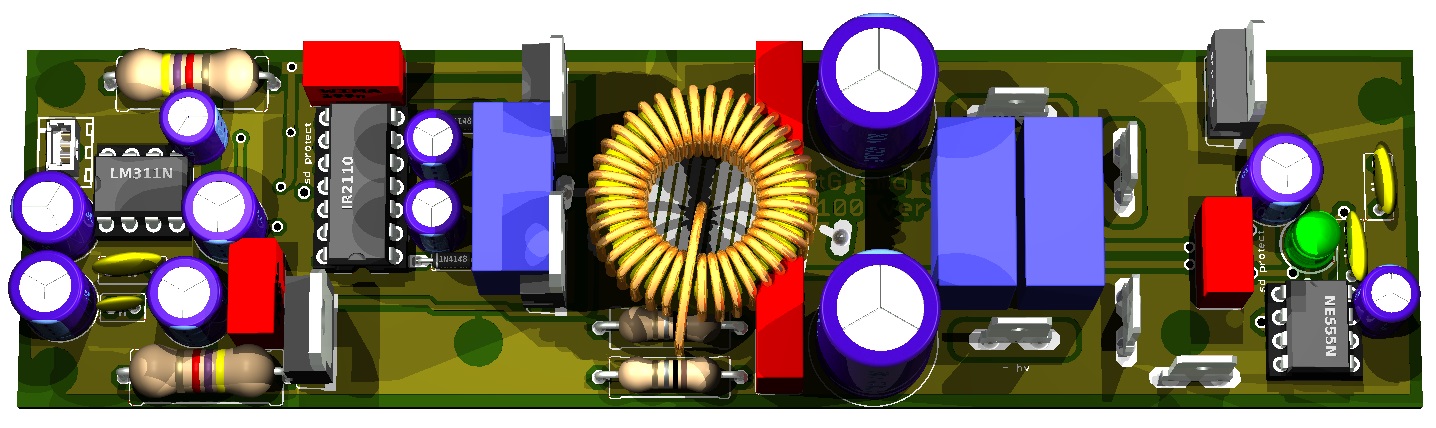

gtG ucd 1100 rev 1.0 with protect semi smd.jpg
Hello fellow DIY'er,
I would like to ask I have IRFP250n from Harris semicondutor.. what the value of gate resistor I'm going to use.. I will use it in my IRS900
I would like to ask I have IRFP250n from Harris semicondutor.. what the value of gate resistor I'm going to use.. I will use it in my IRS900
Please contact with me
Hi Mr.Thien
I am Minh, i want to contact with you as my email:
minh.np2007@gmail.com.
Please send me email if possible. Thanks you so much
Minh.
Hi Mr.Thien
I am Minh, i want to contact with you as my email:
minh.np2007@gmail.com.
Please send me email if possible. Thanks you so much
Minh.
to GOD be all the glory. my latest project based on this forum. i read notes on ir class d layout and there has been an improvement on noise issues . this is more silent than my previous designs .
works well but care has to be taken when soldering smd parts . some are too close to each other, maybe some day i will order a pre soldered board 😎
You design a version in tht ? Or equivalent smd transistors ?
What needs to change for transistors irfp250n ?
Hello everyone .
I would realize irs1500d , but I saw that someone had problems with this project.
I know that the issue should be on the level shifter .
If I replace the input part with AUD600 of manojtm, the amp works?
I would realize irs1500d , but I saw that someone had problems with this project.
I know that the issue should be on the level shifter .
If I replace the input part with AUD600 of manojtm, the amp works?

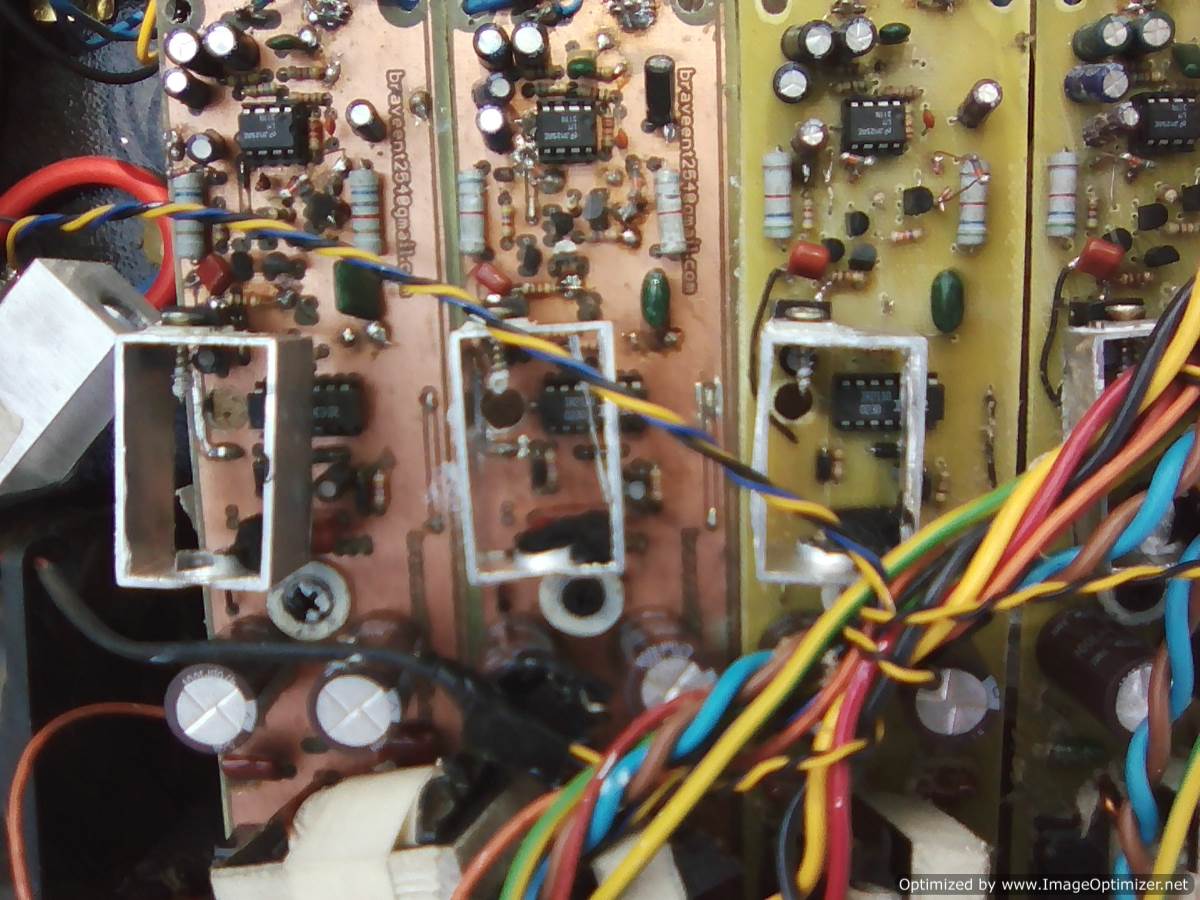

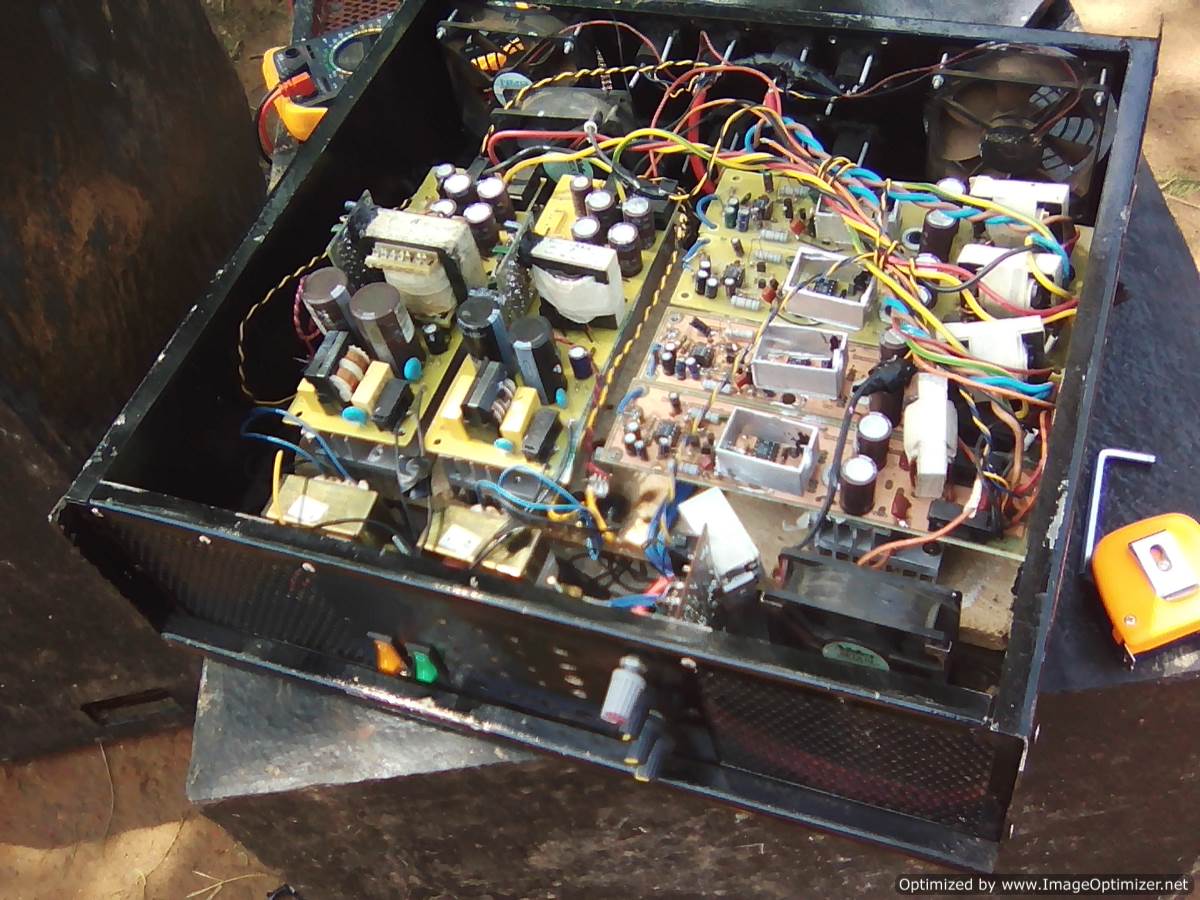

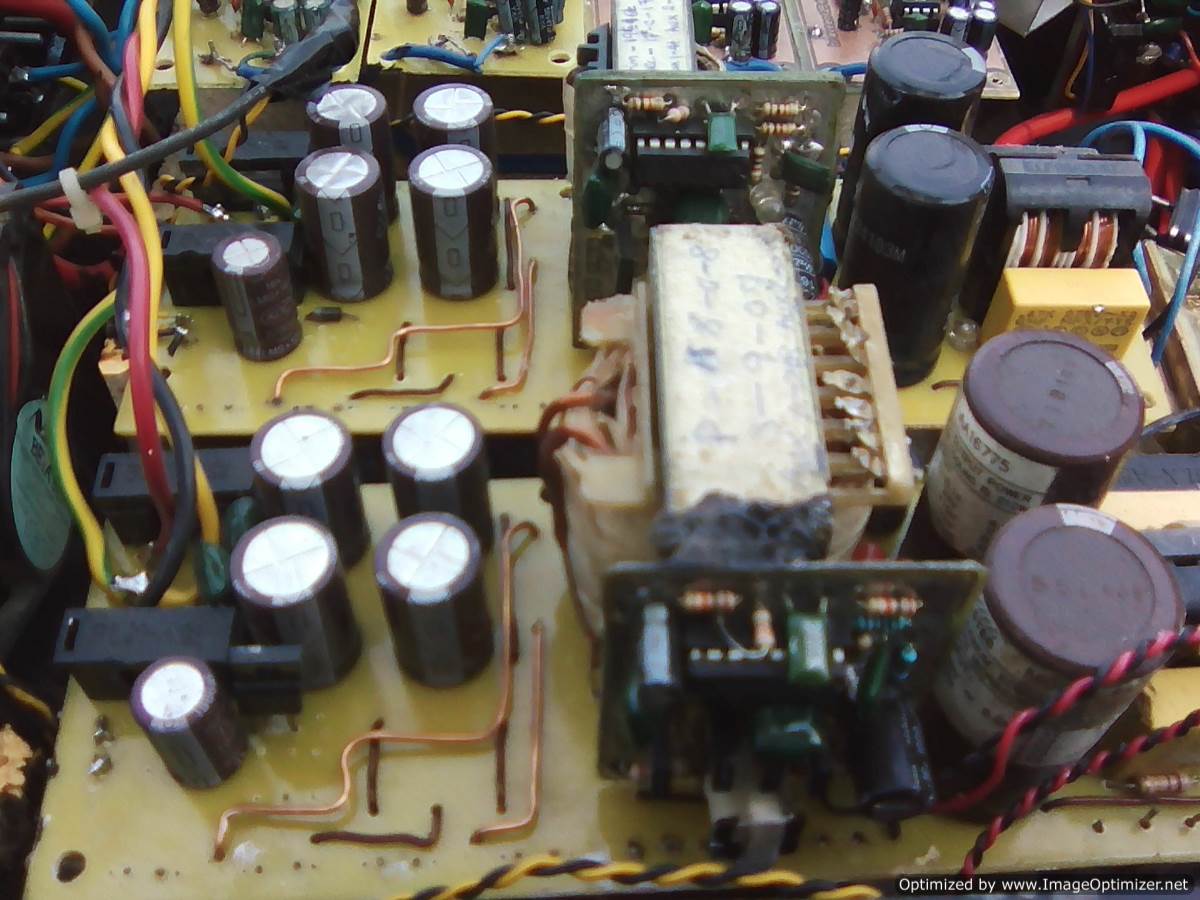

hi all my ucd class d . i powered mids at +/-75vlts and subs at +/-85vlts outputs irfb4227 . i used two half bridge smps gdt, irfp 460
Attachments
-
IMG_20150624_122631-Optimized.jpg -
IMG_20150624_122631_1-Optimized.jpg -
IMG_20150624_122617-Optimized.jpg -
gtG ucd 1100 rev 3.1 with protect.jpg -
gtG ucd 1100 rev 3.1 with protect components smd confirm .pdf
-
gtG ucd 1100 rev 3.1 with protect schema.pdf
-
gtG ucd 1100 rev 3.1 with protect pcb v2.pdf
-
gtG ucd 1100 rev 3.1 with protect components full .pdf
-

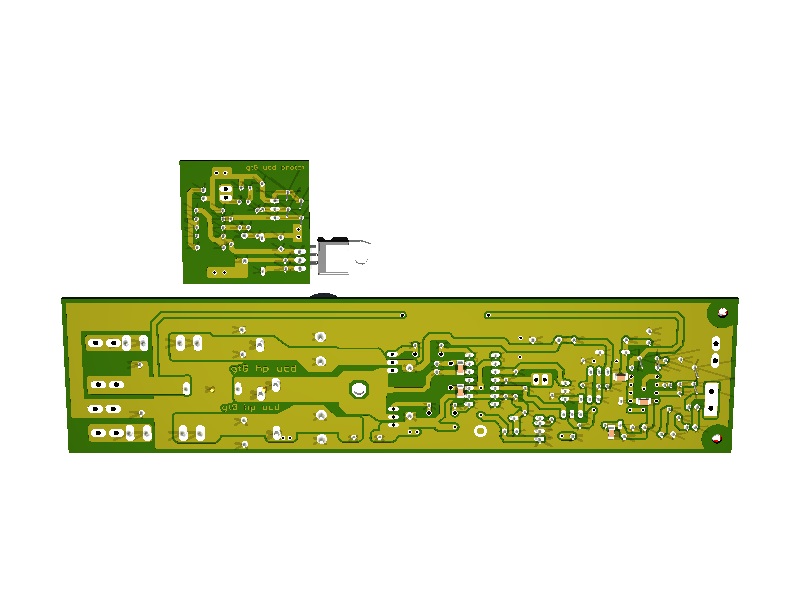

gtG ucd 1100 rev 3.1 with protect btm.jpg -

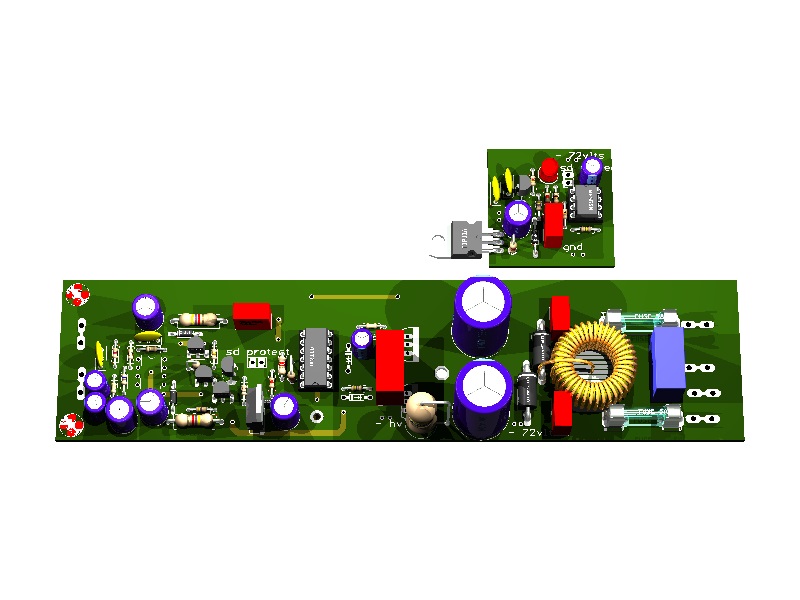

my new version i use smd and a bit small compact board . the ground and -ve planes are also modified and well placed according to ir documents on class d grounding and shielding . will post results and photos soon . stewin
used the sub channel @ 2ohms( four 8ohms 18" subs) and it warmed after pushing it hard for two hours. the mid channel I used 4ohms .and all was well .
