For noise I can understand the need for weighting but not for distortion.

My objection is pointed at marketing. I've found cases where A weighting was used in brochures but not stated making the specs look better than other products. That's cheating.

Yes, those marketing folks do cheat - on lots of things - like specifying THD at 1kHz only.

And these aren't even the snake-oil folks.

Cheers,
Bob

Weighting Filters

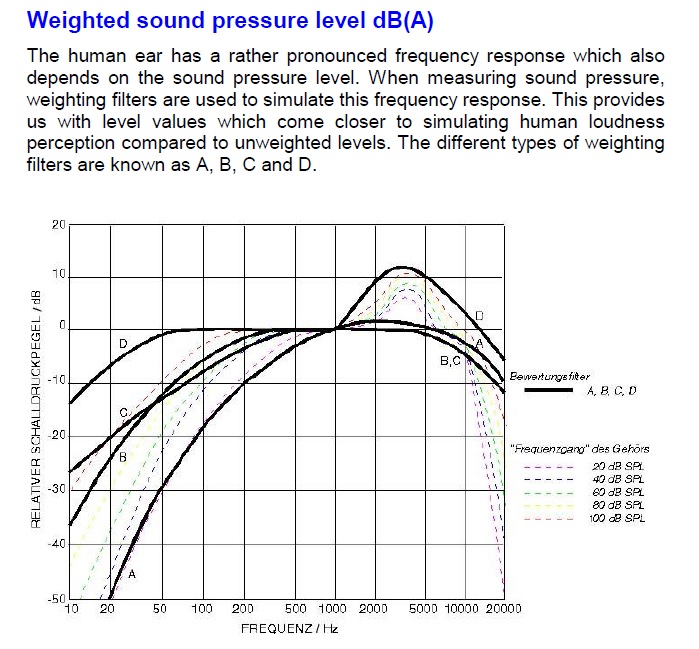

Well, after I read this it made some sense to me why these
filters are here, it explains their use.


Attachments

  • Wrighted Filters.jpg
    Wrighted Filters.jpg
    150.2 KB · Views: 559
QA401 unboxing and initial quick start tests, part 1

I had decided against getting a QA401 due to concerns about the power supply. After exchanging some email with QA support though last week I decided to go ahead and get one, so here is a QA 401 unboxing! 🙂

I'm running through the set of "quick start" tests posted on their website here:

QA401 Quick Start

For the measurements I'm using the latest V1.46 software, dated 4/18/2016, from their website here:

File Downloads

QA claims their later design work eliminated any significant advantage of +/-15Vdc power rails over the +/-6.5, or whatever they are using, past the comments in their earlier initial blog post about some performance being left on the table at the lower voltage rails. They also say that the source of what appears to be a small amount of DC-DC converter noise some folks have seen is most likely a bad/worn USB cable and not the converter. QA says they have seen the effect themselves.

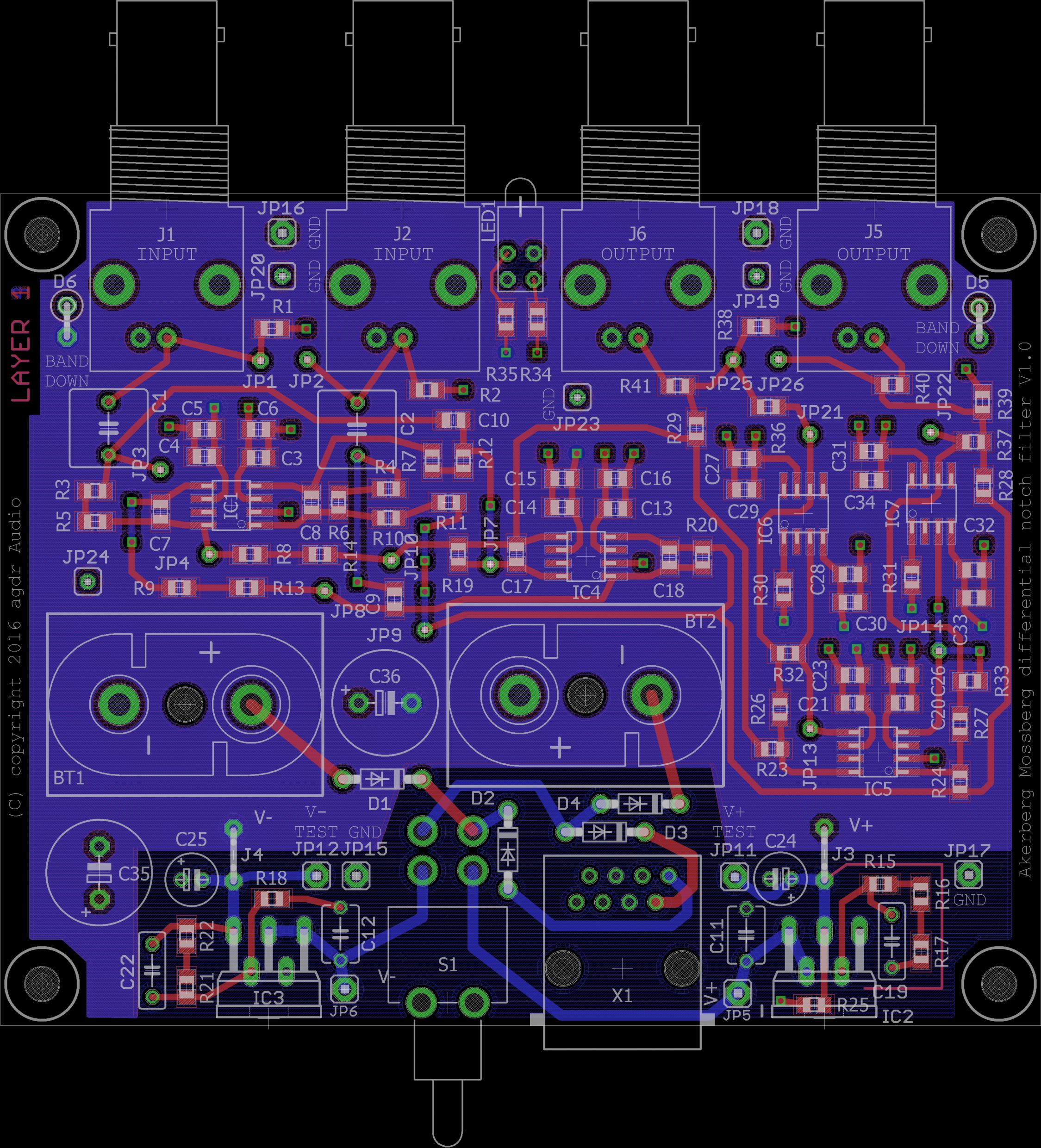

I've just sent the Akerberg-Mossberg fully differential notch filter board below off to fabrication. I'm curious to see how well it works with the QA401 given that the QA401 is fully differential.

Photos (clicking in the lower left corner of the photo will zoom the size up):

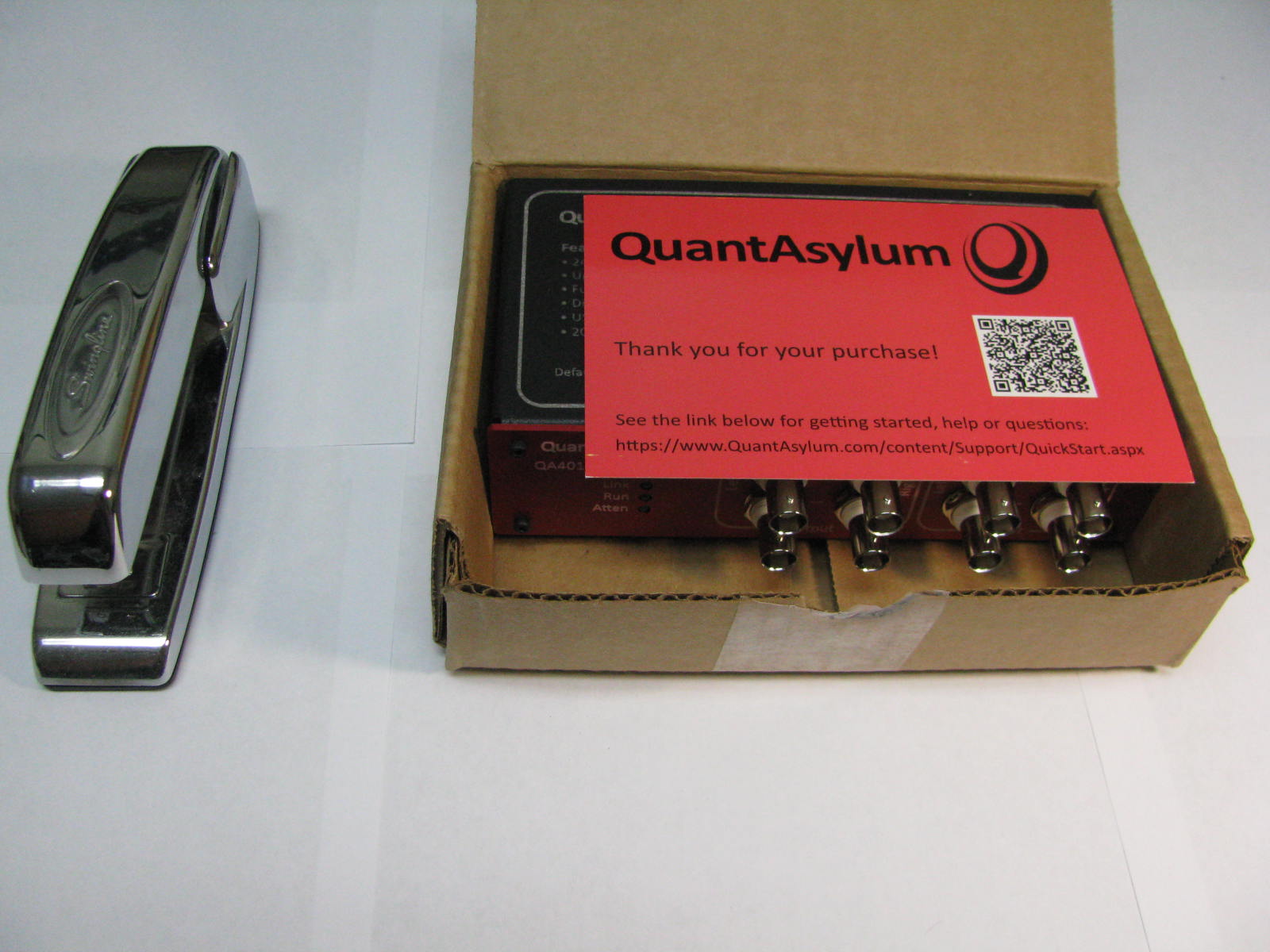

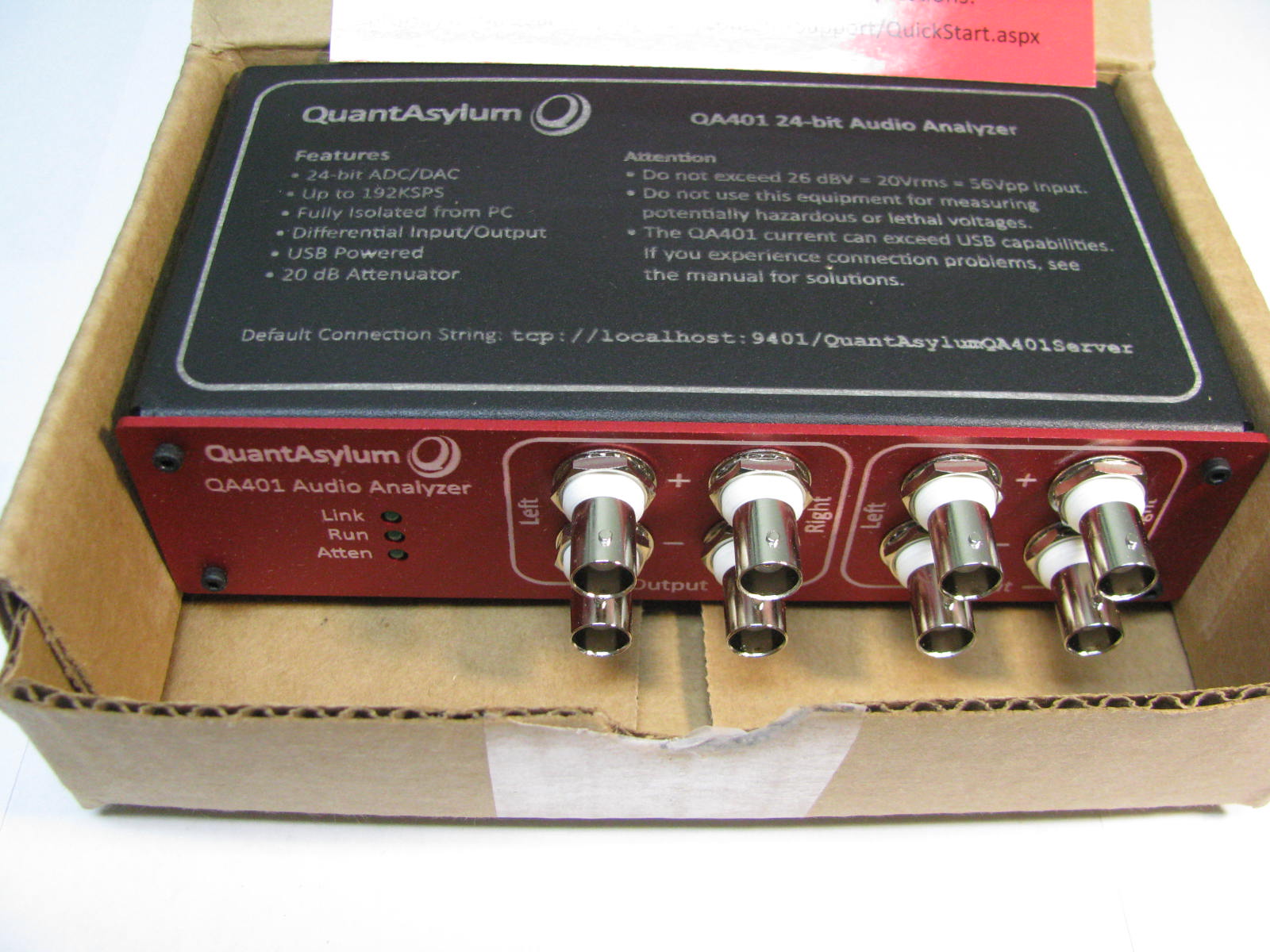

* The first 5 are the unboxing. The stapler is there for a size comparison.

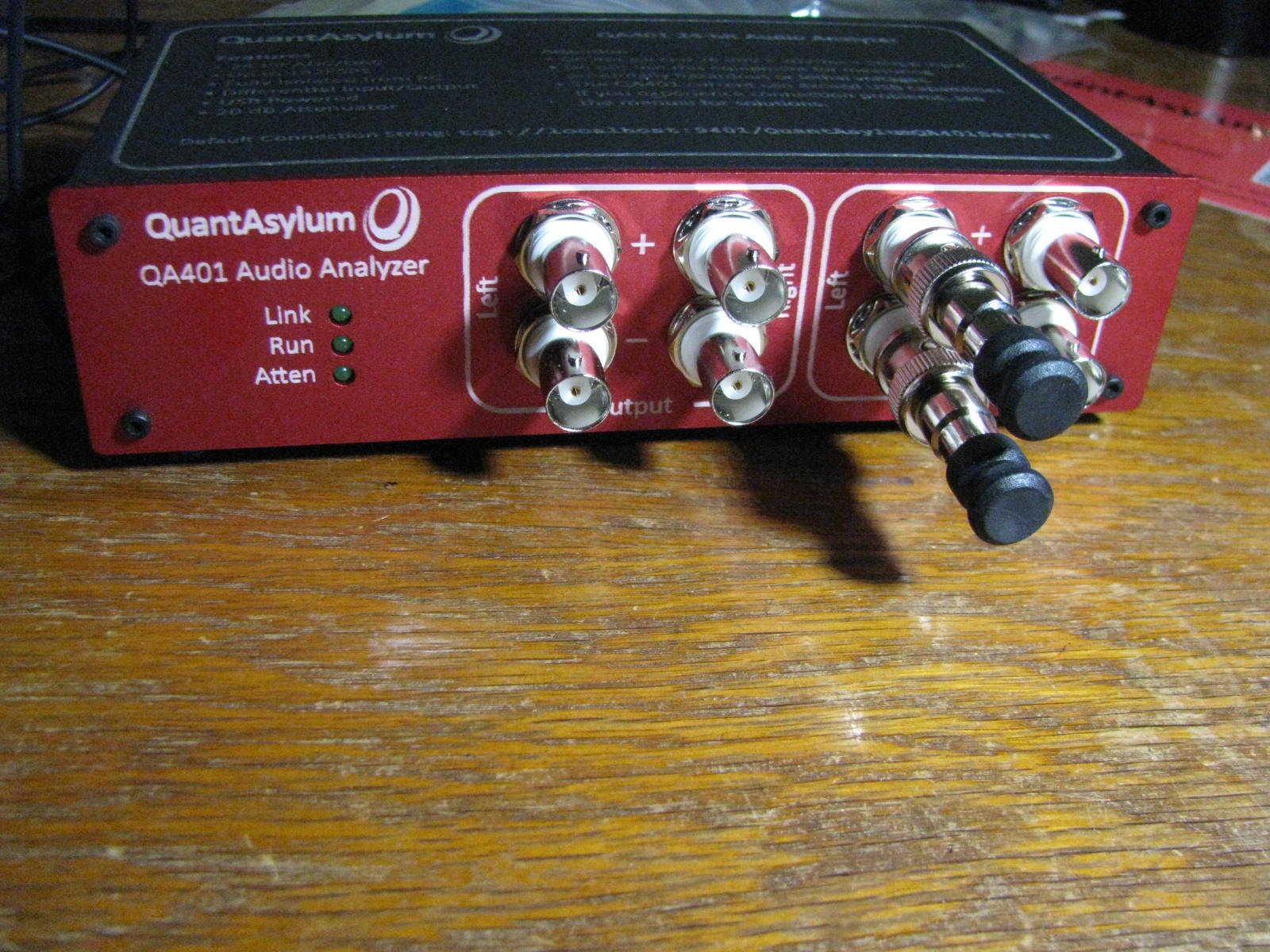

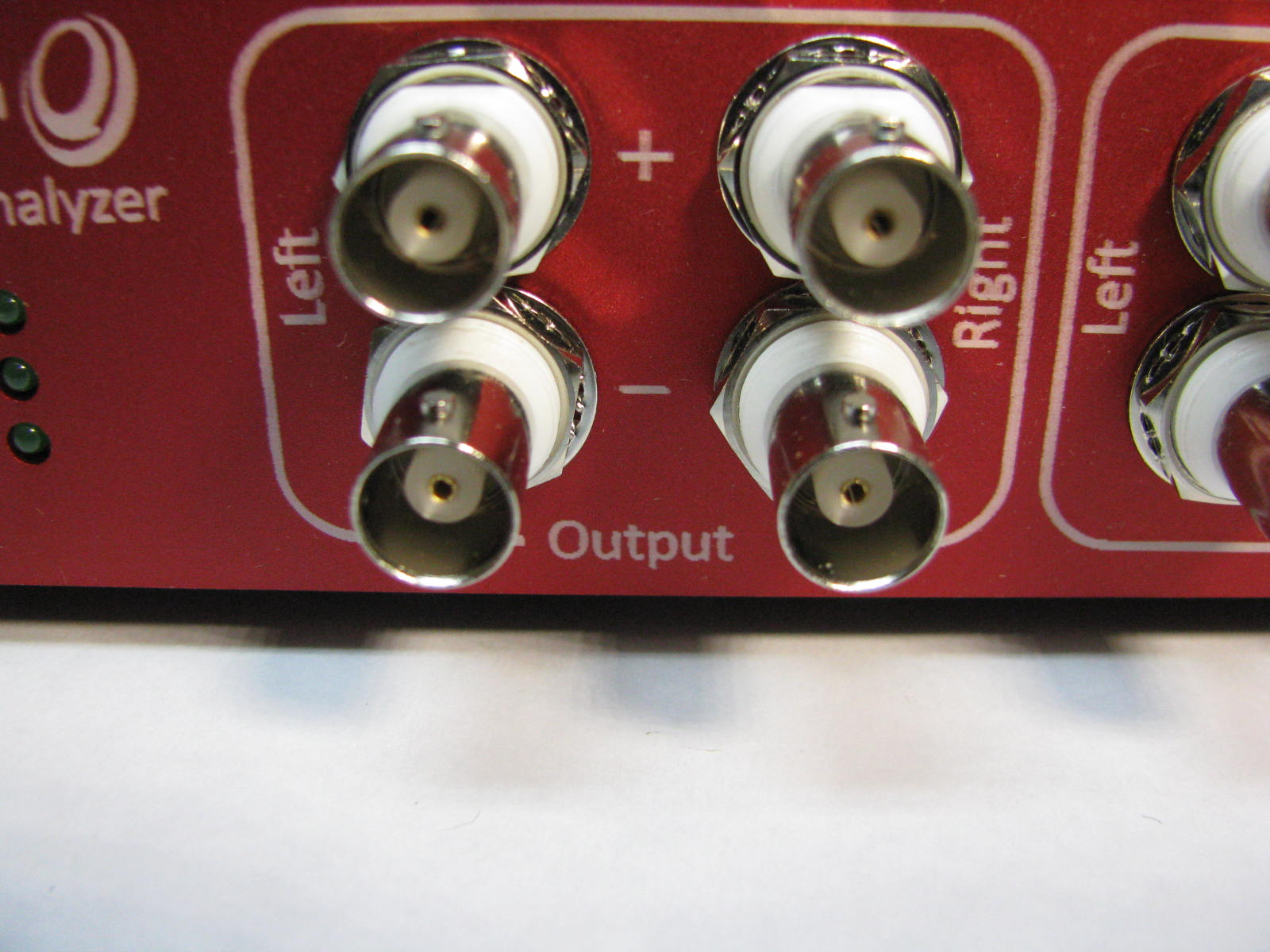

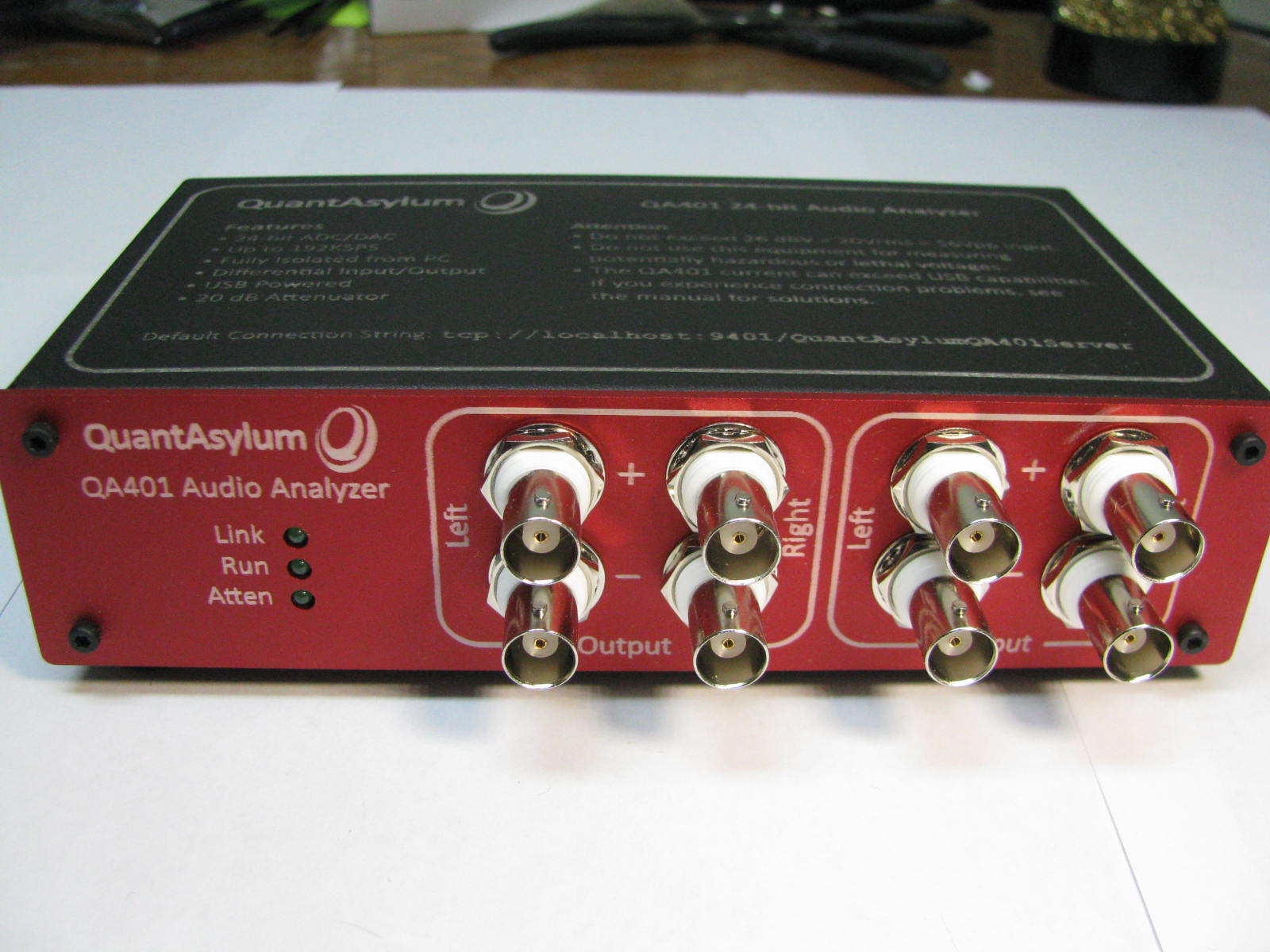

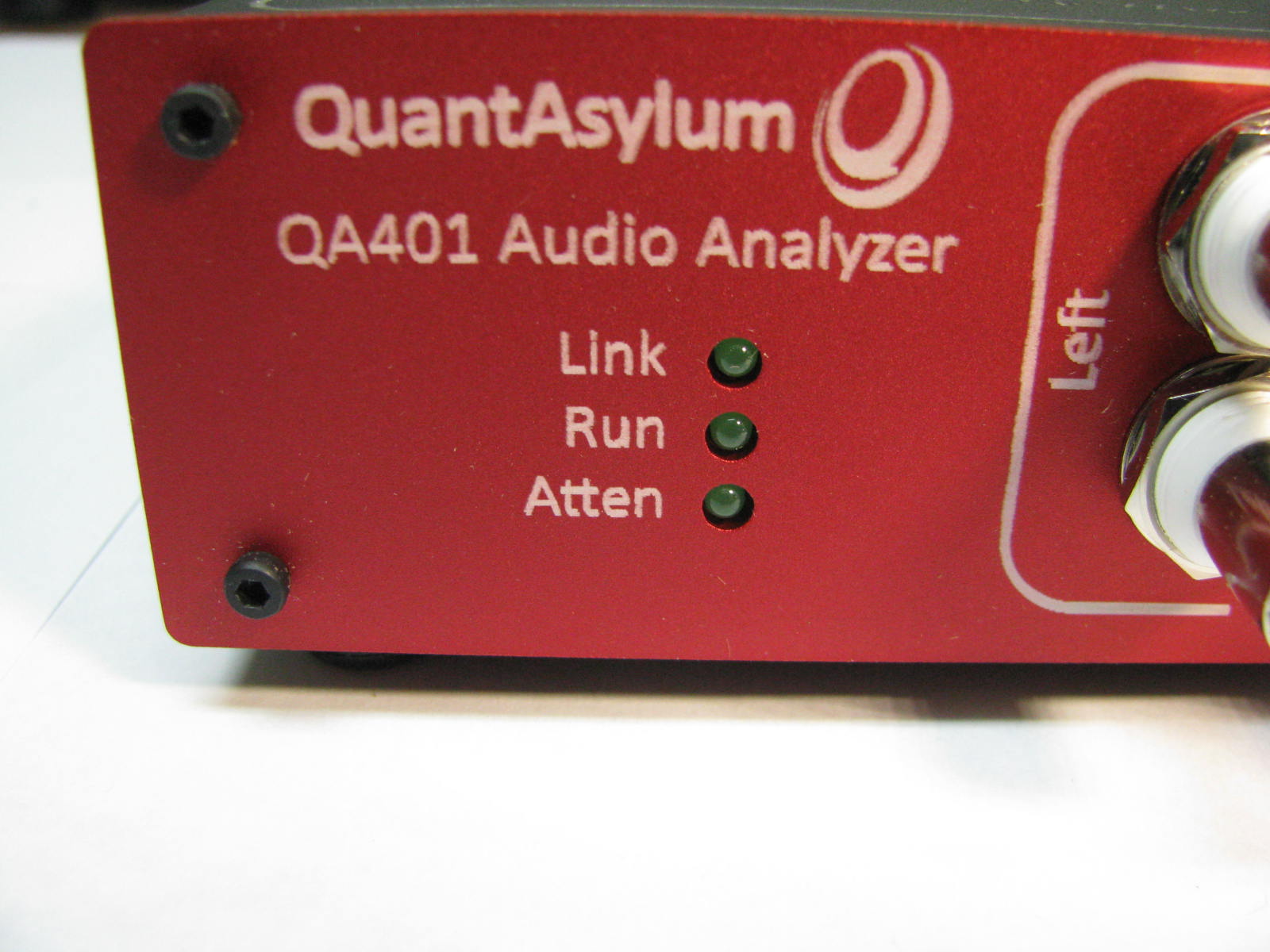

* The next 4 are close-ups of the front panel.


Attachments

  • IMG_4125.JPG
    167.4 KB · Views: 447
  • IMG_4126.JPG
    188.5 KB · Views: 448
  • IMG_4128.JPG
    247.3 KB · Views: 436
  • IMG_4129.JPG
    333.2 KB · Views: 438
  • IMG_4131.JPG
    233.6 KB · Views: 152
  • IMG_4135.JPG
    212.4 KB · Views: 152
  • IMG_4134.JPG
    195.7 KB · Views: 130
  • IMG_4133.JPG
    217 KB · Views: 143
  • IMG_4132.JPG
    229.9 KB · Views: 139
  • akerberg mossberg notch filter B3-080 case.jpg
    akerberg mossberg notch filter B3-080 case.jpg
    980 KB · Views: 278
Last edited:
QA401 unboxing and initial quick start tests, part 2

...I ran out of photo slots on the post above, so here is part 2.

Clicking in the lower left corner of the photo will zoom the size up:

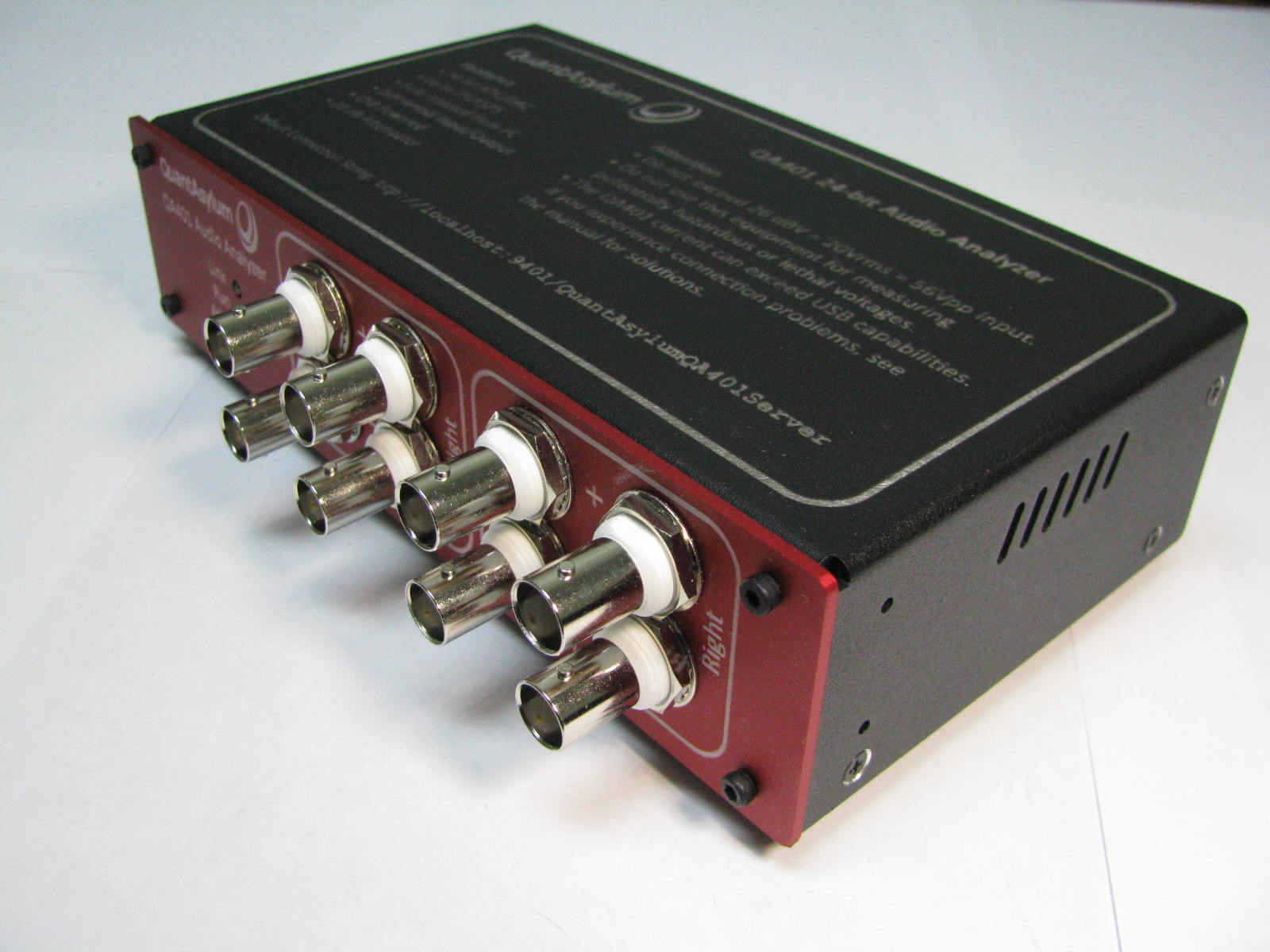

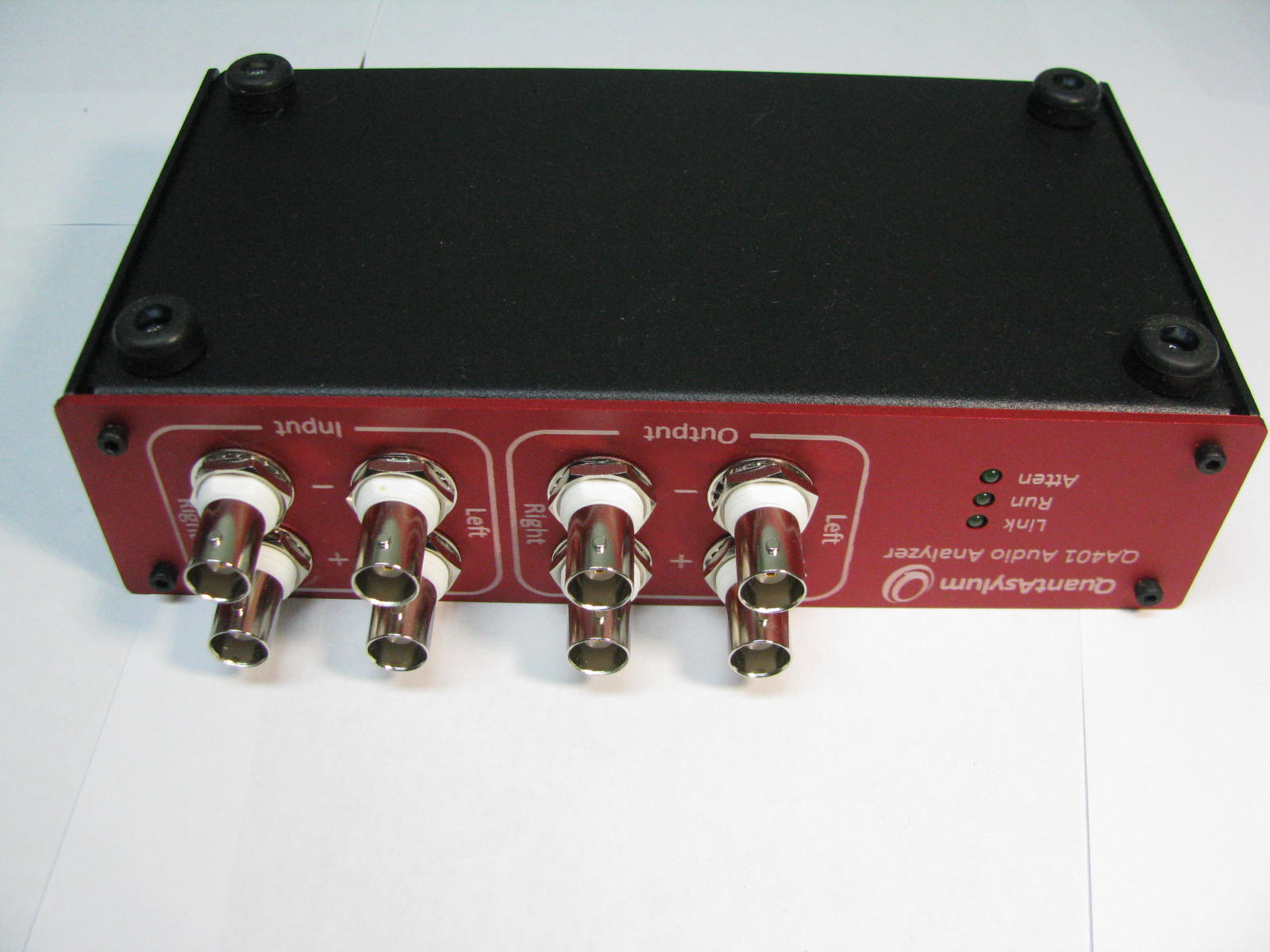

* The next 3 photos show the other sides of the box. The card on the back is covering up the serial number. 🙂

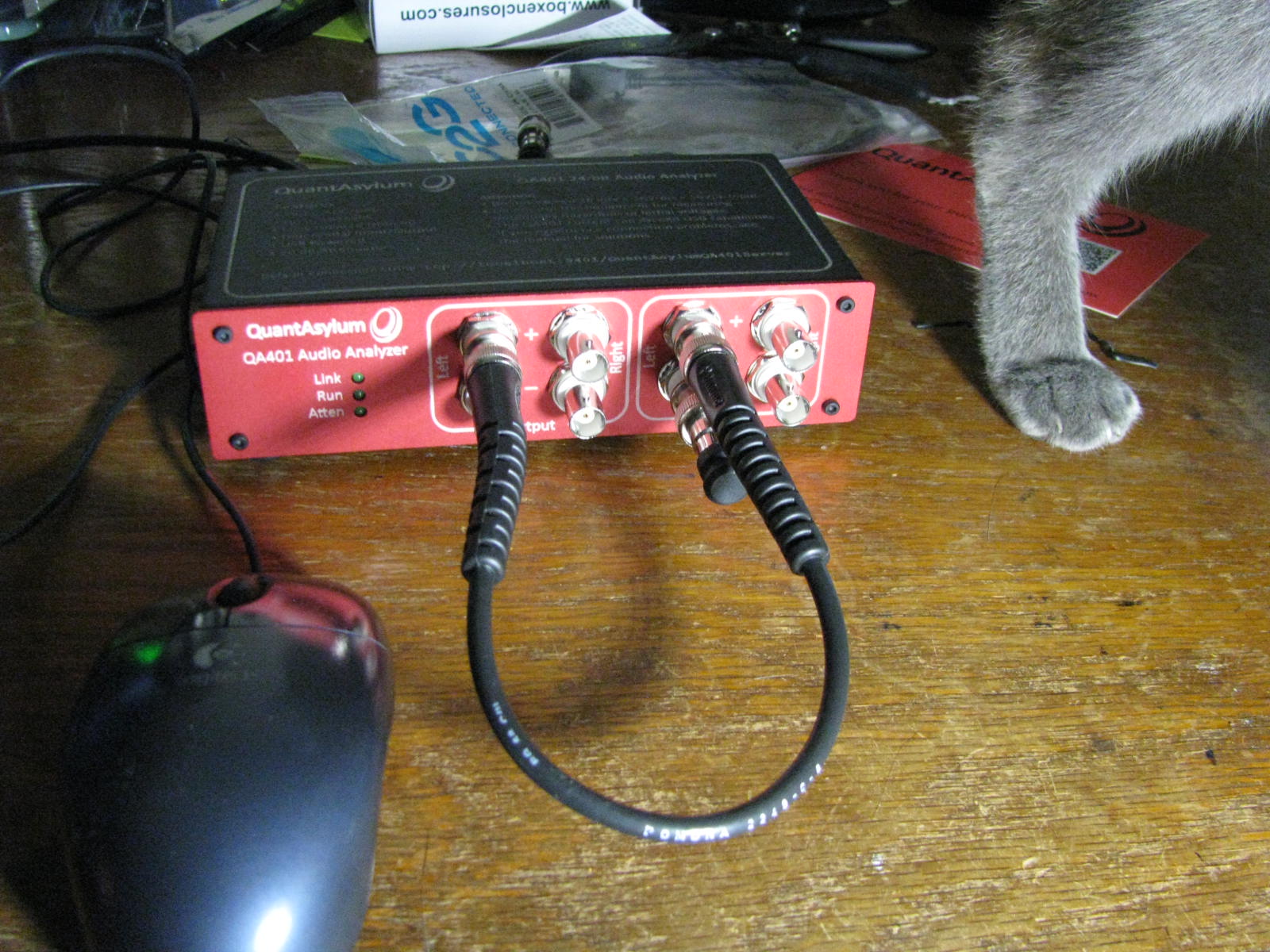

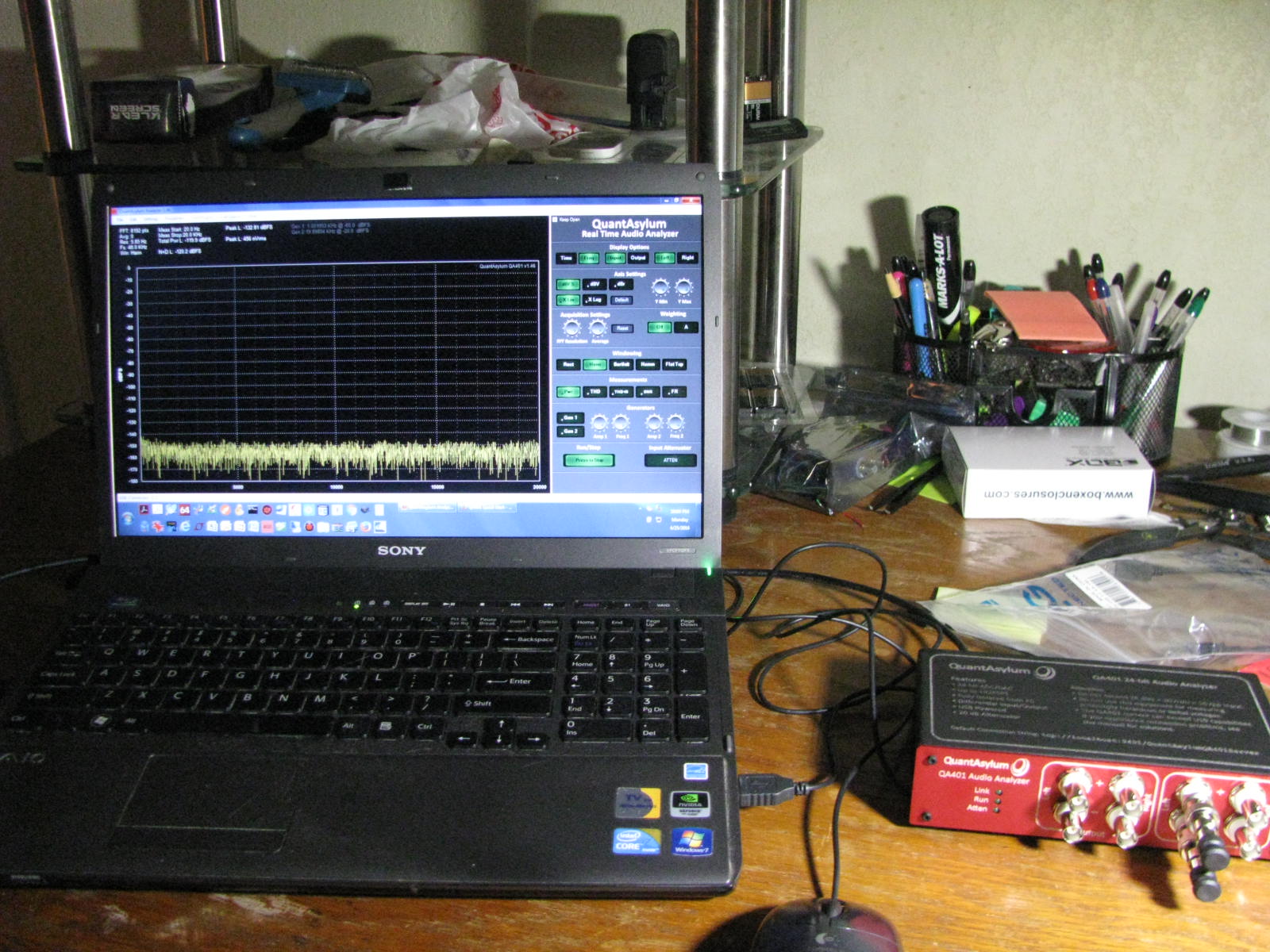

* The next photo shows the test setup. Another reason I went ahead and bought the unit is I realized this particular laptop has one combo eSATA/USB port over on the left side that supplies up to 800mA, enough for the QA401's 600mA maximum draw. Failing that you could try QA's suggestion of a a USB Y cable, or get a USB hub rated at 1A per port if your USB port can't handle 600mA.

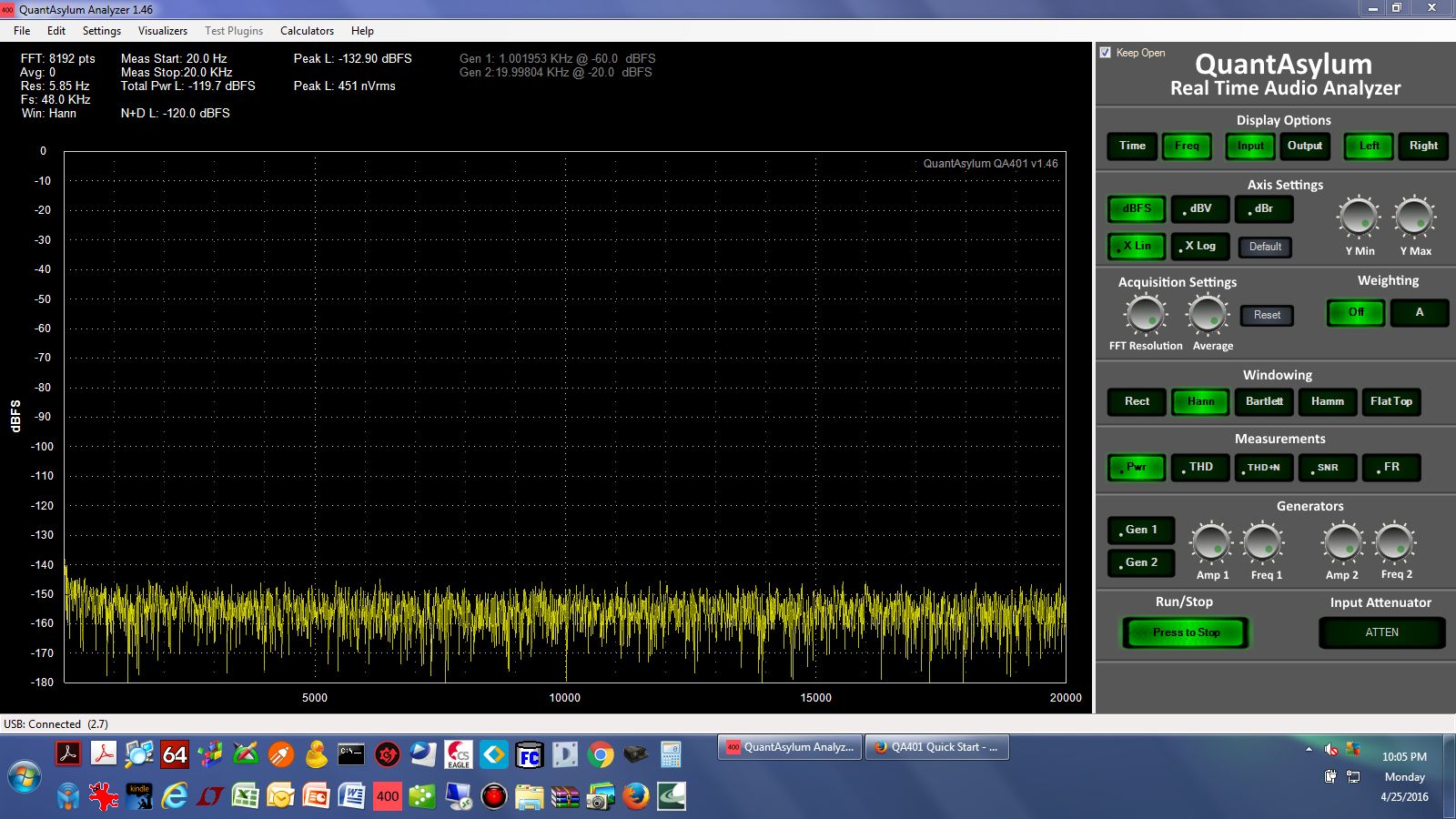

* The next photo and screen grab are the first steps in QA's quick start testing. Their procedure says to short both left inputs and look for -120dBFS power. From the screen grab I am, in fact, getting -120.0dBFS!

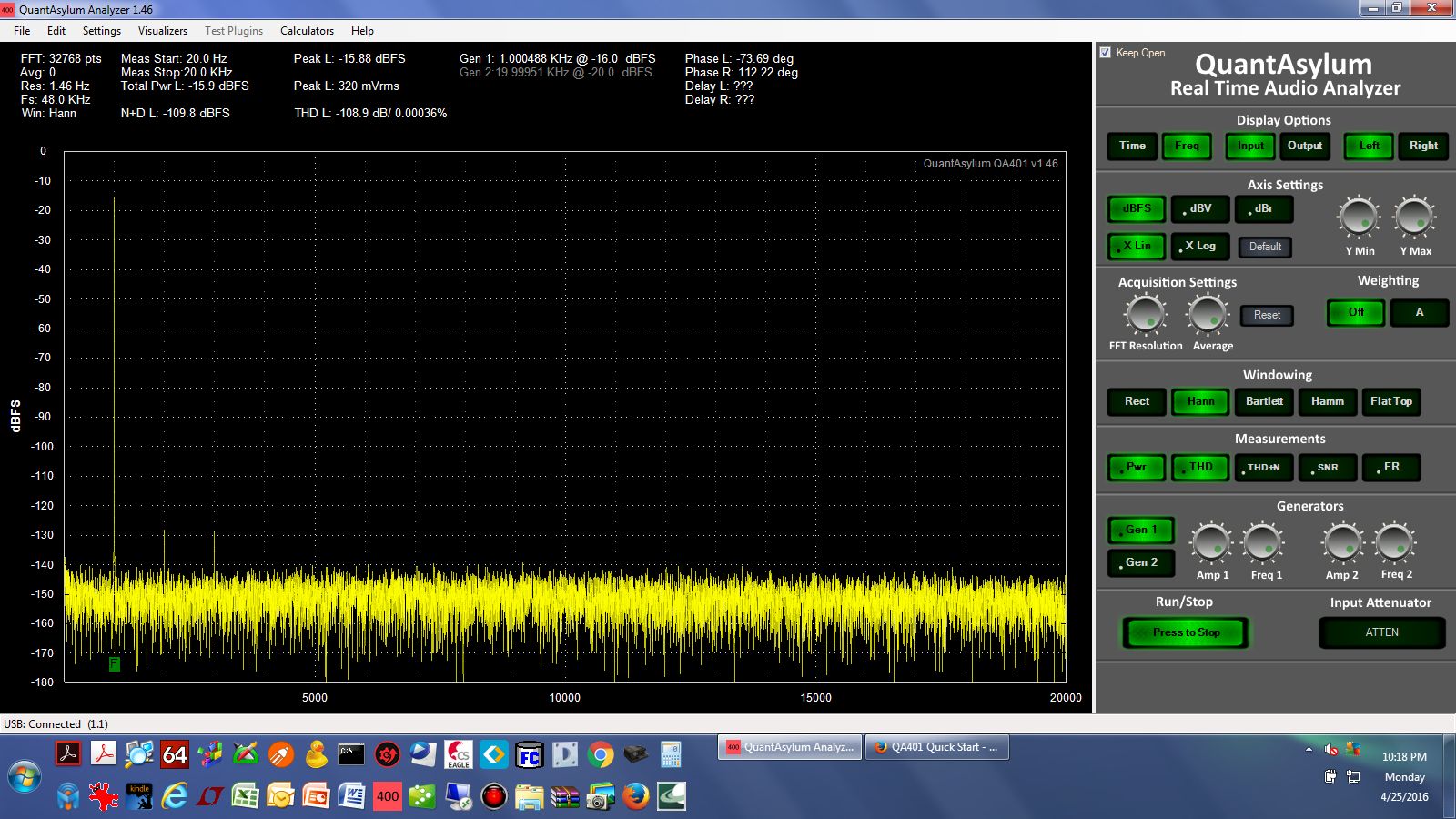

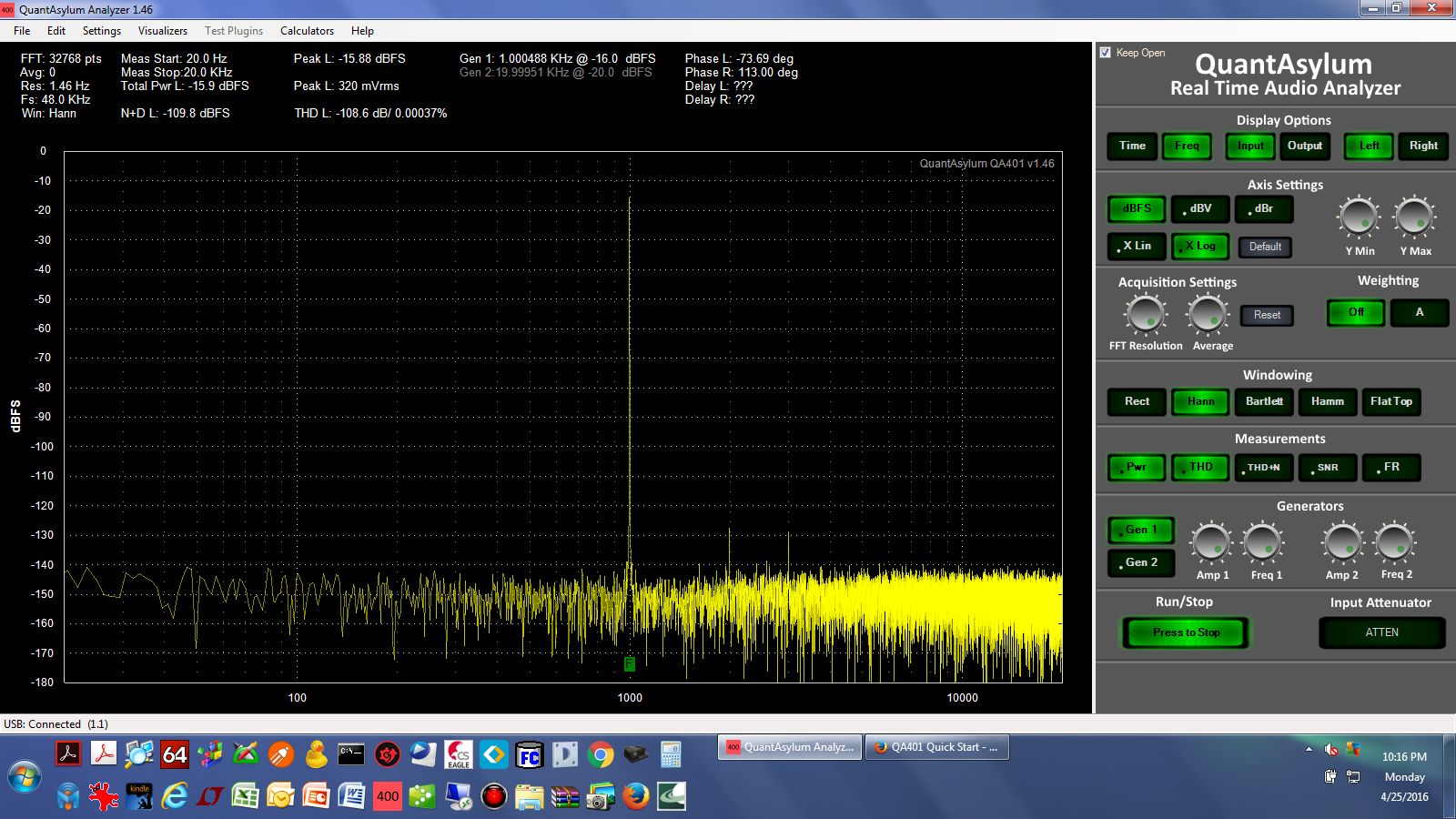

* Next is the final quick start test, a loopback. The left minus input remains shorted while the left + output is connected to the left + input via the BNC cable. The generator is set for -16dBFS and the FFT depth to 32K, as per the procedure. Their procedure says to look for -110dBFS THD. From the screen grab I'm getting -108.6, close enough! They forgot to say hit the "log" button in their procedure, since the plot they show is with the log. I've included both the linear and log plots here. The 2nd and 3rd harmonics from the ADC in unit show up, as other folks have reported. It would be nice if those were less prominent, but at least if I know the magnitude in loopback here I can subtract it out of any measurements.


Attachments

  • IMG_4138.JPG
    167.9 KB · Views: 125
  • IMG_4137.JPG
    159.4 KB · Views: 140
  • IMG_4136.JPG
    183.9 KB · Views: 246
  • IMG_4139.JPG
    305.4 KB · Views: 208
  • IMG_4140.JPG
    335.7 KB · Views: 231
  • Left internal generator linear.jpg
    Left internal generator linear.jpg
    258.3 KB · Views: 249
  • Left internal generator log.jpg
    Left internal generator log.jpg
    250.6 KB · Views: 255
  • IMG_4142.JPG
    314.5 KB · Views: 238
  • Left in short -120dB.jpg
    Left in short -120dB.jpg
    243.9 KB · Views: 227
Last edited:
Whoops, I see a typo! In "part 2" the measured power level on the screen capture is -119.7dBFS, not -120.0. I was looking at the number under it. Still, close enough!

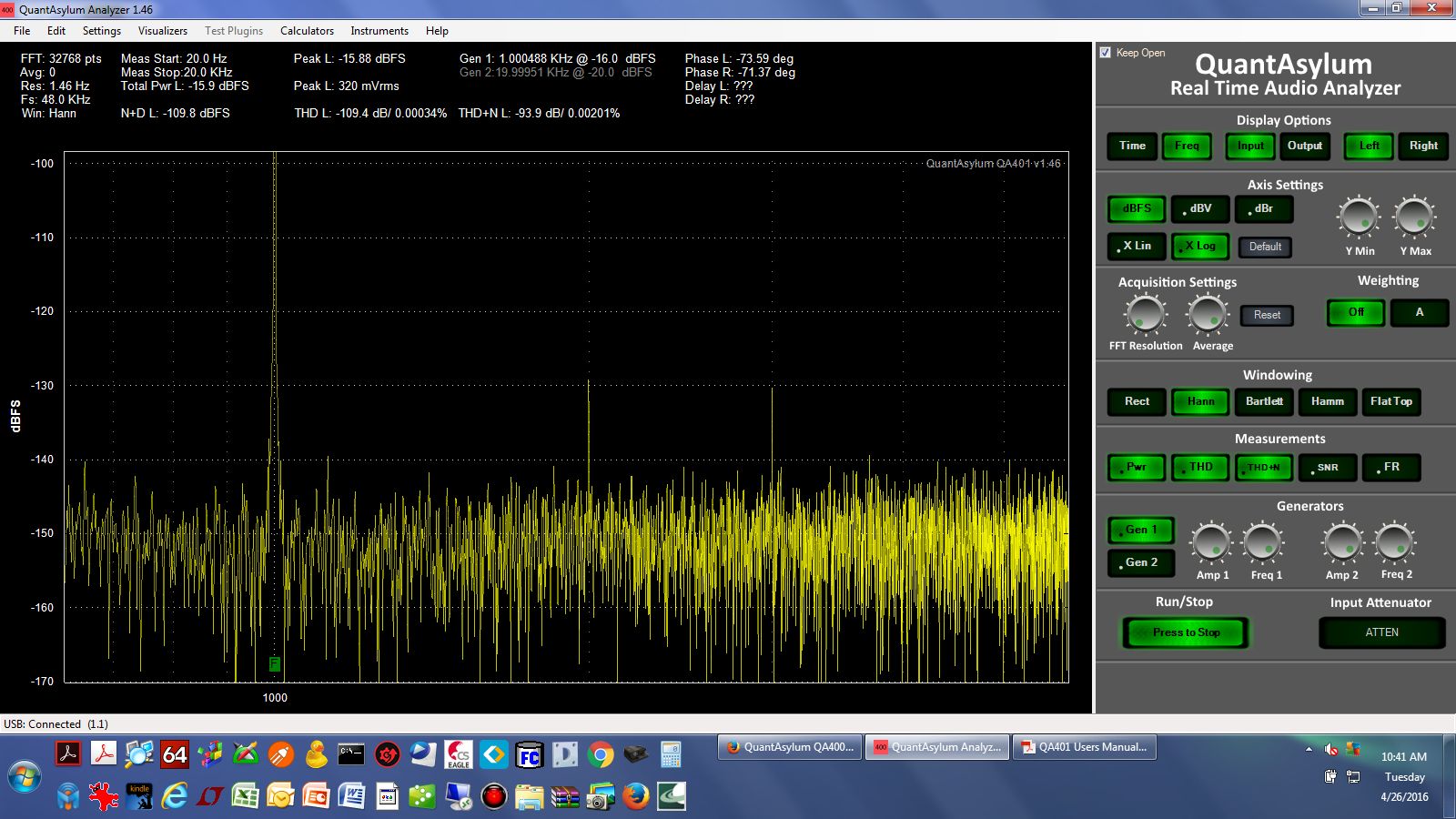

Here is another fun feature of the software. A box can be dragged around any part of the screen and it will do a zoom. Click on the axis button to reset the zoom.


Attachments

  • zoom.jpg
    238.2 KB · Views: 418
Remember that you can click on the lower left corner of any of these to zoom them up...

Have you tried THD + N?

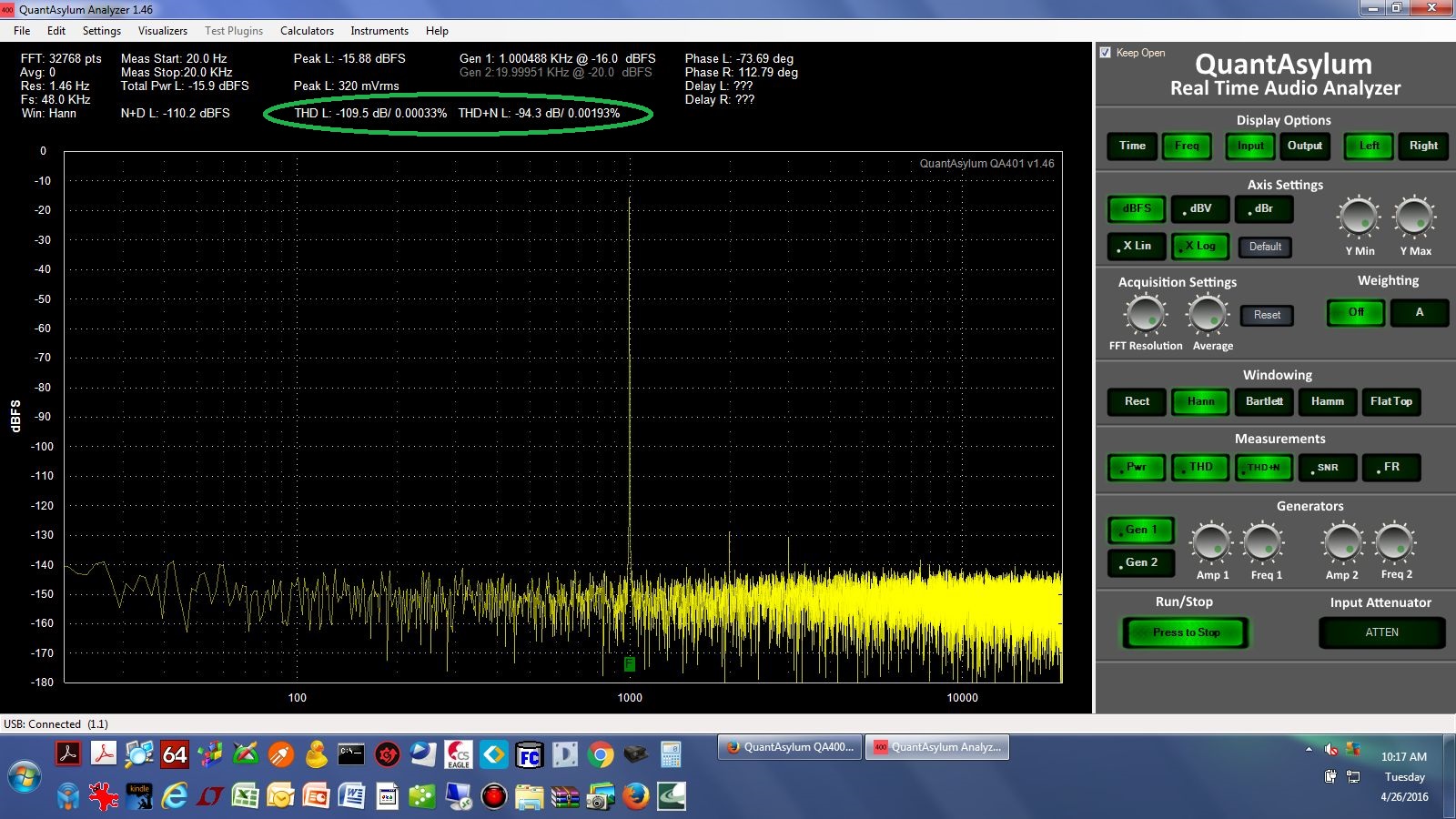

The first screen grab below has the THD+N added.

Do you have ADC measurements at the high input level (i.e. -1-3dBFS)?

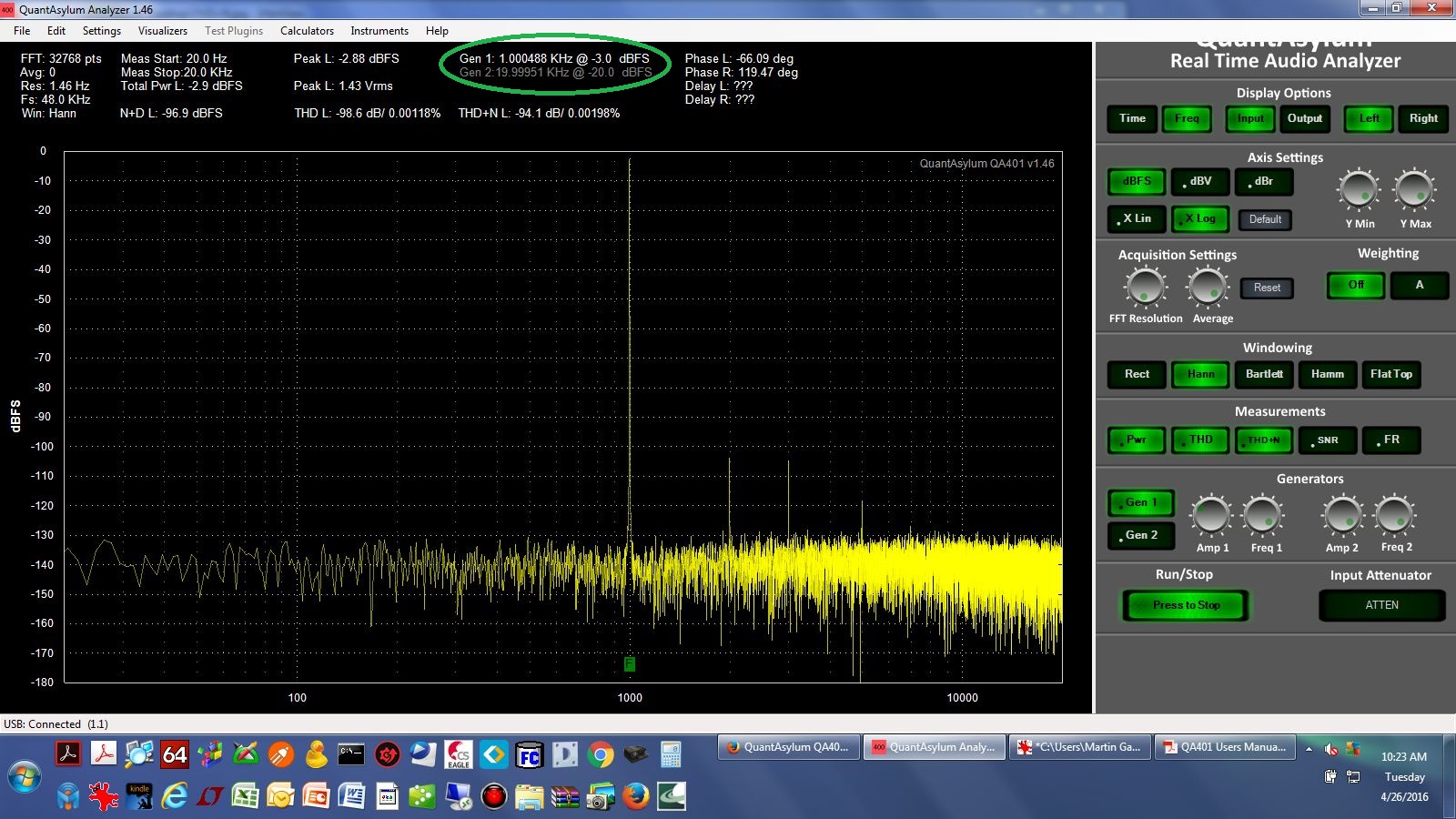

The second screen grab is with the generator set for -3dBFS. The 5th & 7th harmonics pop out at this level.

Thanks for doing this.

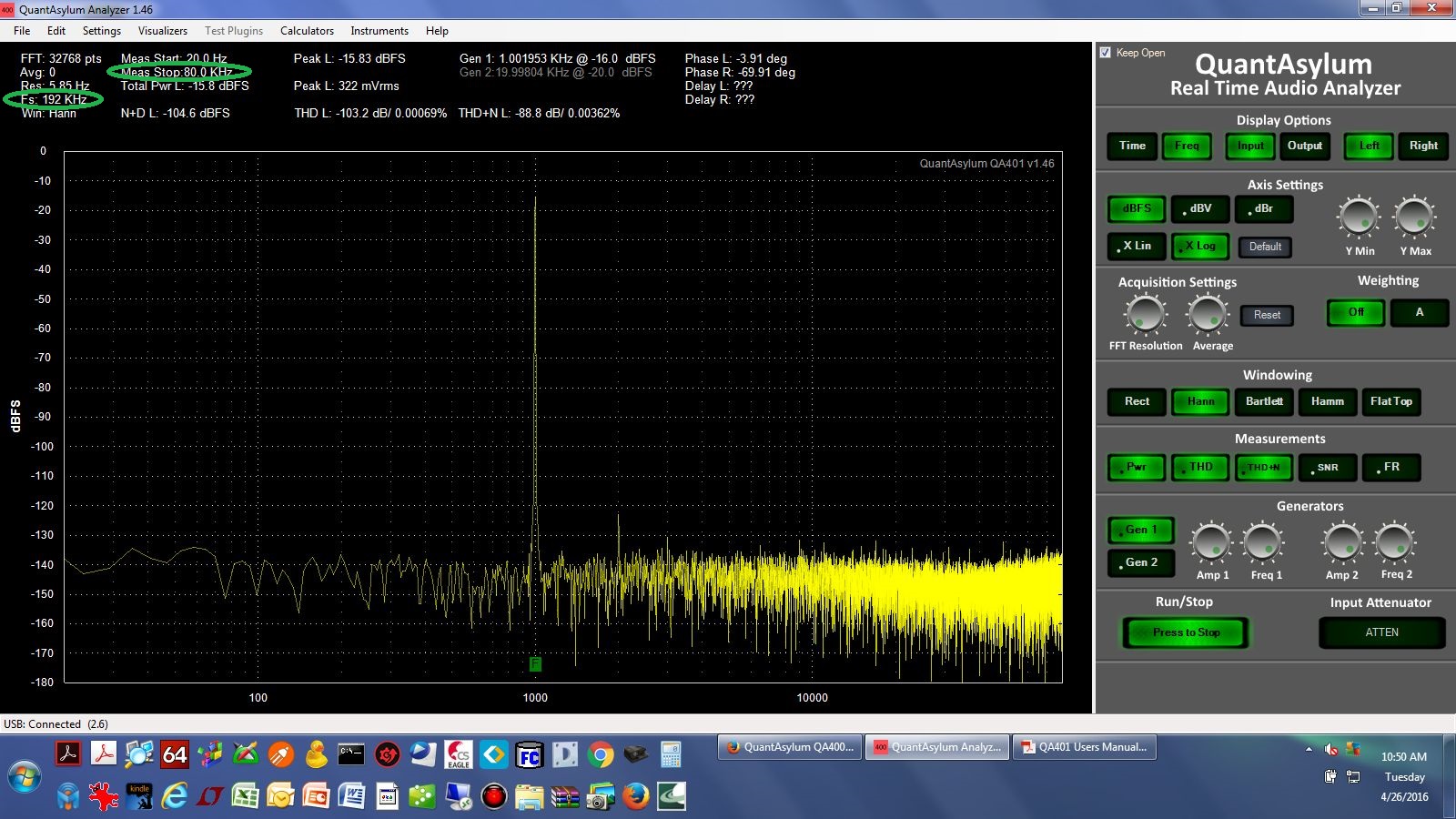

Can we see what a 1kHz fundamental looks like past 20kHz with the QA401 set to 192KSPS?

The 3rd screen grab is set to the 192K samples. I've extended the X axis to 80KHz. The max frequency of the THD and THD+N measurements are changed to 80KHz from the default 20KHz.


Attachments

  • THD+N_1.jpg
    402.1 KB · Views: 415
  • -3dBFS_1.jpg
    400.9 KB · Views: 397
  • 192KFs_1.jpg
    401 KB · Views: 397
Last edited:
I would like to check the 401 for harmonic measurement accuracy below -100dbv against my reference gear. I like the small size and quick and easy use -- and portability --- of the QA400-401 products. I have the 400 but not the 401. Yet.


THD+ IM Instruments.JPG


THx-RNMarsh

Looking good agdr.
As you go through your measurements etc some of what I found might help out.
And as you look at things and make some plots....

Might give your Victor's Oscillator a go.
From what I learned from our friend Richeem,
who helped educate me on FFTs:

FFT 32,000+ will begin the yield for frequency accuracy.
Hann window is better for frequency measurements
Flat Top window is better for amplitude measurements

Then you'll find your averages will help settles the plots
down a bit. It's a nice tool to see what's happening.

Enjoy.

It feels good and tired all during the day and awake through the night.

Things get more accurate below -100 when a notch filter is used. Without it, there are very different levels of harmonics between 400 and these other instruments.... which BTW all use built-in notch filters.


THx-Richard
