Official LYNX Power Amp builder’s thread

[Jan Dupont]

Angus
Your english is fine..... Don't worry



[crt]

Thank's Pak Agus Widarto!



[widerström]

Hi Jan
I have question aboute R128-135 what is the difrense of hi or low value and how to calculate the value for R138-145?

Thanks for the nice work
Regards Micke



[Jan Dupont]

Micke;
R128-135: If you like to run it with 8 Ohm speakers I'll suggest 0.22R, for 4 Ohm 0.33 and for 2 Ohm speakers 0R47.
R138-135: Noting to calculate... Use what you like... Some like Base resistors, some don't.... I normally use 2R2.



[Ragnwald]

Hi Jan

Why use nonpolarity electrolyts (22µF 50V), on C105 and C106 ?

regards



[peranders]

There is no advantage at all to use nonpolarized lythics in this position. Besides, you have always one polarity. Those are for decoupling and a not very sensitive spot regarding audio signals.



[tinitus]

Thanks fore asking and answering these questions



[tinitus]

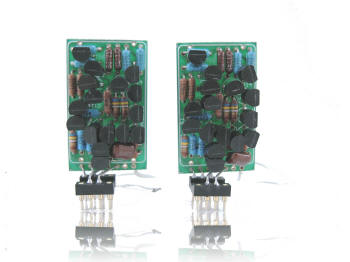

How about a discrete OPamp from Burson



[tinitus]

These will be my trafos



[Jan Dupont]

tinitus;
It's going to be fun to follow your project



[widerström]

Hi jan
How are the PCB ´s coming along?



[Jan Dupont]

They are in production, and should be finished very soon, so hopefully the comming holidays will be used to pack and ship them



[widerström]

Thank you jan looking forward to that day



[Ed LaFontaine]

Are silver-mica capacitors suitable as substitutions for the WIMA FKP 2 called for in the BOM?



[Jan Dupont]

Yes



[Ragnwald]

Hi

It´s not easy to read the values exactly of the SOA-curve.

Can we say that 50V/4A and 55V/3,7A and 60V/3,4A is all on the safe and good sounding side ?

regards



[Jan Dupont]

Ragnwald;
Download the datasheet from OnSemi or www.alldatasheet.com, and blow it up to 600%..........



[Ragnwald]

Thanks Jan

http://www.onsemi.com/pub_link/Collateral/MJL21193-D.PDF

It´s no absolute symetri between 21193 and 21194, but that´s perhaps a part of the transistortechnology to deal with.

regards



[Jan Dupont]

For those who like to read more about SOA:
http://sound.westhost.com/soa.htm

By the way, Rod Elliott's sites contains a lot of information and also answers to many of the questions, you put out here....

Recommended bedreading for all non experienced DIY'ers



[Ragnwald]

Thanks Jan

Nice porn for newbees.
