short circuit protection

Hello
greetings picture attached of mosfet relay from esperados ultimate
protection how many ampere current could this mosfet relay handle
each mosfet is 37 amperes 100 volts

warm regards
Andrew😕



[andrewlebon]

short circuit protection

Hello Tomas
greetings will finish and test protection tomorrow😉

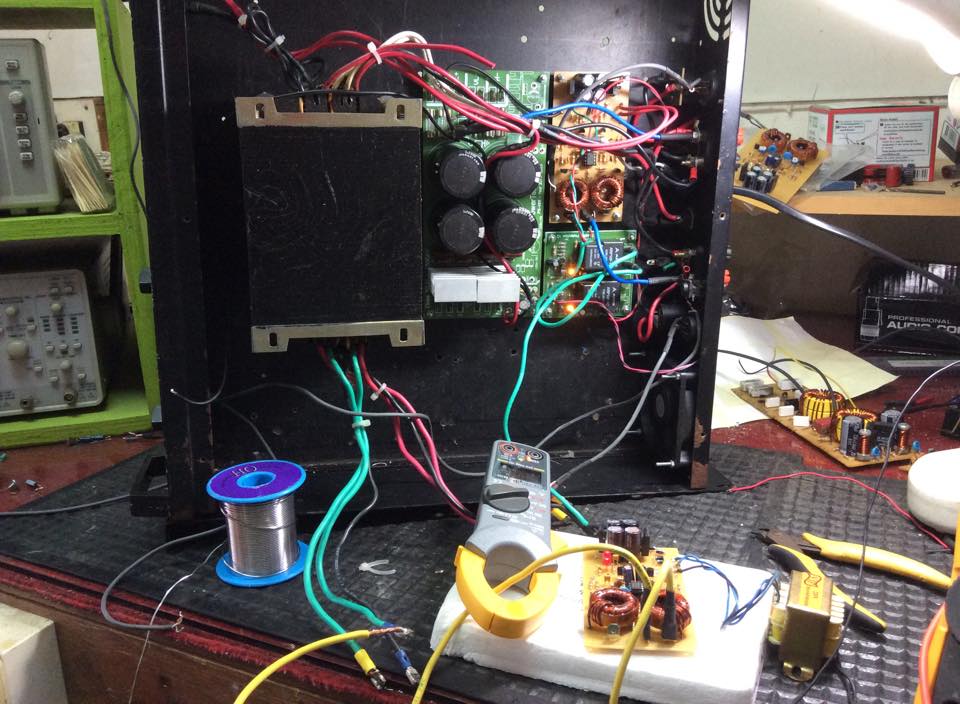

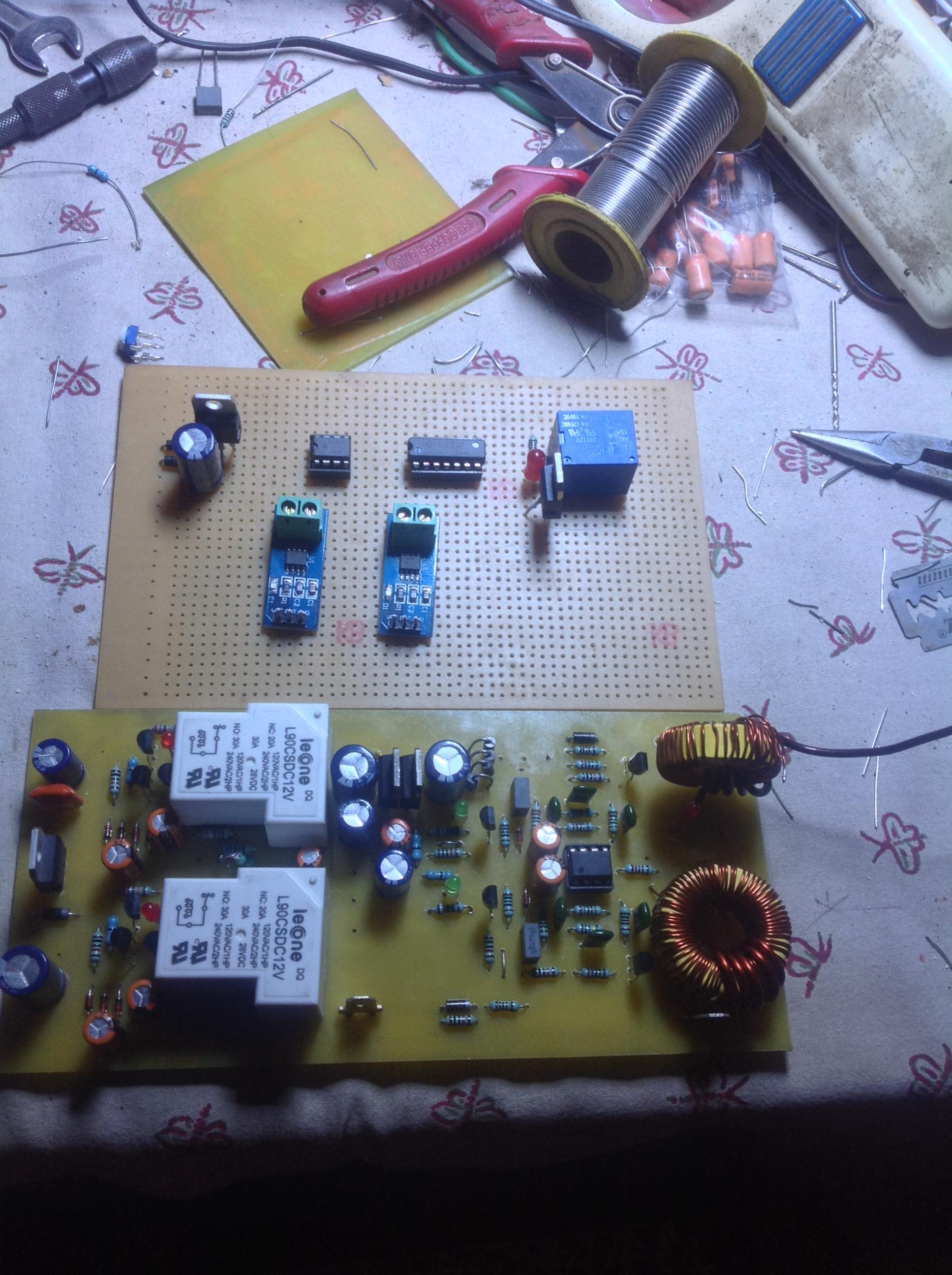

today i finish second channel dc and short circuit
protection

warm regards
Andrew



[andrewlebon]

short circuit protection

Hello Tomas
greetings finished it will check it tomorrow some other short
circuit protection circuits being tested

warn regard
Andrew😉



[andrewlebon]

short circuit protection

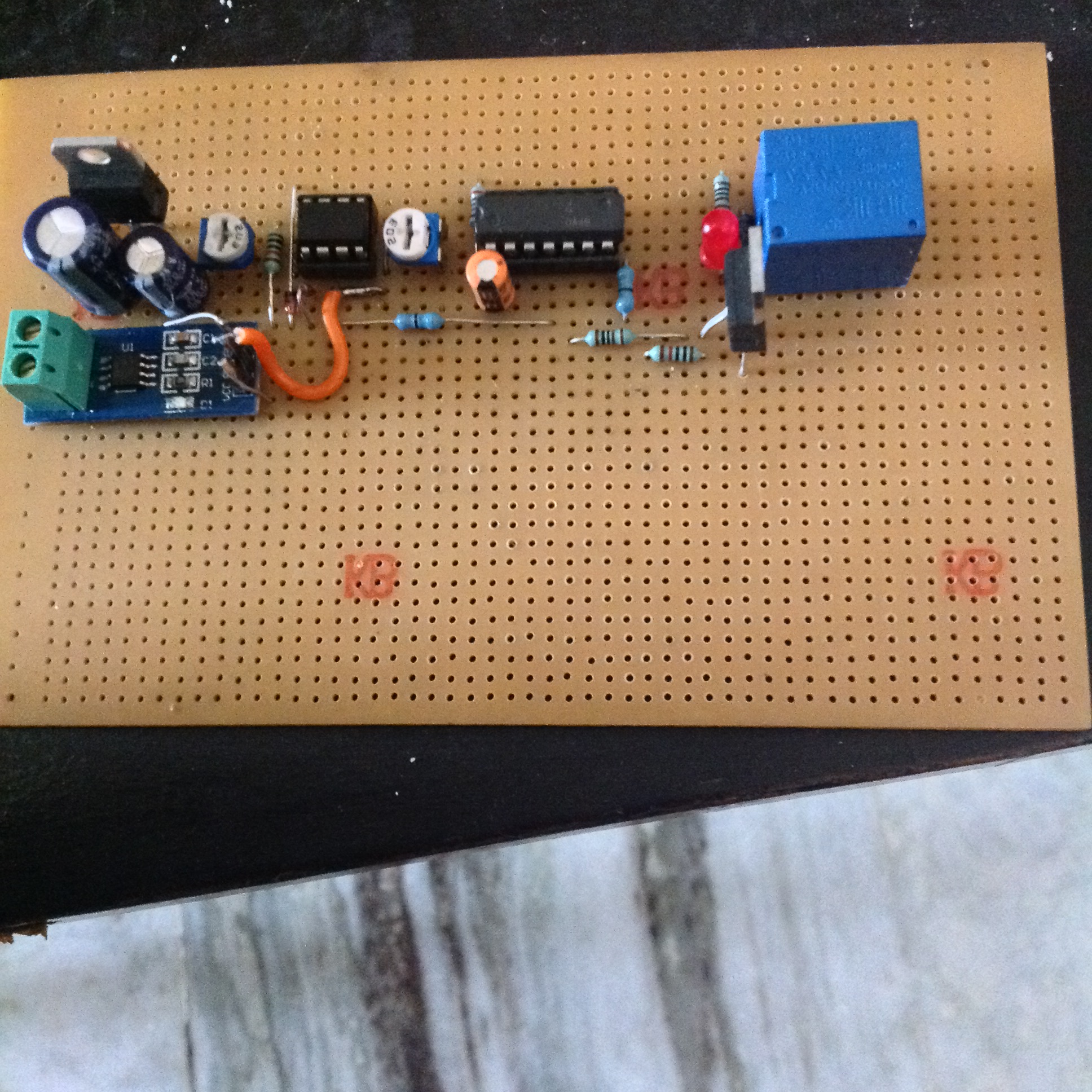

ACS712 SHORT CIRCUIT PROTECTION
just in testing process looks promising

https://www.youtube.com/watch?v=PAN2FNeJpQs&feature=youtu.be;)



[andrewlebon]

Shorting speaker wires protection working

https://www.youtube.com/watch?v=QN3-ZZzAIP8&feature=youtu.be



[tauro0221]

Hi,
Congratulation. I can not belief that a simple circuit worked out so good. I forget to mentioned you that can add the second channel to the output of the op amp since the comparators output are an open collector. That will make an OR gate. Any one of the two channel with enable the flip/flop.



[andrewlebon]

Hello Tomas
greetings first of all many thanks for helping me out on this project
its working good all the credit goes to YOU protection is vital for
amplifiers i have tried another short circuit protection at over 1200
watts i am trying to diy a solid state mosfet relay need about 50 Ampere
SSR hoping i can make it
warm regards
Andrew



[AndrewT]

The link in post64 works.

The post65 link takes me to "This video is private"



[AndrewT]

Could you add the final sch and links to useful posts as an index in post1?



[Project16]

Hello everyone!

I take this thread to ask a quick question.

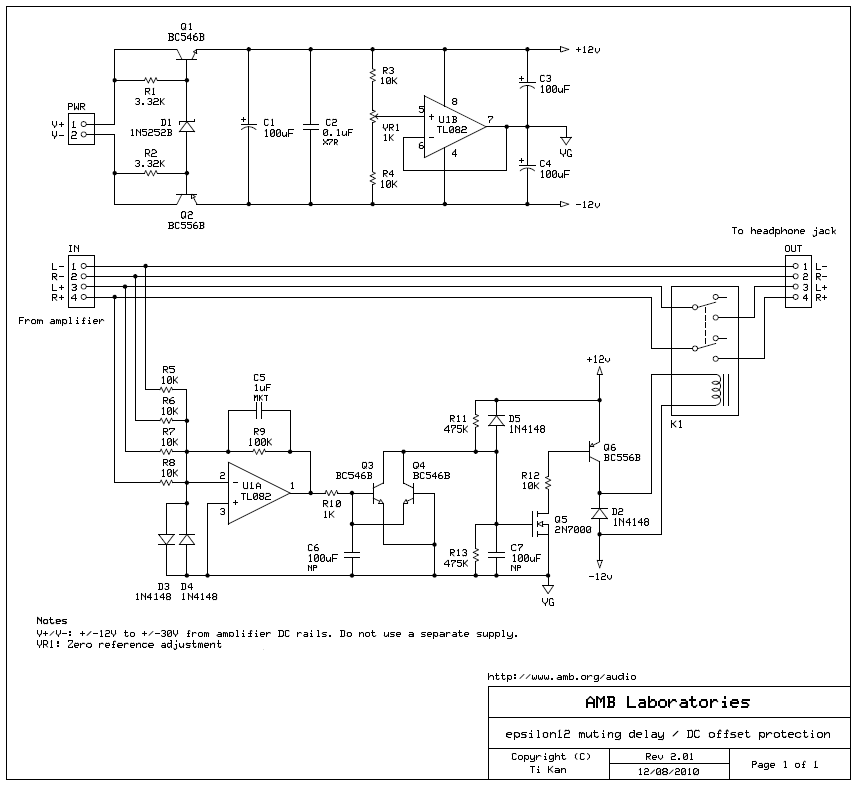

AMB laboratories offers a headphone amplifier for protection but putting a suitable relay the following diagram it may be appropriate for a power amplifier?

Thank you!



[adirsom]

thankyou



[tauro0221]

Hi,
Did you try the reset button?



[andrewlebon]

Hello Tomas
greetings the reset button does not work
warm regards
Andrew



[tauro0221]

Hi,
Did you removed the load? It will not reset until the input current it is normal.



[ratmayor]

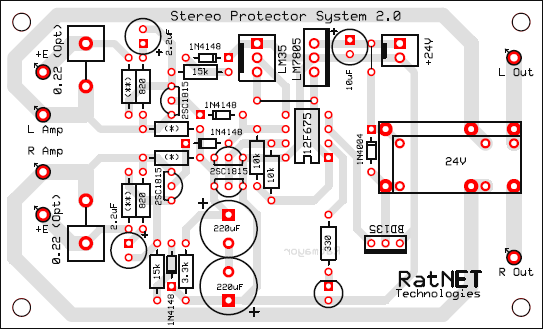

This is my original design, the hex file can be downloaded from this link (Spanish), and learn much more about this circuit.



[andrewlebon]

Hello Carlos
greetings nice protection system
warm regards
Andrew



[andrewlebon]

https://www.facebook.com/sameer.audio/videos/vob.100004543320067/438036439691130/?type=2&theater



[kimschips]

Hello Carlos
greetings nice protection system
warm regards
Andrew

Hello Thank you for your great project☺

Do you also make a stereo version?

Thanks again



[andrewlebon]

Hello
greetings i have a small problem tried 2 circuits from the web overload protection
using emitter sensing when speaker wires are shorted 12 volt relay keeps going
off and on is there any way this can be solved can anyone help me out
warm regards
Andrew



[thimios]

This is my original design, the hex file can be downloaded from this link (Spanish), and learn much more about this circuit.

Please can you post here the pcb and firmware?
