RCA 2N3055 - first date of really availability for the industry - which year?
I still search the exact first launched date of RCA's 2N3055.
Under post #33 and post #34 about
http://www.diyaudio.com/forums/parts/167680-vintage-transistors-4.html
you will find some cover pics of vintage RCA semiconductor databooks. Perhaps one of you can identify that book, where the 2N3055 was first mentioned.
In the moment I know only the claim from wiki - the early 1960.
I still search the exact first launched date of RCA's 2N3055.
Under post #33 and post #34 about
http://www.diyaudio.com/forums/parts/167680-vintage-transistors-4.html
you will find some cover pics of vintage RCA semiconductor databooks. Perhaps one of you can identify that book, where the 2N3055 was first mentioned.
In the moment I know only the claim from wiki - the early 1960.
Altec 351C equipped with AL40494 = selected 2N3055; schematic wanted
Altec 351C equipped with AL40494 (selected 2N3055) for the output power stage.
Who knows the year of the introduce of Altec's "351 C" ?
And who knows about it's sound resp. sonic character?
Also schematic wanted.
some URLs and attached photo gallerie also include inside photos (pictures save from ebay Item number 300424476508)
Vintage Altec 351C 50W Amplifier +Peerless Transformers
http://www.greatplainsaudio.com/vintage_altec/351C_amplifier_spec_sheet.pdf
Power stage transistors: AL40494 = selected 2N3055 like follow:
VCEV >90V 1V5 reverse bias, ICEO 1mA maximum at VCE = 50VDC
go to Note 5 page 2 about
http://alteclansingunofficial.nlenet.net/publications/techletters/TL_175A.pdf
Altec 351C equipped with AL40494 (selected 2N3055) for the output power stage.
Who knows the year of the introduce of Altec's "351 C" ?
And who knows about it's sound resp. sonic character?
Also schematic wanted.
some URLs and attached photo gallerie also include inside photos (pictures save from ebay Item number 300424476508)
Vintage Altec 351C 50W Amplifier +Peerless Transformers
http://www.greatplainsaudio.com/vintage_altec/351C_amplifier_spec_sheet.pdf
Power stage transistors: AL40494 = selected 2N3055 like follow:
VCEV >90V 1V5 reverse bias, ICEO 1mA maximum at VCE = 50VDC
go to Note 5 page 2 about
http://alteclansingunofficial.nlenet.net/publications/techletters/TL_175A.pdf
Attachments
-
Altec 351C front.pdf56.6 KB · Views: 325
-
Altec 351C inside bottom.pdf168.9 KB · Views: 218
-
Altec 351C inside top.pdf115.9 KB · Views: 1,466
-
Altec 351C right side.pdf60.6 KB · Views: 182
-
Altec 351C rear.pdf92.3 KB · Views: 213
-
Altec 351C front rear right.pdf159 KB · Views: 259
-
Altec 351C top.pdf75.9 KB · Views: 191
Last edited:
Altec 1590E equipped with AL 40494 = selected 2N3055
This 1590 E mono power amp is equipped with a big fat output transformer. It would be very interesting to know how it sounds. Some guys claim, this amp is absolutely the best sounded amplifier from all with a small amount of idle current. This could be right because it's symmetric circuit topology (really true complementary stage instead so called "true complementary" NPN/PNP output power stage) and the according distortion behaviour.
All papers you will get here:
http://alteclansingunofficial.nlenet.net/proelectronics/proamplifiers/index.html
This 1590 E mono power amp is equipped with a big fat output transformer. It would be very interesting to know how it sounds. Some guys claim, this amp is absolutely the best sounded amplifier from all with a small amount of idle current. This could be right because it's symmetric circuit topology (really true complementary stage instead so called "true complementary" NPN/PNP output power stage) and the according distortion behaviour.
All papers you will get here:
http://alteclansingunofficial.nlenet.net/proelectronics/proamplifiers/index.html
Attachments
-

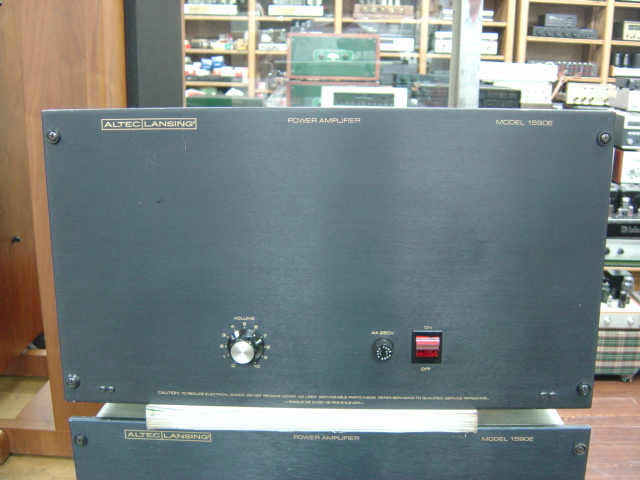

Altec 1590E front.JPG177.5 KB · Views: 1,503
-
Altec 1590E front-II.JPG148 KB · Views: 1,467
-

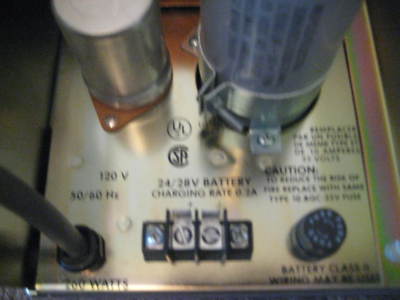

Altec 1590E caps.JPG13.9 KB · Views: 1,463
-
Altec 1590E rear.JPG66.4 KB · Views: 236
-

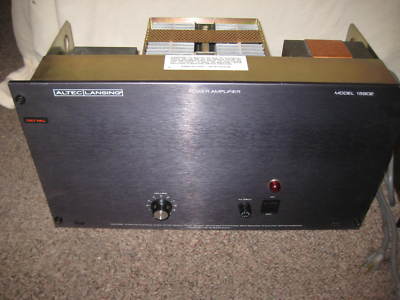

Altec 1590E front-III.JPG15.1 KB · Views: 1,513
-
Altec 1590E 2 pc.jpg8.6 KB · Views: 1,428
-

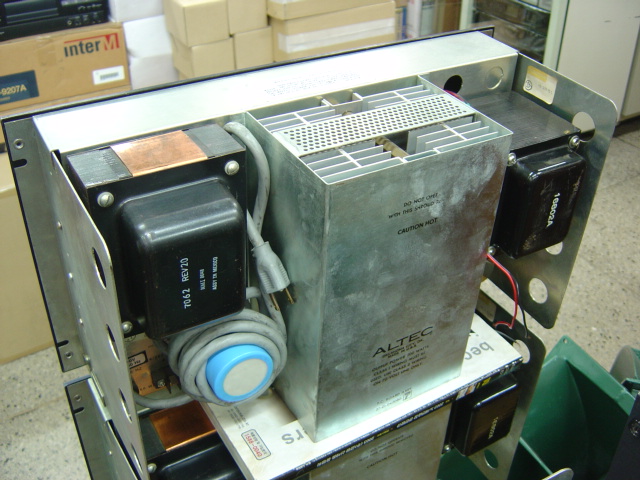

Altec 1590E rear-II.JPG136.6 KB · Views: 296
-

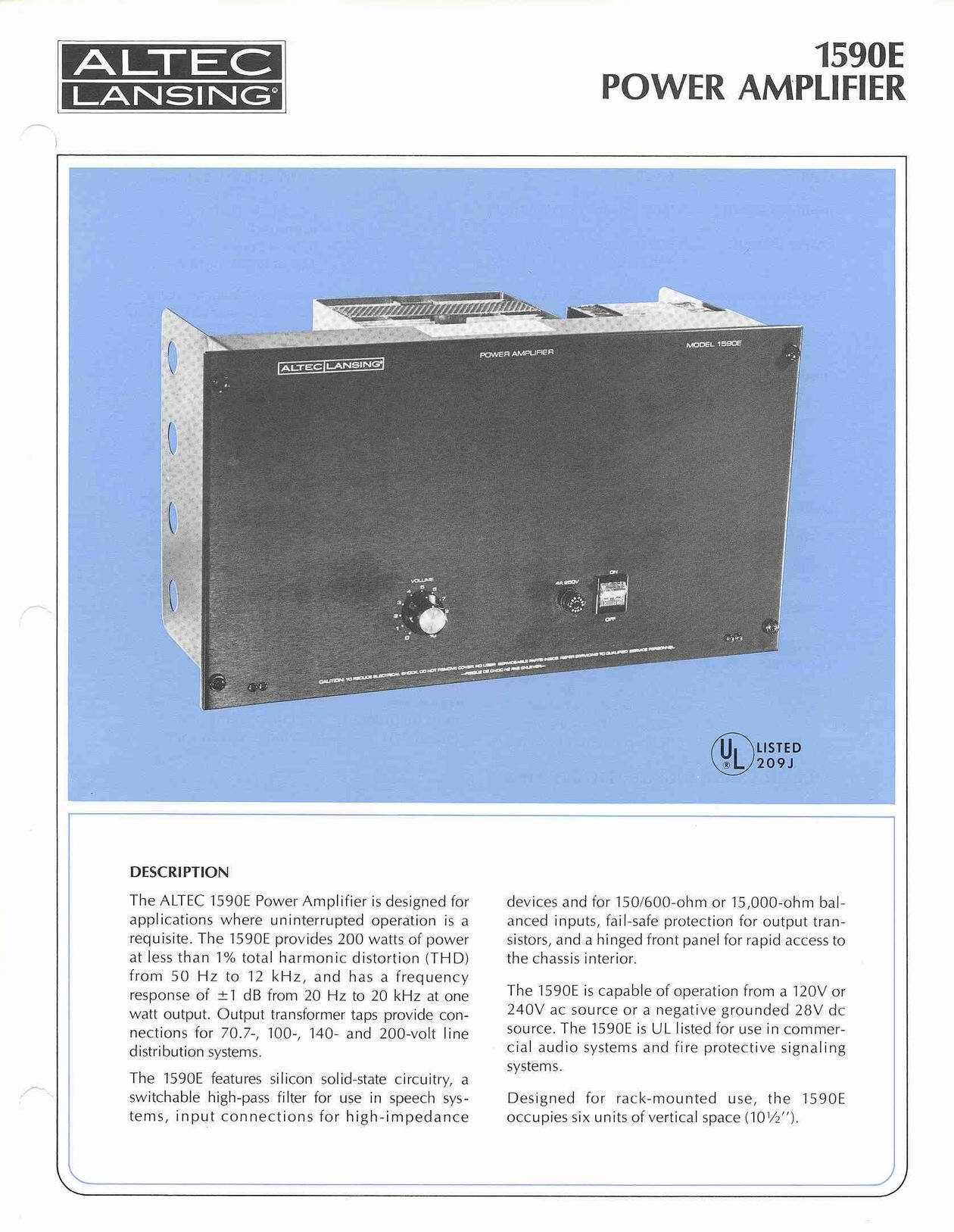

Altec 1590E-advertising.jpg205 KB · Views: 309
-
Altec 1590E-Schema.pdf56.4 KB · Views: 341
Last edited:

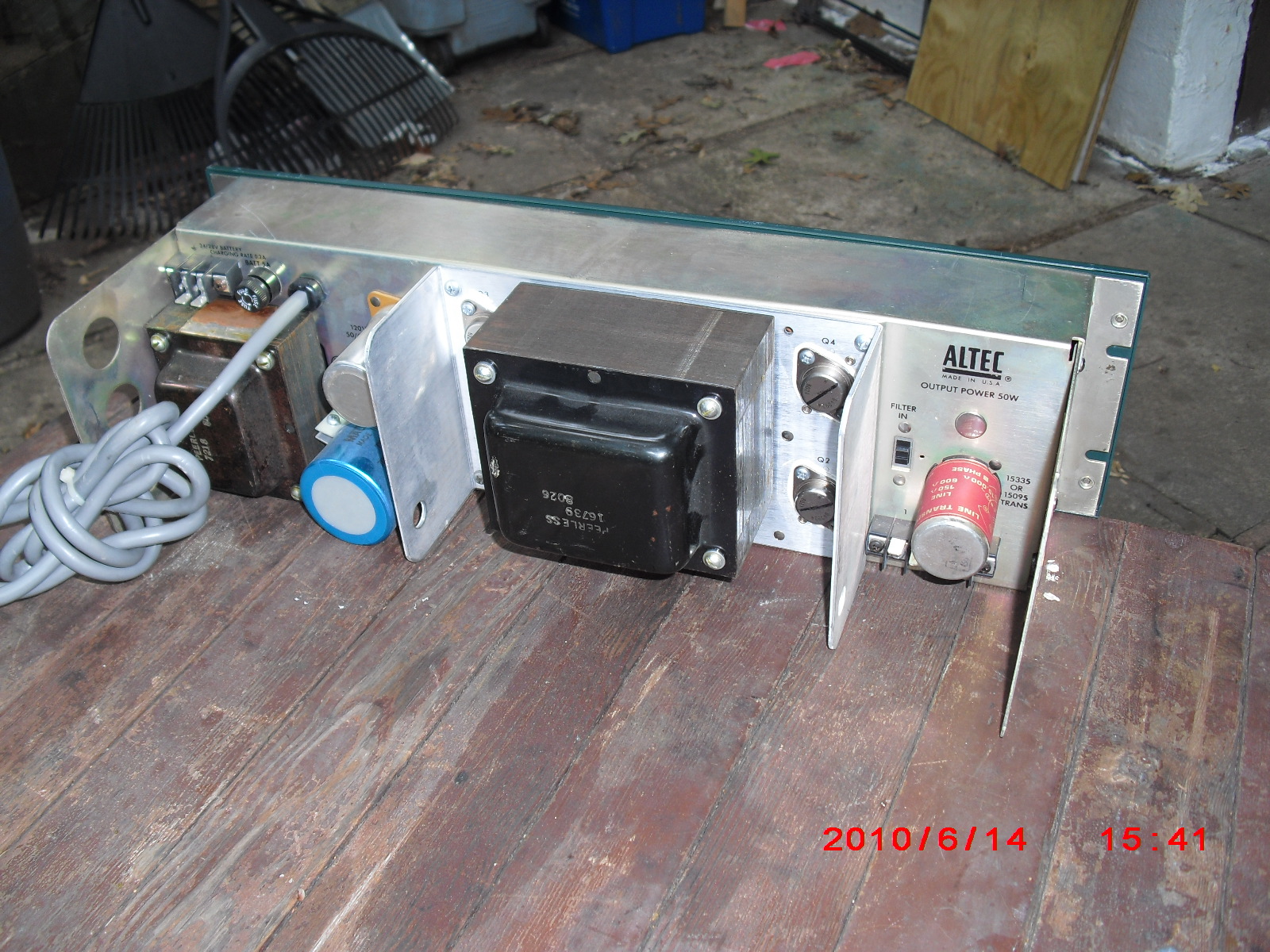

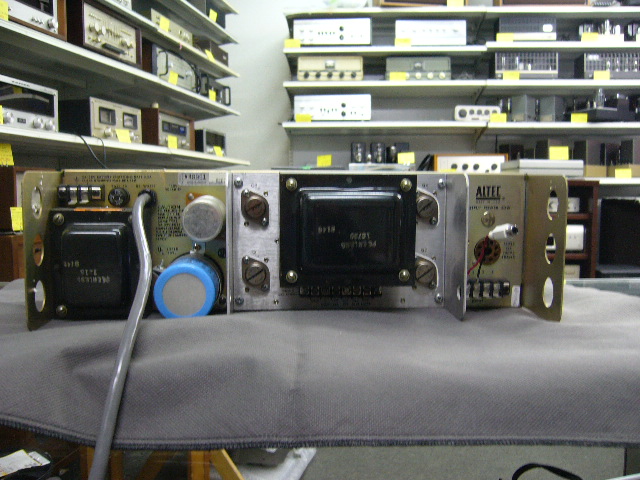

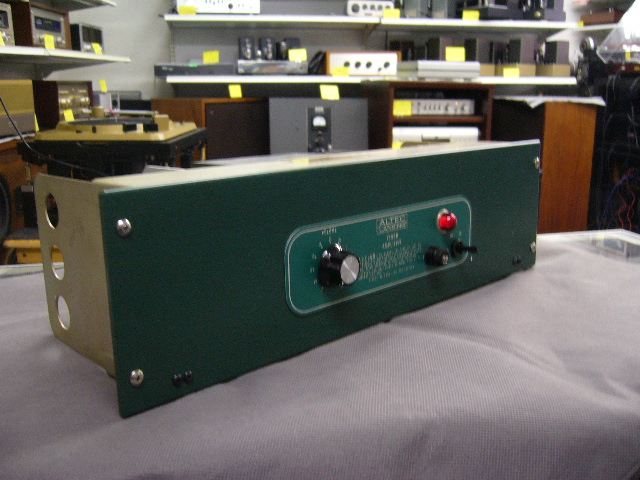

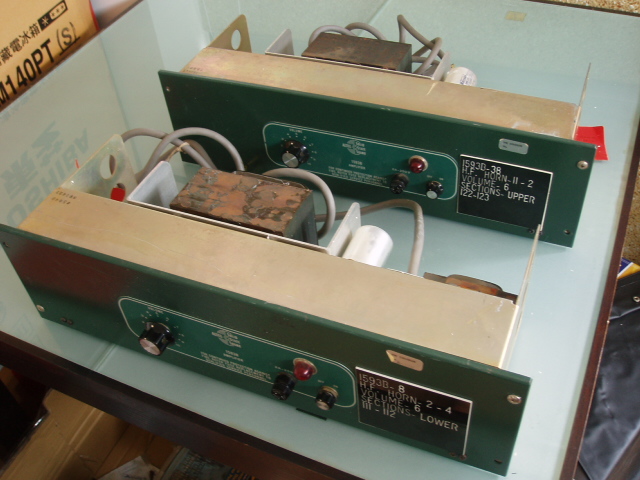

Altec 1593B equipped with AL/D40494 = selected 2N3055
Altec 1593B is a smaller mono amp than the 1590E, but works with same basic topology, i. e. also without so called "true complementary" NPN/PNP output power stage; output transformer seems to be larger than the mains transformer.
Altec 1593B is a smaller mono amp than the 1590E, but works with same basic topology, i. e. also without so called "true complementary" NPN/PNP output power stage; output transformer seems to be larger than the mains transformer.
Attachments
-

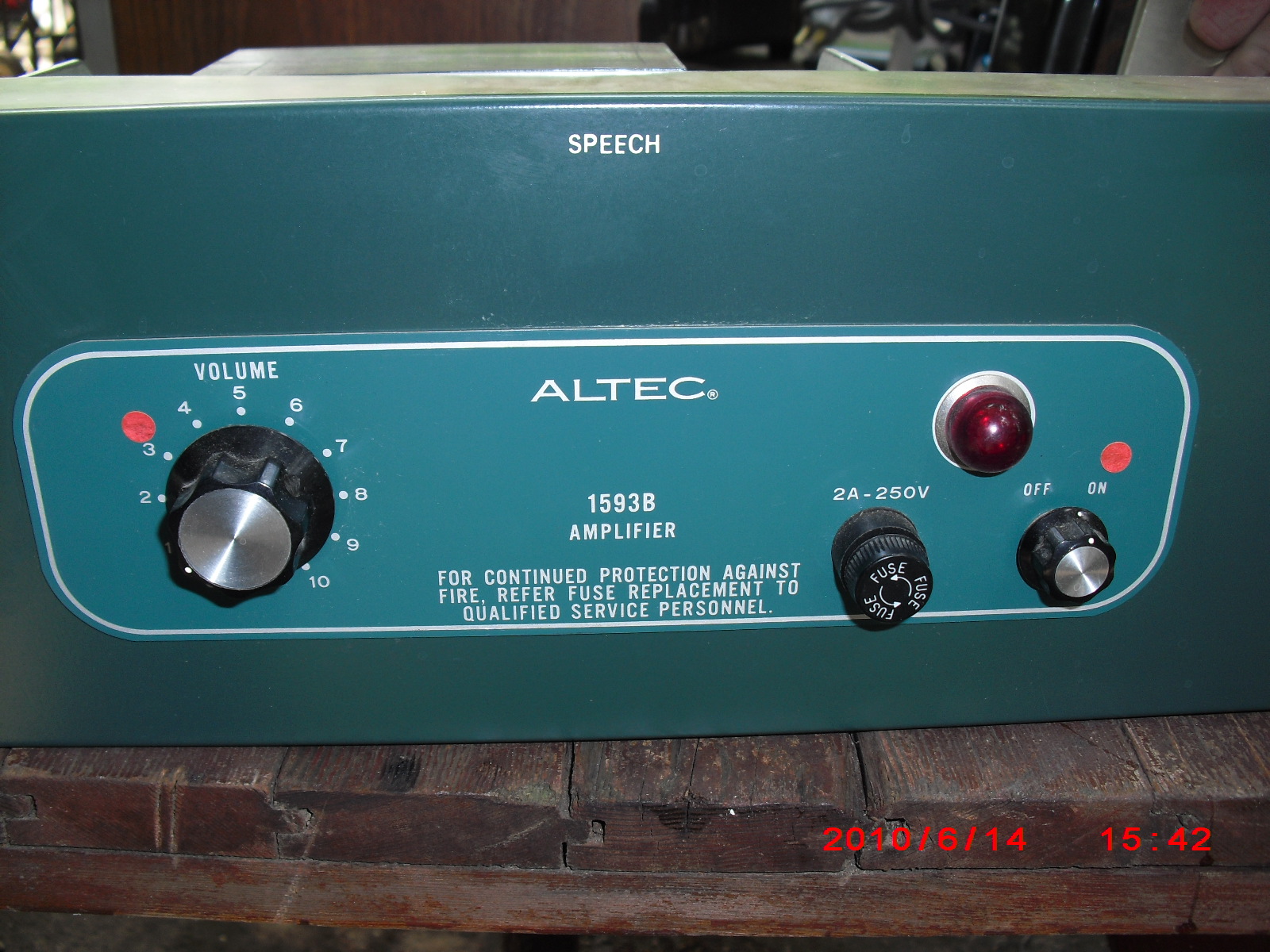

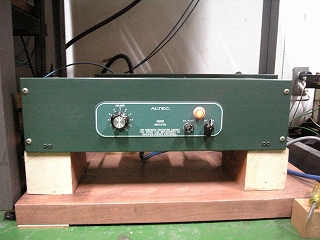

Altec 1593B front.jpg75.2 KB · Views: 233
-

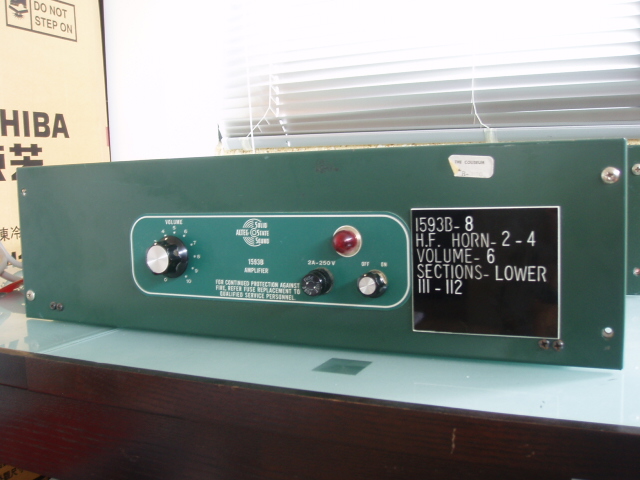

Altec 1593B front top.jpg152.4 KB · Views: 246
-
Altec 1593B front left.jpg156.4 KB · Views: 220
-

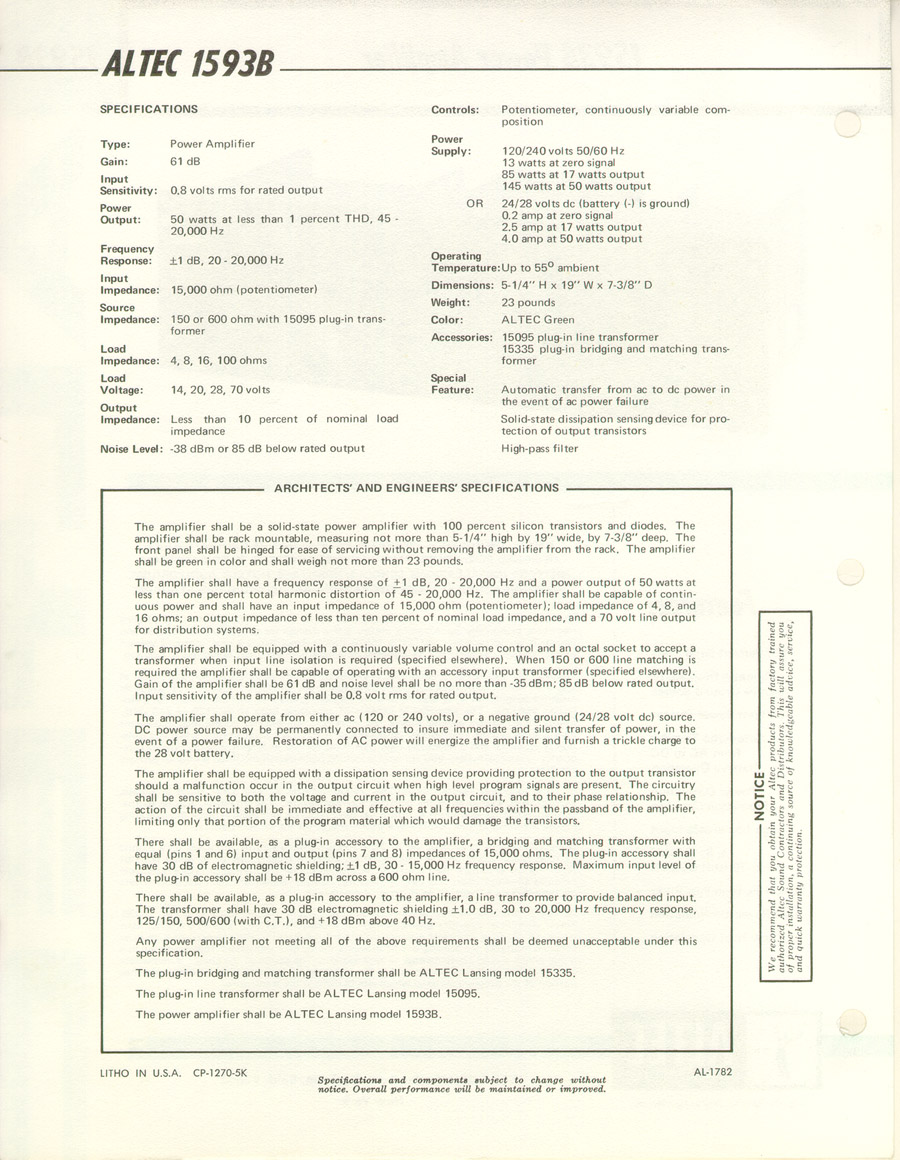

Altec 1593B datasheet pg2.jpg302.4 KB · Views: 180
-

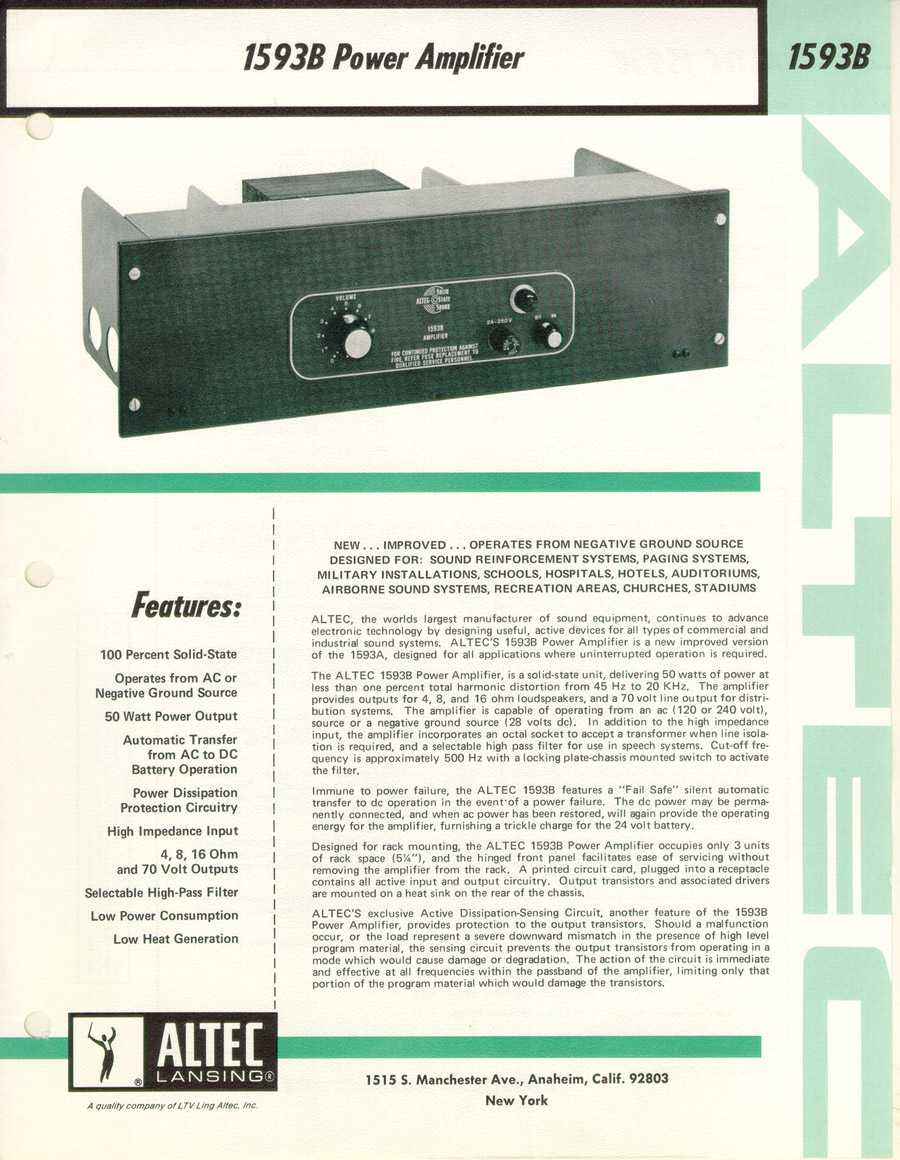

Altec 1593B datasheet pg1.jpg331.4 KB · Views: 231
-

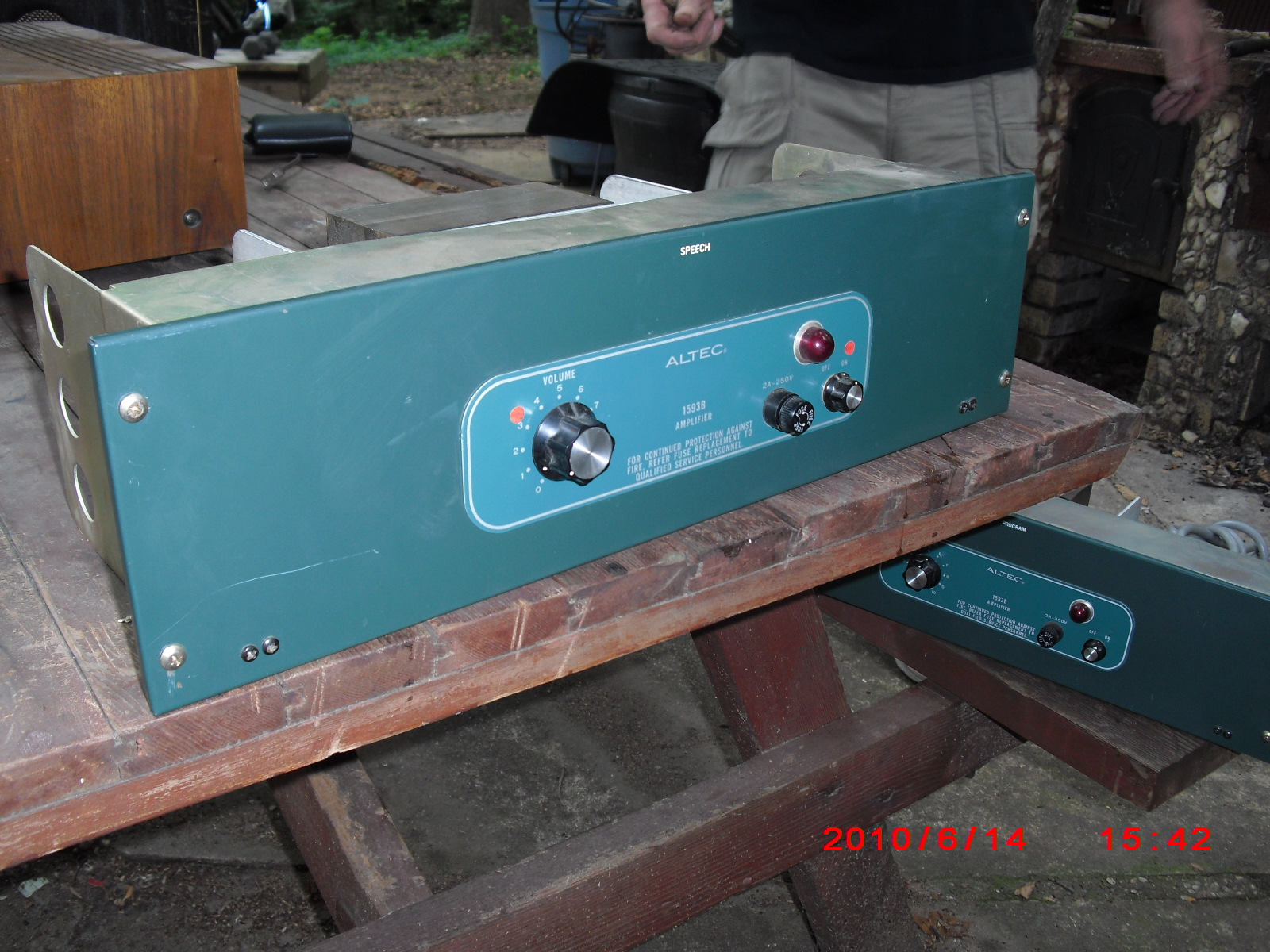

Altec 1593B front-II.jpg144.1 KB · Views: 186
-

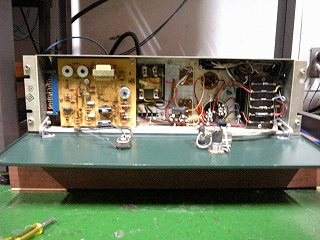

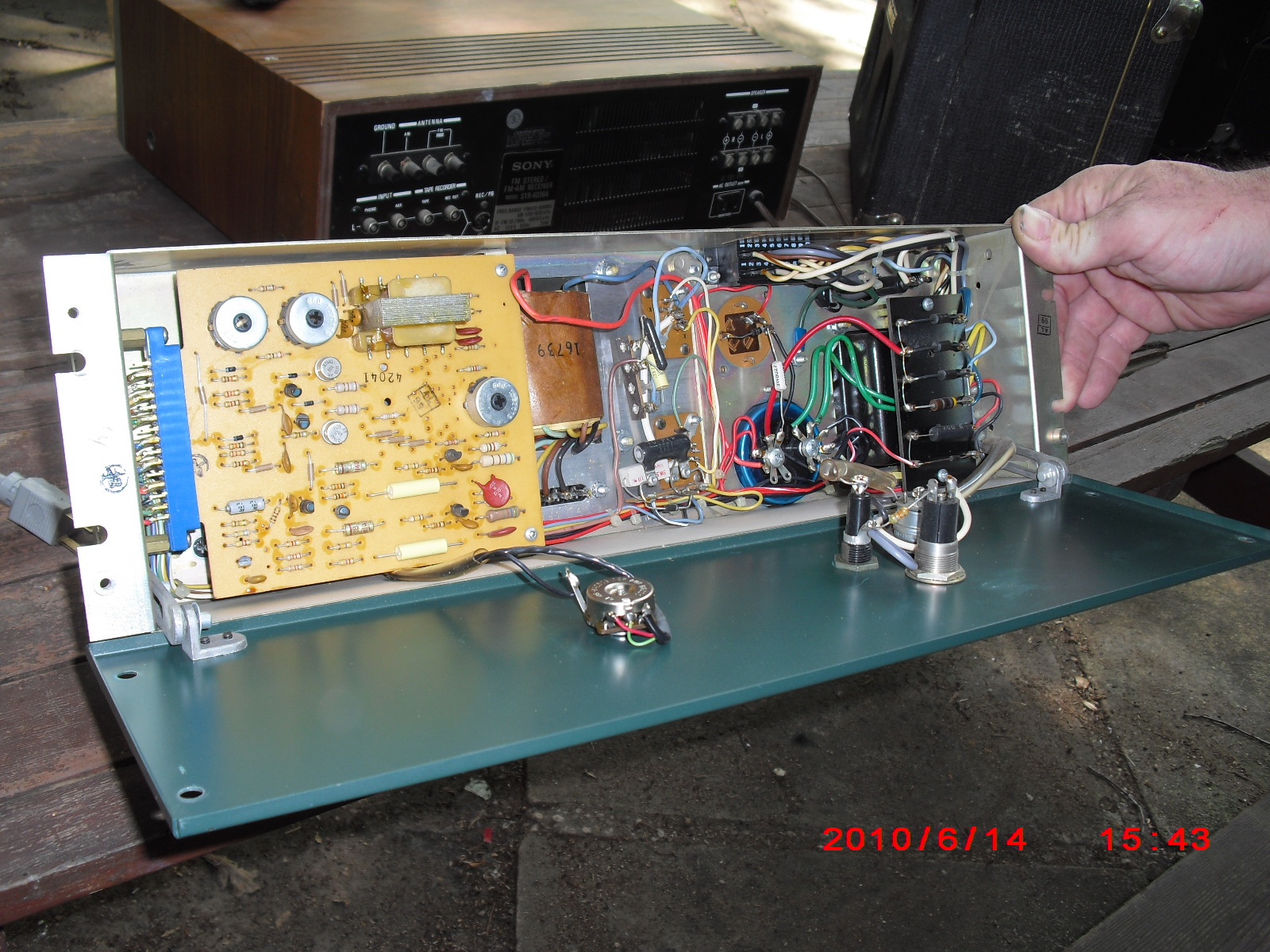

Altec 1593B inside.jpg85.4 KB · Views: 271
-

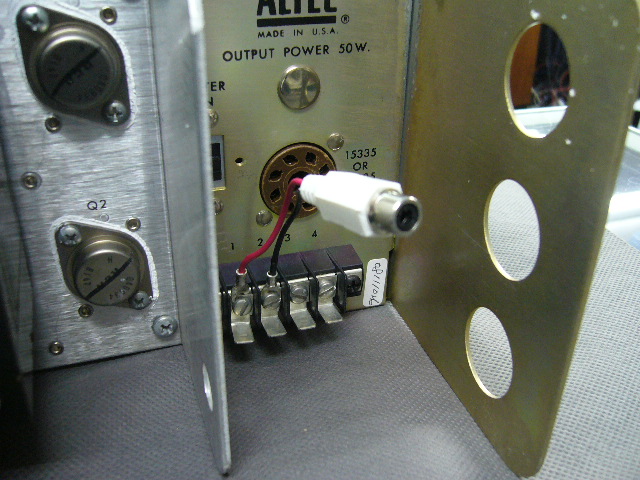

Altec 1593B RCA D40934 TO-3.jpg145.7 KB · Views: 323
-
Altec 1593B rear.jpg149.5 KB · Views: 271
-

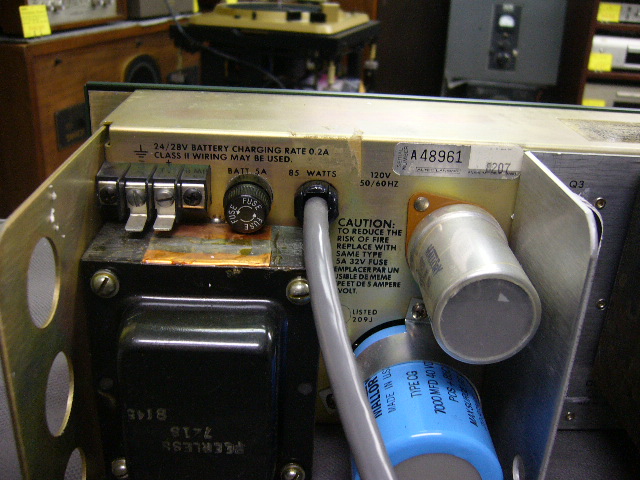

Altec 1593B rear caps.jpg147.7 KB · Views: 255
Last edited:

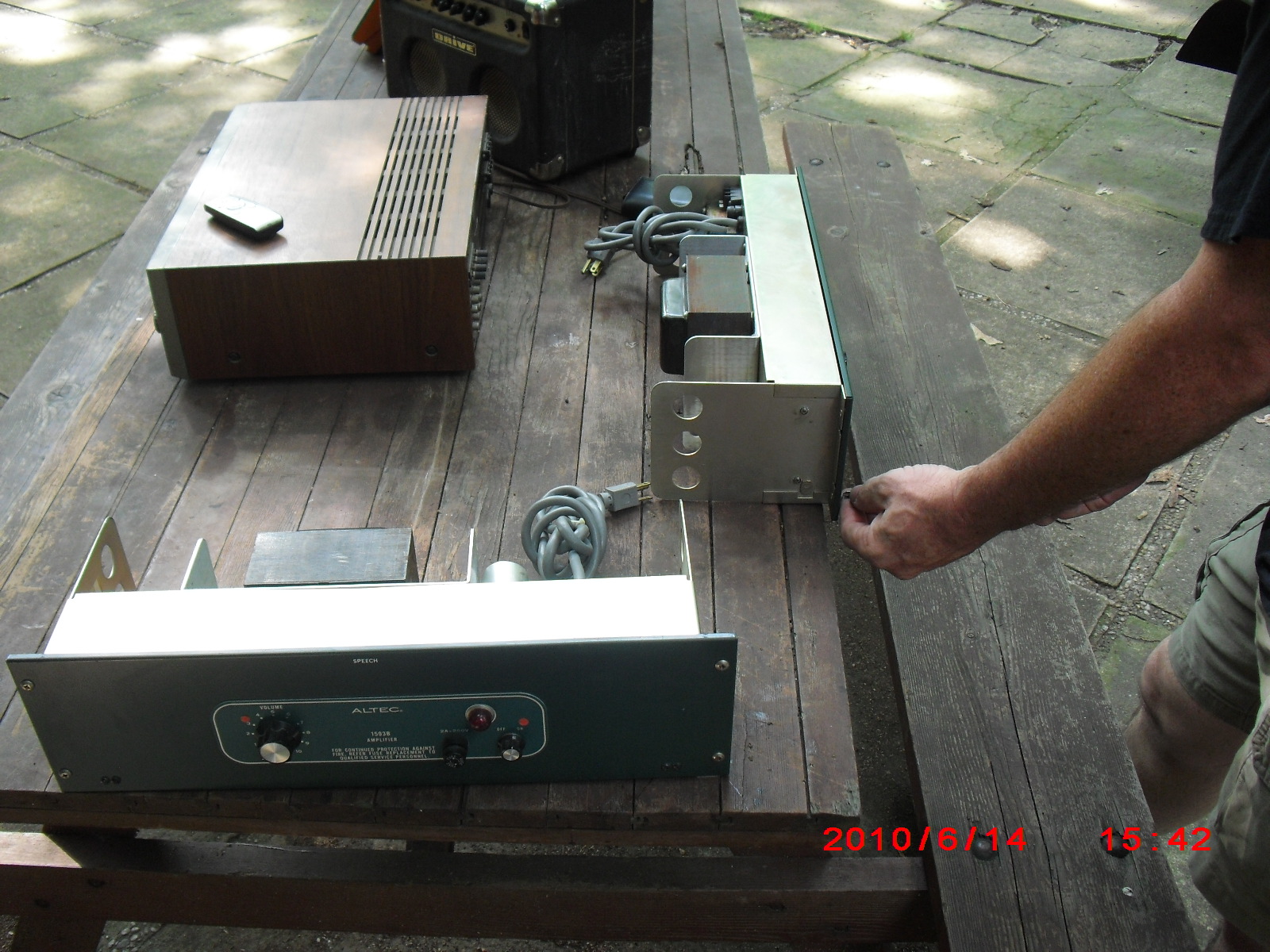

Altec 1593B equipped with AL/D40494 = selected 2N3055 - more pics
Altec 1593B equipped with AL/D40494 = selected 2N3055 - II
more pics (high resolution) from new ebay offer - go to Item number: 320550280086
AND AN OFFER FROM 1593A: go to pdf attachement
Altec 1593B equipped with AL/D40494 = selected 2N3055 - II
more pics (high resolution) from new ebay offer - go to Item number: 320550280086
AND AN OFFER FROM 1593A: go to pdf attachement
Attachments
Last edited:
Very interesting thread, with many non-conventional transistor amplifiers. Personally, I'm fascinated how the ElectroVoice EV11xx series sounds, even if many people say it's just distortion.
I haven't read through the whole thread, so please baer with me if I missed something. Do original RCA 2n3055 have some sort of date code on them? I have one that reads:
"2N3055
RCA
RG 563"
Was it possibly made in May 1963?
"2N3055
RCA
RG 563"
Was it possibly made in May 1963?

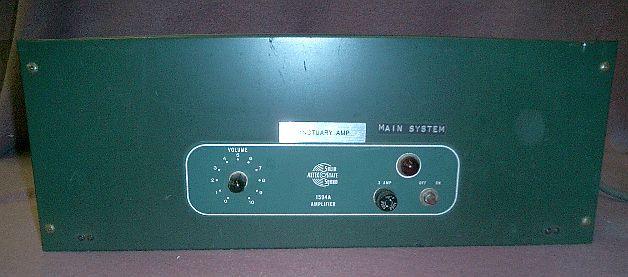

Altec 1594A and 1594C - latest of 159xx series equipped with Successor of 2N3055
It seems to be, that Motorola's 2N5878 was by Motorola a successor of the 2N3055 (80V/10A/150W/4MHz vs. 60V/15A/115W/2,5MHz)
The circuit topology is basicly the same than bevor (see previous posts), i. e. not OTL.
It seems to be, that Motorola's 2N5878 was by Motorola a successor of the 2N3055 (80V/10A/150W/4MHz vs. 60V/15A/115W/2,5MHz)
The circuit topology is basicly the same than bevor (see previous posts), i. e. not OTL.
Attachments
-

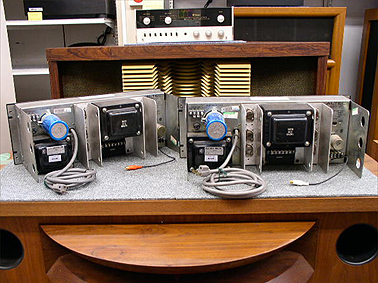

Altec 1594A front.jpg35.3 KB · Views: 205
-

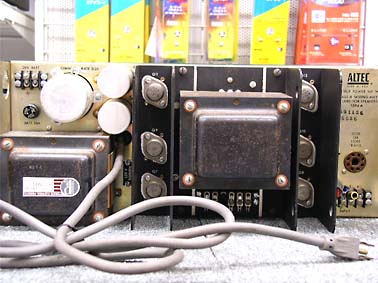

Altec 1594A rear II.jpg32.3 KB · Views: 180
-

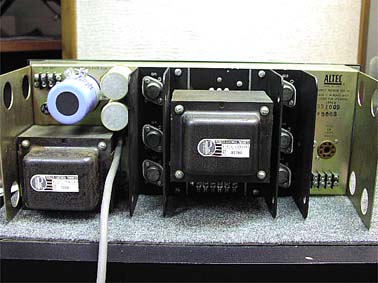

Altec 1594A rear III.jpg28.9 KB · Views: 181
-
Altec 1594A rear.jpg47.4 KB · Views: 204
-

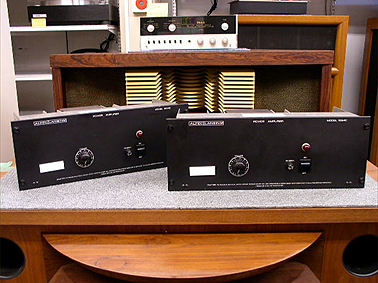

Altec 1594C front.jpg122.4 KB · Views: 220
-

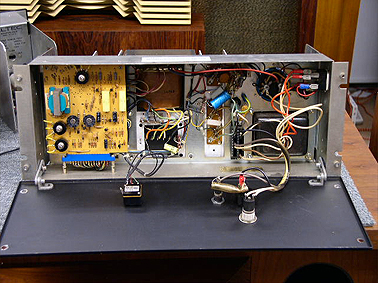

Altec 1594C inside.jpg138.9 KB · Views: 225
-
Altec 1594C Schema 2N5878.pdf43.1 KB · Views: 302
-
Altec 1594C rear.jpg134.4 KB · Views: 260

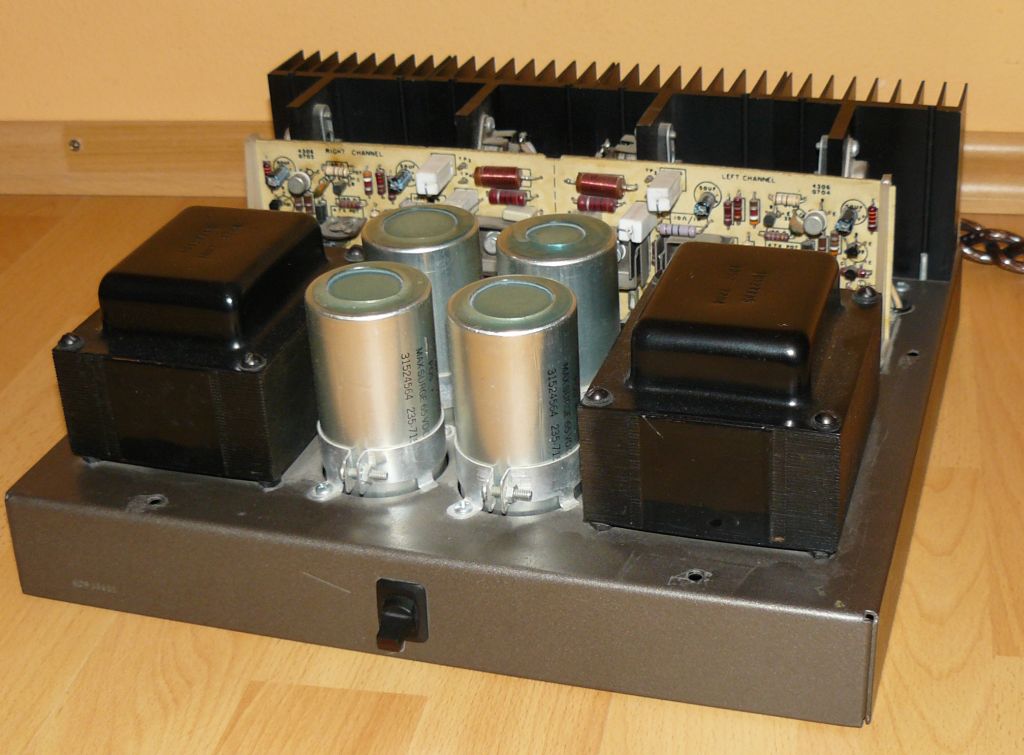

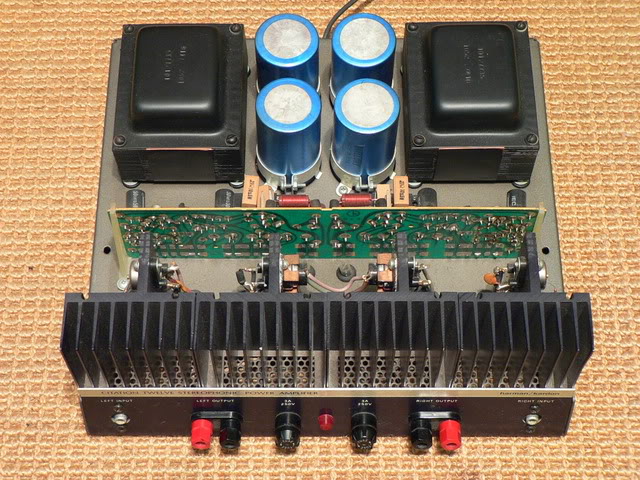

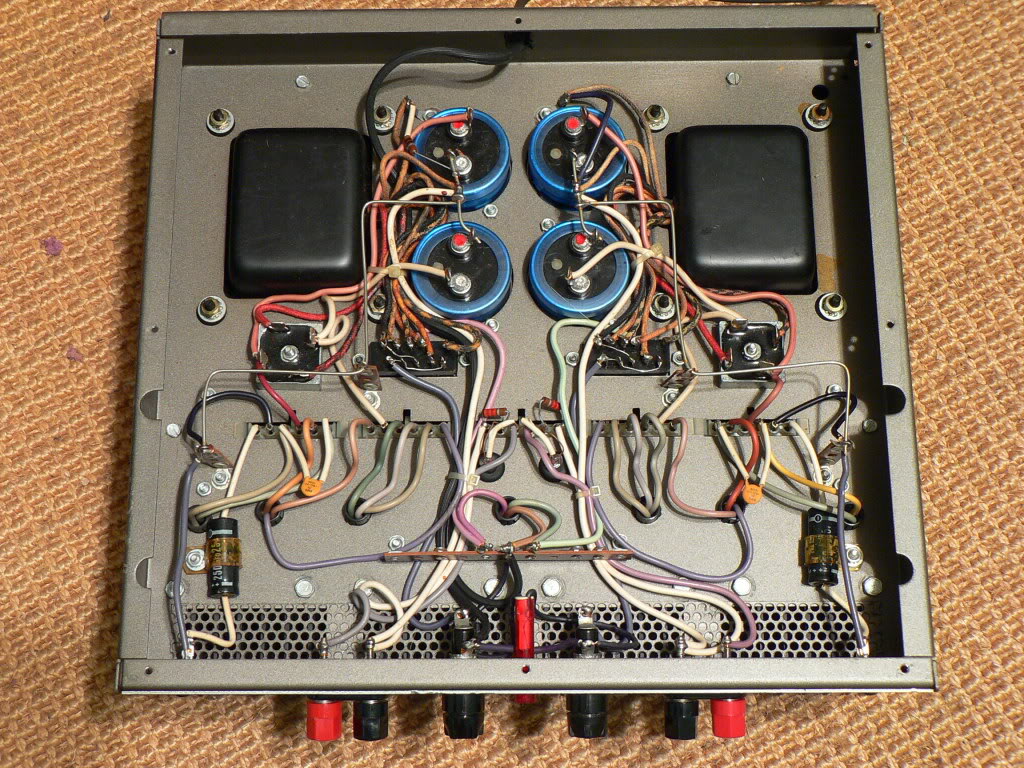

Harman Kardon Power Amp Citation Twelve (Citation 12)
Harman Kardon power amp Citation Twelve (Citation 12) and Citation Twelve DeLuxe uses RCA's 40636 (= selected 2N3055 with higher value for Vceo) in their quasi complelentary output buffer stage. Harman's factory number therefore is follow: "HK 43024216"
There are a lot of informations like service manual, e. g.
http://manuals.harman.com/hk/Service Manual/CITATION TWELVE sm.pdf
if only low speed web access available try this URL:
Powered by Google Text & Tabellen
because the explicite written article from Mr. Nelson Pass about
http://www.passdiy.com/pdf/citation.pdf
this could be one of the most popular push pull solid state amplifier for diy
about
http://www.ibiblio.org/pub/academic/agriculture/agronomy/ham/RADIO+PHONO/20060518.pho
I read follow regarded replacements for transistors with Harman's factory number:
43024216 = 40636 RCA (2N3055, BDY20)
43024218 = 40594 RCA (2N5320, BSS42)
43023221 = 2N5232 (2N5210 BC184L)
Harman Kardon power amp Citation Twelve (Citation 12) and Citation Twelve DeLuxe uses RCA's 40636 (= selected 2N3055 with higher value for Vceo) in their quasi complelentary output buffer stage. Harman's factory number therefore is follow: "HK 43024216"
There are a lot of informations like service manual, e. g.
http://manuals.harman.com/hk/Service Manual/CITATION TWELVE sm.pdf
if only low speed web access available try this URL:
Powered by Google Text & Tabellen
because the explicite written article from Mr. Nelson Pass about
http://www.passdiy.com/pdf/citation.pdf
this could be one of the most popular push pull solid state amplifier for diy
about
http://www.ibiblio.org/pub/academic/agriculture/agronomy/ham/RADIO+PHONO/20060518.pho
I read follow regarded replacements for transistors with Harman's factory number:
43024216 = 40636 RCA (2N3055, BDY20)
43024218 = 40594 RCA (2N5320, BSS42)
43023221 = 2N5232 (2N5210 BC184L)
Attachments
-

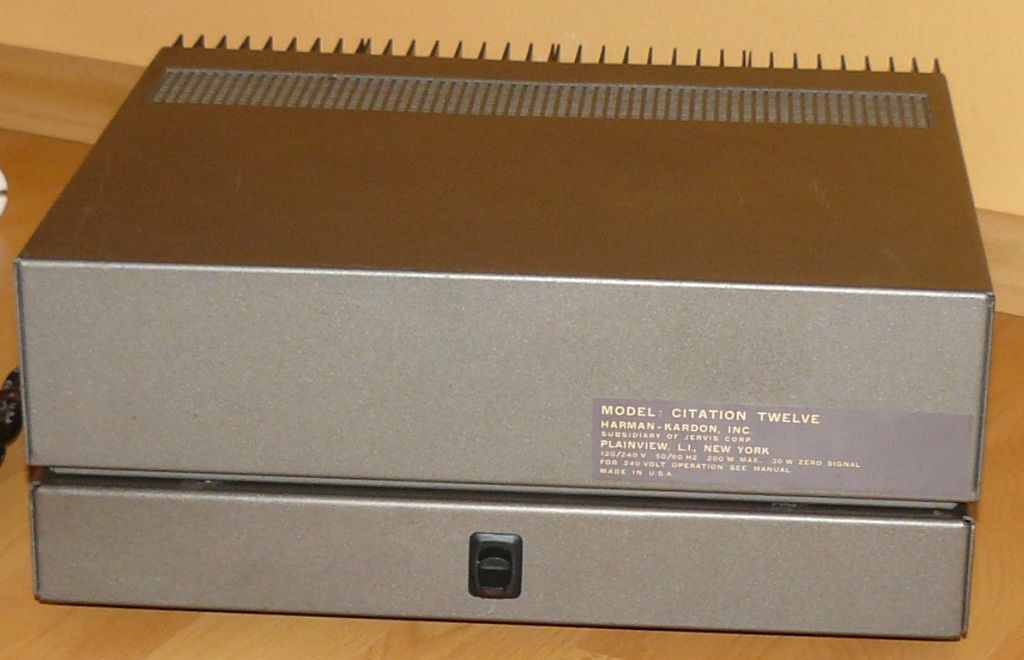

Harman Kardon Citation 12 front.jpg70.5 KB · Views: 287
-
Harman Kardon Citation 12 front open.jpg96.1 KB · Views: 274
-
Harman Kardon Citation 12 bottom.jpg279.7 KB · Views: 316
-

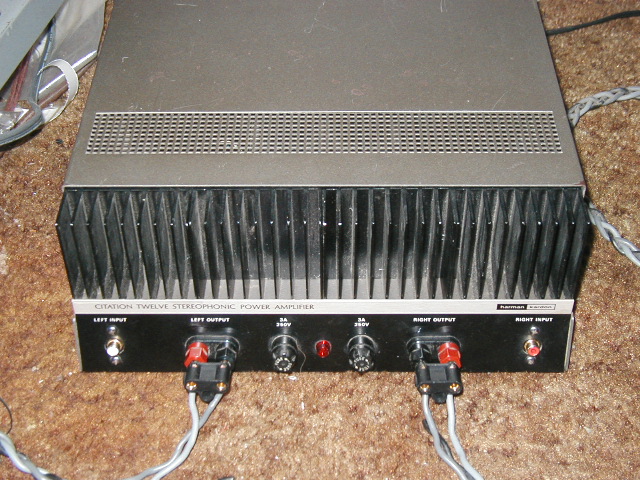

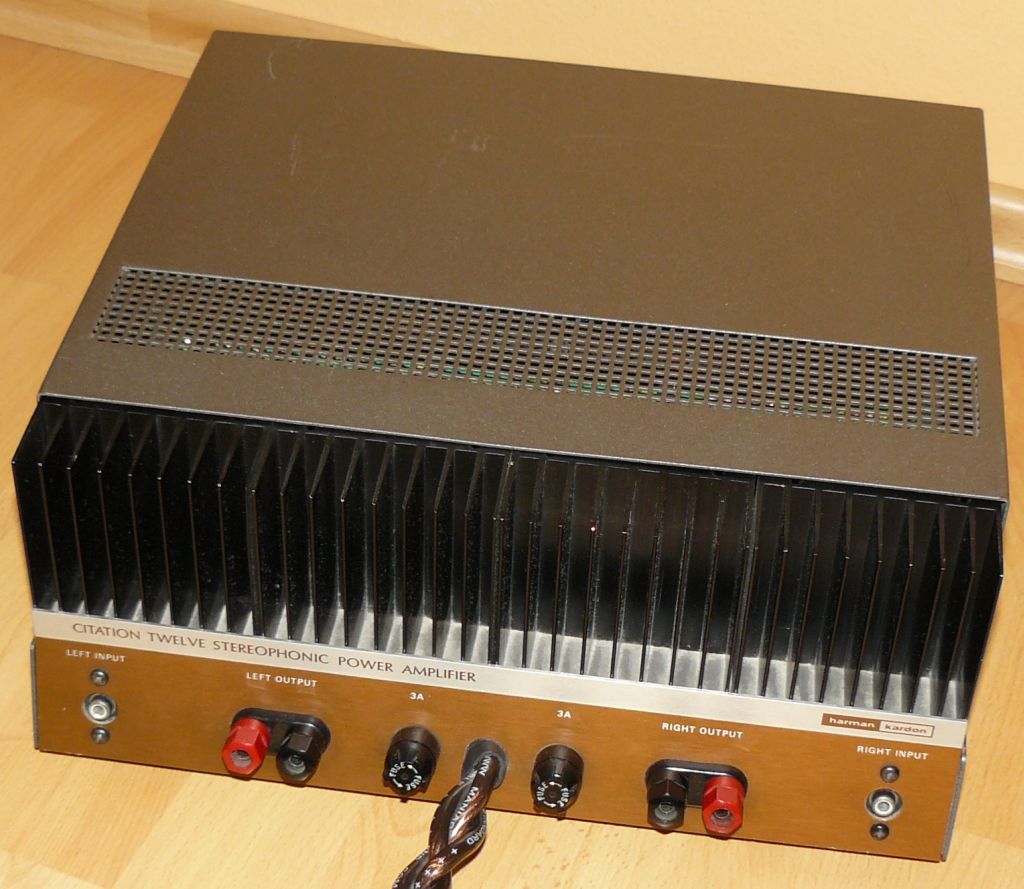

Harman Kardon Citation 12 rear clos.jpg121.3 KB · Views: 226
-

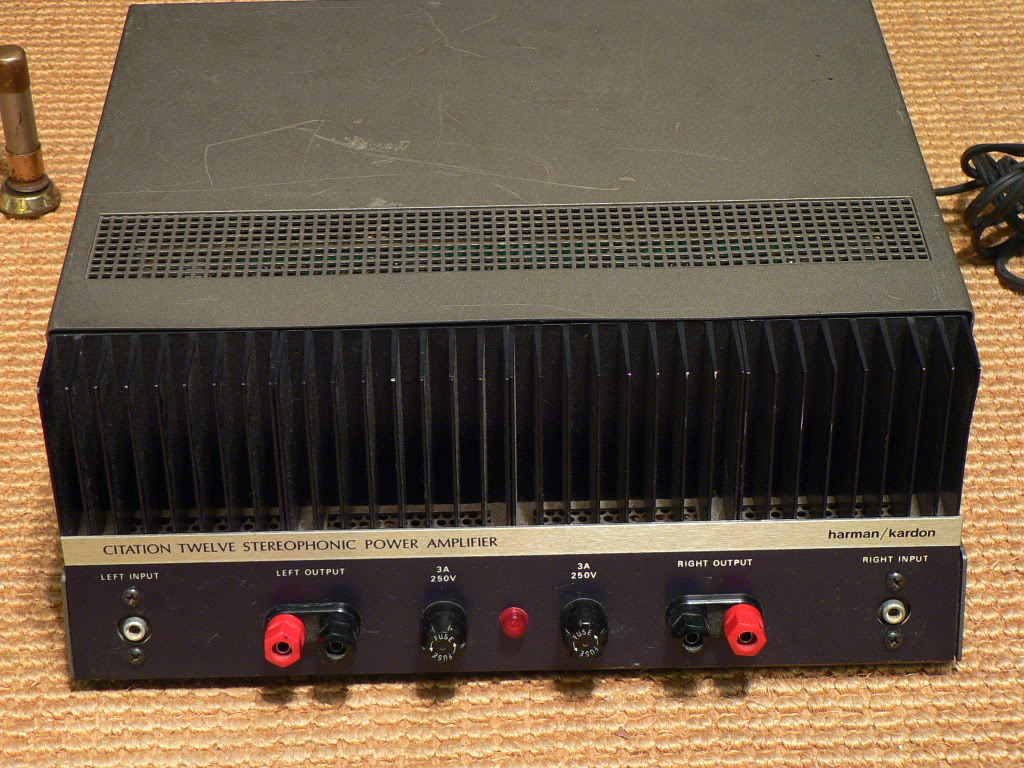

Harman Kardon Citation 12 rear clo.jpg221 KB · Views: 238
-
Harman Kardon Citation 12 rear cl.jpg170.3 KB · Views: 312
-
Harman Kardon Citation 12 rear-IV.jpg15.2 KB · Views: 258
-

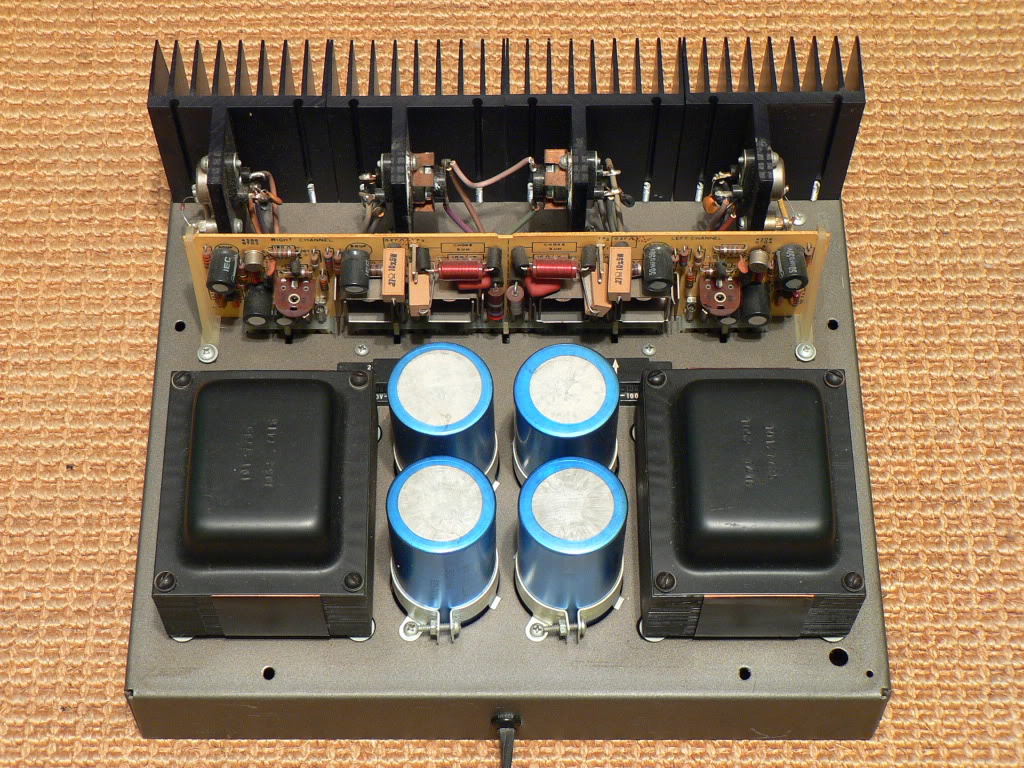

Harman Kardon Citation 12 top front.jpg274.8 KB · Views: 333
-
Harman Kardon Citation 12 top rear.jpg134.3 KB · Views: 329
-
Harman Kardon Citation 12 top.jpg19.9 KB · Views: 306

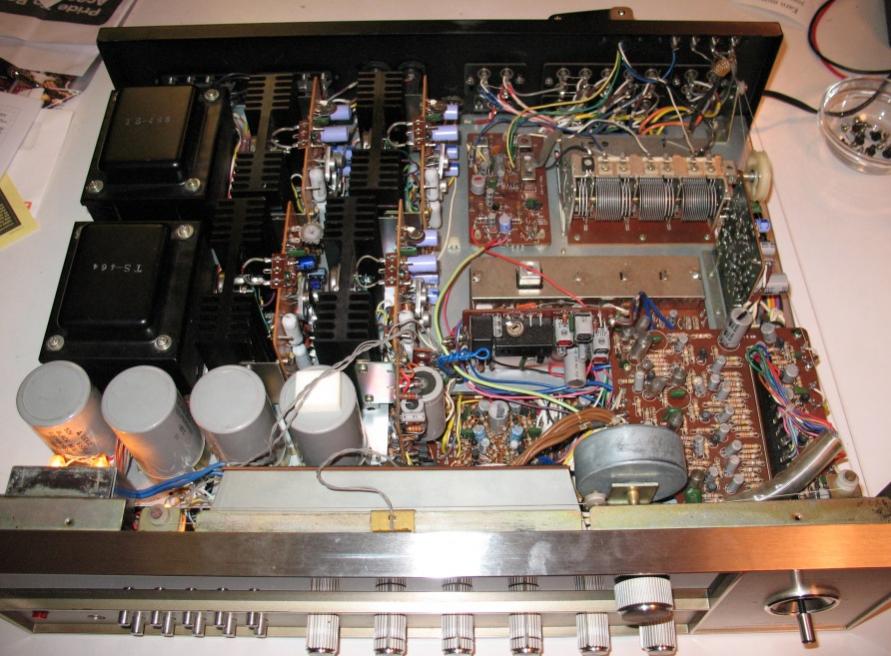

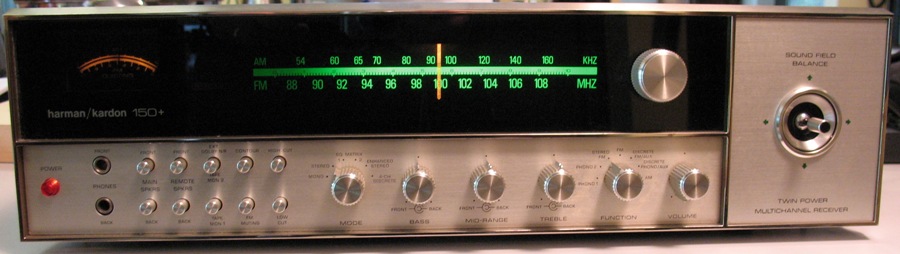

Harman Kardon Quadro Receiver HK-150 (HK150, Model 150)
Harman Kardon Quadro Receiver HK-150 (HK150, Model 150)
This quadro receiver model uses the same silicon power devices than the Citation Twelve (based on the 2N3055): the "HK 43024216"
The attached pics I have found by use "HK 43024216" as keyword by google.
http://manuals.harman.com/hk/Service Manual/150+ sm.pdf
if there is low speed web access available try this URL:
Powered by Google Text & Tabellen
On the web (by Google) are only vew links about this receiver, therefore I think, it's a rare model.
Harman Kardon Quadro Receiver HK-150 (HK150, Model 150)
This quadro receiver model uses the same silicon power devices than the Citation Twelve (based on the 2N3055): the "HK 43024216"
The attached pics I have found by use "HK 43024216" as keyword by google.
http://manuals.harman.com/hk/Service Manual/150+ sm.pdf
if there is low speed web access available try this URL:
Powered by Google Text & Tabellen
On the web (by Google) are only vew links about this receiver, therefore I think, it's a rare model.
Attachments
I haven't read through the whole thread, so please baer with me if I missed something. Do original RCA 2n3055 have some sort of date code on them? I have one that reads:
"2N3055
RCA
RG 563"
Was it possibly made in May 1963?
Good Question. The only way to find out this is checking all databooks and application notes from RCA arround 1963 (between 1960 and 1970). I have heard also from RCA cross ref. lists 40xxx - 2Nxxxx.
By post #33 and #34 about
http://www.diyaudio.com/forums/parts/167680-vintage-transistors.html
there are some cover pics from several (unfortunately not all) data books.
Last edited:

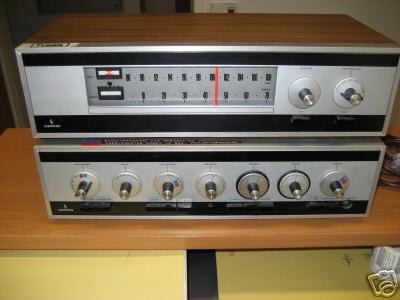

Siemens Klangmeister RV-90
This RV-90 amp from Siemens was released 1967 and is after recapping a very good sounded integrated amp
This RV-90 amp from Siemens was released 1967 and is after recapping a very good sounded integrated amp
Attachments
-

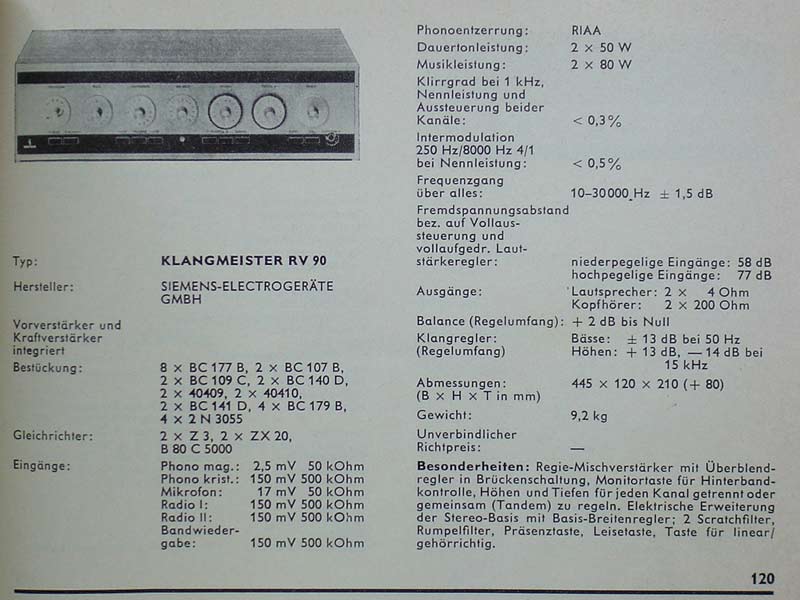

Siemens RV-90 datasheet.jpg64.7 KB · Views: 1,375
-

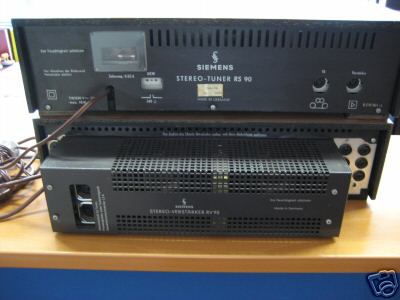

Siemens RV90 - RS90 rear.jpg.jpg19.9 KB · Views: 1,356
-
Siemens RV-90 - RS-90.jpg20.2 KB · Views: 1,402
-

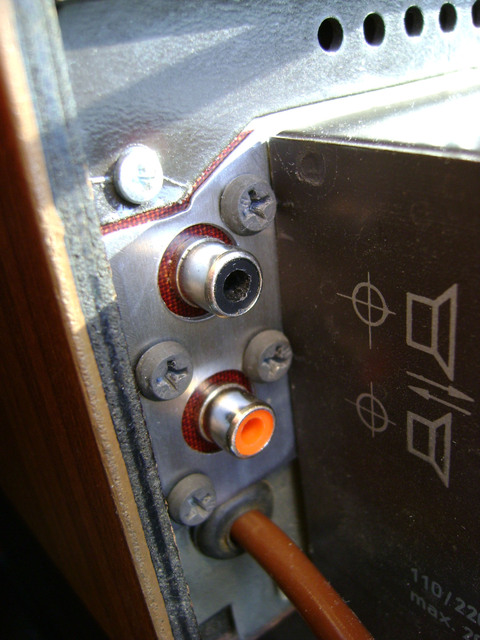

Siemens RV-90 cinch.jpg120.4 KB · Views: 1,352
-

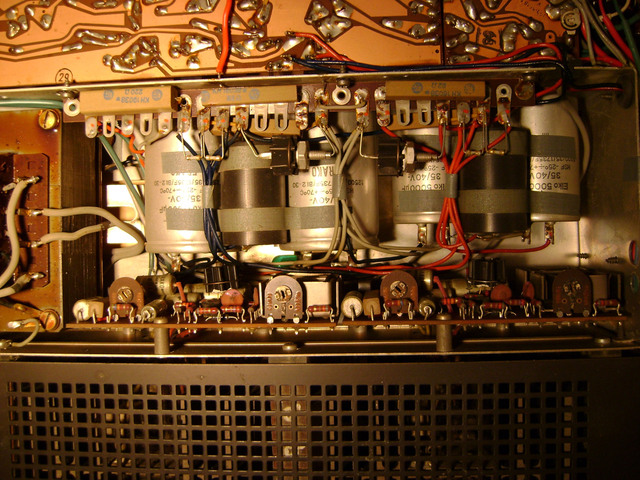

Siemens RV-90 driver boards.jpg172.9 KB · Views: 1,317
-

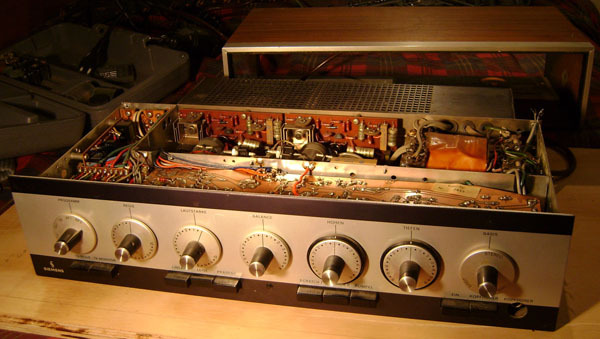

Siemens RV-90 front open.jpg90.2 KB · Views: 303
-

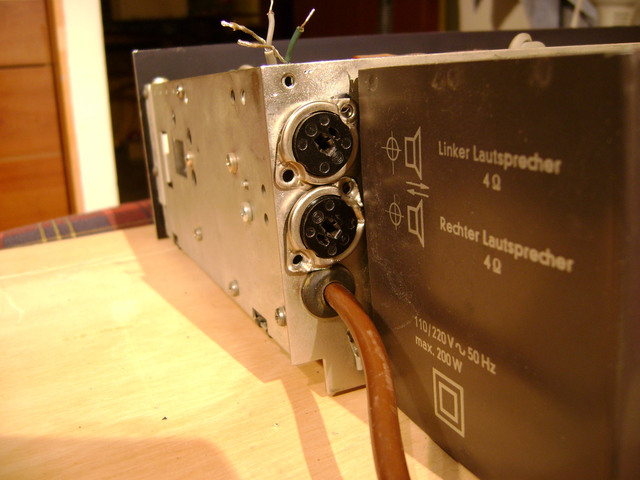

Siemens RV-90 Speaker connector.jpg104.3 KB · Views: 392
-

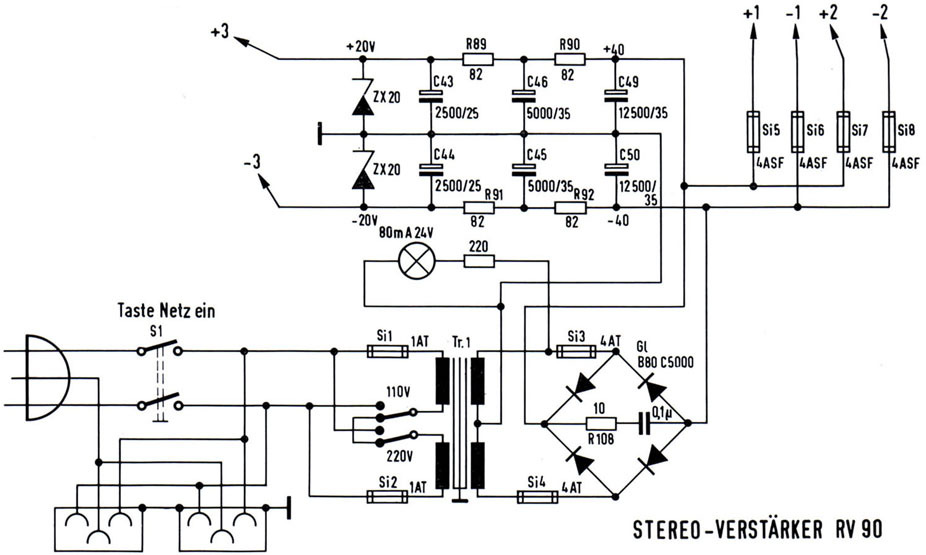

Siemens RV-90 power supply schema.jpg100.2 KB · Views: 440
-

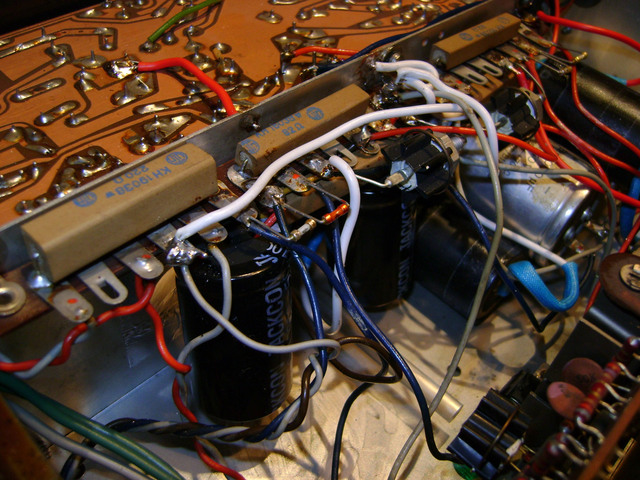

Siemens RV-90 power amp aera.jpg158.8 KB · Views: 295
-

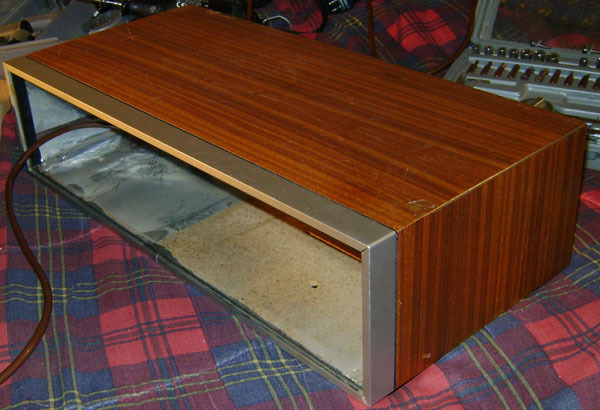

Siemens RV-90 wood case.jpg100.5 KB · Views: 205

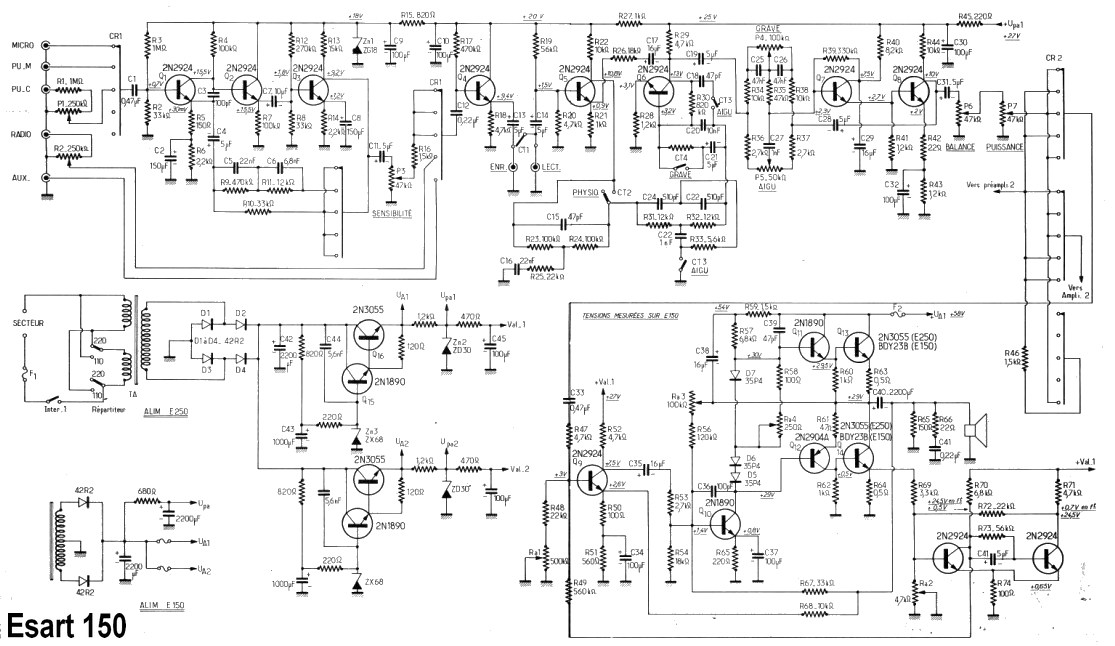

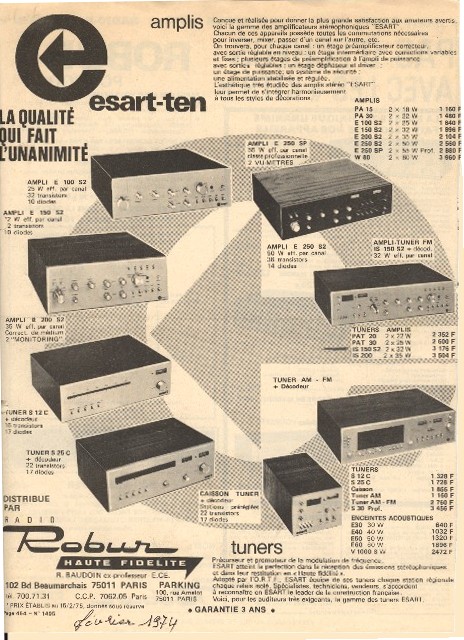

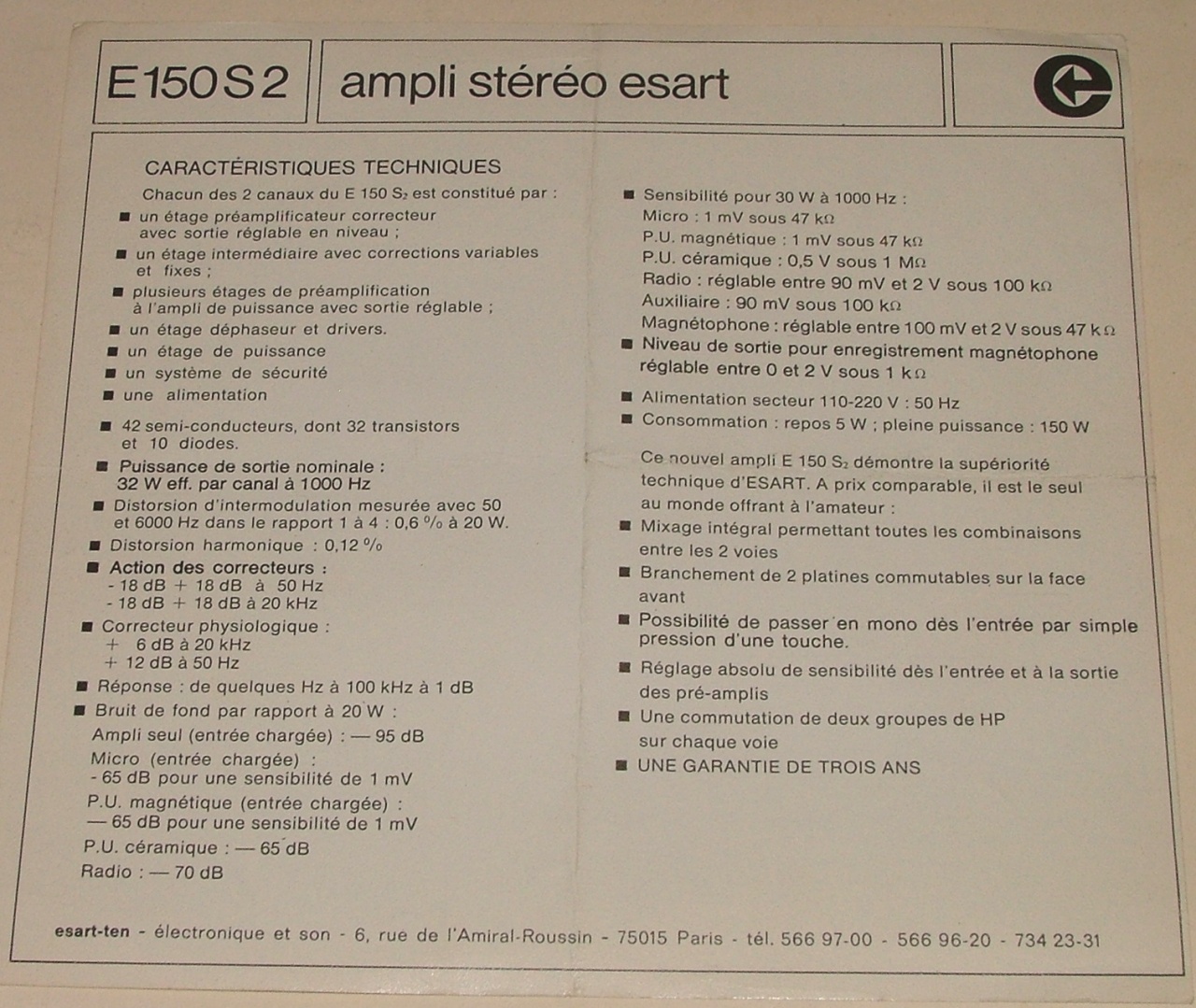

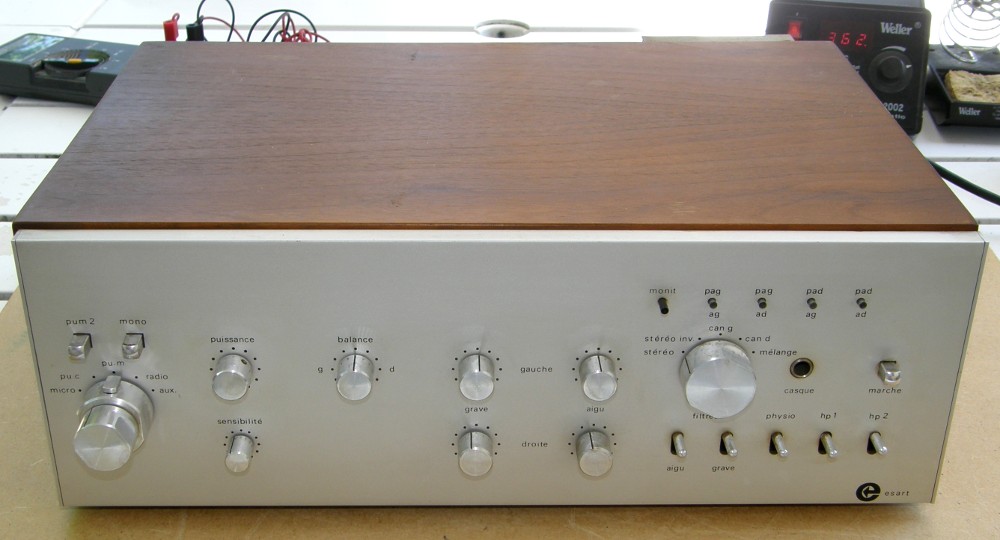

ESART E150 S2 Integrated Amplifier, French Made
by chance I discover the amp ESART E150 S2 (E150S2, include schema) and associated fm stereo tuners. This brand I have never seen before.
AUDIO MUSICAE |www.audiomusicae.com |Réparation Audio, Hifi, Vintage, Mastering
by chance I discover the amp ESART E150 S2 (E150S2, include schema) and associated fm stereo tuners. This brand I have never seen before.
AUDIO MUSICAE |www.audiomusicae.com |Réparation Audio, Hifi, Vintage, Mastering
Attachments
-

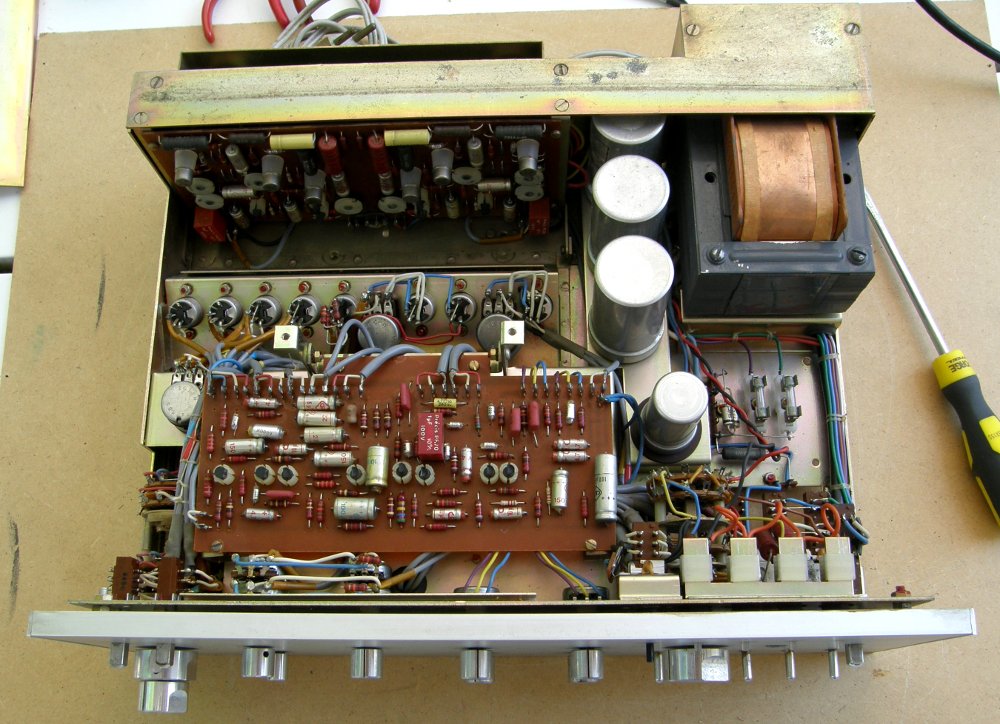

ESART E150S2 front.jpg97.3 KB · Views: 320
-
ESART E150S2 insight.jpg176.6 KB · Views: 352
-
ESART E150S2 rear.jpg48.5 KB · Views: 363
-
ESART E150S2 schema.jpg354.1 KB · Views: 713
-

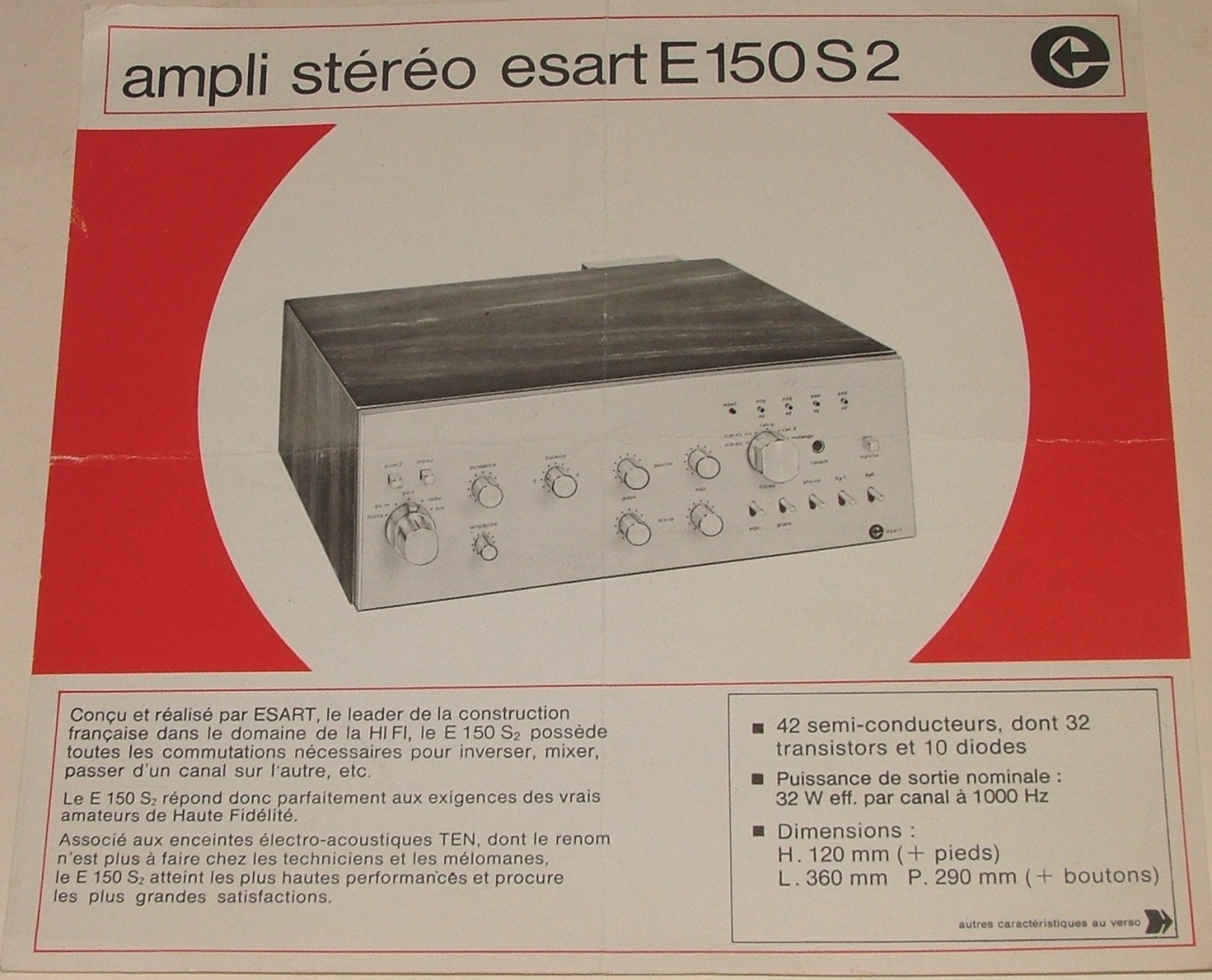

ESART E150S2 datasheet.jpg437.7 KB · Views: 646
-
ESART E150S2 adv.jpg359.3 KB · Views: 219
-

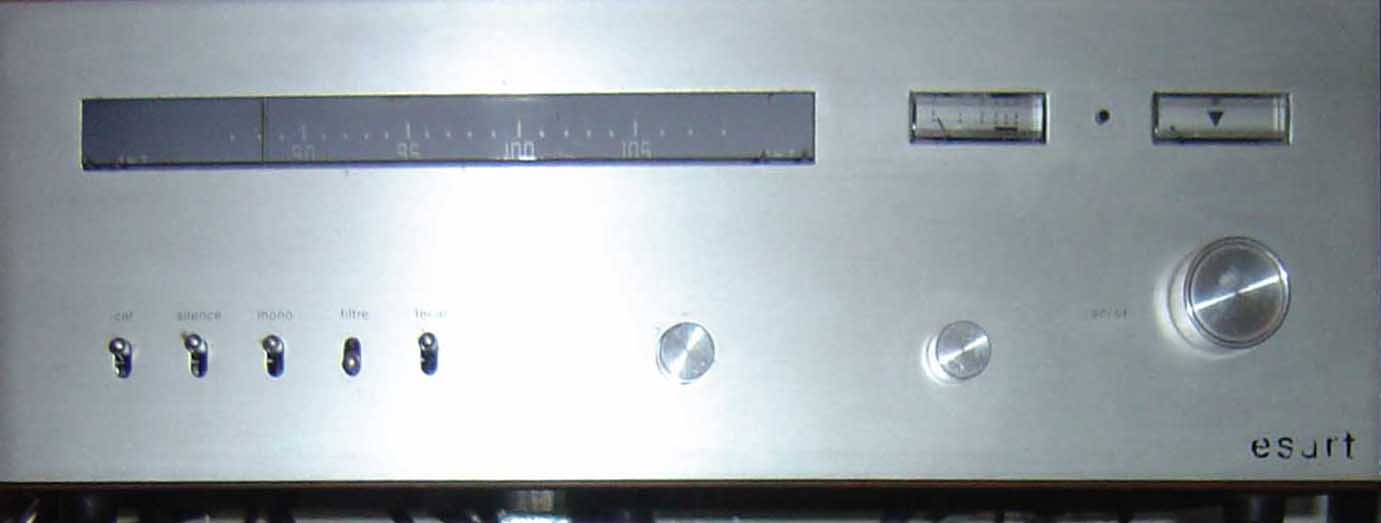

esart FM.jpg45.9 KB · Views: 218
-

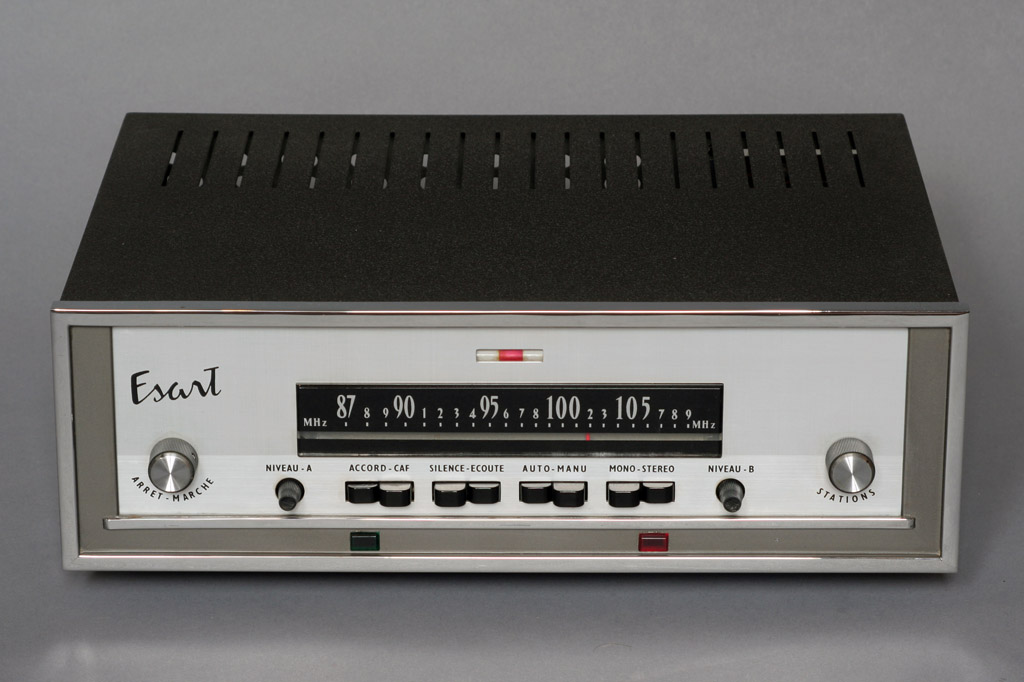

Esart Audio_Tuner_FMD.jpg140 KB · Views: 220
-
esart1974.jpg123.8 KB · Views: 267
-

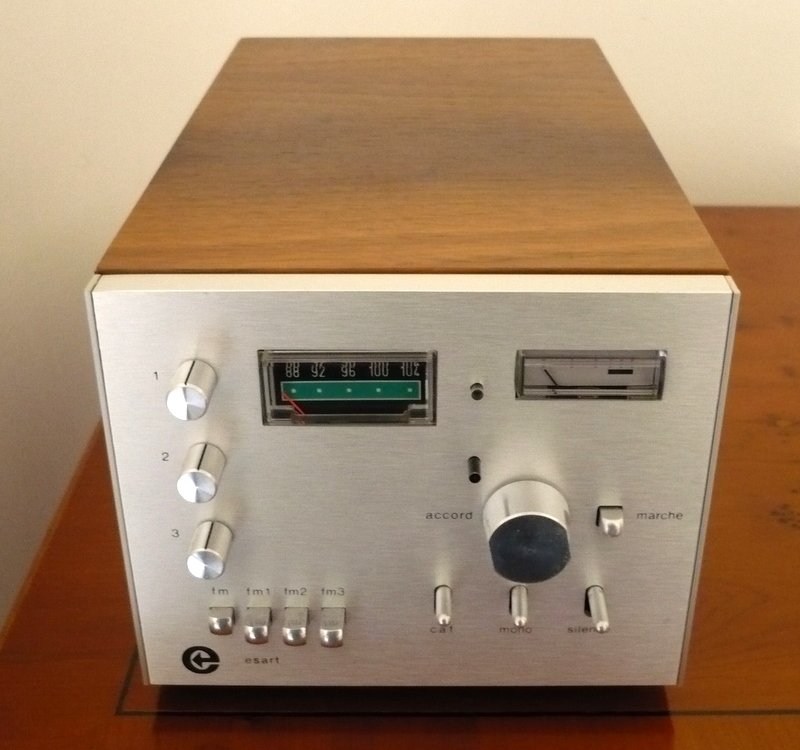

Esart S25C tuner P1050169.jpg73.7 KB · Views: 287
Last edited:
Stark GA-1 GA1 10 watt AB from Stark Electronic Instruments Ltd.
http://www.schematicsforfree.com/ar...plifiers-Power/Stark GA-1 Audio Amplifier.pdf
launched Sept. 1966
STARK ELECTRONIC HOME PAGE
stark electronic index page for electronic products and tv antenna supplies
http://www.schematicsforfree.com/ar...plifiers-Power/Stark GA-1 Audio Amplifier.pdf
launched Sept. 1966
STARK ELECTRONIC HOME PAGE
stark electronic index page for electronic products and tv antenna supplies

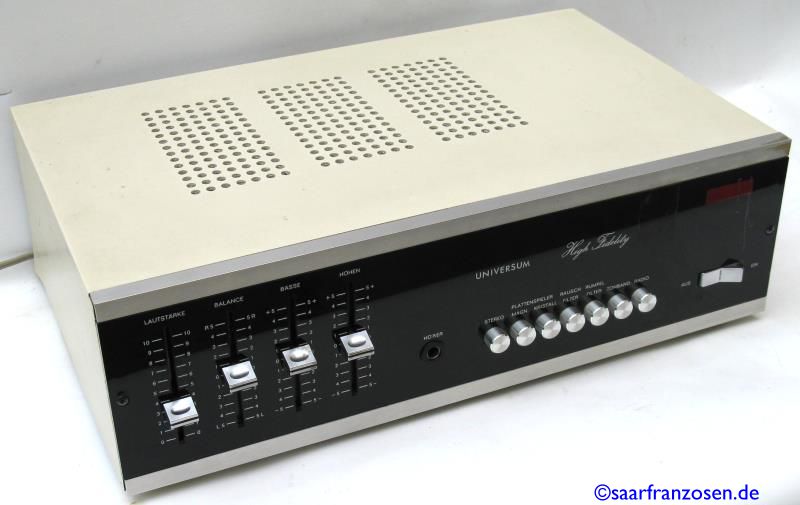

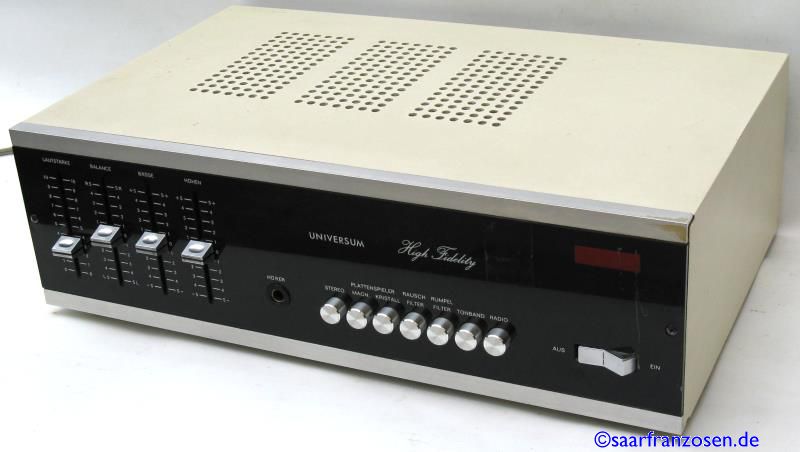

Südfunk (Quelle Universum) "V 716" (V716) Schematic needed
I need a schematic of follow integrated amp with quasi complementary output stage (2x2N3055/ch) and high pass couple capacitor (4.700uF/25V WIMA) between buffer out and speaker terminal:
Model No "V716" (V 716)
the manufacturer was Südfunk-Apparatebau Dr. Ing. Robert Ott
the device from me is branded with "Südfunk" (silver front panel)

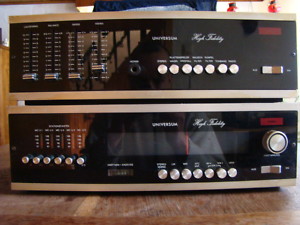

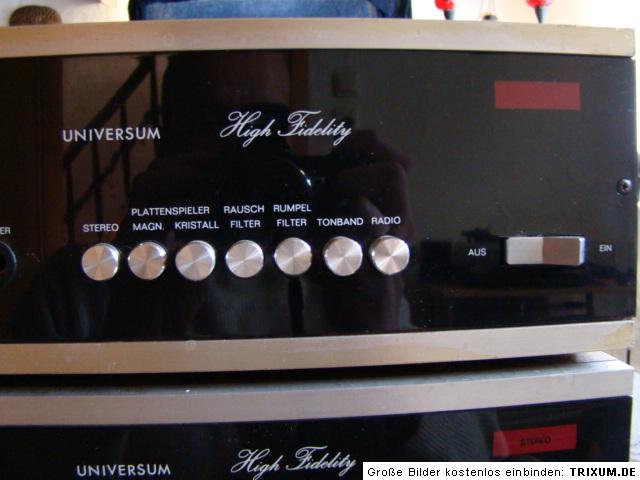

the devices from the attached images are branded with "Universum" (special made for the German biggest mail order house at those days, - "QUELLE") That design was in black for the front panel.
There are only German informations on the web:
http://www.spickelmir.de/joomla/ind...gallery&func=viewcategory&catid=655&Itemid=82
http://cgi.ebay.de/HIFI-Stereo-Anlage-historisch-Suedfunk-Universum-/190477709658
http://new-hifi-classic.de/forum/index.php?topic=2102.0
Who can post a schematic ??
I need a schematic of follow integrated amp with quasi complementary output stage (2x2N3055/ch) and high pass couple capacitor (4.700uF/25V WIMA) between buffer out and speaker terminal:
Model No "V716" (V 716)
the manufacturer was Südfunk-Apparatebau Dr. Ing. Robert Ott
the device from me is branded with "Südfunk" (silver front panel)

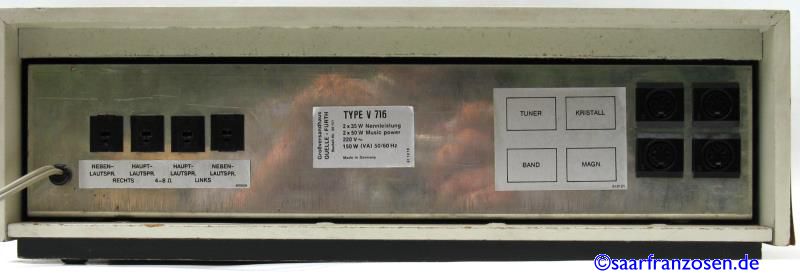

the devices from the attached images are branded with "Universum" (special made for the German biggest mail order house at those days, - "QUELLE") That design was in black for the front panel.
There are only German informations on the web:
http://www.spickelmir.de/joomla/ind...gallery&func=viewcategory&catid=655&Itemid=82
http://cgi.ebay.de/HIFI-Stereo-Anlage-historisch-Suedfunk-Universum-/190477709658
http://new-hifi-classic.de/forum/index.php?topic=2102.0

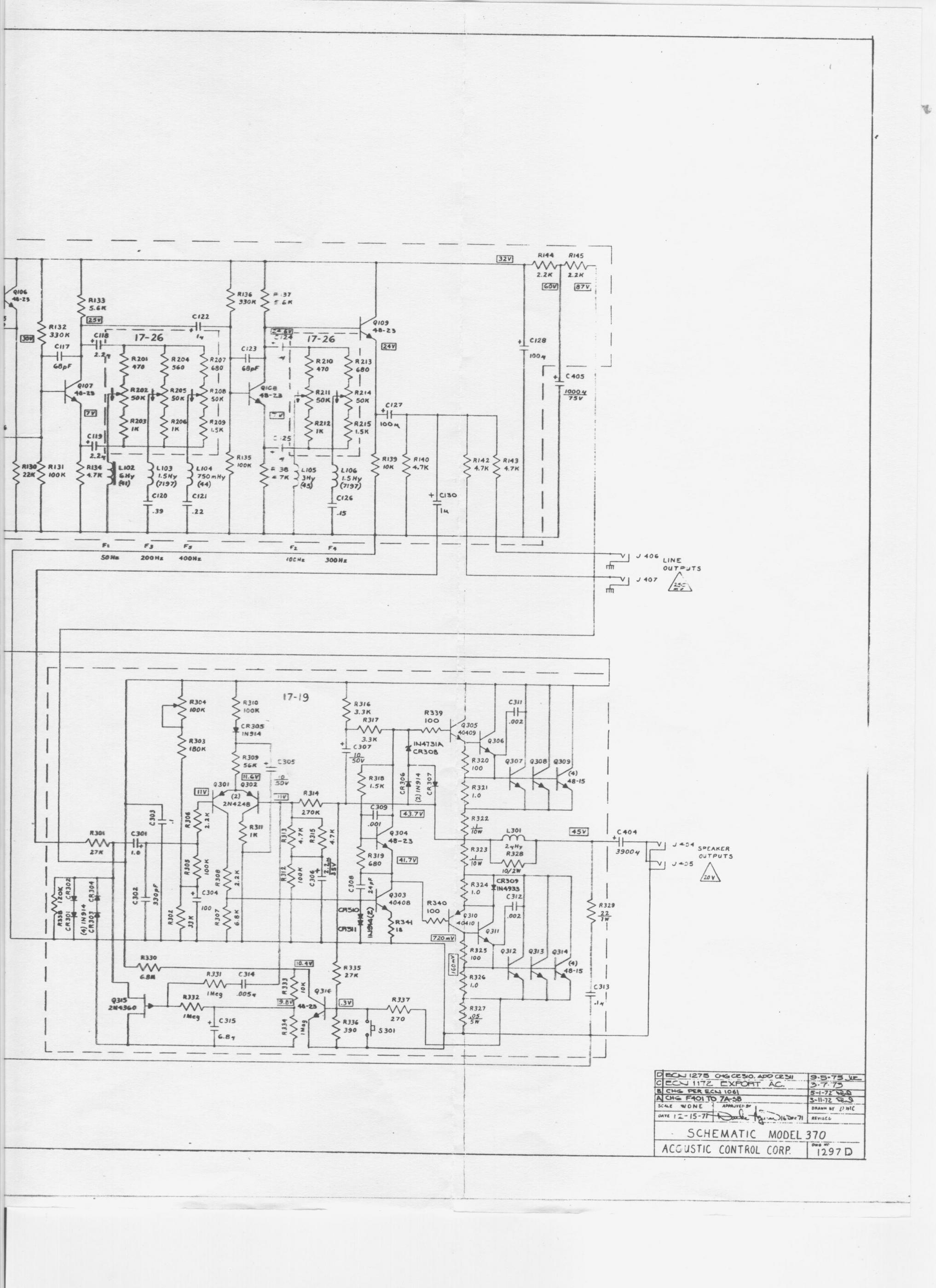

Who can post a schematic ??
Attachments
Last edited:
Yes; check out schematics by post #54 and #80 (btw - I read "AD140" there).The early Leak stereo 30's used AD149's.
Do you know, in which year the germanium type was replaced through the silicon BjT "2N3055" ??
Oops, yes could be my mistake, could well have been AD140's, but don't know the year of the changeover.
First commercial advertisement from RCA still wanted.Who can post the first commercial advertisement (announcement) from formerly's brand RCA (from any electronic magazine published in the early sixties) concerning the 2N3055 and the first RCA application notes?
At which time was exactly launched the production?
I note, that the German brand Siemens launched the same type under the type number "BD130" in the seventies - unfortunately I don't find original datasheet online:
BD130 datasheet pdf datenblatt - Comset Semiconductor - NPN SILICON TRANSISTOR POWER LINERAR AND SWITCHING APPLICATIONS ::: ALLDATASHEET :::
Who can help?
- Home
- Amplifiers
- Solid State
- 2N3055 inside - commercial famous amplifier models, quasi complementary power output
