100W Ultimate Fidelity Amplifier

[pahatoi]

Hi Mr. Miles!
I dont understand, this layout you gave has also diodes in between collector and emitter. Should it be between collector and output or may leave like that?

Regards, Toivo.



[pahatoi]

Like this with the red markings.?

Ax14 - Google Photos



[apexaudio]

Hi Mr. Miles!
I dont understand, this layout you gave has also diodes in between collector and emitter. Should it be between collector and output or may leave like that?

Regards, Toivo.

It is irelevant,
Regsrds



[pahatoi]

Ok, thanks for Your patience Mr. Mile!
I’ll assamble the boards and let you know how it sounds!
Thanks for sharing!

Regards, Toivo



[desislavov]

what should be the supply voltage for MM22?

I try with +-15 but it doesnt work ....



[marin cornel]

APEX VU12S PCB size 82,5x65mm.

Hi,
the circuit diagram can also be posted.
thanks.



[arksystem]

Maybe try to use AX-14P

Hi.
Did you set up this circuit?
I have dc voltage at the output of the same map and pcb.



[apexaudio]

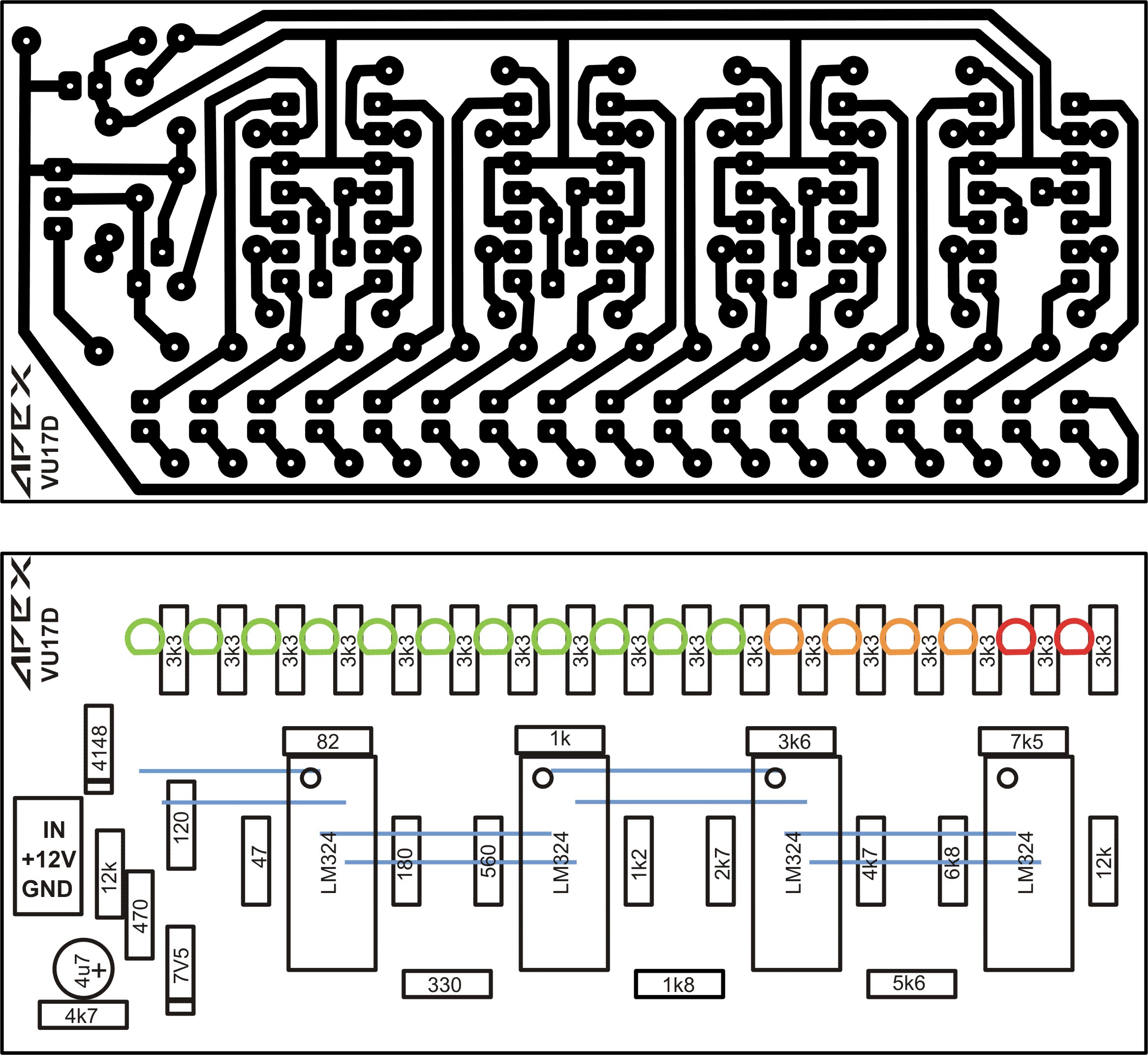

VU 17 LED DOT



[smartx21]

Nice!
Any video with demo?
Could you share the circuit also?
Tnx.



[andrewlebon]

AX14

Hello APex audio
greetings how much bias setting for AX14
warm regards
Andrew



[apexaudio]

50mA



[kandimba]

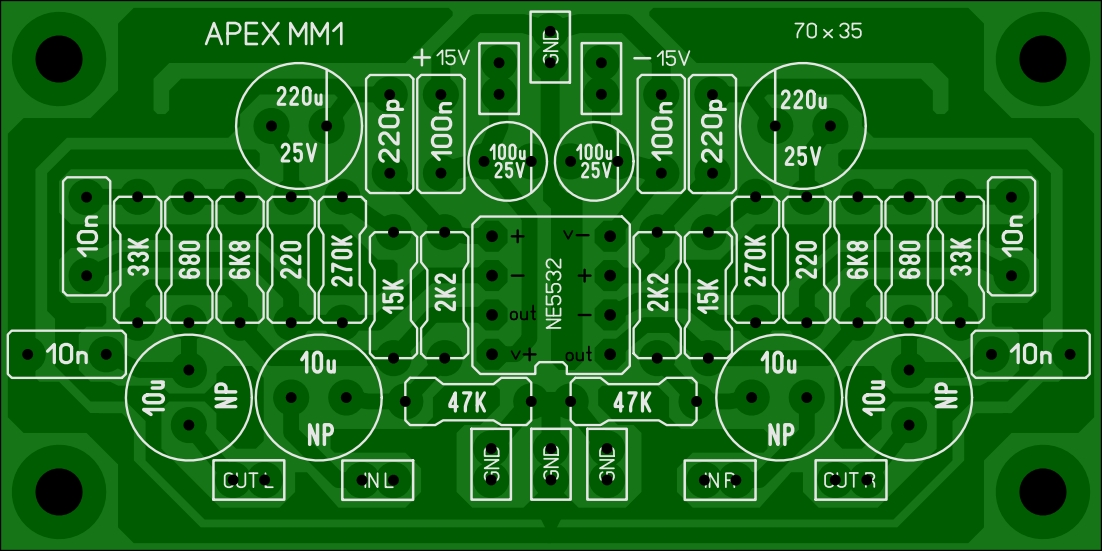

My contribution for Apex MM1, have a nice new year M. Mile.



[prasi]

nice symmetry kandimba!



[kandimba]

Hi Prazi, thanks for your words, even so you are a spark pcb design . Have a nice new year.

Regards



[apexaudio]

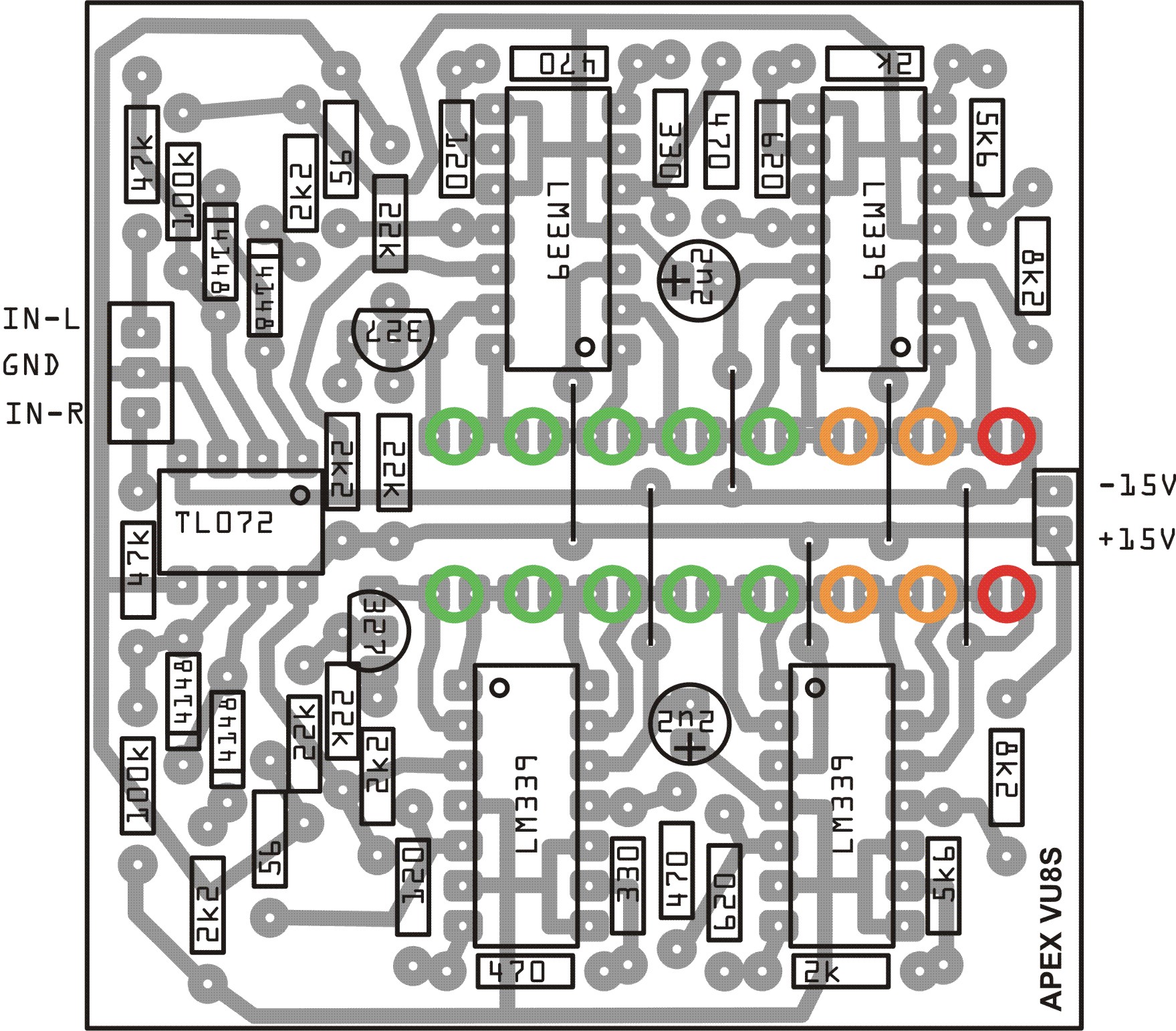

APEX VU8S



[Dibya]

Mr.Miles

Can I please use your AX16/AX14 as base for my amplifier?



[apexaudio]

Yes



[Dibya]

Yes

Thanks



[kandimba]

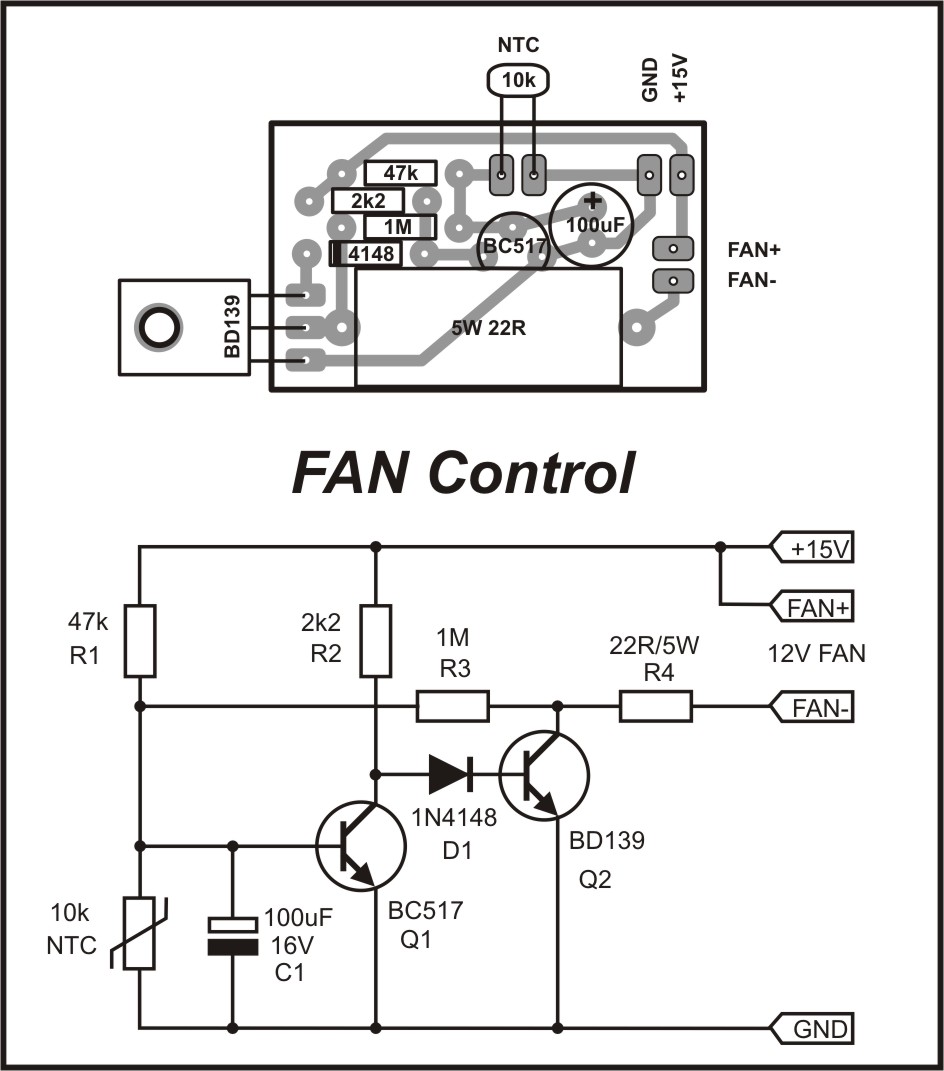

Hi M. Mile! How can I use this circuit to control two independent heatsink, with only one fan.

Thanks in advance

Pozdrav



[marin cornel]

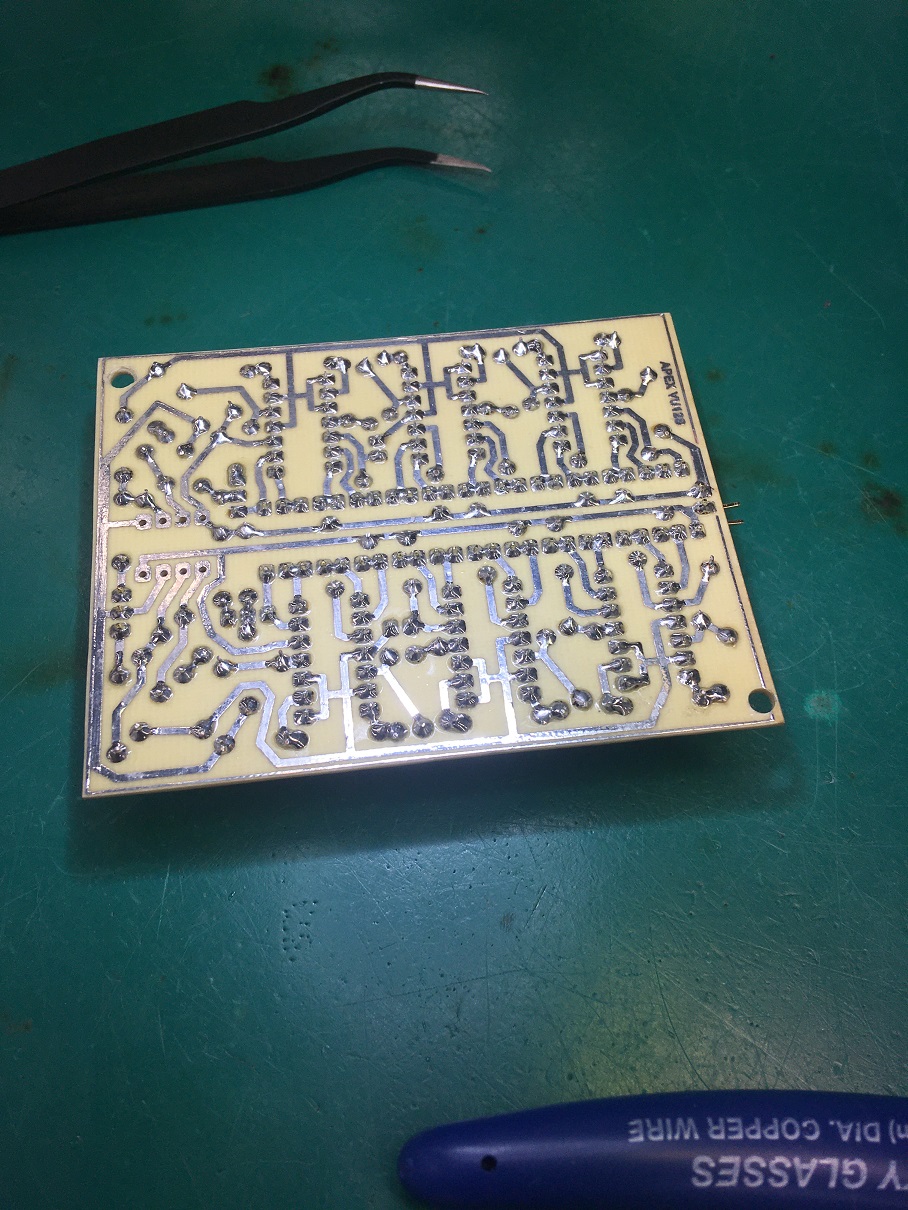

APEX VU12S

Hello,

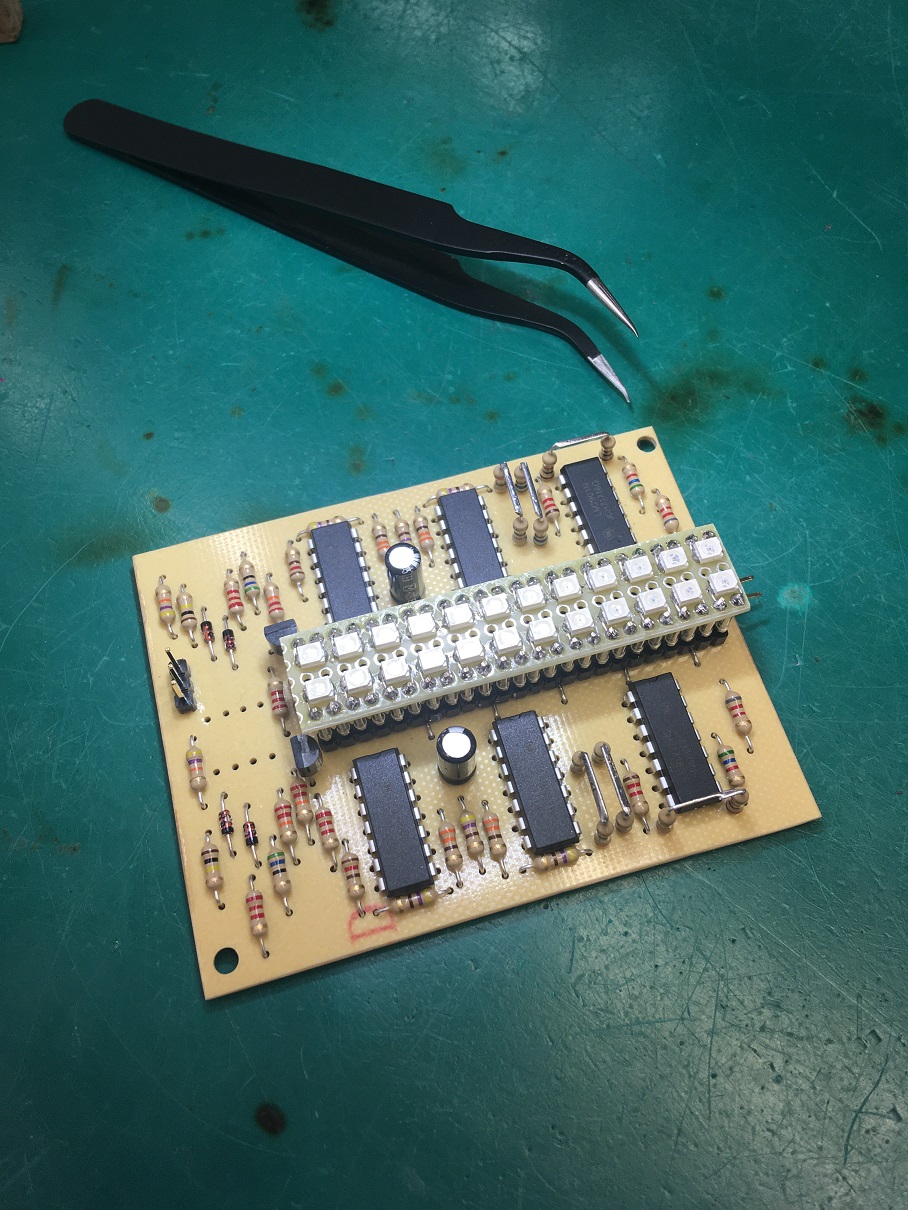

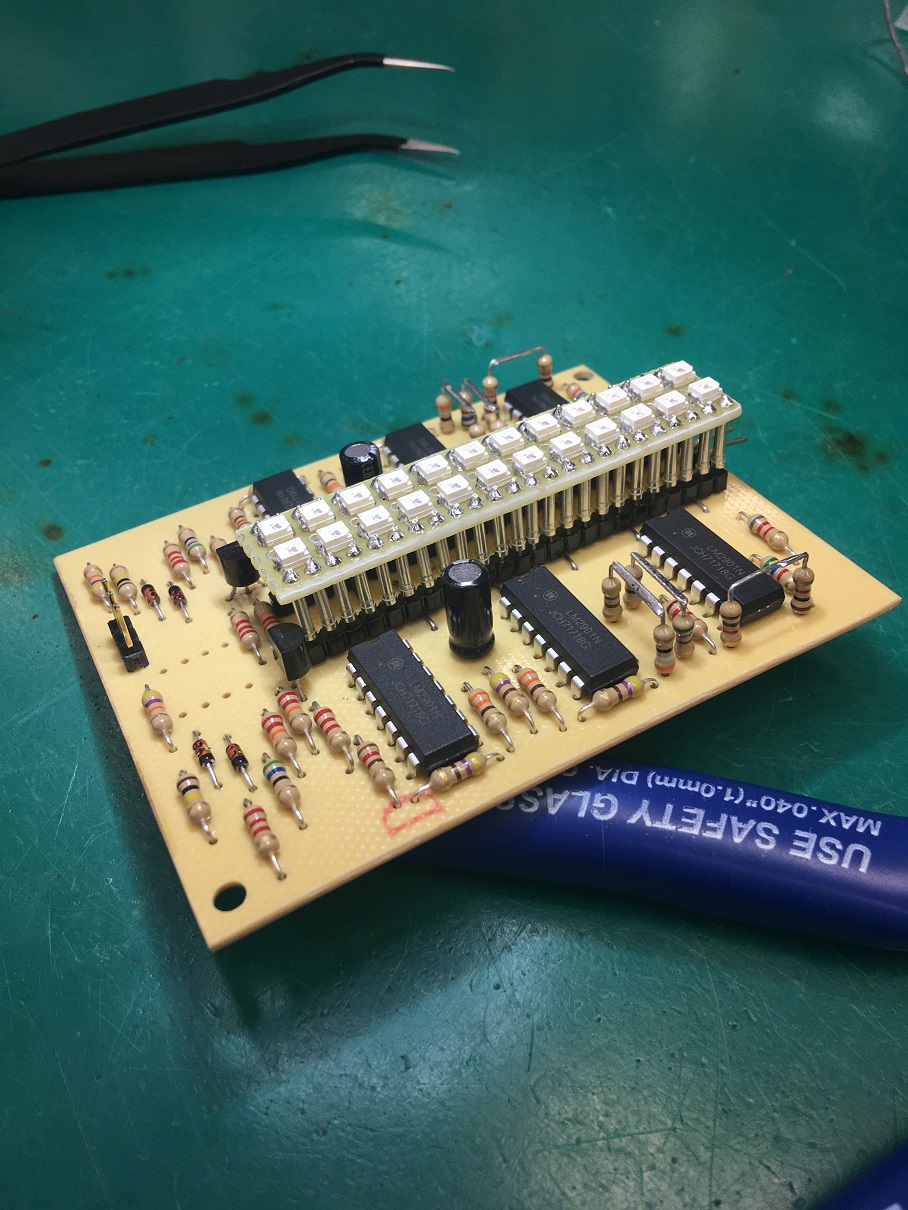

90% progress on VU12S
