100W Ultimate Fidelity Amplifier

[alex mm]

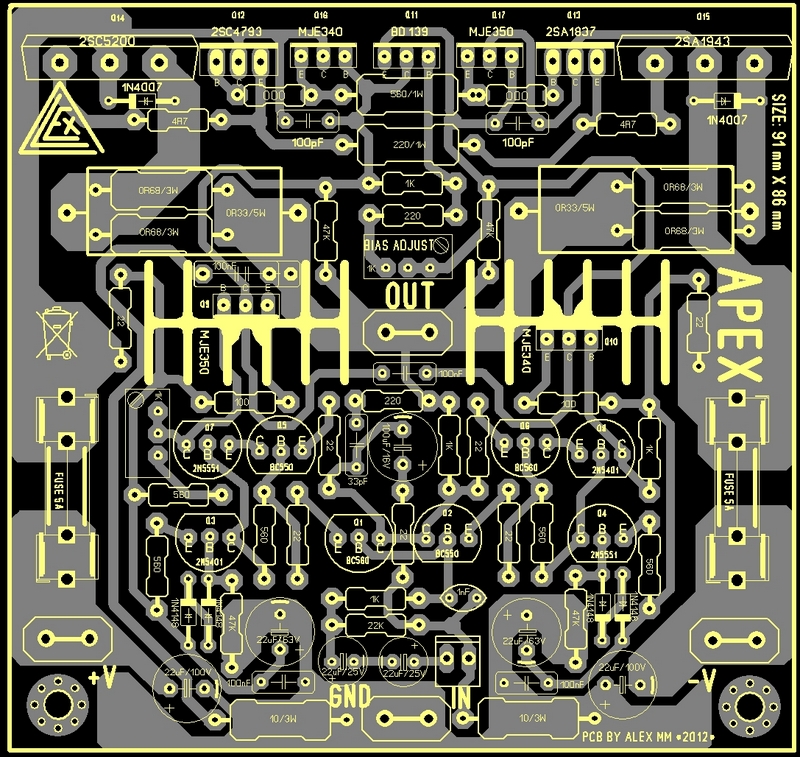

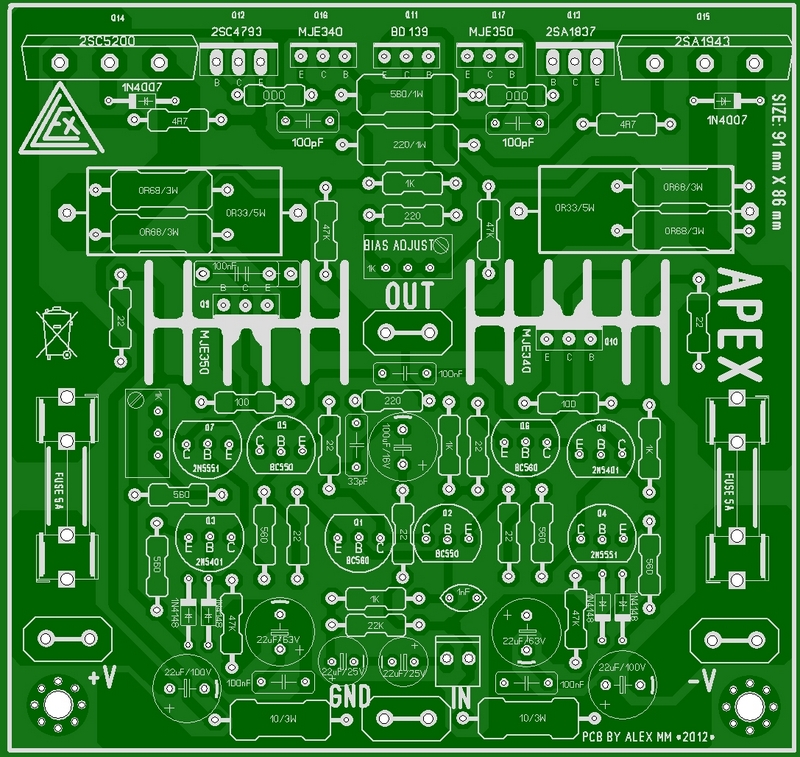

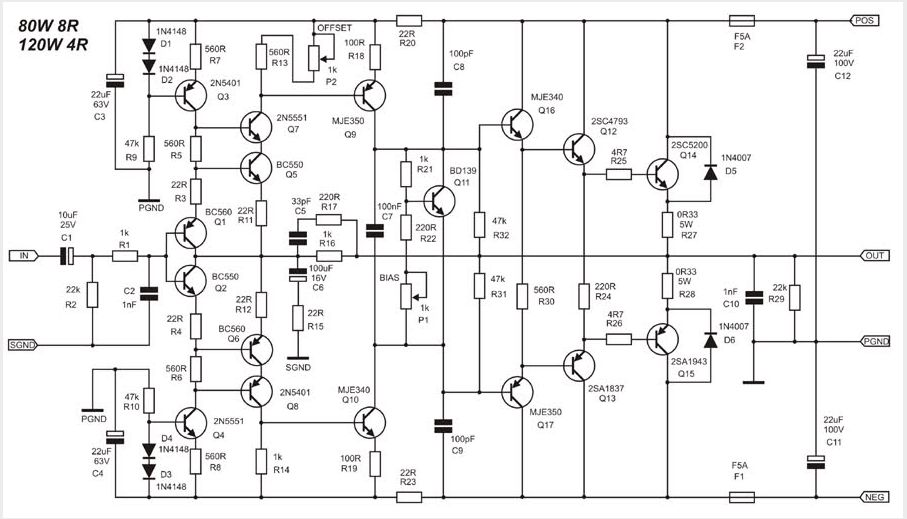

........ I have from now a huge colection of Apex amplifier schematics and ofcourse many PCB's designed....... and another one 🙂
Alex.



[viki_v2]

........ I have from now a huge colection of Apex amplifier schematics and ofcourse many PCB's designed....... and another one 🙂
Alex.

Hello Alex,
Is it possible to desigh the pcb in such way that PSu, Protect, Soft Start, are all on same Amp Board, This will be very Easier and may use less Space. Right Now i have Put my SR200 Stereo pair in Chassis, There are lots of wires Running.



[sudhir kumar]

........ I have from now a huge colection of Apex amplifier schematics and ofcourse many PCB's designed....... and another one 🙂
Alex.

Hello sir alex, You are giving great contribution to this forum.Your designs are example of art as well as simple for diy.
thanks again.
sudhir.



[Arif Budiyanto]

Hello Alex,
Is it possible to desigh the pcb in such way that PSu, Protect, Soft Start, are all on same Amp Board, This will be very Easier and may use less Space. Right Now i have Put my SR200 Stereo pair in Chassis, There are lots of wires Running.

Excellent idea!



[apexaudio]

........ I have from now a huge colection of Apex amplifier schematics and ofcourse many PCB's designed....... and another one 🙂
Alex.

Great pcb as usual,
Regards



[DAMANHURI]

........ I have from now a huge colection of Apex amplifier schematics and ofcourse many PCB's designed....... and another one 🙂
Alex.

Hi alex, can you share your APEX collection.



[apexaudio]

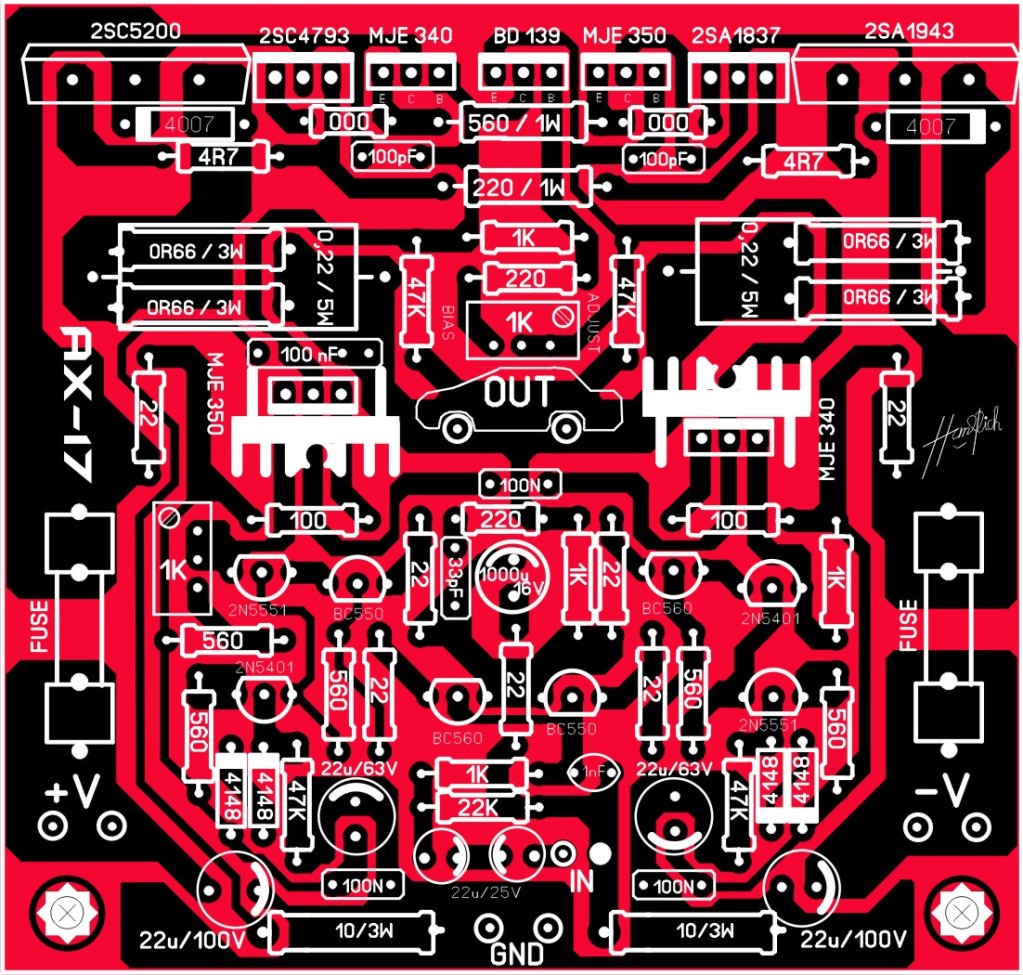

C6 on AX17 is 1000uF, not 100uF (my mistake).



[sangeet2]

Excellent idea!

I like 🙂



[apexaudio]

Hello Alex,
Is it possible to desigh the pcb in such way that PSu, Protect, Soft Start, are all on same Amp Board, This will be very Easier and may use less Space. Right Now i have Put my SR200 Stereo pair in Chassis, There are lots of wires Running.

PSU is to big for amp pcb, and there is same number of wires for DC or AC suply, but protect can be on same pcb with amp.



[apexaudio]

from Indonesian forum



[QQ12e5k1]

from Indonesian forum

I don't see the resistor 220R in series with trimpot in tha blue pcb???



[apexaudio]

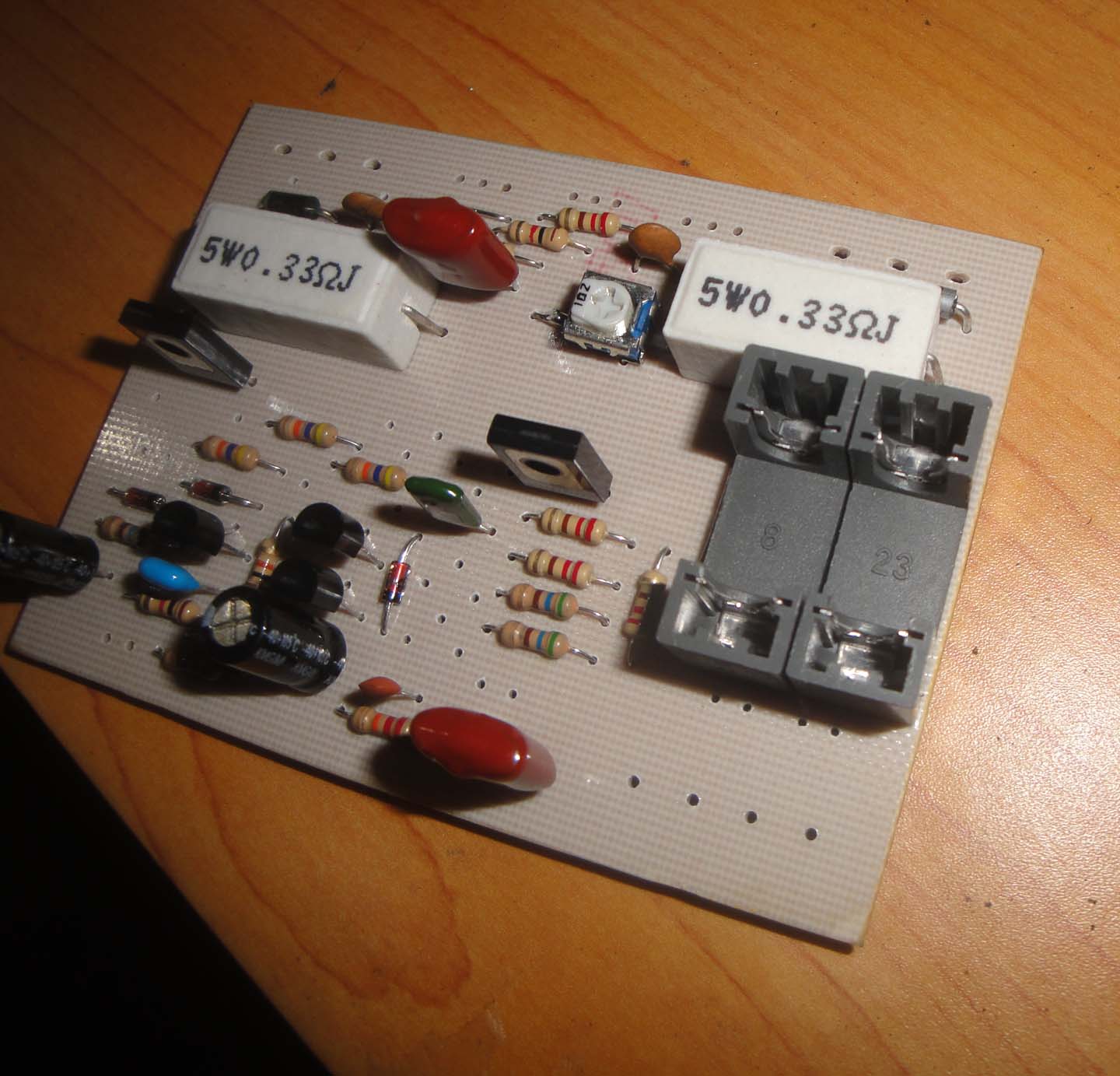

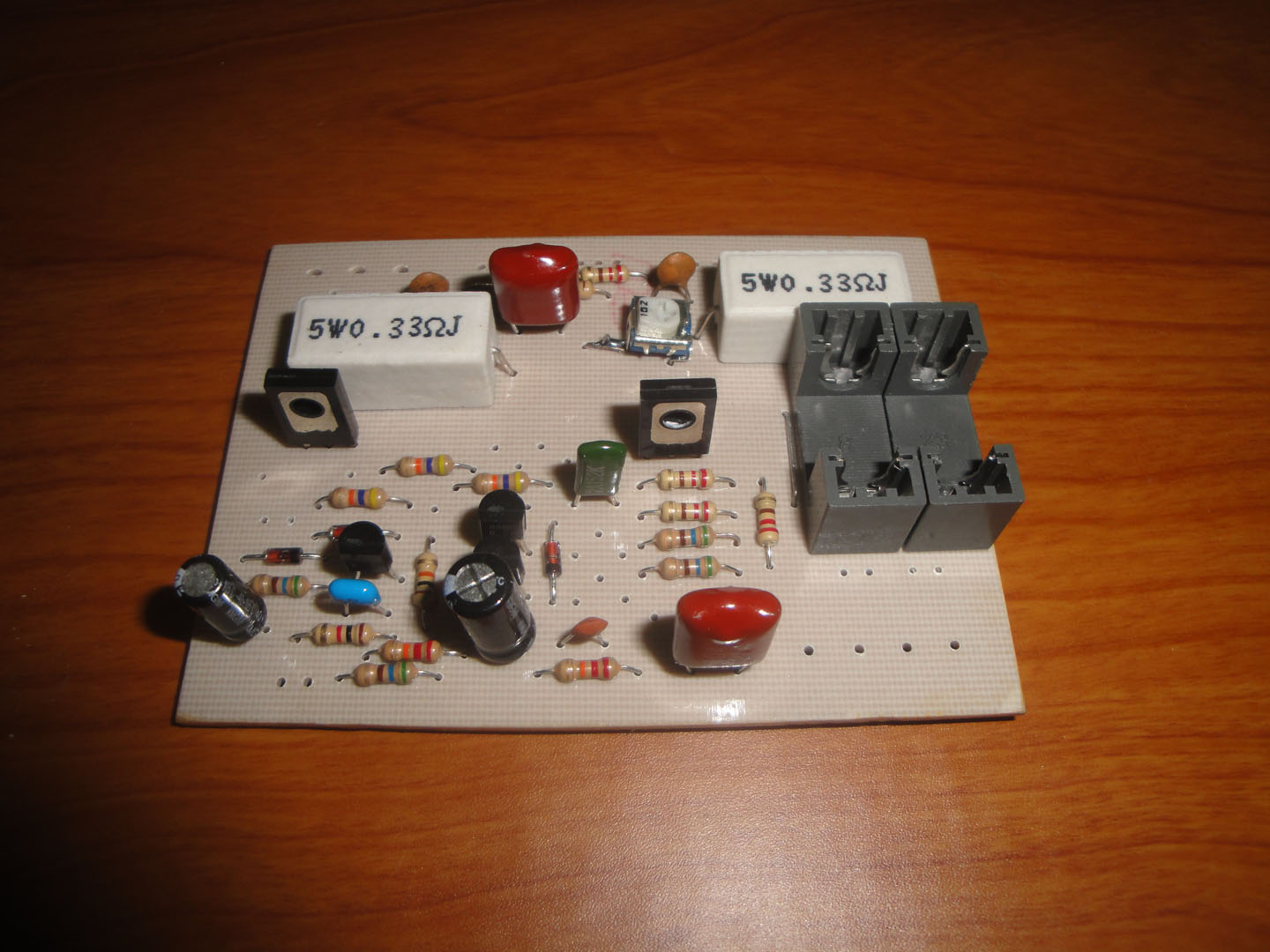

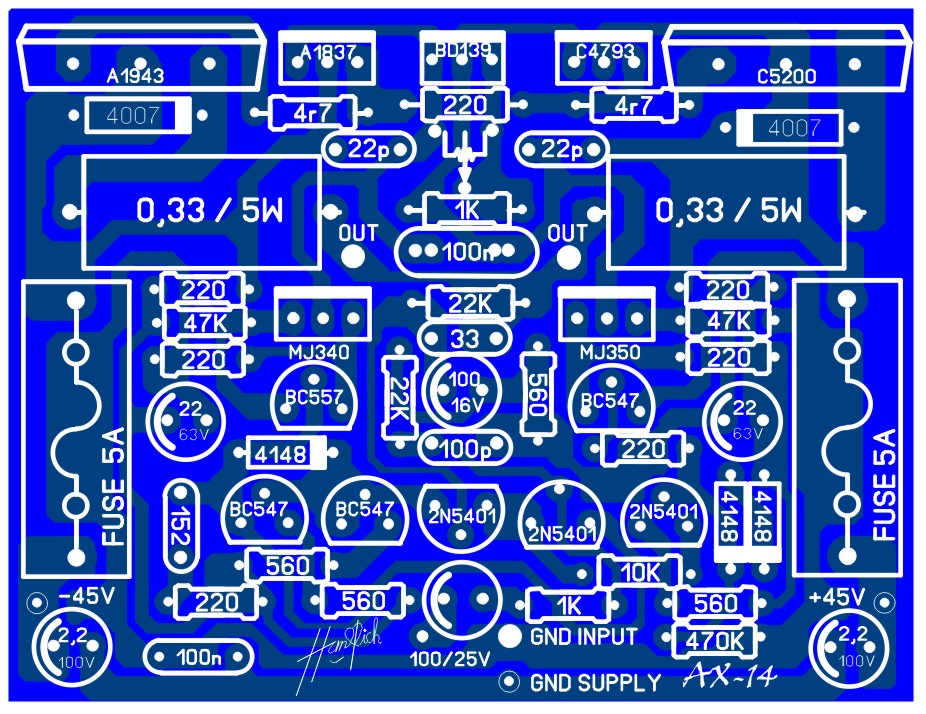

APEX D14



[rifky]

Sorry,I'm late to share it..

Regards

size is?



[QQ12e5k1]

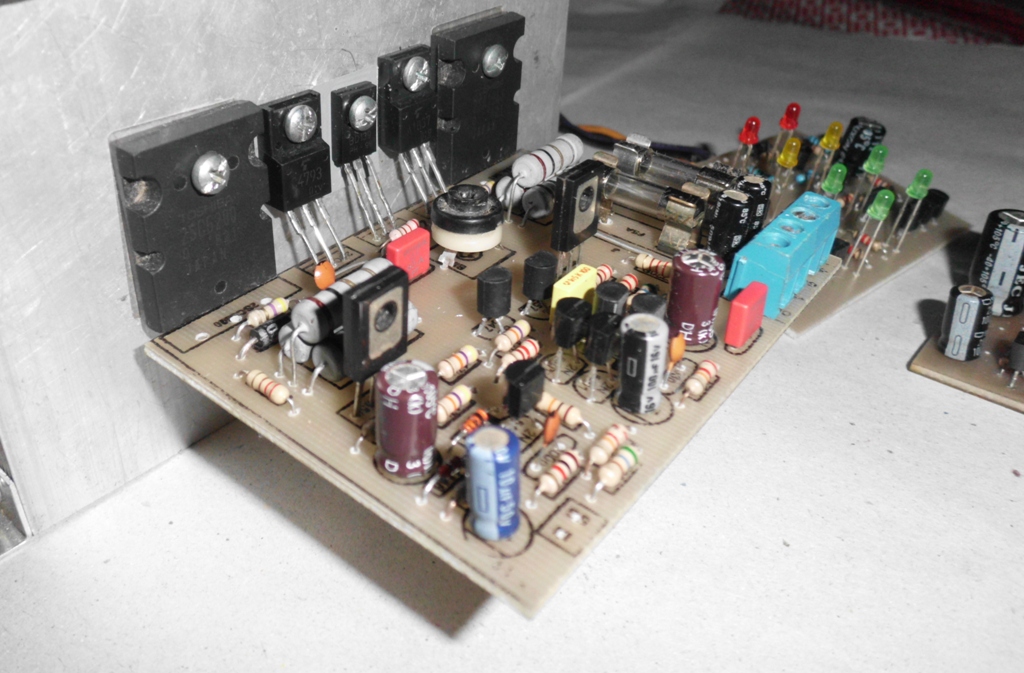

My new AX-14

Make 2 channel of AX-14 with 32 VAc.
Adjust bias 750mV on 10 resistor instead fuse.
Dc offset is -2,2 mVDC and another one is 1 mVDC.
Sound is better than my first AX-14 with bias 500mVDC.



[apexaudio]

Make 2 channel of AX-14 with 32 VAc.
Adjust bias 750mV on 10 resistor instead fuse.
Dc offset is -2,2 mVDC and another one is 1 mVDC.
Sound is better than my first AX-14 with bias 500mVDC.

Nice work, and what about amp VU ?
Regards



[wattaniya]

hi apex sir,
ax14 in progress, for home use.
is mje340,350 need small heat sink?

can u share ur vu meter pcb in pdf.
thanks



[apexaudio]

hi apex sir,
ax14 in progress, for home use.
is mje340,350 need small heat sink?

can u share ur vu meter pcb in pdf.
thanks

Nice progress, MJEs no need heatsink.



[wattaniya]

Nice progress, MJEs no need heatsink.

thanks for the reply.



[QQ12e5k1]

Nice work, and what about amp VU ?
Regards

Amp VU is working good,thank's for Your nice project.

Regards



[wattaniya]

Amp VU is working good,thank's for Your nice project.

Regards

hi QQ12e5k1.
pls can u share the vu meter pcb layout?
