LTSpice filter simulation masterclass: 0 to -100dB in five easy steps!

Posted 19th February 2016 at 12:14 AM by rjm (RJM Audio Blog)
Updated 7th April 2016 at 06:58 AM by rjm

I've never put everything into a single LTSpice worksheet like this before: I find it fascinating. You can really pull apart a circuit to see what makes it tick, before solder ever hits the iron.

Power supply ripple, frequency response, gain, and crosstalk can be established. You can look at turn on and turn off transients, inrush currents, and conductance angle, and check peak currents in the filter capacitors. It's all there if you care to peek in and poke around.

I'm such a huge fan of LTSpice...

The only problem, really, is it is too perfect: all devices are perfectly matched, every part value is exact, and the temperature is always 25 C. Ground loops, wiring inductance, and thermal runaway do not exist. So no, of course there are no guarantees - but as a tool to get you 90% of the way there with the minimum of fuss and bother it is truly indispensable.

Actually I find the more experience you have the more useful LTSpice...
Attached Thumbnails
Click image for larger version

Name:	Crystal PSRR sim.png
Views:	2725
Size:	476.3 KB
ID:	1801   Click image for larger version

Name:	crystalFET.png
Views:	783
Size:	28.0 KB
ID:	1891
rjm's Avatar
rjm
diyAudio Member
Views 1017 Comments 0 rjm is offline
Old

Headphone amplifier ground. Where to make the chassis connection?

Posted 2nd February 2016 at 08:11 AM by rjm (RJM Audio Blog)
Updated 24th February 2016 at 02:02 AM by rjm

The discussion thread at the headphone forum is here, but I wanted to throw out the problem to the general blog-reading community here at diyaudio to see if anyone can nail this.

The earthed chassis (light blue) must connect to the circuit common i.e. "ground" (pale green). I do not know where the best place on the circuit ground is to tie that connection.

Suggestions please!

(COM and GND are completely equivalent pads on the circuit board, while IN- and OUT- also pads on the board but physically further away on the ground plane.)

****

Answer: as long as it connects at one point only, or the same point of both channels, it doesn't seem to matter at all. I have it connected at the ground tab of the headphone jack and that seems to be as good as anywhere.

****

The noise was in fact magnetic interference emanating from the transformers. Grounding layout changes / electrostatic...
Attached Thumbnails
Click image for larger version

Name:	Sapphire ground.png
Views:	962
Size:	32.5 KB
ID:	1775   Click image for larger version

Name:	DSC_5322b sm.jpg
Views:	2100
Size:	846.7 KB
ID:	1777   Click image for larger version

Name:	DSC_5407 sm.jpg
Views:	1933
Size:	748.4 KB
ID:	1780   Click image for larger version

Name:	Z-reg sim.png
Views:	592
Size:	273.4 KB
ID:	1782   Click image for larger version

Name:	IMGP6318sm.jpg
Views:	890
Size:	301.3 KB
ID:	1783

Click image for larger version

Name:	permalloy.png
Views:	286
Size:	51.1 KB
ID:	1809
rjm's Avatar
rjm
diyAudio Member
Views 1427 Comments 7 rjm is offline
Old

ASUS Xonar Essence STX soundcard

Posted 9th October 2015 at 10:46 PM by rjm (RJM Audio Blog)
Updated 7th November 2015 at 10:44 PM by rjm

https://www.asus.com/Essence-Hi-Fi-A...r_Essence_STX/

I admit I did not give ASUS the benefit of the doubt and seriously consider their Essence STX soundcard as a replacement for my Onkyo SE200-PCI. ASUS make nice motherboards, but unlike Onkyo have no previous expertise in high end audio.

I am happy to report - a bit late in the game, the card came out in 2009 - that they've done a really good job with it and the drivers for Windows 10, technically still in beta, work just fine.

*****

Asus updated the design recently to the STX II. The PCB has been redone, but the only visible change is the PCM1792A DAC has been moved towards the top of the card closer to the IV conversion op amps. An second LDO regulator IC, U34, empty on the STX, is now populated. A "TXCO" clock source is added next to the ASUS audio controller IC. The four film caps next to the output IC are replaced with WIMA brand. It's basically identical, so it...
Attached Thumbnails
Click image for larger version

Name:	controlpanel.jpg
Views:	442
Size:	104.2 KB
ID:	1737   Click image for larger version

Name:	DSC_8149bs.jpg
Views:	364
Size:	301.9 KB
ID:	1738   Click image for larger version

Name:	DSC_8136bs.jpg
Views:	1263
Size:	318.0 KB
ID:	1739   Click image for larger version

Name:	DSC_8152bs.jpg
Views:	329
Size:	266.3 KB
ID:	1740   Click image for larger version

Name:	DSC_8136b.jpg
Views:	820
Size:	467.7 KB
ID:	1750

Click image for larger version

Name:	DSC_0780 sm.jpg
Views:	359
Size:	151.5 KB
ID:	1751
rjm's Avatar
rjm
diyAudio Member
Views 1539 Comments 0 rjm is offline
Old

Onkyo SE200-PCI sound card windows 10 driver issues / disable immezio 3D effects

Posted 8th October 2015 at 07:35 AM by rjm (RJM Audio Blog)
Updated 24th November 2015 at 12:30 AM by rjm

Apologies for the Google-friendly title, I'm hoping people experiencing the same problem will find their way here.

Onkyo download page: https://www.jp.onkyo.com/support/pcau...d/se200pci.htm

Current version is 5.60C, last update was 2012 to be compatible with Windows 8. Driver package 5.60C installs without issues on Windows 10 64 bit. The AudioDeck utility installs as well.

However, all is not well:

On installation, Immezio 3D effects are enabled. This locks the sample rate at 48 kHz. 44, 96, and 192 kHz cannot be selected. Deselecting the Immezio 3D effects prompts a reboot, but the Immezio 3D effects remain enabled after rebooting. The card is stuck at 48 kHz. 3D effects (which enables the DSP processing such as Qsounds, EAX, A3D) cannot be shut off.

I see three possible workarounds:

1. Find a command line switch, or edit the installation batch file to disable Immezio 3D on installation...
Attached Files
File Type: zip RegReboot.zip (159.9 KB, 1115 views)
rjm's Avatar
rjm
diyAudio Member
Views 7358 Comments 3 rjm is offline
Old

Orb JADE-1 headphone amplifier and DAC : review

Posted 2nd October 2015 at 05:07 AM by rjm (RJM Audio Blog)
Updated 9th November 2015 at 02:44 AM by rjm

This is a headphone amplifier with digital inputs, not a DAC with a headphone jack. Though technically given equal board space, the headphone amp, with hot-running single-ended class-A output stage, is surely the centerpiece of the design. (The Asahi Kasei DAC, with MUSES01 for the I-V, is no slouch mind you.)

First impressions. It is large, solid, and very nicely made, but - after seeing the inside - rather simple, spartan even. From the DAC output to the headphone jack is just two op amps and two transistors, the op amps being shared between channels. A third op amp most likely just buffers the analog line output. Apart from the headliner MUSES01 op amp none of the parts are especially expensive, though many were clearly carefully chosen for sound quality - the 2SC5196 for example. The TE7022 USB receiver is a disappointment, as is, to be honest, the single set of power rails and the use of dual op amps shared between channels.

On a positive note, the front...
Attached Thumbnails
Click image for larger version

Name:	DSC_7802s.jpg
Views:	2110
Size:	299.9 KB
ID:	1731   Click image for larger version

Name:	DSC_7804s.jpg
Views:	1230
Size:	333.1 KB
ID:	1732
Attached Files
rjm's Avatar
rjm
diyAudio Member
Views 1492 Comments 0 rjm is offline
Old

Choosing a USB DAC

Posted 26th September 2015 at 11:49 AM by rjm (RJM Audio Blog)
Updated 9th October 2015 at 04:24 AM by rjm

My Onkyo soundcard drivers stopped working when I upgraded to Windows 10. Onkyo says they have no plans to release a patch, so I'm left with no high quality audio solution for my computer. Since I already have a good headphone amplifier, what I'm mainly looking for is a high quality line level analog output.

One options is another soundcard, the ASUS Xonar STX being the obvious choice. I dunno, it doesn't grab me.
I was thinking with going with an external box this time, connected via USB. As this opens up about a zillion options, I'm going to limit things to,
  1. Respected audio brands with a solid reputation for digital audio.
  2. Small enough to be placed on top of my computer case.
  3. $500-ish, used or new.

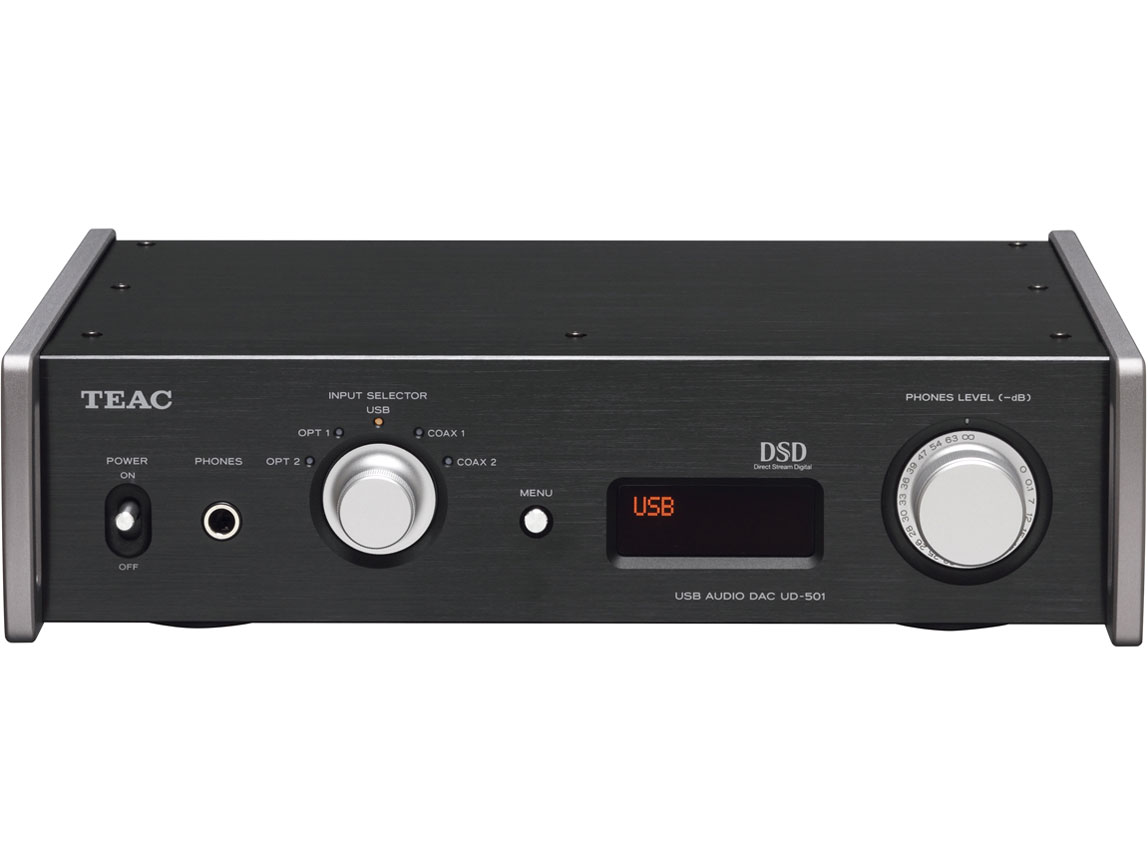

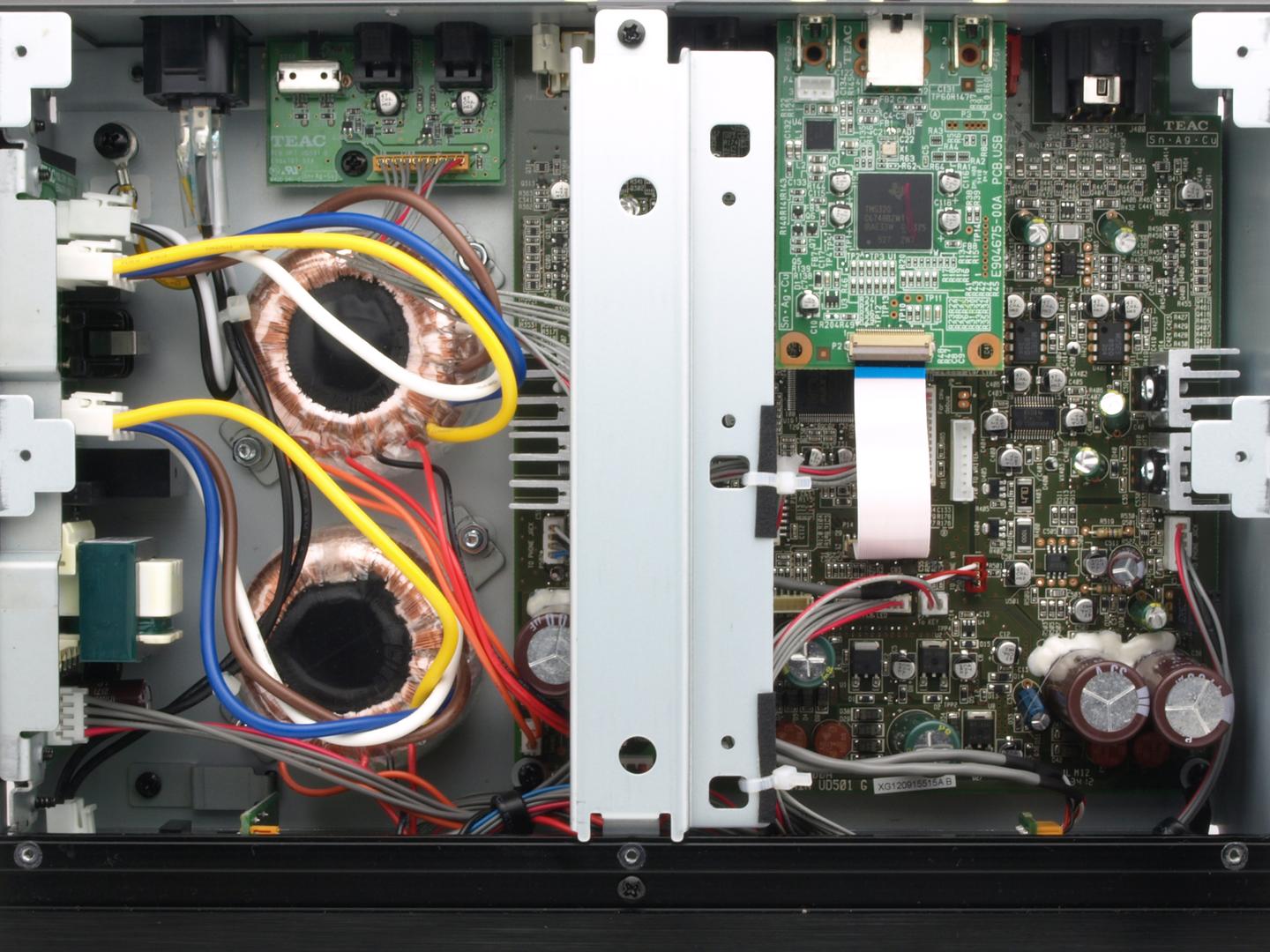

My short list includes the following: Denon DA-300usb, TEAC UD-301, and Onkyo DA-1000. Teac also makes the 301's big brother, the UD-501. This is a much nicer unit, very substantial. A bit large. Rounding out the field is the LUXMAN DA-100 . These can be found deeply...
Attached Thumbnails
Click image for larger version

Name:	gb1.jpg
Views:	191
Size:	44.7 KB
ID:	1727   Click image for larger version

Name:	gb3.jpg
Views:	368
Size:	232.3 KB
ID:	1728   Click image for larger version

Name:	K0000429480.jpg
Views:	586
Size:	60.0 KB
ID:	1729   Click image for larger version

Name:	UD-501_m_chassis_l.jpg
Views:	1993
Size:	213.4 KB
ID:	1730
Attached Files
rjm's Avatar
rjm
diyAudio Member
Views 2569 Comments 5 rjm is offline
Old

Audio Op Amps

Posted 26th June 2015 at 02:59 AM by rjm (RJM Audio Blog)
Updated 1st October 2015 at 07:04 AM by rjm

I'm often asked "which op amp sounds better".

The reply is usually a scowl and muttered "does it look like I care!?" Which is something of a lie... I do care about getting op amps to sound good. It's the phrasing of the question I dislike.

Op amps do not come in "good, better, best" flavors. All it is - and this is pretty obvious I would have thought but apparently not - all this is about is matching an op amp to the job it's going to do; the circuit it's going to be sitting in.

The op amp you'd choose to use as a DAC IV converter is different from the one you'd choose to back a 100k volume potentiometer in a preamp is different from the one you'd choose for an MC phono preamp input stage...

Why do you think there are like a thousands of different op amps to choose from in the first place? It's because there are thousands of combinations of op amp characteristics and properties ... not because companies...
Attached Thumbnails
Click image for larger version

Name:	bryston.png
Views:	1523
Size:	141.7 KB
ID:	1669
Attached Files
rjm's Avatar
rjm
diyAudio Member
Views 1595 Comments 1 rjm is offline
Old

Jenson JE-990 discrete op amp

Posted 8th June 2015 at 07:45 AM by rjm (RJM Audio Blog)
Updated 9th June 2015 at 12:09 AM by rjm

LTSpice copy (protection diodes removed) of the original JE-990 circuit. Even with BC327/337 subbed in for all the original transistors the simulation works without further modification.

C1 seems to be critical for stability. C2 and C3 damp overshoot seen on the simulated square wave response, hinted at by the high frequency rise in frequency response shown in the screen grab below.

My impression is that this circuit is of the heavily optimized, no-stone-left-untouched variety.

Sourced from m.nats page and The John Hardy Company.
Attached Thumbnails
Click image for larger version

Name:	je990.png
Views:	1950
Size:	76.8 KB
ID:	1660   Click image for larger version

Name:	jensen 990.png
Views:	4924
Size:	98.7 KB
ID:	1661
Attached Files
File Type: asc 990-2.asc (6.7 KB, 1020 views)
File Type: pdf DIY.JE-990.DOA.V1A.pdf (77.7 KB, 1037 views)
File Type: pdf 990.pdf (1.80 MB, 1094 views)
rjm's Avatar
rjm
diyAudio Member
Views 1951 Comments 2 rjm is offline
Old

AT-HA5000

Posted 21st May 2015 at 01:32 PM by rjm (RJM Audio Blog)
Updated 27th May 2015 at 01:54 AM by rjm

This post, about a push-pull MOSFET output stage for a headphone amp, got me thinking again about the Audio Technica AT-HA5000, which is something of a benchmark in its class. The "basic" signal circuit (not a complete schematic, it's clearly missing some ancillary details) is attached below. Probably out of MJ originally.

I think with any circuit like this, the differences are less about the MOSFETs and the operating points and more about the front end and what tricks you do with the power supply. That, and how you make sure it doesn't go up in a puff of vaporized silicon taking your headphones with it.

The Audio Technica schematic has nice old-school Zener regulators, a discrete JFET front end, a long tailed pair + current mirror for voltage gain and "proper" BJT Vbe multiplier and driver stage. Q7 is presumably in thermal contact with Q10,11 providing overtemp protection, and the output has a protection relay (not shown in detail) for...
Attached Thumbnails
Click image for larger version

Name:	AT-HA5000.png
Views:	2643
Size:	98.0 KB
ID:	1636
Attached Files
File Type: asc HA5000 mod 01.asc (6.0 KB, 472 views)
rjm's Avatar
rjm
diyAudio Member
Views 3014 Comments 3 rjm is offline
Old

Szekeres 2015

Posted 20th May 2015 at 06:00 AM by rjm (RJM Audio Blog)
Updated 18th June 2015 at 11:26 PM by rjm (added schematic of original version)

The circuit was originally hosted on Headwize, but the site seems to have gone offline.

It was a single stage resistively-loaded MOSFET follower, a unity gain current buffer used to drive headphones.

Some updated versions provided below. As noted in the comments the "Reverso" version with the CCS on the V+ and a p-channel mosfet has better PSRR performance, especially with voltage divider network R6,R7,C4 on the collector of Q2.

So good in fact that I switched around the n-channel version to use a negative voltage rail to obtain the same result!
Attached Thumbnails
Click image for larger version

Name:	szekeres 2015 reverso.png
Views:	1698
Size:	51.2 KB
ID:	1651   Click image for larger version

Name:	szekeres 2015 negative.png
Views:	1468
Size:	41.3 KB
ID:	1654   Click image for larger version

Name:	szeke2.gif
Views:	2905
Size:	6.0 KB
ID:	1668
Attached Files
File Type: asc szekeres 2015 reverse split CCS.asc (3.8 KB, 940 views)
File Type: asc szekeres 2015 negative.asc (3.3 KB, 946 views)
rjm's Avatar
rjm
diyAudio Member
Views 1944 Comments 14 rjm is offline
