lhquam, I wonder how easy to match left and right distortion spectrum, and what is the best practice to do it.



[Rush]

I want a full set of boards too.
The power supply boards are very small in size and just what I need for a tight chassis. I'll take a few sets of those.

Rush



[Zen Mod]

Fab house can generate Gerber files and submit Layout and Drill details for verification before proceeding to manufacturing.

ExpressPCB is free software, made to catch you and send files (only) to them for production

no regular way of exporting Gerbers, so you can use free software and freely chose where to send your Gerbers



[damuffin]

Would be nice to have a spot for thermistor’s for 240V and 120V On supply boards.



[arky]

I would be looking to get the set of boards for two channels. Thanks.



[asphalt]

I would also like a set of boards along with the power supply boards
Thank you for your sharing your design.



[ItsAllInMyHead]

I can't say that I'd get around to building this until winter (earliest). However, if additional boards are available, I'd love to have a set of the amp and PSU boards. It would definitely give me room to learn more by attempting to follow the progress provided in the thread. Seeing your documentation and thought process has taught me a ton, and I'd like to see if I could not only build the amp, but play with some of the configuration as you've done and measure the results as I continue to learn.

Thanks for sharing your journey and offering to provide the boards.



[lhquam]

I have some price quotes from Bittele in Ontario Canada Turn-key PCB Assembly and Manufacturing
who I am likely to use to fabricate the PCBs. Of course, the price per board depends of the number of boards in the order. I have quotes for quantity 15 and quantity 30. Here is an estimate of the cost per board set (2xOS+2xFCFE+1xdualCAP), not including shipping:

• batch of 15: (enough for 7 board sets) $71
• batch of 30: (enough for 15 board sets) $46

Here is the current list of buyers for a set of PCBs for 2 channels of the SIT3X

• Rush set + N x cap boards
• twitchie set
• damuffin set for 5U chassis
• TungstenAudio set
• arky set
• asphalt set + cap boards

Let me know if you want to be added (or removed) from the list.



[asanden]

please add me to the list:
asanden set + cap boards



[Rush]

Would be nice to have a spot for thermistor’s for 240V and 120V On supply boards.

Lynn is trying to make the boards as small as possible, removing Diodes and Thermistors, as they can be placed on chassis where there is room.
Keeping the board in the 6" x 7" range allows it to be placed over the 1000VA transformer and not extend into precious chassis real estate.

Rush



[lhquam]

I also intend to use some of the extra dual cap. boards cut in half for my future prototypes which will be built with the fin-to-fin chassis configuration. That power supply configuration requires narrower single channel cap. boards.

Lynn is trying to make the boards as small as possible, removing Diodes and Thermistors, as they can be placed on chassis where there is room.
Keeping the board in the 6" x 7" range allows it to be placed over the 1000VA transformer and not extend into precious chassis real estate.

Rush



[ItsAllInMyHead]

I'd like to be added to the list (and since you are ordering per demand expressed) - I will commit to purchasing 2 full sets with intention of using them in a 5U x 400mm Deluxe. I'll re-read back to understand per the note you've made next to damuffin. I wasn't aware of two potential configurations.



[LATB]

I'd be interested in a set w/ cap boards.



[PierreQuiRoule]

And please count me in as well:
pierrequiroule one set incl. caps board

Thank you - Pierre



[Dennis Hui]

I would like to sign up for a set as well.

Thanks,
Dennis



[jwjarch]

Hi Lynn. Here's my attempt at updating the current list and adding myself. Apologies if I missed anyone:

Here is the current list of buyers for a set of PCBs for 2 channels of the SIT3X
Rush set + N x cap boards
twitchie set
damuffin set for 5U chassis
TungstenAudio set
arky set
asphalt set + cap boards
asanden set + cap boards
ItsAllInMyHead (2) sets
LATB set + cap boards
PierreQuiRoule set + cap boards
Dennis Hui set
jwjarch set + cap boards

Total of 13 sets so far. 🙂 If I'm not mistaken, a set of boards includes the cap board, correct? Are people requesting an additional cap board for dual mono? Please clarify for Lynn's sake.



[Russellc]

Is there a projected cost for a set?
Would probably like 2 PS boards, for dual mono if possible.

Russellc



[lhquam]

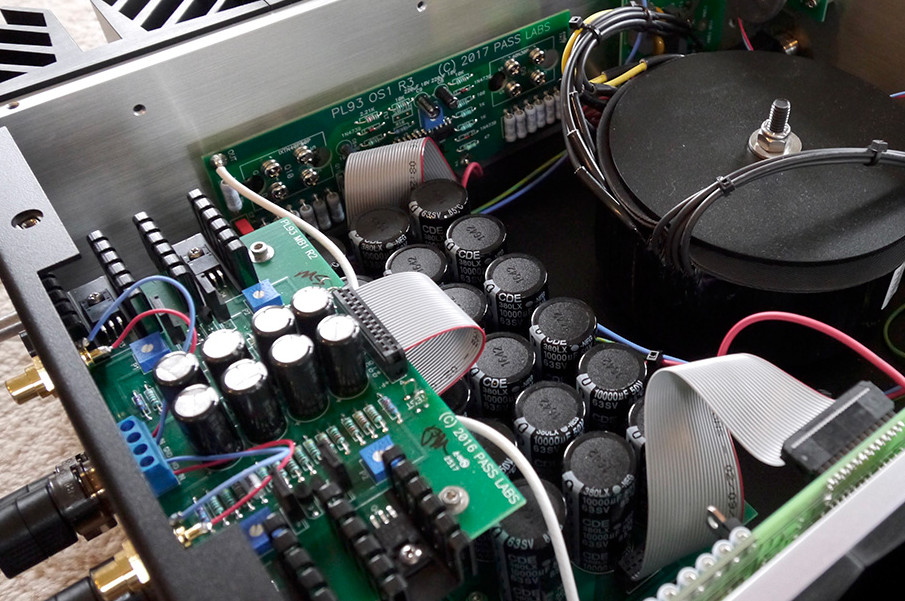

My objective is to allow the PS capacitor board to be placed wherever the resulting power supply related noise is minimized. I am not sure that directly over the transformer is the best place because of strong magnetic fields coupling to the board traces and the wiring to and from the board. I might be better to stack the FCFE board over the cap board, as in the XA25 layout: http://6moons.com/audioreviews2/passlabs3/2.html

Lynn is trying to make the boards as small as possible, removing Diodes and Thermistors, as they can be placed on chassis where there is room.
Keeping the board in the 6" x 7" range allows it to be placed over the 1000VA transformer and not extend into precious chassis real estate.

Rush



[Russellc]

Rush set + N x cap boards
twitchie set
damuffin set for 5U chassis
TungstenAudio set
arky set
asphalt set + cap boards
asanden set + cap boards
ItsAllInMyHead (2) sets
LATB set + cap boards
PierreQuiRoule set + cap boards
Dennis Hui set
jwjarch set + cap boards
Russellc set + 2 PS boards for dual mono

Russellc



[Rush]

Good point. I haven't had an issue with noise in the past, but every build has it's challenges. Surely might be an issue with no feedback.

Rush
