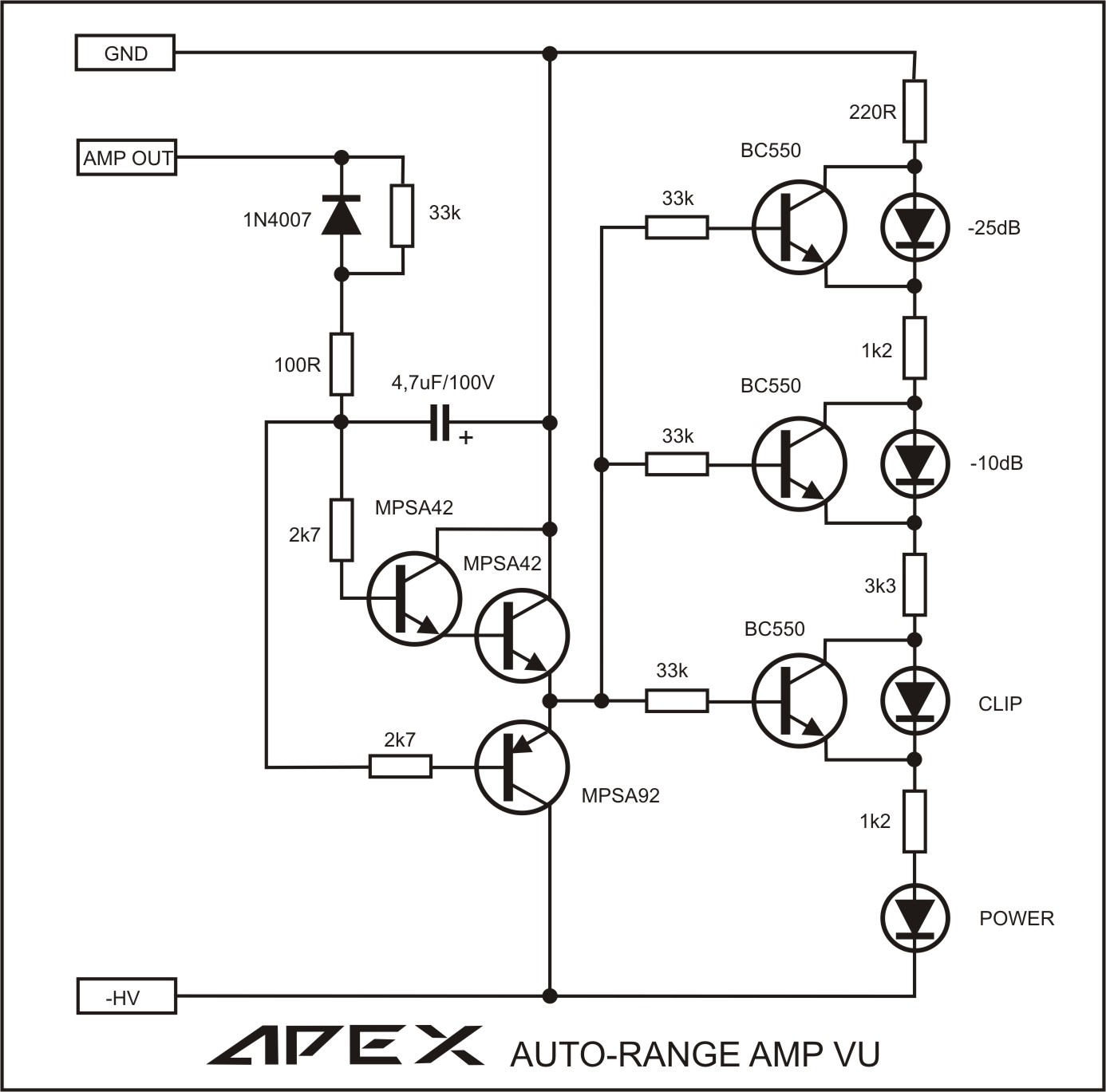

hi Apex..
i want to continue this PCB project,
what the additional circuit to complete perfect power amplifier (PA),
for illustration:

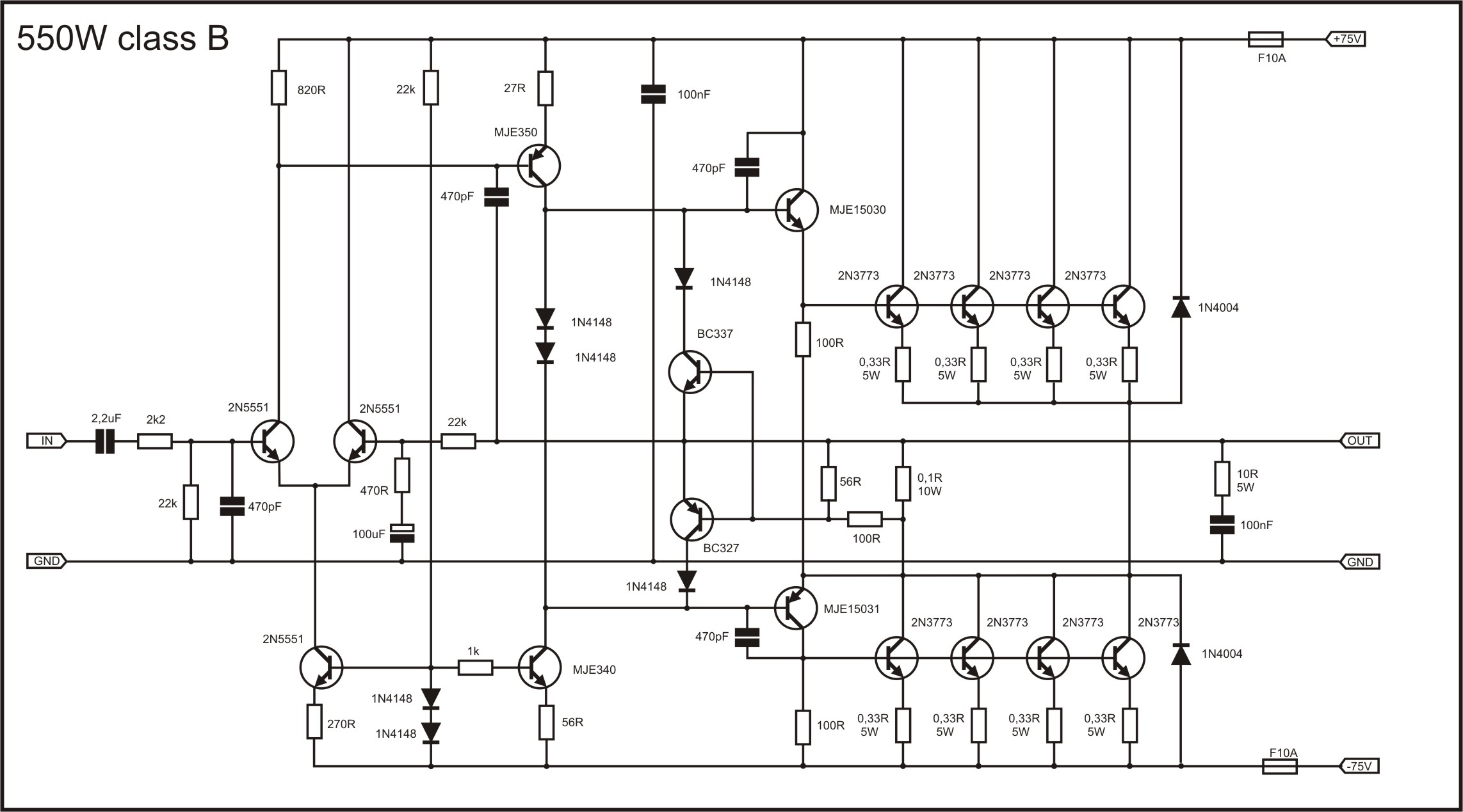

input--->APEX550--->output
what kind of input and output circuit for best PA?
can give me the circuit schematics,
thanks
i want to continue this PCB project,
what the additional circuit to complete perfect power amplifier (PA),
for illustration:
input--->APEX550--->output
what kind of input and output circuit for best PA?
can give me the circuit schematics,
thanks
amplifier matrix de 1500w

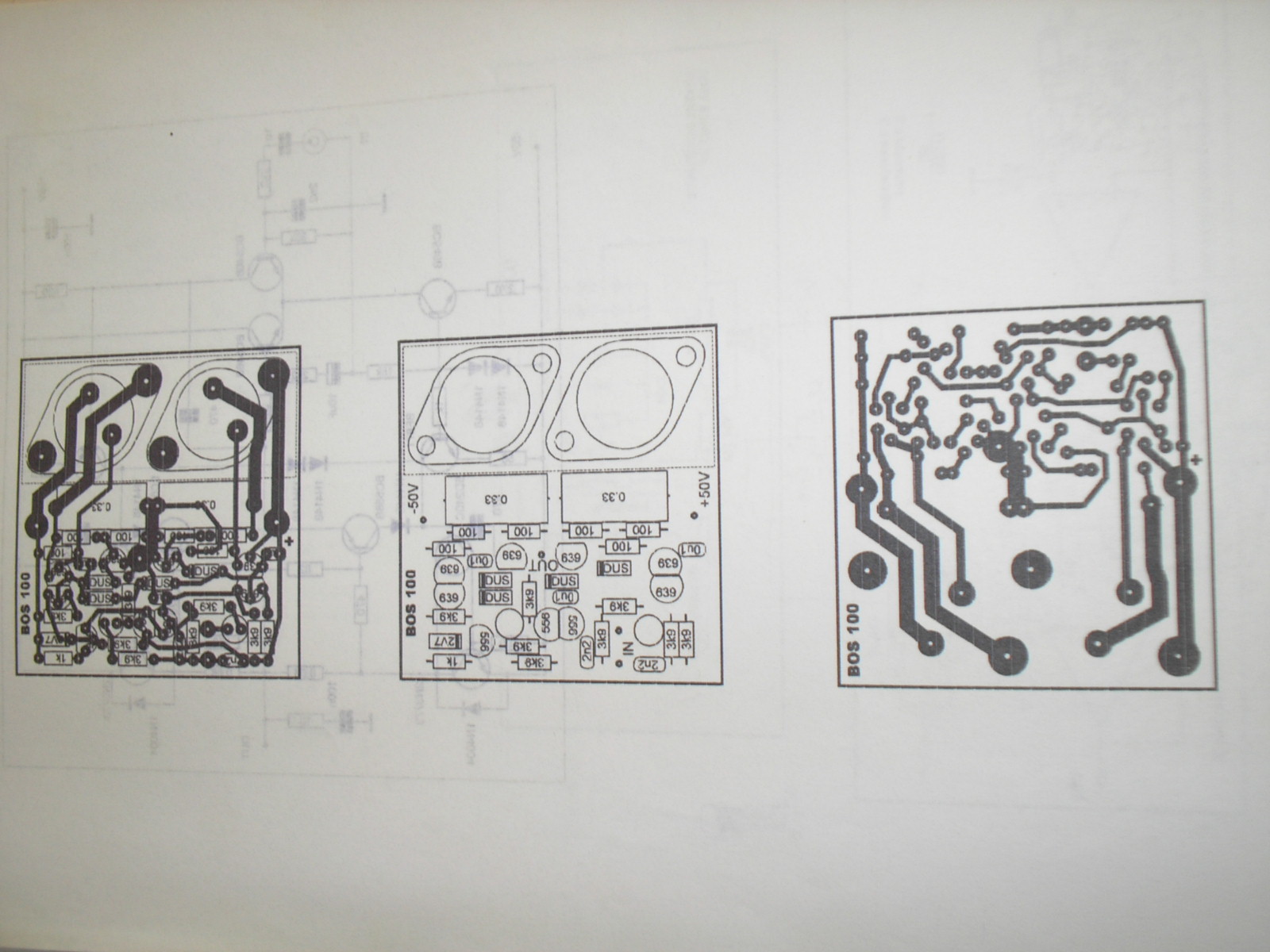

boa tarde aqui é charlestron, do pais Brasil,gostaria de saber se algum membro des forum tem o layout + pcb do aamplifier matrix 1,4 de 1500e 2ohms, meu email é -
boa tarde aqui é charlestron, do pais Brasil,gostaria de saber se algum membro des forum tem o layout + pcb do aamplifier matrix 1,4 de 1500e 2ohms, meu email é -
Good afternoon here is charlestron, the country Brazil, I wonder if any forum member has the des + pcb layout of the matrix aamplifier of 1.4 1500e 2ohms, my email is -
translated by moderation
please post in english
and please do not post/publish private email
there options under you 'personal details', PM(personal mail, only through forum), or email directly
moderation
Hi Mile, сan you give a better image of the PCB and the dimensions of the board itself or schematic?
Last edited:
sorry sir my bad thx for the reply and btw sir if i used 10 pair of output using 47.5-0-47.5 volts how much overall output wattage and sir all of the caps in electrolytic value are all in 80volts or 100volts espicialy for pf and nf thx..
regards
Last edited:
@apex i've done with the PSU my only question sir is in the PCB 80 volts or i'll go for 100volts thx....
regards
regards
Use 80V caps in PSU. 100uF/25V, 2,2uF/50V and 470pF/50V in amp input, all others 470pF/250V and 100nF/250V.
Regards
that was fast sir thank you once again...
all in all sir how much wattage if i use 2sc5200 10 pair output..
regards
