Post your Solid State pics here

[zman01]

Element14 drives me nuts. Make one order, get five or more deliveries (and five charges on my card) over the next three weeks. Even for stuff that's in stock in Sydney it's still a week to get to my place.

For Element14, can you check if you can find an option like "consolidate orders" during check-out process? If you find it, then check that box. Then they should get all the stuff and send it over to you in one big box.

Probably won't help much with the slow shipping times though.



[vargasmongo3435]

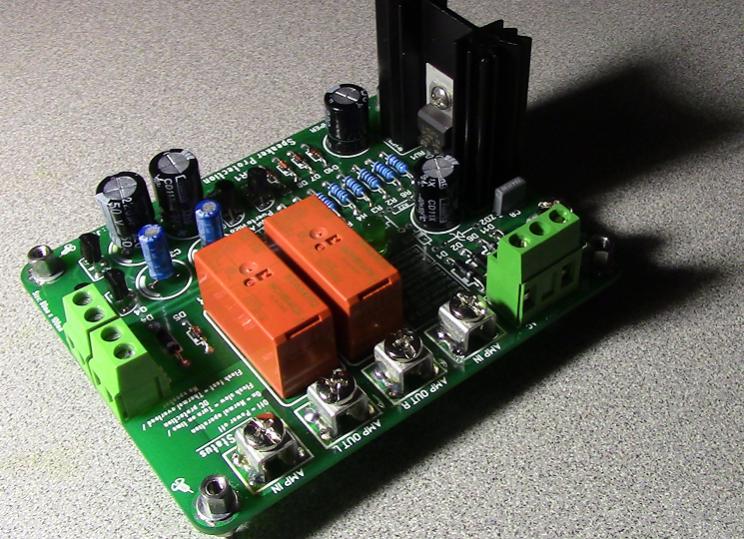

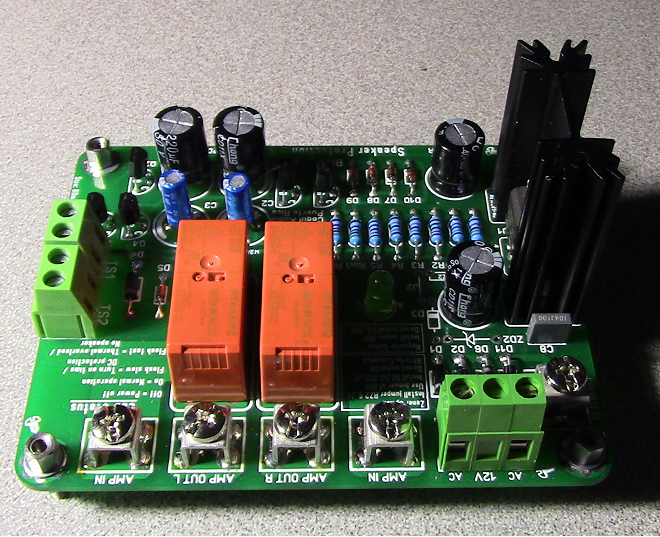

hello guys this is my first speaker protection circuit about 4 seconds delay DC detect and thermal



[helitim]

hello guys this is my first speaker protection circuit about 4 seconds delay DC detect and thermal

Great job! Looks sharp! Is that your own PCB, or did someone else design it?



[anatech]

That's an excellent build! Way to go.

Where did you get the screw terminals?

-Chris



[sajti]

That's an excellent build! Way to go.

Where did you get the screw terminals?

-Chris

Check out KEYSTONE 8191 at Farnell.

Or at Mouser:Keystone Electronics PCB Terminal Screw Terminals | Mouser Hungary


Sajti



[vargasmongo3435]

Great job! Looks sharp! Is that your own PCB, or did someone else design it?

is my own layout PCB design but the circuit is from G. Randy Slone book



[helitim]

is my own layout PCB design but the circuit is from G. Randy Slone book

Well, congrats on a good looking PCB!



[vargasmongo3435]

That's an excellent build! Way to go.

Where did you get the screw terminals?

-Chris

Mouser 8191 Keystone Electronics | Mouser Puerto Rico



[vargasmongo3435]

Well, congrats on a good looking PCB!

thank you



[prasi]

hello guys this is my first speaker protection circuit about 4 seconds delay DC detect and thermal

really nice vargasmongo! very nice with keystones and TE relays.



[anatech]

Hi Sajti,
Thanks for the link!

-Chris

Edit: now on order from Digikey



[sajti]

Hi Sajti,
Thanks for the link!

-Chris

Edit: now on order from Digikey

They are nice terminals, I used them many times before.

Sajti



[caldas]

My frist bi-amp.
plz don´t hit me, I know is looking ugle

An externally hosted image should be here but it was not working when we last tested it.



[east electronics]

have seen far worst systems .... dont worry



[caldas]

have seen far worst systems .... dont worry

Thanks, I guess



[vargasmongo3435]

no man no ugly, you good bro you made that yourself you should be proud of yourself



[diyralf]

At least you have understood the star grounding ;-)



[caldas]

At least you have understood the star grounding ;-)



[farjon]

At least you have understood the star grounding ;-)

May be a bar grounding?



[Hicoco]

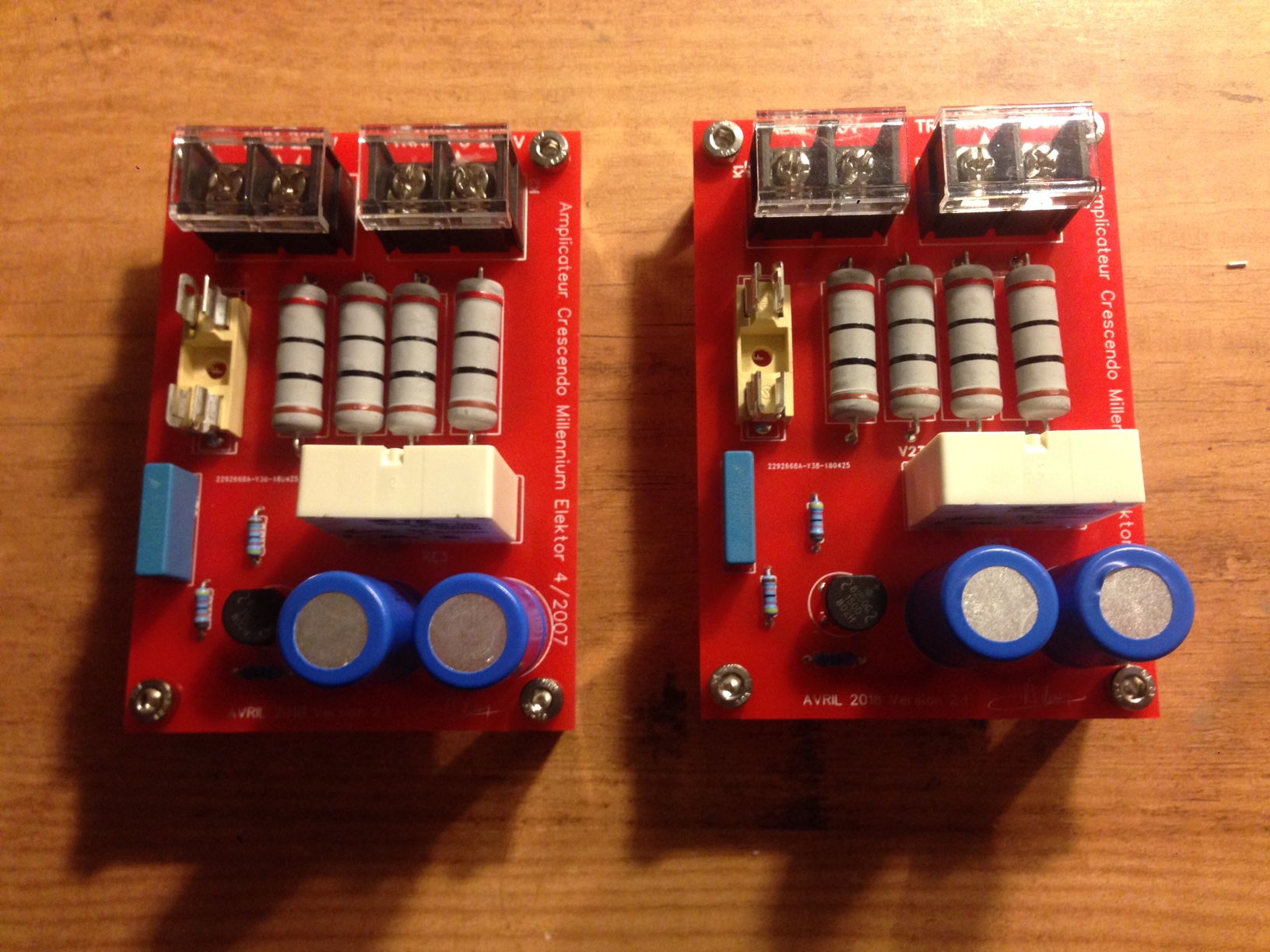

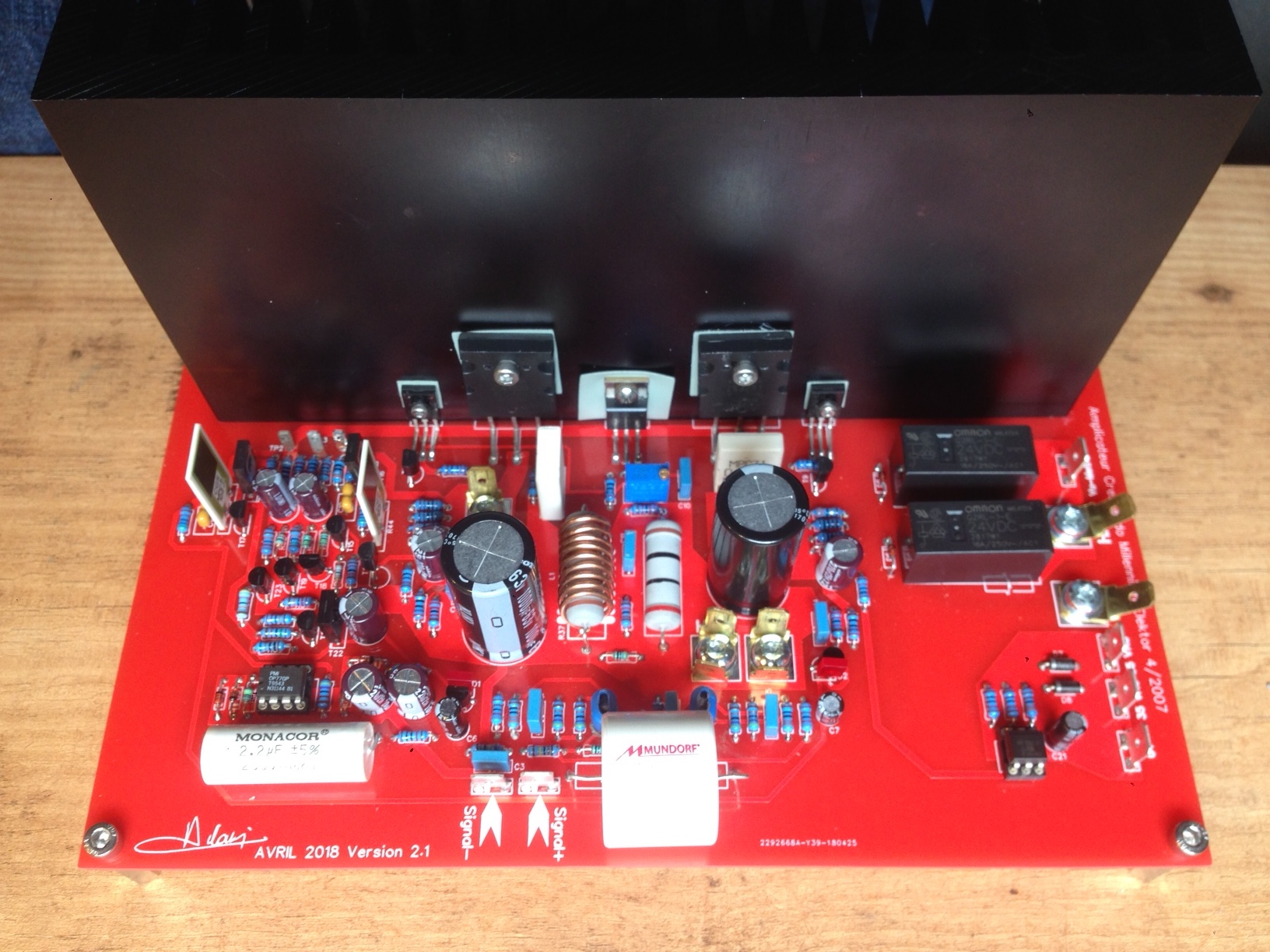

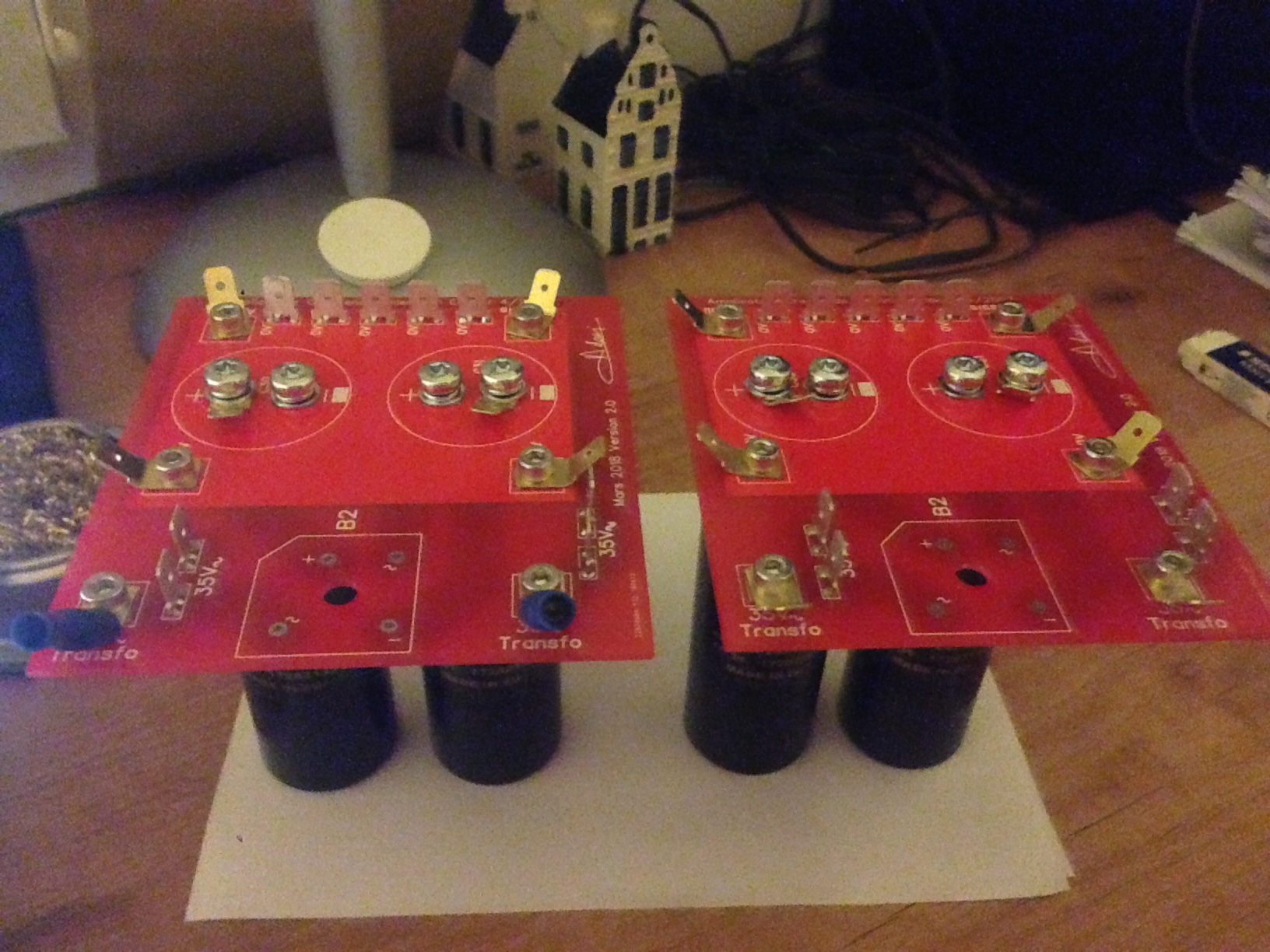

New Crescendo Millennium Edition. Ready to be plug

Waiting for the transformer....on Monday..with new PCB.
