Super job on the amp by the way, puts many a commercial jobby to shame.
I agree! and the best of all.... it is a diy amp!!!
This is great. I love it's uniqueneness. Only one in the world.

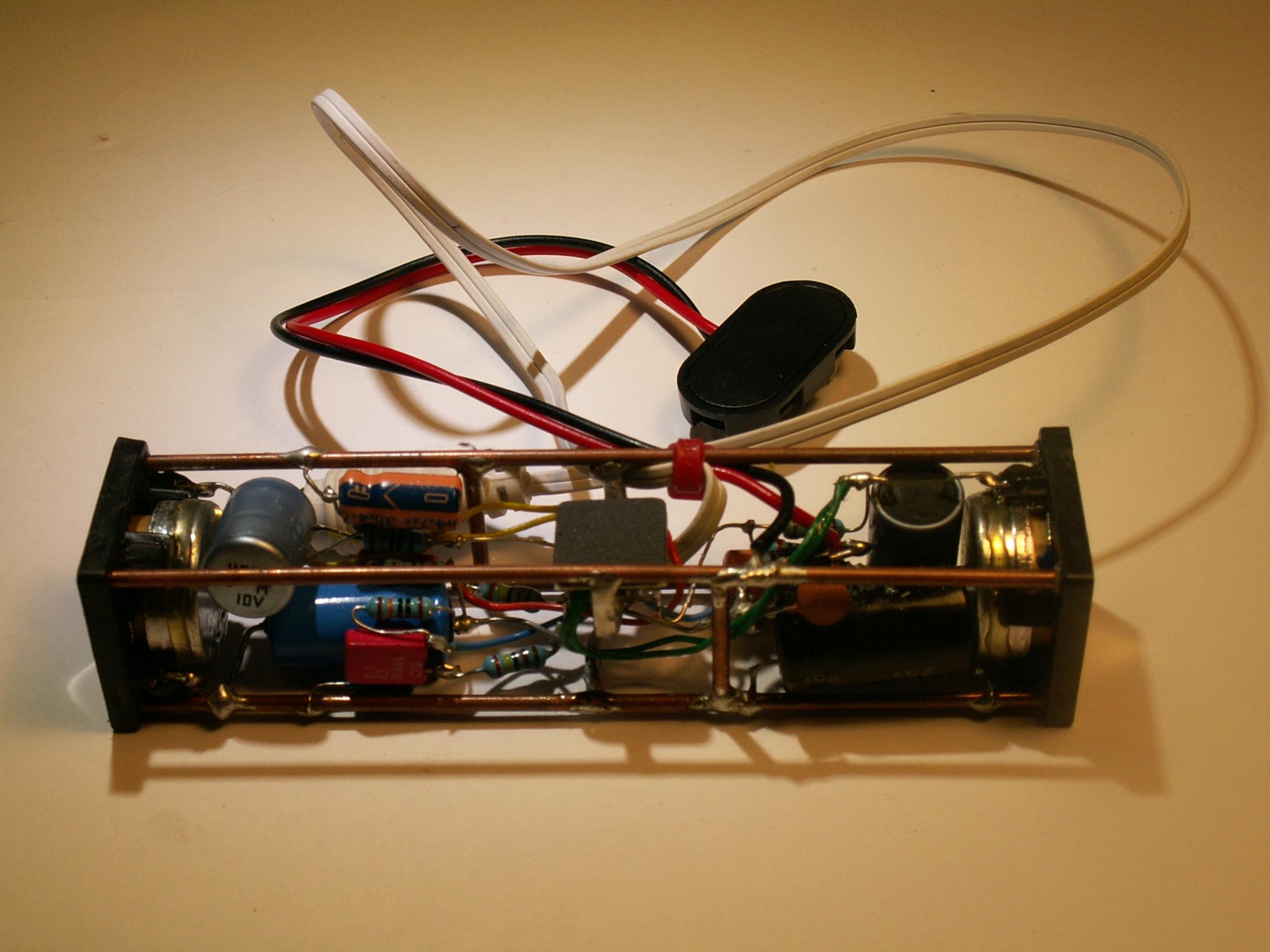

Solid state 2x2W with wirewound resistors and hifi caps. This and similar amps I make are assembled without PCB. It provides advantage in component contact and conductivity. Amazing treble!
This is great. I love it's uniqueneness. Only one in the world.
Only one?

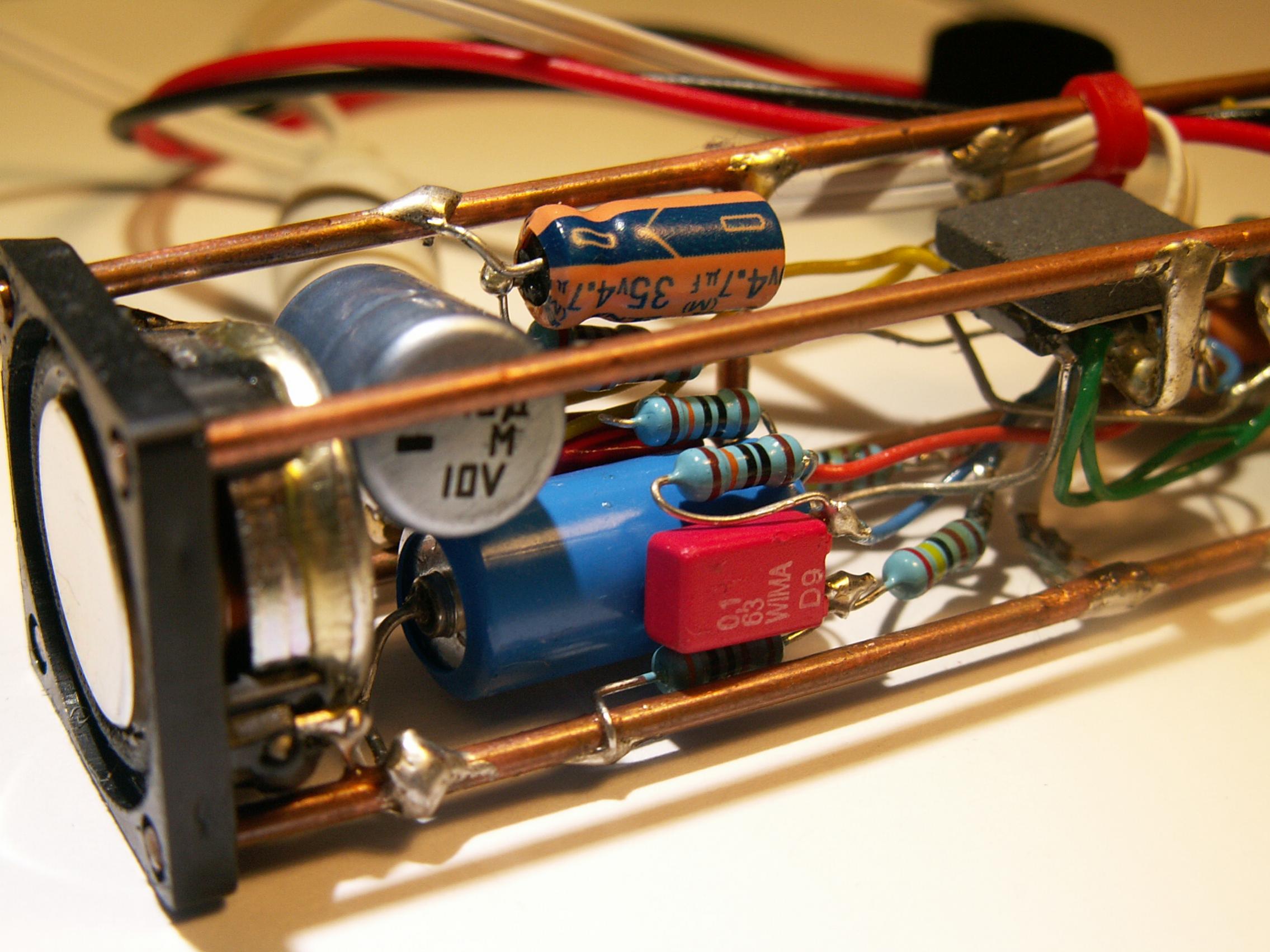

Folks, do you ever assemble your amps w/o PCB? It can be messy to make an entire unit because some components end up being loose and need additional support to be kept in place. Units I make now use LM1877 that require a number of external components. I was able to make sturdy design with that circuit. Next challenge is a transistor amp. I use heat shrink tubing to make cases and copper rods for frames.
DEAR ALL READER,
I HAVE LOADED ONE AMPLIFIER PICTURE WHICH IS M400,MN55435 USA PCB USING.MOSFET ARE 2SK1058 AND 2SJ162 .I WANT FULL DETAIL CAN ANY BODY HELP ME.THANKING ALL.
MASOOD
is this the one you are talking about?
2sk1058 2sk2221 irfp9240 mosfet amplifier schematic
PS. I did build both the T300 and the M400. They are excellent amplifiers. The M400 is playing right now in my living-room. The T300 is in my brother in law's house. Between both of them I like the M400 better ,it has fewer parts and I like it simpler!!!. But do not get me wrong here,the sound in the T300 is excellent too.all what they say on their site about these wonderful amps is true!!! I strongly recommend them. all the parts are high quality and all are original, the board is made in the USA!!! it will take two weeks to get it in the USA. Just ask for Alfred. He is a wonderful person.
Last edited:

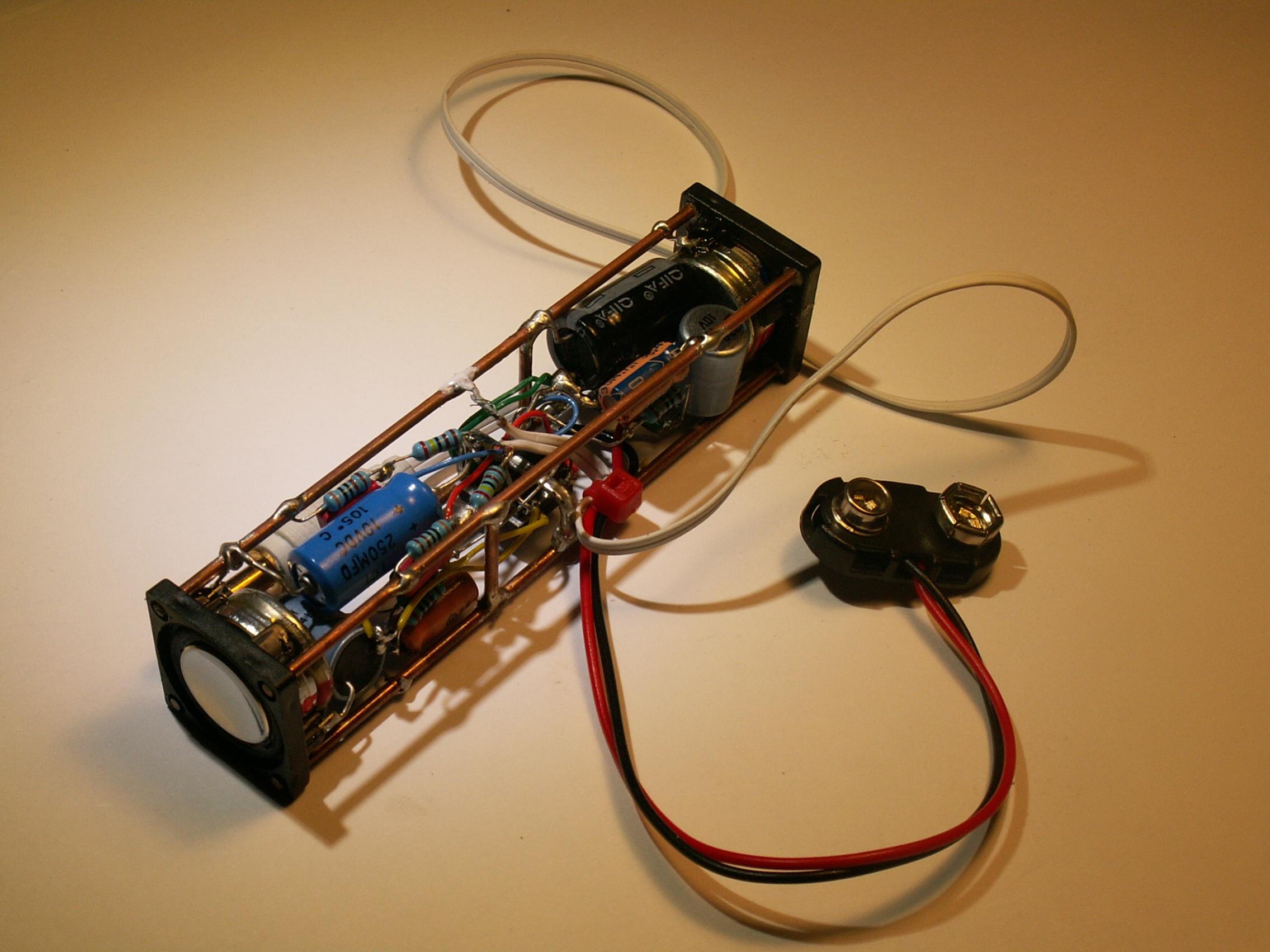

Using LM1877, 2x2W with 20mm speakers
That is a very nice and unique amp!. Nice job!
dear lanchile,
thanking you for sending such type of amplifier picture.i have two pair of mosfets.if this was in pdf form i will make it and enjoy on the eve of new year.it is very hard to me to ordering it will take more time sorry for my bad english for this reason i can not express my feeling.thanking you your ever masood alvi.
thanking you for sending such type of amplifier picture.i have two pair of mosfets.if this was in pdf form i will make it and enjoy on the eve of new year.it is very hard to me to ordering it will take more time sorry for my bad english for this reason i can not express my feeling.thanking you your ever masood alvi.
dear lanchile,
thanking you for sending such type of amplifier picture.i have two pair of mosfets.if this was in pdf form i will make it and enjoy on the eve of new year.it is very hard to me to ordering it will take more time sorry for my bad english for this reason i can not express my feeling.thanking you your ever masood alvi.
Sorry, but I do not have the pdf for it. I ordered the kits and they did not come with pdf. just the parts list, voltage setting and some tricks.
Federmann preamplifier
FET & BJT with heatsink
Amplifier module
Thermal coupling copper stick
Improved Amplifier module
power transformer made by myself
one module with 400VAx4 power transformer
all together into a harmonic shock control cabinet
Stable at 2ohm Load impedance
testing
noise level under 5mV p-p
DC output under 0.01V DC
completion of the product
Old computer or low bandwidth internet access?What the ****?
Over a MB of offsite images and Lanchile repeats all of them !
Old computer or low bandwidth internet access?
Both!!!
