Hi Fab, very nice little amp. I love your chassis fully filled with electronics, it means you have to give it good thoughts,before drilling anything🙂
The last two amplifiers, are incredible,
I never will to show any.....
Good example to take for us in how must build electronic devices, the work of Niko, need a special attention no only in technical resources further the artistic combination of forms and color. I imagine also, the election of the parts he choose and sadly I can not hear it by myself but could be the most important and I will question about.
The best regards Gentlemen
I never will to show any.....
Good example to take for us in how must build electronic devices, the work of Niko, need a special attention no only in technical resources further the artistic combination of forms and color. I imagine also, the election of the parts he choose and sadly I can not hear it by myself but could be the most important and I will question about.
The best regards Gentlemen
ok...this is even better than mines!!!
I am really impressed...congratulations!!!!
Simple question: the copper bars you use to connect the filtering caps, will they not oxidize over time?
Hi Walter
Thanks for the kind words. 🙂
Yes you are right, I like challenges!
I put the bigger power supply I could in this small chassis. The supply capacitors are about 2mm under the cover. Everything is included including speaker DC protection and thermal switch on heat sinks. The size may be small....but the soundstage is huge😛
Fab
You meant varnish? In that case this reduces a little conductivity and kinds of defeats the sonically benefits of having copper. Aesthetically still works good!
Good job keep it up!
Hi
This feels strange to post here after the fabulous extreme built from Nikos but here it is the possible smallest F5 design style amp...it uses an F5 board f rom eBay but with Toshiba output for audio, lower source mosfet resistor values, a bit smaller current in input stage too and a gain of 10 instead of 5. The damping factor is about 30 compared to the original F5 which is about 80 nominally.
Since the very small size (240mm x 250mm x 120mm) it is only 8 Wrms class A and maximum 15Wrms in class AB with 8 ohms. Power supply is double mono , each side having 100VA transformer and 72K uF capacitance.
Comparison with another amplifier size...:
Fab
Very nice build Fab
Thanks 🙂
Here another picture showing more details inside :
Is it the smallest F5 topology type class A amp...?
Fab
Last edited:

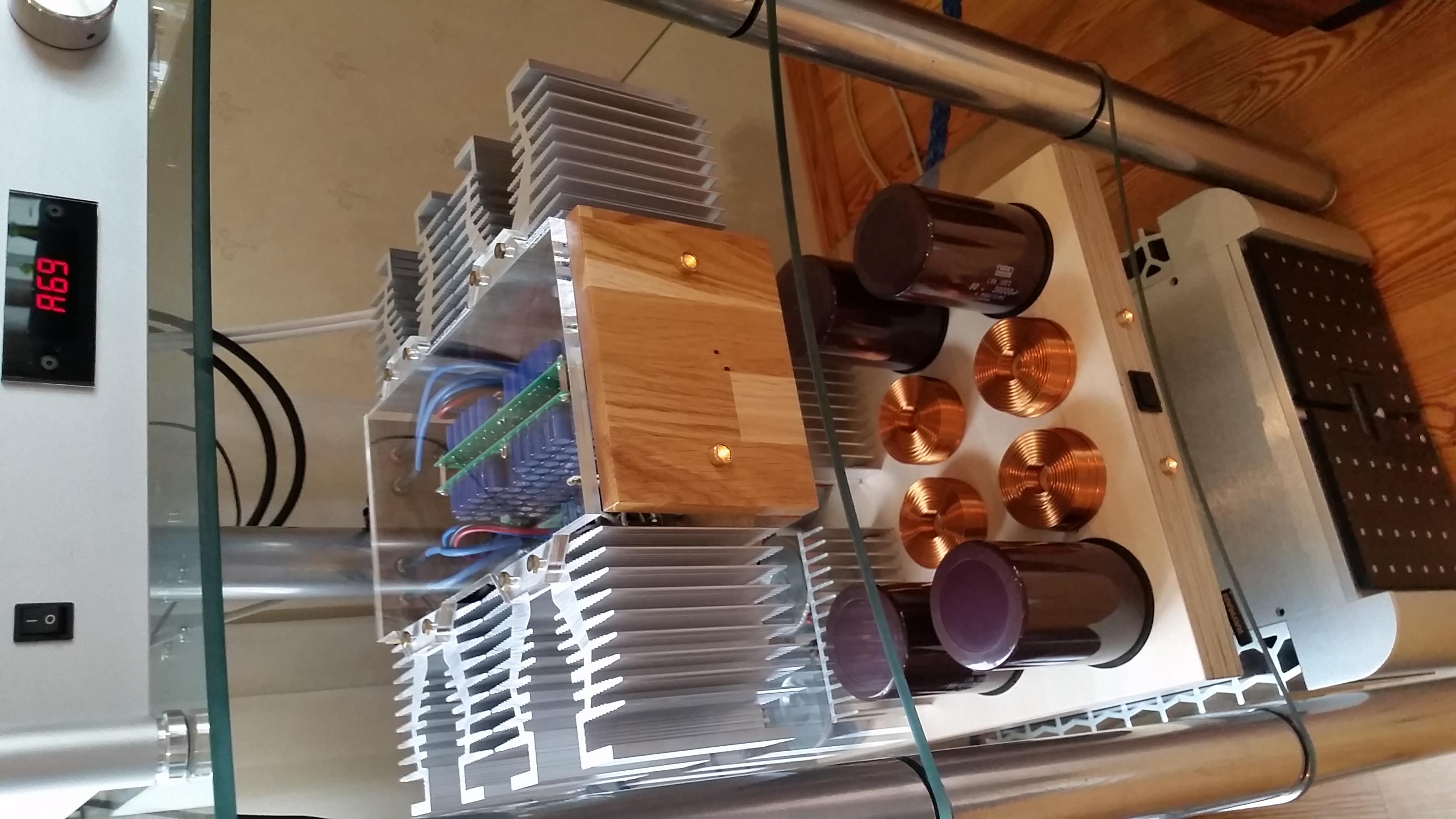

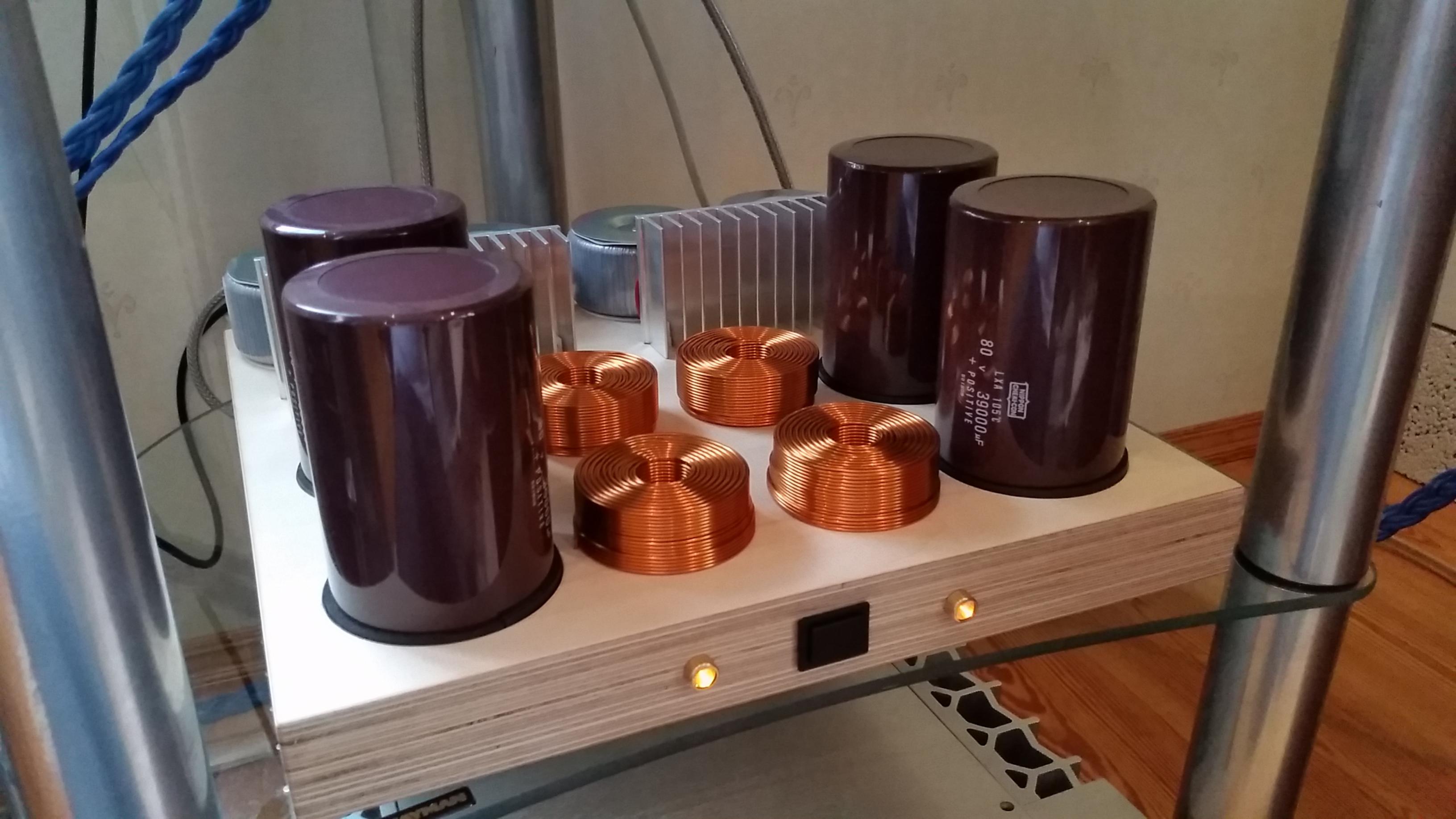

Thought I would share my latest build with you.
It was completed yesterday even if I started already last year 🙂
I sent an E-mail to Elna in Japan telling them that our daughter is named after them and I also mentioned I would be very happy about some samples, as we do not have a Elna distributor in Finland.
They did not even reply, but their competitor felt they could contribute to my build (for other reasons though, it is good we did not name our daughter Nathalie Nippon Chemicon).
Both the amp and Nathalie Elna are very happy with the NCC LXA caps.
They have excellent ESR and supposedly long life at 105deg.C.
I heard the price too and they were not overpriced.
As you may see their voltage rating is a bit higher than necessary 🙂
Amp is an "Aleph Monster" with big IXYS FETs and 3.1A bias, voltage is a bit above 30V.
Sound is good. It is close to Zen and other great amps, but can drive speakers the Zen cannot. Will do some measurements when my workbench has enough space 😉
It was completed yesterday even if I started already last year 🙂
I sent an E-mail to Elna in Japan telling them that our daughter is named after them and I also mentioned I would be very happy about some samples, as we do not have a Elna distributor in Finland.
They did not even reply, but their competitor felt they could contribute to my build (for other reasons though, it is good we did not name our daughter Nathalie Nippon Chemicon).
Both the amp and Nathalie Elna are very happy with the NCC LXA caps.
They have excellent ESR and supposedly long life at 105deg.C.
I heard the price too and they were not overpriced.
As you may see their voltage rating is a bit higher than necessary 🙂
Amp is an "Aleph Monster" with big IXYS FETs and 3.1A bias, voltage is a bit above 30V.
Sound is good. It is close to Zen and other great amps, but can drive speakers the Zen cannot. Will do some measurements when my workbench has enough space 😉
Attachments
Take care about safety hope your child don't play with metalic objects
or his small fingers around visible transformers , diodes bridges and choke wires !!
Best regards
or his small fingers around visible transformers , diodes bridges and choke wires !!
Best regards
I only now just realised his daughter is holding a capacitor in her hand.
Bloody big cap. I like it.
😀
Bloody big cap. I like it.
😀
That is a great progress.
Your daughter has grown a lot from your previous amp 🙂
Hope she enjoys the music more consciously now with the new one.
Your daughter has grown a lot from your previous amp 🙂
Hope she enjoys the music more consciously now with the new one.
