No expense spared on the rectifier bridges it seems. Just quickly looked at what those critters or their like go for, and was shocked.

http://www.mouser.co.za/ProductDetail/IXYS/VBO30-16NO7/?qs=t7yjd2JO/gSqqyERPfToUg==



[jelt2359]

thanks nice writing you should contribute to a magazine 🙂

Thanks!



[Soundhappy]

No expense spared on the rectifier bridges it seems.
Just quickly looked at what those critters or their like go for, and was shocked.

http://www.mouser.co.za/ProductDetail/IXYS/VBO30-16NO7/?qs=t7yjd2JO/gSqqyERPfToUg==

Cost is high for not soft recovery bridge 🙄



[henryve]

Me an idiot. I see now what you guys mean by hockey pucks. So they are output devices.



[Soundhappy]

I see now what you guys mean by hockey pucks. So they are output devices.

Yeah that two fat IXYS mosfet's push-pull amp stage.

Back to bridge theme this one is interesting

http://www.mouser.com/ds/2/205/L651-32664.pdf

Ordinary diodes bridge with snubber don't cost that much 🙄



[henryve]

Yeah that two fat IXYS mosfet's push-pull amp stage.

Back to bridge theme this one is interesting

http://www.mouser.com/ds/2/205/L651-32664.pdf

Ordinary diodes bridge with snubber don't cost that much 🙄

Yes, I have some FRED diodes in standard TO-220 packaging, but this SOT-227 B packaging for diode bridge looks very interesting and promising. I have made a note of this specific part that you posted.



[Soundhappy]

I am guessing we will see bigger versions of this amp at some point 🙂

I am also wondering what those big resistors are for ?

Nelson can you drop us a hint or two ? 😀😀😀

+1 Please Mr. Pass



[WalterW]

Yeah that two fat IXYS mosfet's push-pull amp stage.

Back to bridge theme this one is interesting

http://www.mouser.com/ds/2/205/L651-32664.pdf

Ordinary diodes bridge with snubber don't cost that much 🙄

That are the ones I used in my VFET/X Soundhappy. They do a good job. Though I don´t claim that I can hear a difference with others bridges 😉



[Soundhappy]

That are the ones I used in my VFET/X Soundhappy. They do a good job.
Though I don´t claim that I can hear a difference with others bridges 😉

I think Henryve was about bridges because some one write (-) (+) on them.
OK they are fat mosfet's P and N channel's and mysterious orange resistors 😀



[2 picoDumbs]

All basic stuff, nothing mysterious here, but if you want tips, you've got 2 chances.
Hahahaha



[Soundhappy]

All basic stuff......Hahahaha

After DEF we get Hahahaha the ultimate amplifier of joy.
Parallel push-pull for biger smile.
Field of silence are the best friend of wonderful music.
Basic stuff ok so write the right answer are complicated 😀



[generg]

All basic stuff, nothing mysterious here, but if you want tips, you've got 2 chances.
Hahahaha

Give me two chances......;==))



[2 picoDumbs]

Give me two chances......;==))

Hahaha.
You have an unfair advantage.



[generg]

I am not aware of it.....:--))

Simply tell us your ideas, or better only to me.....



[plasnu]

I really like the red, blue, white color scheme of the cables.



[henryve]

It's easy.

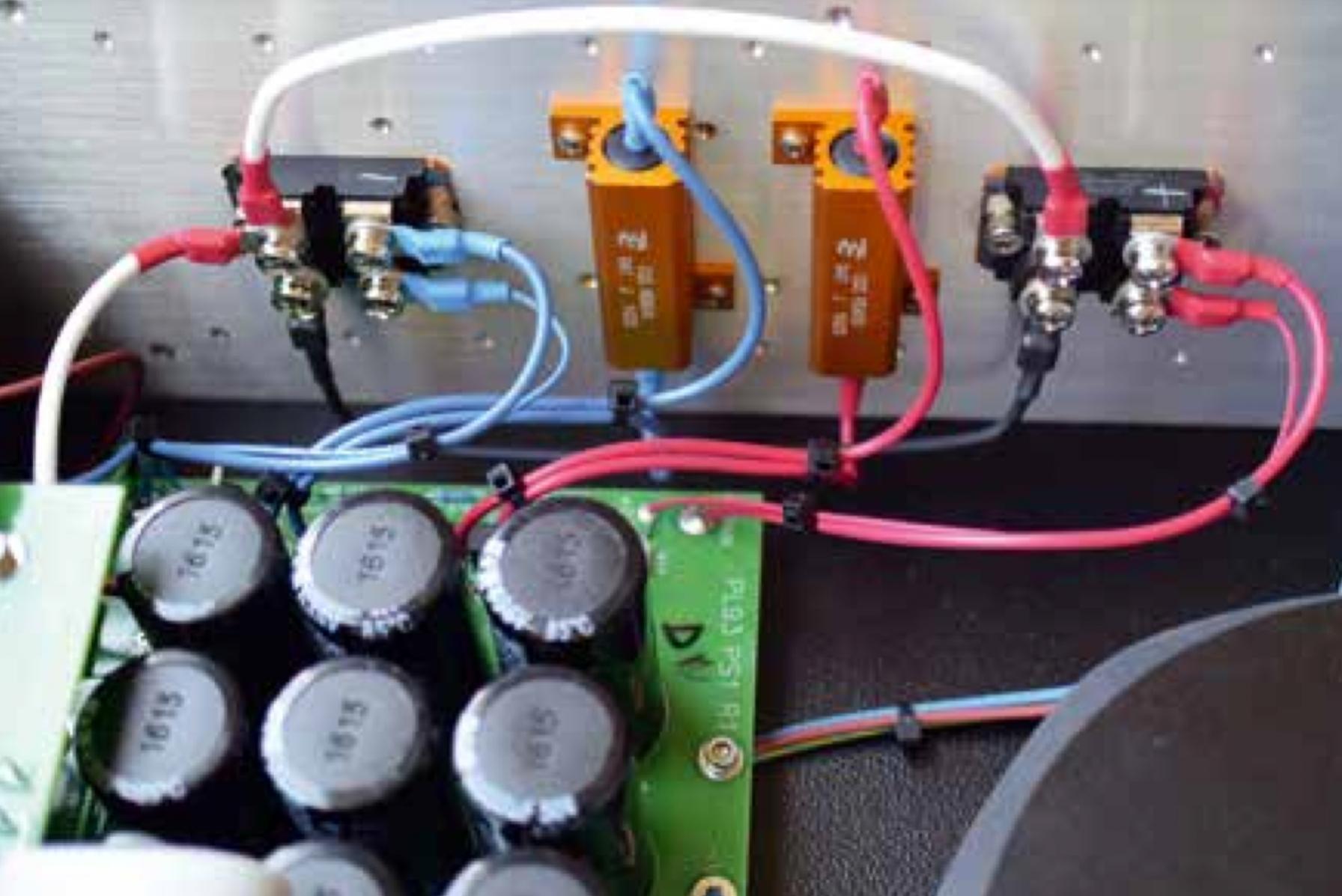

The wires going to the orange resistors comes from the cap boards of the PSU. The conclusion is a simple one. 😉



[generg]

CRC....:--))



[Zen Mod]

with Pa ....... it's easy only post hoc , always

(why I didn't think of it before ?)



[generg]

That is true!

But we were warned, look at SIT PSU.

:--))



[Soundhappy]

It's easy.

The wires going to the orange resistors comes from the cap boards of the PSU. The conclusion is a simple one. 😉

Bipolar (+)(-) psu= CRC||CRC parallel for mono channel.
Ah ok that explain 4 power resistors in psu. One possible answer.
Not sure what components are under of front end pcb maybe bunch of mox 0.47 R resistors ?

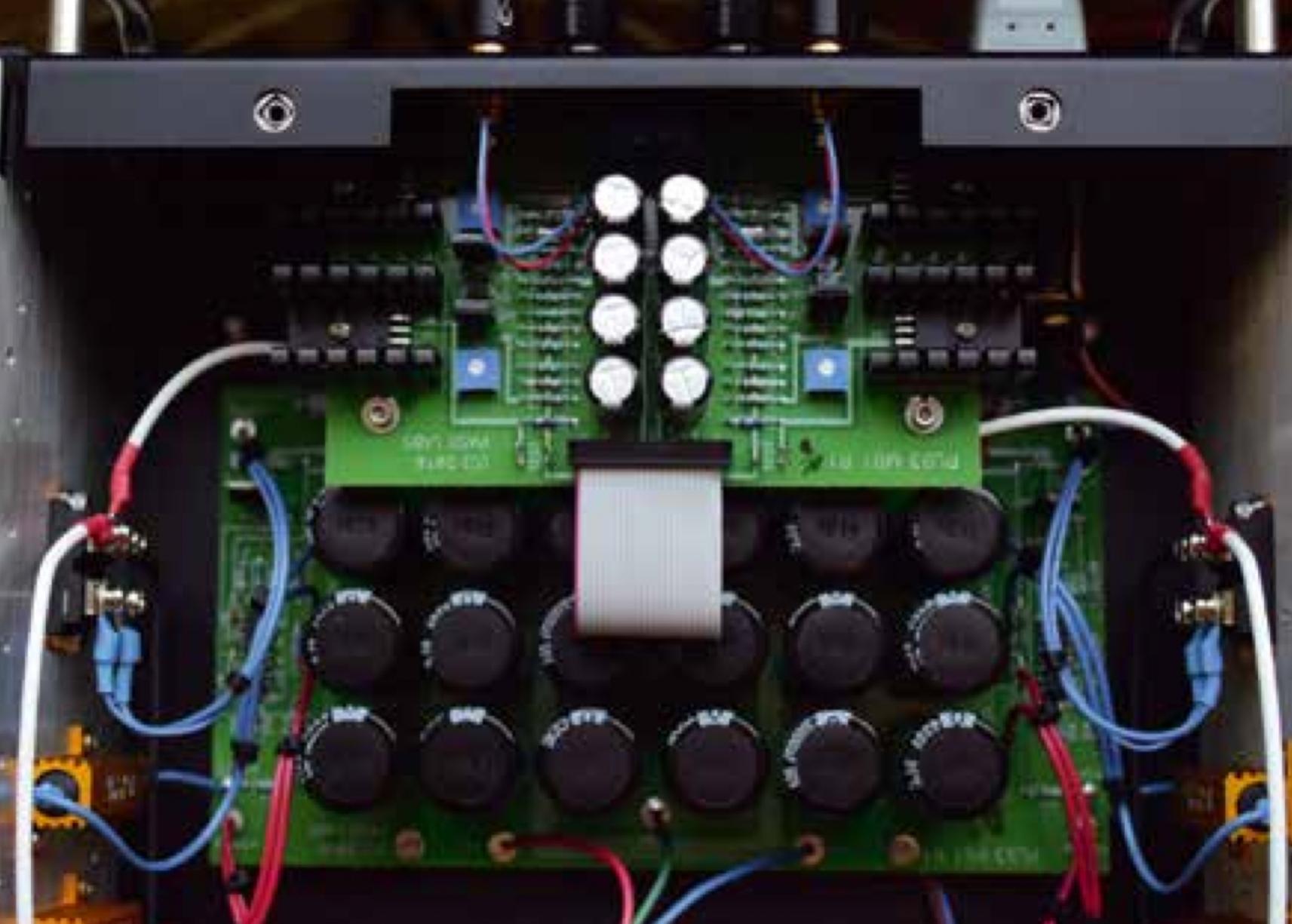

See the right and left side of psu capacitors we get few components in relation with hockey puck's power output stage.
Made specialy for not 4 but 2 pcb's stereo amplifier design haha 😀
Me crazy about all Pass Labs elegant work
