steady boyz
that's just basic -no input signal - sim
intended for verification of biasing , servo , stability vs. mains fluctuation
it seems stable for all possible (even ! combinations of) +/- PSU voltages , ranging from 10 to 34V (nominal is regular FW PSU , with added 12 neg-neg leg)
edit : what counts is - not do I know how to make a proper sim , but - do I have Preputium made parts ......
Nasty ZM
that's just basic -no input signal - sim
intended for verification of biasing , servo , stability vs. mains fluctuation
it seems stable for all possible (even ! combinations of) +/- PSU voltages , ranging from 10 to 34V (nominal is regular FW PSU , with added 12 neg-neg leg)
edit : what counts is - not do I know how to make a proper sim , but - do I have Preputium made parts ......
Nasty ZM
Attachments
Last edited:
Ah, Il Bače again.
The self-ap-Pointed global dominator, master of the interchat, and renowned fashion model. (known in underworld circles as the Oversmoked Sausage)
The self-ap-Pointed global dominator, master of the interchat, and renowned fashion model. (known in underworld circles as the Oversmoked Sausage)
Most important thing for boredoomed dodos.Yo Pa - I needed prediction for few values for servo circ and level shifter .......
'course plus of it connected to gate , minus to other end , which will drive precious unobtanium
Your hairdo and shades are Beatles-ish; maybe you were Zen-meditating with Lennon? Expensive shoes. Their soles are vegetable tanned leather [pink due to Fe ]which makes them puncture and cut proof; e.g. like used by the Leather Necks. Will this device have the characteristic Triode-ish Id versus Vds curves?steady boyz
that's just basic -no input signal - sim
intended for verification of biasing , servo , stability vs. mains fluctuation
it seems stable for all possible (even ! combinations of) +/- PSU voltages , ranging from 10 to 34V (nominal is regular FW PSU , with added 12 neg-neg leg)
edit : what counts is - not do I know how to make a proper sim , but - do I have Preputium made parts ......
Nasty ZM

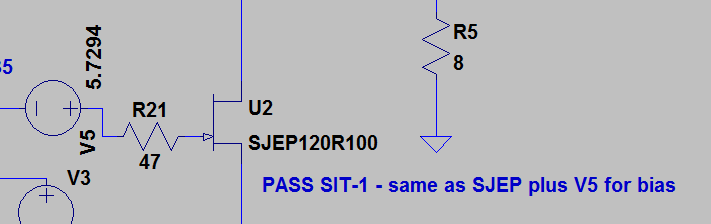

as I already wrote - that's just mock-up for trying Pass SIT-1* biasing methods
of course that * is triodish
I blame it as 300B with OPT, in one small case
whatever , I can declare that I drew extremelly successful Babelfish SIT-2 schmtc , where Babelfish always means very unnecessary complicated version of Pass simple circuit
Proud ZM
ZM
I remember in an old thread, a discussion about how that common resistor affects things. Does larger R diminish effect?
I remember in an old thread, a discussion about how that common resistor affects things. Does larger R diminish effect?
buzz
hard to see a tree from the wood
you already know that - BA3 Bal
you drew it well - leave all values as is
for each amp half everything south from that resistor is just - gnd
hard to see a tree from the wood
you already know that - BA3 Bal
you drew it well - leave all values as is
for each amp half everything south from that resistor is just - gnd

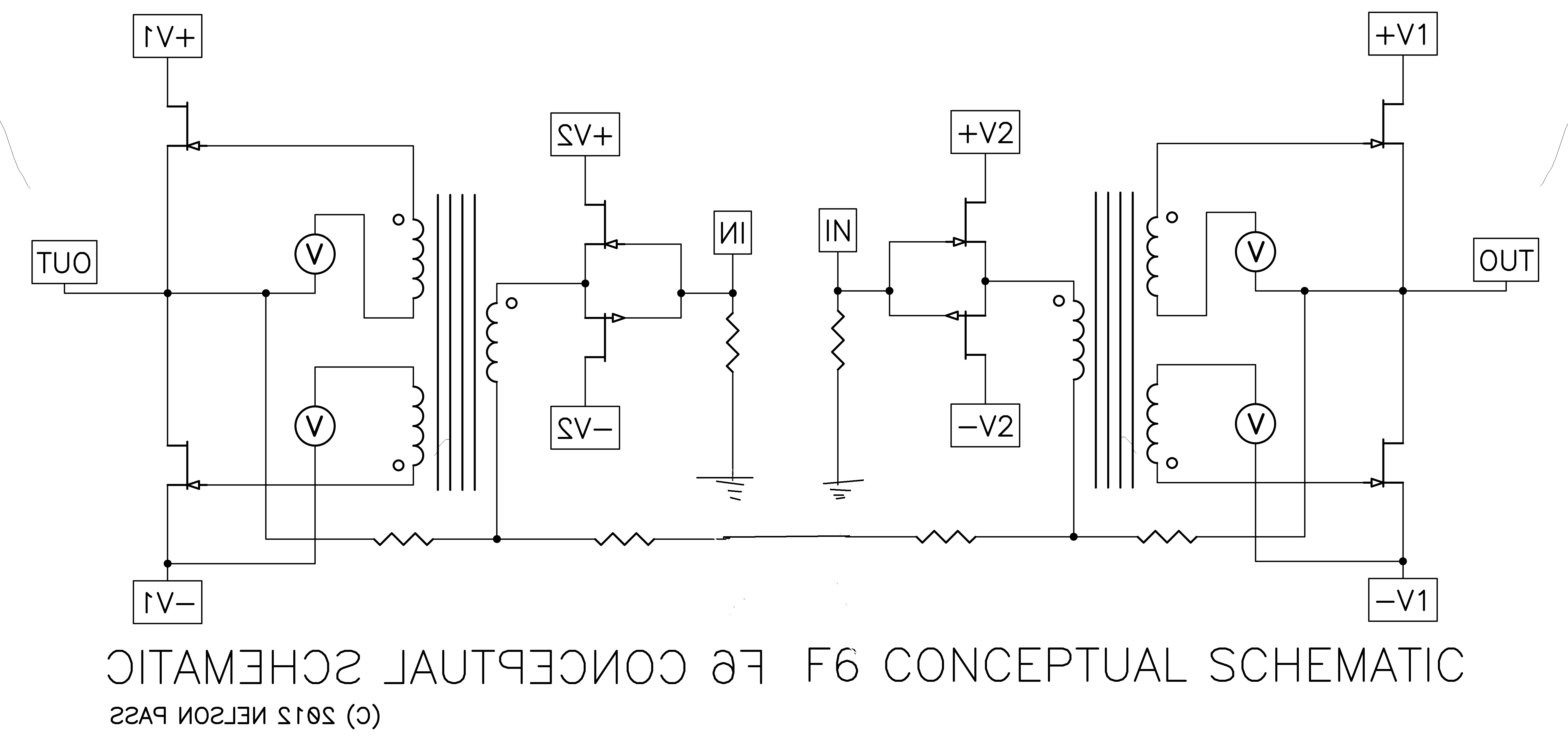

buzzforb, thanks for the schematic. I am unable to expand it fully; like the SIM schematic of Zen Mod. Do I understand that the gate stopper resistor [a linear device] in the SIM schematic gives the FET linear characteristics?
Great picture Zen Mod. Pine trees and blue sky behind you. Would love to see another one like it this year.
Sorry, guys, for interrupting your "high matter" discussion with my daily question, however 🙂:
I am going to use a PSU board from the store and recommended diodes are MBR20200CT, but I guess Nelson recommends MUR3020W in F5T paper. Which ones will suit better for F6?
I am going to use a PSU board from the store and recommended diodes are MBR20200CT, but I guess Nelson recommends MUR3020W in F5T paper. Which ones will suit better for F6?
