ok will keep a look out for them.....
EDIT: after some searching, 500g rolls of 15awg are working out at almost €20 each, I would need 4, thats €80 total for an experiment. Too much I think! I'll search more to see can I find some cheaper, but thats the cheapest so far....
Fran
Last edited:
since microwave transformers are free it might have been a decent idea to measure the L of the primary and secondary before cutting it open.
And after cutting it open, cutting it so that you can still use the lengthwise laminations is a good idea for cores on which to wind a nice inductor or two??
_-_-bear
Hi Randy
Greetings from Asbury, er... Clifton Park
Madisound always has good options for this sort of thing
this guy for instance
Steel Laminate 2.0 mH 15 AWG Inductors from Madisound
or this
Sidewinder 2.0 mH Air Core Inductor 16 AWG from Madisound
feeling sexy - buy this one
Solen 2.0 mH Perfect Lay Inductors 14 AWG from Madisound
Greetings from Asbury, er... Clifton Park
Madisound always has good options for this sort of thing
this guy for instance
Steel Laminate 2.0 mH 15 AWG Inductors from Madisound
or this
Sidewinder 2.0 mH Air Core Inductor 16 AWG from Madisound
feeling sexy - buy this one
Solen 2.0 mH Perfect Lay Inductors 14 AWG from Madisound
if one chooses to re-use an old transformer, as an inductor carrying DC current, then one must introduce an air gap into the core circulation route to reduce the saturation that would other wise occur.
This is generally easy if the laminations are bolted together.
Just place them all in the same direction and after inserting the bobbin place a couple of layers of paper over the ends of all the legs. Add on the I's and you have an air gapped (well paper gapped) EI inductor core suitable for DC use.
This is generally easy if the laminations are bolted together.
Just place them all in the same direction and after inserting the bobbin place a couple of layers of paper over the ends of all the legs. Add on the I's and you have an air gapped (well paper gapped) EI inductor core suitable for DC use.
The laminate core doesn't make the PS better - it makes the coils smaller and then they use less wire, so if you are making them yourself, then it is somewhat easier?
Actually the air core is technically superior - nothing to saturate.
In speakers it is better to use air core for that reason.
AndrewT, I was suggesting earlier that if you had to hacksaw a microwave transformer then cut it so that you keep the "fingers" from the "E" to wind coils around...
_-_-
Actually the air core is technically superior - nothing to saturate.
In speakers it is better to use air core for that reason.
AndrewT, I was suggesting earlier that if you had to hacksaw a microwave transformer then cut it so that you keep the "fingers" from the "E" to wind coils around...
_-_-
Chokes fore tube amp supply from Lundahl all seem to be 4H-20H
Saturation current range from 150-500mA
Obviously only to be used with high voltage/low current
I would like to know why tube builders use those huge chokes, and you suggest relatively small Xover aircore inductors
Tube filament chokes seems closer with 2-6 Amp ratings, but still huge induction
Is it due to tube builders usually trying to filter out hum issues, and we are at the opposite end trying to filter out high frequency noise
Or just a matter of different load impedance
Hmm, I suppose it should be calculated from the impedance its loaded in to
Which would be maybe a 0.47ohm source resistor ?

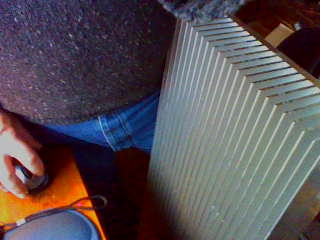

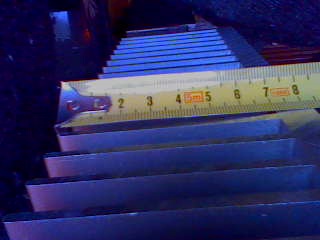

Oh, heatsink just arrived, its "hot"
Saturation current range from 150-500mA
Obviously only to be used with high voltage/low current
I would like to know why tube builders use those huge chokes, and you suggest relatively small Xover aircore inductors
Tube filament chokes seems closer with 2-6 Amp ratings, but still huge induction
Is it due to tube builders usually trying to filter out hum issues, and we are at the opposite end trying to filter out high frequency noise
Or just a matter of different load impedance
Hmm, I suppose it should be calculated from the impedance its loaded in to
Which would be maybe a 0.47ohm source resistor ?
Oh, heatsink just arrived, its "hot"
