DIY Sony VFET Builders thread

[william2001]

Ha! That's great! Put me in the electric chair!

Ok, maybe not with 10W....



[codyt]

Oh wow, too many great chairs!

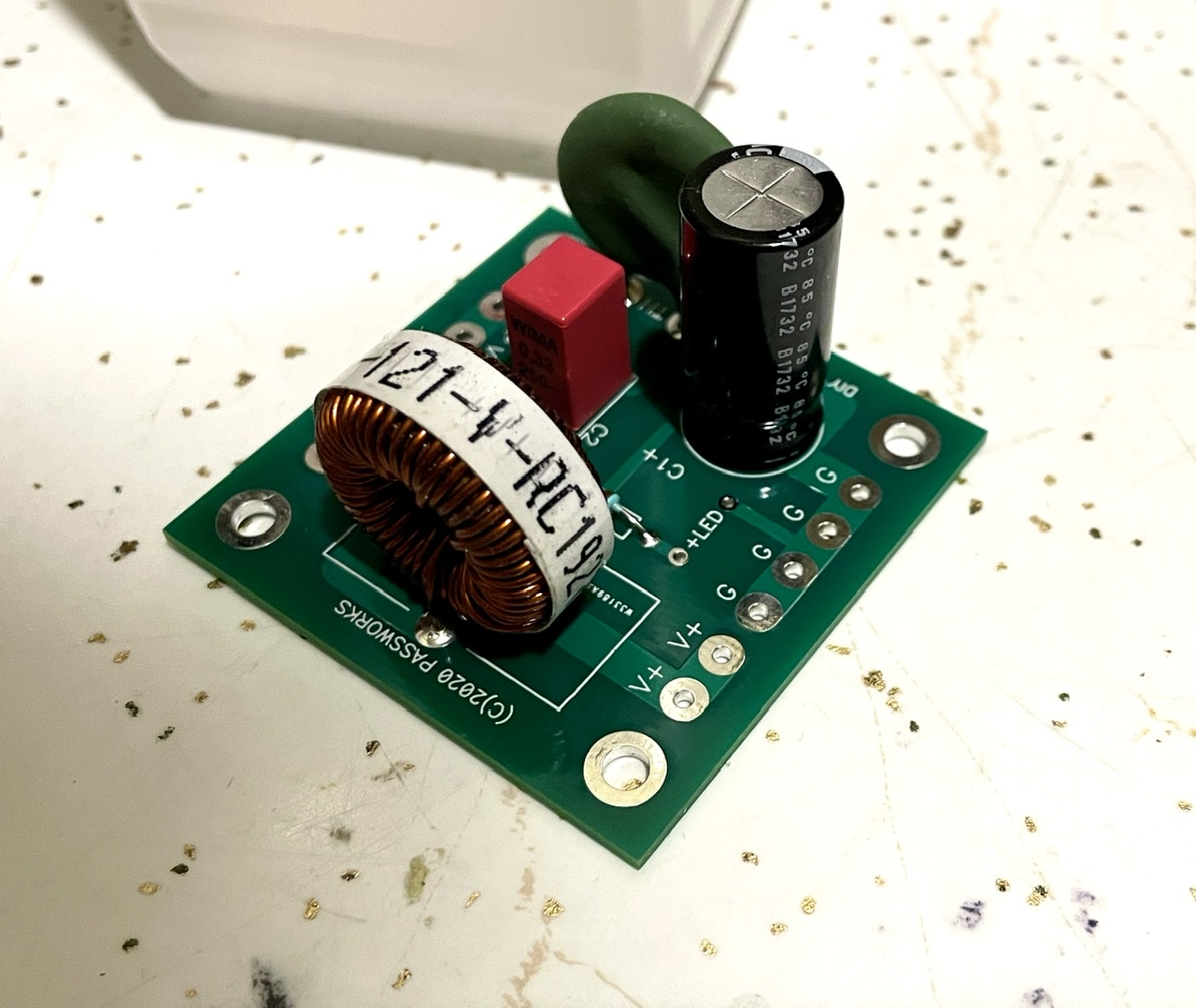

Here’s the completed PS filter board, which concludes the stuffing/soldering portion of my program. Next up will be some intensive studying of the wiring diagram and maybe getting some boards on the heat sinks.

My overall feedback so far is that everything has been easy to understand, organized well, and a breeze to assemble. Hope everyone enjoys their builds!

Ps. I received LSK170/LSJ74’s in my kit, and they all measured very tight matches. I wouldn’t sweat it if you didn’t receive the tiny Toshiba’s, as it’s obvious these have been matched well.



[seanny]

I thought Q1 and Q2 were supposed to face each others and zip tied for thermal tracking?



[codyt]

You can still zip tie, heat shrink, thermal cap, etc in this configuration. More important is to follow orientation on the silkscreen.



[Zen Mod]

I thought Q1 and Q2 were supposed to face each others and zip tied for thermal tracking?

observe other Papamps, and orientation of JFets in them

Papa is not so much concerned with same, as regular Greedy Boy is



[Soundhappy]

The M3's for the top/bottom cover are hex-types.....thread length about 10mm.
It will look "pro" compared to "philips-head" screws.....

+1 yes hex-types are the best



[seanny]

observe other Papamps, and orientation of JFets in them

Papa is not so much concerned with same, as regular Greedy Boy is

I haven’t realized that I got bad influence from the Greedy Boy.



[rhthatcher]

CodyT - Did Home Depot have all the screws? Or did you have to check Lowes, too?



[Zen Mod]

do not worry

CodyT bought entire Home Depot



[nicoch58]

look like Codyt is faster then X



[codyt]

Nope, no Home Depot trip for me. Trying to show some restraint



[Soundhappy]

First complete SE Vfet kit builder Greedy Boy Champion title is for ..



[V FETish]

Soundhappy, Wonderful to see that you won one of these!



[Soundhappy]

@ V FETish

Yes super cool!

My winner kit amp is going to be half build by my friend Xavier and he is the final user.
We organise nano " Vfet Amp Camp" meeting at my home for soldering, adjustments etc. and music session.
For myself, I joint round 3 in August Greetings



[TungstenAudio]

My VFET parts kit arrived arrived a day or two early.
My chassis seems to have set up temporary residence in the Charles de Gaulle Fedex facility.



[ffarges]

Wow part of the board are already stuffed and tested! Very nice!



[Soundhappy]

My VFET parts kit arrived arrived a day or two early.
My chassis seems to have set up temporary residence in the Charles de Gaulle Fedex facility.

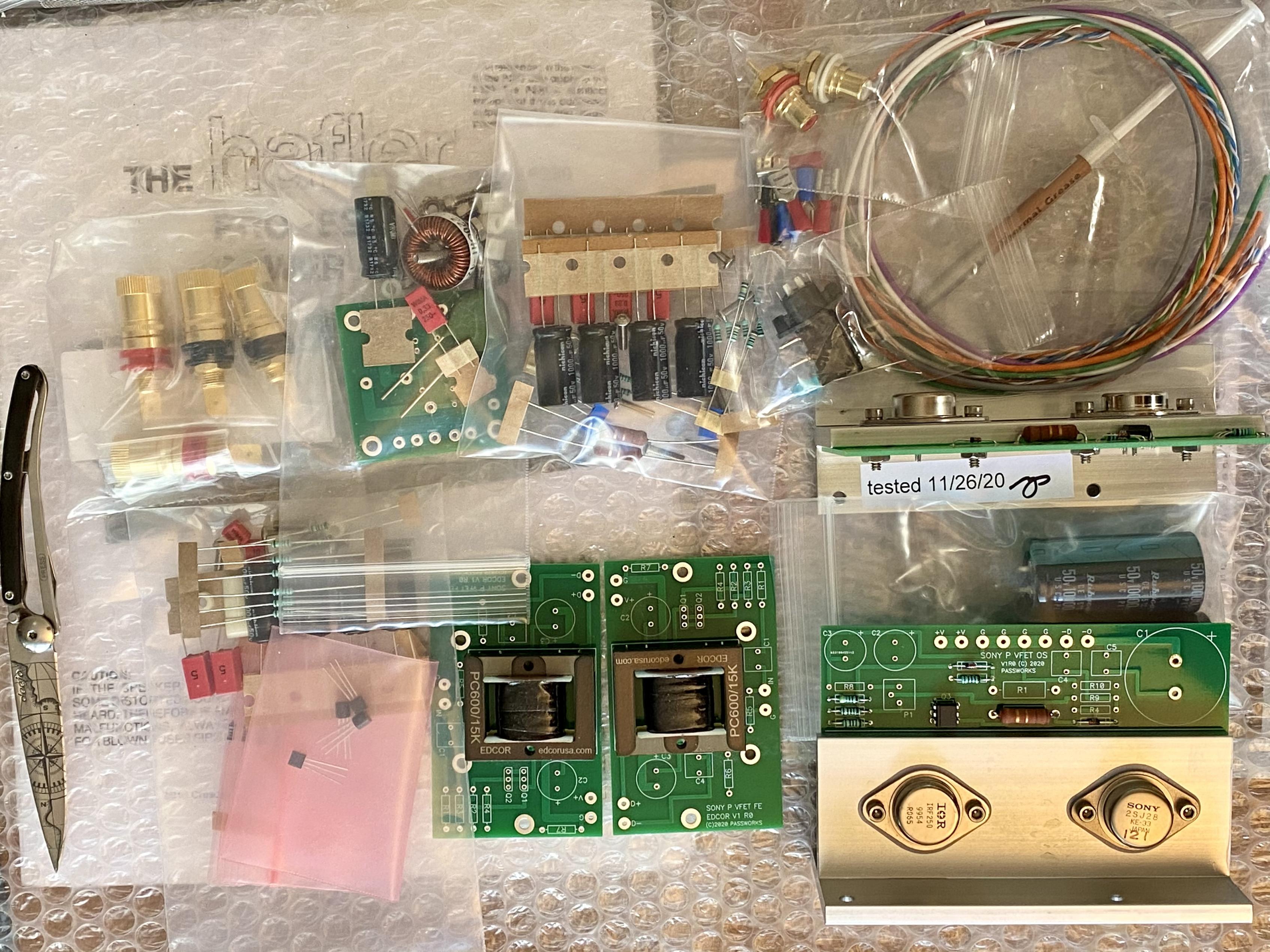

Thanks for parts kit photo Incredible good Mr. Pass work
From France airport to USA transit can take 2 or 3 days



[Zen Mod]

My VFET parts kit arrived arrived a day or two early.
My chassis seems to have set up temporary residence in the Charles de Gaulle Fedex facility.

Deejo and Hafler



[Soundhappy]

Next up will be some intensive studying of the wiring diagram and maybe getting some boards on the heat sinks.

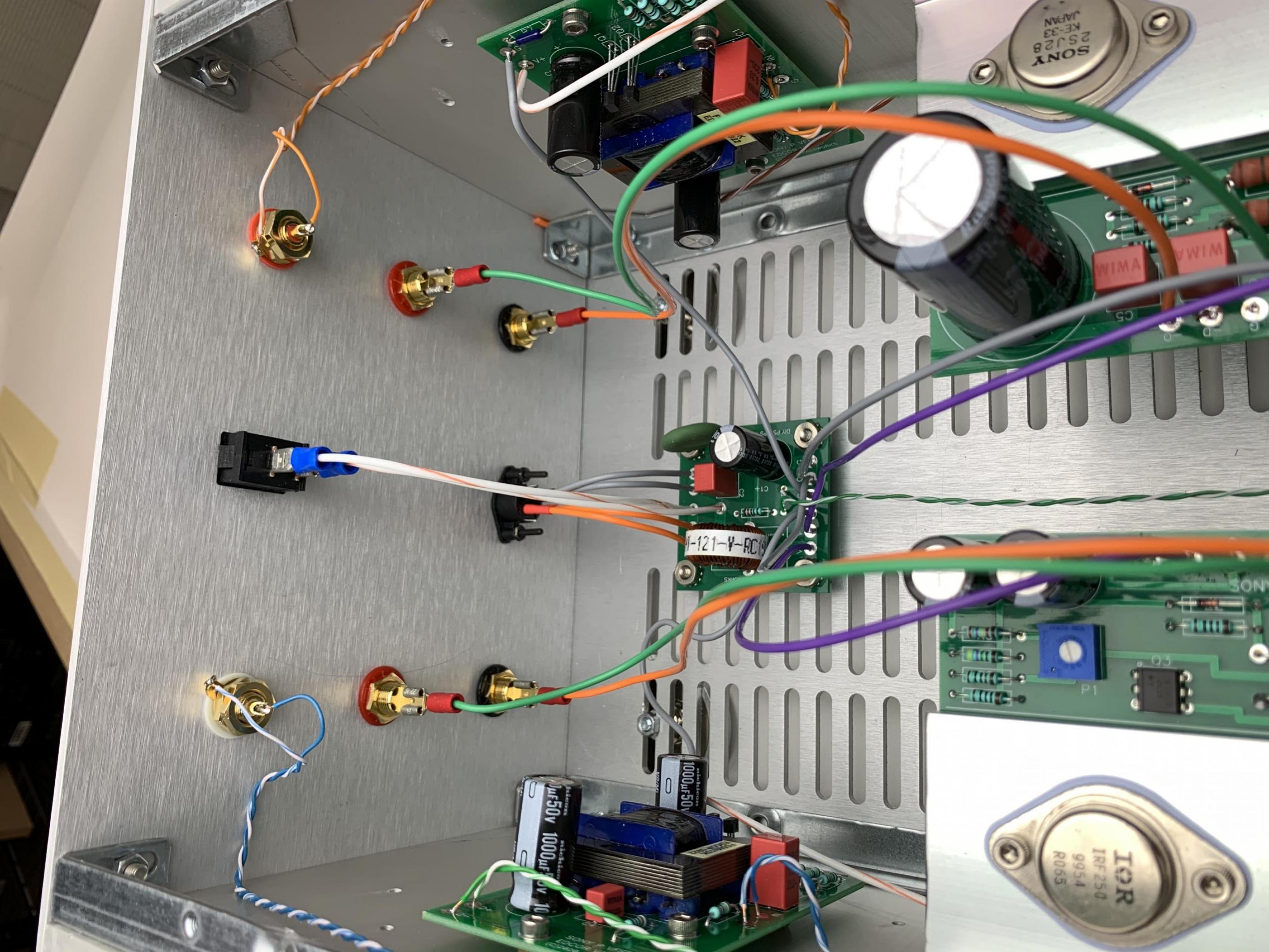

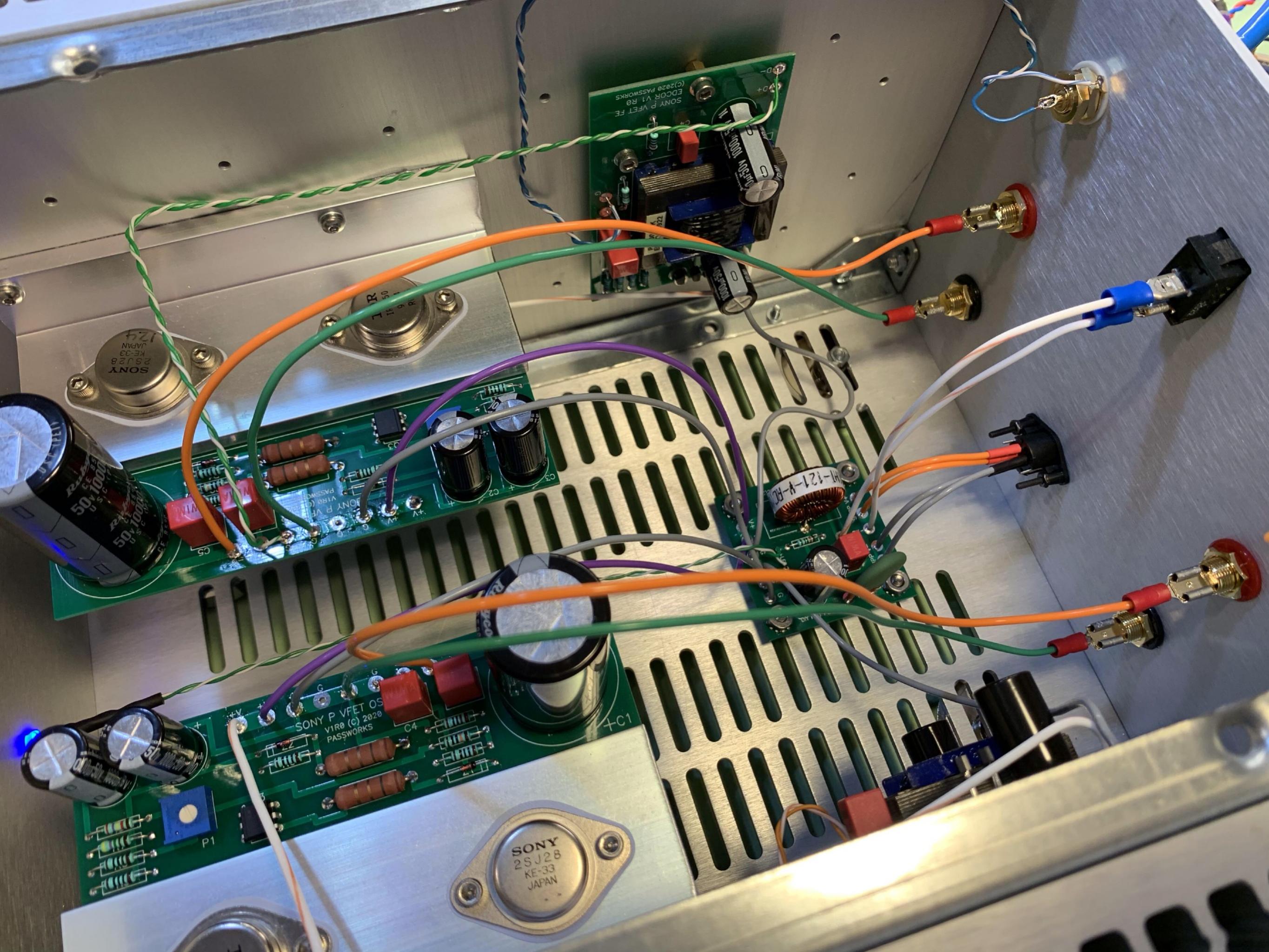

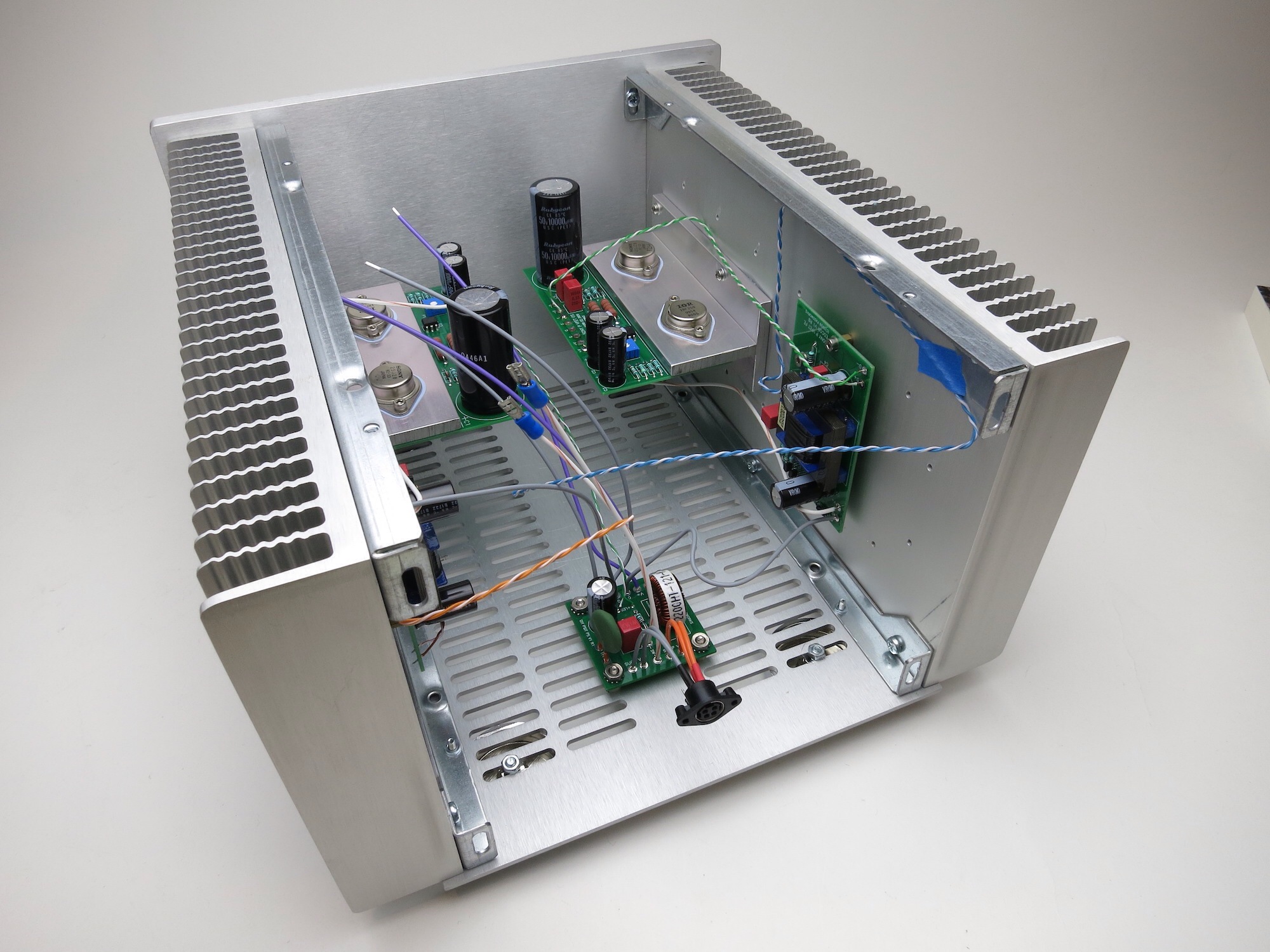

With colours wiring picture find in Mr.Pass article another thing to savor Have a good time on the work bench

Edit: Check details on the high quality 6L6 photos if doubts



[studeb]

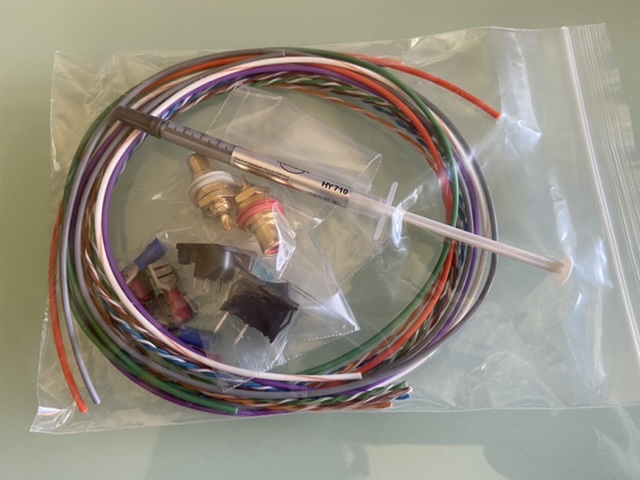

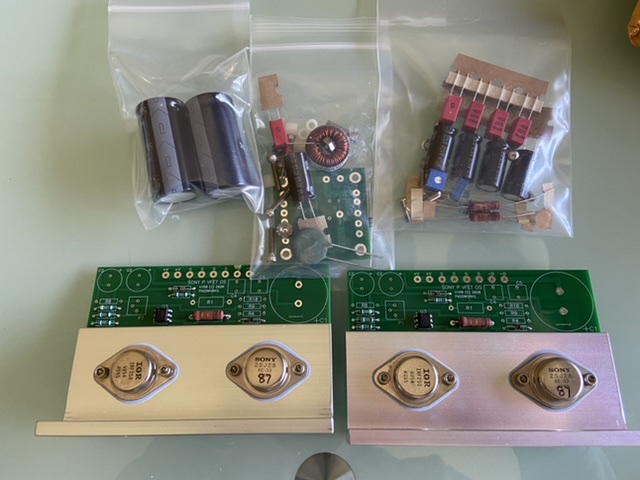

Parts arrived today.
Well packed, and sorted parts and boards in separate boxes and an envelope. Very clean and professional. I thought the color wiring in the pdf was for clarity, nope the silipplied wires are color coded.

A public thank you to the DIY Store team!

I did notice a date on the VFET alu plates, it would seem that this project has been incubating for a while already.
Now waiting on the chassis to arrive.
