Acoustic Horn Design – The Easy Way (Ath4)

Pasi

Member
2011-02-04 4:36 pm
Now it is right size and it's a piece of cake to make it solid.

I turned off the timeline capture, not sure if needed.

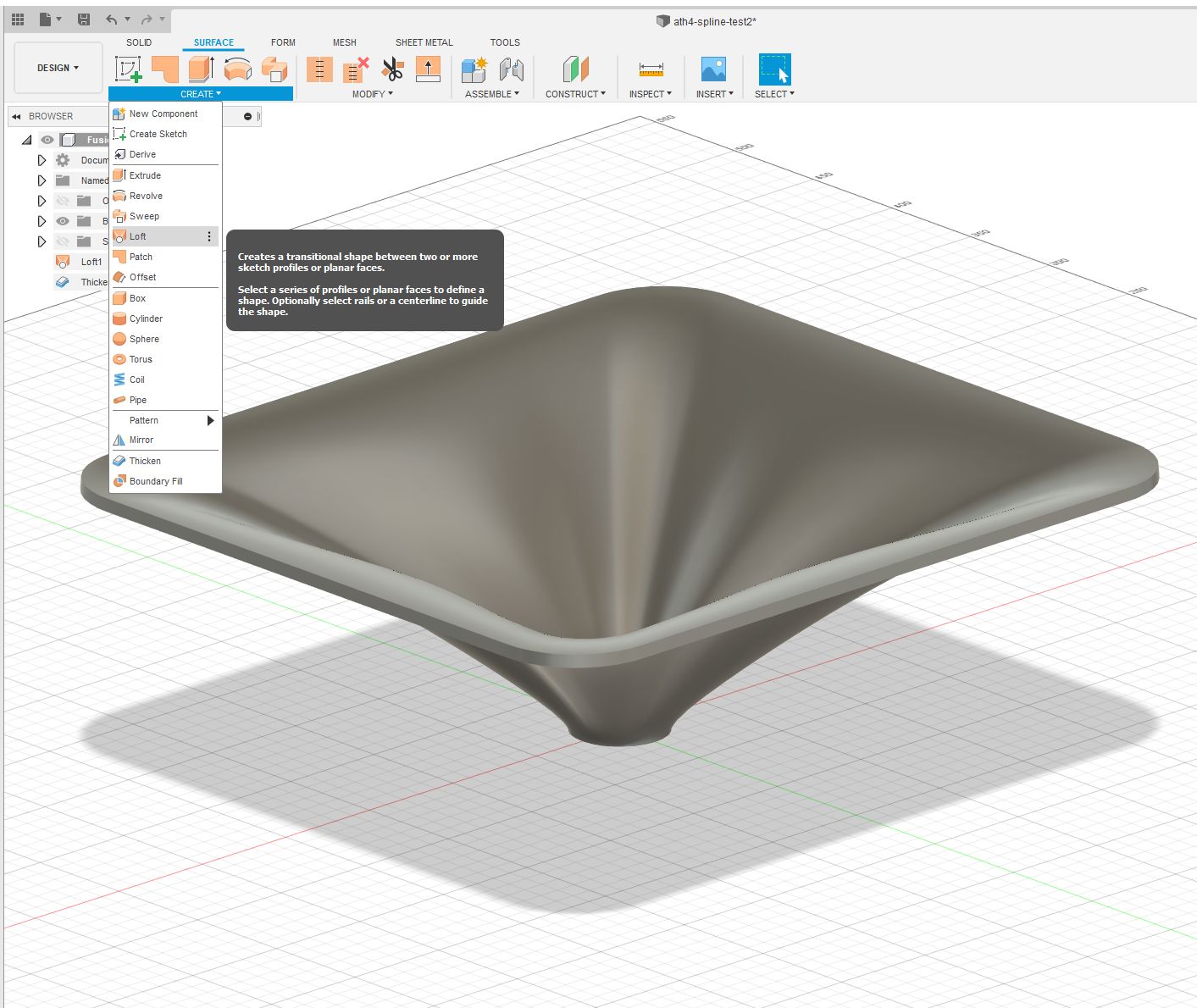

Go to SURFACE workspace, from CREATE menu select LOFT.

Choose the splines from bottom to top, one by one, in the right order. This creates a surface shape via these curves. Be sure not to choose a point along the line, but the whole line. It turns dark blue when you are in the right spot for selection.

After choosing the last click OK.

Then choose the new loft from the component tree, open CREATE menu again and choose THICKEN. Add the thickness you want to outside of the model.

Job done. Now i got 6mm thick solid horn which i can further work with to add mounting holes, driver mounting flange etc.

Mabat, you are a hero!


Attachments

  • Fusion360.jpg
    197.2 KB · Views: 336
Last edited:
I will release it soon. This file will be simply among the output files the tool creates (i.e. the coordiantes of surface points in text format). I have it ready, just have to write some documentation...

Then there's a Fusion 360 Add-In (a Python script in fact) that opens this file and creates all the splines automatically. All will be included in the upcoming version.

Actually, I'm sure that by employing Fusion API, the loft feature and whole surface could be created automatically just by selecting the input file. I'm only not that far yet - maybe someone else. And thanks Pasi for the instructions! Perfect. This is somethig I hoped for from the beginning. Now we have it.

Last edited:

pet007

Member
2012-12-20 7:39 am
Anyway, I'am using Freecad to prepare real 3D model for manufacturing (3D print, CNC...).

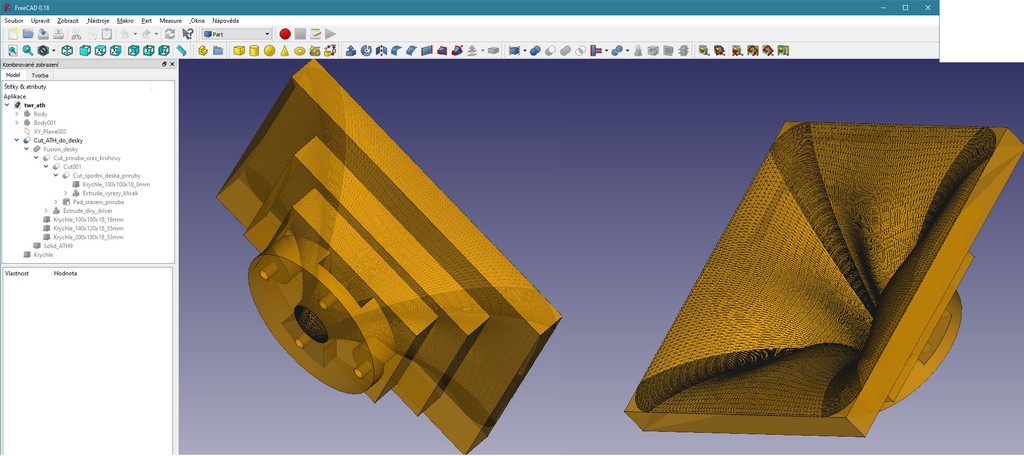

It's quite simple: import STL, convert to mesh, convert mesh to solid and then use boolean operations with another solids to create flange, mounting holes etc....


Attachments

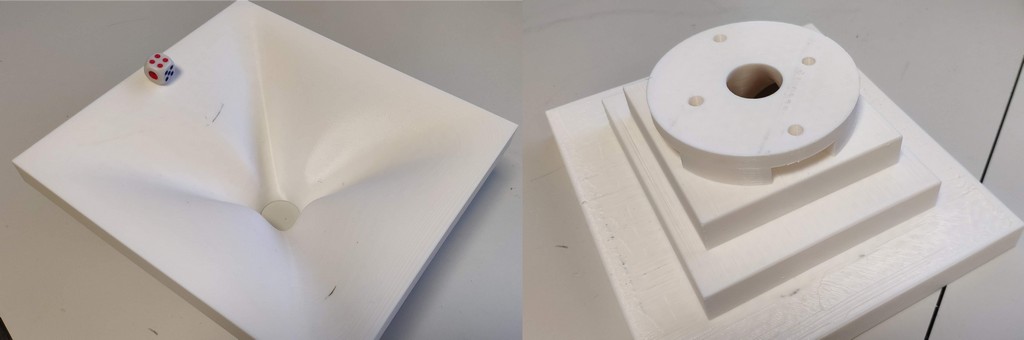

  • ath8_3D_proto_dones.jpg
    38.1 KB · Views: 324
  • freecad_example_ATH.jpg
    105 KB · Views: 322
Last edited:

fluid

Member
2009-01-24 2:20 pm
Curve Lofting Guide Attached

I can easily export the surface coordinates in a text file that can be imported as spilnes in Fusion 360 (I already have a custom add-on for that). Would that be useful? Is it possible to create a smooth surface and then a solid body from that?
Mabat that is exactly what I spent a long time trying to reverse engineer from the mesh file, if you could release that it would be awesome.

So I will make this available. I hope someone would then present a procedure that everyone can reproduce - I'm not experienced in CAD modeling. That would be great. What about some "guide" curves for this loft feature? I can export various curves of the surface.
I have attached zipped pdf guide of what I did to make a solid by thickening or by cutting a mould out of a block as before. I have tried to include all the steps to help someone who is not very familiar with Fusion 360.

I turned off the timeline capture, not sure if needed.
It works either way, only meshes need to specifically have the design history turned off to work on.

Job done. Now i got 6mm thick solid horn which i can further work with to add mounting holes, driver mounting flange etc.
I found that if I chose any more than 6mm for the thicken then fusion crashed.

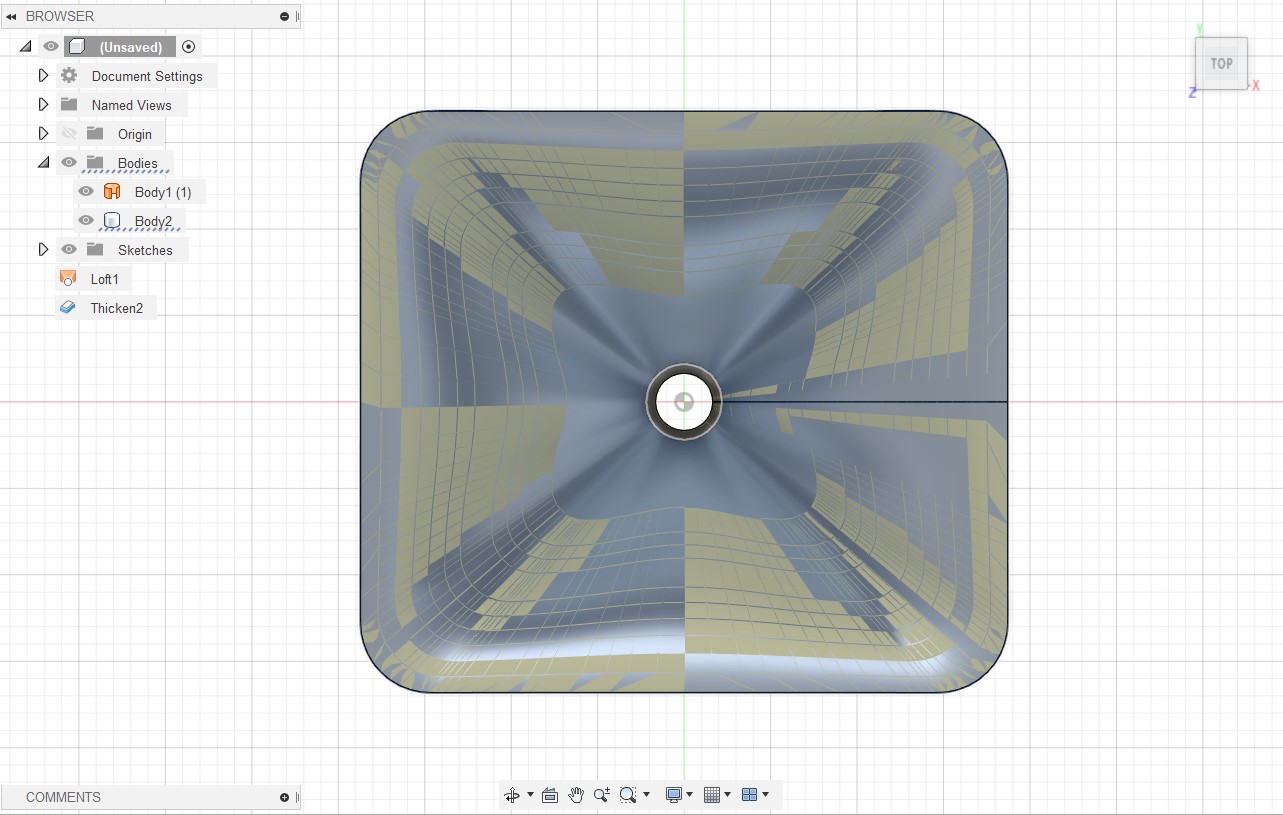

The other thing I found was that the original surface and the thickened one were not exactly the same when overlaid.

attachment.php


Mabat, you are a hero!
:)


Attachments

  • Thicken Overlay.jpg
    Thicken Overlay.jpg
    182.2 KB · Views: 348
  • Guide To Lofting Sketch Splines to Create a Solid Model.zip
    1.5 MB · Views: 43
The other thing I found was that the original surface and the thickened one were not exactly the same when overlaid.
Do you mean the original STL and the "lofted" one from the splines? That's what needs to be checked of course. The two might be slightly different, that's almost expected - that's where some perpendicular guide curves may help. I will let the user export those as well.

Last edited:

mide

Member
2017-01-05 12:19 pm
I would expect the "boundary patch" feature in the "surface" tab to be the most effective way. Select all. It creates a surface from the mesh/splines. Then "thicken".
You can set the tolerances yourself in "conditions" in the thicken window. Alternatively do a surface offset and combine the two surfaces into a solid using "boundary fill"


pelanj

Member
Paid Member
2008-07-17 8:47 am
Hořovice
When I had a WG surface I needed to turn into a waveguide (I did that by importing STL and converting to BREP), then I created another surface outside, then lofted the edges at the mouth and throat and then stitched the four surfaces together. Then there is a solid with the exact inner surface and you can do whatever you want with it.

Last edited:

Pasi

Member
2011-02-04 4:36 pm
That thickness issue on Fusion360 after 7mm thickness seems to be caused by the throat angle. Due to that, it starts to self intersect when thickening, so need to work around that by doing this in smaller sections there. Or extending the first and last layer and then lofting the outsides together.


Pasi

Member
2011-02-04 4:36 pm
I could export curve sets for two surfaces some (defined) distance apart if that would help.

That could do it nicely. I presume we could specify that thickness we want? After that it would be just build 2 surfaces on Fusion, add top and bottom. Convert to solid. Job done.

Edit: Do we need all those spots as they are splines? I'd imagine some of them could be reduced, assuming that the script can do it?

The number of spots just as the number of splines/layers is completely up to the user - this is set in the horn definition file by the parameters "Mesh.*Segments". It may need different values for BEM simulation and for Fusion export but that's also completely up to the user (could have separate files for different purposes).

Yes, the distance for thickness would be configurable as well.
