thanks Andrew, hey I found it but only on NTE brand NTE5604 10A



Regards
Juan



[Vostro]

I use BT139-800
But diacs are rare here, so not available in low breakover voltage.



[vargasmongo3435]

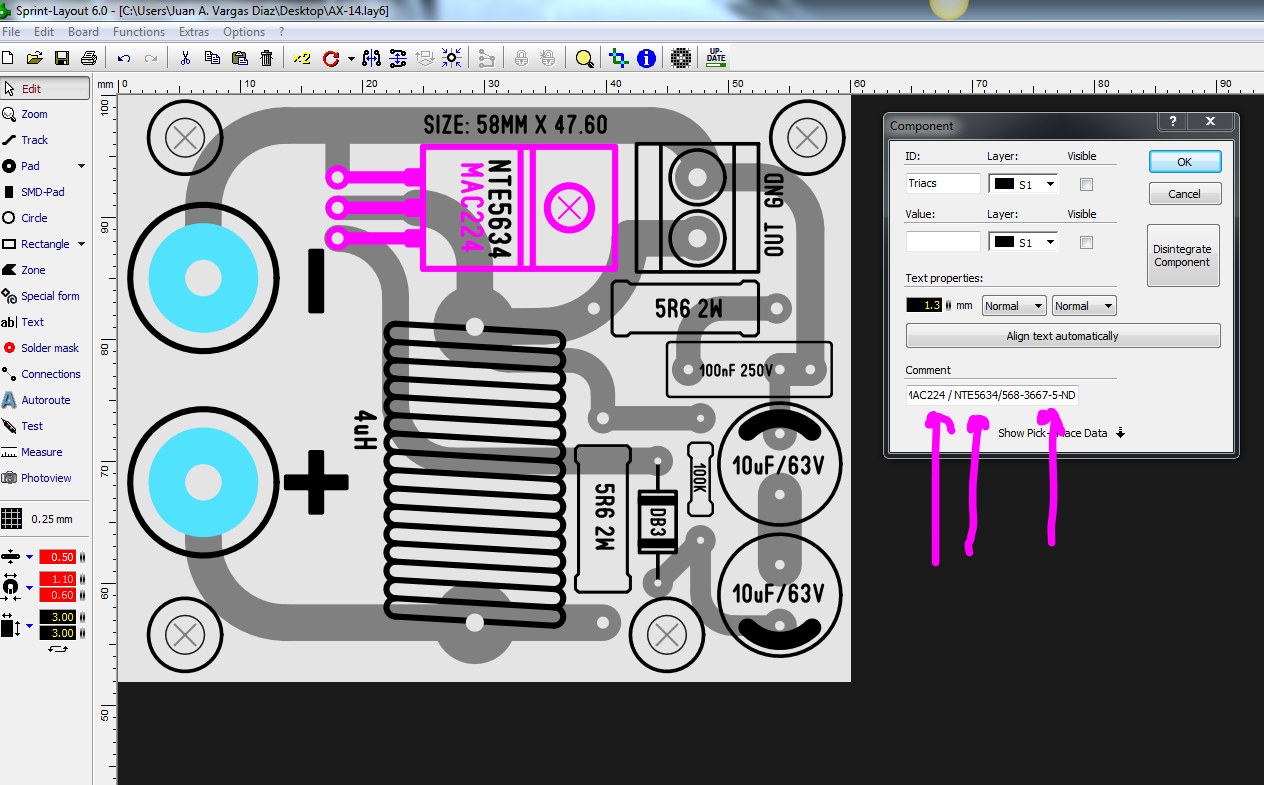

I found it on DigiKey 568-3667-5-ND $0.96 cents nice


any way Andrew know he's stuff the NTE5634 300V is available on Ebay "I really do not trust much Ebay but NTE is a brand of semiconductors that I have never seen been counterfeit is that happen before it will be really weird, I hope not


Regards
Juan[/COLOR]



[apexaudio]

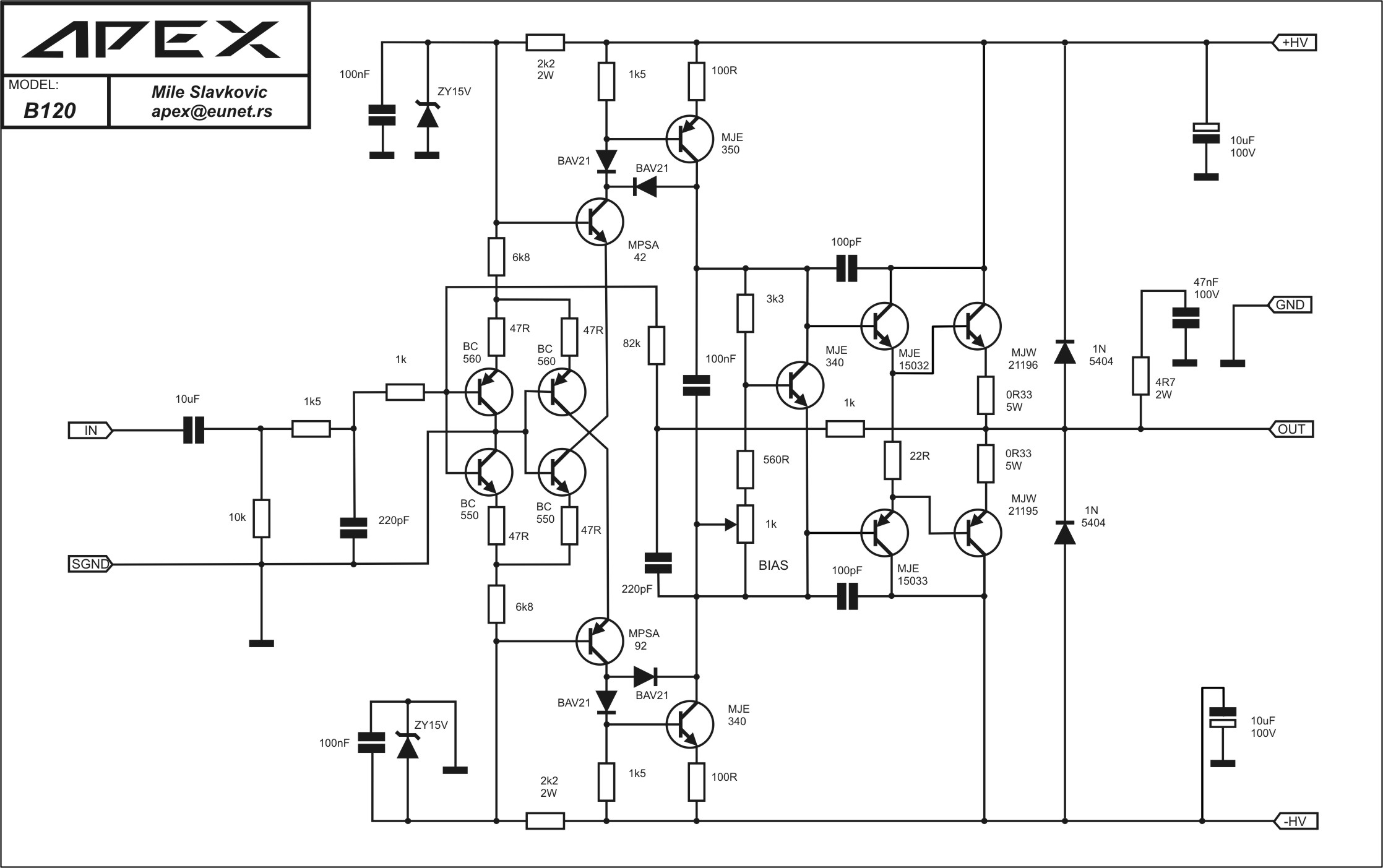

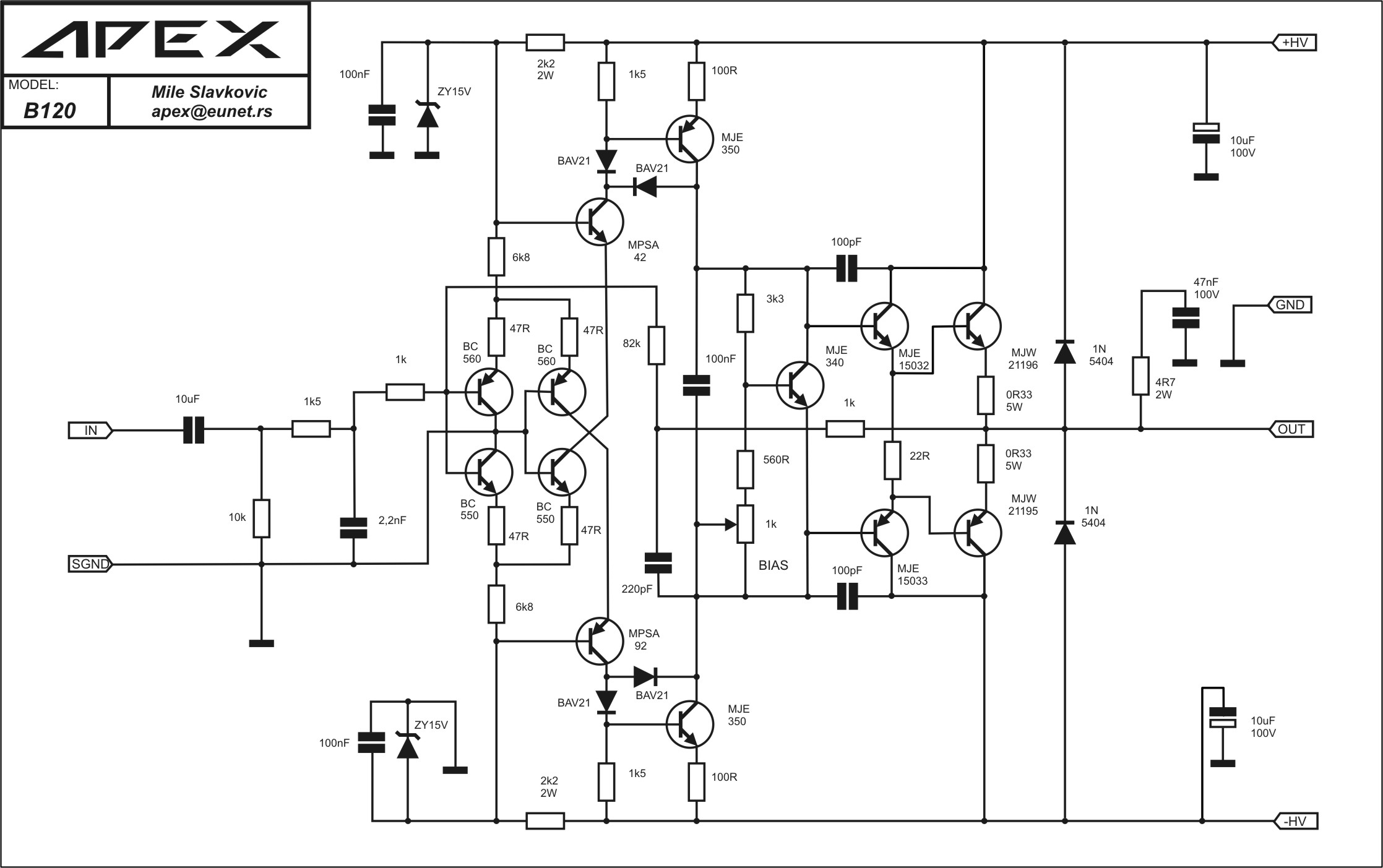

B120



[vargasmongo3435]

B120

nice, I think I will spend some times with this one

Regards
Juan



[wiljj78]

B120

Mr. Mile VAS transistors are both same MJE350??

Regards,



[AndrewT]

B120

nice, I think I will spend some times with this one

Regards
Juan

the treble starts to roll off at ~4kHz.
How can you assess that it is "nice"?



[Vostro]

Hi Andrew, what's limiting treble to ~4kHz
Input HF filter is at Fc = 48kHz. I usually use 330pF at input.



[AndrewT]

330pF and 1k5 (RC=0.5us) is ~300kHz.
That starts to roll off @ ~30kHz.
Apex shows RC=3.3us
What is the Filter hiding?



[keantoken]

That will be far worse if there is a pot at the input at 50%.



[apexaudio]

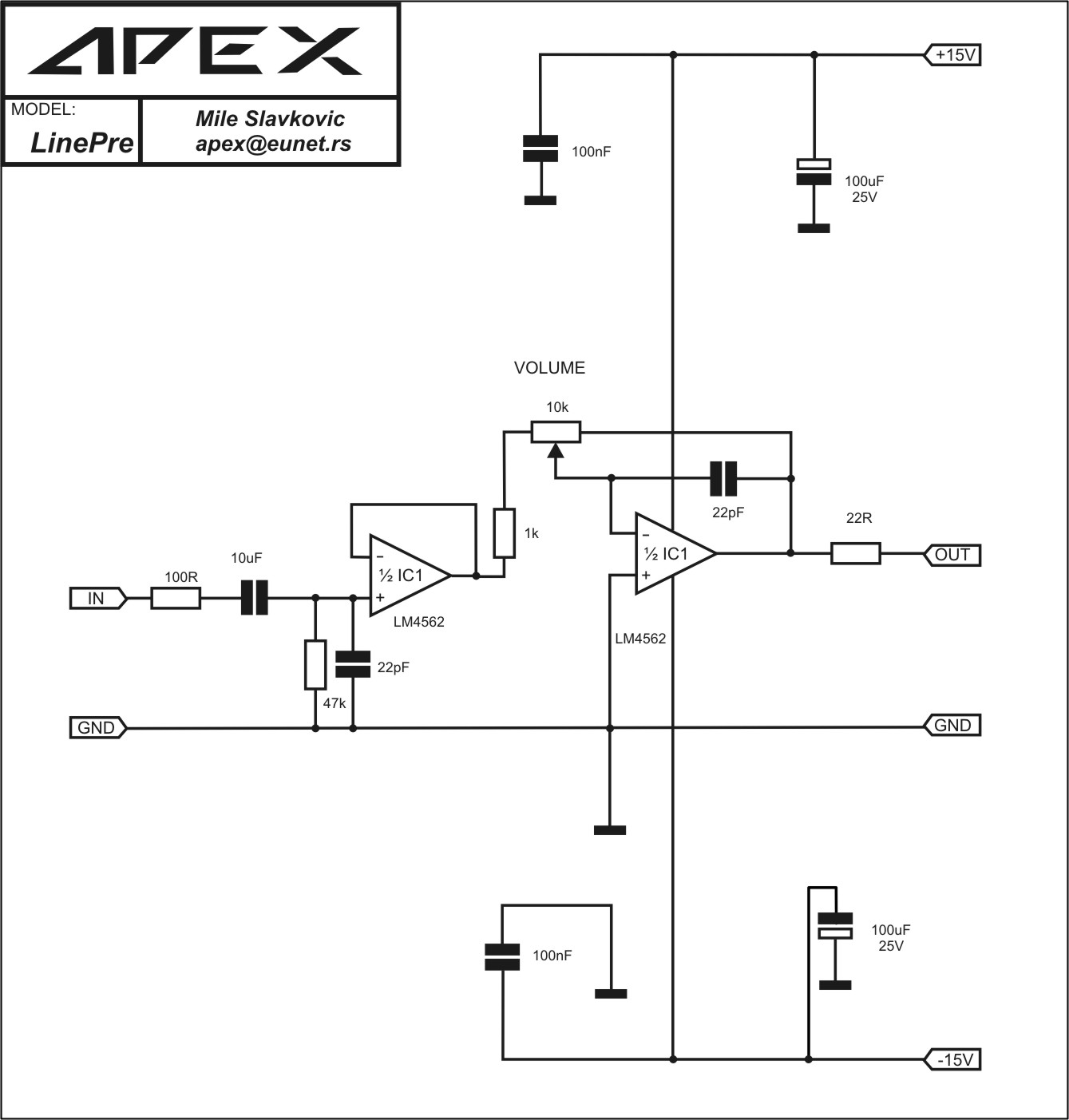

Preamp for B120...



[wiljj78]

Preamp for B120...

Mr. Mile whats the max. supply?



[apexaudio]

Mr. Mile whats the max. supply?

+/-75V



[vargasmongo3435]

the treble starts to roll off at ~4kHz.
How can you assess that it is "nice"?

I mean "nice to make the layout" Andrew you know my things is about layouts stuff for the best of my abilities I'm not an expert but this is what I like to do

Regards
Juan



[wiljj78]

+/-75V

Wow a tiny monster....

I mean "nice to make the layout" Andrew you know my things is about layouts stuff for the best of my abilities I'm not an expert but this is what I like to do

Regards
Juan

Have fun bro....



[AndrewT]

LinePre with a vol pot in the -IN input.
What happens to the speakers on the other side of the Power Amplifier, if and when the vol pot goes slightly open circuit for a few milli-seconds?



[apexaudio]

LinePre with a vol pot in the -IN input.
What happens to the speakers on the other side of the Power Amplifier, if and when the vol pot goes slightly open circuit for a few milli-seconds?

I usualy use dual pot in parallel for safety.



[Hadighorbani]

out power for B120 in 4 ohm with + - 50 volt suply?
can i use this amp for 2 ohm out load?



[vzaichenko]

I usualy use dual pot in parallel for safety.

Mile, but what is the reason of doing it in such a... dangerous way, having a lot of less "extreme" options available? Just curious...



[AndrewT]

Originally Posted by AndrewT
LinePre with a vol pot in the -IN input.
What happens to the speakers on the other side of the Power Amplifier, if and when the vol pot goes slightly open circuit for a few milli-seconds?

I usualy use dual pot in parallel for safety.

Would it be wise to show this on the schematic?
