Hello.
NAD 306 rest in Protect mode.
All fuses are ok.
Any ideas?
Best regards.

SM

NAD 306 SM Service Manual download, schematics, eeprom, repair info for electronics experts

Can PA amps be used to drive normal speakers or can they be adapted easily to do so?
Somebody local has just put up for sale a pair of 200Watt PA speaker amps for a song [ he is asking $100- for the pair] used but pulled out of a large building before demolition.
They are big and heavy and old fashioned but then so am I

Hello once again folks. I am looking for brackets like these. I don't need all the other parts otherwise I'd just buy them from parts Connection or the like. I want to be able to adjust the height of the two pots and signal selector.
Any suggestions?

I just finished an lm3886 amp kit and the sound output is barely audible. There is a wavering or oscillating sound. Voltages to and out of the power supply are fine. There was 0 on the speaker output before I plugged in speakers. What am I doing wrong? I have everything grounded.

Thanks Folks.

Hello. I'm trying to fix this amp, but I can't find schematics available online.

1) Does anyone know the value for the internal fuses (circled in pic1)? The manual only has the value for the fuse accessible outside of the case.

2) I have removed the transistors (green dots) and they are bad. I plan to replace them. I also removed 4 caps, but they are all good. Any other advice on which component to replace? The second picture pretty much shows the entire board.

Hello Friends, I bought this amp but when I power it up there what I call a power surge and the speaker make loud noise ,feels like it will blow speakers. any advice what do do Thanks Alex

P.S.I read that this amp does this but think that my amp is a little extreme 😎😕😱

Hi,

I'm stupid, as you could probably see from the subject. I was looking for a tuner on ebay and i realised that I don't know anything about tuners. I was wondering if I could build a tuner? Cause some of them (i'm assuming they were the "good" ones) are very expensive.

What are some "good" tuners? Can any one point me in the right direction with a website?

I have a gainclone and 2-way speakers. So I know a little about those things, but not anything about tuners. If some can please, recommend a tuner for me. My cryteria is that i has to be cheap, but not suck, if that makes any sense.

Also are there any FM tuner pc cards that are good? Are there any at all, even; for pci?

I did do a search on this -- but I'm a newby so my apologies if I've missed the discussion...

I have a Yamaha CA-1010, sounds wonderful but eventually the right channel cuts out. Have to turn up the volume past mid-point to reactivate it -- then it eventually fades again. Sometimes no problem whatsoever.

Used contact cleaner on all pots and switches I could find then stumbled across this problem in another forum and it was suggested that I clean the relays with contact cleaner -- but use another cleaner to remove any residue before trying it.

So, I'm trying to find the relay.

These two pictures show what I think is the relay, can someone confirm that this is the relay and that it is cleanable? I believe the cover should just pull off but don't want to try until confirmed.

Thanks so much!

I have several pieces of tube gear. Today I notice one of my amps the power transformer seemed hotter that some of the other's.
With a thermal temp gun it is at 121 f.
My other amps and preamp are 98 to 117 f.
How hot is too hot, Or what should normal temps be?

Thanks
Ed

Hi !

i got a question. i was wondering about measuring distortion of a multiway planar.

Nothing new to have a tweeter on the same foil, but usually that tweeter is located on de edge of the panel for obvious reasons ,

it does not move much there.
you can use magnets closer to the foil if needed.
easier to wire or foil coil wise.
it does not take much away in excursion capability
and it does not matter if that part does not play low end since it cant move there much to begin with

Now what if i mount my tweeter in the middle (since thats what i want) i might have the following problem, of the tweeter moving in and out the magnetic field when heavy bass is played in combination with content that the tweeter needs to cover. i have a few solutions that might solve that problem but firstly i want to measure the problem. so i can see what the results are.


Since REW plays a sweep the bass and the tweeter range never play at the same time , so measuring this setup i get a scewed distortion result. (or do i miss something) since

What i did today was playing a 38 hz sine on the total foil and performed a sweep on the tweeter. i had to use 2 different channels on my DSP or the thing went complete bananas (not sure what thats causing , i must add i did not check if i was clipping....) anyhow the second options works sort of.

But i wondered are there any other methods that can measure distortion in a different way to see the interaction of drivers combined ? that do not cover the same range


here few pics dont look at FR i just added 4 traces on there to act like tweeter.

Pic 1 Bass panel alone sweep
Pic 2 Tweeter alone sweep
Pic 3 Bass 38 hz sine wave and tweeter sweep at the same time
Now we can see distortion when playing a 38 hz tone increases distortion in the tweeter, FR response seems to be almost not affected.

Pic 4 Bass and tweeter same time sweeped
here we can see the way it is when both are measured at the same time by REW , they both perform almost the same as they would be when playing on there own separately. and does not give a good insight.

its hard to say what im looking at haha. might be that noise of whatever of playing 38hz (like mechanical influenced it as well)

I liked these a little better than the famous 49cz852's. Had more solid midrange presence. Only tried them on ob crossed to subs at 100hz.
$65 includes shipping to usa lower 48.
Thanks, Don

Hi. This is a prototype for Rf tube 4x150a.

Diy Amplifier ??????????????????????????

I need help calculating a 7000 Hz 2-way crossover for the following speaker configuration:

2 x Visaton FR 12 8 Ohm parallel (4 Ohm)
1 x Visaton SC 5 8 Ohm

Small, flat, closed enclosure only 3 liters

Hi everyone, I have a doubt about how to build a hifiman headphone cable. I have two 3.5 jacks that go into the headphones and a 4 pin xlr connector that goes into the amplifier. I would like to know if on the 3.5 jack side, for the + signal, should I use the tip for both channels or the tip for the left channel and the ring for the right channel? On the net I found the diagram of the 4pin xlr connector which indicates that pin3 which is the R + must be connected to the ring of the right channel. But I have also read of many who say that for these headphones the rings are not connected and 3.5 ts jacks can also be used. Does anyone know what the reality of things is like? Maybe it depends on the headphone model and / or the type of connection on the amp side (this seems very strange to me). Thank you all.

Hi,
As above I see that resistors are specd in PPM
I.e.
5ppm
10ppm
100ppm

Which should I buy, for on a valve amp project.

Thanks

AnTek AS-4T360 power supply for sale $42 shipping $15
Pri 115 VAC x2
Power 400VA
Output Voltage Current
360V 0.55A
360V 0.55A
6.3V 4A
6.3V 4A

I've recently upgraded my Cambridge Audio CP1 phono with new caps and op-amps, and I'm so happy with the results, so nothing can stop me now haha...



So I own a pair of KEF Q500 with Cambridge CXA60. Really killer combo IMO.

As I was planning to change the caps to better ones, so I checked online, and everyone is saying that crossover is terrible design.

I tried to find all the content on the internet, but I only find two specifically with Q500.

What I'm planning to do:

• Change the resistors to Mils
• Upgrade the film cap to Mundorf MKP or Silver/Oil (this one is crazy expensive, so I'm not sure I will pick this one)
• Upgrade the big 1000uF cap to Mundorf Ecap or Mlytic? Which one should I chose? Same price
• Changing the inductors. And this is the part where I'm stuck. What gauge should I use? And what wire? I was checking the Jentzen air cores.

Also Bruce W. mentioned in a comment under a the absolute sound Q500 test the Zobel network. I have no idea how to implement this hahaha 🙁

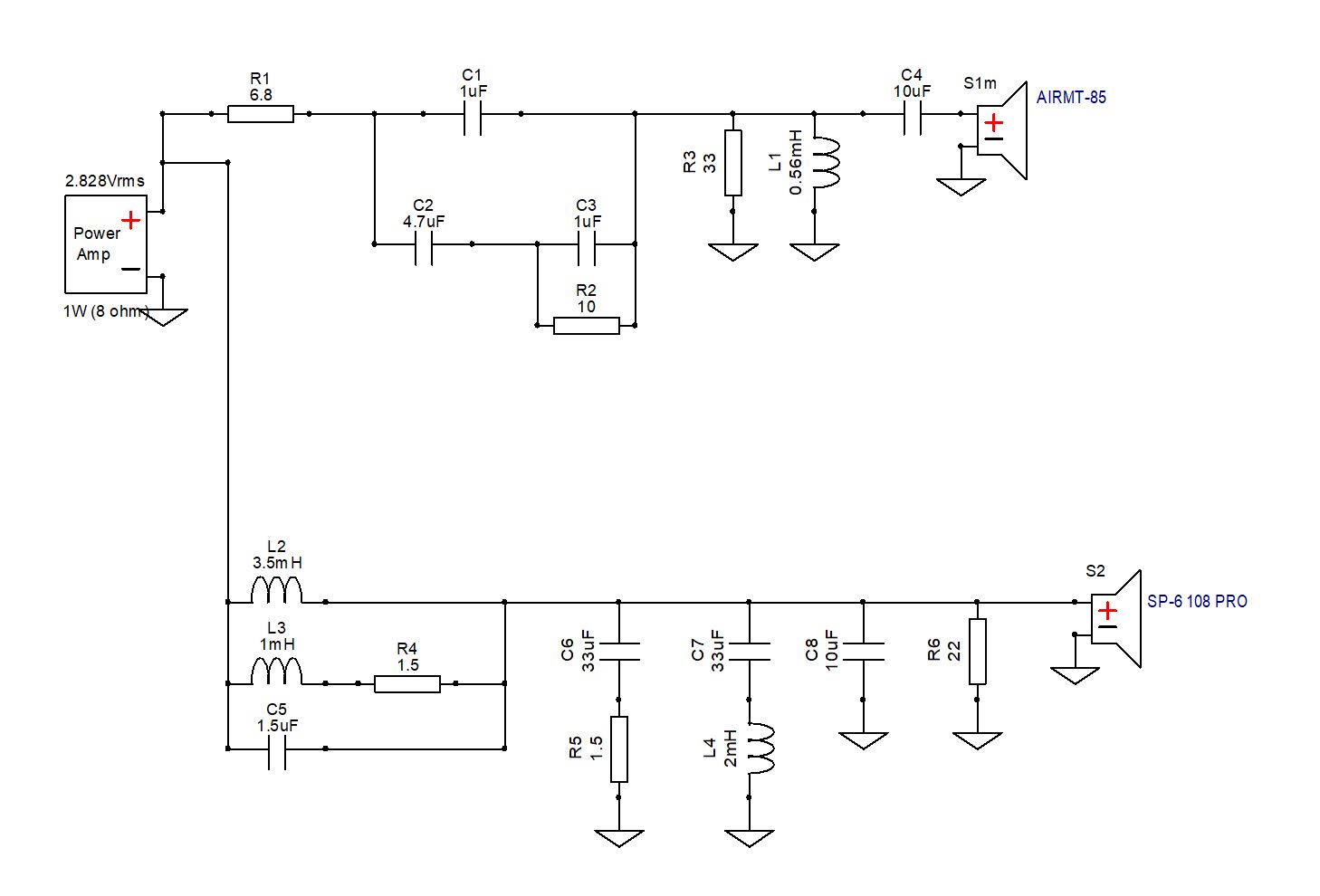

Here is a picture with the two sides of the crossover:
q500 crossover - Album on Imgur

Could anyone help me with this? Is there anyone who already did something similar?

http://www.voltloudspeakers.co.uk/wp-content/uploads/2014/03/CX220.1.pdf

I have been considering a coax plus second 8 inch bass driver project. I am under the impression that Volt has an excellent pedigree. However, when I look at this response curve, the top end response curve swings around like a logging chain in a water closet. Am I wrong to think that this thing is going to be hellish to deal with?

Recently obtained one of these CD Players and it blows the power supply fuse on start up.
After some experimenting it seems to be problem with either the servo board or the CD mechanism as if the CD draw is out nothing happens. As soon as draw closes and the display indicates "READING" the fuse blows. Disconnecting servo board also stops this happening.
I have requested service manual from Cambridge Audio but at present they are saying pay Richer Sounds for diagnosis and repair.

Anybody out there had a similar problem ?

For sale a pair of NEW in their box SBAcoustics SB26CDC-C000-4 ceramic
tweeters.

They are priced to 46€ each and I will sell for 45€ both + PP fees + Shipping
They are NEW.

Hi,

I was told this was a good place to ask about this!

The light on my Cambridge Audio CD6 display went yesterday, the display still works, if you get up close you can see the readout is working, so I'm guessing its just the light/bulb? But from looking inside I suspect its not the easiest thing to replace. I only have basic technical/soldering skills and would hate to make things worse!

Its not the end of the world and I can live with it but if its a simple job then it would be worth doing.

Any advice appreciated.

Thanks in advance

Steve

Hi everyone,

As many do here, i have a pile of tpa3116 boards that vary in quality (and mods).

I’ve settled on a pair of the dayton branded Sure boards with integrated dsp, etc... sounds good, but I don’t know what their potential is.

Is there an objective way to measure the improvements of the input, bootstrap and output filter caps? I’ve found these boards to be better thought out than the cheap ones i’ve been playing with and don’t want to needlessly cut and slash to install wirewound caps and whatnot if it was 90% as good before.

I have access the standard EE tools: to a nice Tek scope and signal generator, usb sound interface, load resistors, etc....

I was planning to do some THD measurements, but i’m thinking that there should be specific things to look for and likely a specific test that will show how well the LC filtering is working.

Any thoughts?

Which streaming services provide the best music appreciation/education/exploration experiences?

I currently use Amazon. They have suggestion services but nothing that says, "Let's explore the history of South African music."

Maybe services that let users create deejayed playlists.

Take a spin around the world and spy on their radio stations.

Listen to live Nosara radio on Radio Garden

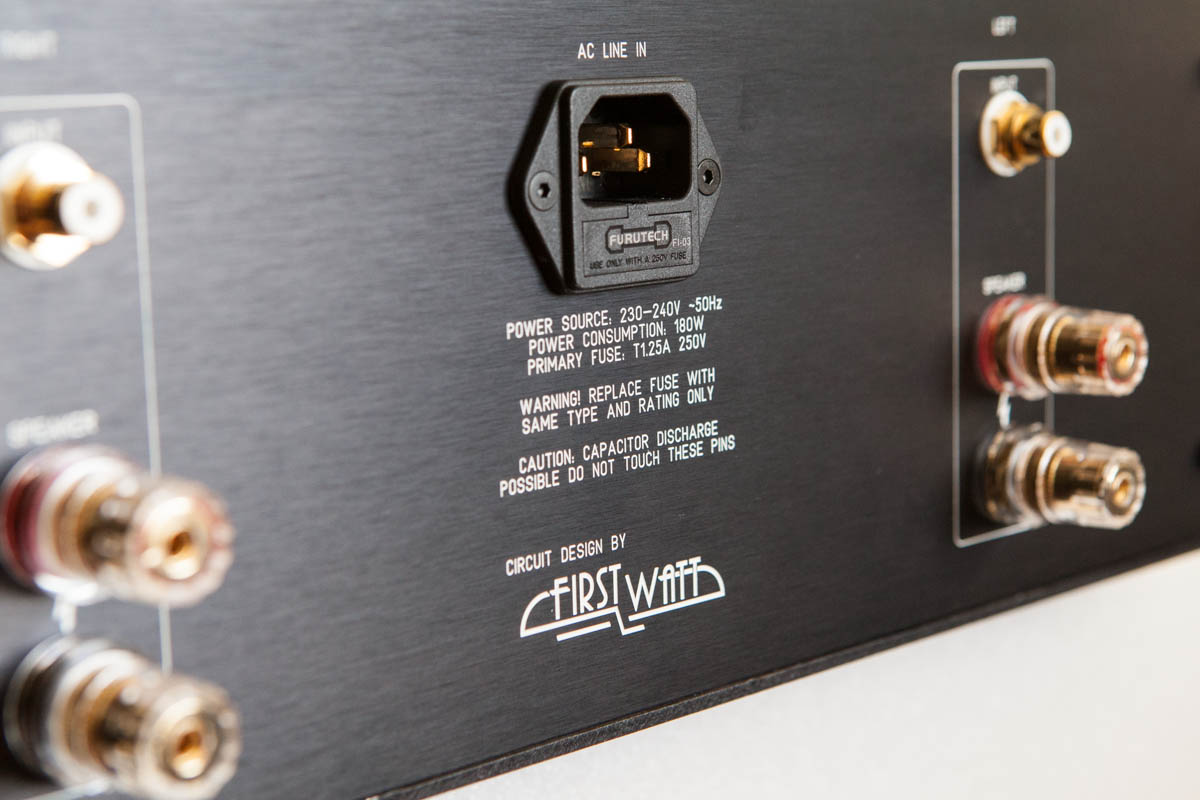

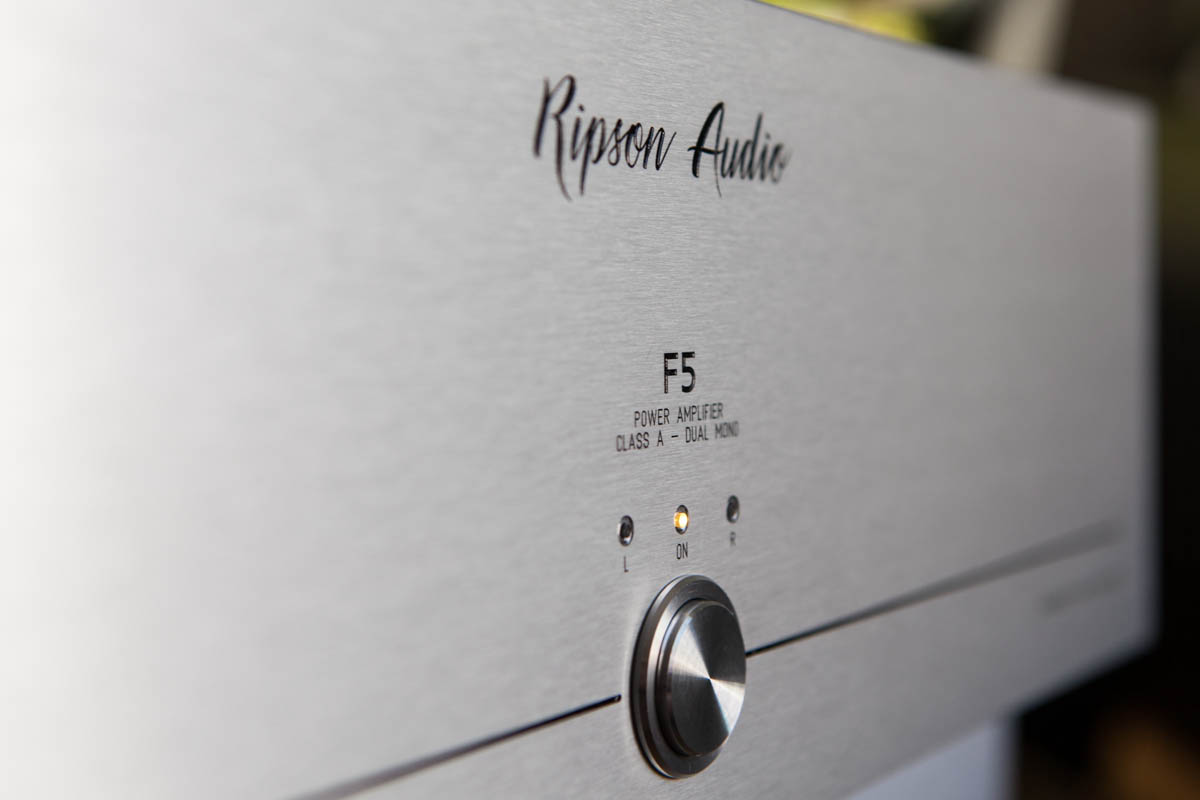

I'm Building an f5 using an Antek AS-4218 transformer (18V, 400VA). I was hooking up the power supply for testing and the transformer makes a clicking noise that sounds like electricity arcing when my ear is a couple feet away. The clicking has a frequency of a few clicks per second. I unhooked everything but the transformer and it still makes the noise with no load on it. I tried moving the amp to a different outlet and the noise is still there. I sent Antek an e-mail a couple days ago but haven't heard back.

Hi,

This sale is for shipping domestically within the USA only. I don't want to fill out a customs form.

For now it's just an Interest Check as the UcConditioner 5V is still on it's way from Canada and I should receive the product by end of January 2021.

For my portable project, I was hoping to integrate SuperCaps in the project with these two items. Unfortunately, space it tight for max portability and I am using solid core wires straight to the PCB. This makes it's difficult to conveniently use SuperCaps as I would have to de-solder every time I want to integrate SuperCaps for listening. I cannot just unscrew/screw power cables as originally planned.

The two items have never been opened or unsealed as I am still in the middle of my portable project.

UcConditioner 5V (Regular Price: $59)
UcConditioner 3.3V (Regular Price: $67)

Total Regular Price = $126 + Shipping from Canada

Asking Price $90 + I'll take care of PayPal and USPS Priority Fees within the USA. $90 All-inclusive.

Bear with me I'm trying to get a handle on basic tube math.

I would be eternally grateful if someone can guide me on the algebra needed to solve this diagram for the unknown B+ and Rk values.

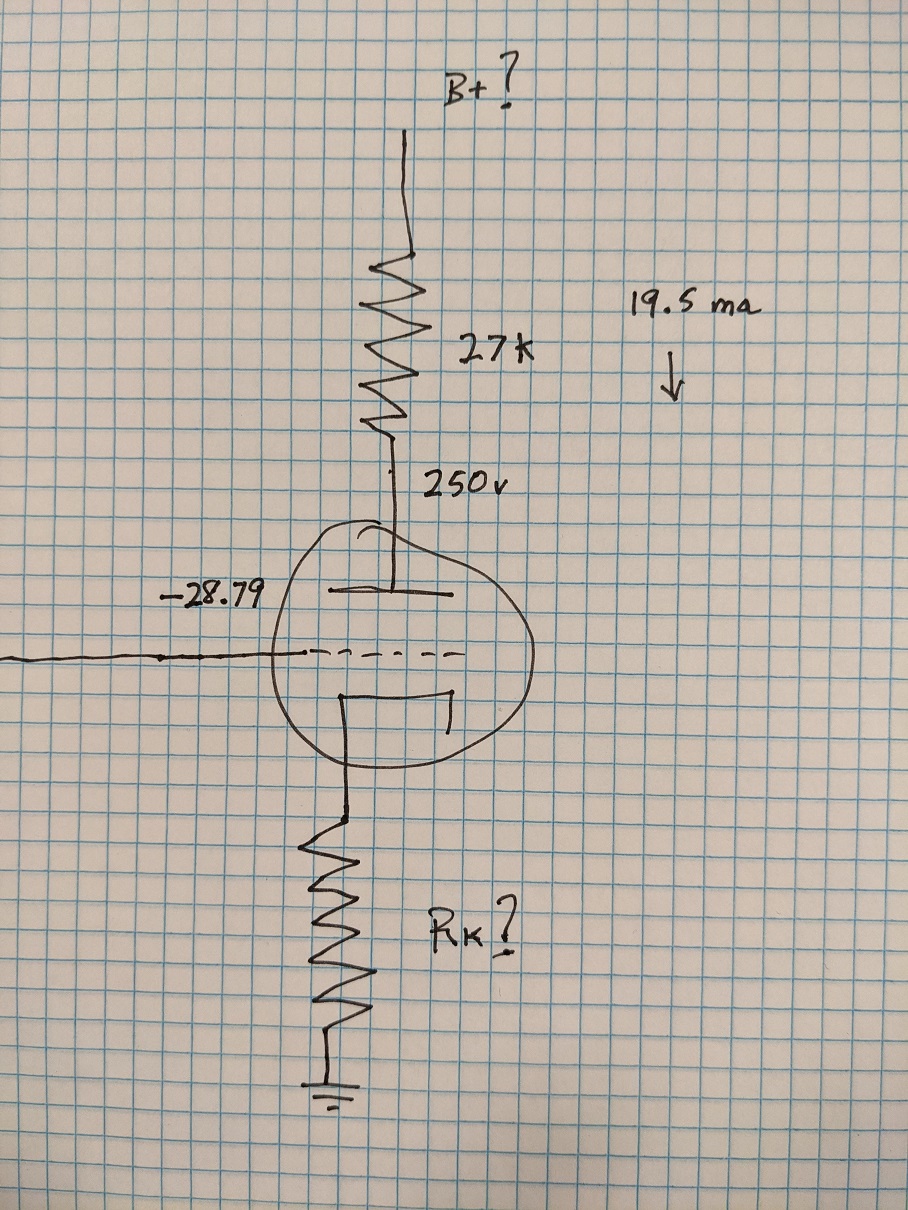

Assuming I know the following static DC values as shown:

250V at the plate
27K Rp
-28.79 grid bias
19.5 ma through the tube

What is the algebra to determine what my B+ and Rk should be to arrive back at these same values? And solve it.

I would assume you have to first solve the B+ then use that to solve the Rk?

Why am I doing this? My load line tool is able to let me try many different plate resistors, plate voltages and currents by just dragging a dot around, easy-peasy. In doing so it gives immediate read out of the NegV on the grid, distortion, Vout, Pout etc. But it doesnt give me a direct reading of what B+ or Rk I'd need to actually build something at that operating point.

So I need to learn how to back into those two values (B+ and Rk) given these four known values, and hoping for some algebra help.

Does anyone have a sense for what it might cost to have the TDA1541 manufactured for bulk purchase?

I thought I'd start a little build thread on a pair of corner arrays I'm going to build using the Peerless TC9FD18-08's.

By low brow, I mean to describe the lack of sophistication of this build.

That I am not a measurement and graph guru like most of the other line array builders appear to be on this forum.
Also the degree of craftsmanship and quality (both in labor and material) of most of the array builds Ive seen is a much higher level than I can achieve (or care to invest the time in).

Its more of an experiment, like some folks using foam-board, but ill use MDF.
Ive long wanted to try my ear at a full length (room height) array.

The decision to corner build is mostly because I have them.
I use corner horns now, and I love the lack of what I perceive (subjectively) as less early reflections, as compared to tower speakers out in the room.

This build is not a desire to replace my corner horns, its a desire to finally hear a full length array. I certainly do not expect them to play as loud or have near the dynamics. Just a different flavor (hopefully good).

Ive attached a pic of the room (basement) where they'll go, and pics of the 60 little TC9 drivers that just arrived.
The room is 14'.5 wide x 28' long x 8'8" high.

The entire ceiling is un-finished, with ultra touch (cotton) insulation showing, so I may have to install a triangle of sheathing above each array in the ceiling corner to get some of the benefits of a floor to ceiling array, but Ill try it without first.

Hello,
I had modified 100v line amplifier for low impedance load (There is a thread in PA section).

It`s a single channel push pull amp with two MJ11016 transistors and it needs transformer (toroid with no labels) to work.
Rail voltage is 39v dc, only positive and toroid is rated for 100VA.

I had connected 3ohm load to it (pair of 6ohm Pioneer CS-770 speakers) and it plays good. It has a fan that didn`t turn on in 4 hours of listeting to music with volume at half.

146w rms and 292w peak measured.

Now my question is how can I know what is the lowest impedance load that I can connect to it?

I think that if there would be no output transformer, I would need to measure the current and see if transistors can handle it, but what is the case with output transformer? Do I need to measure current before the transformer and see if transistors can handle it and after the transformer and make sure that transformer can handle it?

Thank you

I bought a used phono preamp Thorens MM008 like this
Thorens MM008 phono preamplifier - maPlatine.com


Unfortunately the jacks with the appropriate resistive loads (10, 100 and 1 Kohms) for adjusting the MC input are missing.
https://www.maplatine.com/en/4687-thickbox_default/thorens-mm008-phono-preamplifier.jpg


Does someone know what is exactly inside these jacks? Only resistors 10, 100 and 1 Kohms? Or is there more or anything else inside?


I want to make these by myself.


Please let me know. Thanks.

Hi

Does anyone know the difference between these drivers?

Seas XM001-04 (L26ROY) - http://www.seas.no/images/stories/extreme/pdf_datasheet/L26ROY-XM001-04_Datasheet_v2.pdf

Seas XM004-04 (L26RO4Y) - http://www.seas.no/images/stories/design/pdf_datasheet/L26RO4Y-XM004-04_Datasheet.pdf

I'll be looking fit 2 in a single enclosure, ported or transmission line. But wouldn't know which one to buy. Will be used as subwoofer only, normal crossover around 60- 80 Hz.

Any advice would be appreciated. Thanks

GREAT AMERICAN SOUND - THAEDRA - PREAMP
Phono Card Upgrade
I want to take a modern 2020 MC Phono Card and MM Phono Card , and install them in my Thaedra .
Am I dreaming ? The Big Dream?
Or is this the Path to Nirvana less taken?

This idea has popped up at the strangest times and won't go away. So I think I should build it. I'm wondering is there is any sound difference between a tube power supply and a SS power supply for B+¿

Is there a good design I should be looking at for a starting point?

It will every large and heavy is I don't go monobloc but I have to weigh that against cost.

hi im interested to know why the average cd player output is 2v rms- and what affect this has on low input 1970s 80s amps- nad 2030 for example

Kemet electrolytics 10000uf 80 or 100v
I have been trying to buy those for the last 3 years with no luck. It is allways in backorder or having horribly long leadtimes with all the big suppliers.
So my question is: Do they actually exist? Or is it just a papertiger?

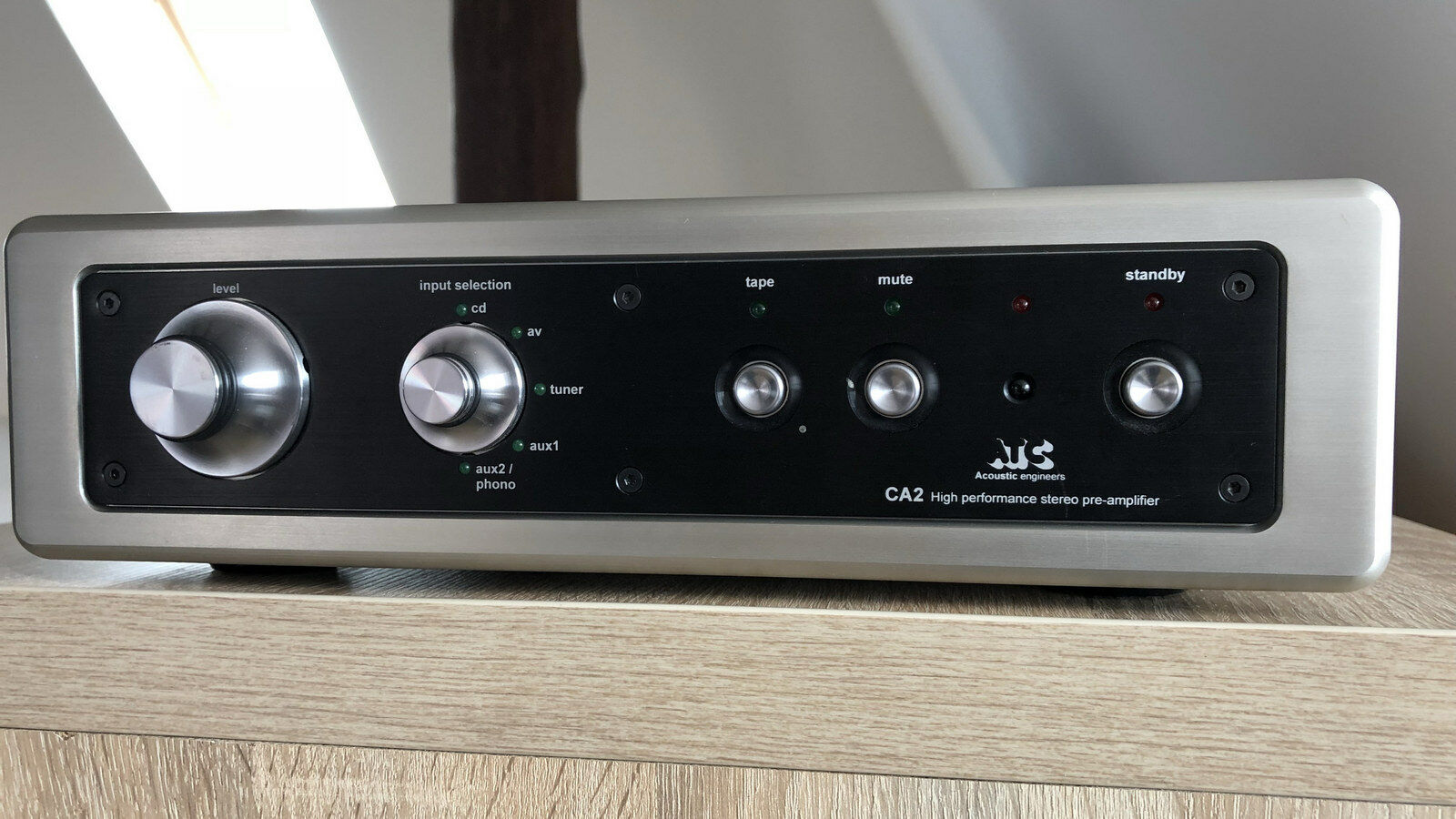

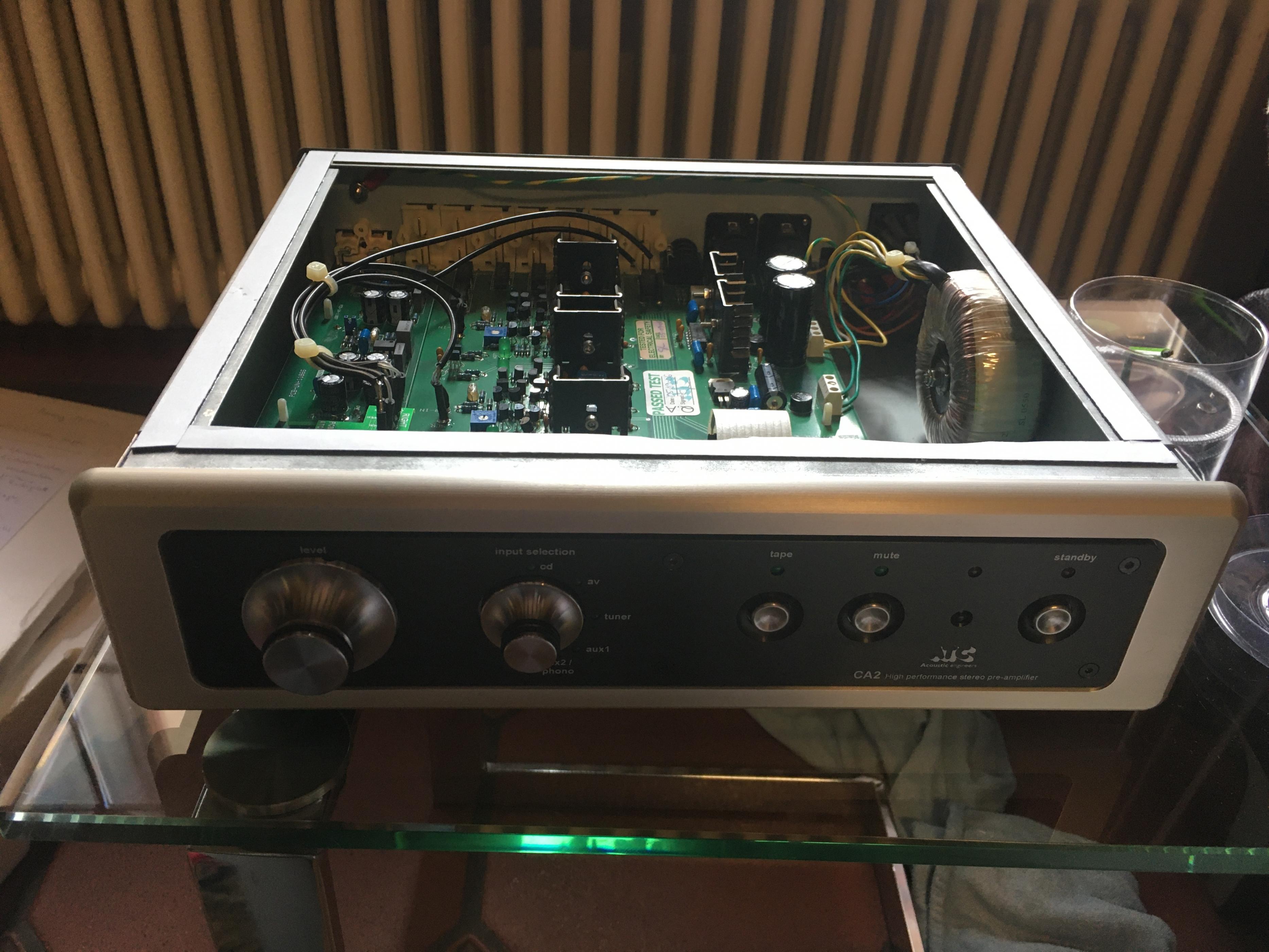

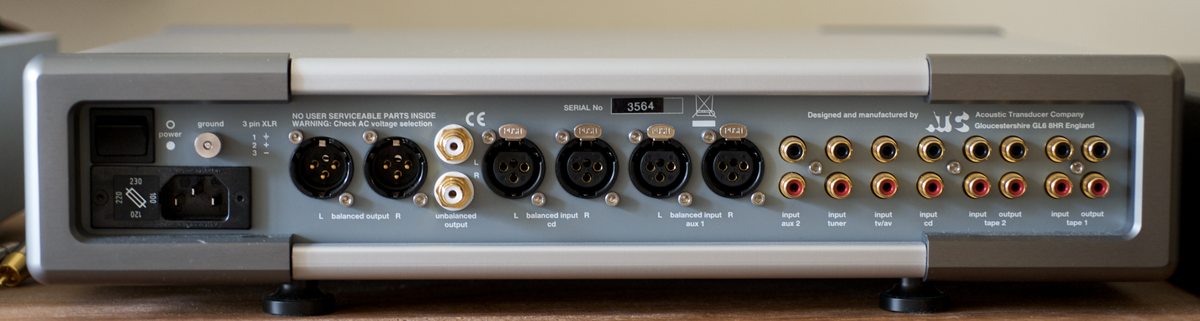

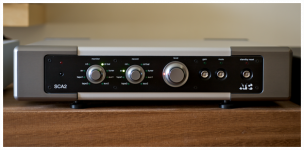

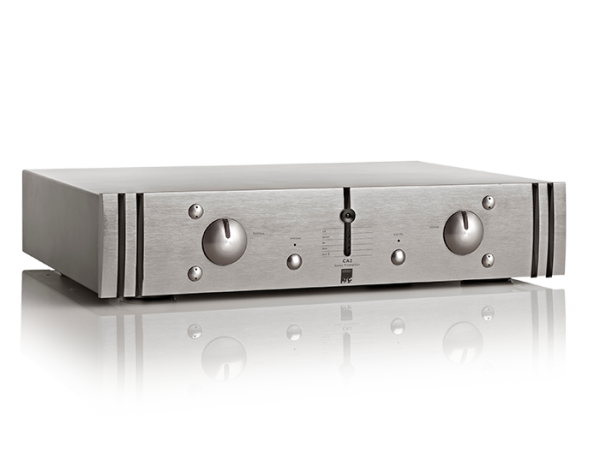

A friend tell me, ATC makes one of the best currently available pre-amplifiers.

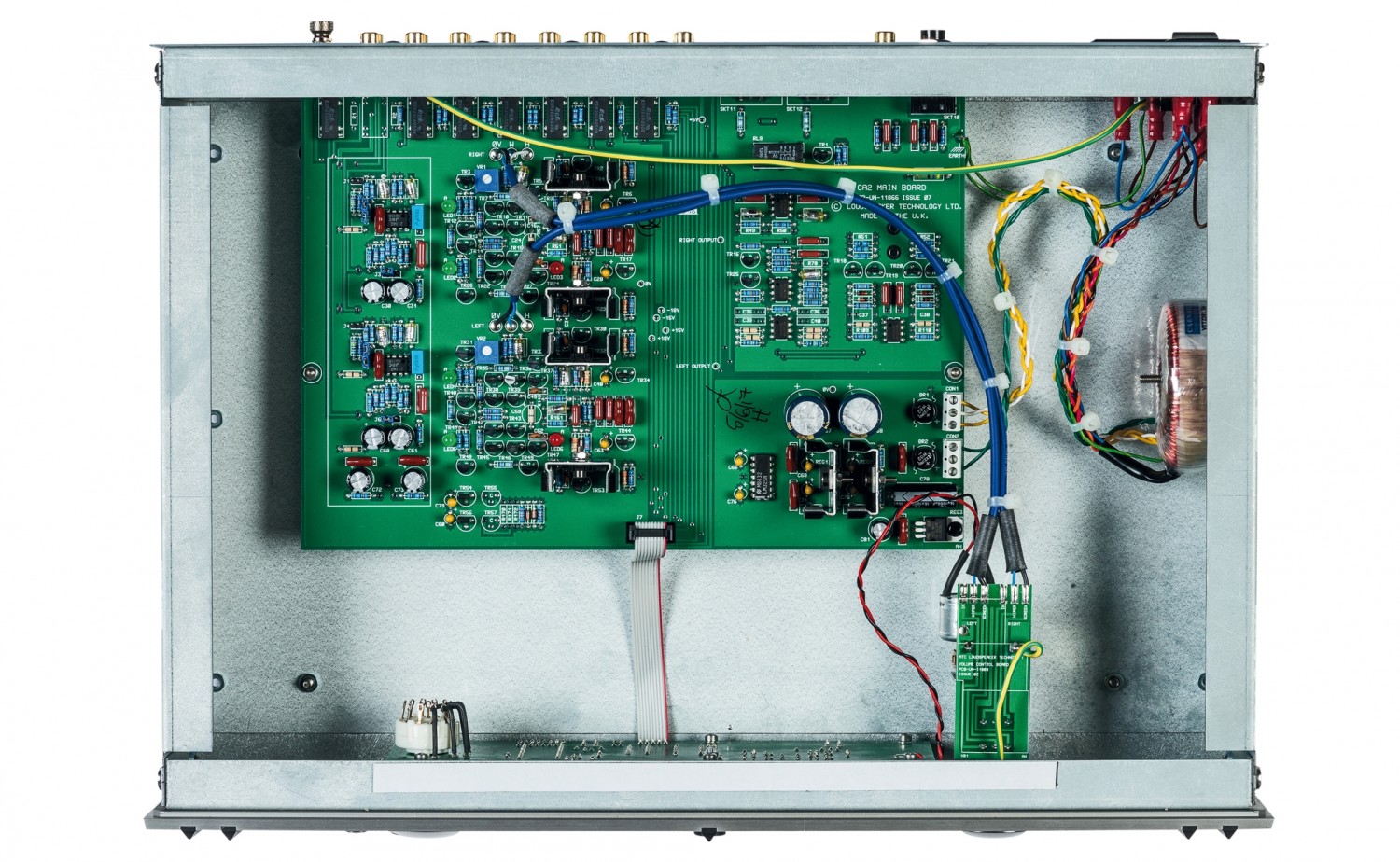

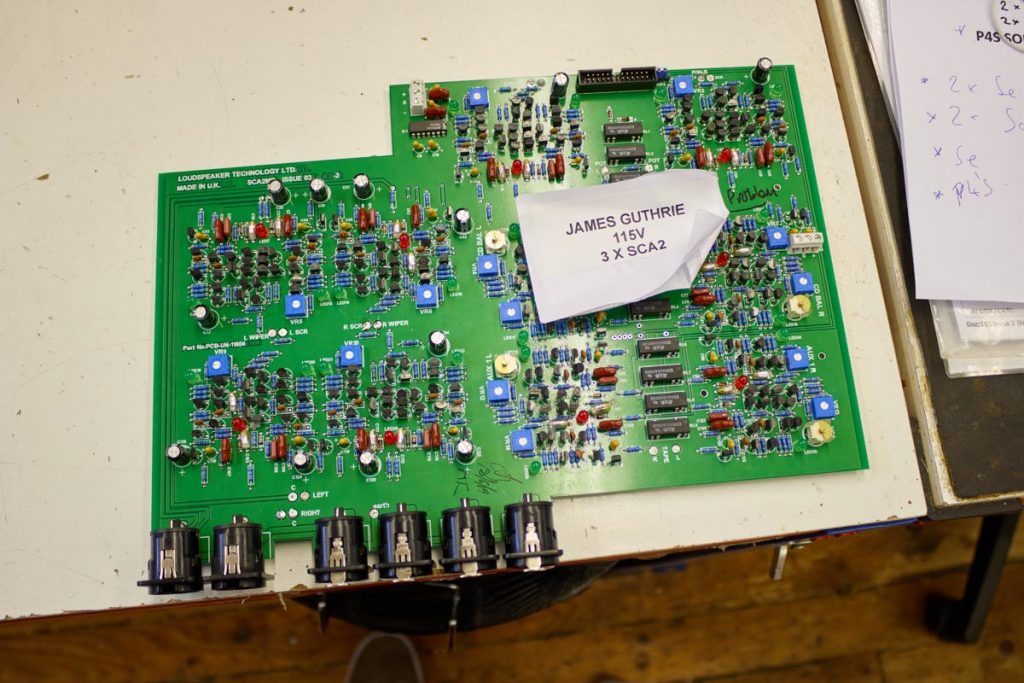

the model CA2 uses integrated operational amplifiers and the model SCA2 discrete versions similar to such from burson - go to
Supreme Sound Opamp V6 – Burson Audio
and
https://www.diyaudio.com/forums/sol...cial-available-discrete-op-amps-overview.html

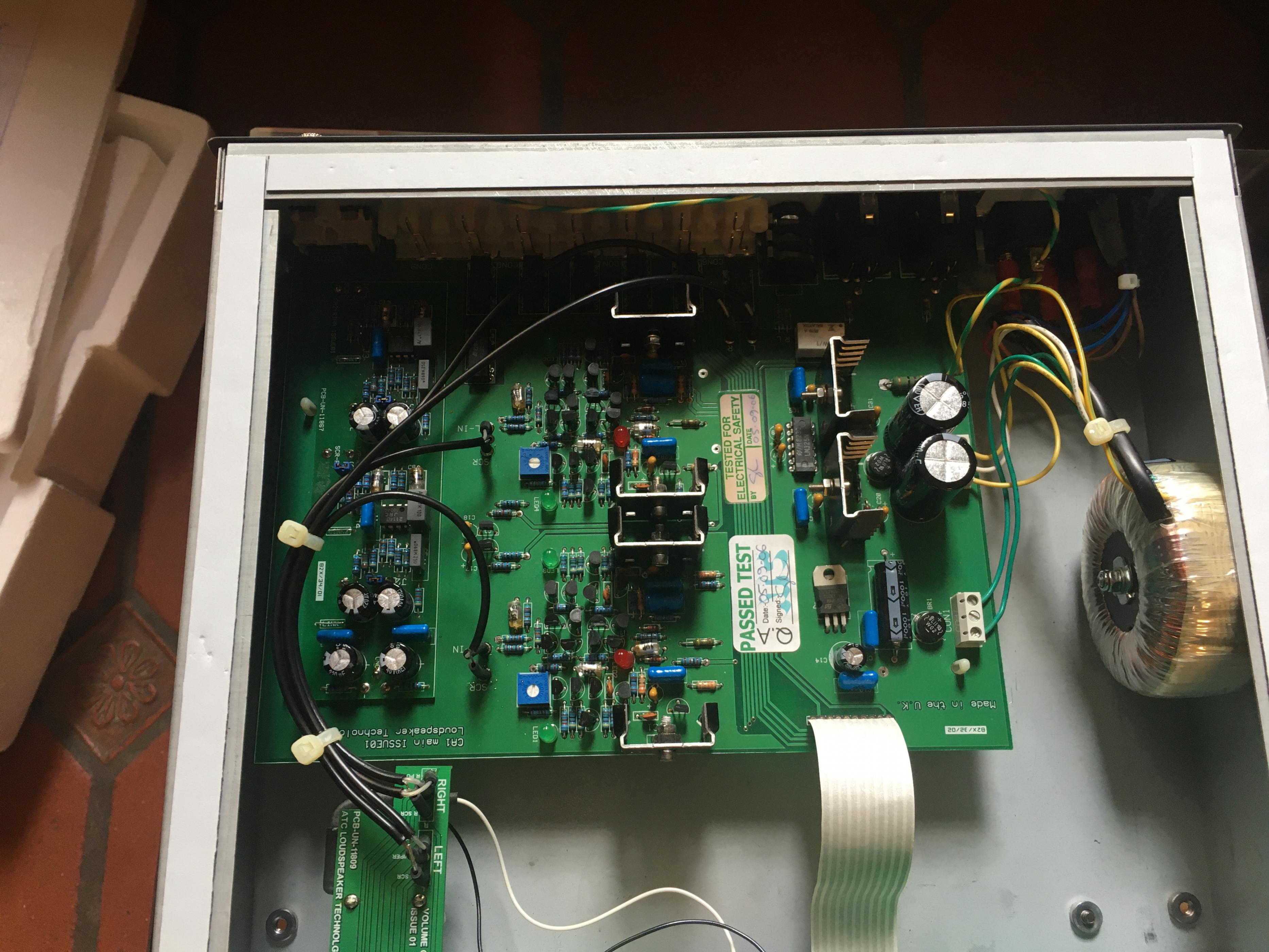

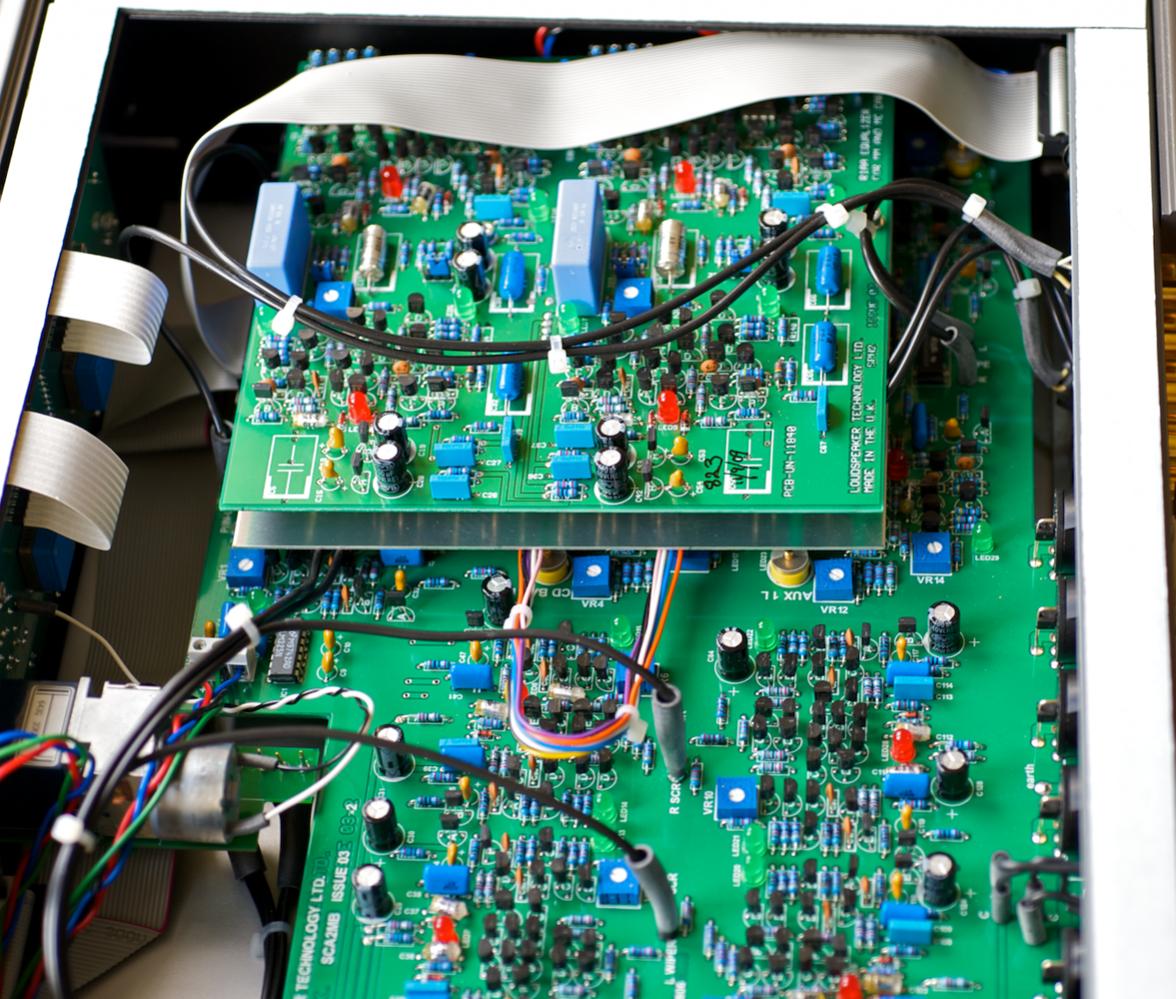

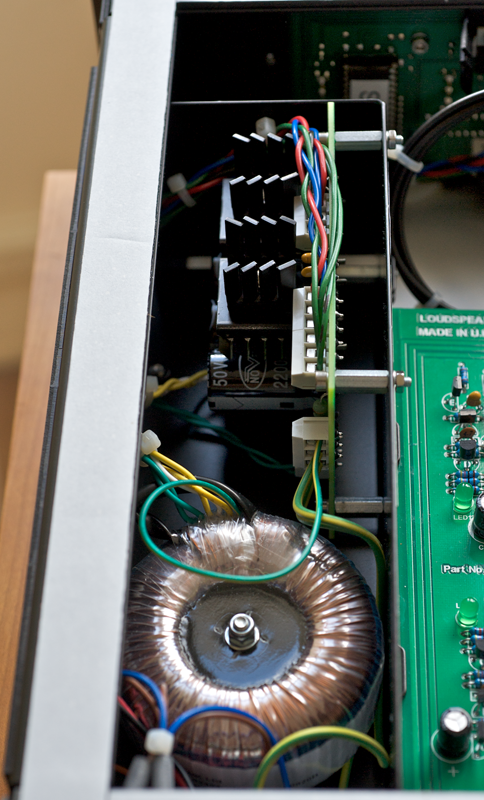

Who can upload the schematic diagrams ?
In the attachment images from all models

Hi everybody, i am currently working on a Jubilee style project: 2 horn crossed at 500Hz. After extensive research to find the good driver, I went to an Audax PR300M0 (Fs 17Hz, Qts 0.26) and started simulations on Hornresp. You will find below two simulations of front horn loaded, closed chamber.
One has a hyperbolic expansion, the other one is more atypical with a narrowing after first expansion. This intrigues me with its unconventional shape while it offers a much wider and smoother response curve in the low frequencies with a small loss of sensitivity (driver, chamber volume, surface Sd, horn length are identical for the 2 simulations).

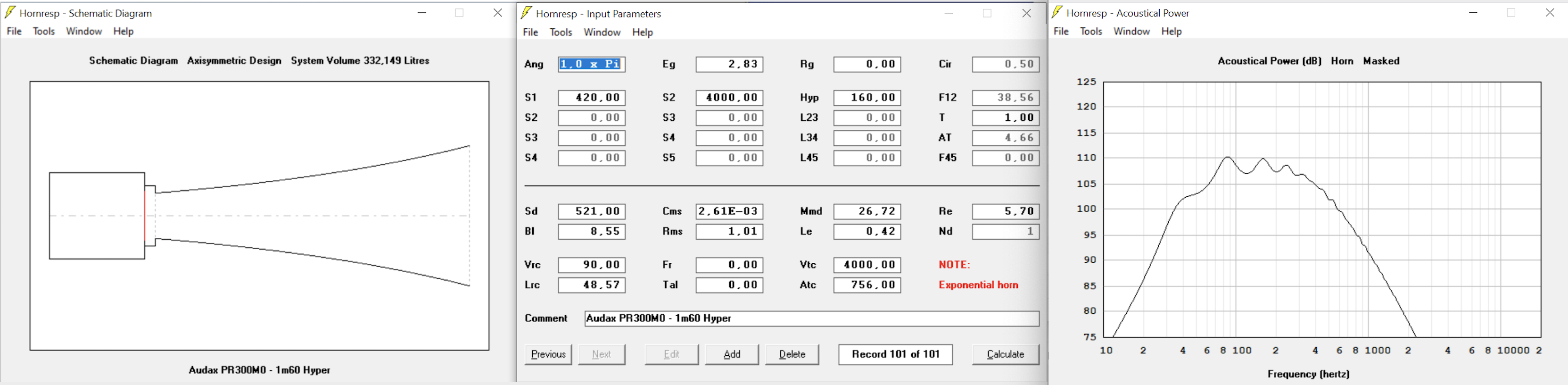

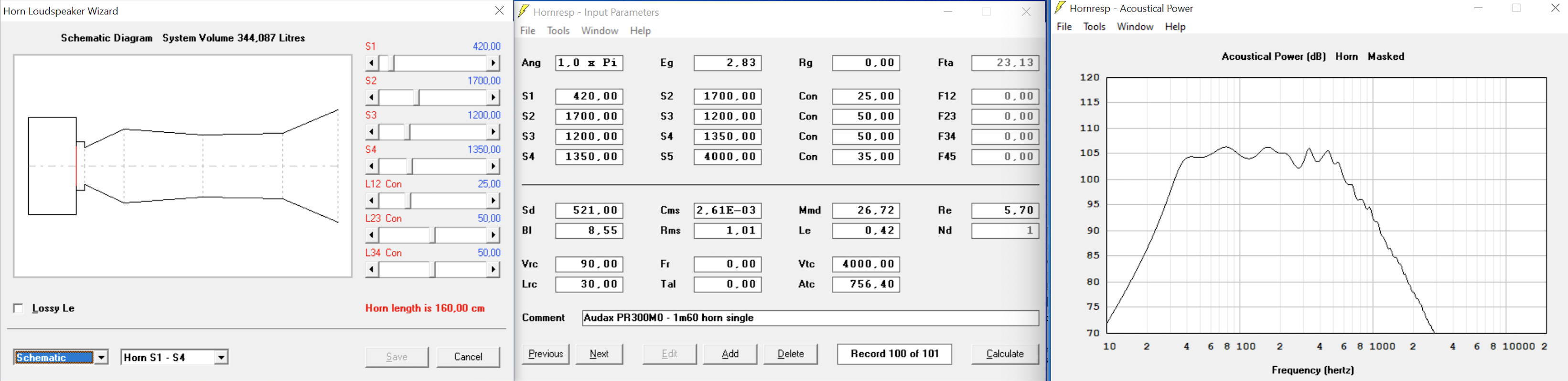

I turn to you for advices: should I trust the Hornresp simulation? Should I focus on this narrowed expansion which seems to provide a 1 Pi response from 40Hz to 500Hz with a single 12' driver?
Thank you in advance for your advice and all my apologies for my poor English langage.

Hi,



I'm looking to buy one of these that isn't all beat up etc.
It's for my little 7 year old girls birthday. She loves
music and this will be my gift for her music.


It will be something she'll have and cherish long after
I'm gone.



So if you have one, and aren't using it please consider
selling it to me for my little girl.


I'm a DIYer, with wife and kid and approaching retirement
in a couple of years. I've tried finding a job with my new

skills etc, but they won't hire an older smart guy like me.
They want them young and dumb. Go figure.


Please PM me what you have and what you need for it.


Cheers,

Good morning everybody. I need to understand characteristics of xover in annex: cut frequency, attenuation cell, Zobel (if any...) and so on. Can you help me please? Many thanks in advance. Ziocalepino.

Hello

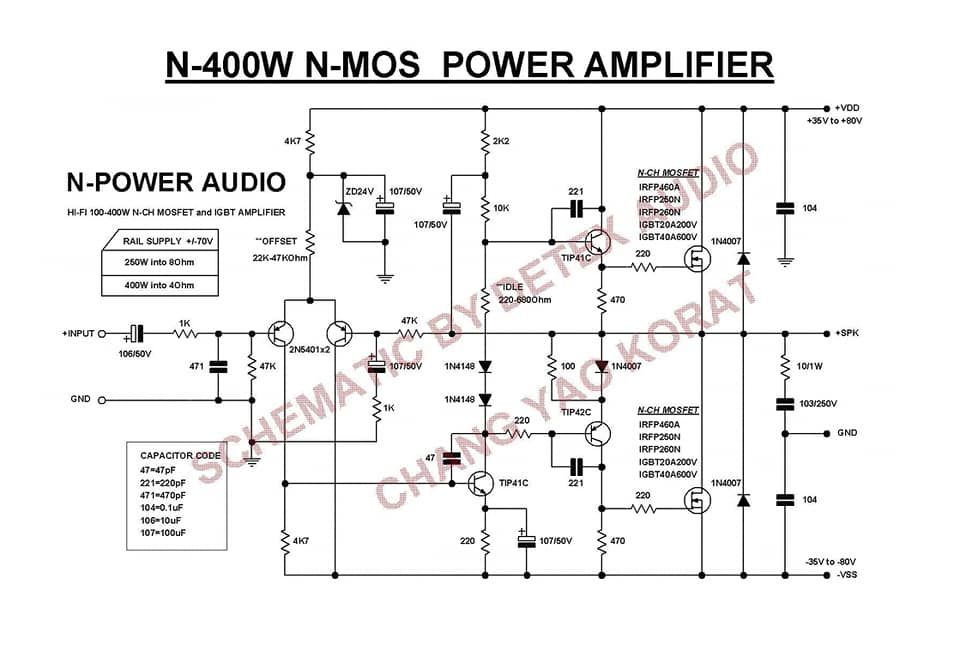

greetings has anyone tried this schematic
warm regards
Andrew😉😉

Selling my personal Shiga MKII ultra high grade.
It includes:
- two ultra low noise regulators Zeno and Zeno MKII with synchronous rectifier Saligny
- latest cd mechanic modifications with shielding foil
- custom Duelund Ag-Cu for C8
- Z-foil for s/pdif
- lot of polypropylene caps and organic semiconductor caps
- 2 miniregs and 2,5V PIn diode reference
- Dexa Neutron star 2
- bronze cd puck
- IR remote

Sound magnific and will go for 1100euro ex shipping and paypal fee.
What you see in the picture is what you get.

Regards,
Tibi

Hello,


These are the terminals of the Monacor SP-308CX coaxial woofer. What kind of connector could I use on them?

Just wondering if there is any place in the US I can purchase hypex ncore amplifier modules and their matching power supplies? I do not want an entire kit. Thank you very much.

I have a plate amp from a subwoofer that has a blown output. The two power transistors (TIP35/36C) have gone short. One of the 0R15 resistors has gone open in the resistor package and then there are two tiny resistors that have released thier magic smoke. Any ideal what the value of these is likely to be?



One measures 42.6 ohms and the other 1K47 but I assume they would have been the same value



I hope I have drawn the circuit right. TIA

I purchased a Pilot 248B Integrated Amp 2 years ago. I fixed some bad components re-tubed it and set the bias according to the manual. The amp worked fine and produced about 30 watts per channel into 8 ohms at clipping.

I gave it to a friend. He contacted me recently because it began distorting badly at power levels above one watt.

I can't find a schematic for the 248B. The attached schematic is for a 264 amp but is similar enough from V3 and V4 thru to the outputs for troubleshooting.

I replaced all the caps in the HV supply and the 100uf cap in the bias supply. The HV supply shows a 10k ohm 2W resistor before V3 and V4. It was bad. In my amp it is actually a 6700 ohm resistor. I replaced it with a 10k 5w resistor.

These changes brought one channel back to 30w output before clipping and the other channel back to ~12w before clipping. I can hear a low level buzz in the bad channel that does not exist in the good channel. Otherwise the sound is good until clipping.

I swapped the 7591s and the 12ax7 amp/pi tubes between the two channels and the problem stayed with the bad channel. I did other tests on the tubes and I think they are all okay.

The 248B has a 100k ohm resistor in series with the input and the grid of each of V3 and V4 audio amplifier stages. The signal before and after the resistor in the V3 channel does not clip up to full power. In the v4 channel it does not clip before the resistor but it shows clipping after the resistor at about 10v peak.

In the V3 channel I replaced the 4700 ohm cathode resistor (it was 5600 ohms on my meter), the 100k ohm plate resistor (120k on the meter), and the coupling cap (it is actually 0.1uf). This did not fix the problem.

Can someone here suggest what I should do next to identify and fix the problem.

Thanks,

Steve

I'm thinking of adjusting the bias on my Rotel (class a/b) amp to try to improve the sound. The amp does not heat up even after hours, so it seems like there's enough leeway to increase the bias. So I'd like to know if there's a real simple way to do it, as I don't have an electronics background. I did measure the DC at the speaker outputs with a voltmeter; they read about 58mV for one channel, about 64mV for the other. My question is, can I go by this speaker output measurement to assist me in knowing how far to go with adjusting the amp's bias trim pot, or do I really need to be measuring the legs of an emitter resistor etc? And if I can use the speaker output measurement, which would presumably change as I adjust the bias trim pot, what voltage should I be looking to acheive, or what voltage should I stop at, to avoid blowing my amp (which I believe has no thermal protection for reasons of sound quality)?

btw, I don't have schematics and not interested in acquiring them; wouldn't know how to read them anyway.

Back almost exactly twenty years ago I made some subwoofers with Ultimate brand subwoofer drivers. They were moderate power (c. 120wrms, decently magneted (c. 40oz), and high compliance (Fs c. 30Hz).

Lately I've been wanting to remake similar subs. However, I was having trouble finding 8" subwoofer drivers like the old Ultimates. The price for the Tang Band ones are about $85 more than the Ultimates were, $115 and $30, respectively. I don't think many items have quadrupled in price like that in 20 years.

The original says obsolete .

Will any of these 3 work




Access to this page has been denied.

As I needed to repair one of the bass/mid drivers from my recently aquired Philips DSS930, I wondered if anyone tried to create diy shorting rings. I'll try it with silver paint, typically used to repair car rear window heating.
I've tried to cover only the portion of the pole piece above the air gap...
Just curious if there's any experiences already.

Hi,

last night I was looking at some new electrolytic capacitors for the power supply of some of my amps and I noticed how old e-caps showed small differencies in impedance between 100 Hz and 10 kHz whilst new ones, due I guess to the egemony of SMPS, have highly improved performances at high frequencies.

So I was thinking how to restore this small difference between low and high frequencies, and first thing that came into my mind are those small cheap inductors seen in battery chargers.

After a short calculation, I saw that in the range of 10-30 uH we can restore that ratio of impedances of the cap. Other point is current. I would consider around 2 Arms to be on the safe side.

While ordering some stuff from mouser, I would add some small cheap inductors (we are talking aroun 20 cents each) to perform some tests.

Has anyone experience in anything similar?

Thanks in advance

Roberto

I have a full HT system but use a Yamaha sound bar (2xTMW) for general daily use. I was looking to build a little woofer to add some lower end and body for when I watch TV movies etc.

Did a design I then looked around for a little plate amp or build an active stage (buffer/filter/phase) to partner a Class D amp. While researching a plate amp I found a completed sub for A$89 delivered from DJ City in Melbourne to Newcastle. The idea was to strip out the amp.

It's a Fenton SHFS08B which is cheap and cheerful and even though there's a lot wrong with the design and build, it works well to add some bottom end to the soundbar. Sure the bass is a bit one note and the gain must be a zillion dB but it saves me building one at a much greater price. How do they sell it so cheap as there is 10% GST plus shipping? I'm amazed how cheap this thing is and it even comes with a removable IEC lead.

The amp looks like Class D and the active stage uses 4558 op amps. The only thing I had to do was add a gasket to the woofer, seal the hole for the speaker wire and countersink the screw holes.

The specs are very optimistic and can be found here:
SHFS08B Active subwoofer 8" black - Speakers - Home HiFi - Tronios.com

As some of you might have gathered, I'm in the process of building Troels Gravesen's new The-Loudspeaker-III.

I'm currently extensively modeling the speakers in Fusion 360 (a CAD software) to try a few different designs (different colors, veneers, speaker stands) to tailor them to my taste.

On his website, Troels states the following: "Due to the NSD1095/XT1086 horn delivering the same frequency response regardless of front panel design, there is a great deal of freedom in this construction. Only key elements are the horn tilt and the displacement of the midrange driver relative to the horn and keeping the midrange front panel some 230 mm height with driver in middle. So stick to the upper front panel design! Almost anything else you can do to your liking and it will perform as intended."

I have trouble understanding what this 'great deal of freedom' is.
I get that I shouldn't mess with the horn tilt, nor the midrange driver being on top of the horn, and the midrange front panel being 2300mm.

* Can I flush mount the drivers to make it look a little cleaner?
* As the midrange has its own cabinet, can I detach it from the rest of the speakers and have it resting on top? This would allow me to build two different cabinets and increase the possibility to fine tune the speakers visually.

I'd rather ask here than keep bothering Troels with stupid questions every few days.

Hey all, as I finished building more subwoofers last year, I am looking to upgrade my mids during 2021. I think im going to construct another couple of simple relfex-boxes, I mostly play indoors in smaller venues so I do not think horns would make much sense for me, it's not a "festival main stage"-soundsystem. The dancefloor always ends up being right in front of the stack.

I am going to have just two mids, so I want to get a couple of great quality ones.

Im upgrading from Fane Sovereign 12-300 (~80€ each), so I do wish to get a noticeable difference in sound quality.

Do anyone here have experience with these specific drivers? The tuning would be from 160hz to wherever it sounds best to cross with my BMS 4554", so probably between 1600-1800hz.


Eighteen Sound - Professional loudspeakers


"The 12ND710 has been specifically designed for use either as a midbass driver in compact 2-way reflex enclosures or as a direct radiating or horn loaded, dedicated midrange drive"

I am also open to any other suggestions for some great mid-drivers to couple with my Fane Colossus 18XB & BMS 4554, between the ~250-350€/each range.

This question pertains to the rotary encoder that is used as a volume control on the miniDSP 4x10 HD.

So far, I have used the outputs from the 4x10 to feed the multichannel inputs on an AVR. The AVR has a decent volume control which has provided that function for me.

I will soon replace the AVR with a multichannel power amplifier and will thus lose that volume control. The obvious thing to do is to use the volume control on the 4x10.

Here's my question: is it possible for the miniDSP's rotary encoder volume control to fail in such a way that unattenuated signals are passed to the power amp? I have little faith in the reliability of these multifunctional gadgets, and such a failure would obviously be disastrous for my speaker drivers.

If there is any possibility of this whatsoever, I will fit a multichannel volume control in the inputs to the power amp.

All opinions are invited, although I would like them to be endorsed by a miniDSP representative.

Thanks!

5,000 year old Sumerian Lyre discovered in 1929.

The Sumerian Silver Lyre - YouTube

The creator gives more information on his website.

silver lyre

Could someone give me a comparison of the Woden Poplar and the Pensil series of speakers?

I have JBL LSR4328 Studio Monitors. One of the monitors will not turn on. The JBL emblem light is on but the speaker will not power up. Has anyone encountered this problem. These monitors only have about 50 hours of usage if that. I bought them new and were barely used. Also, if anyone has a schematic with test points, that would probably be helpful.

Brand new, never used. Originally purchased for the RH84 amp build (second power supply schematic)
RH Amplifiers: RH84 amplifier - revision 2

120V primary

850 VCT @ 120mA
6.3V @2.5 A (no center tap)
5V @ 3A (no center tap)

$100 shipped UPS to lower 48 US.

Paypal

New build for me. I am not an EE, just a DIY enthusiast. I will be using an Allied 6K7VG power transformer and only SS for power supply. I understand that B+ voltage will be a bit higher this way. Using EL34 as power tubes, will a 560 ohm cathode resistor still be OK or would it be better to increase the resistance of Rk? If yes, what value would you recommend?


Thanks for you help.

I want to build an amp from "The audiophiles project sourcebook" Project 6.19 ,but need some help with component ratings. I need to know what type and voltage rating caps to use and also what resistor wattage. Has anybody built one of these designs.

Cheers
SteveT

As the title says, I need advice on what to build. The Wavcors are about $5k and the Bordeaux about $2300. Would the Wavcors be worth that much more? Has any heard them?

I was blown away by Bowers and Wilkins 802 Diamonds. I want to get as close to that as possible.

Any suggestions?

Thanks!

McIntosh MA7900 (via unbalanced RCA outs...no balanced so unbalanced my only choice) to MC275 tube amp.

If things are hooked up with my 89 dB. speakers...can only hear it if in a DEAD quiet room and my ear is right up against the tweeter, there is the faintest noise I can barely hear. However, on my sensitive, no-crossover, full-range driver speakers (which are brutally revealing), I get some annoying hum. The hum is the 60 cycle ground hum (as validated by some YouTube clips).

--If the speakers are connected to the SS amp (MA7900)...nothing
--If the speakers are connected to the MC275 and I switch off the MA7900, goes away 100%
--It is not volume, input sensitive (same level from speakers no matter what, even if I mute the MA7900 or shut off the output to the amp).
--If I power off and/or unplug the MA7900, the hum goes away, and instantly comes back when I switch it in (even during its ~10 second warm up where it is not outputting any signal)
--Both power cables are connected to the same bank on a Panamax 5300 power conditioner
--If I unplug the RCA to one channel, the hum goes away 100% and remains on the other channel
--I tried plugging both directly into the wall outlet and it didn't change (meaning there was nothing else within 10' plugged in to power, including anything like phone, coax, etc.)

If it were not for the sensitive speakers, I would never have noticed. Even with the sensitive speakers, it is just *barely* noticeable from listening distance, but feels like it should not be there at all.

However, I now have that 'itch' to try and fix it and curious where to start. Based on the above, can you help me isolate where to start, what to try? If the answer is get a real preamp with balanced connections...well that would work!

Thanks!!!

Six years ago I built my F5 with extremely well matched Toshiba 2sk170BL and 2sj74BL (P-channel with Idss about 1.1mA higher than N-channel to create perfect complementary pair - P-channel scaled down to match the curves). IRFP240 and IRFP9240 Vgs matched at 1.3A by Alex (he always matches MOSFETs perfectly!).

I am very happy with it, it sounds great with most speakers.

Recently I found 80pcs of used 2SJ554 and 2SK2955 that I purchased years ago and I matched 2 pairs. Photos attached. I noticed that they have a much higher gain than Vishay MOSFETs, also lower Vgs, so I thought it might be a good idea to create another F5 with better complementary pair, NEC 2SK163M and 2SJ44M with Idss at about 11mA, they have lower gain than Toshiba JFETs. I have done a simulation (ASC attached), but don't have models for HITACHI MOSFETs so I used TOSHIBA which is quite close (thanks to Patrick EUVL). Changed input JFETs resistors to 2.2k as they have lower input capacitance than Toshiba JFETs. Lowered MOSFET gate resistors as HITACHI/RENESAS has higher Cgs capacitance. Also, MOSFETs source resistors reduced to 0R1. Biased at 1.36A. Of course, I would use NTC thermistors that are not on the schematics. The gain is 15.4dB. At 1W the 2nd harmonics at -84.5dBFS.


What do you think about it? Any suggestions, do you think it's worth trying?

My next project was in building an over the top (bordering silly) big P/S to run a Hafler 500/600 modeled amp and eventually use the Exicon T0-264 dual die MOSFETS or possibly 2 pairs per chassis, of Hypex UCD 400/700 or ICE500/1000a power modules to build mono blocks for bi-amping my Maggies. A whole other post and topic [later this year]

I chose to layout the amps differently due to using a larger 1000va toroid and the huge United Chemi Con electrolytics. This supply will drive the "Hafler 500 or 600" with great reserve and will (eventually) easily have dual amplifier modules per chassis. At this point I still consider these proof of concept builds... as I am experimenting with parts and wiring layout. I have listened to the 500 heatsink with Musical Concepts PA7 driver boards for about 3 weeks and am very happy with results, it is amazing. *I chose these large 39,000 mfd caps, in that *IF* I did not like the result, I could repurpose them in a "stock chassis" of a 500 or 600 amp...

In the meantime, while I re-built the chassis pan of my XL600, using Cardas RCAs and 5 way binding posts, along with heavier gauge wiring, cleaned up the AC wiring layout and installed an IEC jack. I stripped the amp down exactly like the 500 to keep everything the same... for easy comparison. Right now the XL600 is powered by the Franken'Amp CLC supplies... I have only taken a few pictures... too busy listening. This 3 piece Franken' amp is a monster, frankly I am nearly surprised I have not popped fuses in the Maggies, not by abuse or clipping... simply putting humongous amounts of power into them. I never heard any Maggies or my Maggies play like this... I doubt the I would ever need a subwoofer... they do ~ big ~ tight ~ bass. This amp configuration exerts incredible bass control over the panels...

The vertical layout created room for the audio circuit (in the back 1/3 of the amps) and I was feeling driven to isolate the magnetics of the toroid and inductors from the audio circuitry... I pondered the parts in various layouts for over a month and finally resolved all of my goals with this layout. I wanted to keep the wiring paths short, symmetrical and tidy [rats nests make me crazy] not judging anyone else's work, I am my own worst critic.

This power supply driving "Hafler 500 and 600" has ridiculous clarity, sense of finesse and effortless ease. The Macro and micro dynamics are unparalleled, compared to any amp that I have built in 40 years...

My reference for sound has been the Futterman OTL4 sitting in the middle of the frame... I have only powered it up ~once~ the past 2 months of being blown away by the CLC designs. I wish my OTL tube amps could play like these... there are ways that I prefer the solid state (yes, I said that).

My question is if a speaker like a JBL Boombox ( with passive radiators on the sides) or Devialet Phantom etc, uses the passive radiators to compensate the narrow baffle and add bass?

I have used the forum in recent months to help with repairing a few amps for friends and so am listening to proper hifi again (the repairs were successful 🙂) rather than the Sonos I'm used to so this led me to think about buying an amp but while thinking about that I've decided to build one instead.


Although I'm used to working with electronics it has mainly been digital so it's great to see so many good designs on here as I really would not know where to start designing one. I would however say that the organisation is terrible 😀 so investigating different options has not been so easy.

I seem to have settled on the Apex A40, it looks like a great amp to build. I would like to ask some questions before I start and just wondered about how to do that. Many people seem to post on the 100w-ultimate-fidelity-amplifier about various different Apex designed amps which to me a little confusing.... or should I start my own thread?


Well I'll ask a couple of questions now anyway:

Is there some system to find the latest info on this design? I see that alex mm posted some great looking PCB's in January 2015 but do I need to read every post since then to find if there were errors or improvements?

Everything I see on here seems to be through hole construction, is there a reason for that? I would like to change at least some of the smaller components to surface mount if only to feel that I've had some input in the design process.


Thanks Simon

I may get flamed for my first post being on this topic, but let me state up front that I absolutely have no issues with paying for intellectual property. As a related example, I just sent off for a custom t-shirt today (personal use) and paid royalties ($10 each) for a couple of clip art items that fit the bill. And yes, to me $10/single use seems high for clip art....

I’m keen on trying the LX Mini +2 project but have hesitated on the $160 plans. I realize I’ll come across as a cheapskate, so help me. Is this high, cheap or middle-of-the-road?!?

Thanks,
Z

I’m 51, and no I’m not yelling at clouds or to get off my lawn. 🙂

Hi everybody!
I have this bias adjustement issue on V3, I can turn the potentiometer all the way and still got only a 0.4V reading.
So I suspect the dedicated potentiometer to be faulty, am I right?
Changing tube placement do not change anything!

It’s a tight fit here, I did a custom casing so need a Mouser part number.

This one?

3386P-1-503LF Bourns | Mouser Canada

thanks’!!!
Denis

I've read several comments about PP toroidal transformers needing balanced DC current. I know that this can be mitigated with garter bias, but what if I want to use fixed bias?

I'm curious what the threshold is, and what happens. Is a 1mA imbalance okay? 5mA? Does it cause increased distortion? Or damage to the windings?

Hello, I've build this (found somewhere from internet) and it sounds good.

No audio problem, nor THD% change. It seems less booming bass and more available dynamic.

Now screen should work just at little bit lower voltage than the plate. Safe but nearly the max allowed (i.e at plate voltage). But I didn't measure voltages yet.

Any concern about this zener circuitry (instead connecting it, as usual, to the lower voltage power supply of the previous stage via a kohm resistor) ?

Thanks

Free PDF from 1945:

https://worldradiohistory.com/BOOKS...AesrRbil4_O0xU80sWnIQyfazE8J145L87L02uqdjj4Ak

Anand.

I have assembled a pair of approximately 900va transformers to function as a line isolation transformer. These are placed inside a steel cabinet and are fused at 8A, using a circuit breaker, and definitely improved the noise floor of the digital player/DAC, and a/b amplifier setup.

What I am now wondering, is if there would be any advantages to having the differential mode X capacitors between the two secondaries, as opposed to have them after the dual transformer configuration, as they now are?

Looking to light up the inside of my tube amp doing daytime listening ala Macintosh. Anybody done this/suggestions?

Thanks

I picked this deck up from a friend who said he plugged it in and it worked for a short while then stopped. Hadn't used it for years. I replaced all belts and capstan tire, but still would not operate. After a good while of looking around, I realized that unit will work, but only if the cassette door is pushed inward just a very small amount and seated. Let go and it stops again. The push is only a 16th of an inch or so. Is there an adjustment for this door so that it locks fully seated?

Thx
Mark

Hi!

Have a problem with my trusty E-MU 0404 USB interface. Recently did a software update to 1.40 BETA (Creative site) which froze the unit and killed both the mic inputs somehow. Now I don't get any sound wave from the mic, just static noise which sends the levels clipping. So no sound and a tap on the mic will be enough to make loud cracks, even if mic input levels from unit are at minimum. Also the mic channel volume leds show this, they go completely haywire.

I uninstalled software + drivers, reinstalled the previous version and updated firmware. Got perfectly normal clear sound from mic inputs for 2 minutes, after that the sound died again.

The weird thing is that all the time system sound works perfectly normal.

Have tried different mics and cables, with phantom and without. Changed E-MU power supply to another one. Opened the unit to visually inspect for bad caps (none showing). Swapped sample rates around (the only working one for me has always been 48kHz).

I'm really at my wits end here. I hope someone can help to bring this good old kit back to life. I thought it could be a hardware problem, but the problems came straight after the software update AND both mic inputs died at the same time. Also confusing is that I got it working briefly after downgrading software. 😕😕

Thanks in advance!

When using PSUDII I often get the warning message:
"A current sink has pulled the voltage below zero for more than 5 cycles, at time ..."

I understand that tubes are not a constant current sink on startup, but what when they are already hot and you turn them off and on again in a quick succession ( hot start), would this pull the voltage below zero and what effect would this have?

There must be a reason why the designer of PSUDII added the warning.

When entering known working designs of amps, as in the attachment, I do get the message which is odd to me.

Hi all,

I have problems with the calibration of my HP 339A Distortion Analyzer. According to the manual at the ADJUSTMENTS SECTION V 5-10, I zeroed the meter without power and the result is okay (Pic 1). But when I switched on the 339A there is a deviation (Pic 2).
The next problem is that I can't adjust the 3 Vrms according to 5-12. The maximum voltage I can adjust is 2.93 Volts (Pic 3).
My power source unfortunately is not an AC calibrator but a HP 3325A with a quite clean 1000 Hz signal at 3.0005 Vrms.

Does anyone has an idea where to start the trouble shooting?

Many thanks in advance for your help
Michael

After 4 years I decided to use again my Copland CTA-401.
It started working good, but after an hour the Main fuse(3,15A) burnt. I replaced it, but it burnt again, immediately.
I decided to control, looking at all parts of the amplifier.
This is the schematic: http://www.audiokit.it/ITAENG/UpElettr/COPLCTA401/Sch401-1-1.jpg

R34 seems to be "cooked". the other 3 resistances of same purpose(R33, R133, R134, in the other 3 tubes) have the red band visible. The red band of R34 became "darky", and also silver and gold bands are darker. I decide to measure: R34 indicates 819 ohm. the other 3(R33, R133 and R134) measure 812ohm.

What happened? Do you think I can simply change that resistance and try again, or is better to control every part? Maybe there are problems with the tube or with the output transformer? 😱

Thanks to everyone can help me!

I'm having trouble finding any btd1304n3's anywhere. Does anyone know of a substitute?
