Hello! I'm new to the forum and I'm hoping someone may be able to help me. I have been trying car audio amp repair but I'm lost at the moment.
I have 2 Monoblocks with different issues.

1. Concrete Audio 2k
Protect mode at 13v+ although rated up to 16v
At 12v, gain all the way down, no input, and with a speaker connected (I have tried a few different speakers and all do the same), starts normally then makes a loud pop every 3-4 seconds and flashes protect light
Does not happen with nothing connected (12v), audible click, power light and fans running, no protect

2. Soundstream XXX-6500D
Turns on with power LED and no protect, fans run, but no output to speaker terminals
Tried multiple speakers, tested with multimeter (any settings to try? I may not have tried correct setting), multiple RCAs, but only tested with 12v. This specific one has ratings at 13.5v, 14.4, and 16v but my other XXX-6500D has at 12v-16v.
Would 12v vs 13.5v cause this?

As of right now I would prefer to get the Soundstream working sooner than the Concrete Audio amp as I would like to install the Soundstream in my setup

I have a variable power supply that can go up to 30v and 3amps, a component tester, multimeter, and an oscilloscope but I am a bit confused on where to probe, what settings I should have, and where I should ground the probe or if I shouldn't use the ground lead.

Any help is appreciated and if there is anything someone would like me to send pictures of I can do so.

RayD8r · 2024-10-04 12:21 am

I posted in another thread but it's concerning a different issue and didn't get a response so I'll give it a go here. I have a pretty clean Onkyo TX-8211 receiver. There are 4 speaker outputs, A + B - L & R. BL doesn't output any signal to the speaker upon powering on the receiver until the volume is turned up to around 2/3 to 1/2 volume, which is quite loud. Get me into trouble with the building manager loud. Once it kicks on though, it will remain working, even at low volume for as long as I keep the unit powered on, even if the music stops and starts again. Once I shut the power to the receiver off though, it's right back to not working. I removed the main board from the chassis and looked it over thoroughly with a loupe because there were traces of what looked to be solder and possibly very fine silver wire which initially made me think that a jumper or other component had violently exploded but after examining the board for a solid half hour, top and bottom, close up I couldn't find even the smallest evidence of anything out of place and I would think that any kind of damage that would produce little shards of metal would be at least somehow visible somewhere on the board so I've ruled that out for the most part. There's no burn marks or any discoloration anywhere nor any solder points that look abnormal, pieces of any components or stubs left where any component would have been. It's actually a pretty nice looking board for it's age. So in reading several things on it all points kind of lead to a speaker protection relay of which there are only 2 on this amp. They are both DG2SU DEC relays. Looking for some input on this issue please...

jcsb · 2024-10-05 1:34 am

So as a retired mechanical engineer I take interest in how the layout and assembly features are handled by different manufacturers. So, I have a Krell 300-s amplifier apart and was really intrigued by how they chose to attach boards and casings. This is my amp and it's the first time I've had it apart. It was in climated controlled storage for about 4-5 years. Set it up and turned it on and no right channel. Reviewing the power supply board and found (2) 5ohm 5watt resistors that were open. Replaced those and was able to start it until it went into action and failed. Removed the output board and the driver board. Found some parts that were cooked from the start up. Fix those and the next time, no right channel.

Starting with the power supply board I found the same 5 ohm 5 watt resistors opened again.
This lead me to disassemble the power supply board with the 68,000 ohm 100v capacitors on it. Two things struck me as really odd. First, the board is not attached to the case. It is in free suspension with only the straps coming from driver board suspending it. Certainly not the way I would do it since it would be susceptible to stress when moving the amp. But the real problem was how the large capacitors were attached. They were attached by only one screw and the other post was allowed to make contact only from the friction of the other screw holding to the board. I had originally thought there was a screw that went though the center of the bridge rectifier that would secure the other post, but no. This is without a doubt the most unusual and potentially dangerous way I can imagine. The first capacitor I removed (once again only one screw holding it) had been arcing off the contact land on the circuit board where there was nothing securely attaching it to the board other than the other post that did have a screw.

I would love to think that this had been worked on before I bought it and they forgot to install the screws for the other post. If someone out there has any information on this I would love to hear from you.

John

Zero Cool · 2024-09-03 12:07 am

does anyone know if Guido Tent is still around? it looks like he hasn't posted here since 2021 I sent him an email some time ago. just curious if he is still active?

aveo5 · 2024-10-06 2:39 am

Hi I have a Sony amp and I want to wire it to a Rockford fosgate punch p1 single voice coil. I made the mistake of assuming it was dvc before purchasing it. I can't run 2 bridged channels to each voice coil if the sub was a dvc.

Does anyone know if there is a way to bridge the 4 channel down to 1 channel to make it run in mono?

gbowling · 2021-02-15 10:54 pm

I have an ancient Fluke 8060a that the display has been out for many years.

I ran across it in the shop the other day. After searching the internet for an LCD display for it for most of the afternoon and coming up empty, I was about to throw it out.

There were some web pages about rewiring the leads and attaching a different LCD display, but it seemed like a lot of work. And I have two other Fluke meters, so no worries.

But before I threw it out, I decided to just take it apart and see if I could see anything obvious. There wasn't anything obvious, it was pretty clean, the board looked ok, there was very little dirt and no residue of any type that I could see.

But just for grins, I decided to clean the contact area on the LCD with alcohol, do the same for the connector side, and put it back together.

To my amazement, when put back together it works perfectly!! The LCD, which had maybe two segments you could read, is now just like brand new!

So long story to say I learned a lesson! Those old LCD displays may not fail as often as they appear. They just lose good contact and need a little cleaning.

gabo

fubar3 · 2024-10-05 7:38 pm

I got TO220 mica and this fragile thermal tape 567-DST-38-1-76X127. Maybe the tape can be divided?
What should I get to fit BD139 SOT-32 / TO126.

aveo5 · 2024-10-06 2:17 am

Hi after recovering from an aneurysm I've d cided to rebuild a car replacing everything I can with newer equipment. I bought a 73 Opel gt and am buying a ford 1.5t dragon motor with a Alfa romeo transaxle for the rear. I'm adding electric ac, pw, pdl, pm, ps. I'm redoing the interior, repainting it and I want to drop in a kickass sound system.

I decided to do the same with my everyday hatchback since I ended up finding 3 Sony amps.

Kmet · 2020-08-18 5:35 am

Hi..

I want to build stereo MPX decoder (adapter) for my Fisher FM-100 tuner. I was looking for some article in old electronics magazines but until now without any luck. If any of you old/new timers have some information where to look for that kind of magazine articles please tell me.

Thanks in advance.

Dubravko

Asterix2k10 · 2024-10-02 4:54 pm

So I get the Audible Illusions Modulus 2c pre amp back. Here’s what he did. Resoldered circuit board completely - cold joints. Repaired volume control. Replaced noisy tubes. Bench tested for 8 hours. I plug it in and I’m getting crackling white noise on the left side. It plays sound, and then I noticed it is microphonic, amplifying the sound of the mute switch when I push it. I’m going to call them tomorrow but it’s disappointing.

teknofosssil · 2020-05-06 10:31 pm

I bought the Booze Hound so called "Deluxe" phono preamp PC boards and matched FETs. This project caught my interest due to its simple circuit, similar in concept to some of NP's circuit philosophy. Unfortunately it will be a bit before I have time to sniff solder flux. Anyway I was just curious if anyone has built it.
Below is the link if anyone wants a look at whats involved. Take a look at their construction manual too. For 99 bucks you receive 10 matched FET's and two nice quality PC boards. You source the R's, C's and case/hardware. If you are constructing a power supply then transformers, diodes and so forth.

Deluxe Phono Preamplifier – Boozhound Laboratories

gerrittube · 2024-10-04 7:02 pm

I discovered today that one of my (new) 6SN7’s from my stock is quite noisy. I changed the tube and it was a huge improvement (> 20 dB).

I read about reconditioning a tube by heating the tube for 24 hours (or more) and of course I can try this.

What are your thoughts on this and what’s your experience?

Regards, Gerrit

kevinkr · 2010-09-27 12:33 am

Having looked at a variety of very crusty Thorens TD-124 threads, none of which really related too directly to my project I have decided to open a new thread.

I have just acquired a fairly clean, and low hour TD-124 MKII with an SME 3009 Series II arm which I am going to restore.

I acquired this from a parent of a friend who lives in Manhattan so you imagine the day I had yesterday driving down and back as a consequence of this TT purchase.

The TT was a built in and does not have a plinth of its own. Every last bit of rubber with the exception of the belt and pulley has deteriorated to the point of needing replacement understandably..

The lubricant in the motor bearings has turned to glue so rather than just clean and reassemble I have decided to install a motor bearing upgrade kit which replaces the tinned bronze bearings with precision machined sintered bronze bearings, new felt pads and all of the hardware required to reinstall the bearing caps on the motor. (Should this prove not to be as good as claimed I will keep the old parts for that eventuality.)

I need to replace the motor mount bushings, the "gummi-muffins" which are the TT mounting bushings, the six pads on the platter, the belt.

I also plan to install a stiffer bearing cap on the main bearing but since this is a late model MKII I plan to retain the original sintered bronze bearings as they aren't worn at all..

I haven't quite decided on the plinth, but I am thinking to start it will be one of the moderately priced ($400 or so) CLD plinths available on eBay.

This unit has the later aluminum platter so I can use my Zu/Denon DL-103 without concern for the issues of magnetic attraction with the earlier iron platter - the down side is the aluminum platter is reputed not to perform quite as well due to somewhat lower overall mass.. The older iron platter apparently somewhat less resonant, not that this platter appears to have an issue.. The other significant difference is the strobe on the platter is 33 rpm only..

Parts in some cases will be sourced from Octave, and in others from a couple of well regarded eBay sellers of TD-124 parts and upgrades.

The arm has already been cleaned up and is complete and in very good condition except that the decoupler will have to be replaced. (They're readily available.) I also plan to install RCA jacks on this arm as I have done on my other.

zycomatique · 2024-10-05 5:30 pm

I d like to have a battery power supply on my amp with a regulated power.
Often this type of PSU is criticized for its lack of Dynamic. The asr emiter Is known to work perfectly with its battery PSU: Is it a regulated one?
Does somebody know such a kind of PSU with very good sound?

jazzboy · 2024-10-05 2:45 pm

Zero Baffle Demo with Live Sax.
Login to view embedded media

8ntractor · 2024-09-23 5:35 pm

Hi

A few years ago I got a tremendous amount of help from Several members when changing from Seas Magnesium drivers to Nextel drivers due to corrosion. The Cabinets were the small thor and with the great help of this community I was able to get very good results. When I started on the DIY thing I was sceptical and built really fast boxes which I never finished and which were really not very well done so fast forward 13 years and I am building a pair of speakers with the same drivers and crossovers. Using a holey braces from the old Thor but I wanted to move them into the main area of the house from the basement so I am making extra small thor speakers. The speaker will be 43 x 8.75 x 12 or internal dim of 7 1/4 (183)x 10 3/8 (264) 42 (1070) the tweeter is 31 1/4 (795) from the internal base.

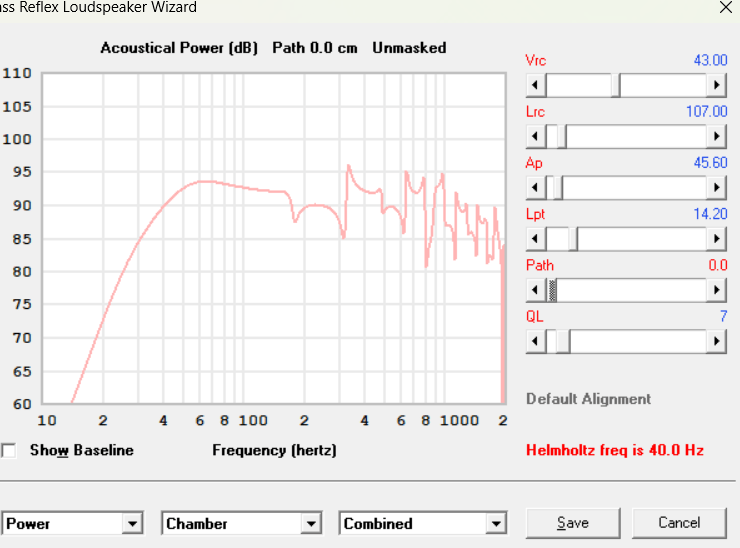

My intention is to build a BR speaker I would have prefered a mltl but after spending many many hours on Hornresp I have come to the conclusion that I am not familiar enough with speaker building to get this right. So my question is when I do put the numbers in at 43 liters and 107 length I end up with the attached chart

As I understand it the path is the distance for the center of the tweeter to the center of the port. So setting the path at 70cm I get

I really like the way the small thor sounded. So I would like to replicate as much as possible given the limitation on the size of the speaker and the nextel drivers.

So my questions are if built as a BR speaker will fiber fill take care of the jagged peaks and valleys?
Where is the best place to put the port?

To Run hornresp as a TL - With the holey braces in how do I calculate the S1 S2 S3 ?
Where does the horn start do I measure from the tweeter (mtm) to the top of the box and back down to the bottom?
What effect does the vertical holey brace have? is it a divider or just a brace is my horn length 107 or 142 or 249 ?

I very much appreciate Hornresp and thank you David for creating it.

Here is the listening position FR for the small thors with the nextel drivers after much help from Allen and Lojzek GM and many others they are now in the campfire and the braces are in the new speakers

tonyEE · 2024-10-05 1:42 am

Went to Costco today... Tustin II. The demographics in that place has a LOT of people wont to act with a herd mentality.

No toiler paper.

Crew told me it was due to buyers "stocking up" on account of the Eastern Port strike.

He was shaking his head, me too, at their incredible stupidity. Maybe they think their TP comes from Germany?

Meanwhile trucks and trains and the Western ports are humming along and I believe toilet paper in America is.. "made in America".

The stupidity of people never ceases to amaze me.

What really pisses me off is that we got lots of TP at home. I could have made a killing on Craig's List.

arivel · 2024-10-05 5:48 pm

hello everyone .
is there an acoustic lens to be placed in front of the LF drivers?.
maybe doing this doesn't make sense (in fact they are usually applied to the HF drivers) since the low frequencies propagate in all directions, in this case the lens must concentrate and focus.
i wonder if there is an analogy with the optical lens (convex shape concentrates, concave shape diverges).
if it were possible to focus a portion of SPL i would like to try with karlson and hear what happens.
Thank you

Spikyball · 2024-10-01 9:25 am

Hello, I have a 46cxa1800.1 class D mono amp with a burned output transistor and I cannot figure out what to replace it with, it's labeled T410 BV8316, there are four at locations, q103, q104, q203(damaged), q204. I'm limited in my knowledge and tools, all I have is a multimeter for testing, I did read that it is recommended to replace all of them for a lasting repair.

mason_f8 · 2024-10-05 12:58 pm

Most modern OP-AMPs, even single types, do not have an offset pin, but many older single type OP-AMPs had an adjustable offset.

I was recently surprised to see on TI's website the latest datasheet (revised 2024) for the OPA132 (and also the OPA134) that pins 1 and 8, previously assigned to the offset trim pins, are now NC.

From the old datasheet.

At first I thought it was an error in the datasheet revision, however, but the notes on pins 1 and 5 (which may have meant pins 1 and 8) said
‘Existing layouts for the OPA132 before revision C of this data sheet do not need to be redesigned.’
And when I checked, I found that OPA131 and 130 also had pins 1 and 5 assigned to offset trim pins before, but they are now NC as well.
Even the OPA627, in its moulded package, is now NC, and only TO-99 here retains the trim terminals.

(The OPA604, TL071 and others still have trim terminals as before.)

The ones I own were acquired a long time ago and all can be adjusted by adding trim pots, but does this mean that the newly produced ones cannot be adjusted? Or does it mean that they are still connected internally as before but (as TI) do not recommend offset adjustment there?
Of course the correct offset adjustment should be made at the input, and we are aware that adjustment by a degenerate resistor such as a mirror inside the circuit can exacerbate temperature drift and other.
However, is it really acceptable to make such an essential functional change to these OP-AMPs that have been in use for a long time? I very much doubt it.

justilew · 2024-10-05 5:47 pm

Hello, I am just starrting my journey in diy audio, hoping the wealth of knowledge here point me in the right direction.

mprivitera1 · 2024-09-08 9:14 am

Hi guys, I bought a prehistoric 😀 piece of final amplifier...I found that the (right) channel is much attenuated compared to the left.
The sound comes out without any noise or anything else....but the right one is about -12db attenuated compared to the left one.
Once turned on, the amplifier detects no errors, green light for both channels.
In your opinion are the potentiometers db regulators or protection relays....or something else.
What do you recommend doing...

Thank you

SomeJoe · 2024-09-21 7:02 pm

Hello !

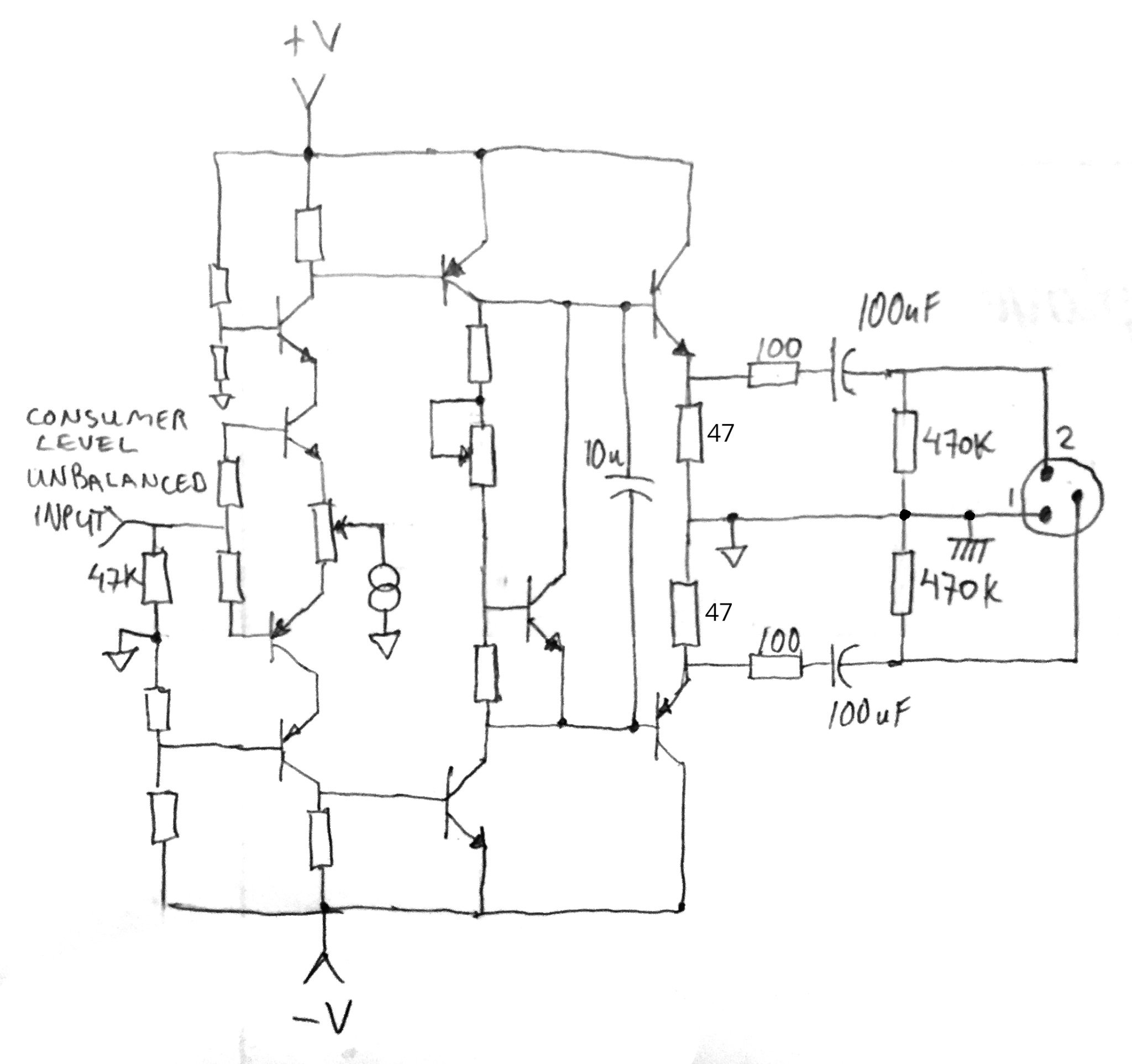

Trying my hand at a single-ended to balanced line driver/buffer. See preliminary block diagram below. Main characteristics and design goals:

Provide the 12dB gain from -10dBV consumer level to "pro" 4dBu
Standard XLR output
Able to drive long cables ( 25 ft max maybe? )
Bipolar complementary push-pull configuration
The cascode input stage's high input impedance allows the source to also drive a regular consumer 47K input in parallel to this circuit
Input stage LTP CCS-biased (Vbe referenced)
Class A output stage (BD139/BD140)
+/-15V regulated power supply (not swown)

I have no clue on half of what I'm doing 😛 Does this seem a proper topology? Any unrealistic design goals, perhaps regarding the long cables? Do I need to include a feedback circuit?

Thanks for any insights,
Joris
