What exactly do you call power line decoupling caps?Would it be possible to do the same test with a board where you have replaced the power line decoupling capacitors with better ones? That would show how important the quality of the power line decoupling capacitors is.
The measured audio band ripple on the supply rails is mainly determined by the decoupling electrolytics on board, their capacitance and ESR. MLCCs with several uF with their higher impedance at audio frequencies do have little effect here.
He is writting about the decoupling caps near the chip.
normally its recommended low esr and about 2220µ/63V is enough.

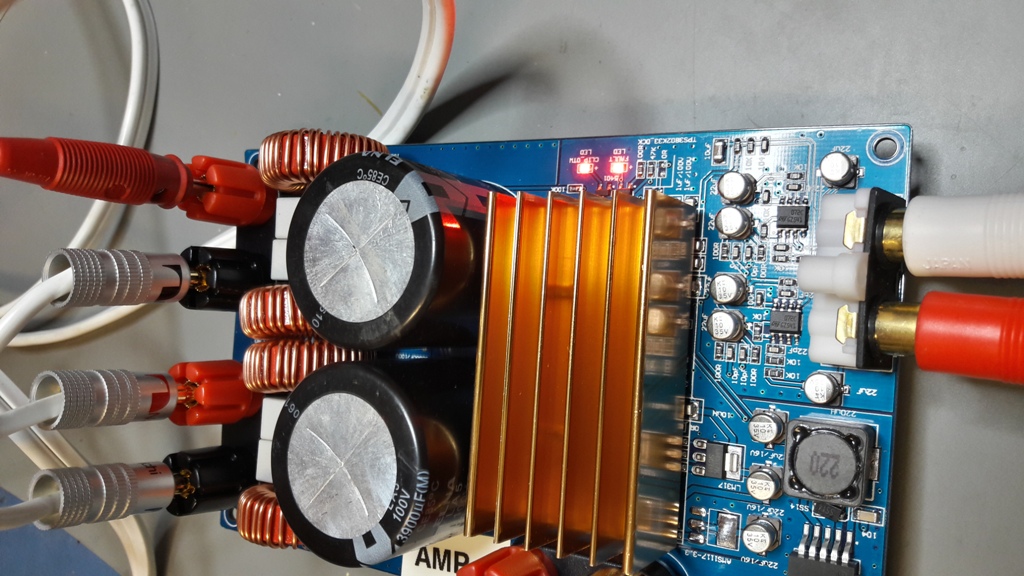

the YJ use elna or sanwah 4700µ/63V (100) labeld. look at the pic(original board...first switch on)
as i wrote i measured after weeks of operation no esr and the sound is better with new caps 😉...maybe because of the noisy regulator (LM2575)
normally its recommended low esr and about 2220µ/63V is enough.
the YJ use elna or sanwah 4700µ/63V (100) labeld. look at the pic(original board...first switch on)
as i wrote i measured after weeks of operation no esr and the sound is better with new caps 😉...maybe because of the noisy regulator (LM2575)
Attachments
...or an actively convected CPU cooler...Got it. A really big heatsink.
Best regards!
...or an actively convected CPU cooler...
Best regards!
generally CPU cooler are "loud"
Yes. It depends on the device's purpose. A PA power amplifier surely will benefit from an active cooler, an amplifier for your home environment most probably not. OTOH, usually it won't be driven that hard here.
Best regards!
Best regards!
Yes. It depends on the device's purpose. A PA power amplifier surely will benefit from an active cooler, an amplifier for your home environment most probably not. OTOH, usually it won't be driven that hard here.
Best regards!
yes yes you are right... i forgot that sweetperfume want to push 400W
so the colling fans are not the problem...😉
yes yes you are right... i forgot that sweetperfume want to push 400W
so the colling fans are not the problem...😉
The EVMs heatsink is available predrilled at digikey for example. Otherwise you may look at Fischer Elektronik:
Standard extruded heatsinks, Heatsinks f.cool, Fischer Elektronik
Feed the search-filter with "<=2" K/W to get some ideas.
I.e.:
SK 453, Standard extruded heatsinks, Heatsinks f.cool, Fischer Elektronik
As requested by FF at post #636😉😀
LRS 150-24....28,7V set
i try a loop test with a burst of 40Hz, periode is 200ms, 1 Cycle. i try 800mVrms in or 1300mVrms into the amps input. at 4R load its more visible. first test did with 8 R.
original amp and caps.

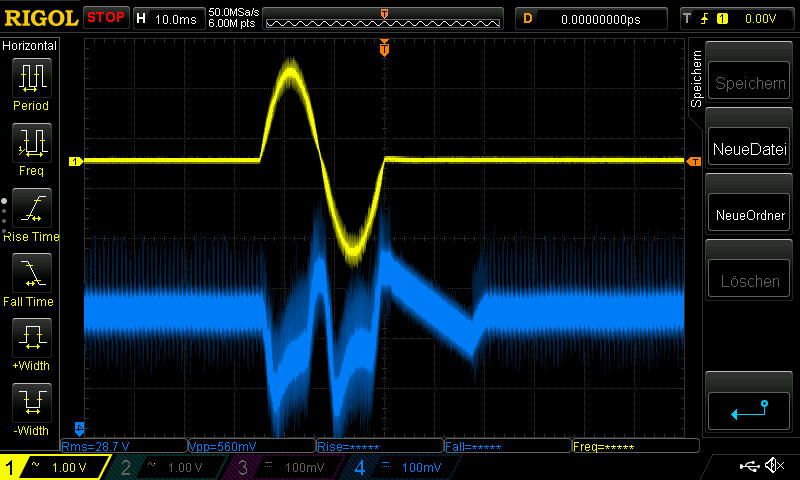

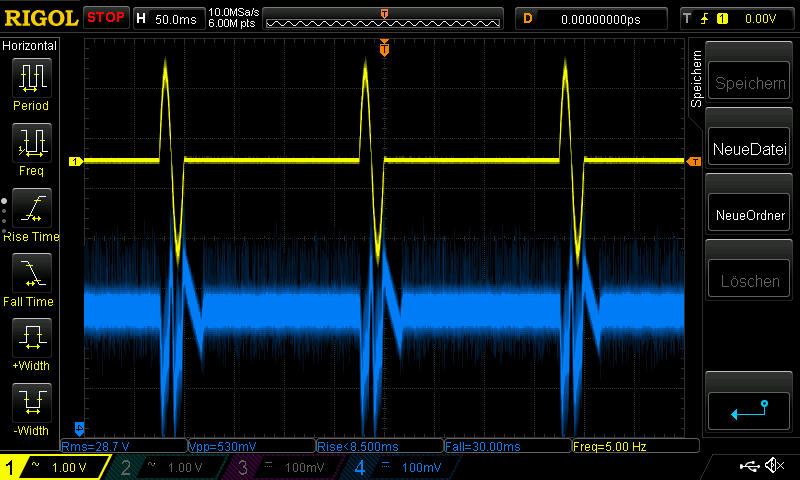

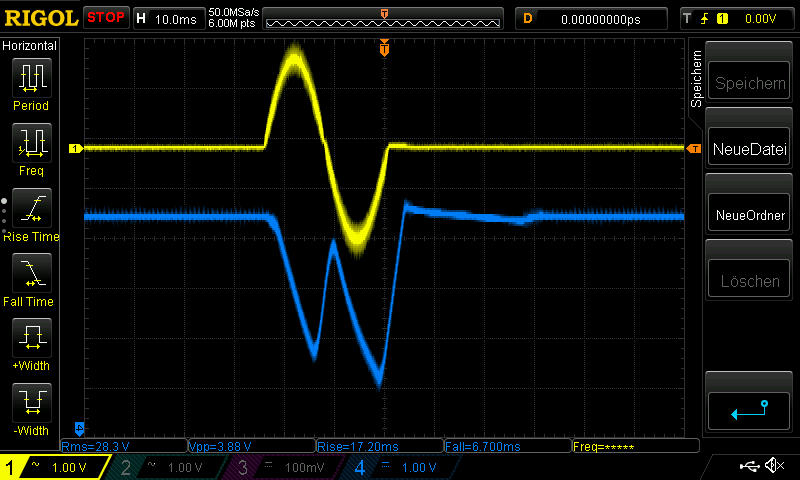

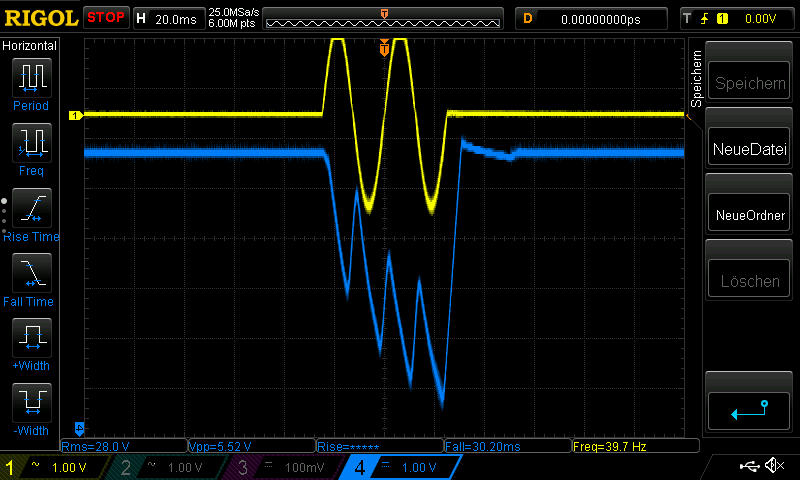

pic 1 8R 1300mVrms in
pic 2 8R same but single burst view

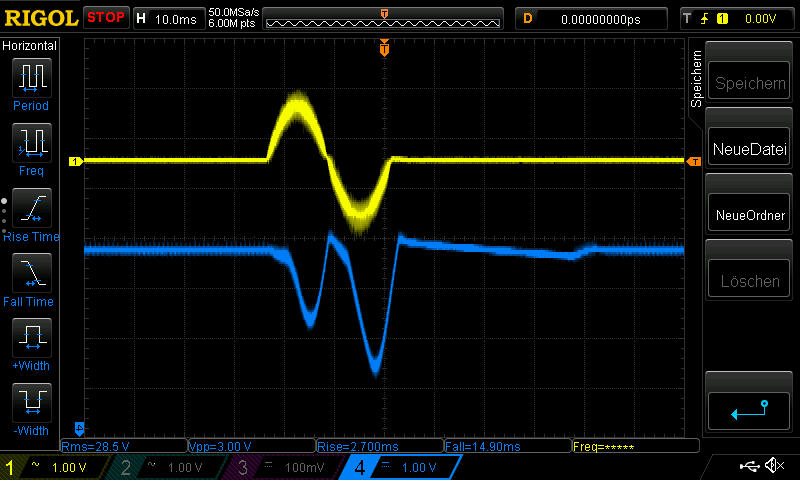

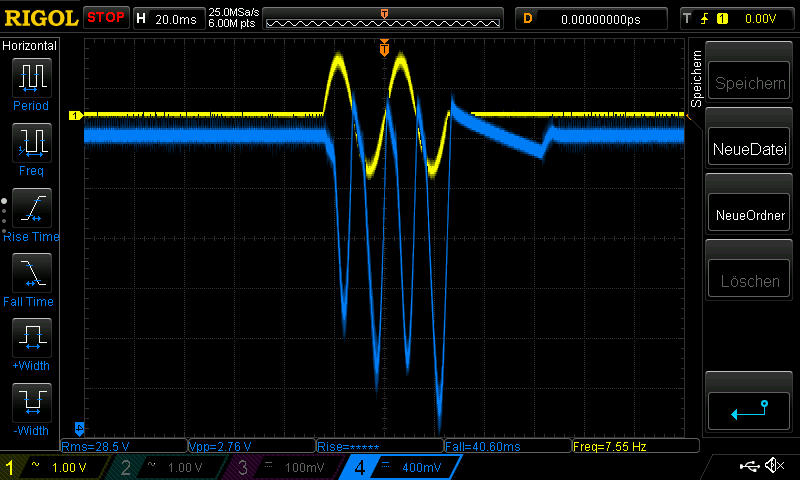

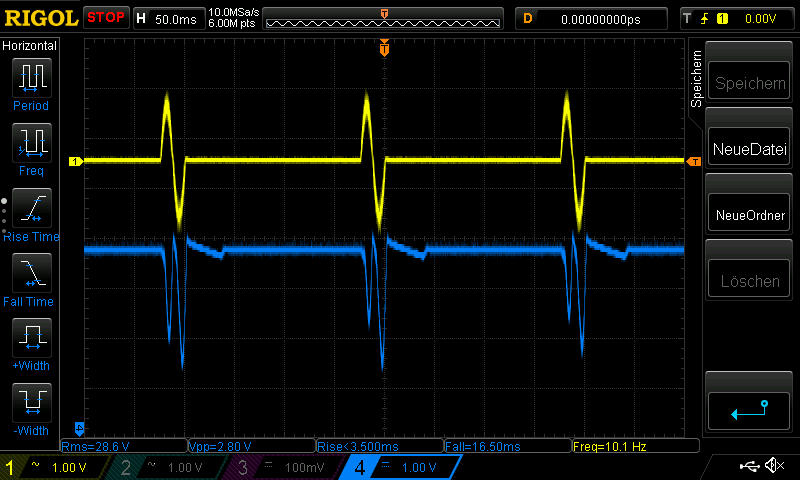

pic 3 4R 800mVrms in
pic 4 4R same but single burst view
pic 5 4R 1300mvrms
pic 6 4R with 2 cycles 800mvrms...omg
pic 7 4r with 2 cycles 1300mVrms..ooooomg
...continued..
LRS 150-24....28,7V set
i try a loop test with a burst of 40Hz, periode is 200ms, 1 Cycle. i try 800mVrms in or 1300mVrms into the amps input. at 4R load its more visible. first test did with 8 R.
original amp and caps.
pic 1 8R 1300mVrms in
pic 2 8R same but single burst view
pic 3 4R 800mVrms in
pic 4 4R same but single burst view
pic 5 4R 1300mvrms

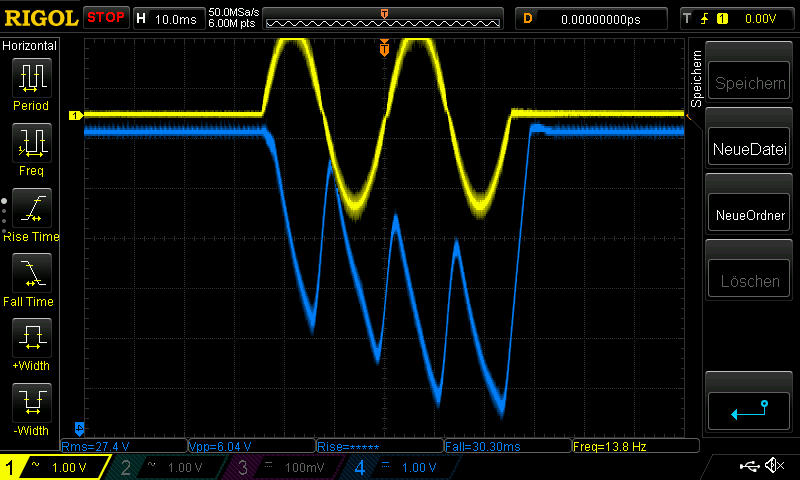

pic 6 4R with 2 cycles 800mvrms...omg
pic 7 4r with 2 cycles 1300mVrms..ooooomg
...continued..
Attachments
-
LRS150-24_40hz_4Routput_1Cycle_200msperiode_1300mVrms input burst_originamp_1.jpg75.8 KB · Views: 90
-
LRS150-24_40hz_4Routput_1Cycle_200msperiode_800mVrms input burst_originamp_2.jpg75.6 KB · Views: 338
-
LRS150-24_40hz_4Routput_1Cycle_200msperiode_800mVrms input burst_originamp_1.jpg78.8 KB · Views: 342
-
LRS150-24_40hz_8Routput_1Cycle_200msperiode_1300mVrms input burst_originamp_2.jpg81.3 KB · Views: 335
-
LRS150-24_40hz_8Routput_1Cycle_200msperiode_1300mVrms input burst_originamp_1.jpg84.3 KB · Views: 357
-
LRS150-24_40hz_4Routput_2Cycle_200msperiode_800mVrms input burst_originamp_1.jpg80 KB · Views: 92
-
LRS150-24_40hz_4Routput_2Cycle_200msperiode_1300mVrms input burst_originamp_1.jpg78 KB · Views: 91

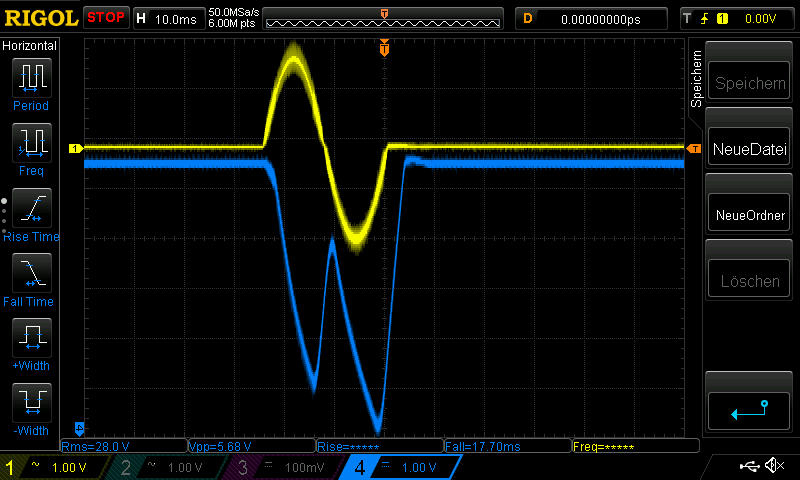

other board (amp6) with GPD caps...quicker but with less juice
just 4R output

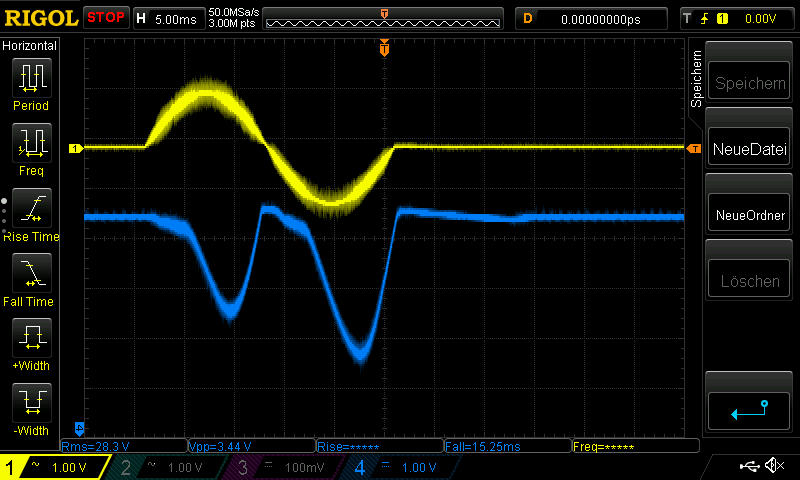

pic 1 800mVrms in
pic 2 same but single burst view
pic 3 1300mvrms
pic 4 4R with 2 cycles 800mvrms...omg
pic 5 4r with 2 cycles 1300mVrms..ooooomg
the smps is directly connecte no additionaly caps are installed! (for the post before too)
just 4R output
pic 1 800mVrms in
pic 2 same but single burst view
pic 3 1300mvrms

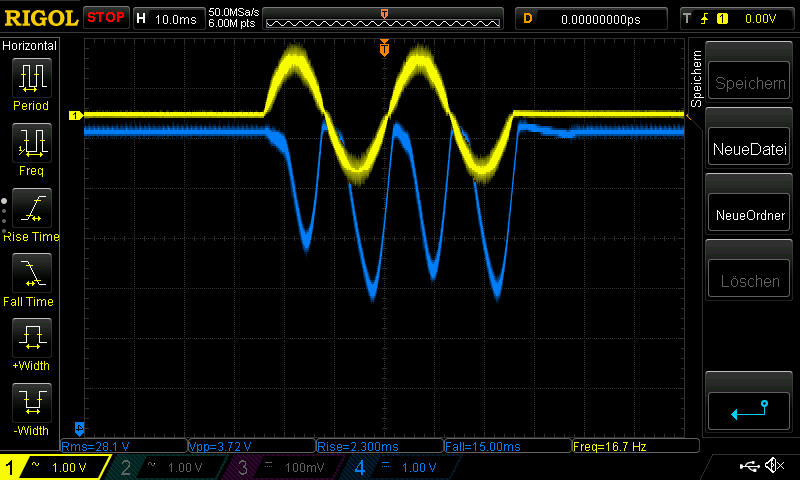

pic 4 4R with 2 cycles 800mvrms...omg
pic 5 4r with 2 cycles 1300mVrms..ooooomg
the smps is directly connecte no additionaly caps are installed! (for the post before too)
Attachments
-

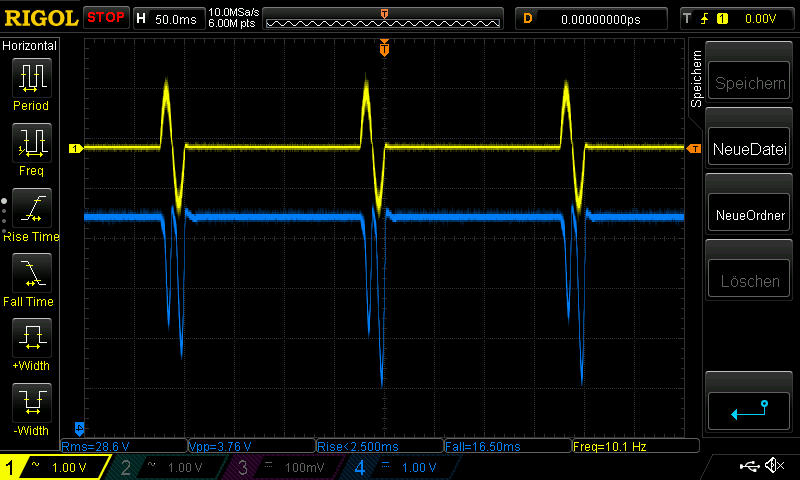

LRS150-24_40hz_4Routput_2Cycle_200msperiode_800mVrms input burst_amp6_2.jpg80.4 KB · Views: 89
-
LRS150-24_40hz_4Routput_2Cycle_200msperiode_800mVrms input burst_amp6_1.jpg78.6 KB · Views: 83
-
LRS150-24_40hz_4Routput_1Cycle_200msperiode_1300mVrms input burst_amp6_1.jpg75.3 KB · Views: 86
-
LRS150-24_40hz_4Routput_1Cycle_200msperiode_800mVrms input burst_amp6_2.jpg75.6 KB · Views: 87
-
LRS150-24_40hz_4Routput_1Cycle_200msperiode_800mVrms input burst_amp6_1.jpg78.3 KB · Views: 101
playing around with the original board/caps i found something interesting:

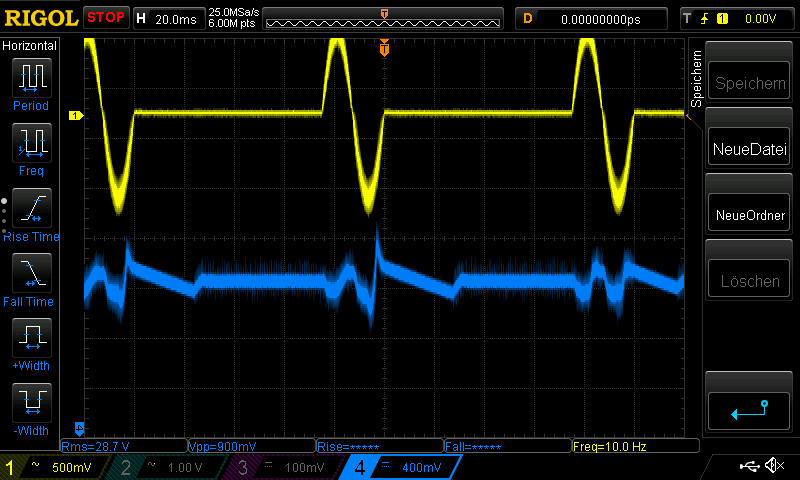

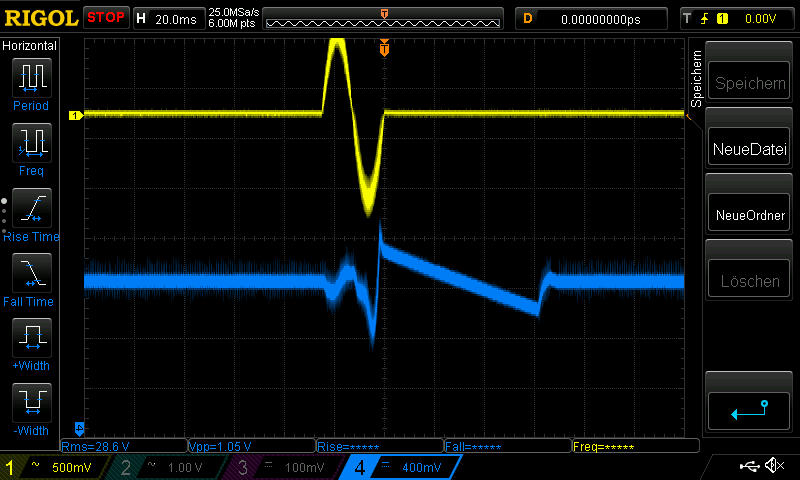

i set the periode smaller= 40hz burst with 600mVrms but the periode of this burst is shorter. 100ms... so i can see the "recovery time" for the smps is not really existing 😀
+ there is an overshoot ! this is not happend with the test setup before
i set the periode smaller= 40hz burst with 600mVrms but the periode of this burst is shorter. 100ms... so i can see the "recovery time" for the smps is not really existing 😀
+ there is an overshoot ! this is not happend with the test setup before
Attachments
does high frequency burst the power supply? yes....

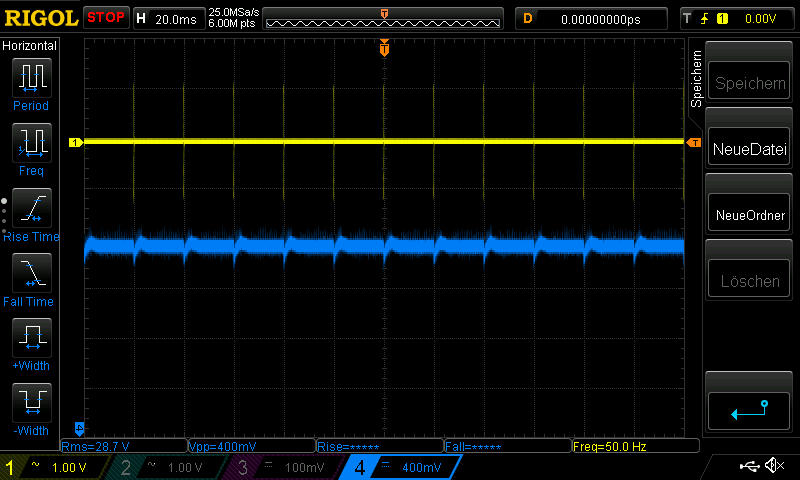

4R load burst is 5 cycles, periode is 20msec, 800mVrms in the original amp/caps

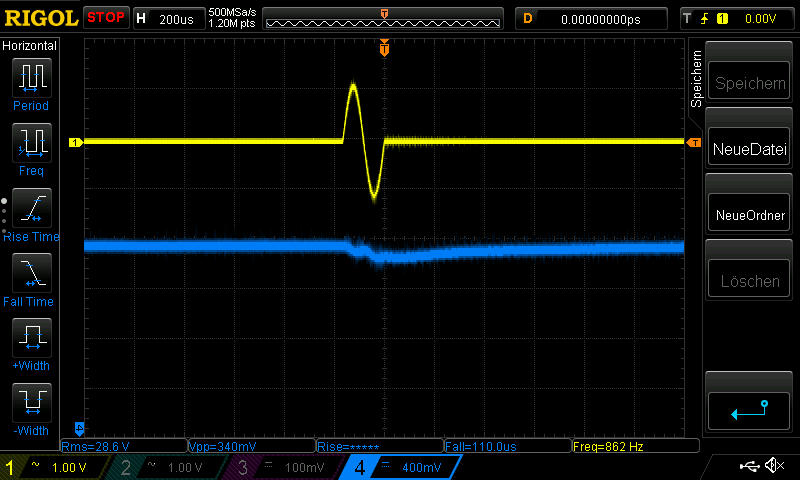

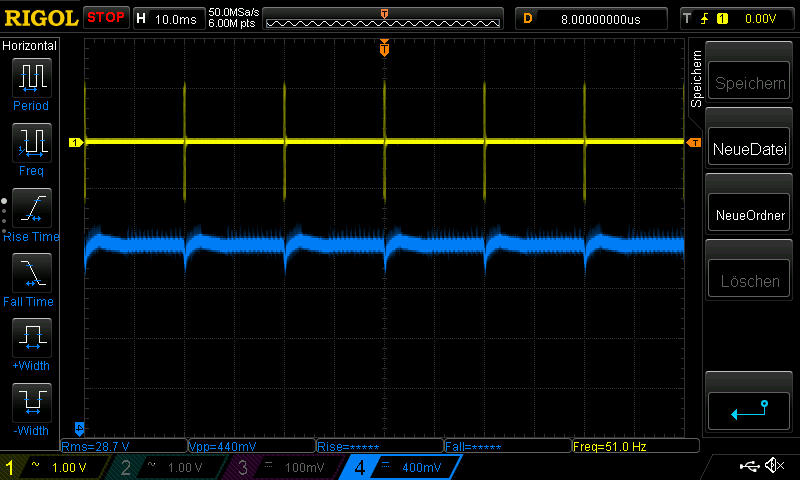

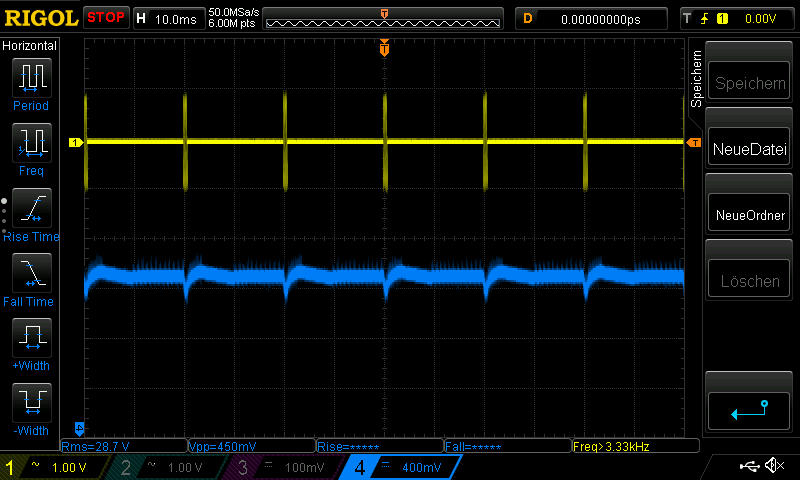

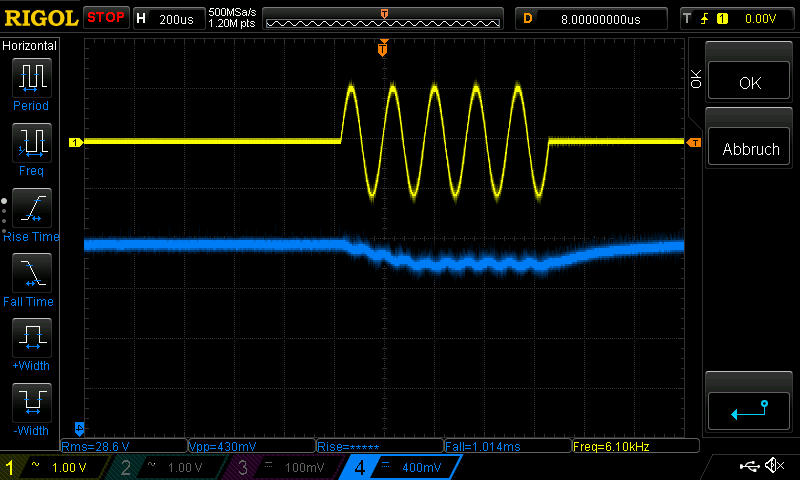

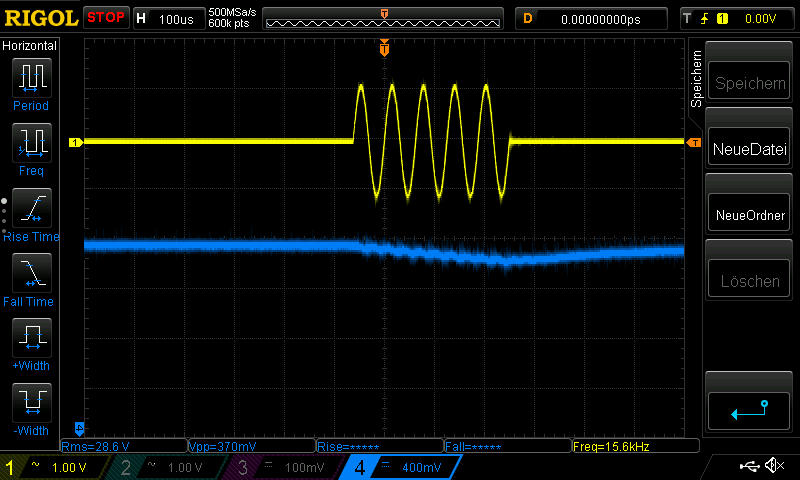

pic 1 6khz
pic 2 same but single view

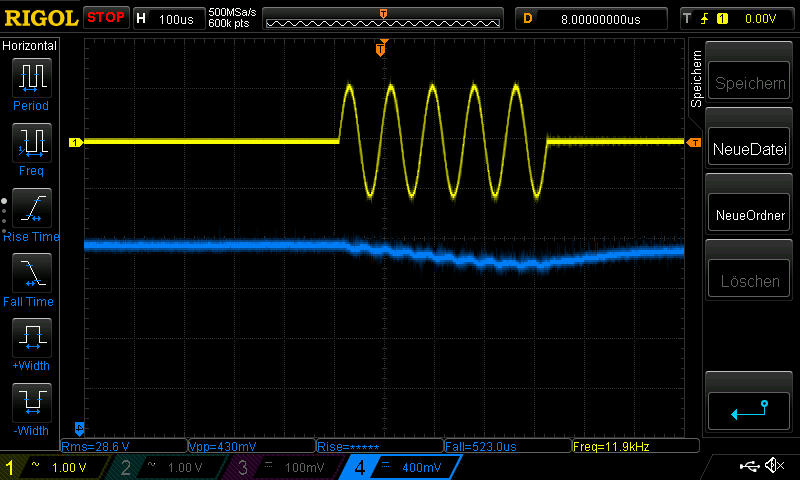

pic 3 12khz
pic 4 same but single view
pic 5 16khz
pic 6 same but single view
pic 7 +8 is the 1 cycle burst
..continued...
4R load burst is 5 cycles, periode is 20msec, 800mVrms in the original amp/caps
pic 1 6khz
pic 2 same but single view
pic 3 12khz
pic 4 same but single view
pic 5 16khz
pic 6 same but single view
pic 7 +8 is the 1 cycle burst
..continued...
Attachments
-
LRS150-24_6khz_4Routput_1Cycle_20msperiode_800mVrms input burst_originamp_2.jpg70.1 KB · Views: 85
-
LRS150-24_6khz_4Routput_1Cycle_20msperiode_800mVrms input burst_originamp_1.jpg71.2 KB · Views: 85
-
LRS150-24_16khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_2.jpg74.2 KB · Views: 86
-
LRS150-24_16khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_1.jpg71.6 KB · Views: 83
-
LRS150-24_12khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_2.jpg74.2 KB · Views: 83
-
LRS150-24_12khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_1.jpg70.9 KB · Views: 411
-
LRS150-24_6khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_2.jpg71.8 KB · Views: 401
-
LRS150-24_6khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_1.jpg72.2 KB · Views: 406
4R load burst is 5 cycles, periode is 20msec, 800mVrms in the amp6 changed decoupling caps = GPD
pic 1 6khz
pic 2 same but single view
pic 3 12khz
pic 4 same but single view
pic 5 16khz
pic 6 same but single view
pic 7 +8 is the 1 cycle burst
good night
pic 1 6khz
pic 2 same but single view
pic 3 12khz
pic 4 same but single view
pic 5 16khz
pic 6 same but single view
pic 7 +8 is the 1 cycle burst
good night
Attachments
-
LRS150-24_6khz_4Routput_1Cycle_20msperiode_800mVrms input burst_originamp_1.jpg71.2 KB · Views: 73
-
LRS150-24_16khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_2.jpg74.2 KB · Views: 90
-
LRS150-24_16khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_1.jpg71.6 KB · Views: 81
-
LRS150-24_12khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_2.jpg74.2 KB · Views: 80
-
LRS150-24_12khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_1.jpg70.9 KB · Views: 80
-
LRS150-24_6khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_2.jpg71.8 KB · Views: 88
-
LRS150-24_6khz_4Routput_5Cycle_20msperiode_800mVrms input burst_originamp_1.jpg72.2 KB · Views: 86
-
LRS150-24_6khz_4Routput_1Cycle_20msperiode_800mVrms input burst_originamp_2.jpg70.1 KB · Views: 84
As you can see, it is not much important if you have 1000uF or 10000uF. 😀
The overshoot is totally normal and will rise with more capacitance
You may add 500000uF, that should help at low frequencies but will increase overshoot if long bursts are run. (If the supply will start)
The overshoot is totally normal and will rise with more capacitance
You may add 500000uF, that should help at low frequencies but will increase overshoot if long bursts are run. (If the supply will start)
As you can see, it is not much important if you have 1000uF or 10000uF. 😀
The overshoot is totally normal and will rise with more capacitance
You may add 500000uF, that should help at low frequencies but will increase overshoot if long bursts are run. (If the supply will start)
hi doc

thank you for your feedback. i will try some extra caps.
as i can see on the pics there is no marcant event happend that can be markeble for SQ between the original and the new caps. in real life it is.....any hint to see that?
generally
is the response time of the LRS-150-24 (28,7V) ok???? too slow...normal...What can better supply do in respect of response time?
or should i try with less voltage set...etc.
chris
is the response time of the LRS-150-24 (28,7V) ok???? too slow...normal...What can better supply do in respect of response time?
or should i try with less voltage set...etc.
chris
....doctormord;5636771]The EVMs heatsink is available predrilled at digikey for example. .........]
I go into the BOM of TPA3255 and found the heatsink of advanced Technologie...its labeled for TAS...but is it the correct one????????...i guess yes
ATS-TI1OP-519-C1-R3 Advanced Thermal Solutions Inc. | Lufter, Warmemanagement | DigiKey
I go into the BOM of TPA3255 and found the heatsink of advanced Technologie...its labeled for TAS...but is it the correct one????????...i guess yes
ATS-TI1OP-519-C1-R3 Advanced Thermal Solutions Inc. | Lufter, Warmemanagement | DigiKey
looks sane to me4R load burst is 5 cycles, periode is 20msec, 800mVrms in the amp6 changed decoupling caps = GPD
pic 1 6khz
pic 2 same but single view
pic 3 12khz
pic 4 same but single view
pic 5 16khz
pic 6 same but single view
pic 7 +8 is the 1 cycle burst
good night
