UcD Xlite Fullbridge PCB and Schematic

for temp control i never made it anymore, buy from china is more cheaper than build itself, having digital meter and setup trigger controller what temperature should relay on, dc protect easy with ne555 simple and effective, also ocp can make with 555 cheaper one.

D CLASS PROTECTION

Universal Clip Limiter for any amplifier😉😉😉


Attachments

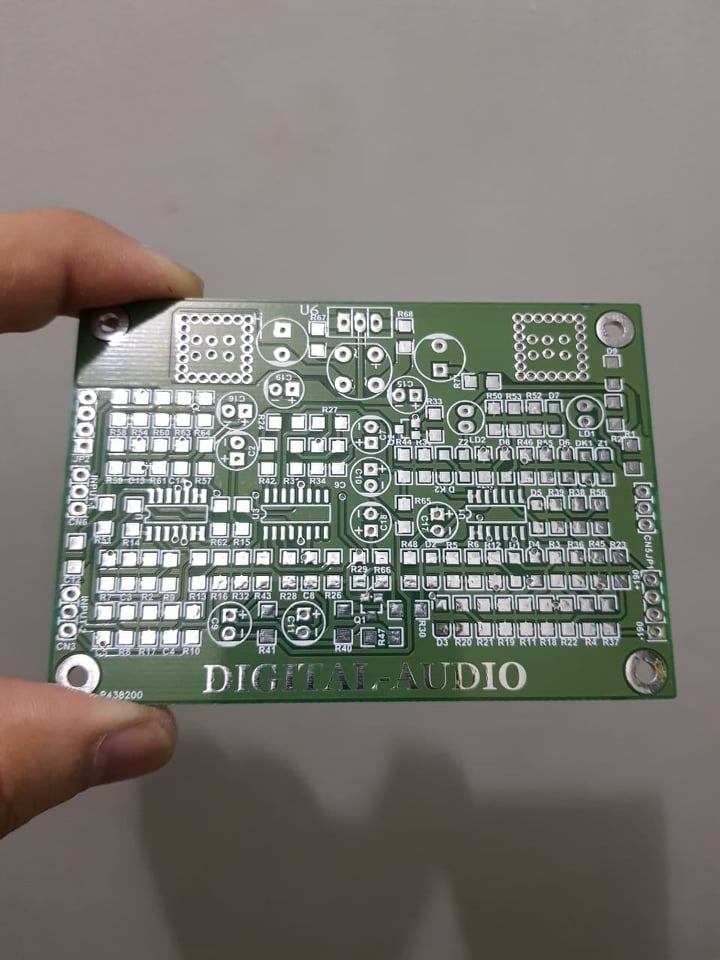

  • 115813934_2175909315885892_5033523281295251563_n.jpg
    84.9 KB · Views: 705
an improvement of kartino's amp . thanks to wahyu from youtube for his amazing videos .
one with relay and oc , dco protection loading , for insane power just make two of these and drive them in btl mode .
have fun all


Attachments

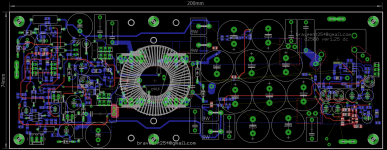

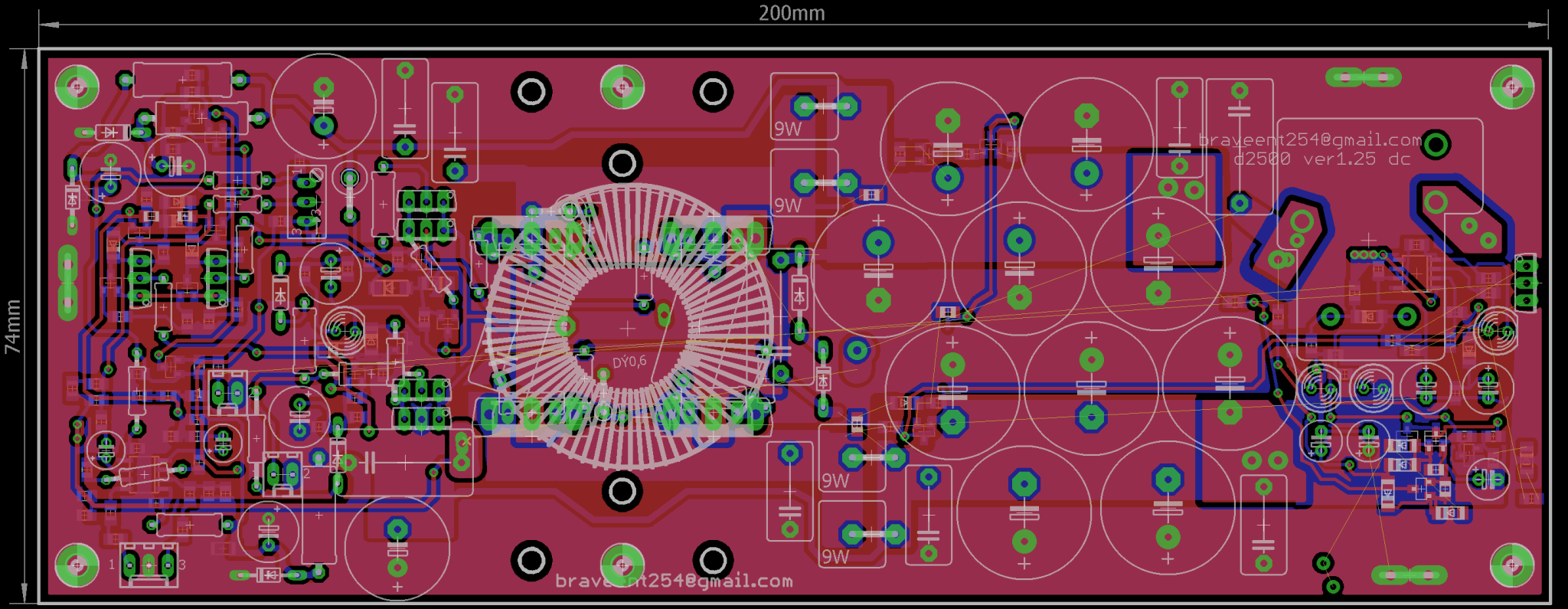

  • gtY hp ucd discreet smd board .png
    gtY hp ucd discreet smd board .png
    244.3 KB · Views: 361

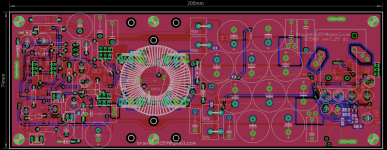

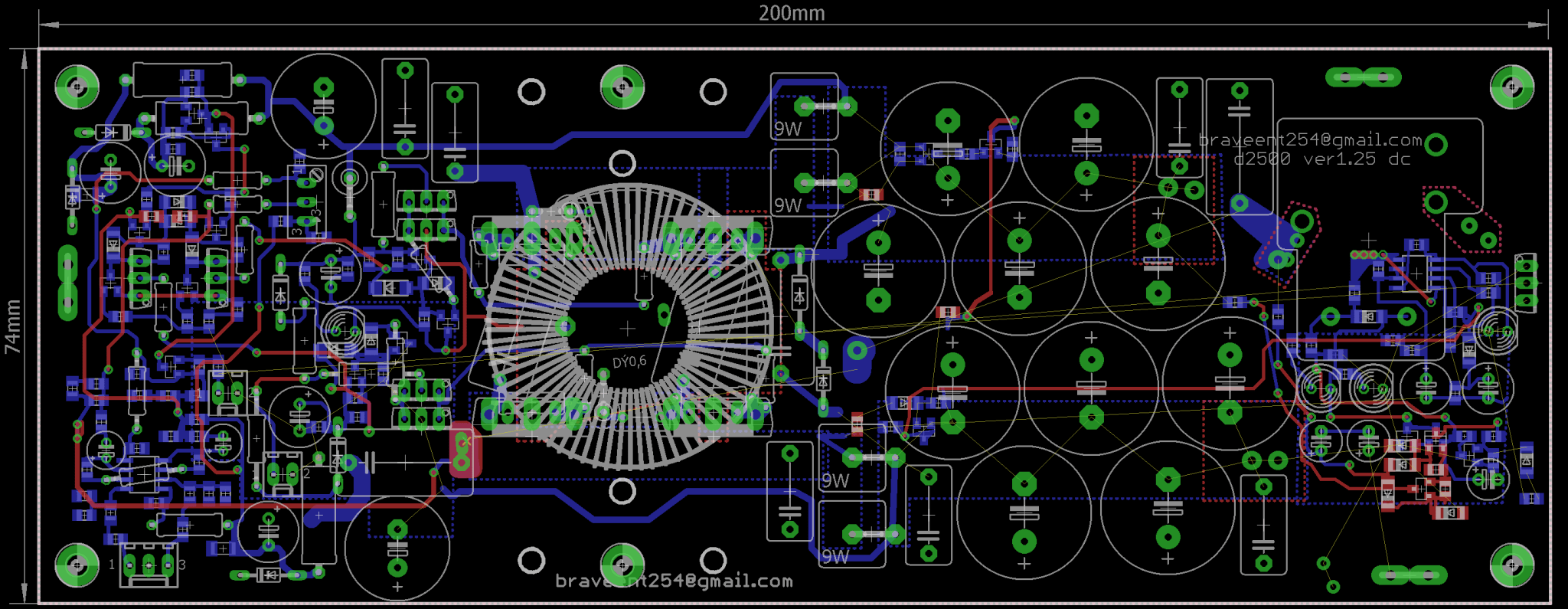

  • gtY hp ucd discreet smd board 1.png
    gtY hp ucd discreet smd board 1.png
    233.2 KB · Views: 323
  • gtY hp ucd discreet smd full.zip
    gtY hp ucd discreet smd full.zip
    231.4 KB · Views: 206

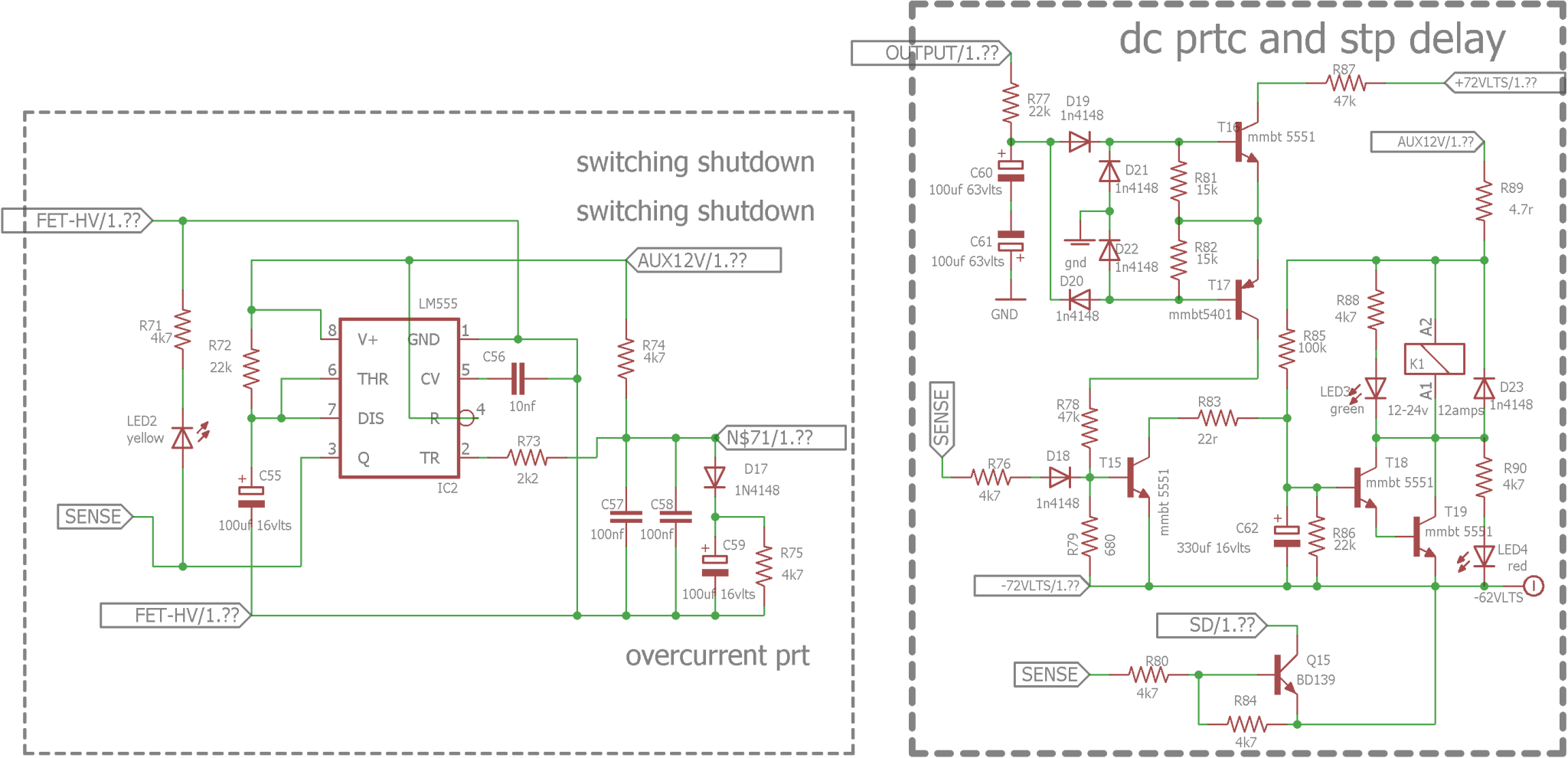

  • gtY hp ucd discreet smd protect schematic 2.png
    gtY hp ucd discreet smd protect schematic 2.png
    102 KB · Views: 377
  • gtY hp ucd discreet smd schematic .pdf
    gtY hp ucd discreet smd schematic .pdf
    66.4 KB · Views: 198

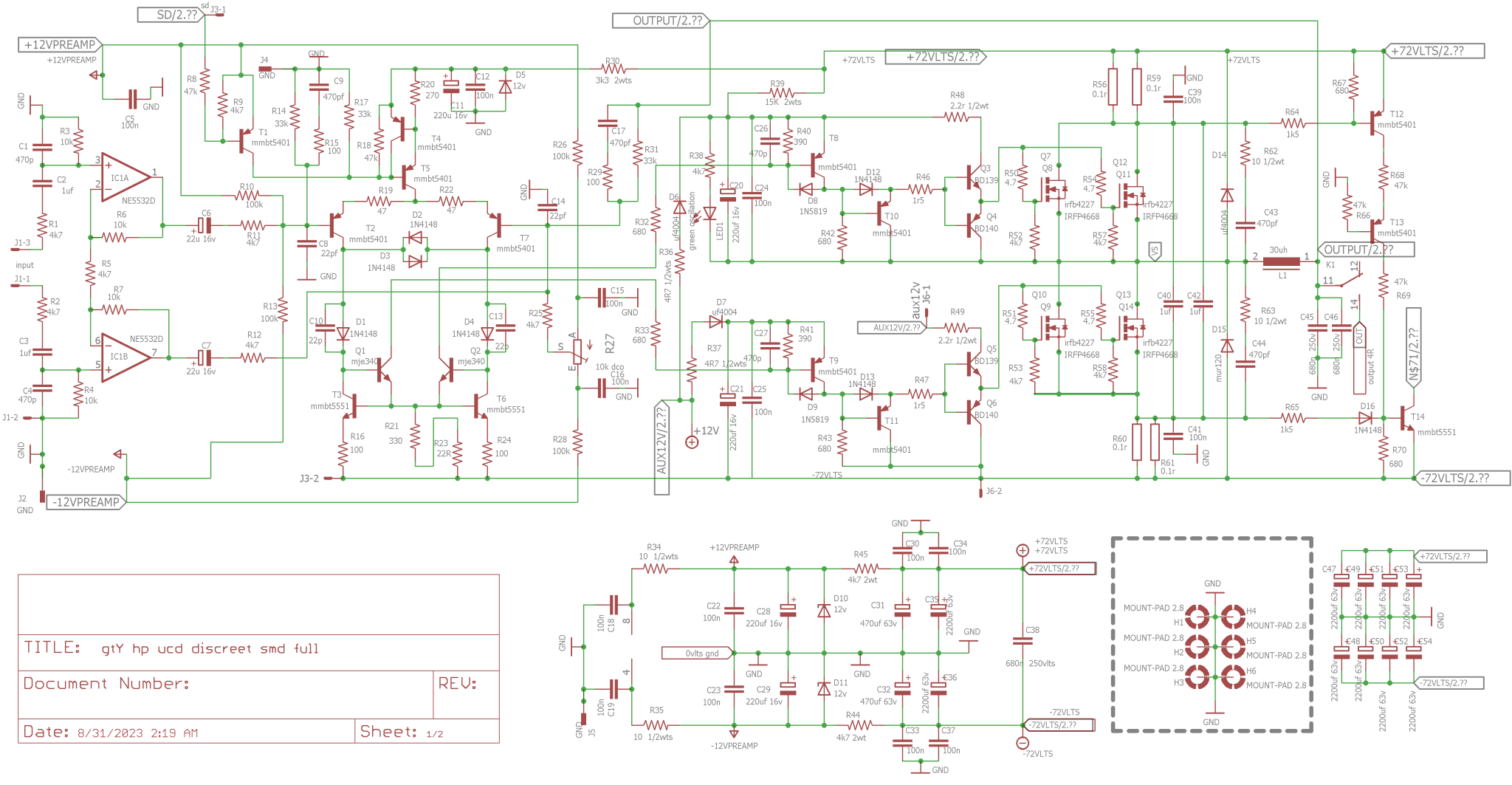

  • gtY hp ucd discreet smd schematic 1.png
