Finished boards

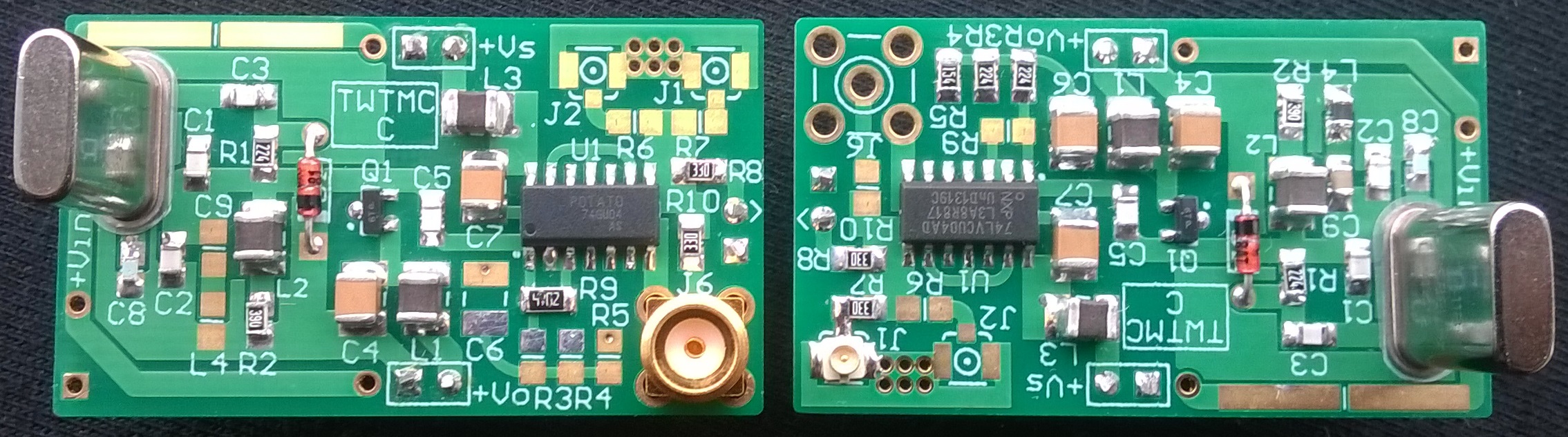

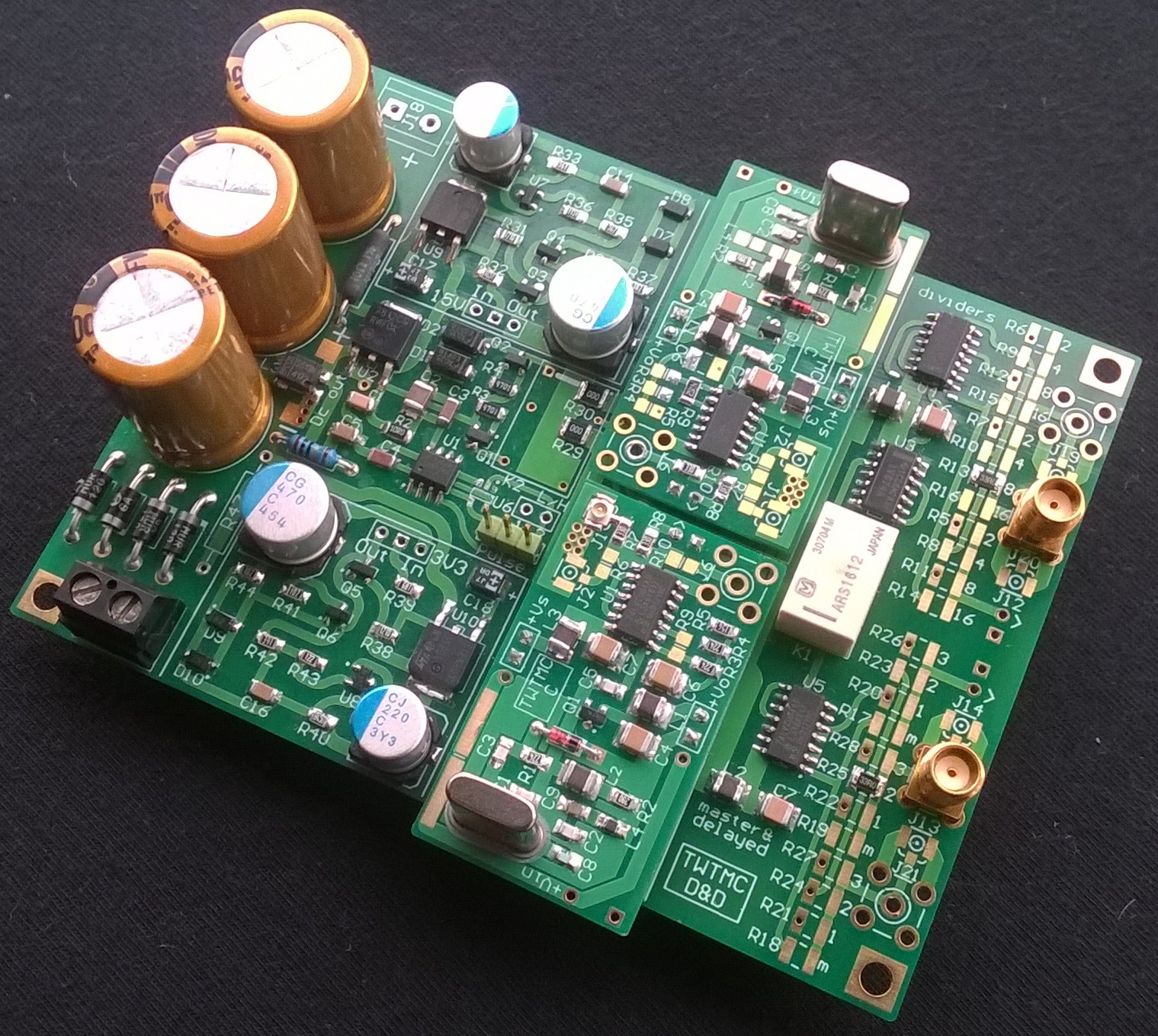

While waiting for crystals delivery, here attached some pictures of the finished boards.

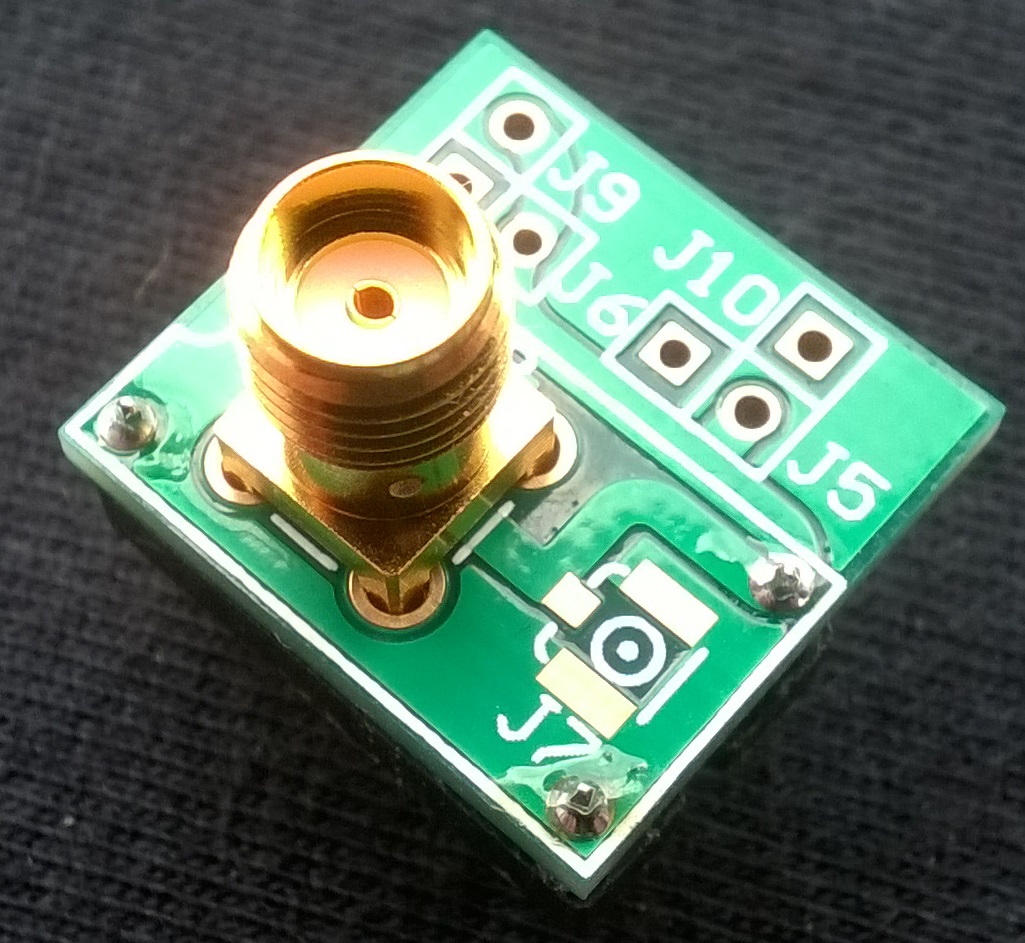

DIL adapter, fundamental and overtone oscillators, daughter board and final assembly.
While waiting for crystals delivery, here attached some pictures of the finished boards.
DIL adapter, fundamental and overtone oscillators, daughter board and final assembly.
Attachments
Very nice board Andrea,Congratulations.
you recommend a transformer 17 volts for TWTMC board,but transformer 17 volts are hard to find,an alternative?🙂
What is the 3 pins 'Pulse'
you recommend a transformer 17 volts for TWTMC board,but transformer 17 volts are hard to find,an alternative?🙂
What is the 3 pins 'Pulse'
Very nice board Andrea,Congratulations.
you recommend a transformer 17 volts for TWTMC board,but transformer 17 volts are hard to find,an alternative?🙂
What is the 3 pins 'Pulse'
Hammond 229A34 parallel wired from Mouser
229A34 Hammond Manufacturing | Mouser
18Vac transformer works also as well.
Pulse pins are provided to switch between the two oscillator, drived with a >15 ms pulse signal. This logic is not needed if you are using TWTMC with Ian's Dual XO board.

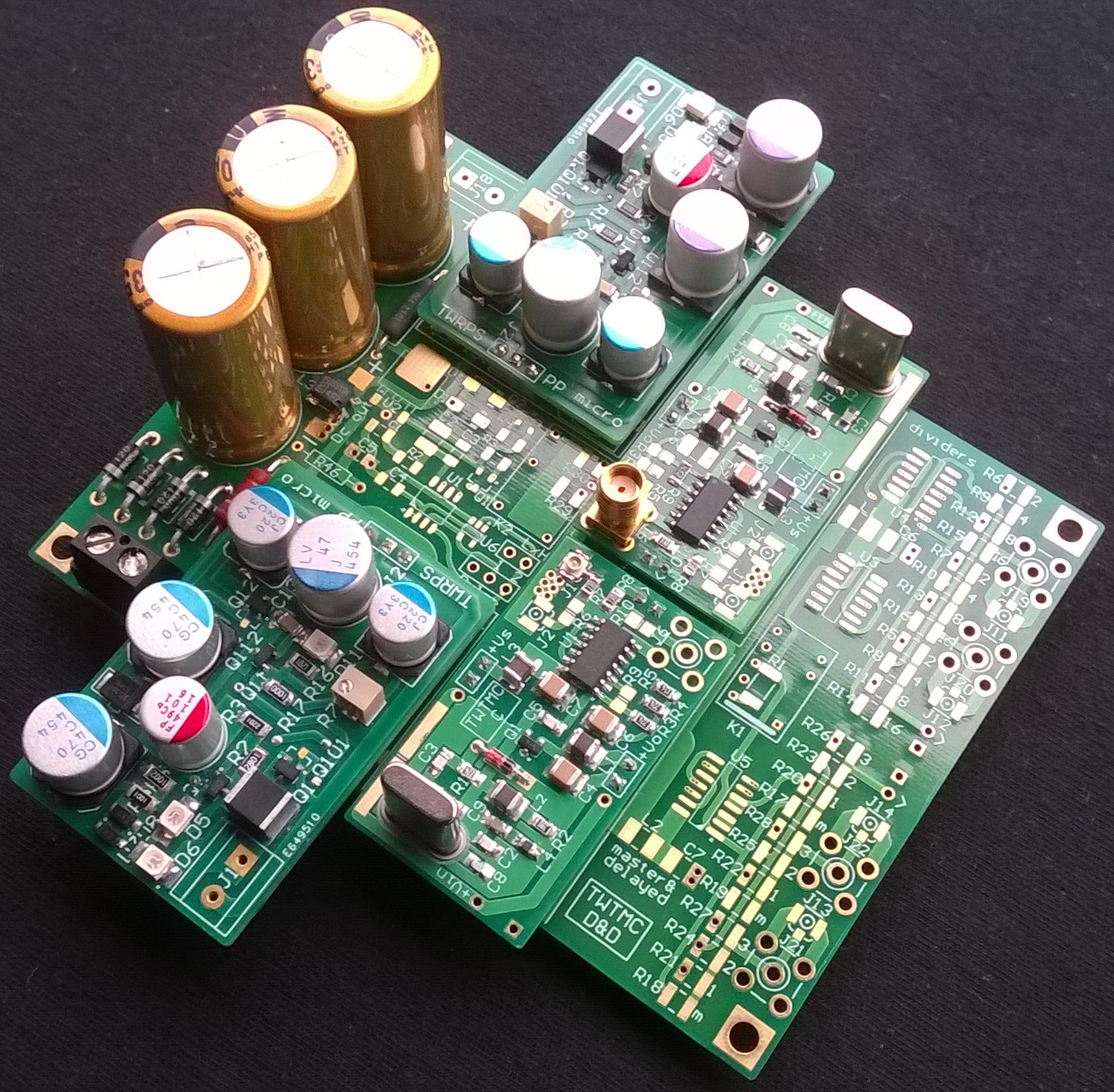

Daughter board using external regulators
http://www.diyaudio.com/forums/power-supplies/212476-well-regulated-power-supply-14.html#post4242428
http://www.diyaudio.com/forums/power-supplies/212476-well-regulated-power-supply-14.html#post4242428
Attachments
