Silly ......

.......... ZM ; but there is nothing new with that ...... - I forgot to take gain measurements , both for 2SK182ES set and for The Larch! Singing Bush

anyway , who cares for exact values, input Volts are cheap ....... :clown:

edit: forgot to say , hope to get Schade Mos-Puck gain pcb in tomorrow , then name of the game is the same .....

Last edited:
if you still aren't bored .......

just for fun and comparison - some graphs of my beloved DEFiSIT


Attachments

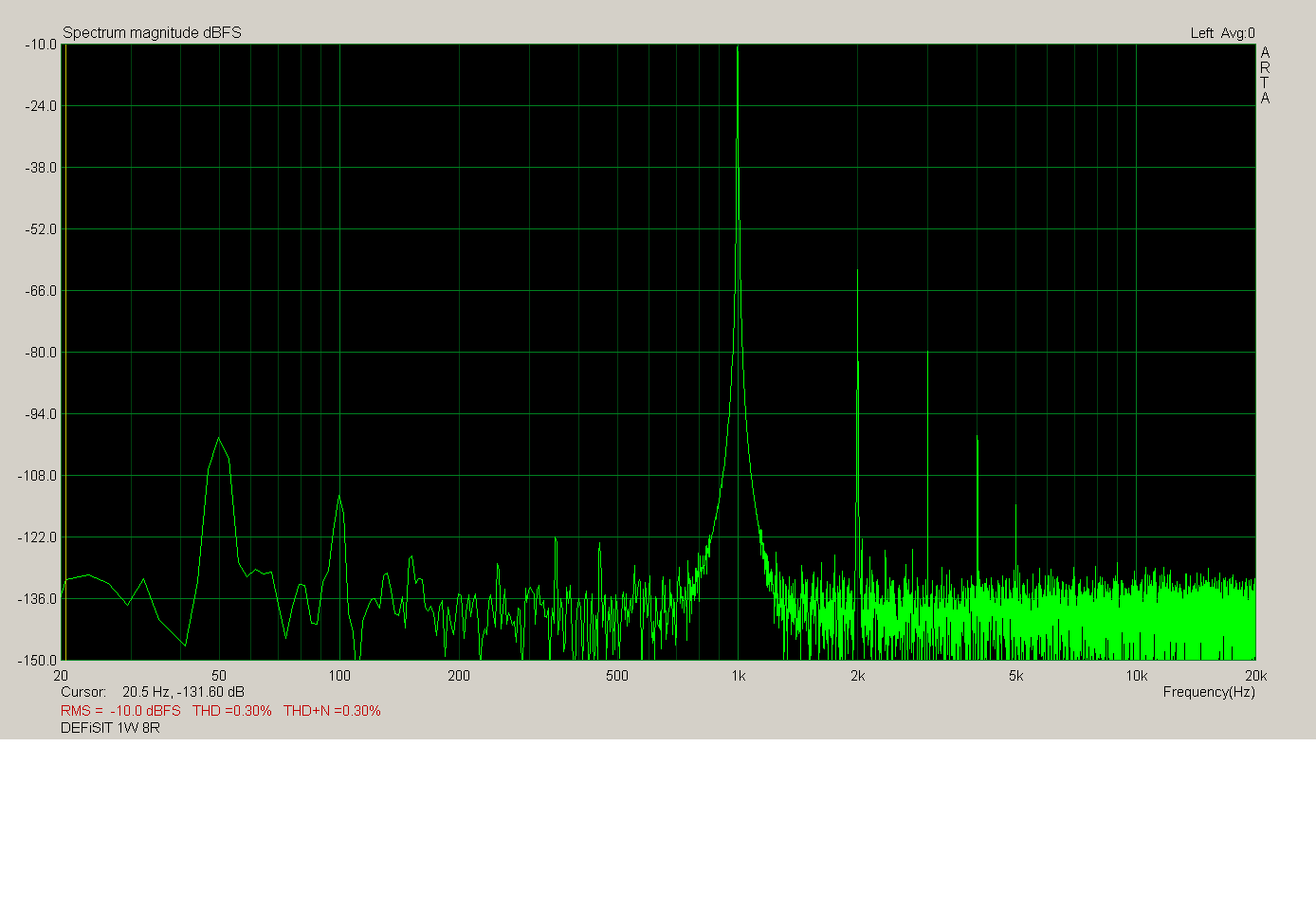

  • DEFiSIT 1W 8R.png
    DEFiSIT 1W 8R.png
    68.9 KB · Views: 1,161

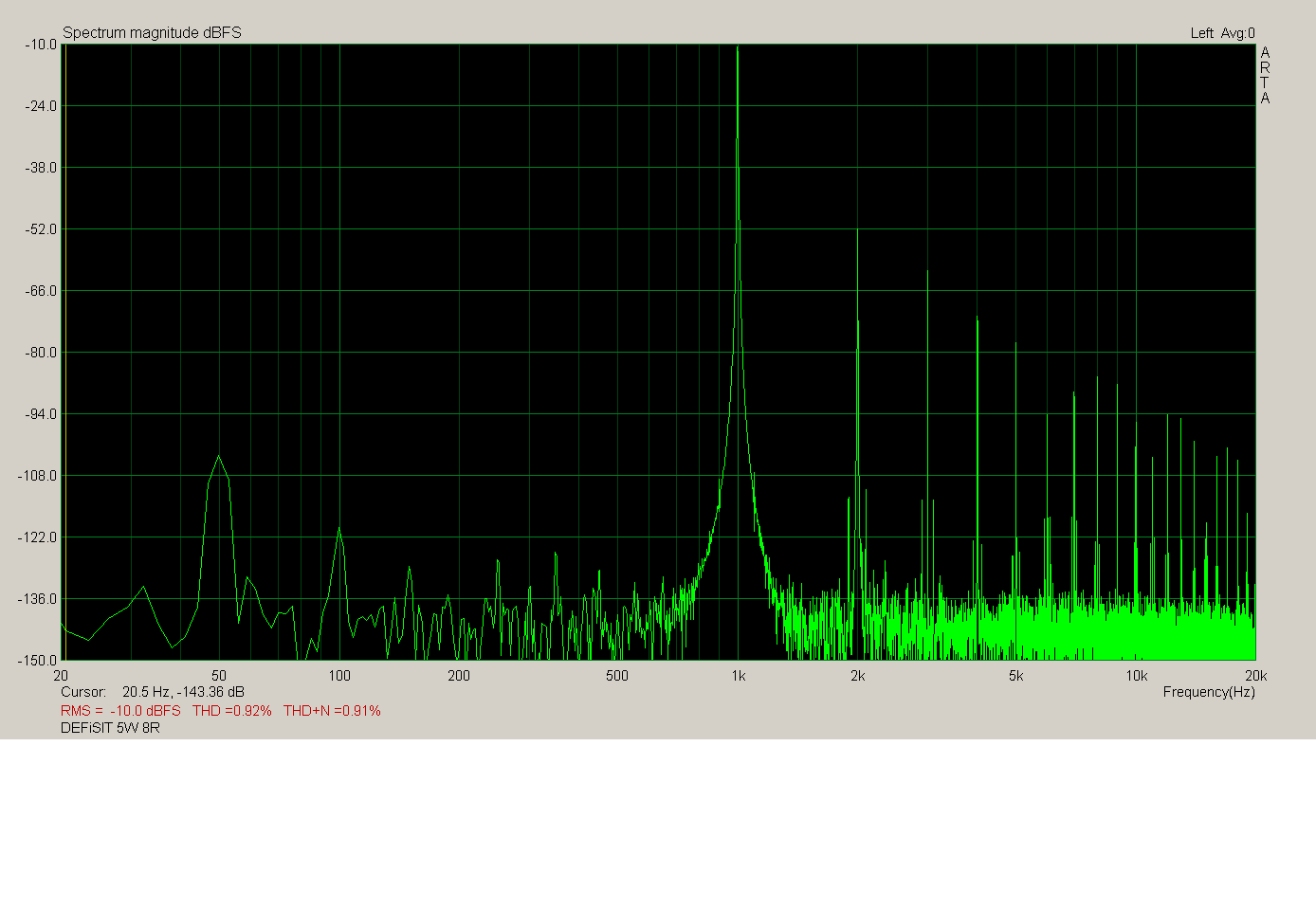

  • DEFiSIT 5W 8R.png
    DEFiSIT 5W 8R.png
    71.8 KB · Views: 1,160

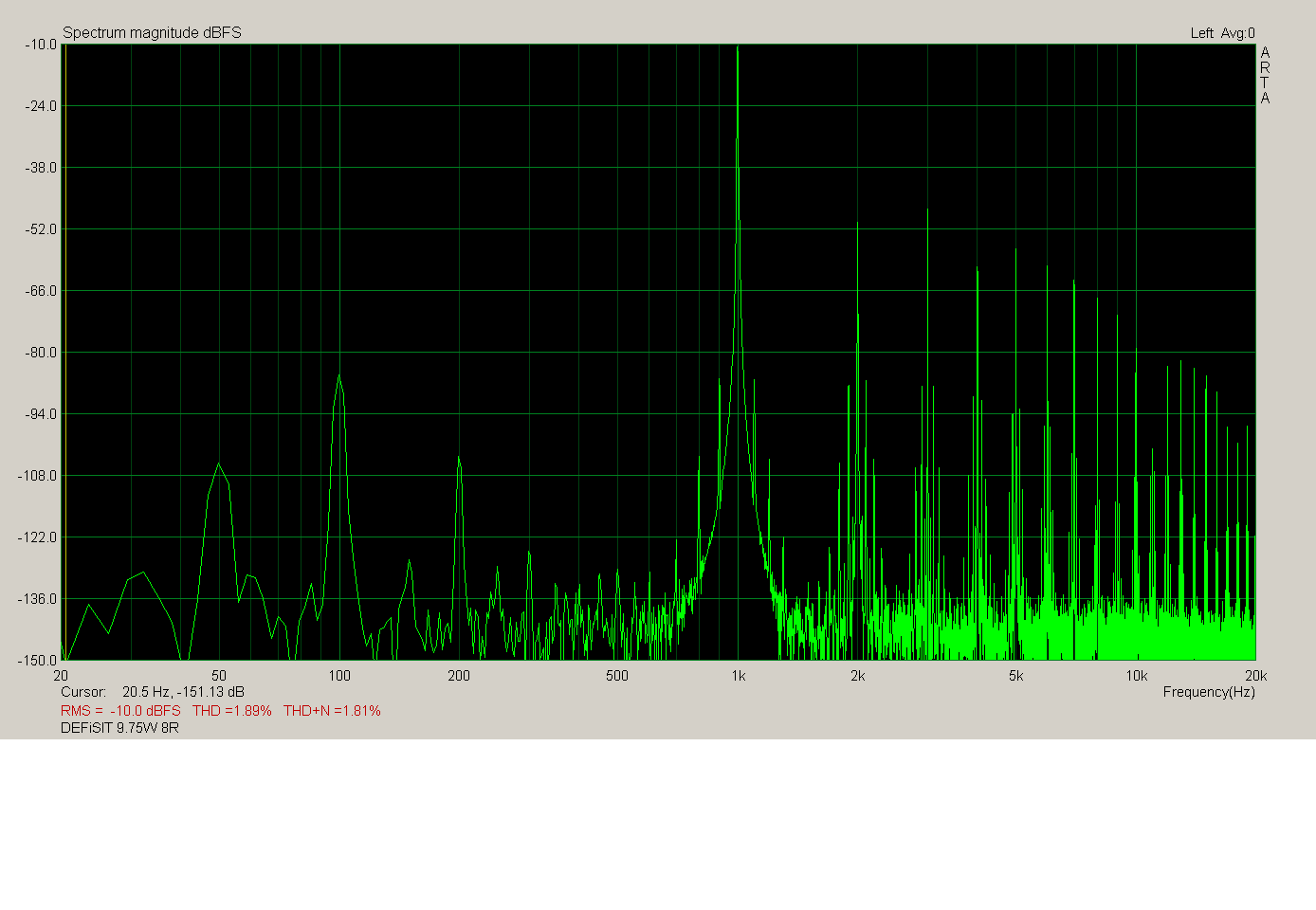

  • DEFiSIT 9.75W 8R.png
    DEFiSIT 9.75W 8R.png
    80.8 KB · Views: 1,139

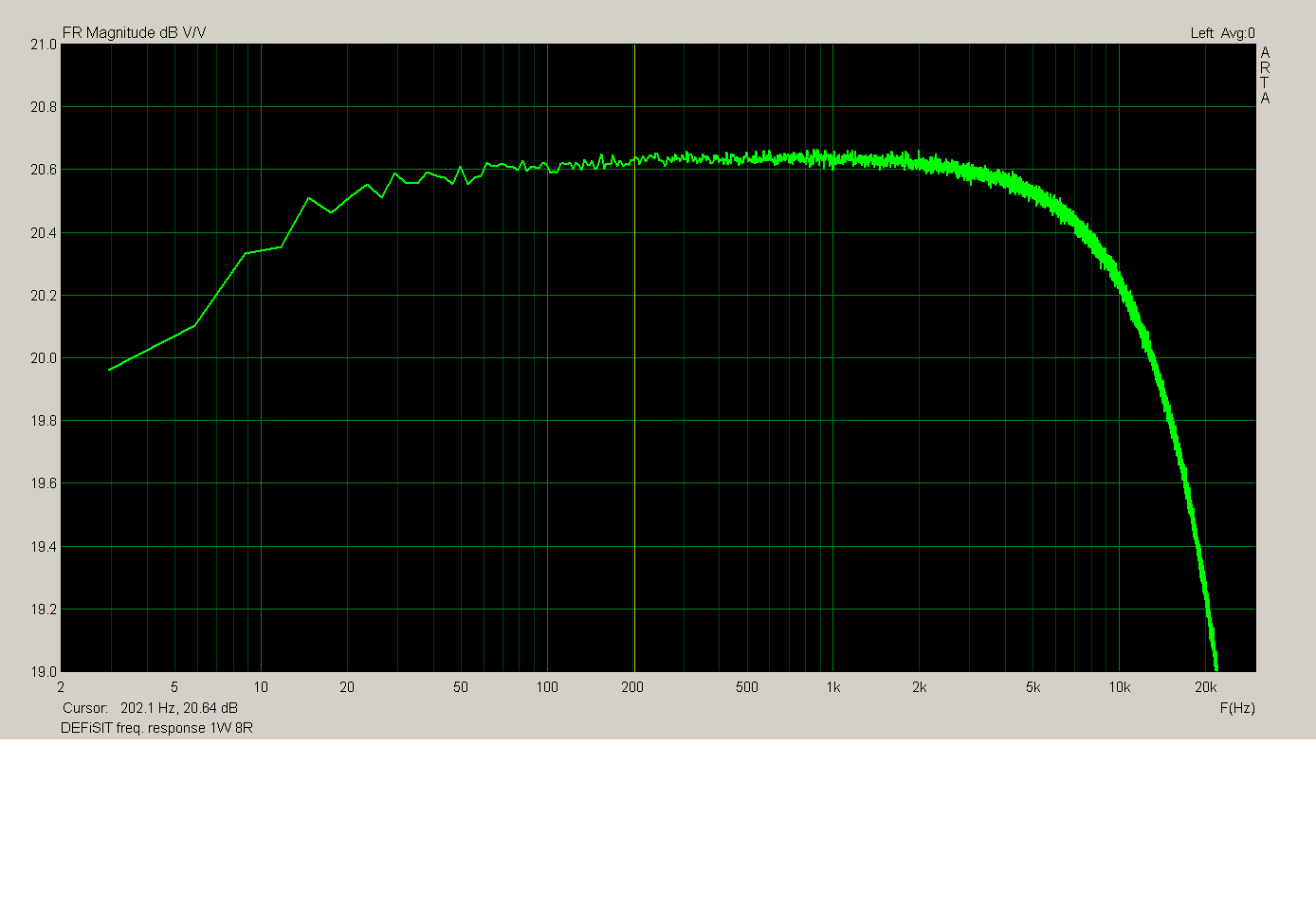

  • DEFiSIT freq. response 1W 8R.png
    DEFiSIT freq. response 1W 8R.png
    67.9 KB · Views: 1,135
second ....

some graphs of Uberfunny SIssySIT


Attachments

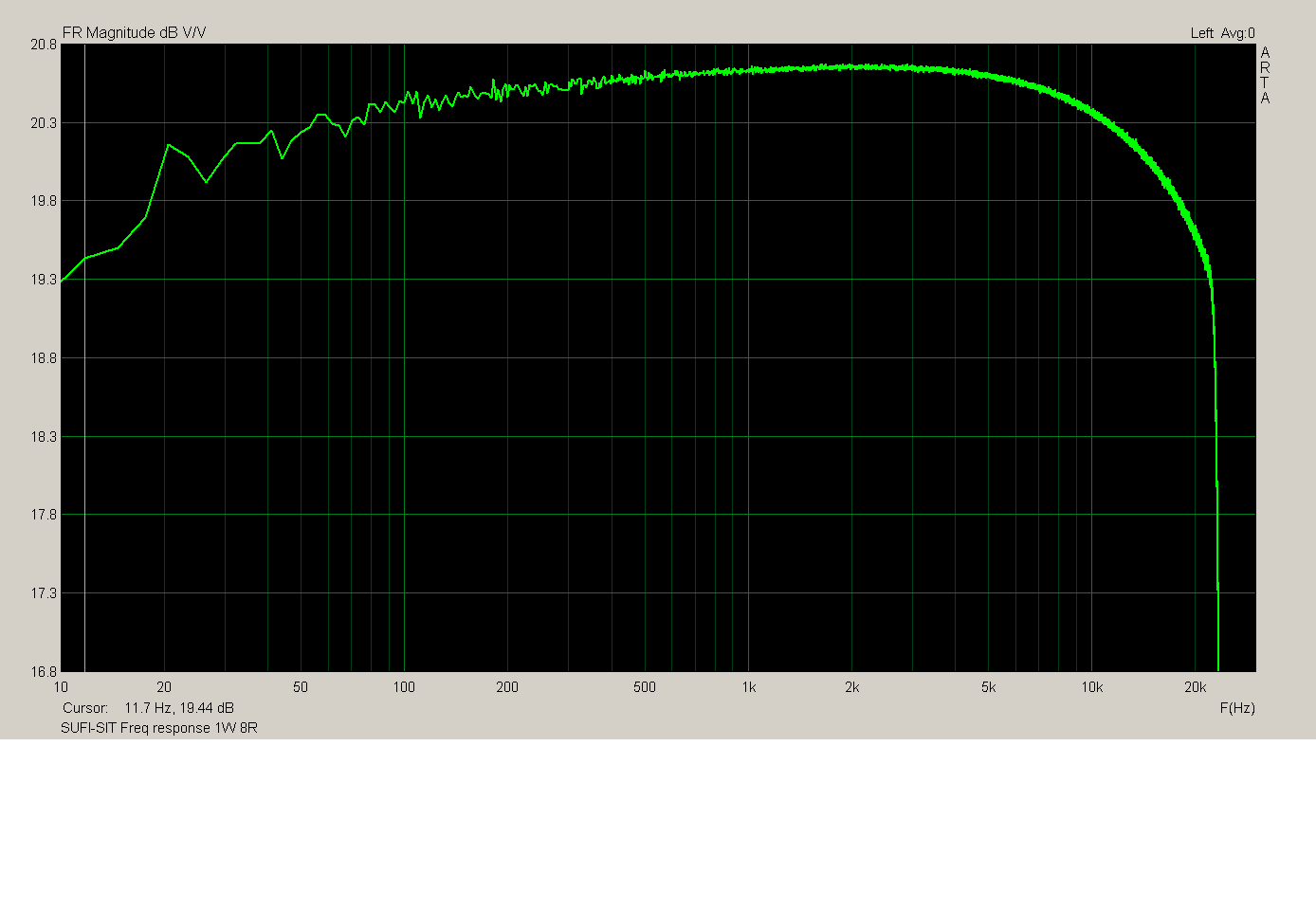

  • SissySIT Freq. response 1W 8R.png
    SissySIT Freq. response 1W 8R.png
    58 KB · Views: 1,214

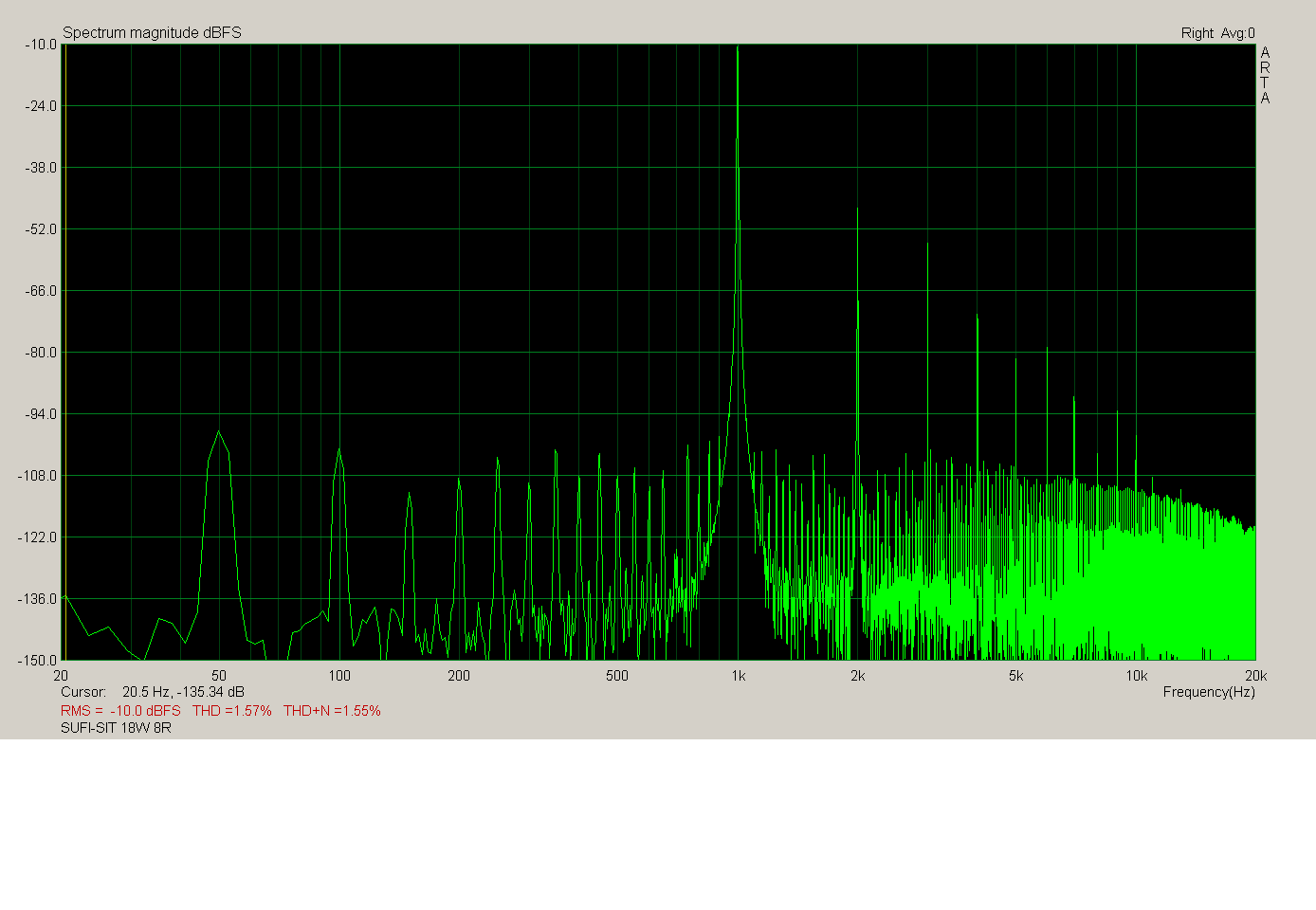

  • SissySIT 18W 8R.png
    SissySIT 18W 8R.png
    79.3 KB · Views: 1,215

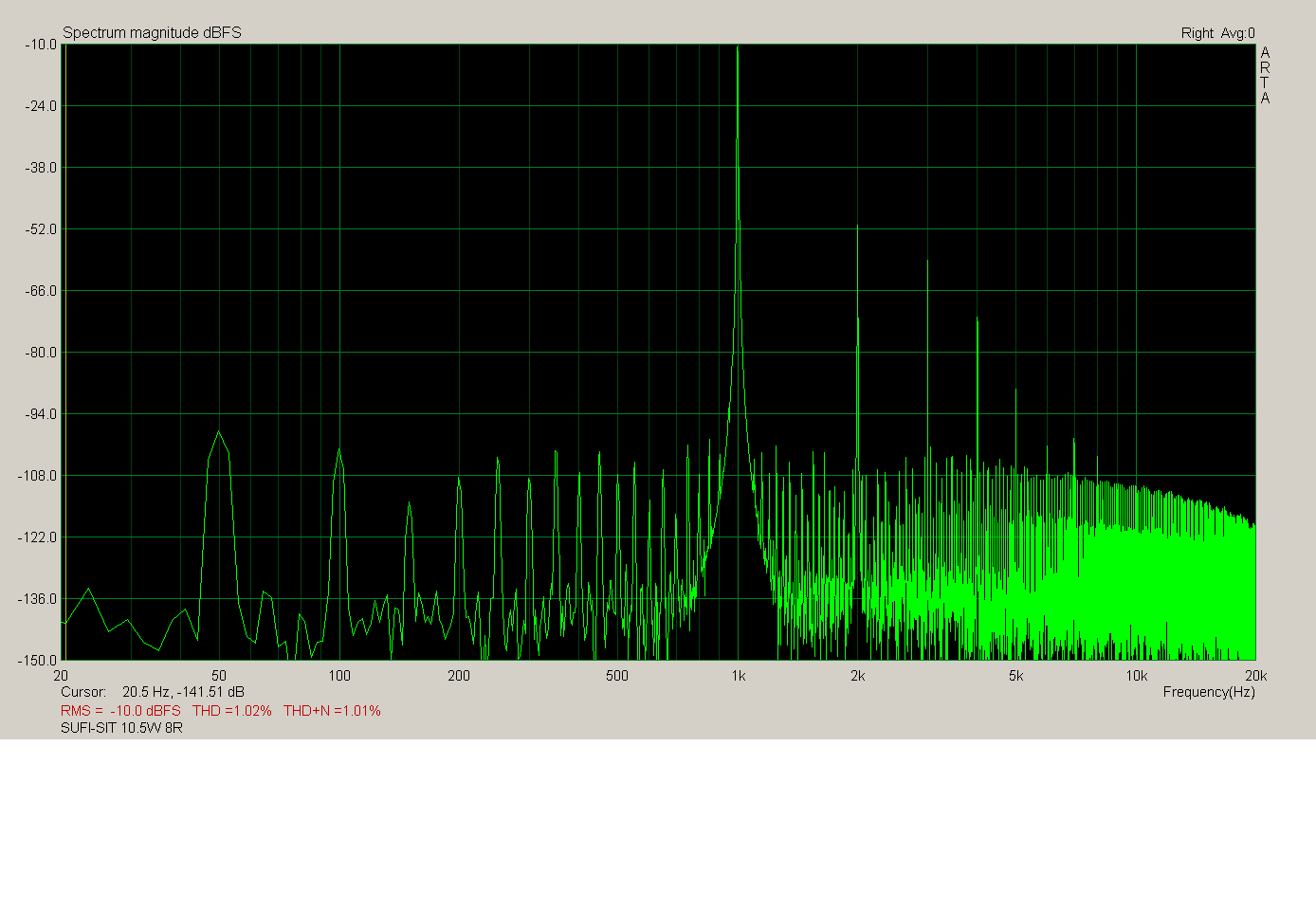

  • SissySIT 10.5W 8R.png
    SissySIT 10.5W 8R.png
    80.1 KB · Views: 1,208

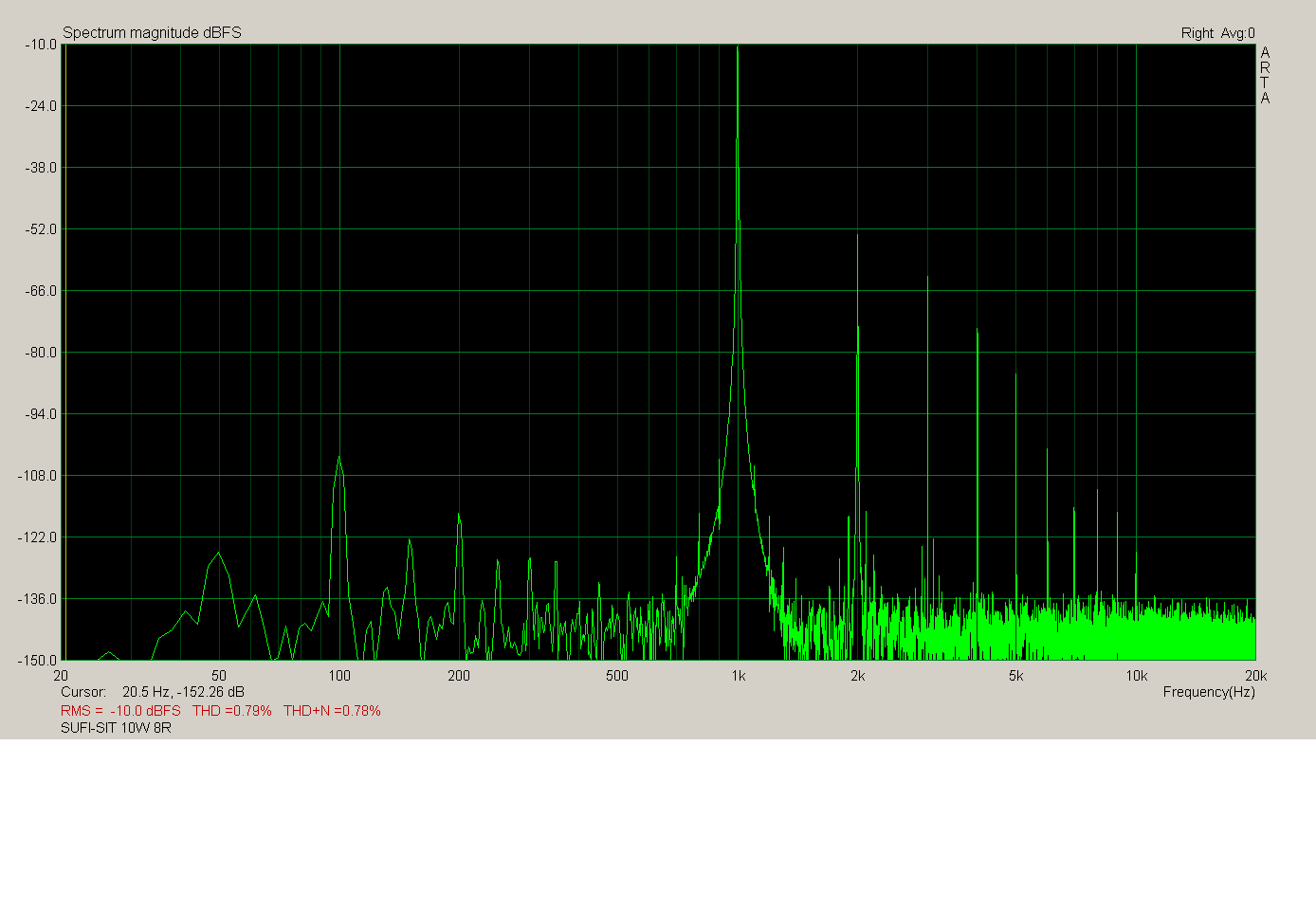

  • SissySIT 10W 8R.png
    SissySIT 10W 8R.png
    66.3 KB · Views: 1,226
  • SissySIT 1W 8R.png
    SissySIT 1W 8R.png
    67.3 KB · Views: 1,243
sorry , don't have any

as far as I know , mein Bruder Generg have at least one , but I don't know is he in the mood for soldering fumes and twiddling the knobs

new Herzklappen , that can change priorities

so , if anyone is willing to send me a pair of these , I'll test them to death ( well , not literally )

though ...... I'm not so sure how I'm gonna send them back ....... :rofl:

Last edited:
if you still aren't bored ....... third

and also this one ,for comparison sake, my fave small toob SE, EAR859 (declared as 12-13W)

ignore graph weed :clown:


Attachments

  • 1W.png
    78.9 KB · Views: 392

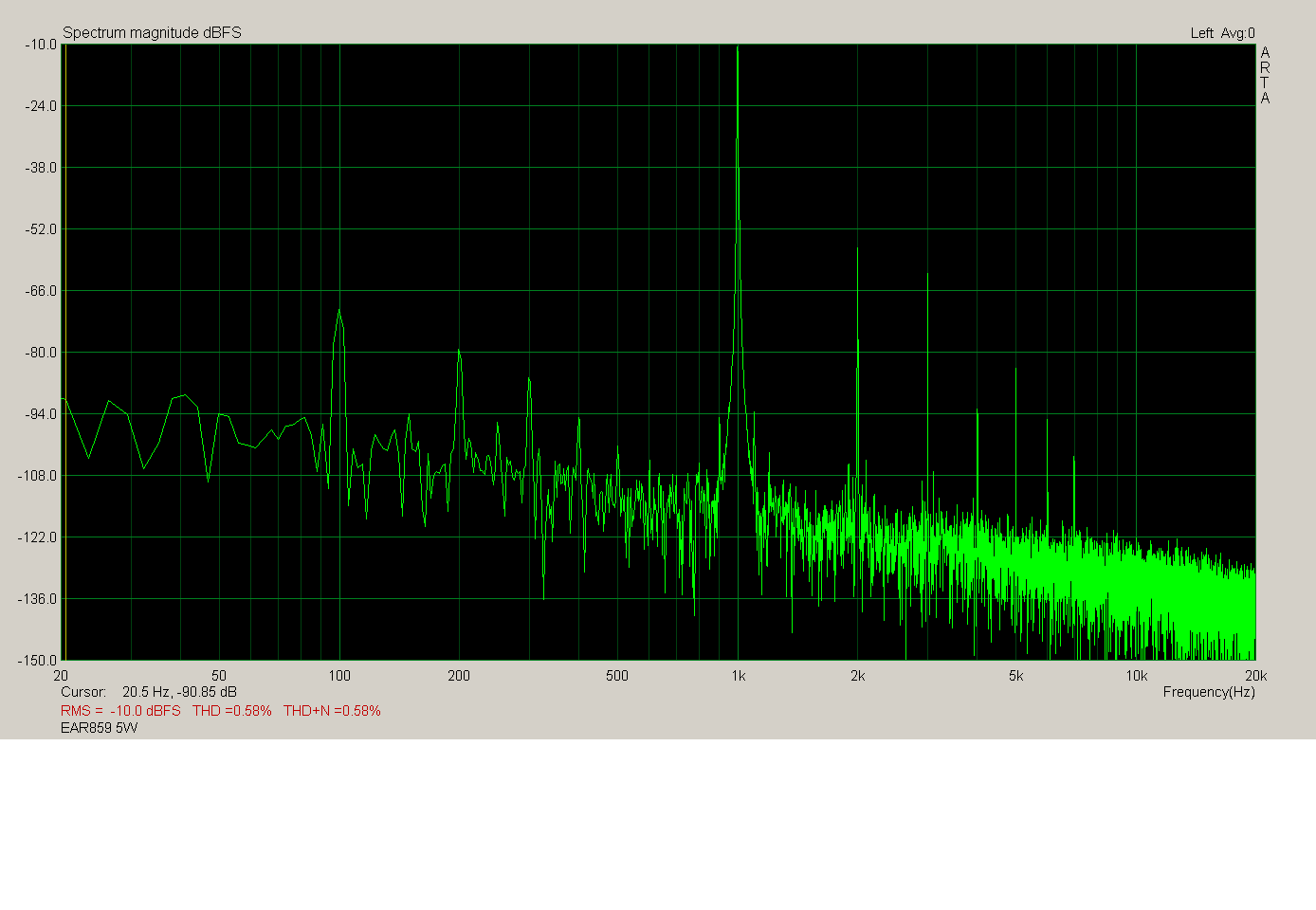

  • 5W.png
    75.3 KB · Views: 391

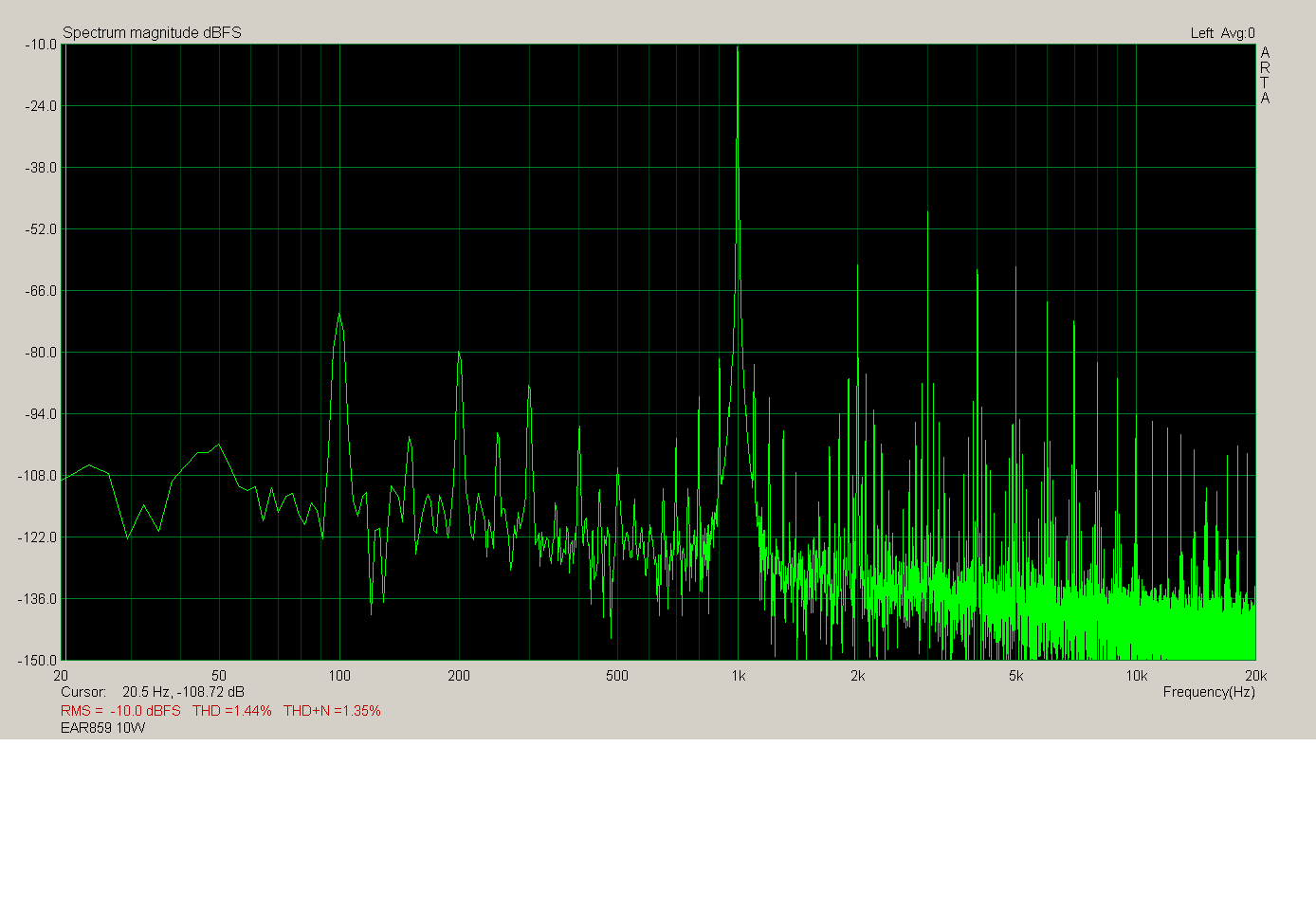

  • 10W.png
    81.3 KB · Views: 339

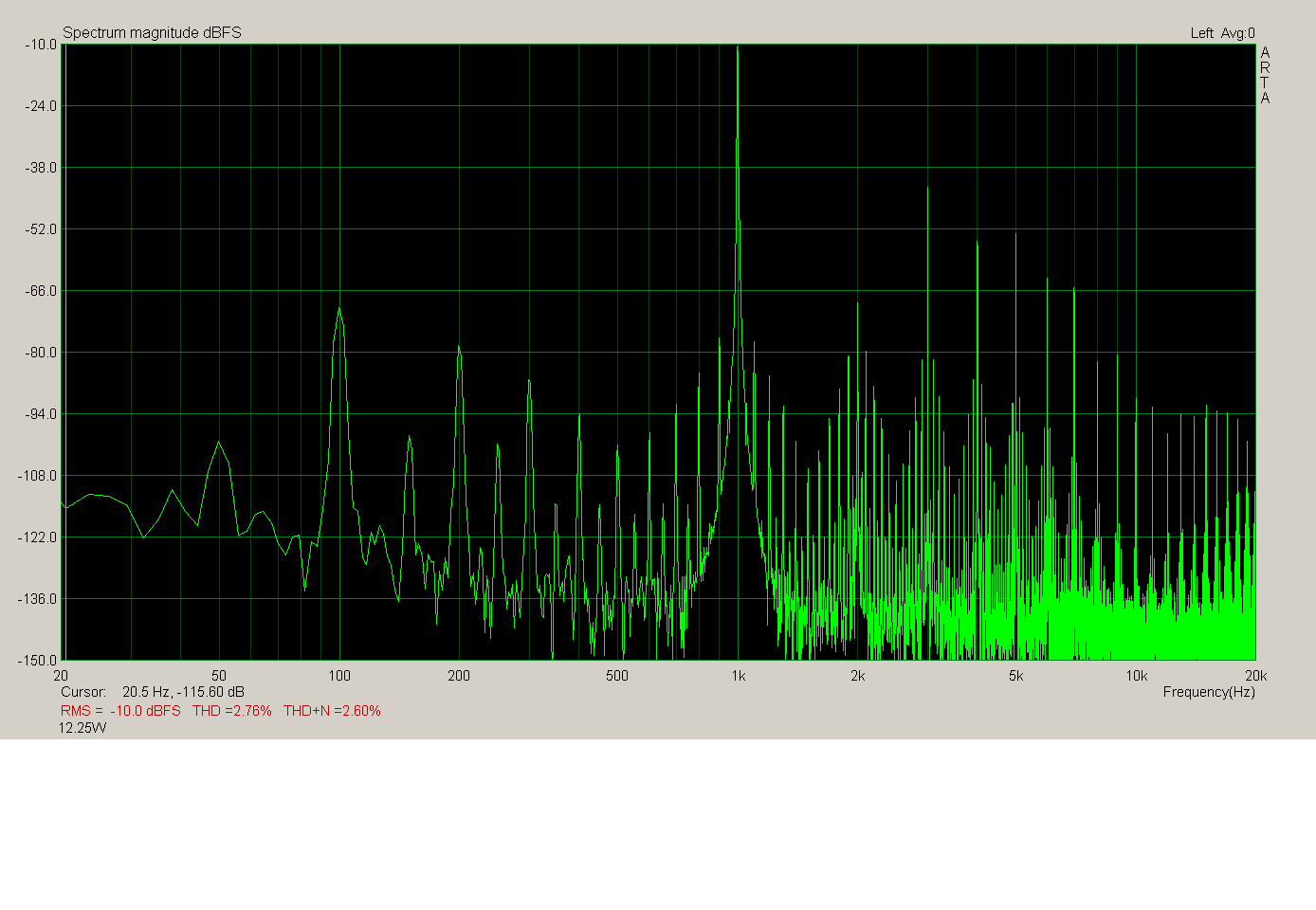

  • 12.25W.png
    19.8 KB · Views: 328
Schade test later today

almost soldered Edcor 600:15K on pcb , then realized it's not repeater coil .....

luckily , to keep things in line (plenty of other repeaters , but keep it Kosher, by schm) I have Jensens with wire connections , Bruder Generg sent me few years ago , with some other Goodies

Last edited:
