Studio Reference Amplifier

[apexaudio]

SR30

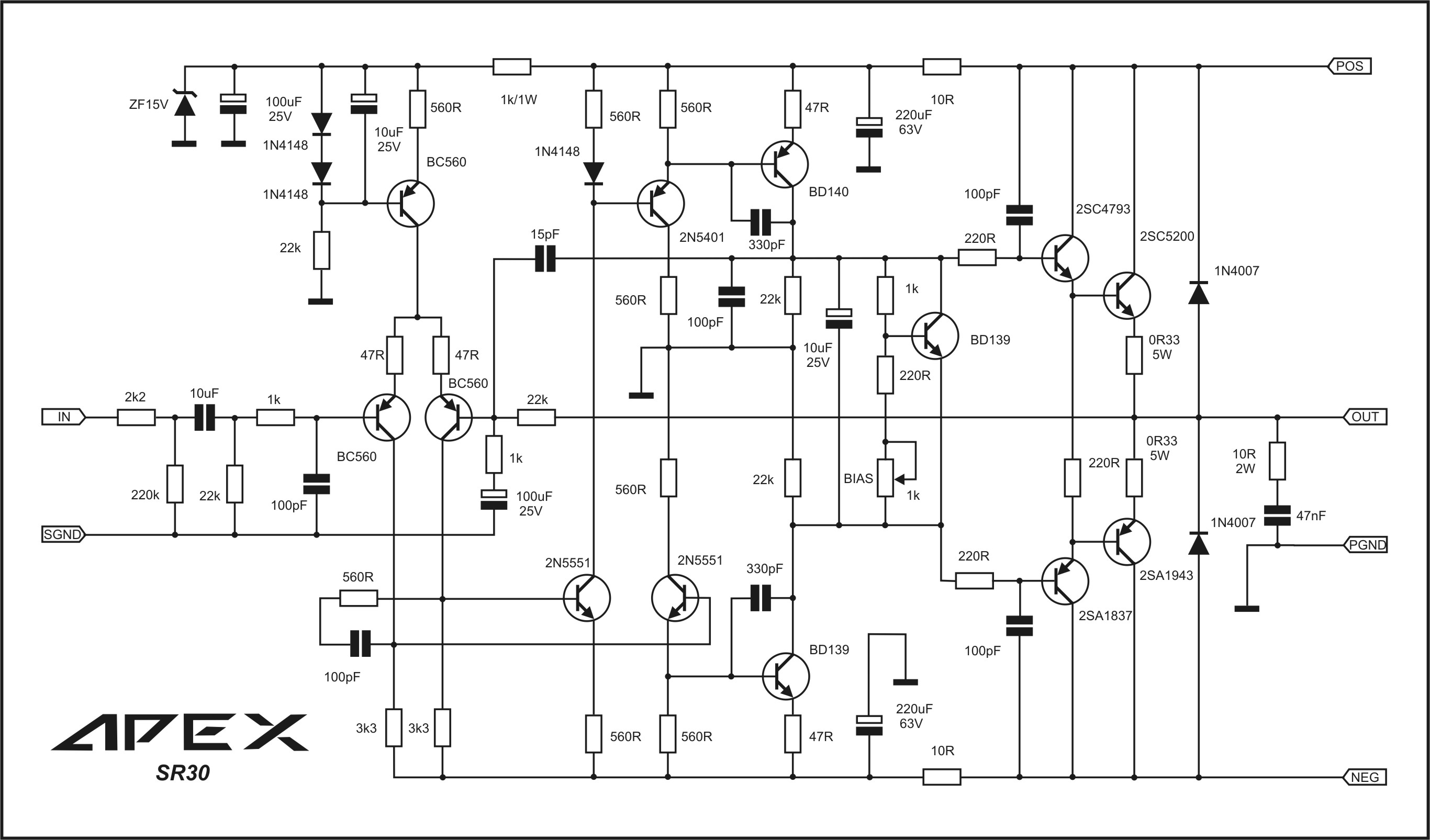

SR30 schematic



[facfm]

Start with some simple like AX6 for your first amp,
Regards

thanks you!



[SYAHRUL]

hi apex audio.

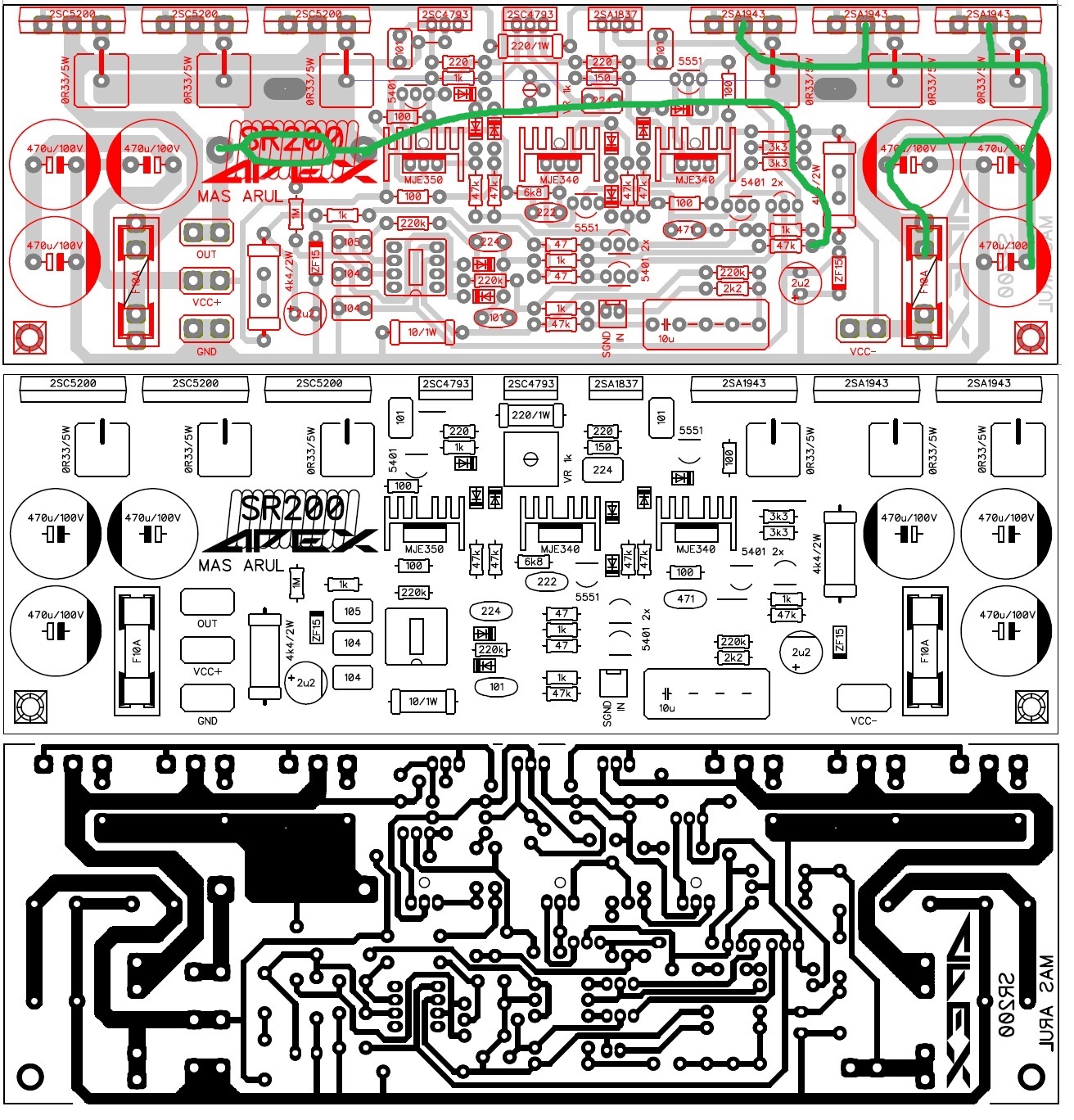

please corect my design layout sr200



[SYAHRUL]

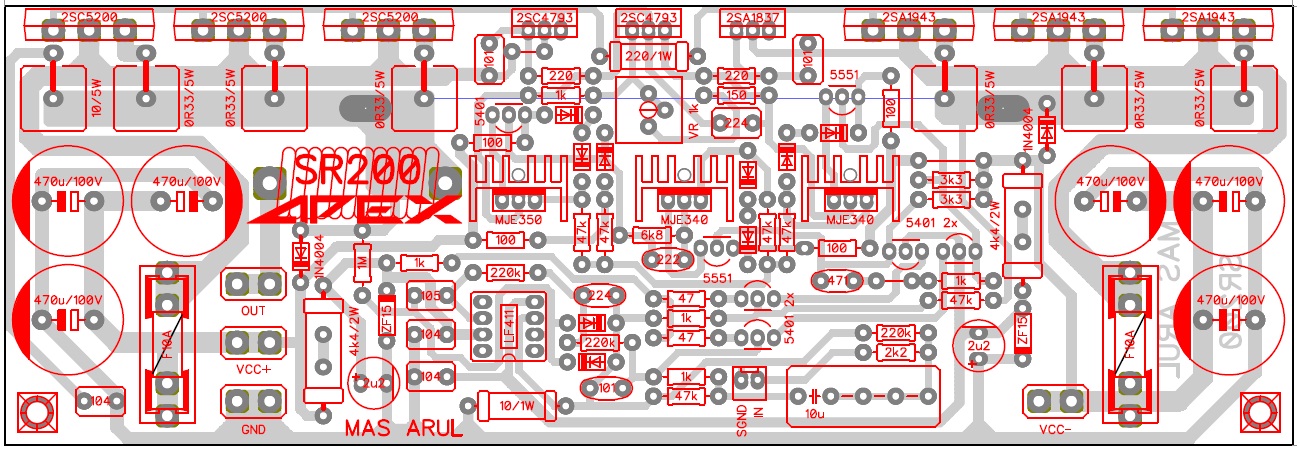

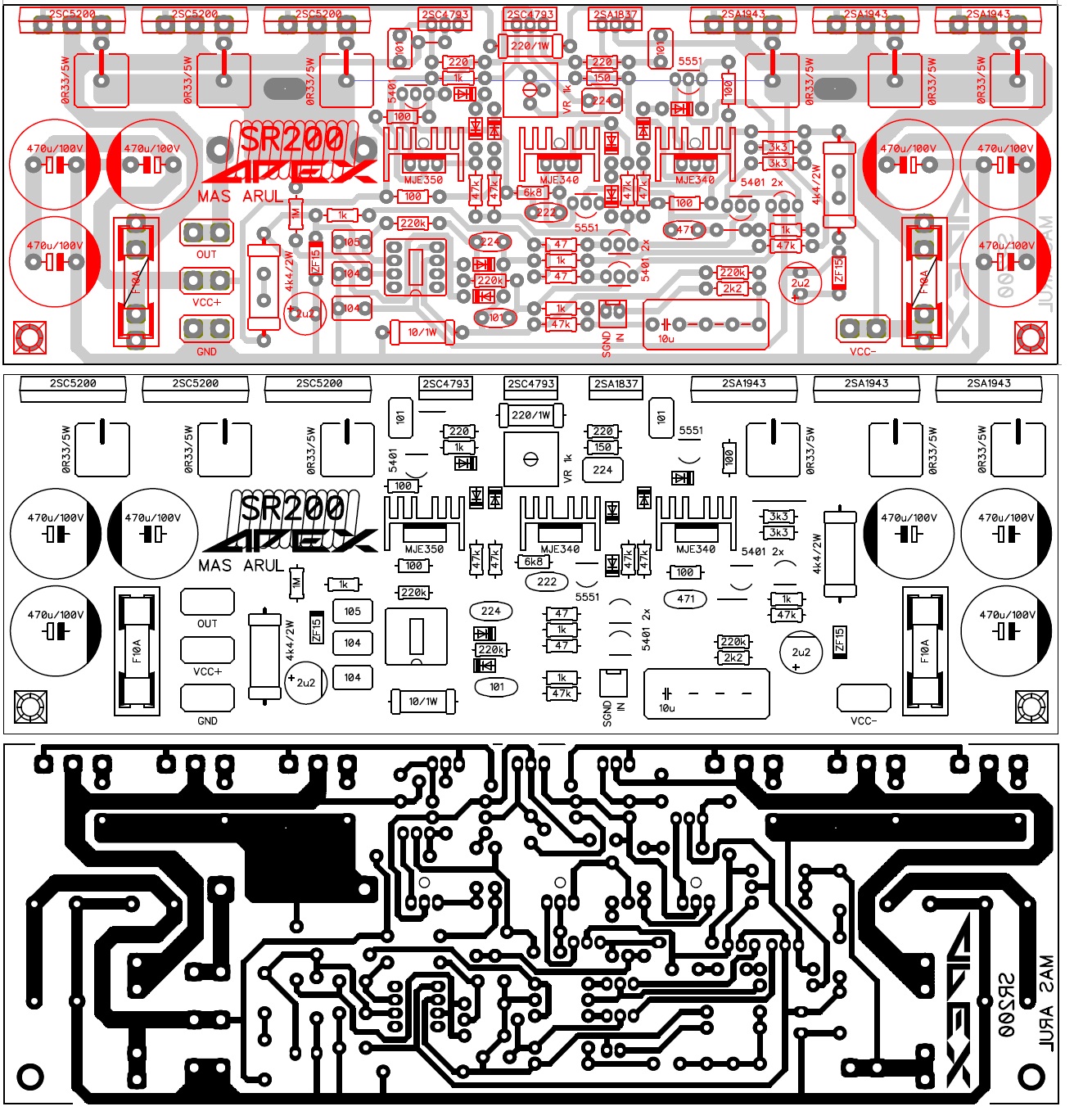

My SR200



[alex mm]

.....at first look missing resistor paraleled with output coil , RC from output to ground (10/3w + 100 nF/250V) and feedback trace must be connected to coil and so on ..... heat sink to small ,better use SK104.
Regards,Alex



[QQ12e5k1]

.....at first look missing resistor paraleled with output coil , RC from output to ground (10/3w + 100 nF/250V) and feedback trace must be connected to coil and so on ..... heat sink to small ,better use SK104.
Regards,Alex

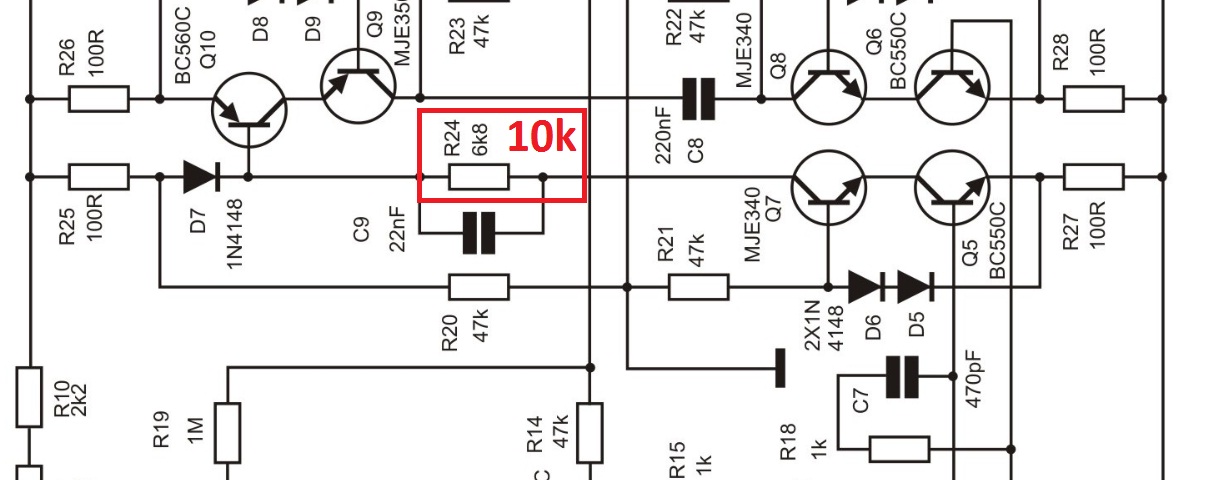

Also resistor on VAS must be 10k / 2watt paralleled with 22nF/100 v.



[QQ12e5k1]

.....at first look missing resistor paraleled with output coil , RC from output to ground (10/3w + 100 nF/250V) and feedback trace must be connected to coil and so on ..... heat sink to small ,better use SK104.
Regards,Alex

Also resistor on VAS must be 10k / 2watt paralleled with 22nF/100 v.



[SYAHRUL]

.....at first look missing resistor paraleled with output coil , RC from output to ground (10/3w + 100 nF/250V) and feedback trace must be connected to coil and so on ..... heat sink to small ,better use SK104.
Regards,Alex

tanks sir.
corection again.



[SYAHRUL]

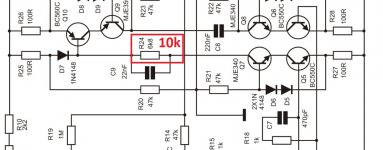

Also resistor on VAS must be 10k / 2watt paralleled with 22nF/100 v.

10k sir?
tanks sir



[QQ12e5k1]

10k sir?
tanks sir

Yes, 10k for SR200 and 6k8 for SR100.



[SYAHRUL]

Yes, 10k for SR200 and 6k8 for SR100.

oke sir..thanks.
please corection all trace.



[yassud]

The design of the PCB which is great, if you are using 3 pairs of 2SA1216 / 2SC2922 will be able to reduce the width under 67.5 mm.
Capacitor 470 mf / 100 V is 2 pcs per rail just because it does not significantly



[apexaudio]

SR150

New SR amp idea



[duyminh1984a]

SR200

An externally hosted image should be here but it was not working when we last tested it.

An externally hosted image should be here but it was not working when we last tested it.



[apexaudio]

Nice work,
Regards



[alex mm]

😎 very nice boards.....🙂 I wonder who design PCB 😕
Regards ,Alex



[borys]

alex mm
The pcb was prapobly designed by Leonardo Davinci many yeares ago 😀

Happy Christmas to all members



[apexaudio]

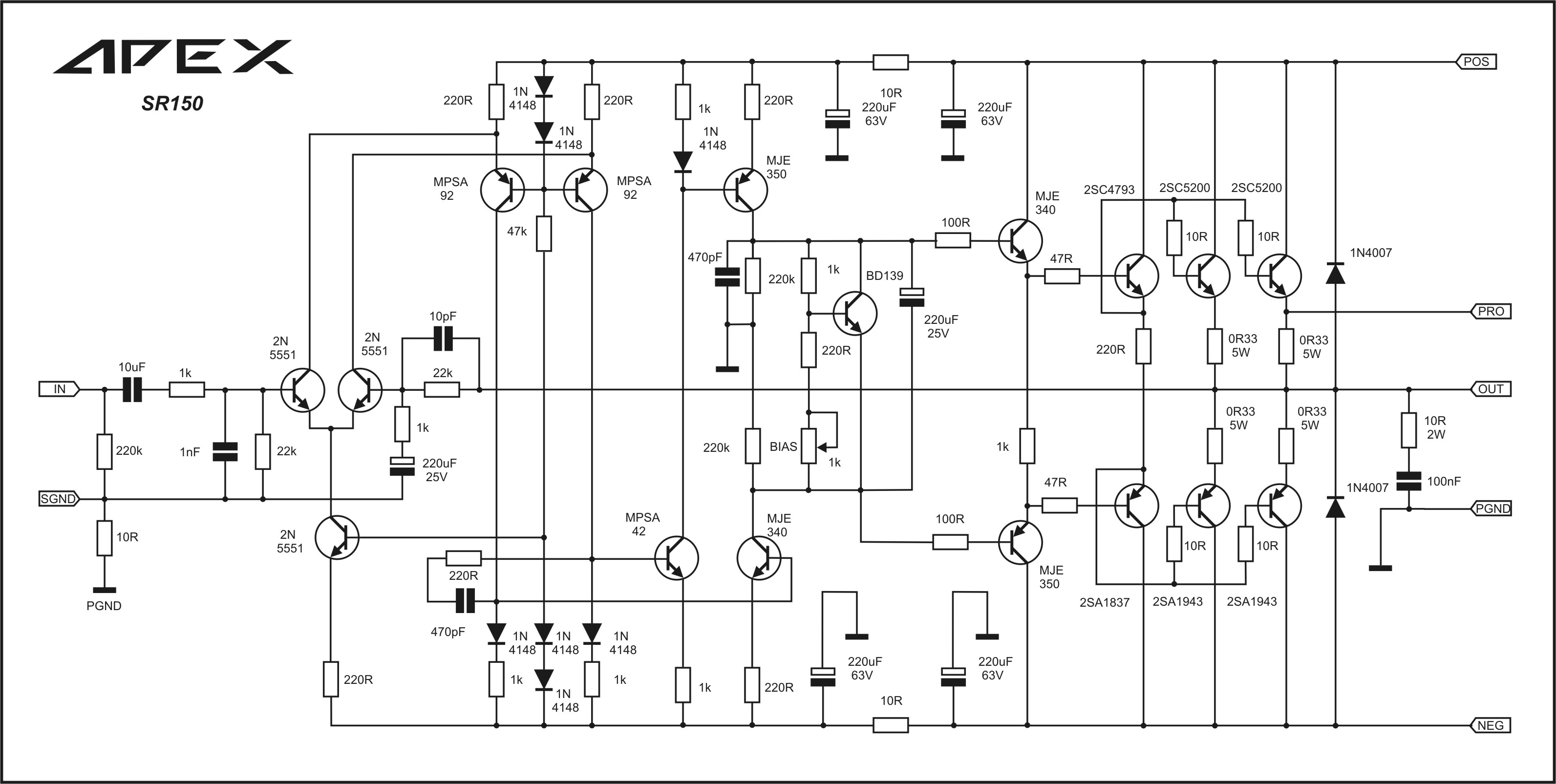

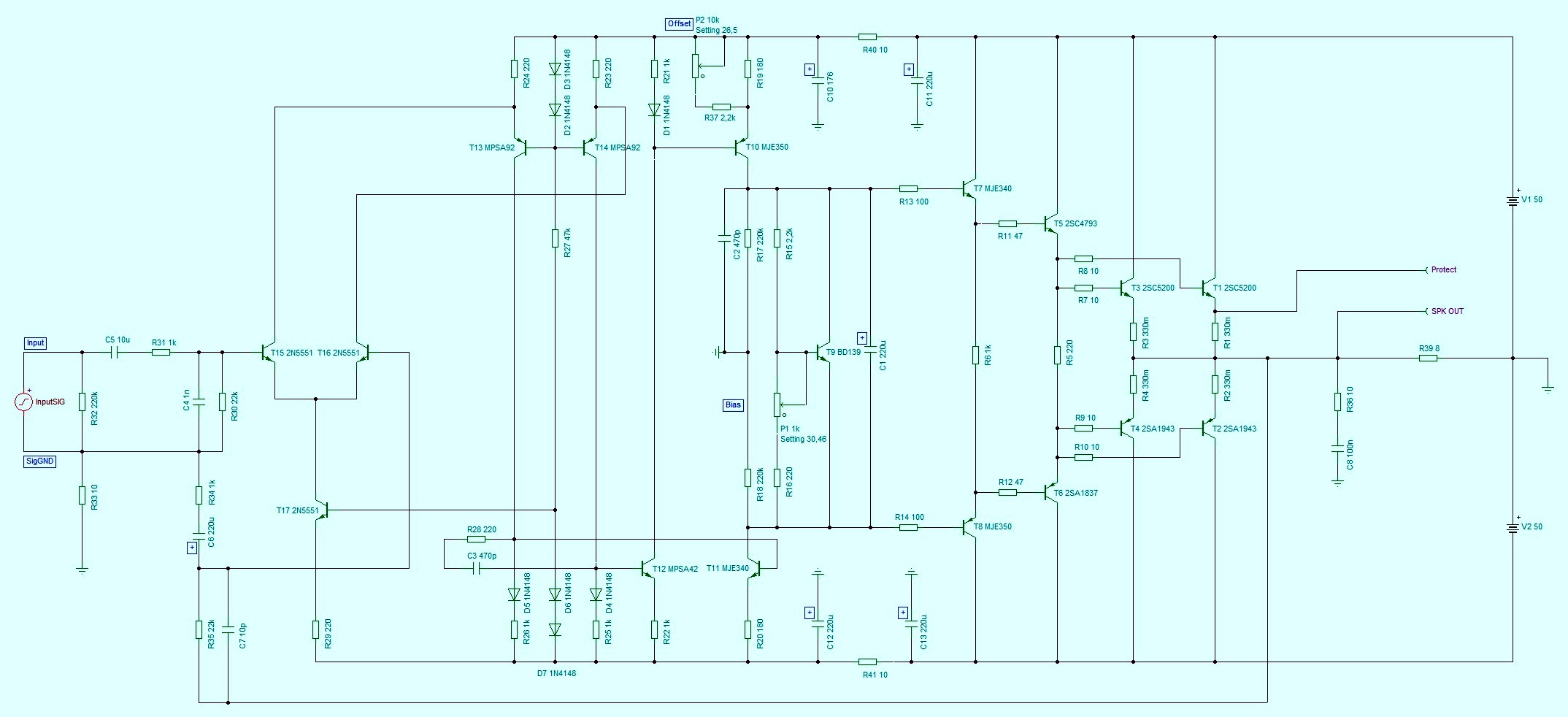

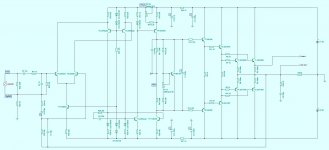

SR150 schematic from TinaTi
APEX SR150



[apexaudio]

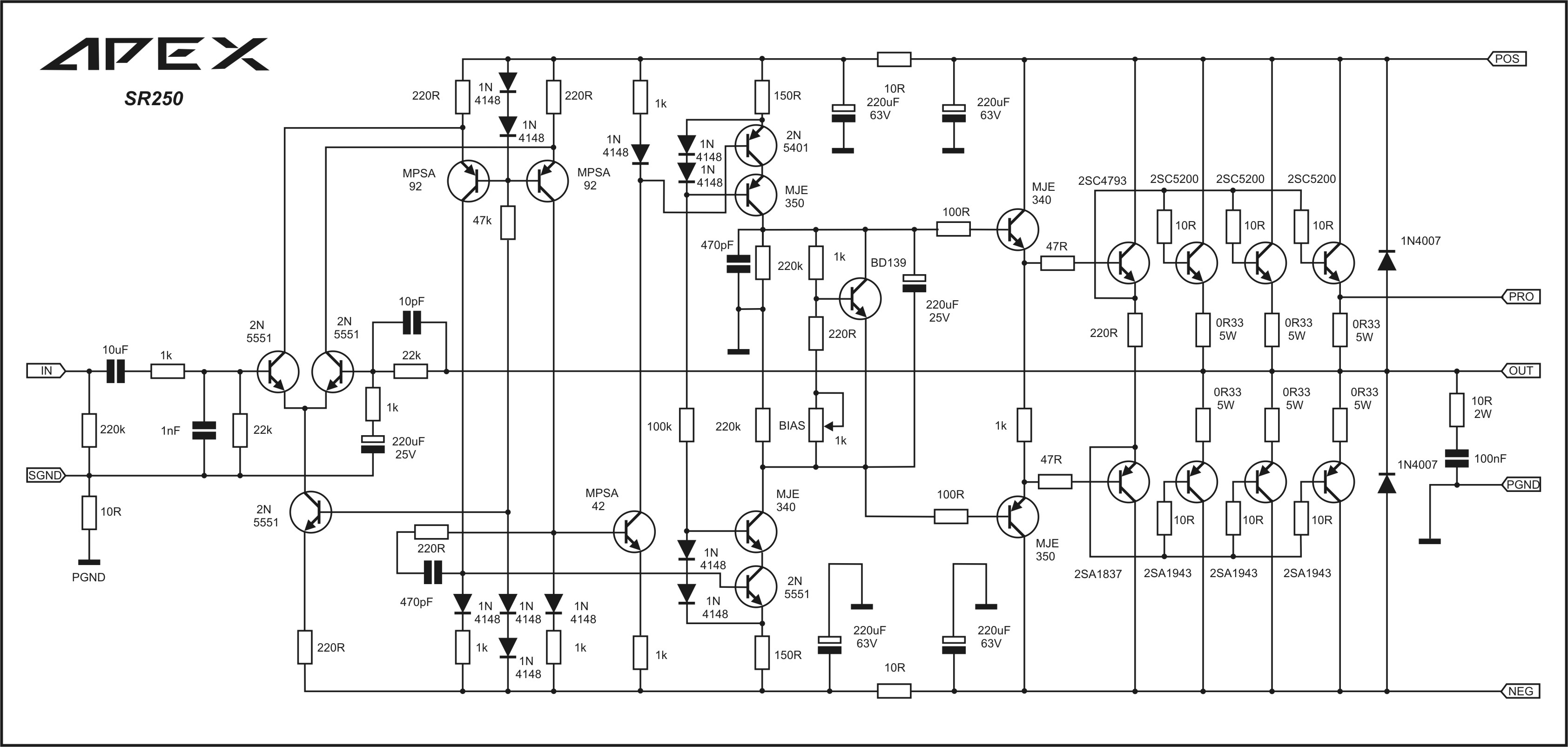

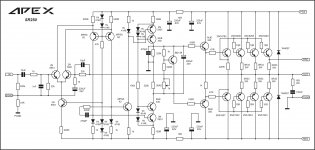

SR250

...



[44250]

pcb not tested

New SR amp idea

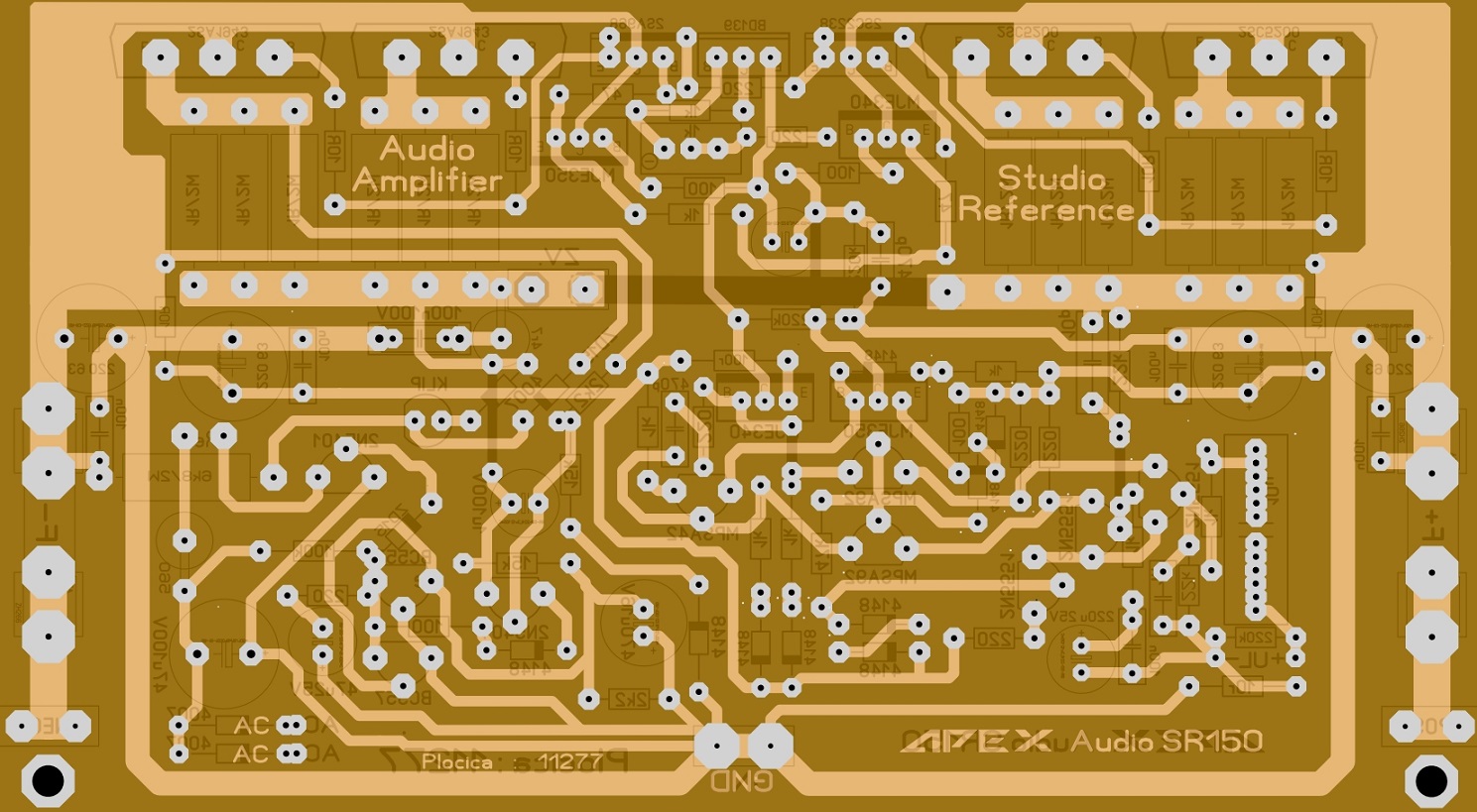

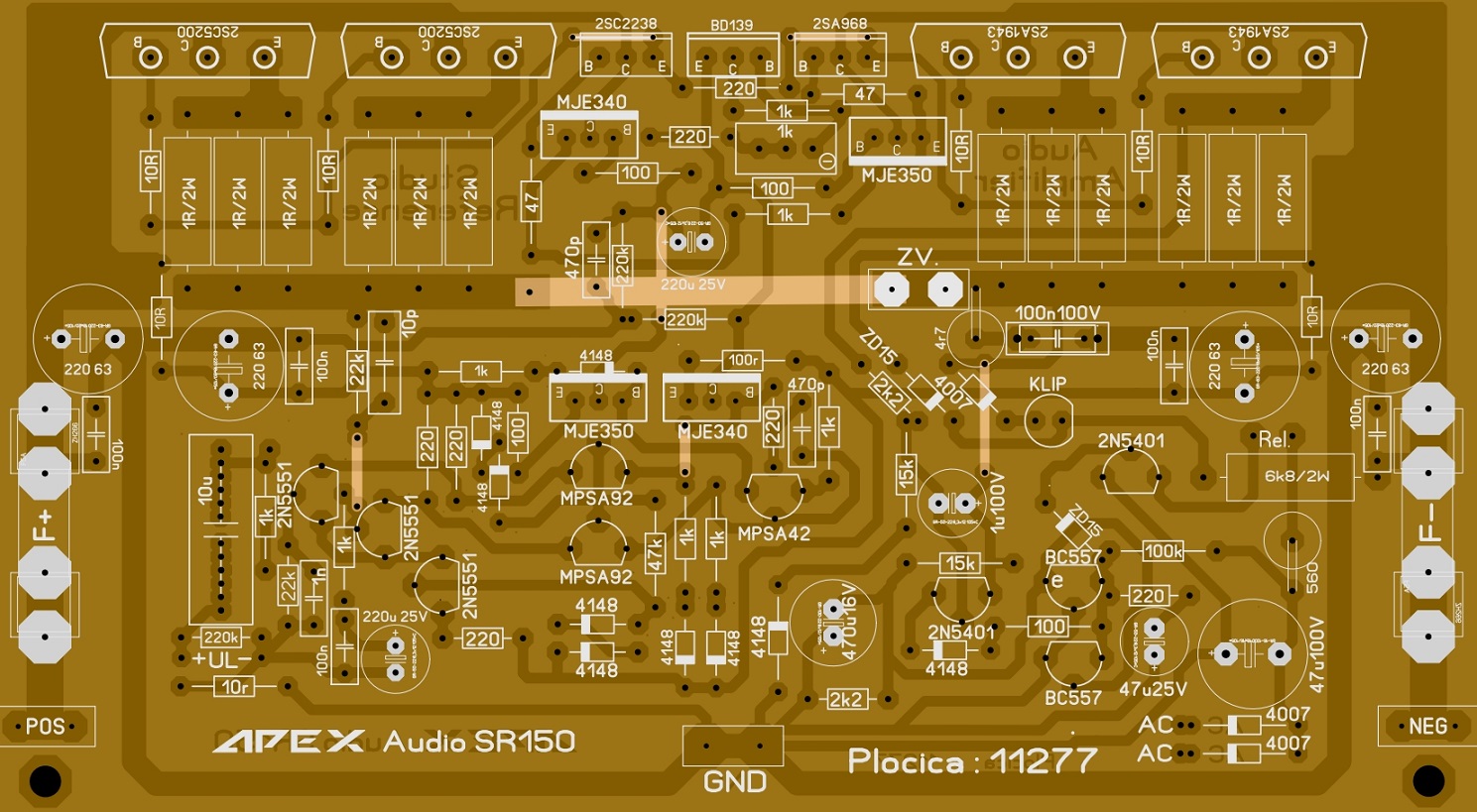

PCB not tested (yet) :
