QUASI Amplifier for Beginners

[yohnsee]

Thanks a lot, lineup!



[apexaudio]

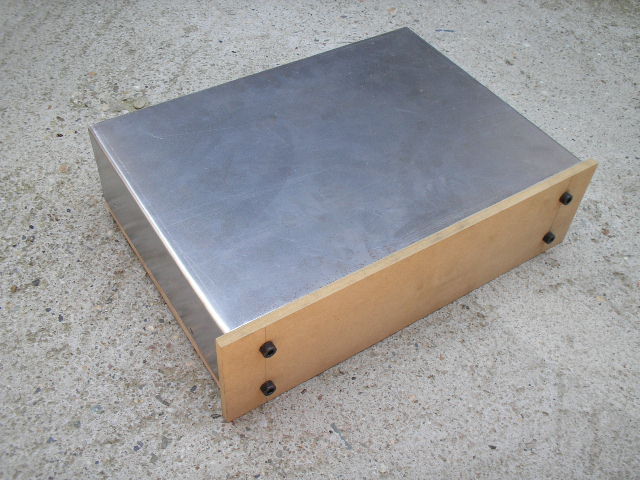

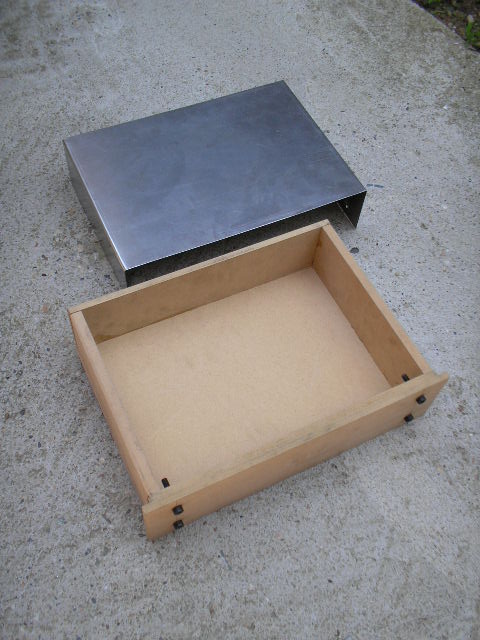

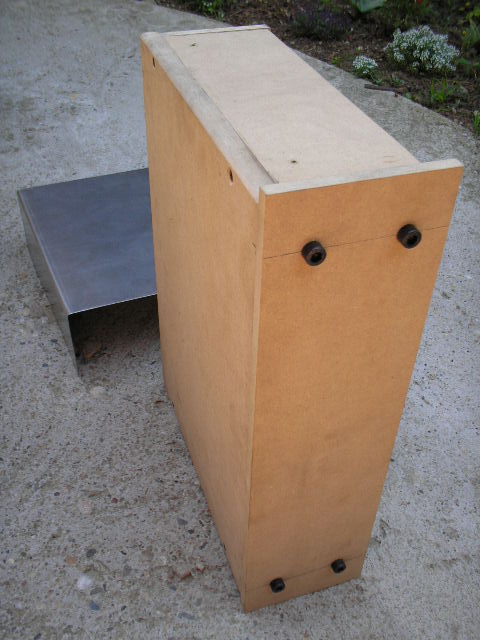

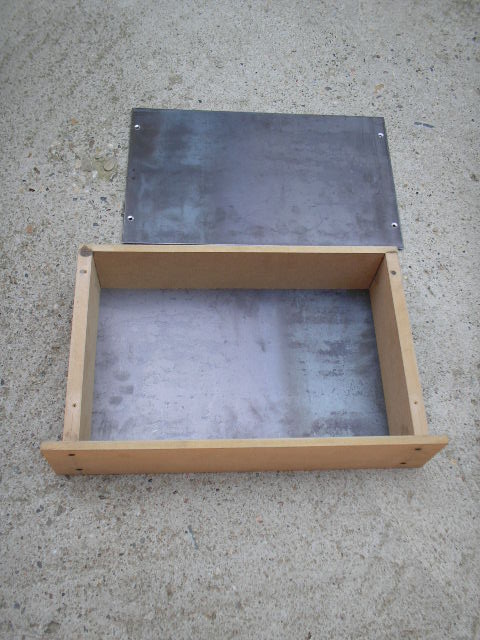

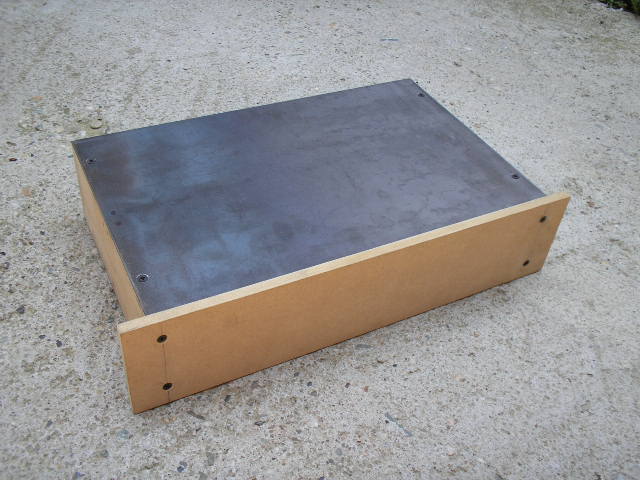

DIY Amp Case

Suggestion for simple and low cost diy cases for amps.



[amptech]

could do with air flow holes....



[drowranger]

APEX CLASS B 500W

Quasi complementary amplifier based on old Dynacord. For begginers Class B without adjust.[/QUO

hope this may help.this what i do when i have nothing to do at office.enjoy.

input capacitor used tantalum capacitor in series. same value as the original.

check for possible mistakes.i have not try this board.🙂

im glad to help miles in his generosity.



[ariyanto]

Mr. parts list to be displayed if?



[drowranger]

Parts list,parts name and schematic of apex 500 watts

Mr. parts list to be displayed if?

Enjoy!



[aman khalsa]

nice work...



[radio]

Hello all!🙂
This is the image amplifier!!!😉😱
Cheers



[ariyanto]

Enjoy!

Ok ..... thank you sir?🙂🙂



[radio]

Hi!
I want to create an audio amplifier in the 500W class-AB!
I ask for some help to replace some of the bias diodes D3 and D4 with variables bias circuits with transistor BD139 or similar!
thanks



[AndrewT]

I want to create an audio amplifier in the 500W class-AB!

what speaker loading?



[radio]

what speaker loading?

4 om !!😉



[AndrewT]

go to quasi site and look at the table of output powers vs output devices to see what combination of components are required to meet your 500W into 4ohm target.



[mihailo]

Nice PCB drawranger. Is it ok to just replace BC546 with 2N5551?
Look again at your schematic, Q6 emitor, its different connected than original Apex schematic.
Regards


http://www.diyaudio.com/forums/members/drowranger.html



[drowranger]

connection of Q6 emitter

Nice PCB drawranger. Is it ok to just replace BC546 with 2N5551?
Look again at your schematic, Q6 emitor, its different connected than original Apex schematic.
Regards


http://www.diyaudio.com/forums/members/drowranger.html

check post 132🙂



[mihailo]

My mistake. Thanks. 🙂



[radio]

Hello all!
I want this amplifier 550W class-B to be processed into kalass-AB, and instead of diodes D3 (1N4148) and D4 (1N4148) for the bias, to put the transistor for bias, ... such as BD139 or similar?😕🙁
That's why people help you do that changes the pattern of this amplifier?
thanks 🙄🙁



[drowranger]

CAUTION!!!! 2n5551 and bc 546

check post 132🙂

2n5551 have different pin configuration its EBC, while bc546 is CBE.



[drowranger]

Dont feel sorry... in fact you make things clear.

My mistake. Thanks. 🙂

you are welcome to comment on this pcb.... for everyone's sake.🙂



[radio]

Quasi complementary amplifier based on old Dynacord. For begginers Class B without adjust.[/QUO

hope this may help.this what i do when i have nothing to do at office.enjoy.

input capacitor used tantalum capacitor in series. same value as the original.

check for possible mistakes.i have not try this board.🙂

im glad to help miles in his generosity.

Dear Drowranger
After you have created a PCB for the 550W class-B, please if you are able to make some changes to the PCB for this amplifier 2x1N4148 diodes instead of the bias with transistor BD139 set to the schematics (see circuit)!?
thanks
