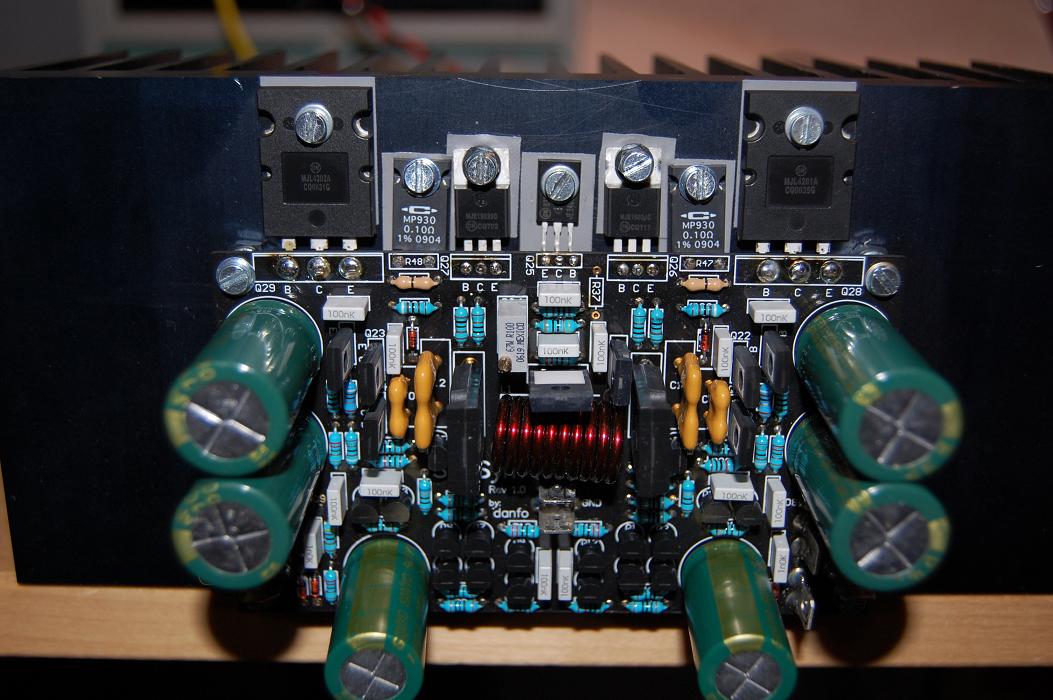

Installed in Nelson Pass Labs Chassis #26 from BurningAmp Fest of last year. ... ~300 watts x2 channels = real cool, man ... after three hours of heavy metal and electric blues, heat sink temp only 5 or 7 degrees above ambient ~~ 80 F. degrees in vented wood cabinet (no fan) = 😀
(Dr. Pass: Can I get any more of these great chassis?)
Last edited:
Very nice, HCK...

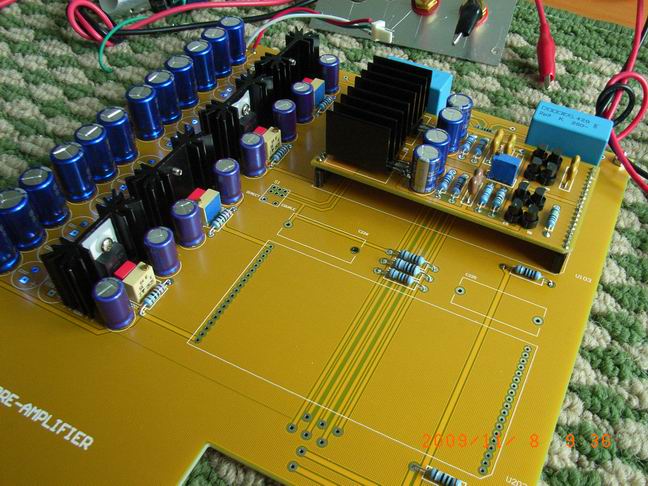

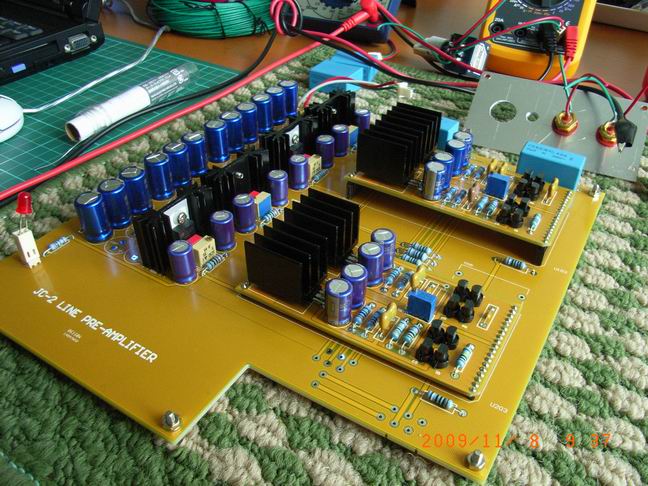

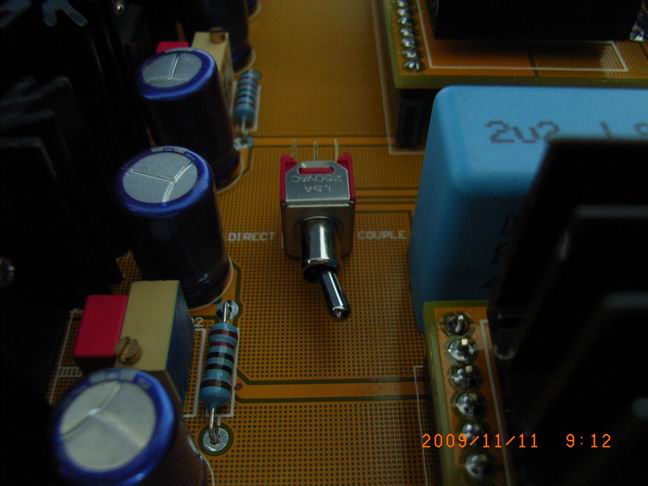

Thank you for watching, this is the best pcb design I have ever made. More photos to follow
Attachments
Audio Power Amplifier with 2N3773/2N6609 Project?
Hello!
Audio Project with schematic and PCB with output Transistors 2N3773/2N6609!
Tenks you!🙁
Hello!
Audio Project with schematic and PCB with output Transistors 2N3773/2N6609!
Tenks you!🙁
Hello!
Audio Project with schematic and PCB with output Transistors 2N3773/2N6609!
Tenks you!🙁
Try this thread:
http://www.diyaudio.com/forums/solid-state/32694-simple-stereo-amp-aroud-2n3773.html
Yet another

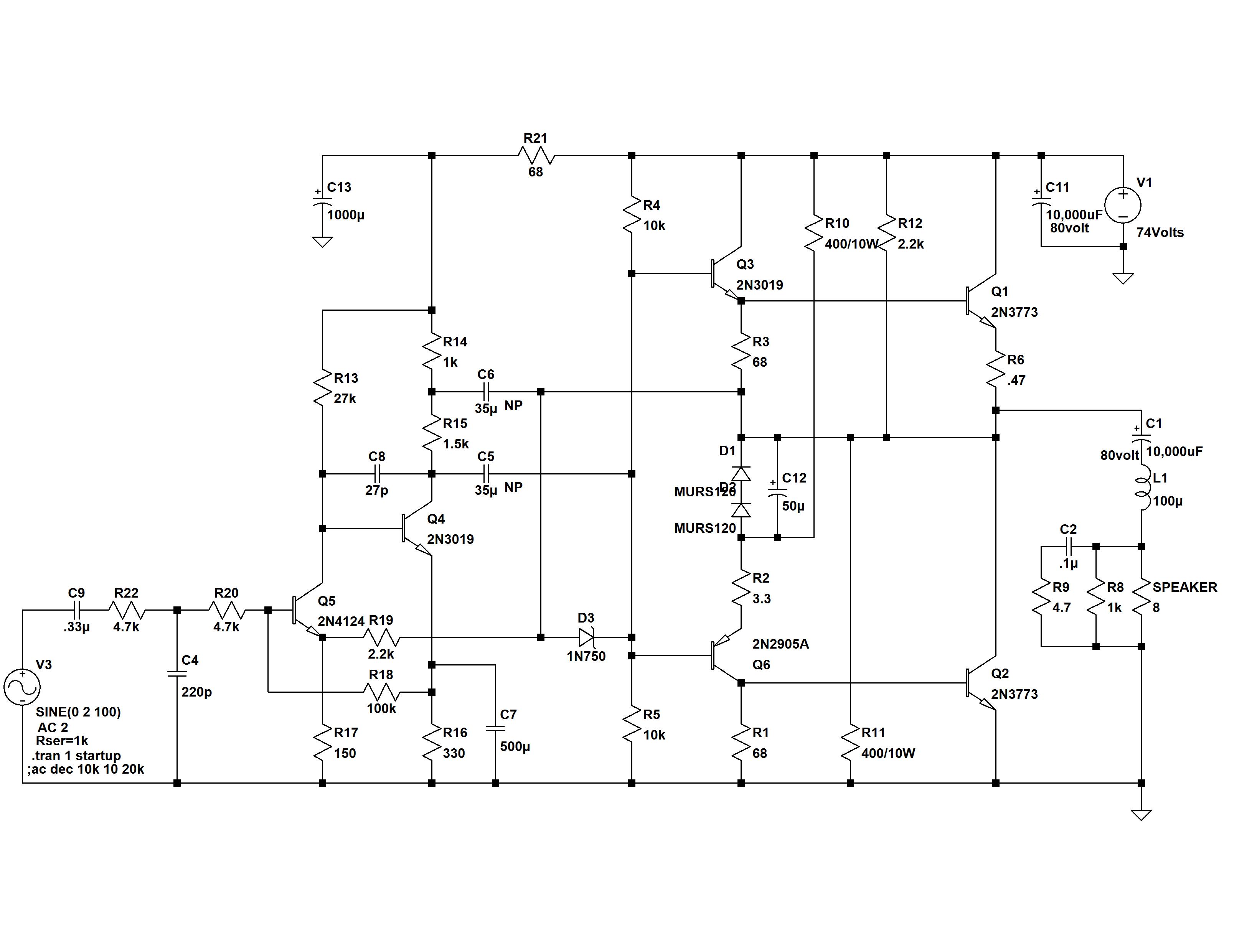

Though old, The Dynaco ST-80, still a nice sounding amp and an unusual but effective biasing scheme.
Hello!
Audio Project with schematic and PCB with output Transistors 2N3773/2N6609!
Tenks you!🙁
Though old, The Dynaco ST-80, still a nice sounding amp and an unusual but effective biasing scheme.
Attachments
Member
Joined 2002
Here is mine 🙂
An externally hosted image should be here but it was not working when we last tested it.
🙂Thanks for the scheme, but I need audio amplifier with symmetrical power suplly [Us = (+40 / -40) V], which uses the output transistors 2N3773 or complementary transistor pair 2N3773/2N6609.
Thank you!🙁
"ExtremA"
Just a quick couple of pics.
Link to original article thread- Original diyaudio thread.
Link to my build thread- My "ExtremA" is Built. Whew.
FYI, this is a a class A amp, 70 WPC fully differential with a bridged output.
Amp Operating.
Top Cover Off.
Just a quick couple of pics.
Link to original article thread- Original diyaudio thread.
Link to my build thread- My "ExtremA" is Built. Whew.
FYI, this is a a class A amp, 70 WPC fully differential with a bridged output.
Amp Operating.
An externally hosted image should be here but it was not working when we last tested it.
Top Cover Off.
An externally hosted image should be here but it was not working when we last tested it.
Last edited:
My latest project.
100W Class AB amp.
Complementary symmetric differential input using current mirrors.
Link to development thread
100W Class AB amp.
Complementary symmetric differential input using current mirrors.
Link to development thread
Attachments
Did you thread the heatsink for the bolts or did you put bolts through with nuts on ?
Hello Friends.
Steeve here from United States, I feel so glad to see some of the most wonderful and interesting pictures posted here in this group. Really great work by all you guys and I do appreciate your efforts. Can you please post some more pictures specifying the circuit designs too.
Thanks for your post and stay connect.
Steeve here from United States, I feel so glad to see some of the most wonderful and interesting pictures posted here in this group. Really great work by all you guys and I do appreciate your efforts. Can you please post some more pictures specifying the circuit designs too.
Thanks for your post and stay connect.
[/QUOTE]Hello All!🙂
Thebes me reliable audio amplifiers (scheme and PCB), which will be powered with the Us=±55...60V.Output transistors to be in the TO-3 housing (as MJ15003/MJ15004, etc..)
Thank you,
Here

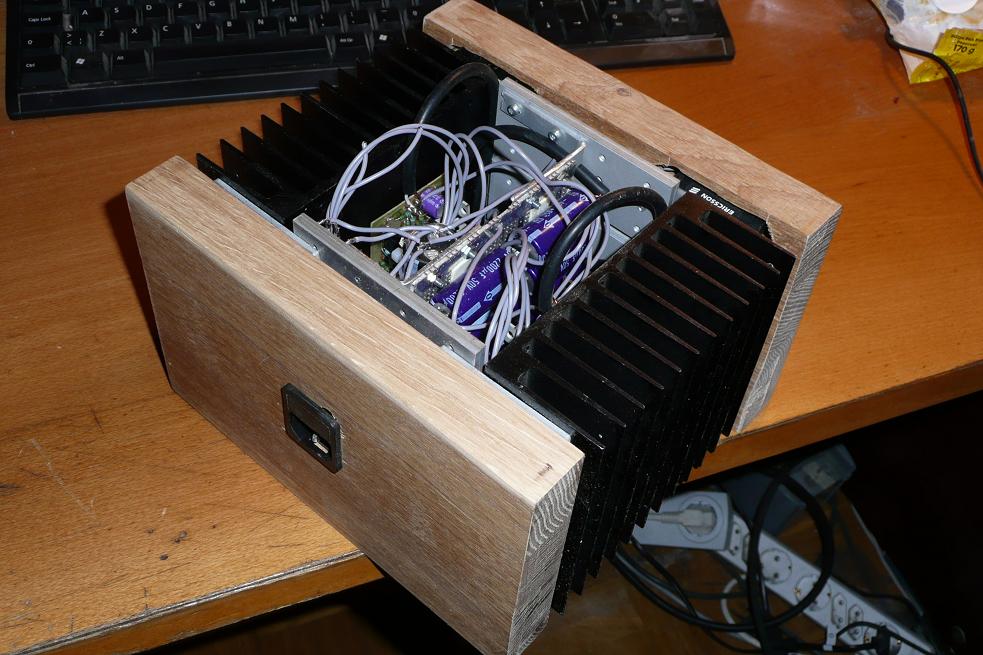

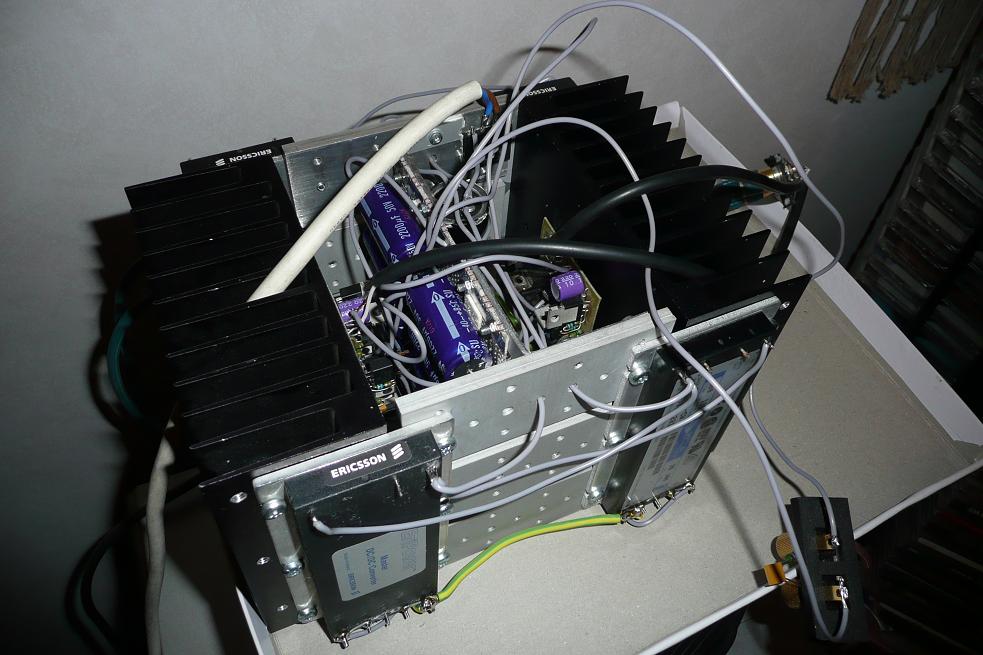

my JLH 1969 based on the chinese PCB.
the 2N3055 are installed by the heatsink out of the case.
transformer ex CCCP military surplus 22v, bridge rectifier 50A + 20000uf/50v capacitor+ 1Ohm 15W resistor + 120000uf/50v capcitors.

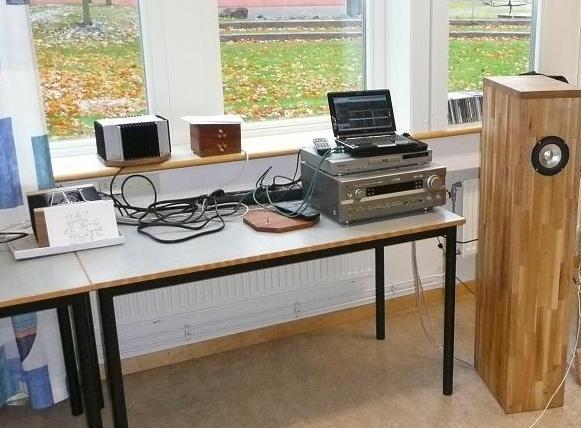

drive very very well my FR saba greencone + TW saba greencone open baffle.
sound great.
the 2N3055 are installed by the heatsink out of the case.
transformer ex CCCP military surplus 22v, bridge rectifier 50A + 20000uf/50v capacitor+ 1Ohm 15W resistor + 120000uf/50v capcitors.
drive very very well my FR saba greencone + TW saba greencone open baffle.
sound great.
almost finished..
Inputs and outputs are now mounted and connected below the power connector.
(it might look small, but it's by no means weak)..
Inputs and outputs are now mounted and connected below the power connector.
(it might look small, but it's by no means weak)..
Attachments
Last edited:
