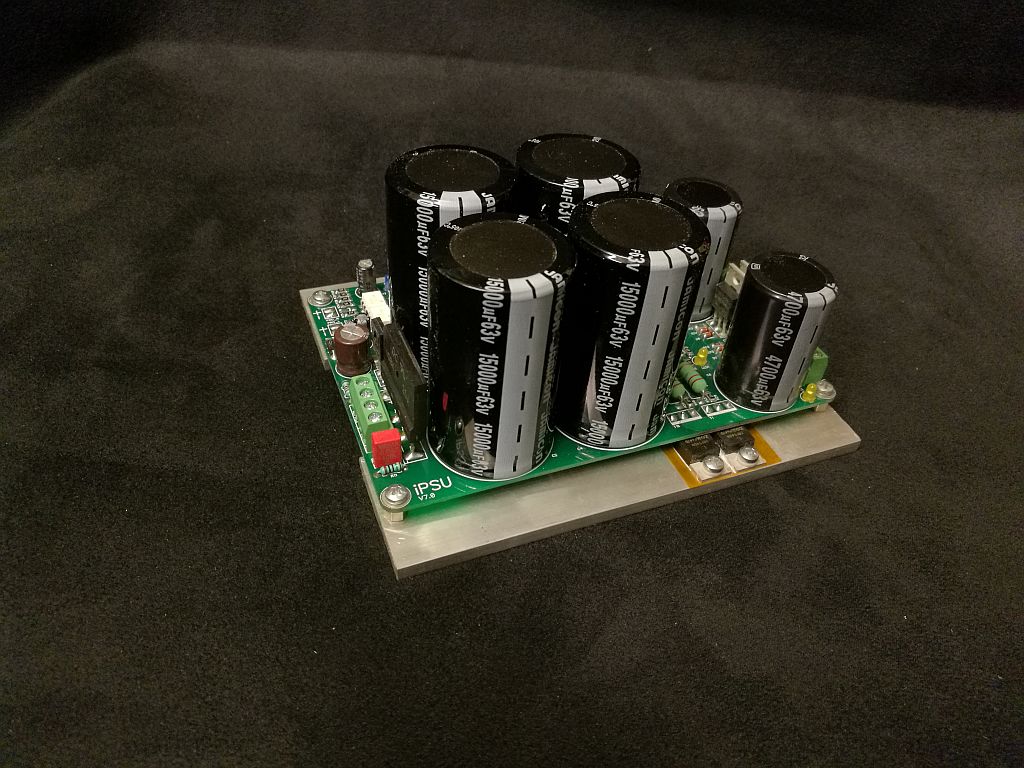

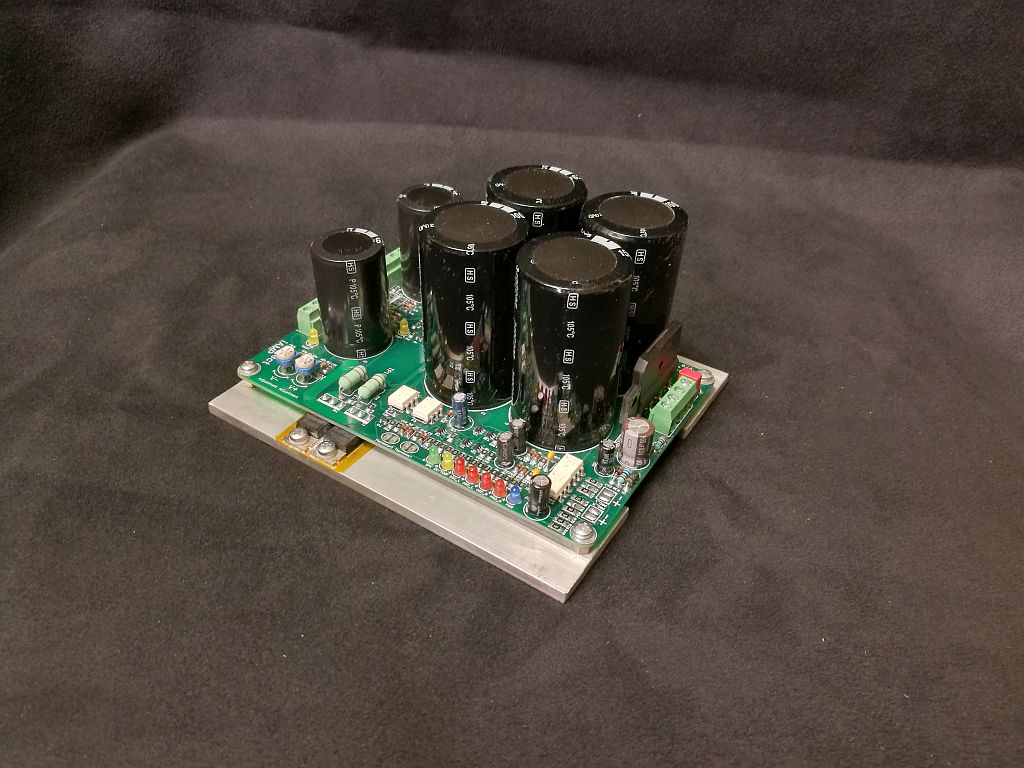

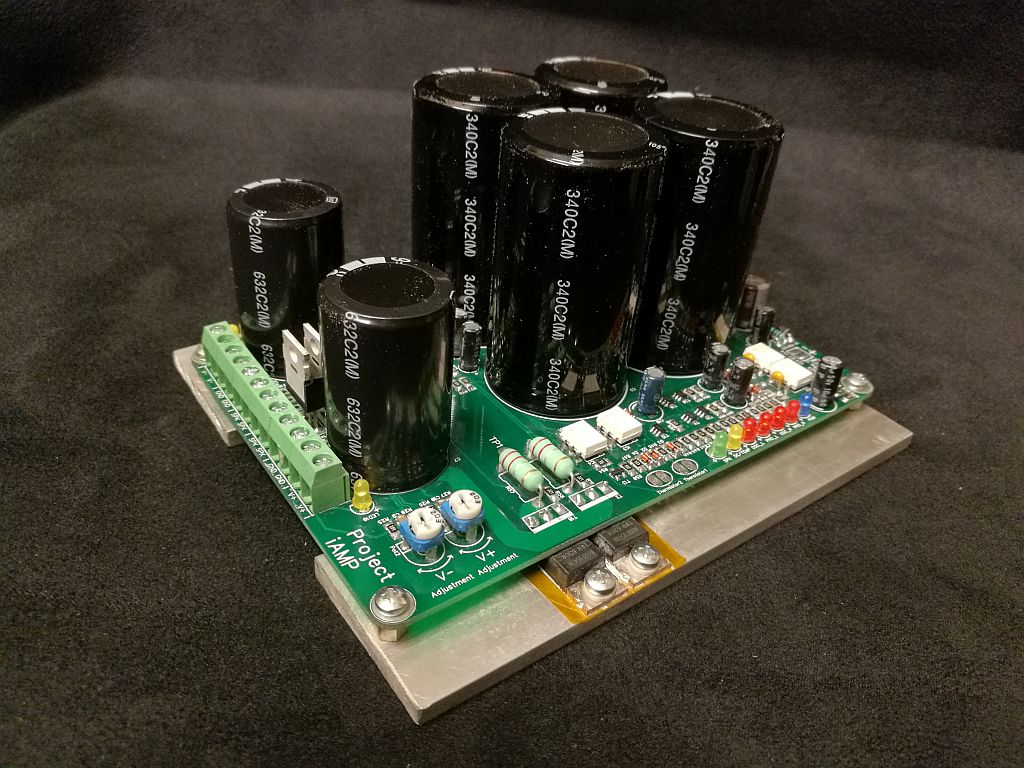

7th version of integrated amplifier PSU is on the way. Some new features are on the way too. PSU contains:
-capacitance multiplier / stabilisation if required
-delayed SPK ON
-fast SPK OFF
-DC protect
-stereo thermal protect
-stereo short circuit/over load protect
-stereo oscillation protection (above 30kHz @ 10V p-p)

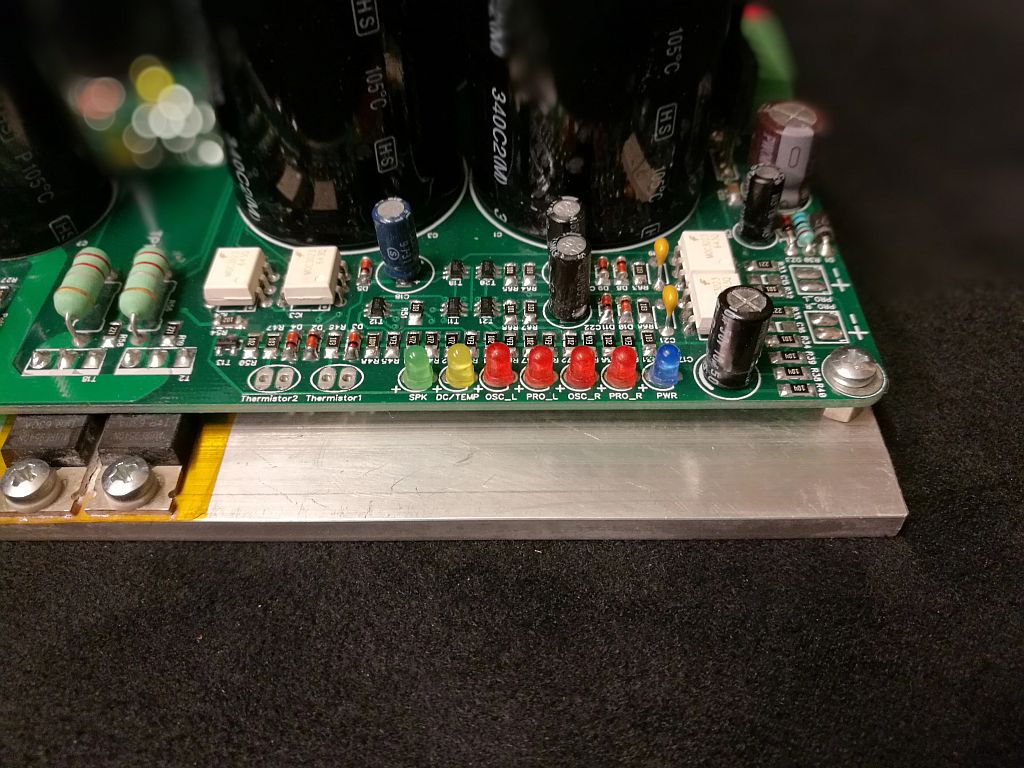

-LED diagnostics for left and right channel
-protected BUS rails - in case of failure V+ and V- buses are switched off
-BUS rail soft - start --> (on power on bus rails are slowly switched on - 1-1,5s)
-stereo solid state Mosfet relays for SPK ground return
- 😀
-capacitance multiplier / stabilisation if required
-delayed SPK ON
-fast SPK OFF
-DC protect
-stereo thermal protect
-stereo short circuit/over load protect
-stereo oscillation protection (above 30kHz @ 10V p-p)
-LED diagnostics for left and right channel
-protected BUS rails - in case of failure V+ and V- buses are switched off
-BUS rail soft - start --> (on power on bus rails are slowly switched on - 1-1,5s)
-stereo solid state Mosfet relays for SPK ground return
- 😀
Attachments
Any plans on selling the PCBs?7th version of integrated amplifier PSU is on the way.
Do
pinnocchio
I have ordered jusf few PCBs for myself. I can give you free sample, just PM me Yours adress.
Bellow is YT movie in some strange language 😀 how does the osccilation protection working:
iPSU V7 - YouTube
Regards
I have ordered jusf few PCBs for myself. I can give you free sample, just PM me Yours adress.
Bellow is YT movie in some strange language 😀 how does the osccilation protection working:
iPSU V7 - YouTube
Regards
This may be totally left field but I thought I would post this weird setup I have created. I was given A Marantz PM750. Which had faulty power amp section. Both Channel were blown and several attempts were made to repair. the pcb was hacked to the point where desoldering and resoldering before totally damaged the pcb tracks. They were lifting and breaking. It was a mess. Someone attempted to repair it to no avail. So I thought how about retro fitting new amps sections in it and retain all the rest of the preamp and graphic EQ in tact.
I am hoping to do something very similar to what you have described, except mine is only using a pre-amp from an AVR. I believe I will need to cut each pre-amp apart so that I can tap each one individually.
Anyone have any advice for mixing in late 90's Onkyo pre-amp with a MX50 SE x4 for power amp with ES9028Pro + Amanero (DSD512)? I just got most of the parts in the mail from China (FINALLY). I can't believe I found a DIY ES9028 kit that was literally $59 total. However you need to assemble the entire board/s yourself except for the main IC, I think they do include that on the PCB.
Attachments

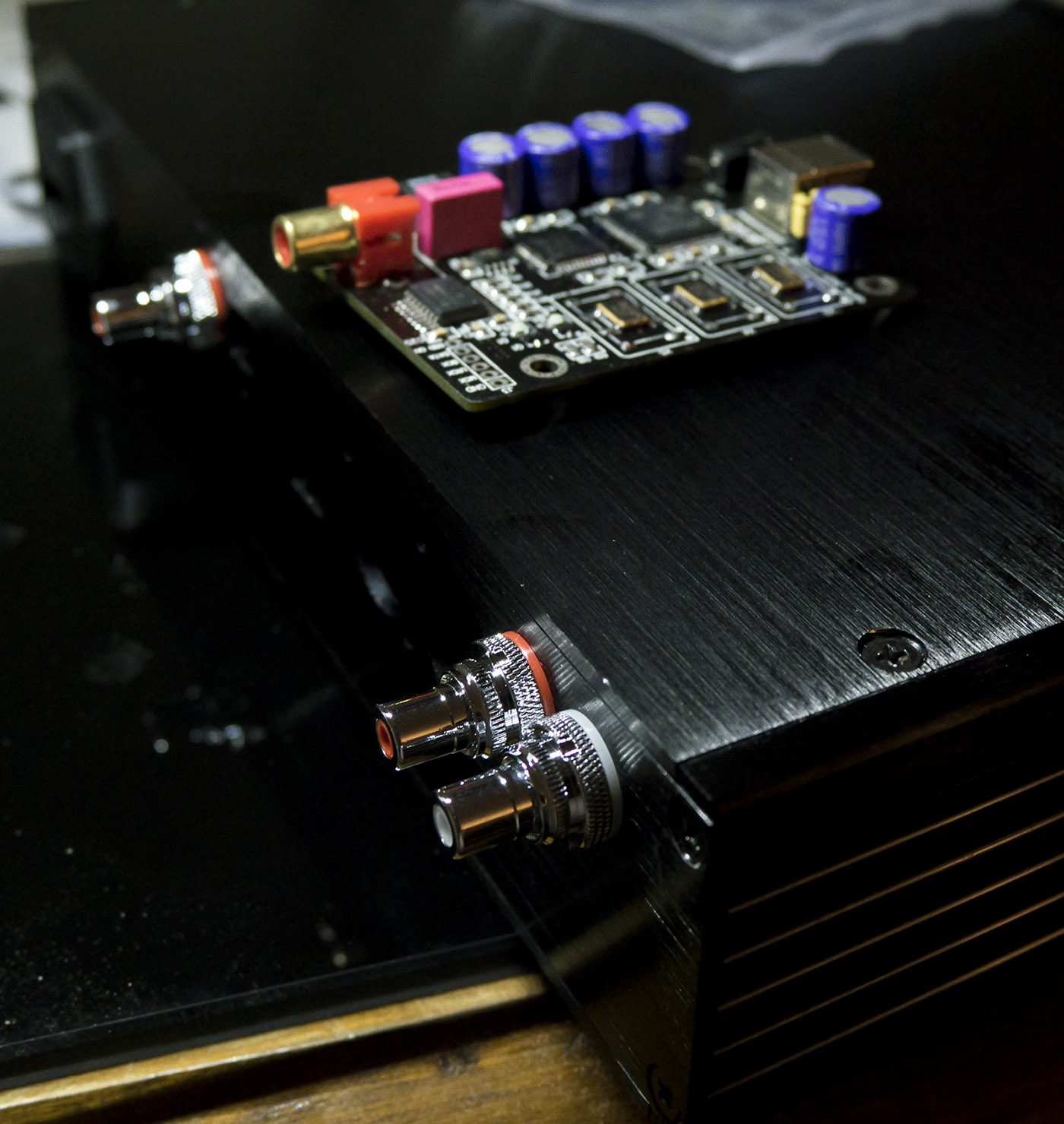

ES9028Pro DIY kit ($60) just arrived! You can see I have the other pieces of the puzzle (for the DAC anyway) pictured below.

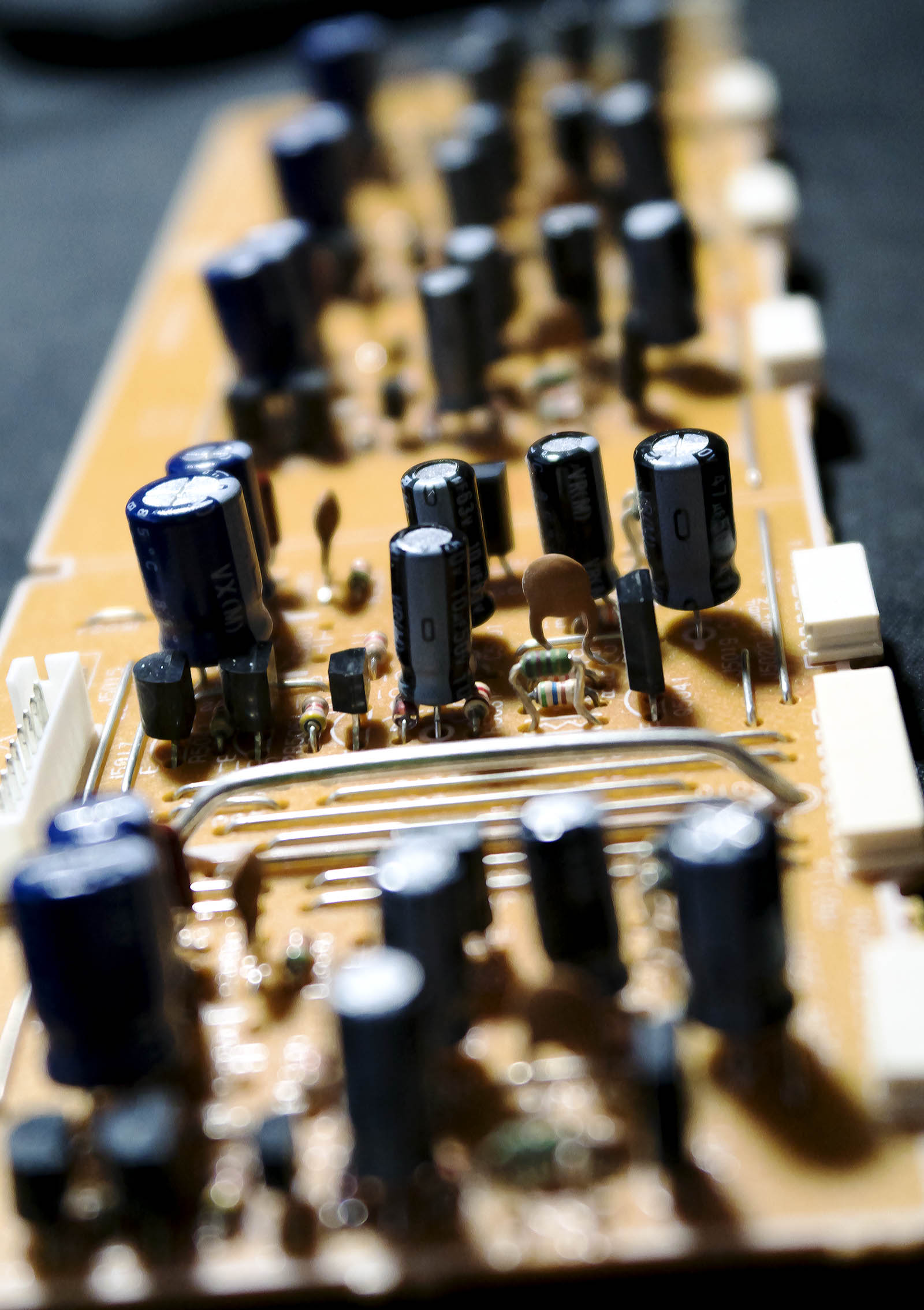

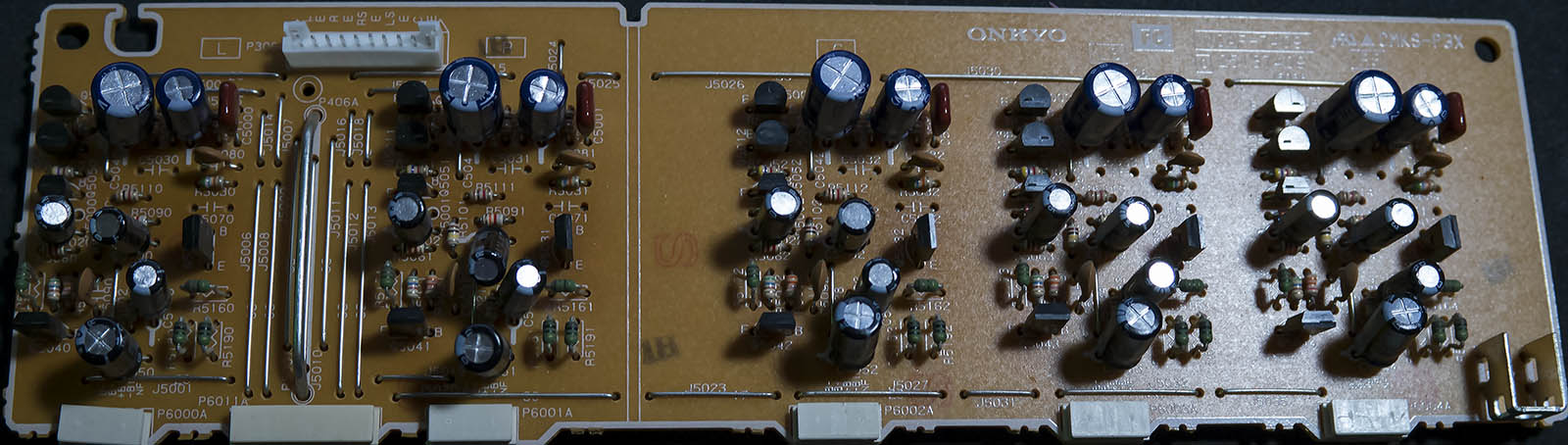

Has anyone ever taken a simple pre-amp that was for 5.1 (5 individual preamps on one PCB) and cut it up into 5 that you can tap separately from the other 4? I will include an image of that below too.
Has anyone ever taken a simple pre-amp that was for 5.1 (5 individual preamps on one PCB) and cut it up into 5 that you can tap separately from the other 4? I will include an image of that below too.
Attachments
pinnocchio
I have ordered jusf few PCBs for myself. I can give you free sample, just PM me Yours adress.
Bellow is YT movie in some strange language 😀 how does the osccilation protection working:
iPSU V7 - YouTube
Regards
Sorry for the late reply, yes I'm definitely interested. I'll send you a PM later on.
Thanks a lot!
Do

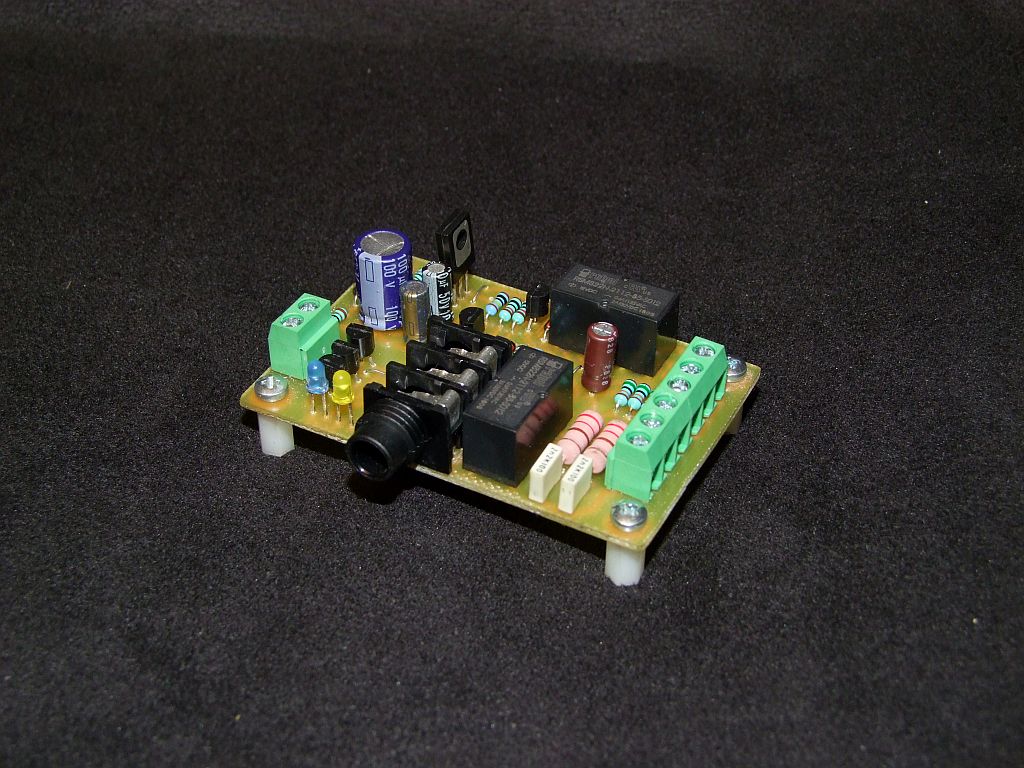

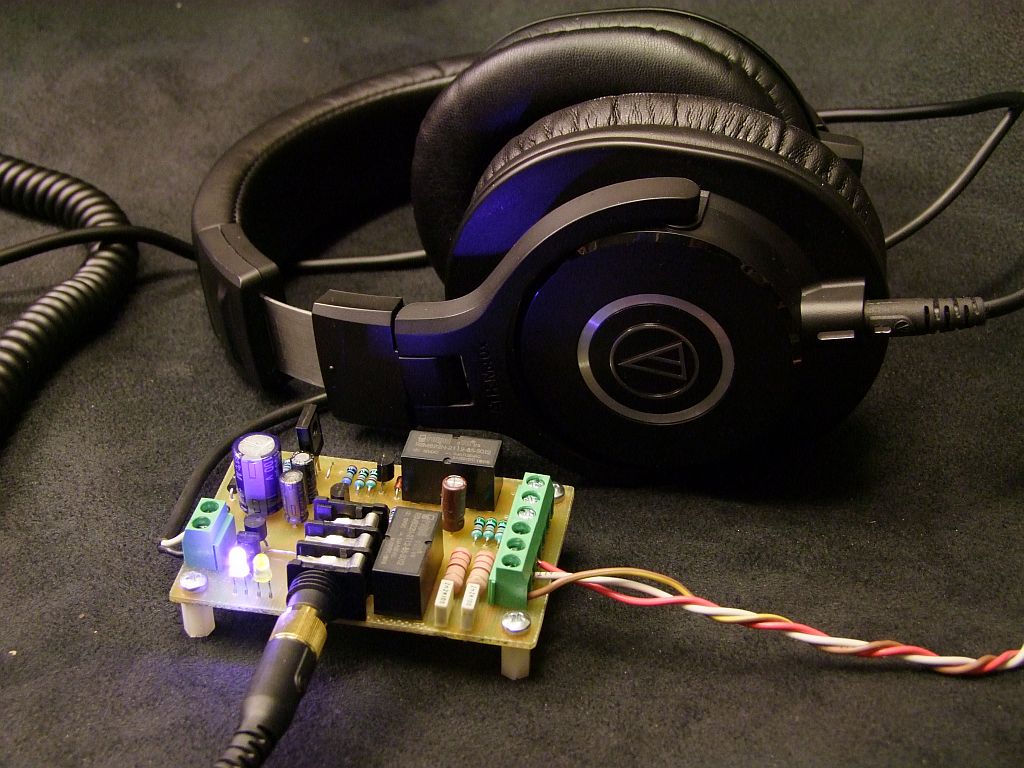

As my wife must learn a bit for the exams I had to find the way to plug in my headphones to the amplifier so I have made a smallish project - universal Jack-module with DC protection. Works as a treat. (documentation on my page in ''other projects'').
Regards
Regards
Attachments
Bi-amped System

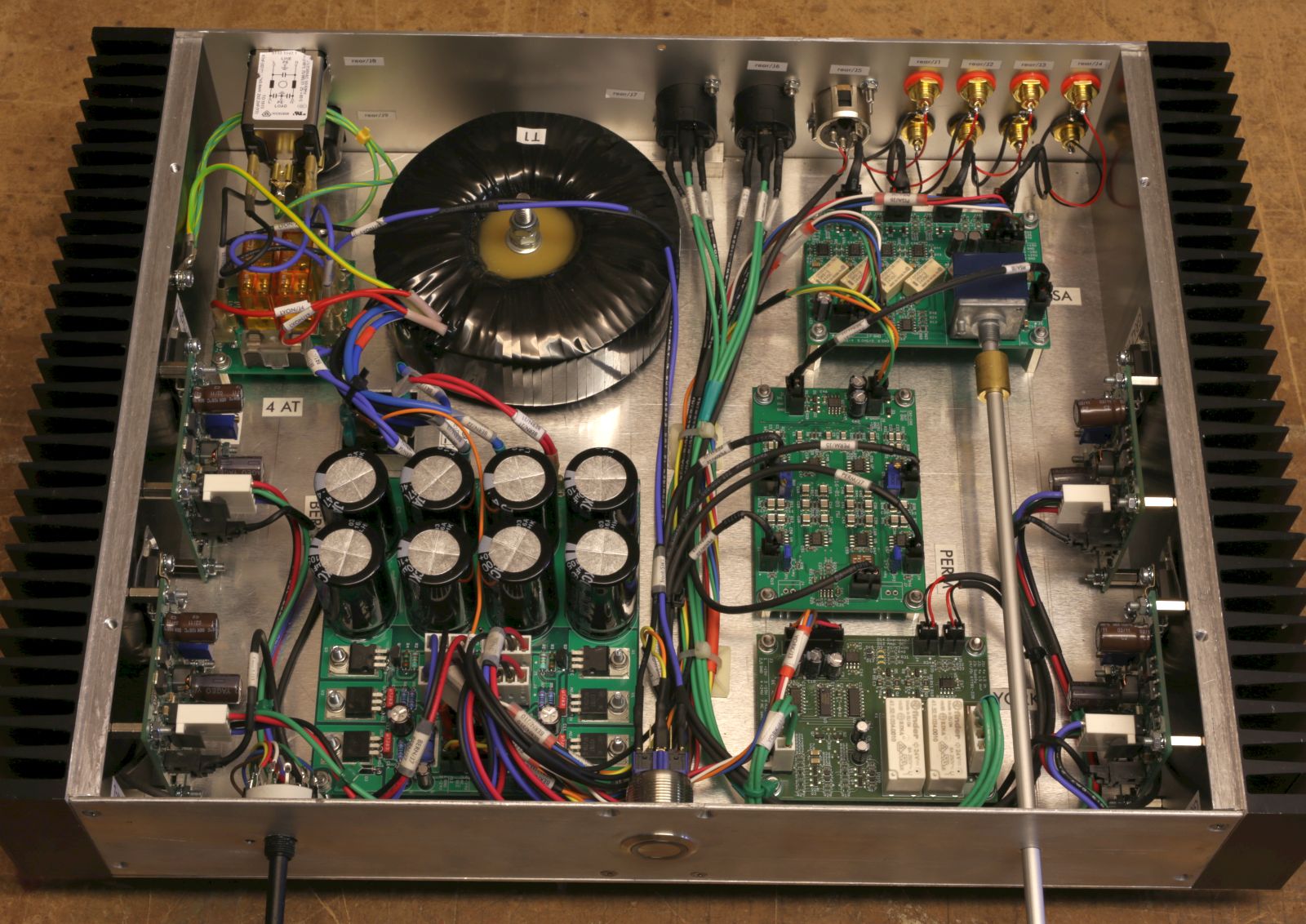

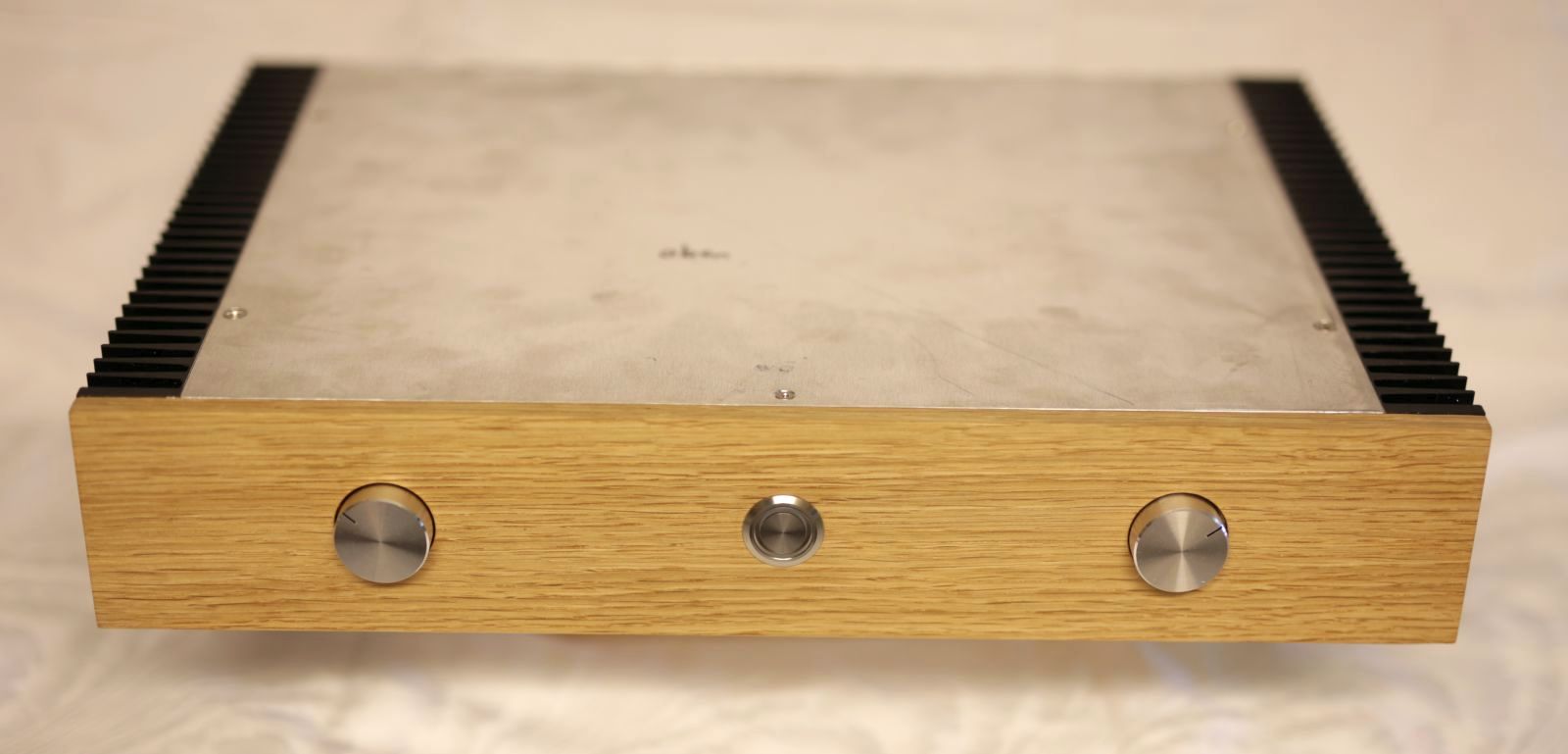

Here are some photographs of my current bi-amped system. All schematic/assembly diagrams and BOMs can be downloaded from my website: michael weilgunis website – brahms amp.
Here are some photographs of my current bi-amped system. All schematic/assembly diagrams and BOMs can be downloaded from my website: michael weilgunis website – brahms amp.
Attachments
Hi Thimios!
Thank you! All PCBs were hand-assembled. I have some unpopulated PCBs I could provide (for 3 further amps). Until now I just made two of these amplifiers so I'm currently not in the situation of thinking about kits or assembled boards. If there is more interest situations may change.
Thank you! All PCBs were hand-assembled. I have some unpopulated PCBs I could provide (for 3 further amps). Until now I just made two of these amplifiers so I'm currently not in the situation of thinking about kits or assembled boards. If there is more interest situations may change.
Sorry, I just finished translating the page. If you go to the bottom of the page you will find a table with schematics and assembly diagrams.
Nice!
Still looking for a cost affordable mosfet based protection.😉
What would you say is cost affordable? I have been prototyping a complete amp protection design for months now and one thing led to another(bias and rail monitors, etc.) besides the temp sensors and dc offset. I don't want to know the cost. That said, the dc detection circuit, photo-coupler and mosfets alone would make a good dc shutdown design for the speakers. It uses Mr Self's 47k and 47uf design (which this combo, by the way seems to be a law of physics) with opamps instead of discretes. With mosfets of <10mohms the lowest cost guess maybe $40 for parts, plus pcb, just for the dc offset protection, no MCU.
MI
Nothing wrong with German language but i don't understand the language.🙂Sorry, I just finished translating the page. If you go to the bottom of the page you will find a table with schematics and assembly diagrams.
English a little better.🙂
Thanks!
Here are some photographs of my current bi-amped system. All schematic/assembly diagrams and BOMs can be downloaded from my website: michael weilgunis website – brahms amp.
Very good. I like your speakers too.
Here are some photographs of my current bi-amped system. All schematic/assembly diagrams and BOMs can be downloaded from my website: michael weilgunis website – brahms amp.

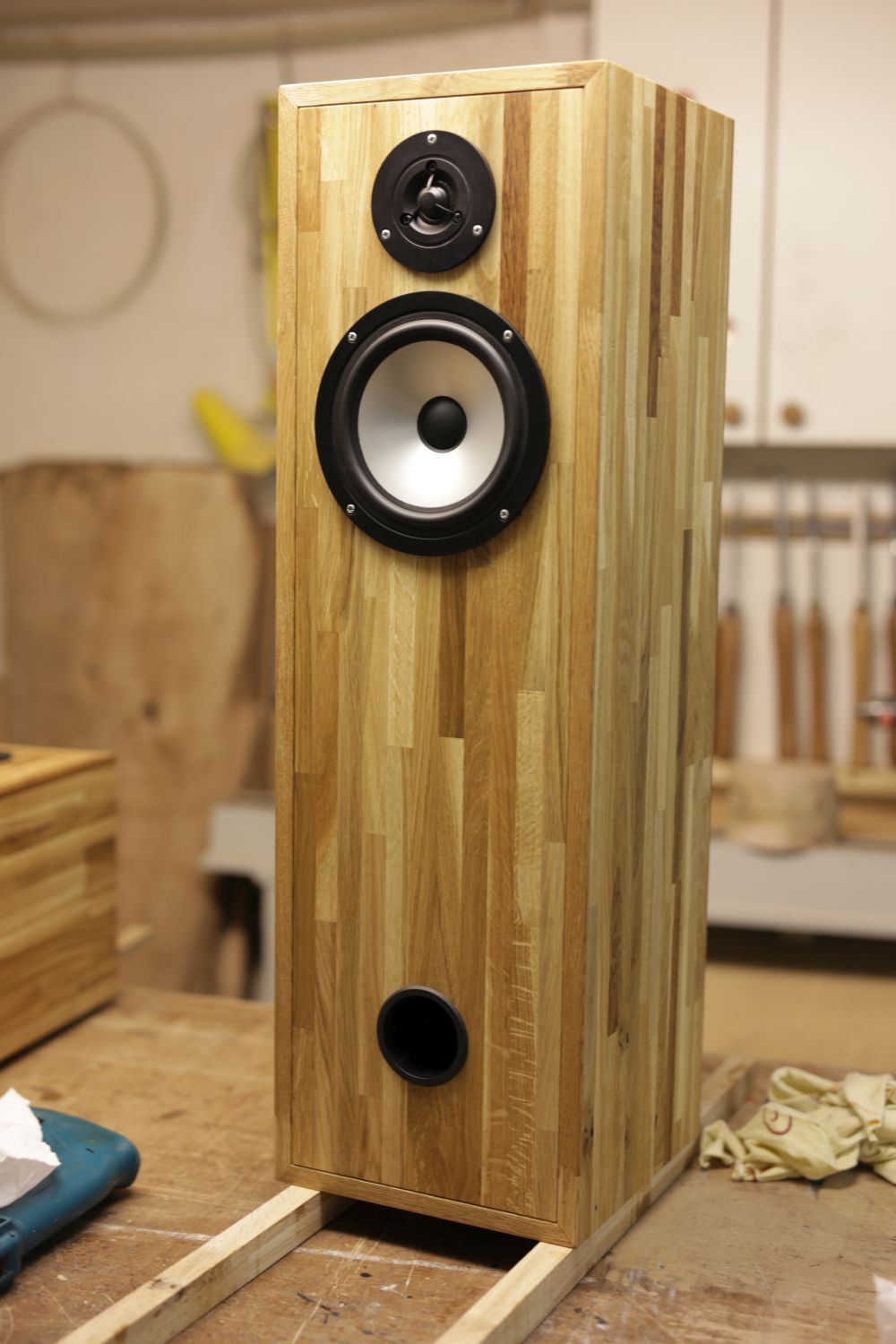

Looks great! Does that DT 94 perform well for you? Any reason why you didn't go for fabric (G 20 SC) or titanium (DSM 25 FFL)? Two reasons I ask: I'm not quite happy with the SC 10 N - I'm going to replace mine with one of those I mention, and I wouldn't think that the DT 94 is any better than the SC 10 N, but if it's good, I might consider it as well. Then, you're using an AL 170, so why skimp on the tweeter?
And does the enclosure hold up well? It's beautiful, and I'm keen on using solid wood in enclosures, but I've heard that solid wood isn't great for tight enclosures because of expansion.
Last edited:
Looks great! Does that DT 94 perform well for you? Any reason why you didn't go for fabric (G 20 SC) or titanium (DSM 25 FFL)? Two reasons I ask: I'm not quite happy with the SC 10 N - I'm going to replace mine with one of those I mention, and I wouldn't think that the DT 94 is any better than the SC 10 N, but if it's good, I might consider it as well. Then, you're using an AL 170, so why skimp on the tweeter?
And does the enclosure hold up well? It's beautiful, and I'm keen on using solid wood in enclosures, but I've heard that solid wood isn't great for tight enclosures because of expansion.
Hi Mrcloc!
I already used the DT 94 in projects before and for me it performs well enough. I have never tried the fabric tweeters you mention so I can't tell you which one fits better to your application. The AL 170 is overpriced on the Visaton website, you can get it way cheaper via distributors so I think the prices are well-balanced.
Concerning solid wood: there may be problems with closed boxes but I have less doubts with vented boxes.
DLH amp designed by Diegomj1973. Quick prototype sounds great - dead silent and running nicely at 15.5v rails and 1.8amp bias.
DLH Amplifier: The trilogy with PLH and JLH amps
DLH Amplifier: The trilogy with PLH and JLH amps
Last edited:
