Pictures of your diy Pass amplifier

[Zen Mod]

I would choose any tasty solution ..... buying regular cover isn't particularly delicious



( use sand if you wish ........ but in case of hot xformer , I have no idea is it better with or without sand ... )

so - best approach - big xformer ( it will be cool , in many ways ) and big ham can



[d to the g]

I would choose any tasty solution ..... buying regular cover isn't particularly delicious

transformer covers are a consPIRACY!



[spgjmf]

Could you indulge us with a photo of the other side of your board?? 🙂

sure,
like he said..its just wires...but I will get a shot of the underside for yeah. check back later.


Jeff



[spgjmf]

Curious, what's this ?

D.

as udailey said its a sweet little fet preamp. everyone should build one. I like most the wide range of power supply options 12-40v and the low parts count.

-Jeff



[spgjmf]

It definitely encourages others to give it a try.
Nice work.

thanks! I am happy with the way it turned out.

-Jeff



[jacco vermeulen]

Aha! And now we know who you truly are! One of those dirty birds always trying to get an upskirt shot of the other guys amp! LOL

Mm, there's something uncanny familiar about your choice of words.



[spgjmf]

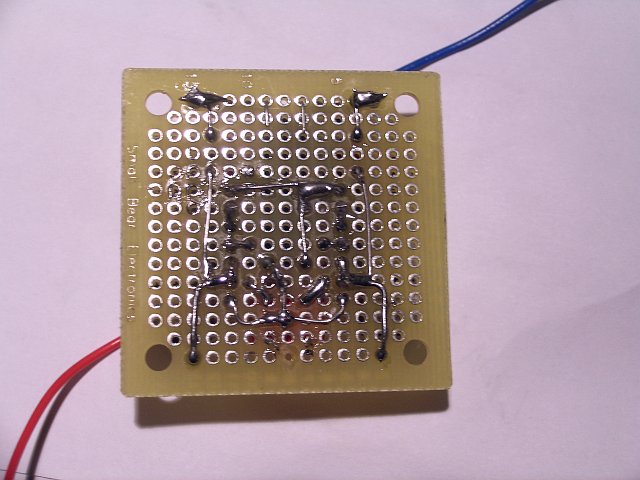

Could you indulge us with a photo of the other side of your board?? 🙂

here be the backside. 😱

Jeff



[CeeVee]

F5 in Lisboa

Hi all,
I've posted i the F5 Thread but in keeping with this thread's title here are some photos of my one week old F5.

From what i hear ( with crapy speakers) i know that this is the first of many Papa Amps i'll do.
😀



[osscar]

nice build ! Solid and warm 🙂



[Zen Mod]

Fugly!

more porn , please



[CeeVee]

17KG of porn 😀



[6L6]

Beautiful amp! Congratulations on a successful project!

May we see photos of the inside??



[CeeVee]

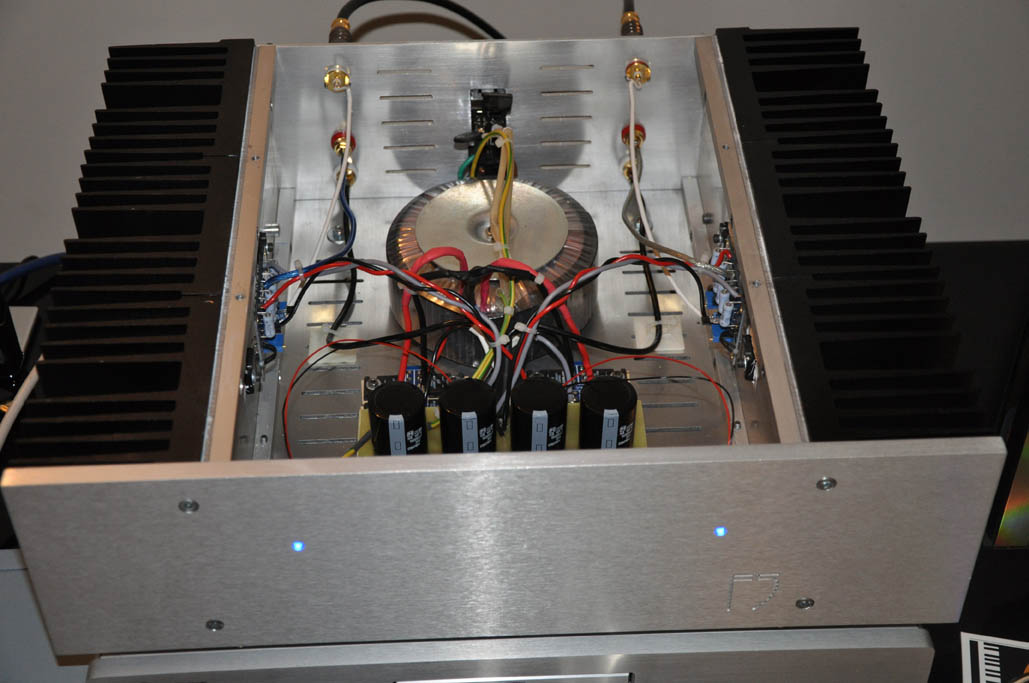

Sure:

...while playing...



[6L6]

Very nice! Thank you!

🙂



[scanspeakman]

17KG of porn 😀

Nice and clean build! This wil probably give you quite an eargasm...😱

Scanspeakman



[Nelson Pass]

Sure:...while playing...

Ooooooooooh.......

Clean wiring.

😎



[Andersonix]

Ooooooooooh.......

Clean wiring.

😎

I wasn't going to ask, but since NP said it was "clean wiring," wouldn't it have been even better if the transformer had been up front (mag field farther from inputs and pcb) and cap bank at the rear (closer to star ground point, pcb, and load)?



[jacco vermeulen]

Would you prefer the rectifier diodes smack next to the inputs instead ?
If not, rotating the PS 180 degrees makes next to zero difference.

Clean Wiring 101 revisited round 2, Alphie 0s =>



[Melon Head]

Very bloody nice Jacco.



[regiregi22]

Sure:

...while playing...

Is that toroid from Toroidy.pl?
