Photo Gallery

[Vincent77]

A humble small EL84 triode connected PP, 5 watts. The voltage amplifier and cathodyne tube is the 6211. The power tubes I use are actually russian 6P14P-EV. Fixed bias.



[kevinkr]

Triode connected PP EL84 can sound very good from experience. Glad to hear I am not the only using fixed bias with EL84.. Nice classic uncluttered look!



[costis_n]

A humble small EL84 triode connected PP, 5 watts. The voltage amplifier and cathodyne tube is the 6211. The power tubes I use are actually russian 6P14P-EV. Fixed bias.

Loooks elegant and really well-made. i like the "low" style. Can we have a loo of the inside?



[DQ828]

A humble small EL84 triode connected PP, 5 watts. The voltage amplifier and cathodyne tube is the 6211. The power tubes I use are actually russian 6P14P-EV. Fixed bias.

Very nice



[Vincent77]

Can we have a loo of the inside?

OK, but I'm not particularly proud of the internals on this one... ^^

The relays on the output are speaker bypasses, to use two amps with one pair of speakers.



[Professor]

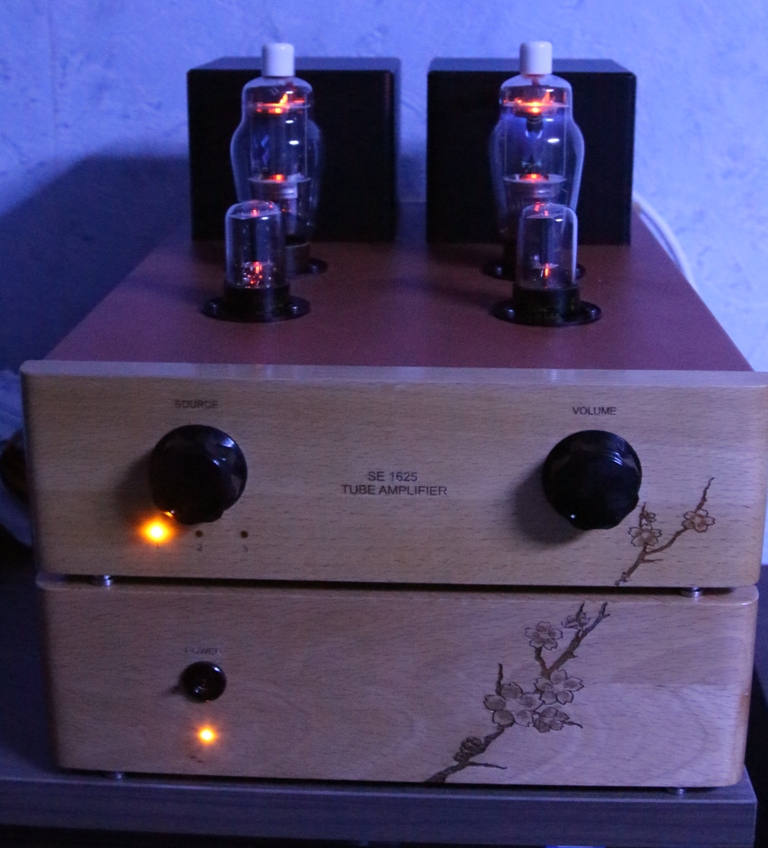

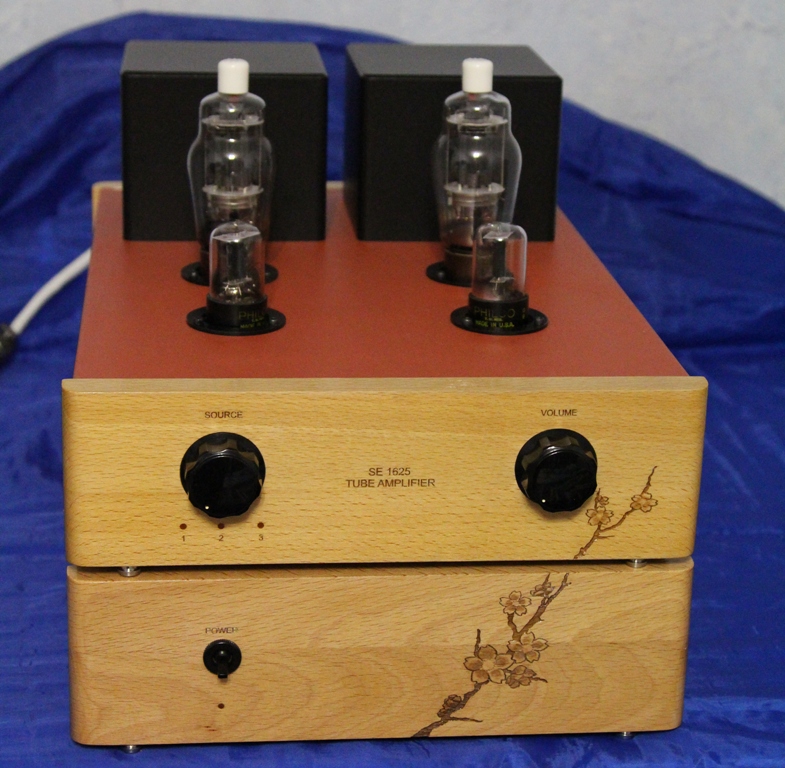

SE1625

SE1625 1625 - mymegahobby Jimdo-Page!



[Airhead]

Absolutely beautiful workmanship, Vincent77 and Professor.



[lexx21]

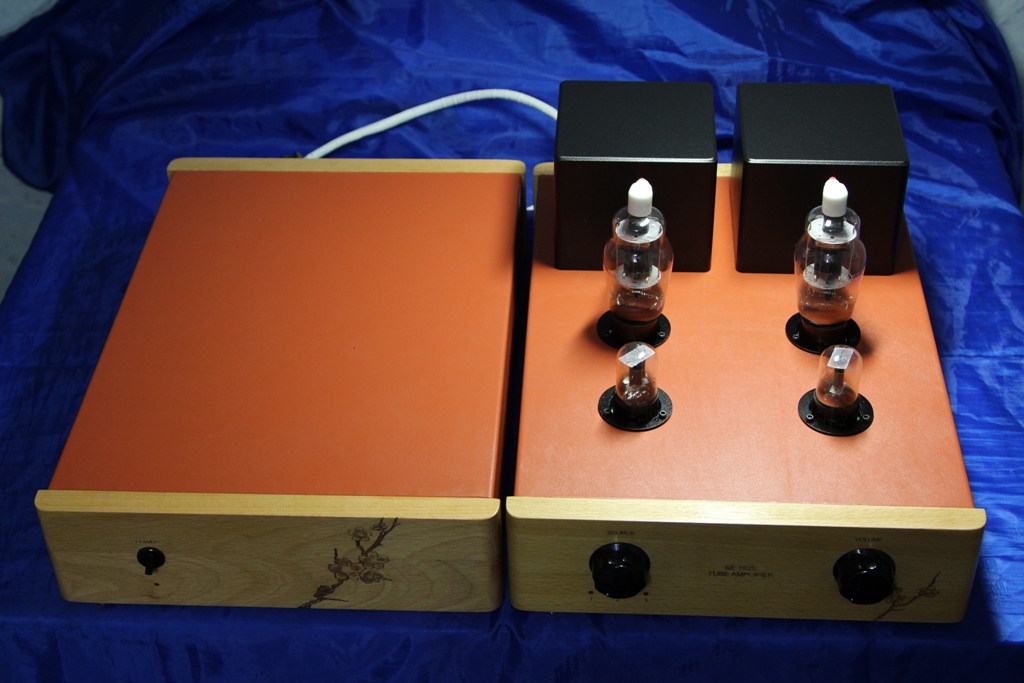

I really like the wood burning that you did for the face plate of your amp. That adds a very nice touch to the appearance. Well done!



[jean michel]

hello ,

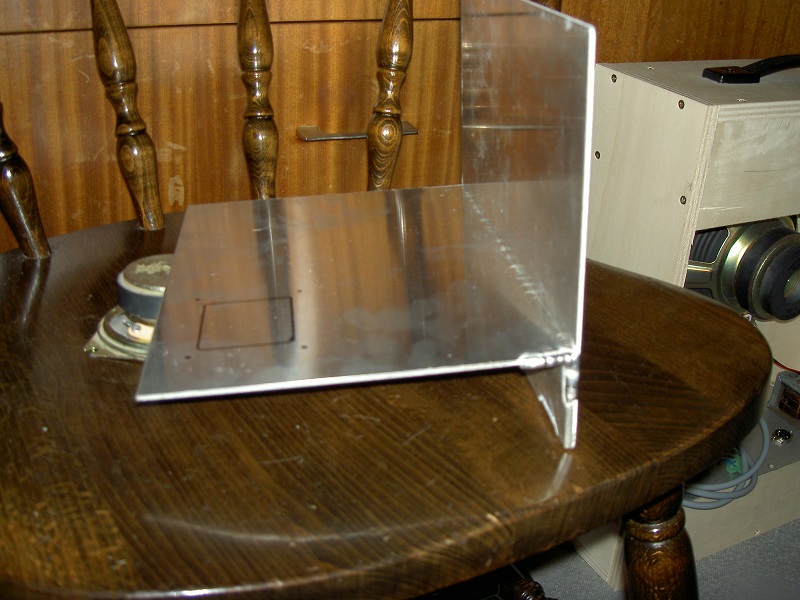

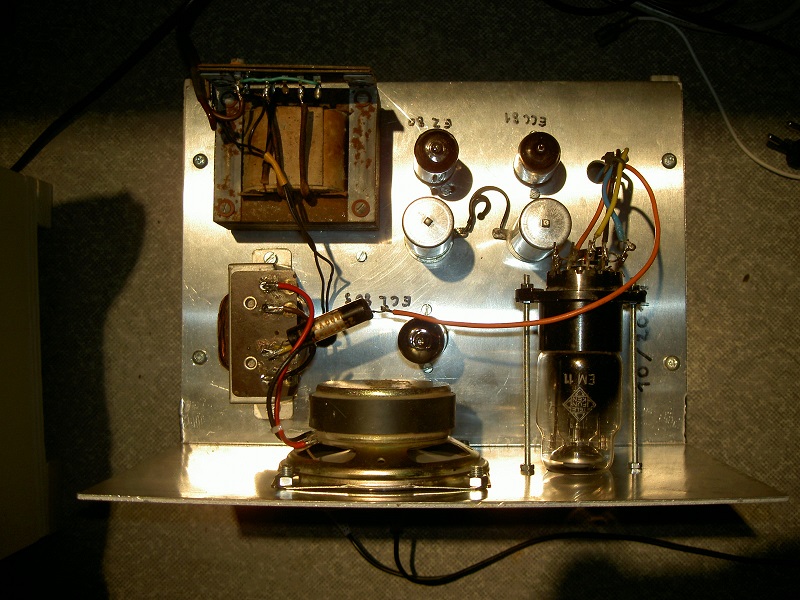

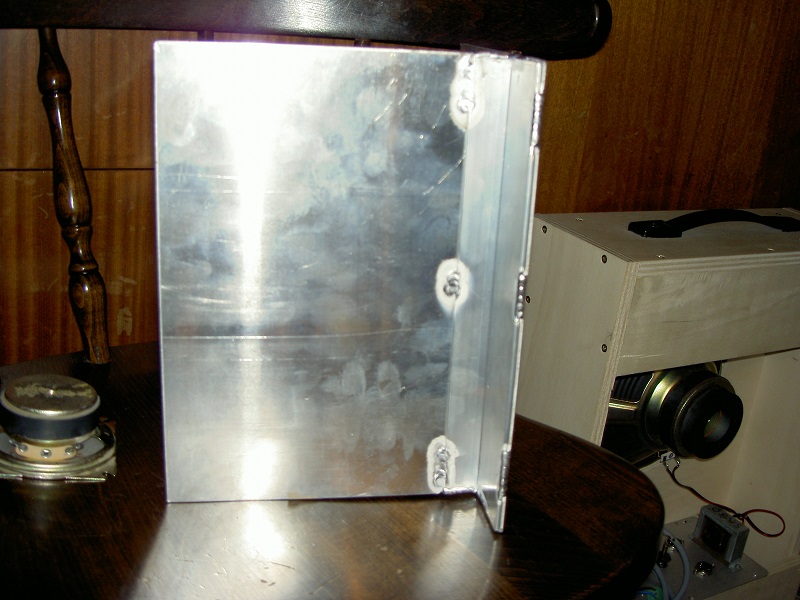

me little build " Signal Tracer " for problèm to old TSF and amplificator Hifi & Guitare ...

the build is upgrad later for multivibrator +/- 600 Hz



[Jnouw]

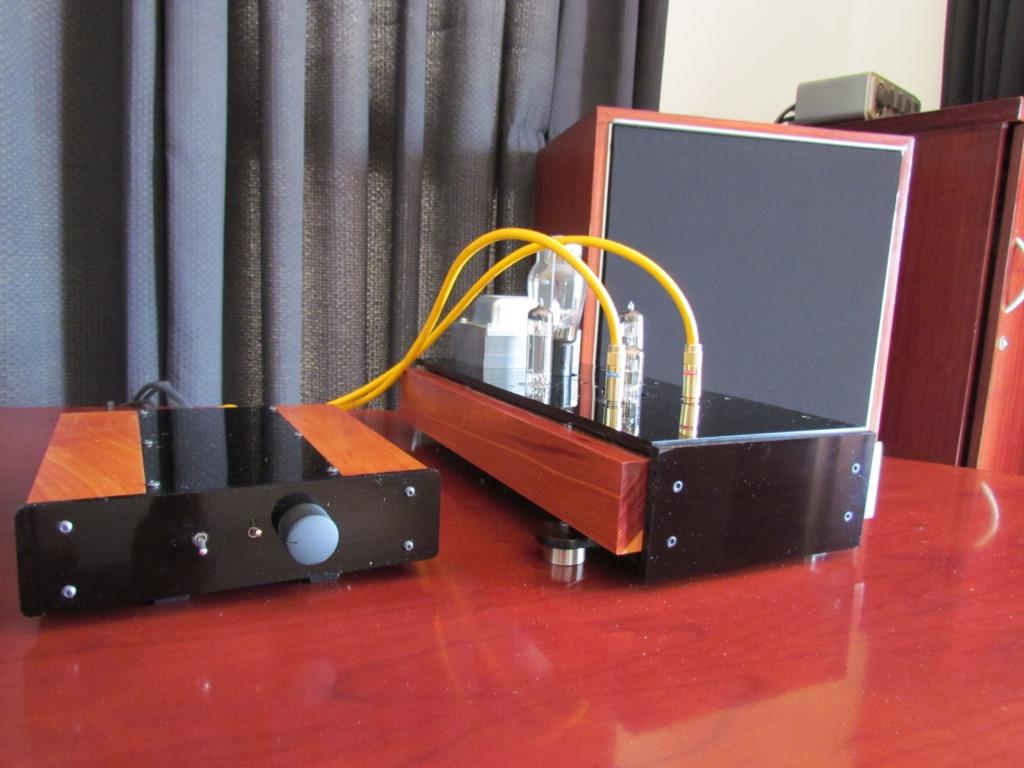

My first EL84 triode connected single ended prototype. Chassis was a mission to build but turned out well.



[Jnouw]

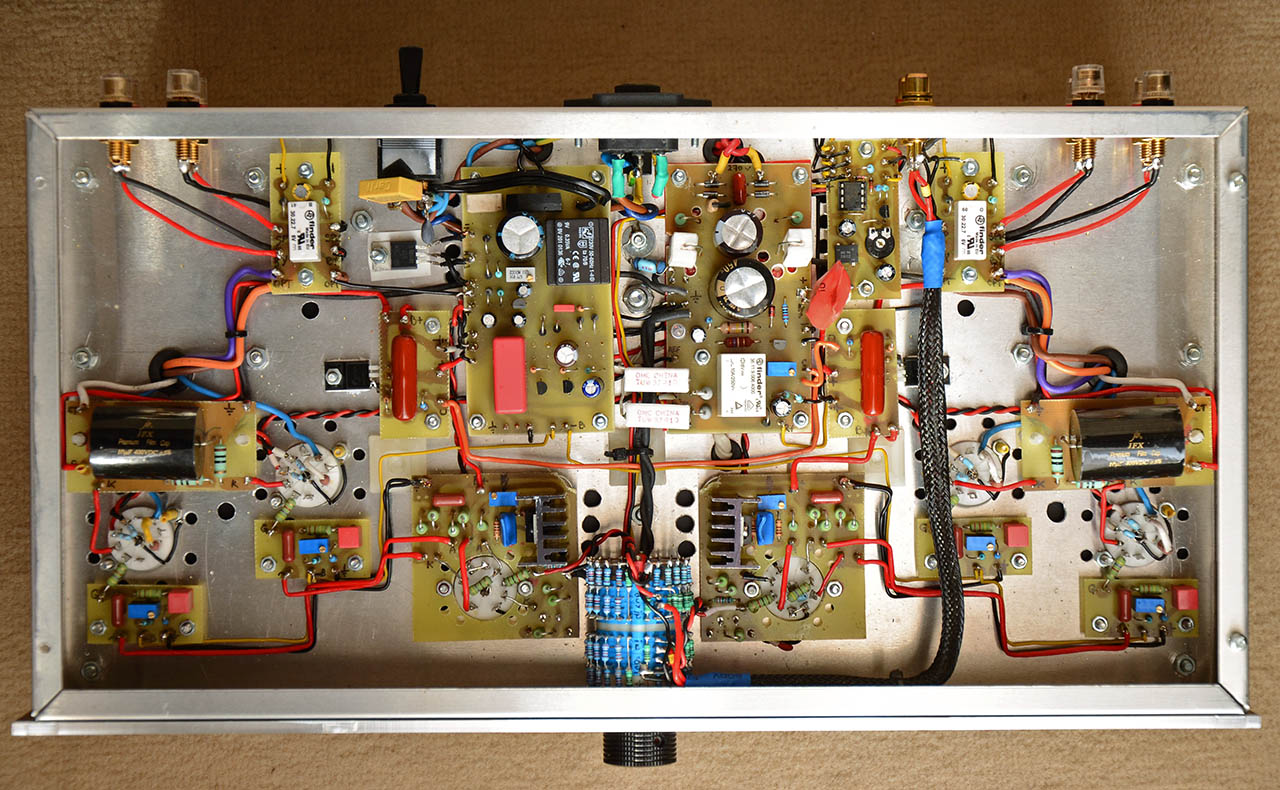

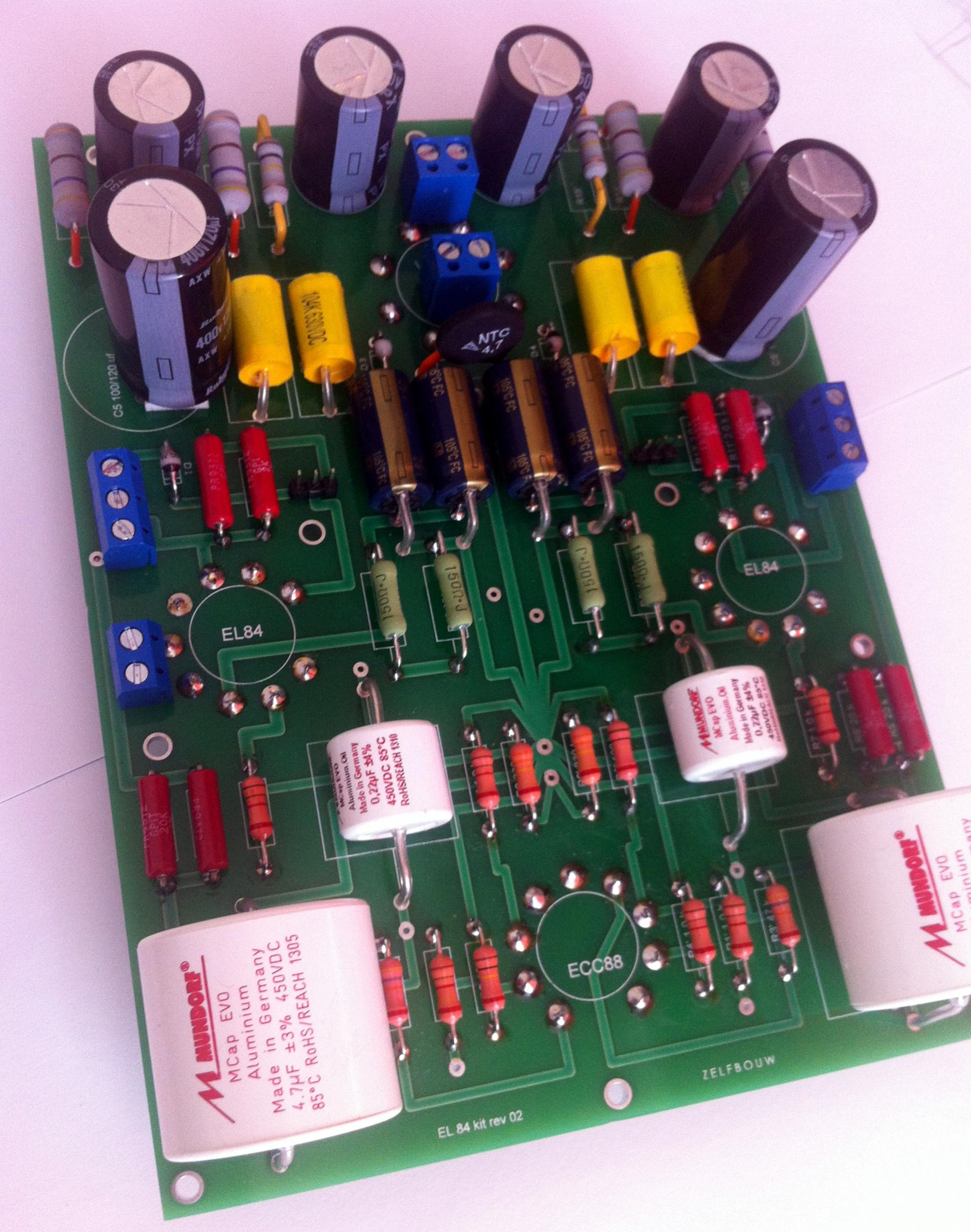

Mark II, much improved chassis and board, big improvement in sound as well. Double coils on c-core transformer for outputs, 110 VA power transformer, CRCRC PSU filter. Very dynamic and very quiet. At its best with 97dB/W plus speakers.



[costis_n]

Absolutely beautiful workmanship, Vincent77 and Professor.

I agree! Your build is very neat, Vuncent



[needtubes]

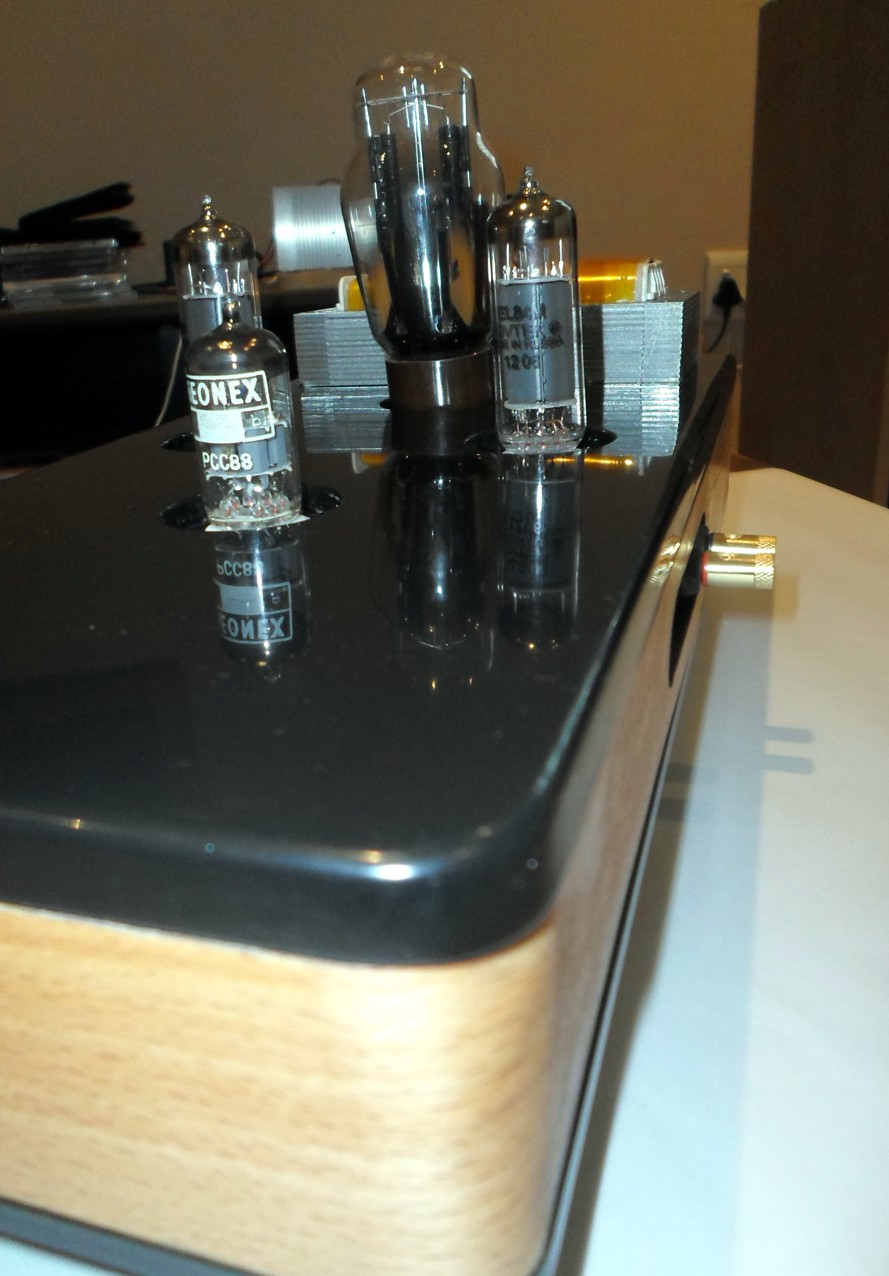

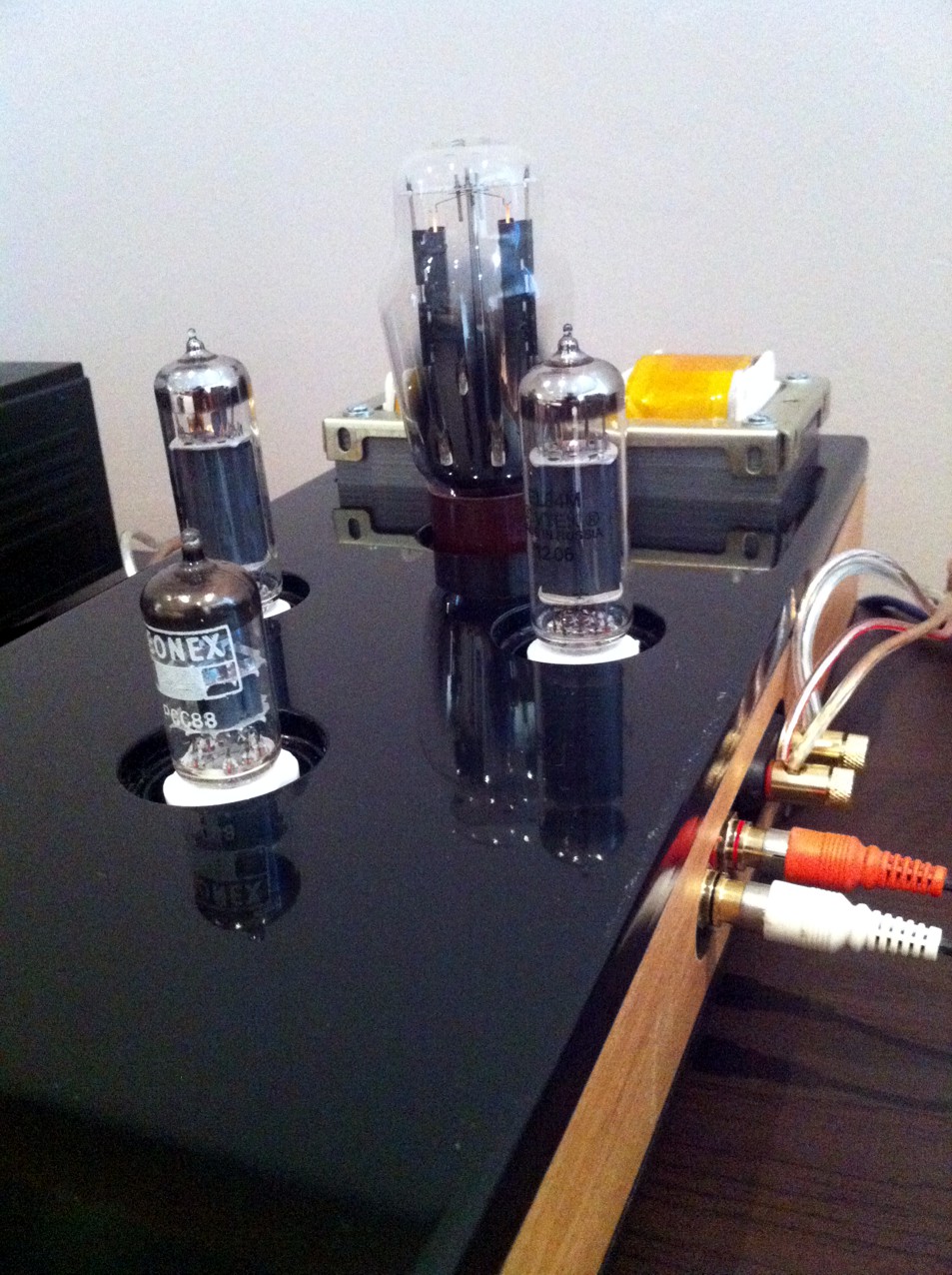

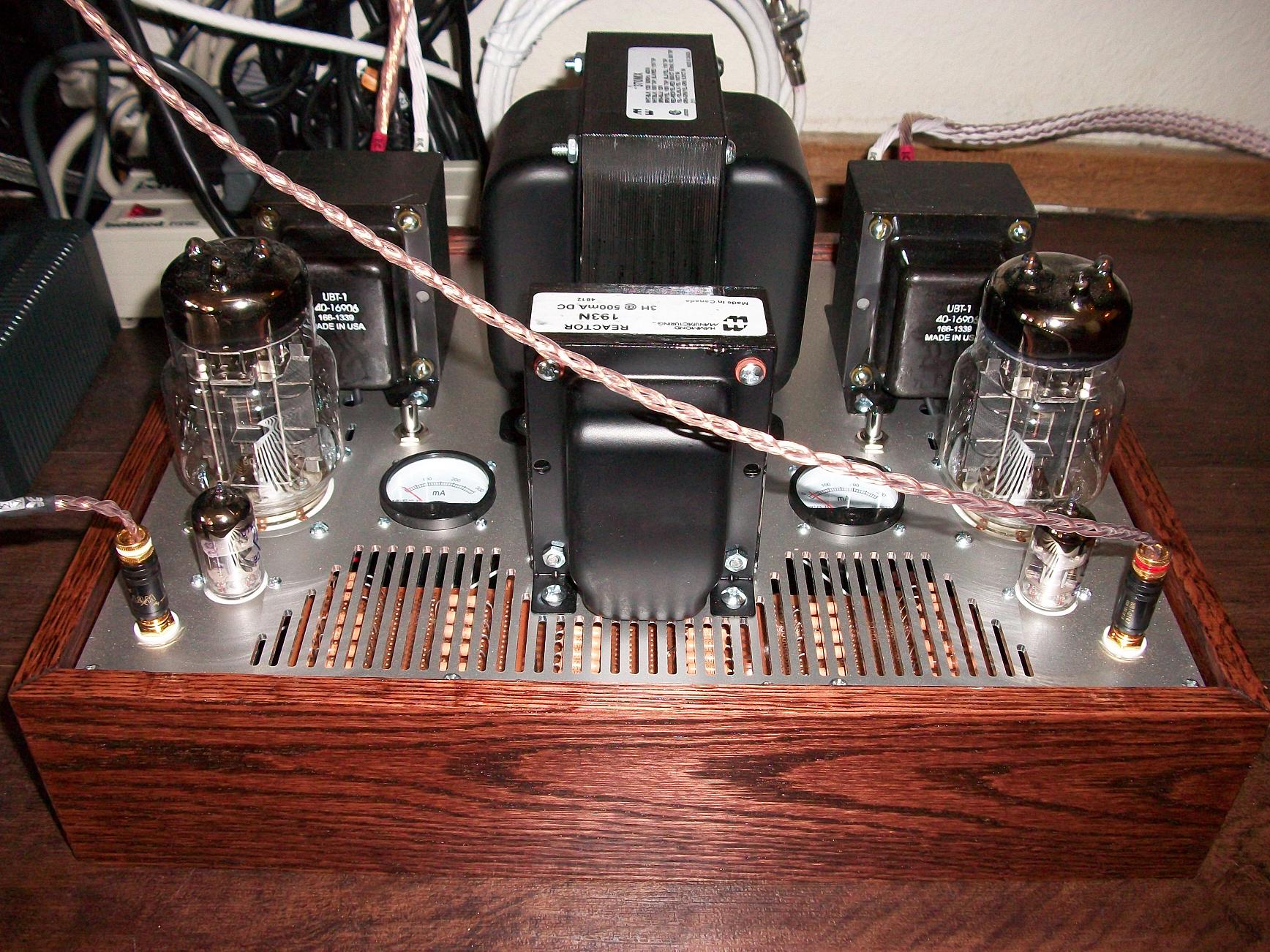

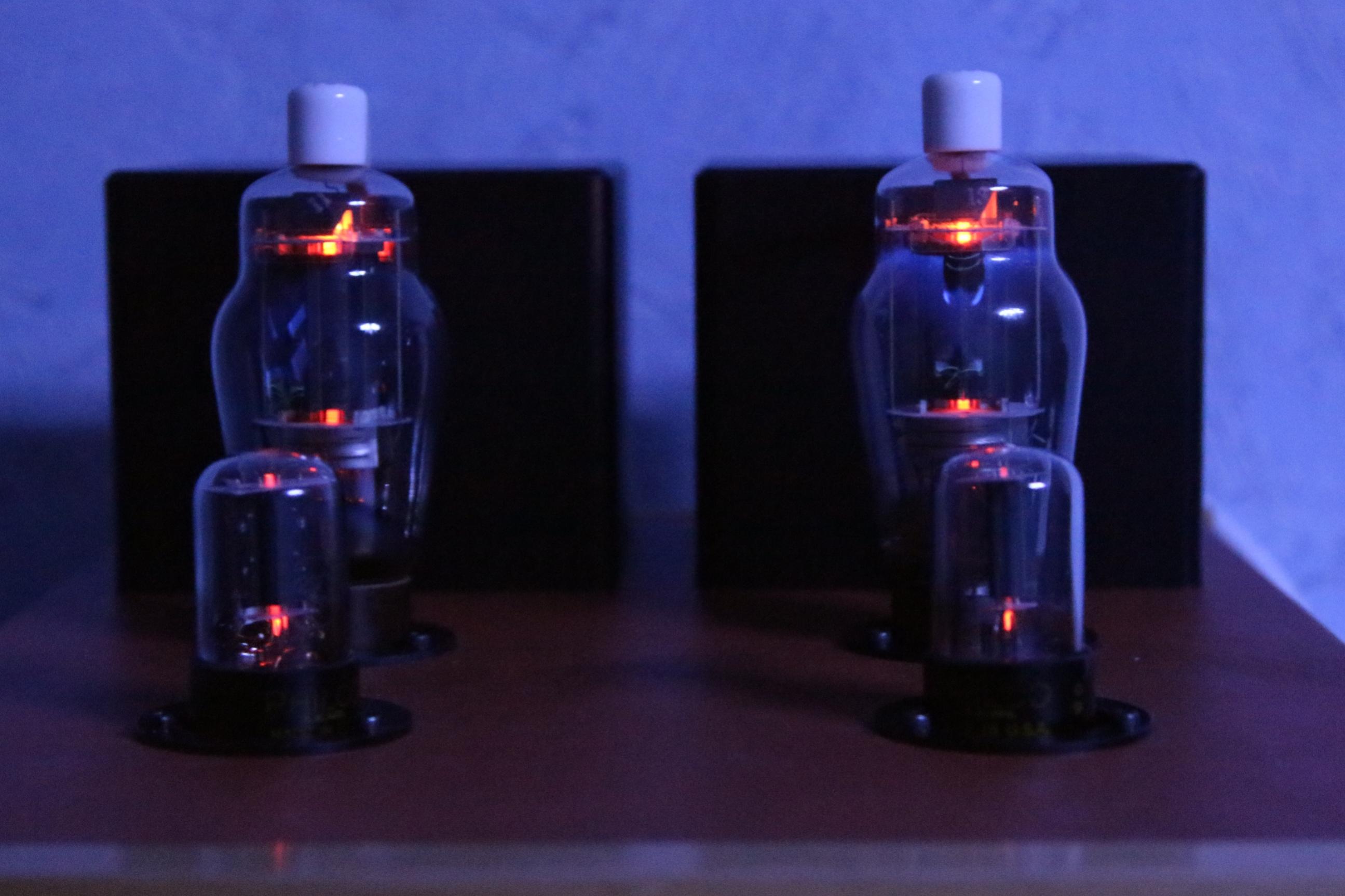

My newest SET: a 6C45-PI driving half of a 6C33C. Output transformers are One Electron UBT-1.



[dady]

I this the Coffin diagram?

My newest SET: a 6C45-PI driving half of a 6C33C. Output transformers are One Electron UBT-1.

Beautiful construction, how it sound? I this the Coffin direct coupled amp that originally come with 6C41?
Best Regards



[needtubes]

Thank you for the compliment! It sounds quite nice. Clean and clear in the mids and highs with strong, articulate bass.

I should probably note that I am running the transformers so that I get an impedance ratio of 800:8. This sounded better than the other option of 1.6k:8. The two stages are RC-coupled through a Russian FT-3 teflon capacitor, so only the tube choices are similar to coffin's amp.



[Andreas AVM]

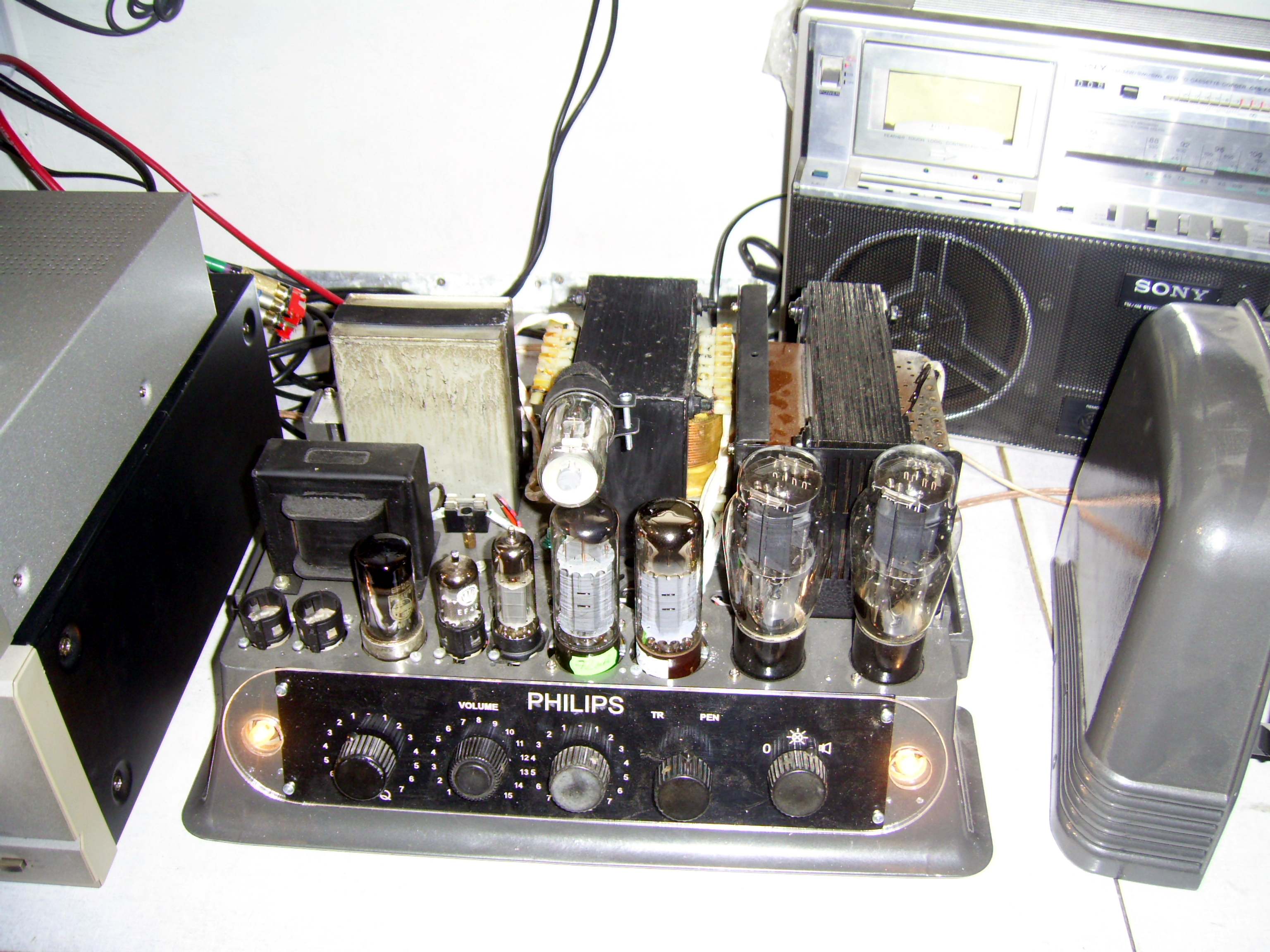

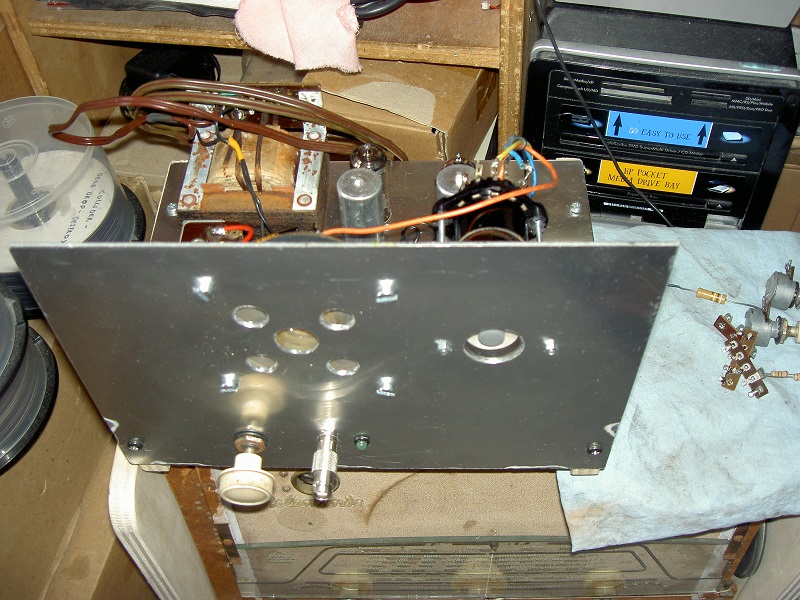

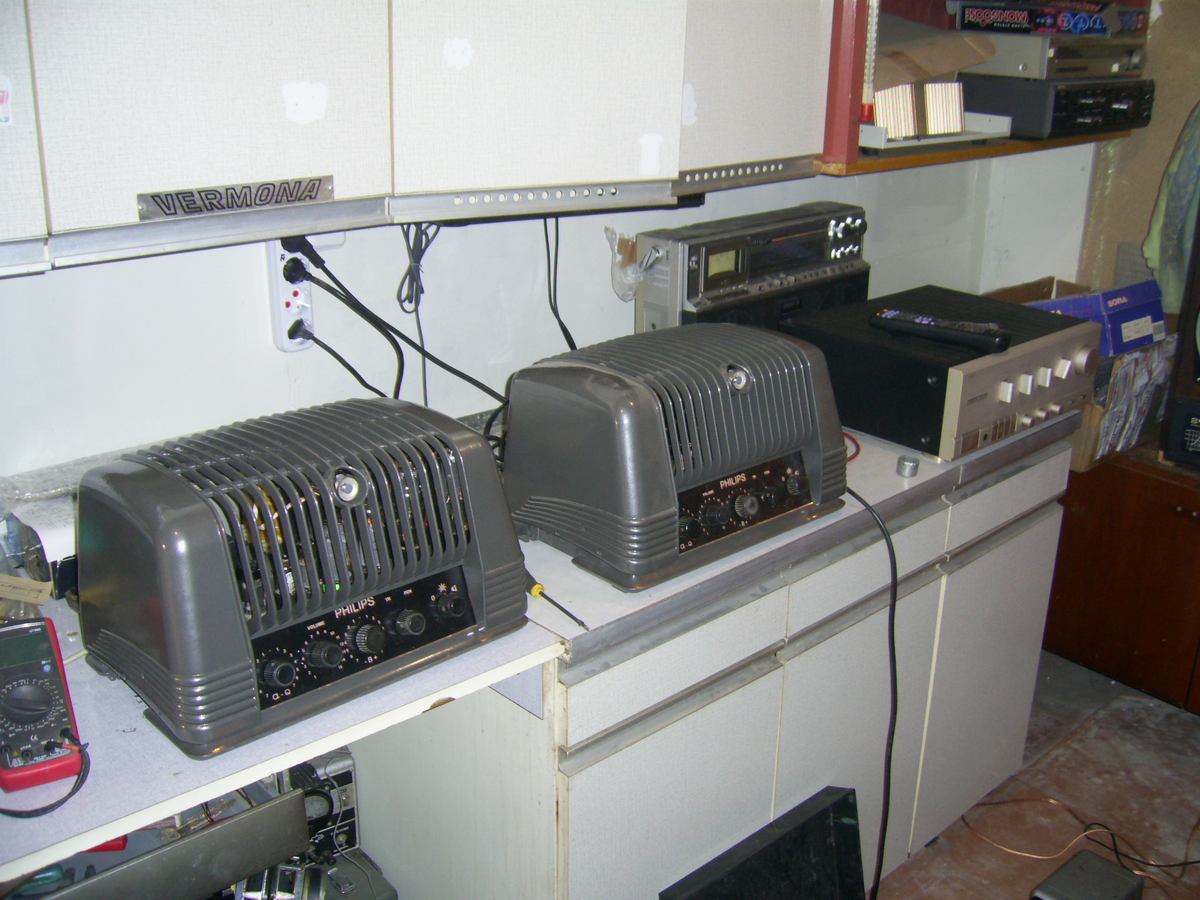

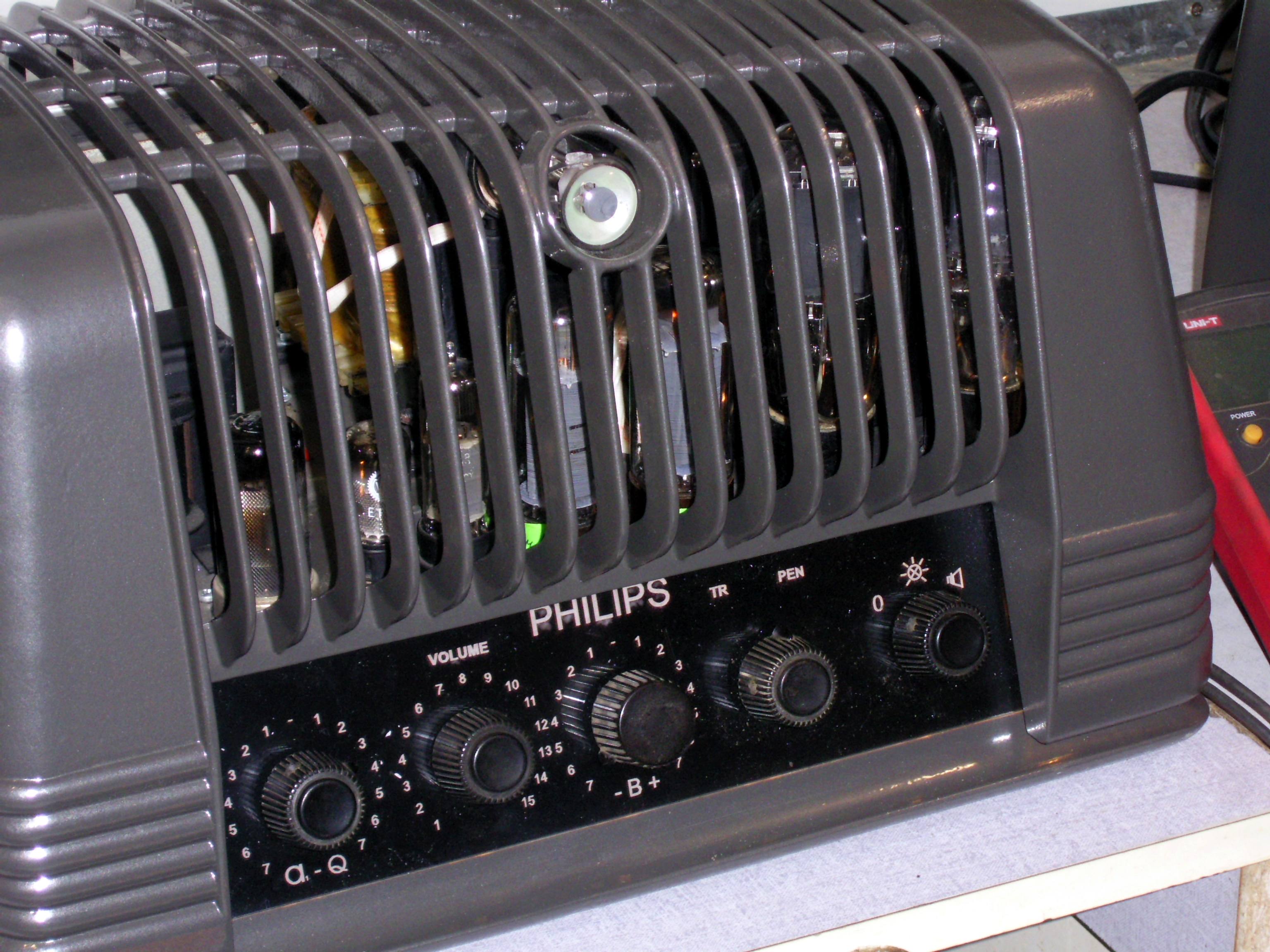

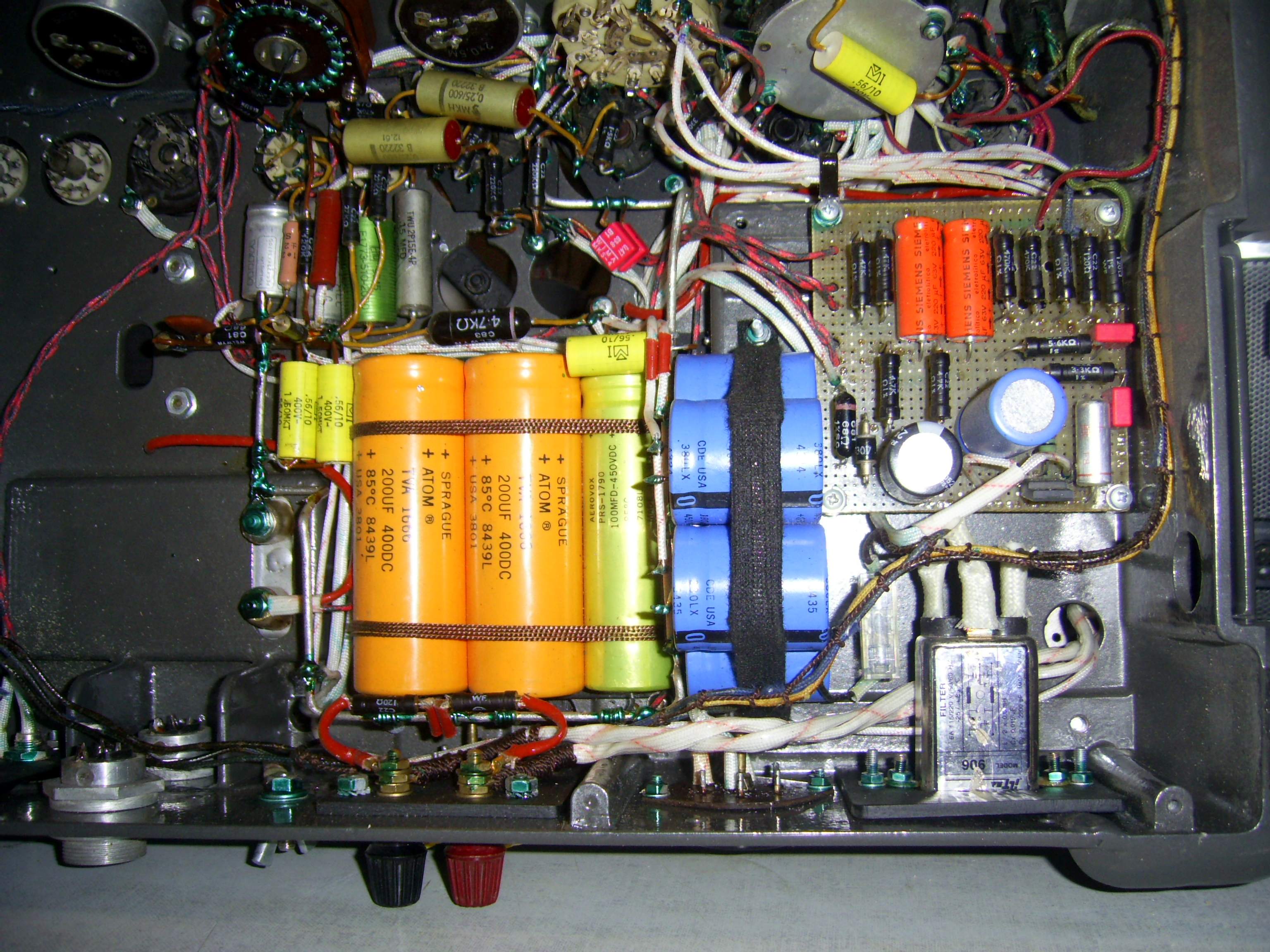

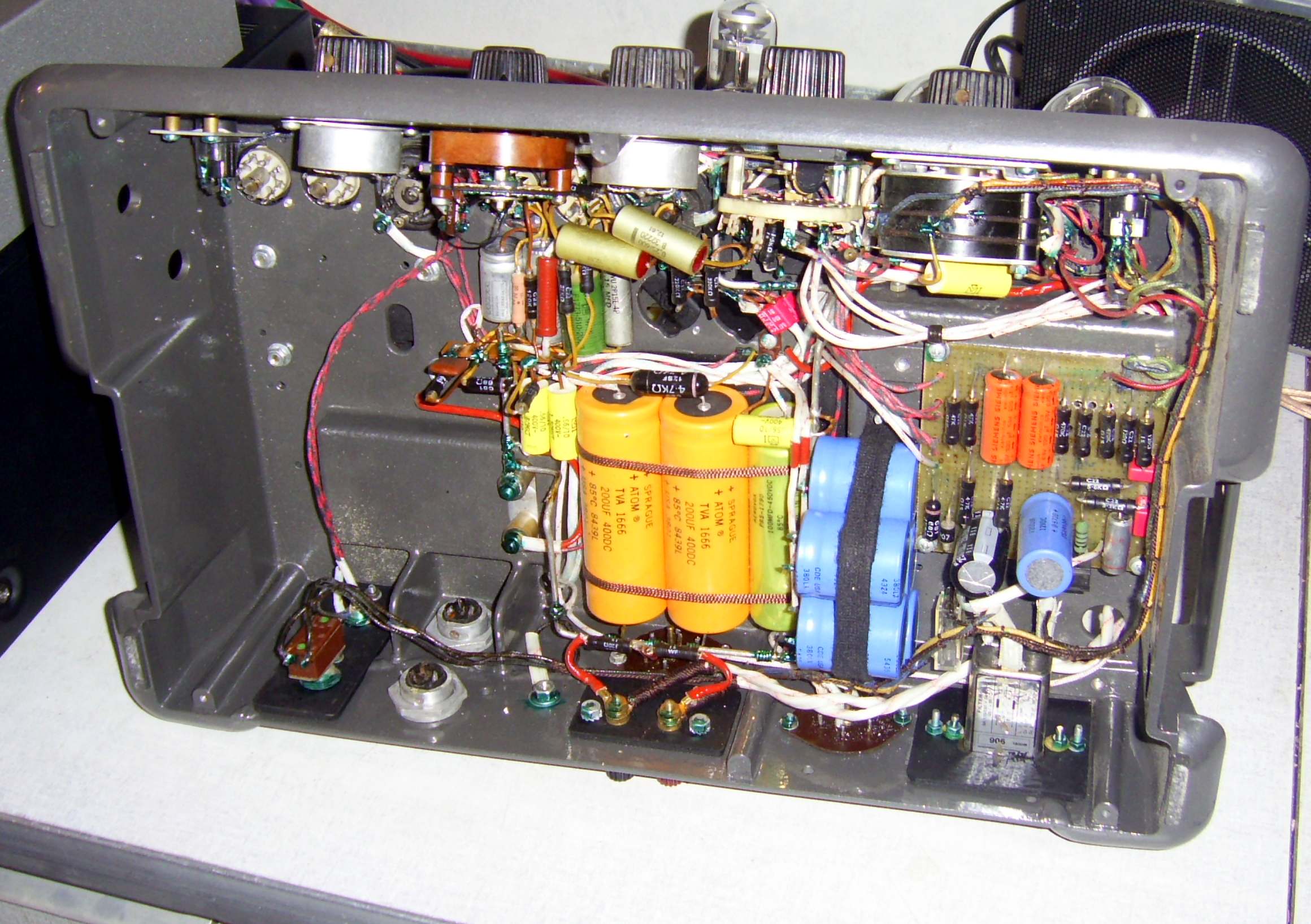

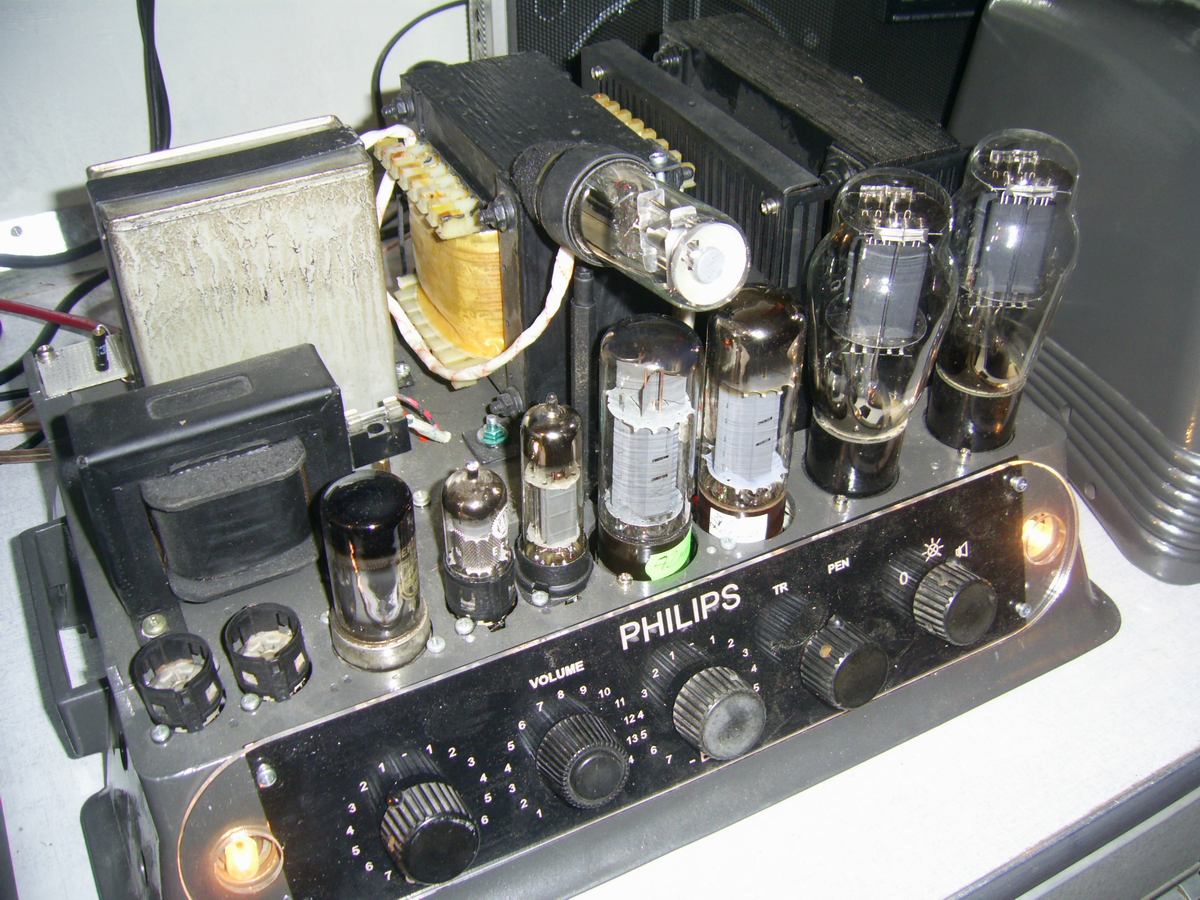

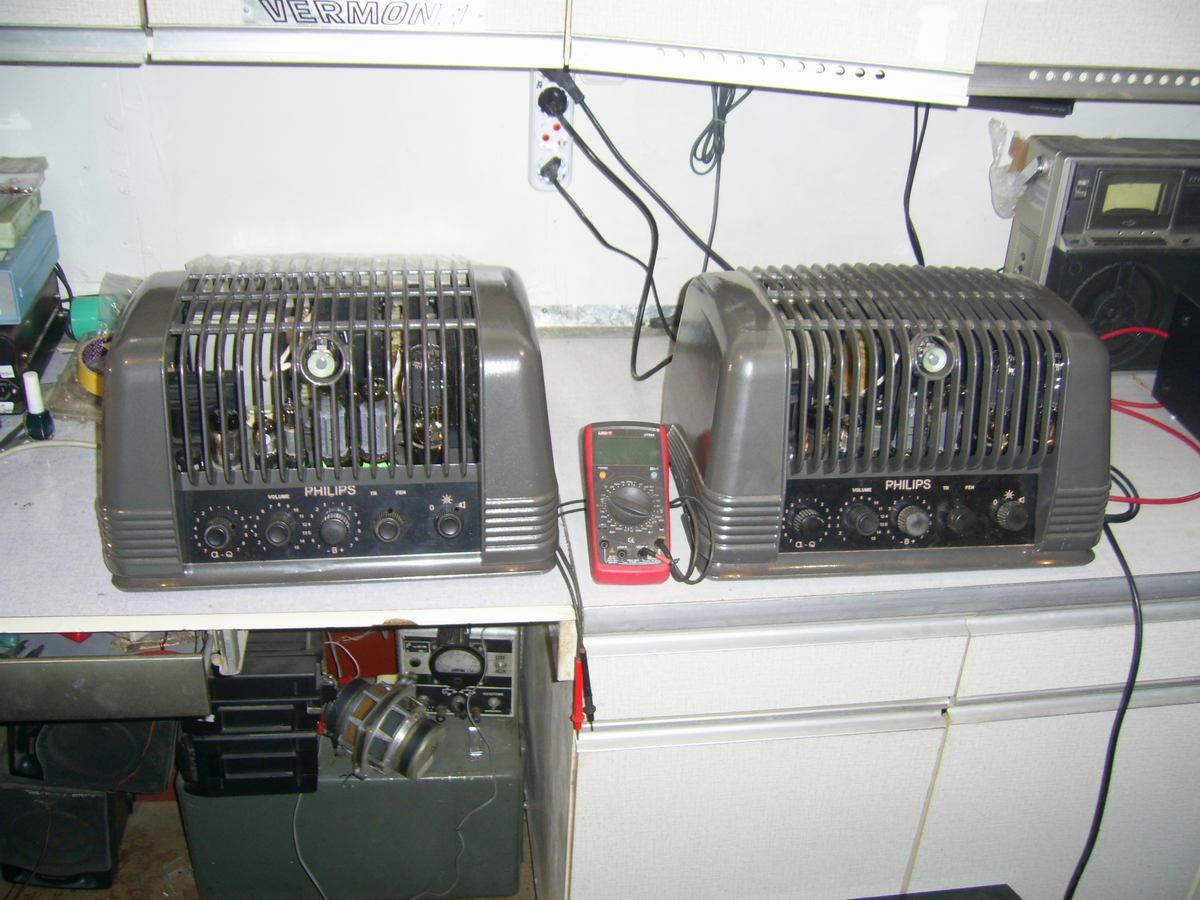

My PP monoblock Phillips

My PP monoblock Phillips.



[Airhead]

^Really nice restoration.



[Andreas AVM]

^Really nice restoration.

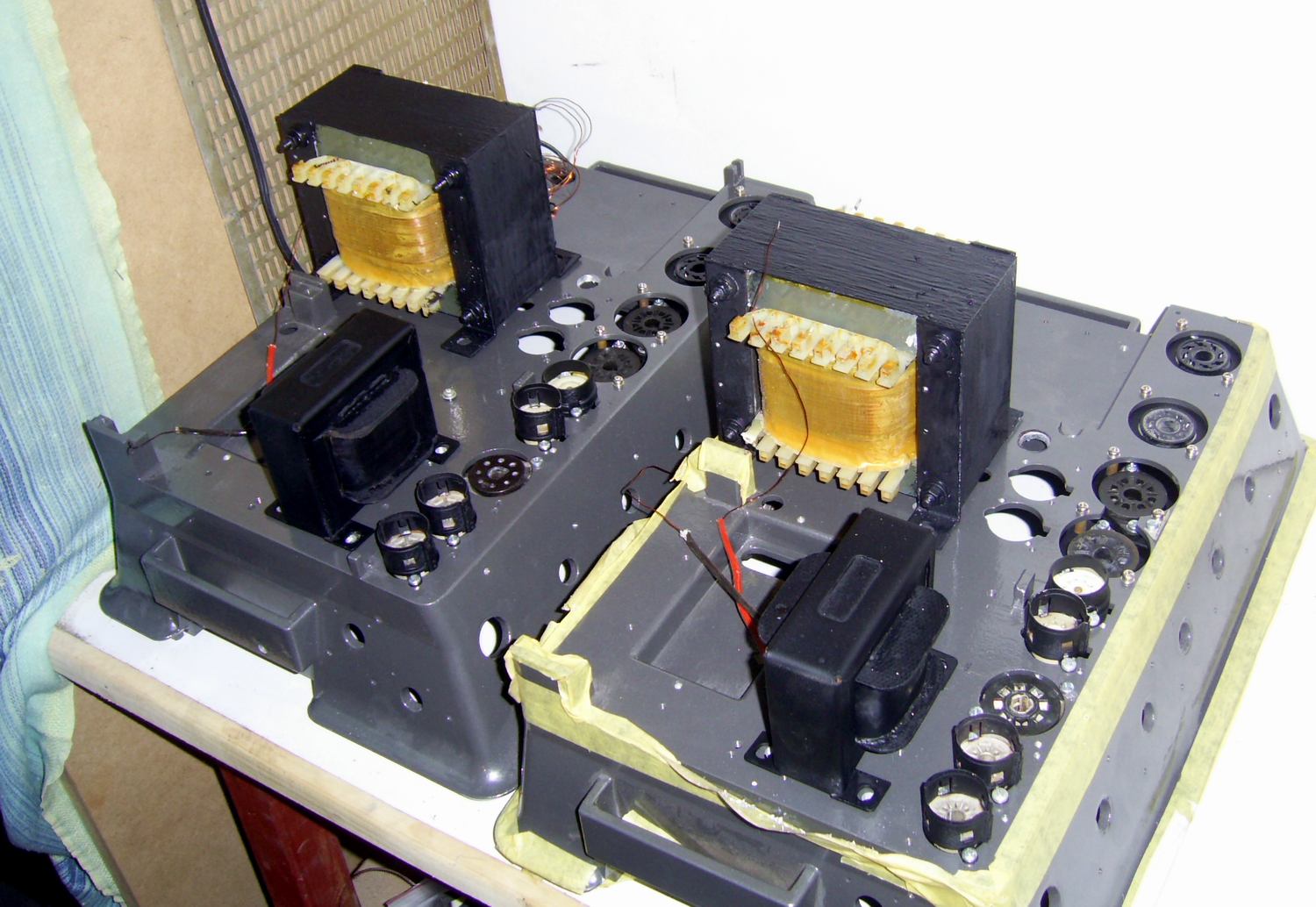

It was a Philips EL6420 PA amplifier.
To good use in the Hi-Fi made ​​profound work.

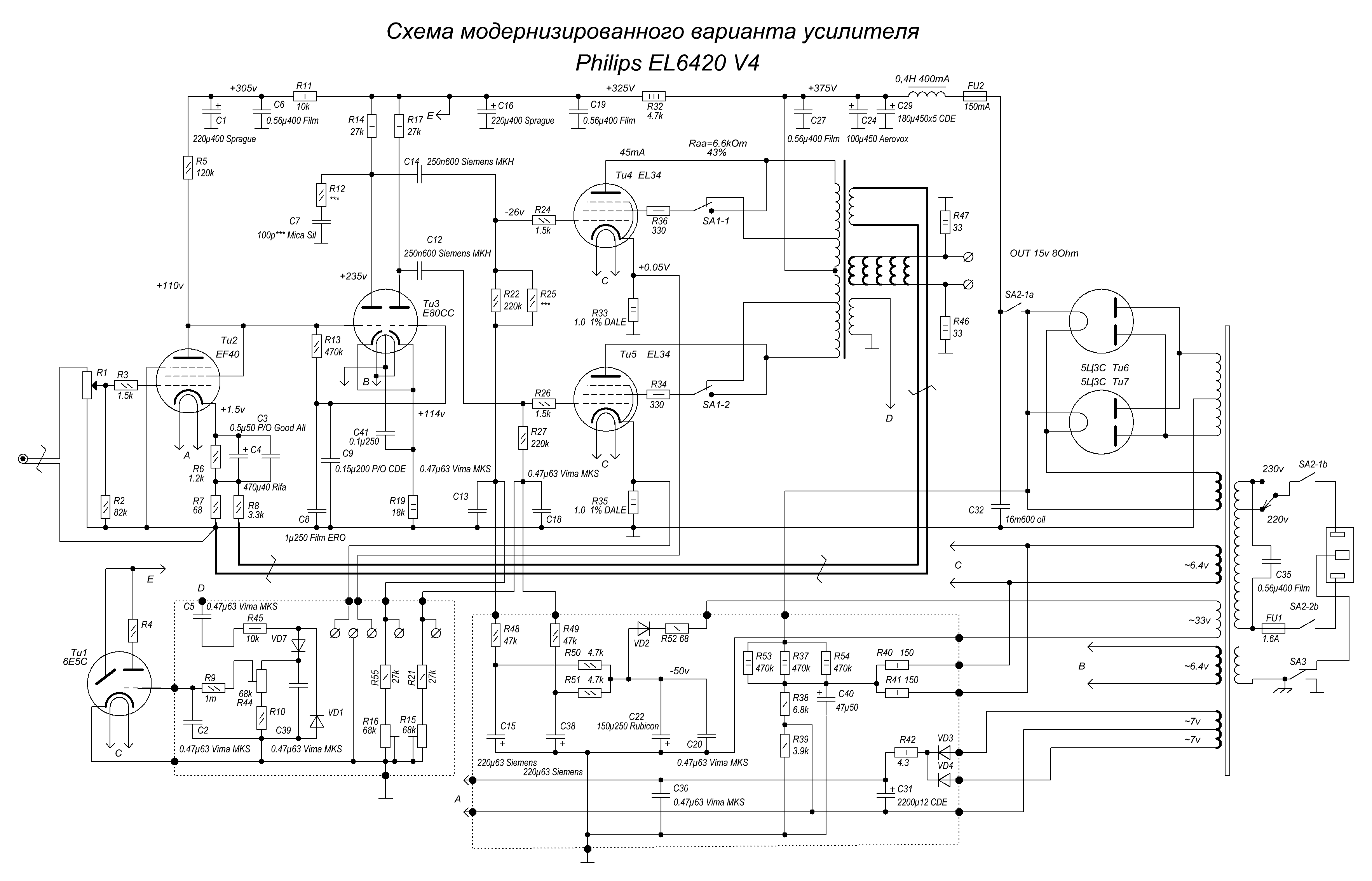

Here is his new scheme:



[Jnouw]

Very beautiful restoration, and quite a rare unit. Interesting to see the separate windings for feedback. Nicely done.



[satelitis]

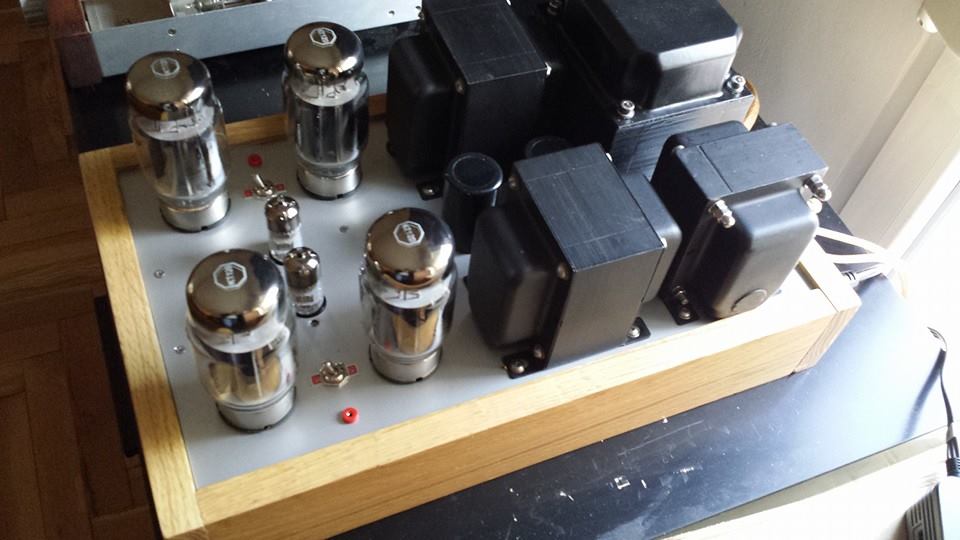

This is my new game. A KT120 pp amp driven by a single D3a in pure A class, no NFB, 28W triode connected and 55W ultra linear
