KT88 PP Pix

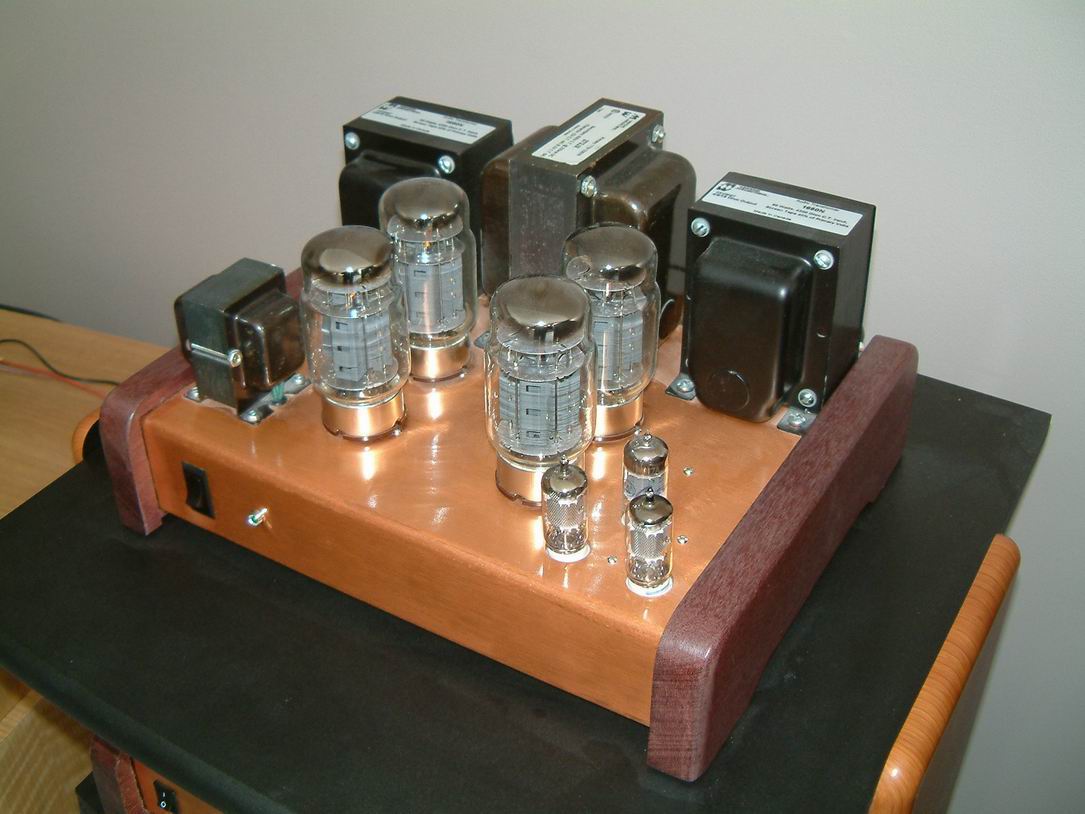

Howdy all! My fourth project.... EF86 triode connected-> 12AU7-> KT88 triode connected PP. No negative feedback. Hammond output and power tranny's. Great forum you have going here...think I'm going to be a regular. Some damn fine looking amps here!



[SY]

Very attractive work! Any upskirt pix?



[planet10]

Nice -- is the chassis copper?

A friend just built some parafeed EL84 monoblocks with triode strapped EF86 -- quite a relevation.

dave



[planet10]

Any upskirt pix?

Tut, tut...



[MelB]

I'll try to get one up in a couple of days. Looks like I kinda hit the wrong spot with my post. Tryed to get it in the Picture thread...if someone can move it??



[SY]

Like magic, here you are!



[gingertube]

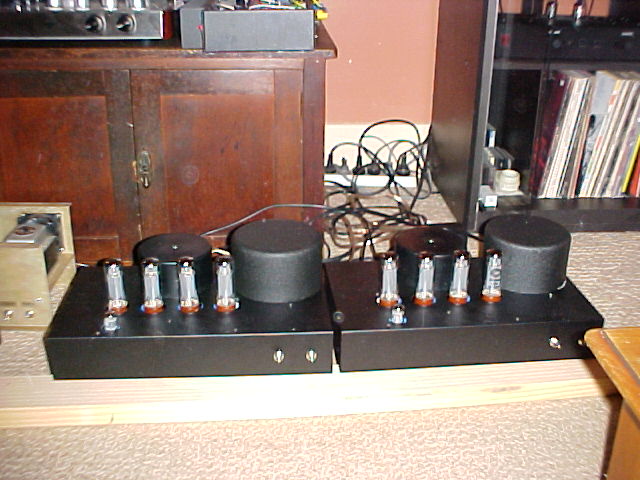

My Menno Bricks

PAT4006 Toroid Outputs, 4 x EL34 Triode Strapped with wimpy 12AU7 common cathode pre, direct coupled to concertina splitter.
12Hz to 150kHz at 10W - 40W max

Edit - I forgot pulled the 12AU7 and fitted ECC99 in its place.



[gingertube]

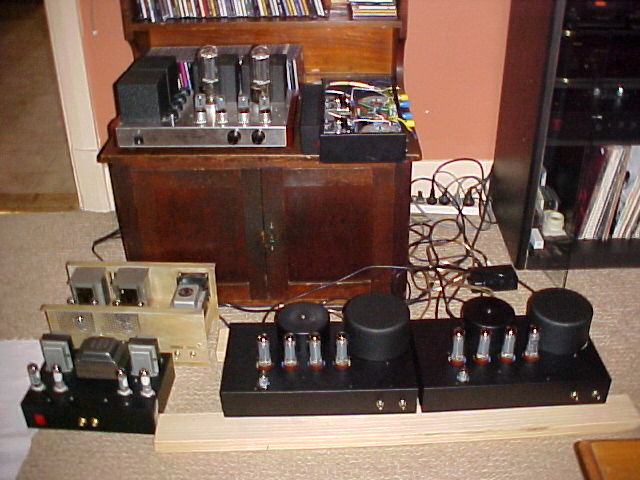

And again in company

845SET up the back next to AKSA 55N+ (SS - sorry).
EL84 Ultalinear (10W/chan), ECL86 Rogers Cadet III Clone and the Menno Bricks.



[MelB]

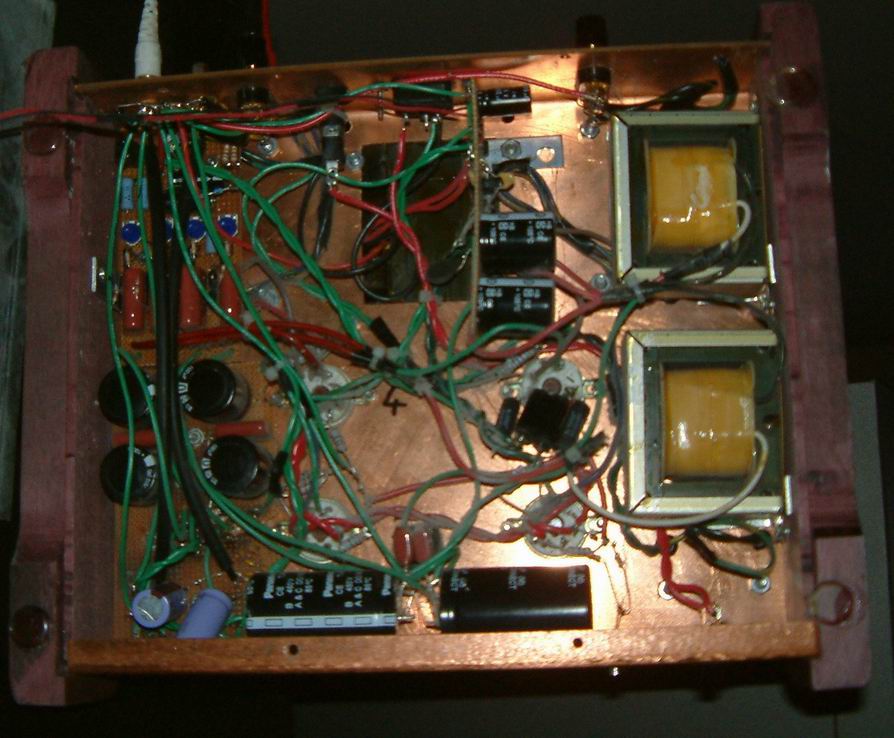

Here's a bottom shot finally! Yes chassie is 12 gauge copper. A sheet
large enough to make two amps cost me $90CND. The guy at the sheet metal shop does the cutting and bending for free. "Anything but another duct!" Kinda messy under the hood, but a lot of tinkering went on. You see 2X4H chokes under there. Overkill, but I had em so......



[Upupa Epops]

What's sense of copper cassis ? Past one month it will be dirty black and will be look like textbook of dactyloscopy . Standard question : Have you in your flat a children ?



[Coulomb]

What's sense of copper cassis ? Past one month it will be dirty black and will be look like textbook of dactyloscopy . Standard question : Have you in your flat a children ?

It is easy to stop copper from oxidising if you spray it with a clear Laquer.

Regards

Anthony



[MelB]

That amp was built 4 years ago....sprayed it with clear laquer...havn't had to do more than dust it! (Occationally) Copper is really easy to work with. UMMMM...let's see....Hummmm...I thought it would look pretty cool at the time too.



[MelB]

Ooops...no children...they are off to University/Work now....



[rdf]

Here's a bottom shot finally! Yes chassie is 12 gauge copper.

Hi Mel, do you use the copper chassis as part of the circuit? If so, how are electrical connections to it made?



[AndreaVTS]

Hi,
I'm a new member of this forum....
first: sorry for my bad english!
Last week I completed the assembly of my Dynaco ST-70 clone

An externally hosted image should be here but it was not working when we last tested it.

the bottom

An externally hosted image should be here but it was not working when we last tested it.

Bye, Andrea



[SY]

first: Sorry for my nonexistent Italian.

That's a nice star ground implementation. What's the topology of the input/driver stage? I can see that you have retained the feedback loop.
