Fishandchips your guitar amp looks fantastic
I hope my valve amp looks just as good and theres nothing wrong with your pic's.
This is a google sketchup of the amp I'm building it use's 2C22 input tubes & 300B output tubes and TV damper diodes for the power supply I'm going to build 4 of these for an active system .
Also a picture of my 1541 based dac ,the rectifiers are 5V4 and the output tubes are 6C45pi .
First I have no techincal back ground I do have a couple of friends that know there way around curcuits and one of them makes transformers ,I'm trying learn as I go .
Cheers
I hope my valve amp looks just as good and theres nothing wrong with your pic's.This is a google sketchup of the amp I'm building it use's 2C22 input tubes & 300B output tubes and TV damper diodes for the power supply I'm going to build 4 of these for an active system .
Also a picture of my 1541 based dac ,the rectifiers are 5V4 and the output tubes are 6C45pi .
First I have no techincal back ground I do have a couple of friends that know there way around curcuits and one of them makes transformers ,I'm trying learn as I go
.An externally hosted image should be here but it was not working when we last tested it.
An externally hosted image should be here but it was not working when we last tested it.
Cheers
rcavictim said:
Aah dont start with cold, It just started to snow AGAIN, im so sick of it
Thanks alot
! It really is my pride
Jeb-D. said:That thing is bada$$
The tube amp forums aren't just for HiFi guys. It just seems like that because were the ones you see bickering the most.
So 6L6 vs. EL34, whats your impressions?
To be honest, I havent really checked out the details in the difference yet but they Are there and audible, have to look more into it!
Thanks
felixx said:
Yep they are, the mains one was custom made for me
head1962 said:
I got them (made) at experience-electronics.de in Germany. Superb quality
.Hehe yeah, he Does get quite hot
56oval said:
Thanks
. Yours looks cleaner than mine imo, very nice ! What do you do when you have issues/problems with the circuits?And that sketchup looks amazing! What did you use to make it?
myster_maze said:
Thanks! Hes got enough output so he indeed can get really loud
!I dont have any pics of the inside so far, but I dont really think you wanna see it, its really cramped in there! It was tough enough to get everything inside
.The cabinet has not been made yet. Its gonna be more in the style of a Marshall Mode Four/Mesa Dual Recto, not in the plexi style. Theres also gonna be a front grill with a logo mounted to it (so you can see the tubes glow
)The front logo and the snakeskin tolex are waiting to be used
An externally hosted image should be here but it was not working when we last tested it.
An externally hosted image should be here but it was not working when we last tested it.
I made 3 of these logos, 2 extra for the loudspeaker cabs
.Hi fish&chipsfishandchips said:
Aah dont start with cold, It just started to snow AGAIN, im so sick of it
Thanks alot
To be honest, I havent really checked out the details in the difference yet but they Are there and audible, have to look more into it!
Thanks
Yep they are, the mains one was custom made for me
I got them (made) at experience-electronics.de in Germany. Superb quality
Hehe yeah, he Does get quite hot
Thanks
And that sketchup looks amazing! What did you use to make it?
Thanks! Hes got enough output so he indeed can get really loud
I dont have any pics of the inside so far, but I dont really think you wanna see it, its really cramped in there! It was tough enough to get everything inside
The cabinet has not been made yet. Its gonna be more in the style of a Marshall Mode Four/Mesa Dual Recto, not in the plexi style. Theres also gonna be a front grill with a logo mounted to it (so you can see the tubes glow
The front logo and the snakeskin tolex are waiting to be used
An externally hosted image should be here but it was not working when we last tested it.
An externally hosted image should be here but it was not working when we last tested it.
I made 3 of these logos, 2 extra for the loudspeaker cabs
It isn't that hard to work on ,I can unscrew the right panel and tilt it to the side and thhe back plate can be removed without unsoldering the rca's and switches .
I love the snake skin and name plate your going to use .
Cheers
Thanks Anatoliy,
You 'scooped' me. I was still going to say: Per amplifier: 4 x 6L6GC, 1 x E182CC, 1 x ECF80, 1/2 x ECC85 (input buffer). Power anodes: 600V, all else: 500V regulated. Common power supply choke input, regulators one to each amplifier. Input 570mVrms. As seen regulators, delayed turn-on and safety circuits all semiconductors (silly to do otherwise - I am not that much tube-fanatic!)
You 'scooped' me. I was still going to say: Per amplifier: 4 x 6L6GC, 1 x E182CC, 1 x ECF80, 1/2 x ECC85 (input buffer). Power anodes: 600V, all else: 500V regulated. Common power supply choke input, regulators one to each amplifier. Input 570mVrms. As seen regulators, delayed turn-on and safety circuits all semiconductors (silly to do otherwise - I am not that much tube-fanatic!)
Johan Potgieter said:
Though it looks nice, I would suggest to think a little bit more of convection and radiation.
PS: ECF80 looks like mine 6F12P, E182CC like mine 6N6P, though I don't use input buffers.
Also, I use in both Pyramid-IV (4x6L6 per channel) and Pyramid-V (2xGU-50 per channel) I use regulated DC for filaments of preamp tubes. And "all else" regulated.
Cathode follower Push-Pull amplifier.
2 x Monoblocks (power supply is external):
Tubes: 2x 6550/KT88, 6BL7, E80CC, VR150. The glow tube is uses for the screen voltage supply of the 6550/KT88.
Key figures:
o No loop feedback, 50% CF FF design.
o Po: 40 W+
o Zo : 0.89 ohm
o THD: ~0.6% 1dB below full Po.
o Bandwidth: 20Hz - 50kHz (-1dB)
The amplifiers sound clean, pure and airy. Distortion analyzes show low level of higher harmonics.
Output stage circuit (50% CFPP):
Circuit description here: http://www.diyaudio.com/forums/showthread.php?s=&threadid=138282
Jan E Veiset

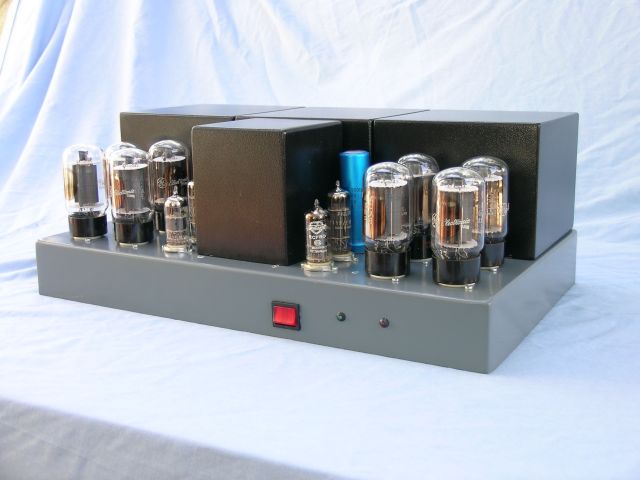

2 x Monoblocks (power supply is external):
An externally hosted image should be here but it was not working when we last tested it.
Tubes: 2x 6550/KT88, 6BL7, E80CC, VR150. The glow tube is uses for the screen voltage supply of the 6550/KT88.
Key figures:
o No loop feedback, 50% CF FF design.
o Po: 40 W+
o Zo : 0.89 ohm
o THD: ~0.6% 1dB below full Po.
o Bandwidth: 20Hz - 50kHz (-1dB)
The amplifiers sound clean, pure and airy. Distortion analyzes show low level of higher harmonics.

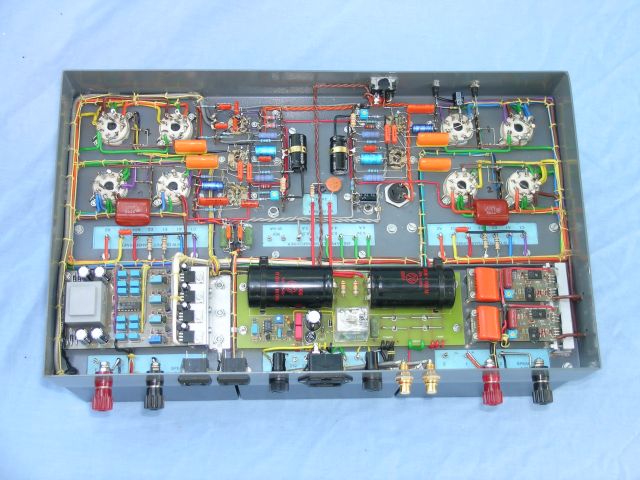

Output stage circuit (50% CFPP):
An externally hosted image should be here but it was not working when we last tested it.
Circuit description here: http://www.diyaudio.com/forums/showthread.php?s=&threadid=138282
Jan E Veiset

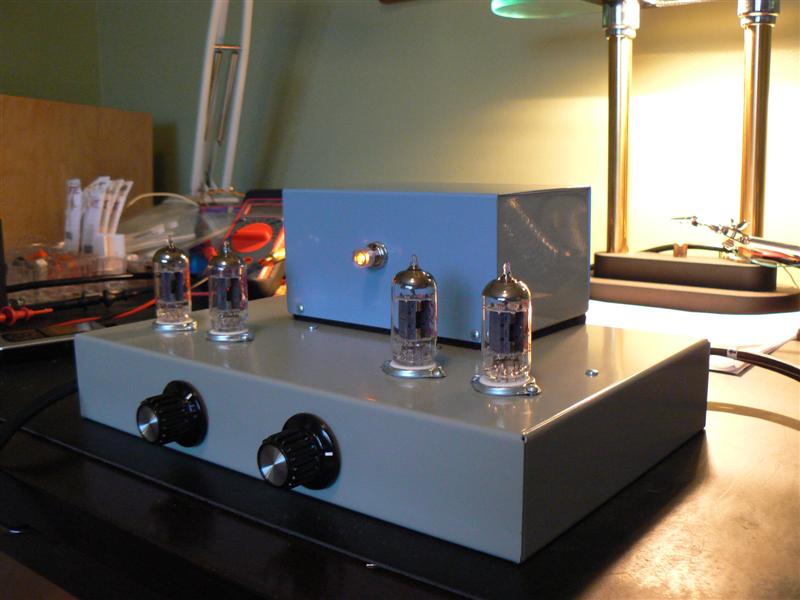

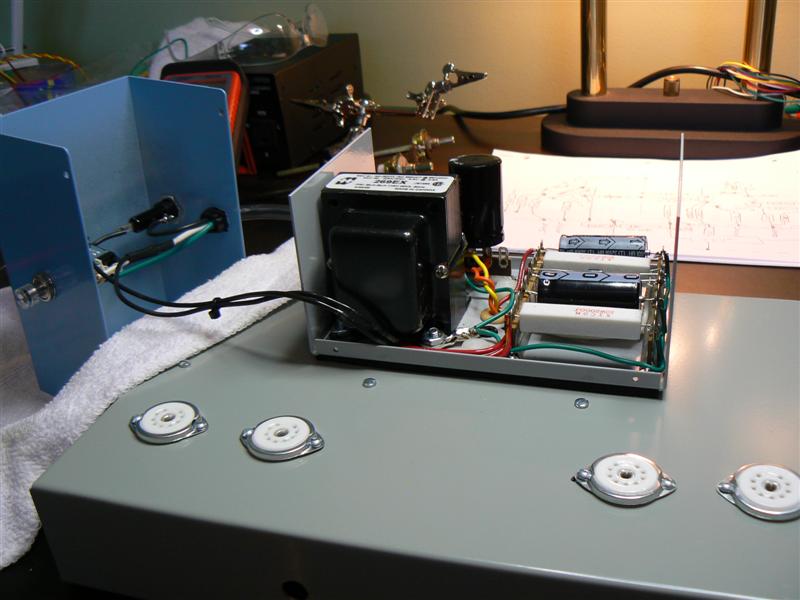

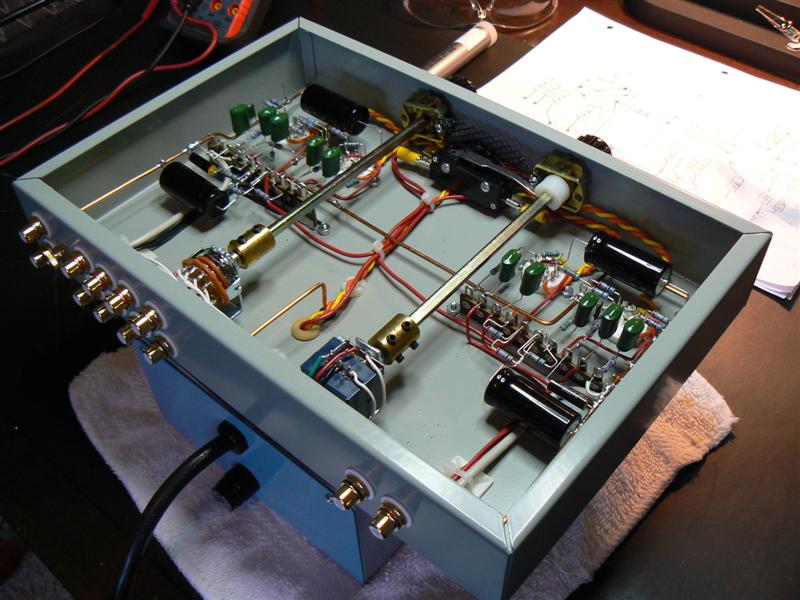

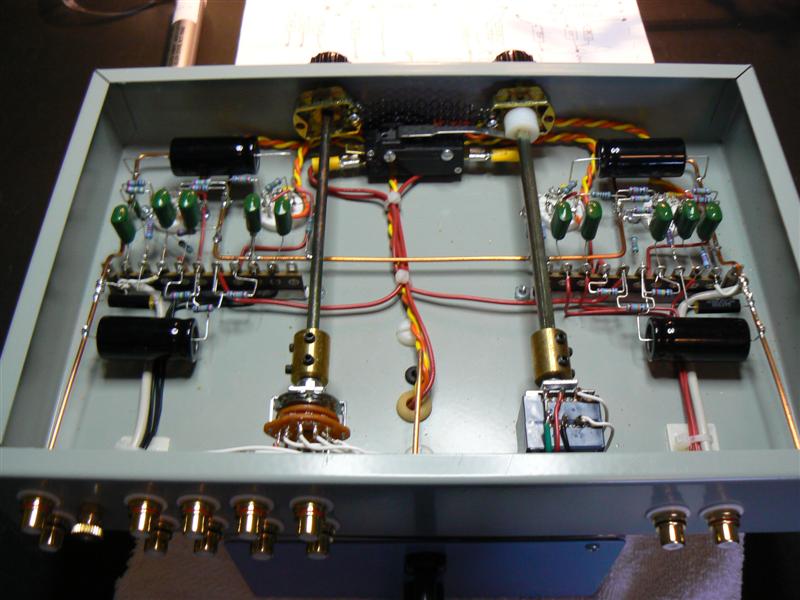

Here is a preamp I just completed. It has a separate PSU mounted on top, It's using all 12AX7's 2 for the phono stage and 2 for the line stage. I put a cam on the volume control that controls the HT so as soon as you start to turn it up the HT come's on. It was fun to build and sounds way better than I expected. I really sounds good.
