Sorry - I only just saw this.

MJW will work ok 👍



[oloppolo]

Hi Bonsai, I built kx2 and am very happy with it. I had started building two kx boards before the kx2. I would like to complete kx but I don't have large heat sink. What value of R1 do I need for AB bias in kx? I am very grateful for your work.



[Bonsai]

Olopollo, I’ll come back to you tomorrow on this.



[Bonsai]

Olopollo,

To run the kx-Amplifier in class AB, just leave switch J8 OPEN. Then you have R8 = 4.7k and R18 = 33k. This should give you a reading of ~200mV across [R12 + R13] which will give an output bias current of 300mA +-50mA. This will give a total power dissipation of around 30W per channel. If that is still too high for your heatsink, remove R18 altogether.

VERY IMPORTANT: YOU MUST CHANGE R5 AND R4 TO 1K!



[Bonsai]

It looks like Jim's Audio is no longer trading on eBay. If this is indeed the case, I will supply kx2-Amplifier boards from the Hifisonix shop. I'll update later in the week.

The original nx-Amplifier will soon be replaced by an upgraded and better-performing nx2-Amplifier, so I don't propose putting the old nx-amplifier PCBs in the Hifisonix shop.

🙂



[passive420]

Can't say I blame him Andy, Ebay have recently updated their fees again. Your original SX and NX boards alongside your other modules are still available from his online store.

https://jimsaudio.com/15wx2-class-a...on-sx-amplifier-2-0-current-feedback-pcb-set/

https://jimsaudio.com/100wx2-ovation-nx-current-feedback-amplifier-pcb-set-new-version-2-0/



[Bonsai]

Ok - that’s good to know. I will update the links on my website. Thanks for that!



[oloppolo]

Olopollo,

To run the kx-Amplifier in class AB, just leave switch J8 OPEN. Then you have R8 = 4.7k and R18 = 33k. This should give you a reading of ~200mV across [R12 + R13] which will give an output bias current of 300mA +-50mA. This will give a total power dissipation of around 30W per channel. If that is still too high for your heatsink, remove R18 altogether.

VERY IMPORTANT: YOU MUST CHANGE R5 AND R4 TO 1K!

I am very grateful to you



[passive420]

Andy, sorry pal just found Jims store on ebay. He's still there by the looks. Your website links are simply out of date it seems.

This is a good deal on the KX2 with PSUs for dual supply ( in my basket mate 😉 ):

https://www.ebay.com/itm/225986750836?hash=item349ddc2974:g:CfAAAOSwTcNiQFOa



[Bonsai]

👍 I’ll update the links later today



[Bonsai]

I've updated the links to Jim's Audio for the kx2 PCB's.



[andrikstormik]

Good afternoon all! Jim's Audio does not send kx2 PCB's to Ukraine... for me there is a large problem. I can not get kx2 PCB's in Ukraine. Large request to share the gerber file of PCB for kx2. I will be very thankful for a help. Andriy.



[Bonsai]

Andriy , I have some boards I can nail to you. Can you send me your address



[andrikstormik]

on this forum I can not send a private message.... I can not understand why so.



[andrikstormik]

Dear Bonsai, my friends (in Ukraine) ask me to make for
their is your excellent kx2 amp (in my opinion the best amp an enthusiast can build).
I would be very grateful (if possible) for the gerber kx2 files.
Peaceful sky to everyone!



[Cal Weldon]

on this forum I can not send a private message.... I can not understand why so.

Neither can I. I will attempt to send you one and please reply.



[andrikstormik]

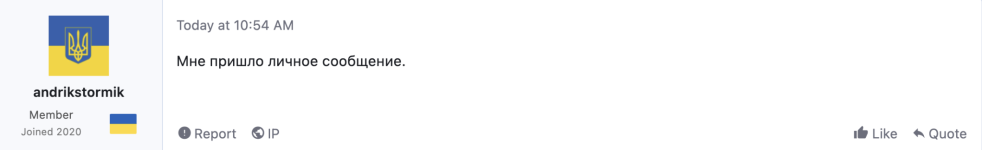

I got a private message. OK



[brianco]

Have you answered Cal's PM on the same page as the PM? Or just on this thread as above?



[Cal Weldon]

He has answered correctly in the Conversation. Well, almost correctly 😉 I want him to start one with me.
Here is his reply in the Conversation/



[Cal Weldon]

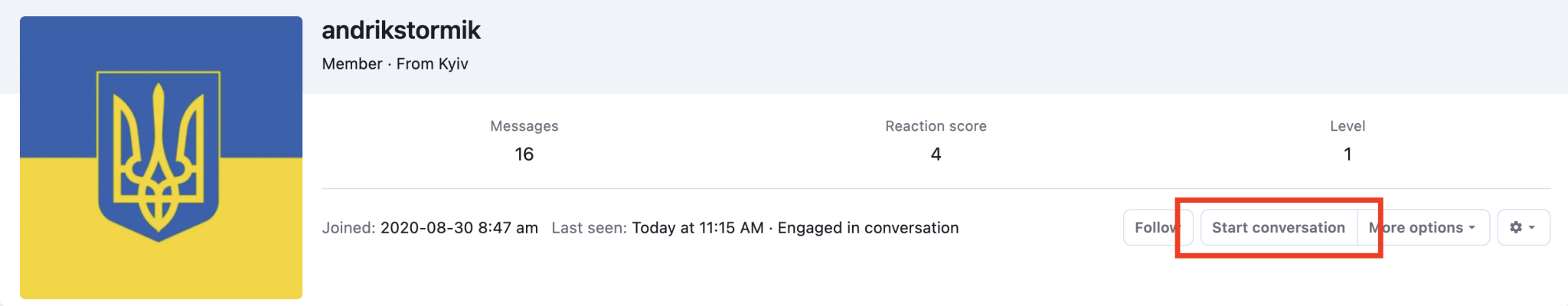

Click on my avatar and then click 'Start Conversation'.

This will be a test run before clicking on someone else's.
