Apparently it only provides up to 0A5 and the Katnana requires 0A7.
Actually, I was thinking of ...
Module A: none
Module B: 5V / 2A for the RPi
Module C: LT3045 x2 for the controller + OpAmp (1A total but no headroom)
Module D: LT3045 5V 500mA for the Katana
Probably a moot point anyway, as I don't think the boards can be powered up via the RPi. However, the voltage regulators are available separately, including 15V 500mA, so it may be possible to have a 3x or even 4x PSU for a reasonable cost.
They sell via eBay as well, so have sent another message...
Apparently it only provides up to 0A5 and the Katnana requires 0A7.
You can specify 2x LT3045 on module C giving 1A
Received message back...
From: alexey.ivanov
To: smoothquark
Subject: Re: Other: smoothquark sent a message about Ultra Low Noise Multi-Rail Power supply for Raspberry Pi, Mezzanine Power board #253612084593
Sent date: 04-Aug-18 16:37:35 BST
Dear smoothquark,
To power Katane you need different version (can be purchased from Web)
Module A (Pre-regulator)
Modile B (PI Power upto 2A)
Module C1+C2 (dual LT3045 5V upto 1A To power Controller + OPAMP board)
Module E (single LT3045 5V upto 0.5A To power Katana)
Katana switches need to be configured for KATANA + RPI
So, Looks hopeful!To: smoothquark
Subject: Re: Other: smoothquark sent a message about Ultra Low Noise Multi-Rail Power supply for Raspberry Pi, Mezzanine Power board #253612084593
Sent date: 04-Aug-18 16:37:35 BST
Dear smoothquark,
To power Katane you need different version (can be purchased from Web)
Module A (Pre-regulator)
Modile B (PI Power upto 2A)
Module C1+C2 (dual LT3045 5V upto 1A To power Controller + OPAMP board)
Module E (single LT3045 5V upto 0.5A To power Katana)
Katana switches need to be configured for KATANA + RPI
Received message back...
From: alexey.ivanovSo, Looks hopeful!
To: smoothquark
Subject: Re: Other: smoothquark sent a message about Ultra Low Noise Multi-Rail Power supply for Raspberry Pi, Mezzanine Power board #253612084593
Sent date: 04-Aug-18 16:37:35 BST
Dear smoothquark,
To power Katane you need different version (can be purchased from Web)
Module A (Pre-regulator)
Modile B (PI Power upto 2A)
Module C1+C2 (dual LT3045 5V upto 1A To power Controller + OPAMP board)
Module E (single LT3045 5V upto 0.5A To power Katana)
Katana switches need to be configured for KATANA + RPI
While I get how you could power the RPI and the HAT board immediately above it with this board via the GPIO connector, I don't understand how you can power the other boards in the stack?
Last edited:
Exactly my thoughts as well, as listed in an earlier post. I have asked him specifically this and await his response.
Exactly my thoughts as well, as listed in an earlier post. I have asked him specifically this and await his response.
Sorry, I must have missed that. Be interested to hear what they say...
Would not suggest using XLR, since ESS dacs require very careful unbalancing and analog filtering to minimize distortion. Better to take unbalanced output and re-balance it if the best quality of balanced output is wanted. This is true even though the ESS evaluation boards don't bother to do it the best way and set a poor example.
A bit disappointing if Mark is right. Anyone care to challenge this?
Ropieee has added support for Katana. He asks if someone can test? Ropieee is a ROON endpoint distro with 7”screen support displaying album art and basic control.
Stable release 2018/07/30 (142) - RoPieee - Roon Labs Community
Stable release 2018/07/30 (142) - RoPieee - Roon Labs Community
Unfortunately it's looking like mark is right.A bit disappointing if Mark is right. Anyone care to challenge this?
Review and Measurements of Benchmark DAC3 | Page 16 | Audio Science Review (ASR) Forum
Maybe Mark can tell us if take RCA from the katna to preamp and XLR to amp would help?
Module D and E are connected to solder joints. So you can connect them to anything. If you order 5V for both modules, you might power parts of the stack.While I get how you could power the RPI and the HAT board immediately above it with this board via the GPIO connector, I don't understand how you can power the other boards in the stack?
In my case I 'll connect it to 1.8V and 3.3V of the Pi after having ripped off the Pi DCDC converter.
Today I listened to the updated Katana.
It's still my lab-setup - with 2 Anker batteries and USB power.
Speakers are pretty high resolution Adam A5X.
It's been playing since 2-3 days.
All I can say at this stage is that Allo has done a great job.
BTW. There's piCorePlayer 4.0 beta. It's coming with Katana support
and numerous tweaks and performance improvements. Highly recommended!
Katana+pcP4(+ some more tweaks from my side) make an awesome setup.
My setup sounds crystal clear, dynamic, spacy 3D, tonal colors are great.
To be honest. What more do I want!?!? 😀
Let see what my main system with quality supplies is gonna sound like next week.
Great stuff.
It's still my lab-setup - with 2 Anker batteries and USB power.
Speakers are pretty high resolution Adam A5X.
It's been playing since 2-3 days.
All I can say at this stage is that Allo has done a great job.

BTW. There's piCorePlayer 4.0 beta. It's coming with Katana support
and numerous tweaks and performance improvements. Highly recommended!
Katana+pcP4(+ some more tweaks from my side) make an awesome setup.
My setup sounds crystal clear, dynamic, spacy 3D, tonal colors are great.
To be honest. What more do I want!?!? 😀
Let see what my main system with quality supplies is gonna sound like next week.
Great stuff.
Maybe Mark can tell us if take RCA from the katna to preamp and XLR to amp would help?

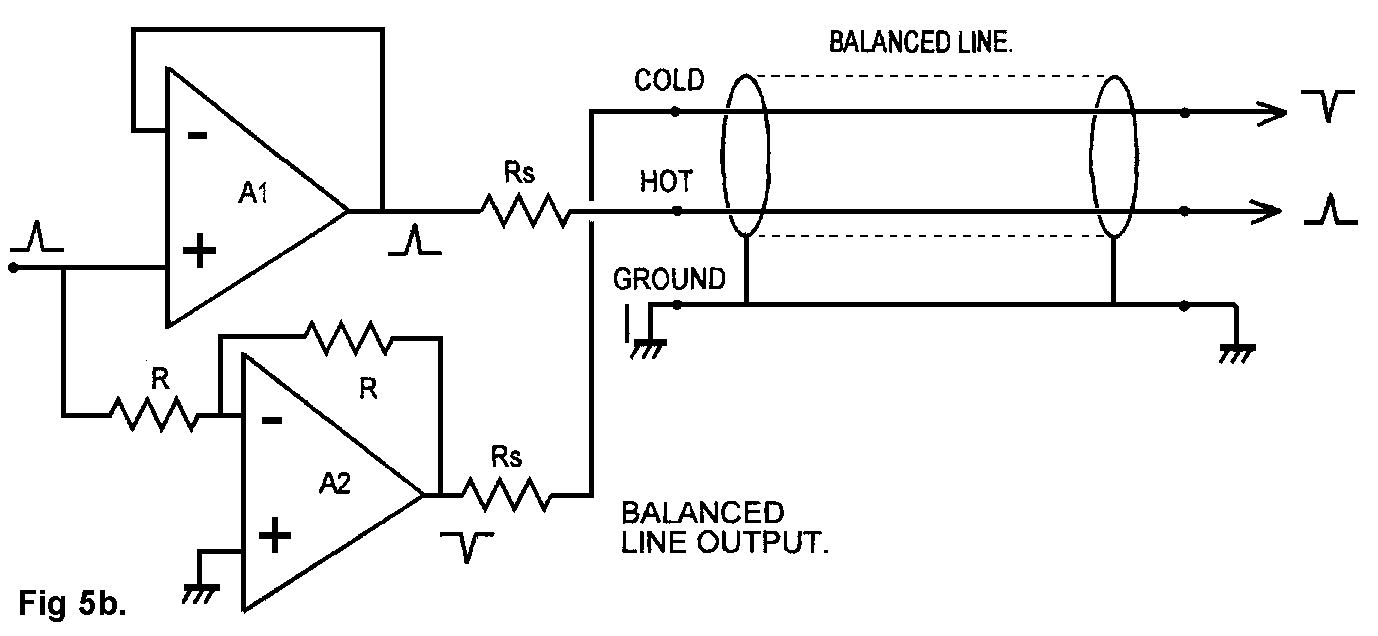

You should take the unbalanced out and run it though a balancing circuit like the one in the schematic below. A dual opamp such as LME49720 can work well for that type of circuit. Don't forget power supply bypass caps.
Attachments
Could I use the two 5V/2A output from HDPlex 200?
HDPLEX 200W Linear Power Supply Multi Rail Output
If so, with 2 PSU, I understand I should power the MicroController board and the raspberry PI, correct?
Thanks
HDPLEX 200W Linear Power Supply Multi Rail Output
If so, with 2 PSU, I understand I should power the MicroController board and the raspberry PI, correct?
Thanks
Could I use the two 5V/2A output from HDPlex 200?
HDPLEX 200W Linear Power Supply Multi Rail Output
If so, with 2 PSU, I understand I should power the MicroController board and the raspberry PI, correct?
Thanks
You can also power the RPi and the Katana board via the battery connector.
Maybe power into the DAC board sounds better than power into the MC board.
Please compare.
Thanks
Matt
@cdsgames
Can the supercap-placeholder soldering joints on the controller be used to attach external 5V cabling?
Thx.
Can the supercap-placeholder soldering joints on the controller be used to attach external 5V cabling?
Thx.
Hello to everyone.
has a long weekend and I had time to think a bit.
First , I have to say that I was never whats called a "golden ear"
Our min strength is been machine testing (noise THD+N etc) and less SQ testing (whatever that means).
Katana implementation is very good. On the analog stage our knowledge is not great.
So a lot of the implementation on analog is actually text book (and trust me thats not a very good thing)
So for now , we will stop selling Katanas until fully tests are completed on SQ with a panel of audiophiles on multiple systems.
We changed the low pass filter (the cutoff frequency was at 220Khz as per ess sabre datasheet, we changed to 92Khz as per most whitepapers). Some "harshness" on the top end was removed with a simple change of that capacitor
We are also implementing Rasmussen mods (basically a low pass filter before IV stage) and tinkering with everything until we get it right.
Anyone (including reviewers and people that bought a Katana ) will receive a free new upgraded version (of course) and some extra (like casings)
In conclusion , the whole team is working to bring Katana to the next level. We know that we have a good implementation of the IC , analog stage will fallow.
Thx you for your patience and trust.
has a long weekend and I had time to think a bit.
First , I have to say that I was never whats called a "golden ear"
Our min strength is been machine testing (noise THD+N etc) and less SQ testing (whatever that means).
Katana implementation is very good. On the analog stage our knowledge is not great.
So a lot of the implementation on analog is actually text book (and trust me thats not a very good thing)
So for now , we will stop selling Katanas until fully tests are completed on SQ with a panel of audiophiles on multiple systems.
We changed the low pass filter (the cutoff frequency was at 220Khz as per ess sabre datasheet, we changed to 92Khz as per most whitepapers). Some "harshness" on the top end was removed with a simple change of that capacitor
We are also implementing Rasmussen mods (basically a low pass filter before IV stage) and tinkering with everything until we get it right.
Anyone (including reviewers and people that bought a Katana ) will receive a free new upgraded version (of course) and some extra (like casings)
In conclusion , the whole team is working to bring Katana to the next level. We know that we have a good implementation of the IC , analog stage will fallow.
Thx you for your patience and trust.
@cdsgames
Can the supercap-placeholder soldering joints on the controller be used to attach external 5V cabling?
Thx.
Yes it can but you will bypass one LC filter and possibly a diode
Dear cdsgames,Hello to everyone.
has a long weekend and I had time to think a bit.
First , I have to say that I was never whats called a "golden ear"
Our min strength is been machine testing (noise THD+N etc) and less SQ testing (whatever that means).
Katana implementation is very good. On the analog stage our knowledge is not great.
So a lot of the implementation on analog is actually text book (and trust me thats not a very good thing)
So for now , we will stop selling Katanas until fully tests are completed on SQ with a panel of audiophiles on multiple systems.
We changed the low pass filter (the cutoff frequency was at 220Khz as per ess sabre datasheet, we changed to 92Khz as per most whitepapers). Some "harshness" on the top end was removed with a simple change of that capacitor
We are also implementing Rasmussen mods (basically a low pass filter before IV stage) and tinkering with everything until we get it right.
Anyone (including reviewers and people that bought a Katana ) will receive a free new upgraded version (of course) and some extra (like casings)
In conclusion , the whole team is working to bring Katana to the next level. We know that we have a good implementation of the IC , analog stage will fallow.
Thx you for your patience and trust.
Why commercialize the product very early?
Im a bit disappointed because my product is in transit and I have to return it to be fixed.. am I going to send back my katana to its origin just to have it fixed?
Hi Marudo
no you wont have to send it back now. Katana works as advertised , we are just not happy with the level of SQ. Meanwhile keep and enjoy your Katana and we are working overtime to improve it. Once we do , we will send you a new unit and you can ship back your unit once you receive it.
no you wont have to send it back now. Katana works as advertised , we are just not happy with the level of SQ. Meanwhile keep and enjoy your Katana and we are working overtime to improve it. Once we do , we will send you a new unit and you can ship back your unit once you receive it.
