Gradiente schematics wanted, hello Brazilian friends!

Status
Not open for further replies.
Jump to Latest
#61
Christopher, a friend from USA, someone that belongs to our forum

Had bougth a Gradiente Model 160, this unit was from the seventies, and was constructed when Government decided to create a free of duties harbor helping the Amazonas State Development.

So, a factory was constructed in Manaus, the Capital of the Amazonas State (Amazon for foreigners).

This started our provision of Imported transistors, as we were closed for importation during 15 long years, having SemiKron factory, Texas, Fairchild, and Philips factories working in my country....but...Japanese Toshibas and other good brands were impossible to us.

Gradiente started a more modern line, they remove the electrolitic condenser from the output, the supply turns symetrical and some chips were used to the power amplifier input (4558 and others).

Gradiente, that already was a Champion of sales in my country, jumped to a more brigth position...... they made partnership with JVC to use some schematics, and started the Grey slim line, used till our days.

This model 160 was the second more powerfull during the seventies...near 1980 the model 360 arrived as the higher power to home use.

Some Power amplifiers, developed during the JVC agreement, are considered top performers even our days, when many digital switching amplifiers are in production in my country, some Class H and others more standard..... but the old ones are respected till our days.

This North American friend, someone that writtes a better portuguese than i can write, bougth the Model 160 in the E Bay and i want to ASK my people to help me to provide him the Model 160 schematic diagram.....i could not find it till today.

The U.S. friend has the Bushroot mail, personal name Christopher.... i do not know his name in our forum.

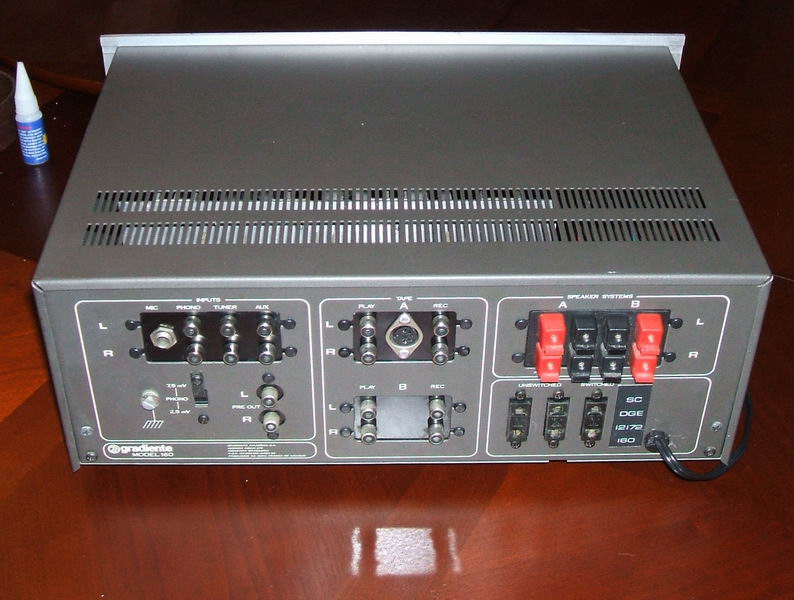

Here is a sample of the images i have uploaded about the model, all images provided by Christopher, they are high resolution pictures...visit the link guys!...and enjoy!

http://arts2001photo.lifepics.com/net/Albums/ListImages.aspx?album=5A4>87:964=9@ 5179<4

regards,

Carlos


Attachments

  • 4a.jpg
    81.7 KB · Views: 263
#65

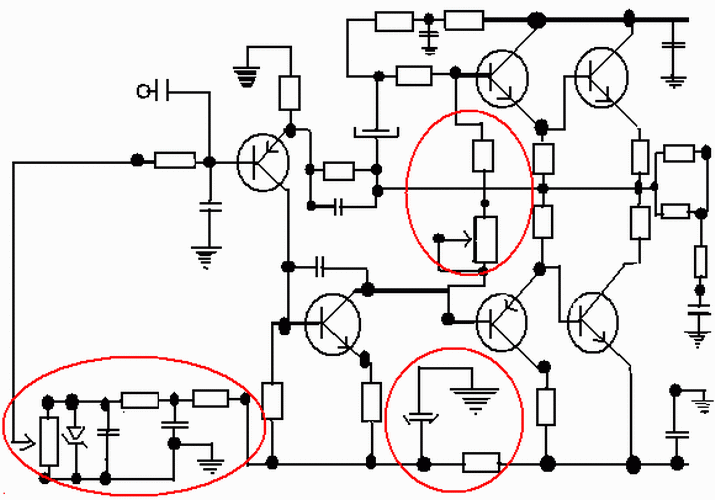

To DIY construction or to modifications, suggestions are down here

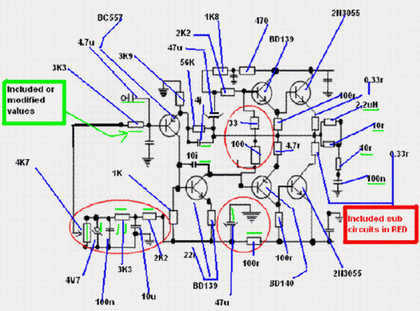

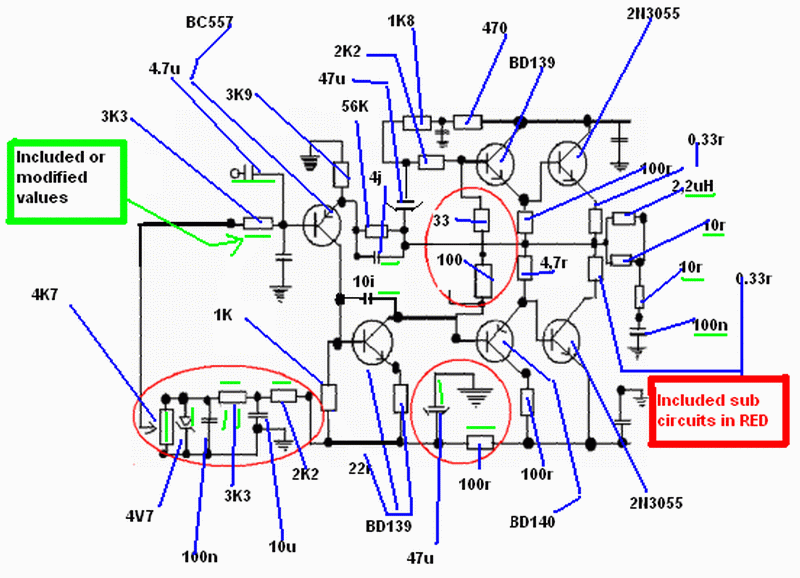

Red are included subcircuits
Green are modified parts...different values.

Well...suggestions only...you can make the way you prefer, and please Christopher and other friends...tell me how you did it.

Output voltage is around 18 volts..... 40 watts over 8 ohms.

Supply voltage can be 36 to 40 Volts.....upper line is positive.

Stand by current may be that one needed to have more than 600 milivolts in ALL output transistors and drivers.

Amplifier was designed in january of 1970.

regards,

Carlos


Attachments

  • parts.gif
    83.3 KB · Views: 223
#70
You are welcome bushroot.... i will upload to 2001's photo center

Some images of the seventies Brazilian home audio equipment.

A friend found some old magazines, so, i will produce pictures and they will be uploaded in reasonable resolution to the Image center resource on the WEB.

http://arts2001photo.lifepics.com/c...arfnbr=25408104&p=2&h=1232&w=1632&Size=252290

I will make this today....and i will post the precise link to them.

I hope some old guys would enjoy.

regards,

Carlos

#78
The Edu's (Eduardo, Edward, Duda) site is excelent

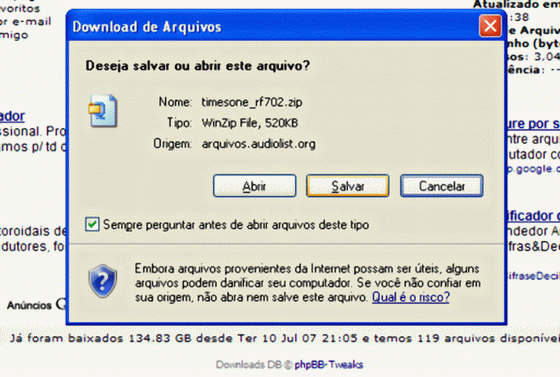

No need for registration, no need to have passwords, nothing needed, also no limit to downloading...has some advertising but it is a very decent site.

I am very happy with you Edu Silva.... your site makes me feel proud of my country people....good work.....nice.... great!

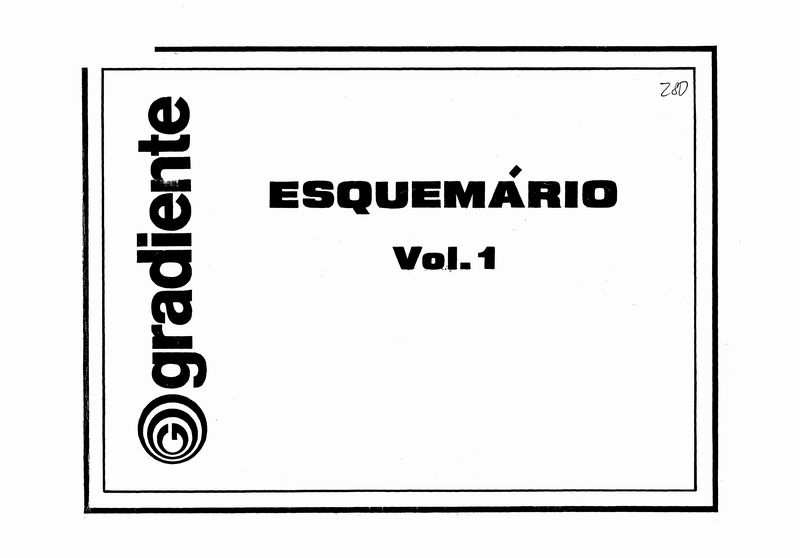

here is the link folks, and also a site image...the audio amplifiers is this first page (3 pages with schematic in beautifull resolution, all them PDF original or convertion to PDF)

http://arquivos.audiolist.org/down_db.php?page=cat&id=1

This one you see, goes direct to Audio Amplifiers section.

regards,

Carlos


Attachments

  • here.gif
    48.3 KB · Views: 141
