GainWire Mk3 CFA pre/phone amp with very low distortion

[dadod]

list:
zs_ 2 boards
Potepuh. 2 boards
vac231 1 board
sorenb 4 board
Msander68 1 board
slartibartfasst 2 boards
BlackDogAudio 2 boards
Chris12 1 board
chakaandgeorgi 2 boards
baggerbole 2 boards
vasillis 1 board
Total 20 pcs

with this it is closed

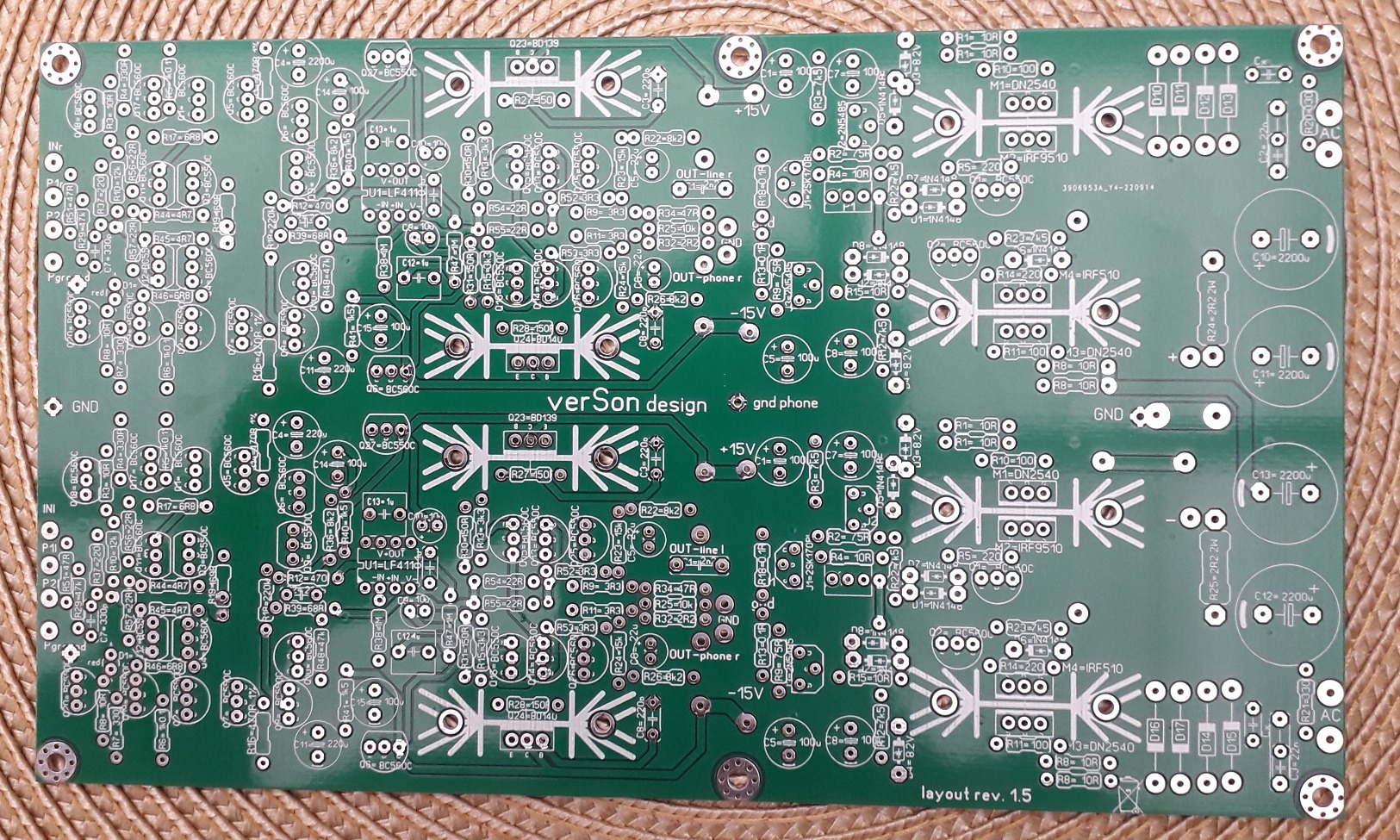

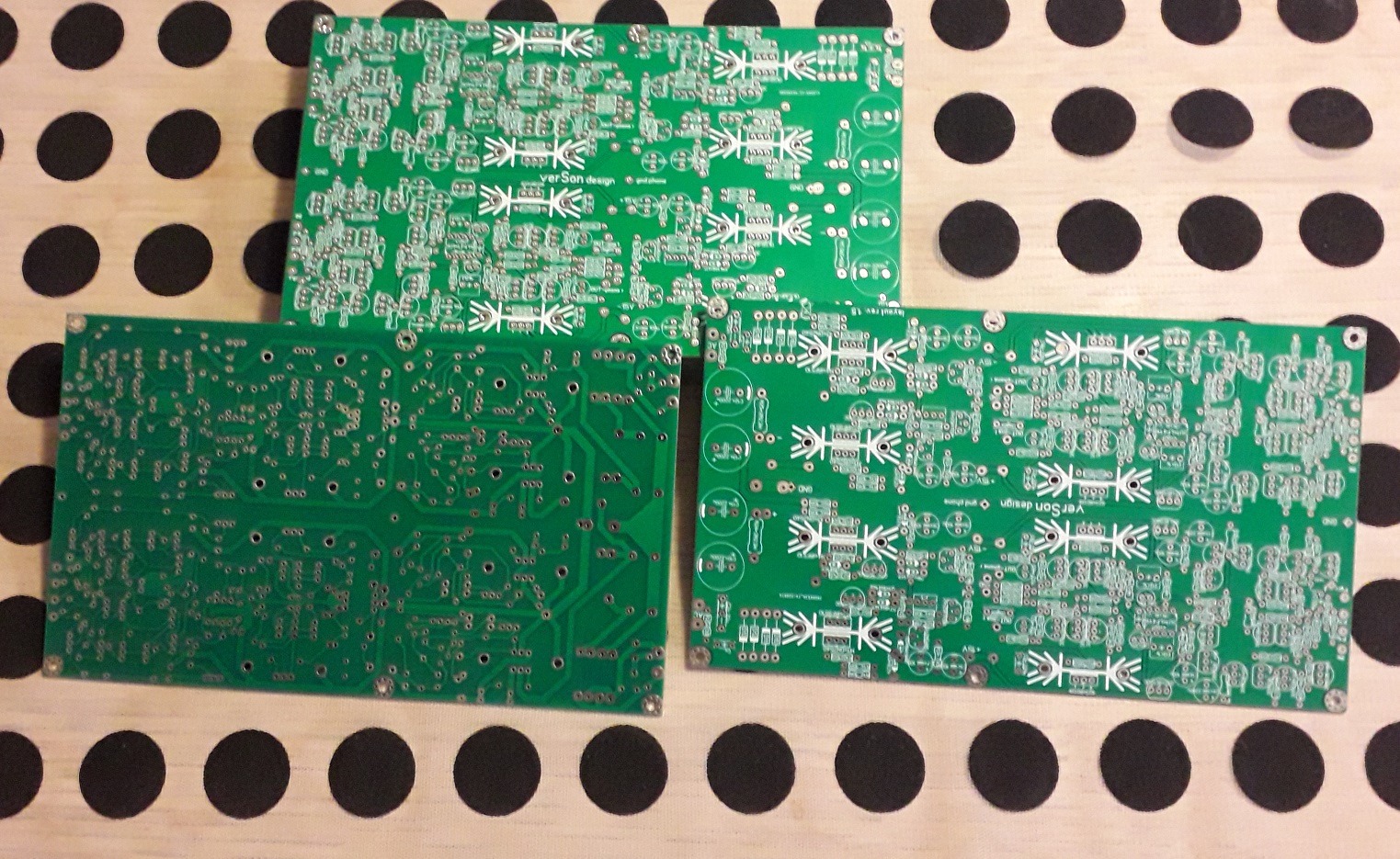

New boards arrived.
Please send me PM with your name, addres and paypal email.
BR Damir



[vasillis]

pm send



[Chri12]

PM sent.



[dadod]

so far those sent the PM with needed data are marked.
list:
zs_ 2 boards
Potepuh. 2 boards
vac231 1 board
sorenb 4 board
Msander68 1 board
slartibartfasst 2 boards
BlackDogAudio 2 boards
Chris12 1 board
chakaandgeorgi 2 boards
baggerbole 2 boards
vasillis 1 board

Who did not yet, please send needed data.
Damir



[potepuh]

Pm send



[dadod]

I showed the shematics of the MK3 last version here https://www.diyaudio.com/community/...ry-low-distortion.296545/page-18#post-7092094
There three shunt regulator shematics with different fet transistors depend what you can find. In attached BOM I suggested what source resistor to use for different fets.

Have successful diy
Damir



[Chri12]

Instead of 2sk170, could I use 2sk209-gr and use 2 in paralell?



[dadod]

Instead of 2sk170, could I use 2sk209-gr and use 2 in paralell?

Probably you could looking on the datasheet, but I don't have spice model to simulate it. You don't need to put it in parallel.

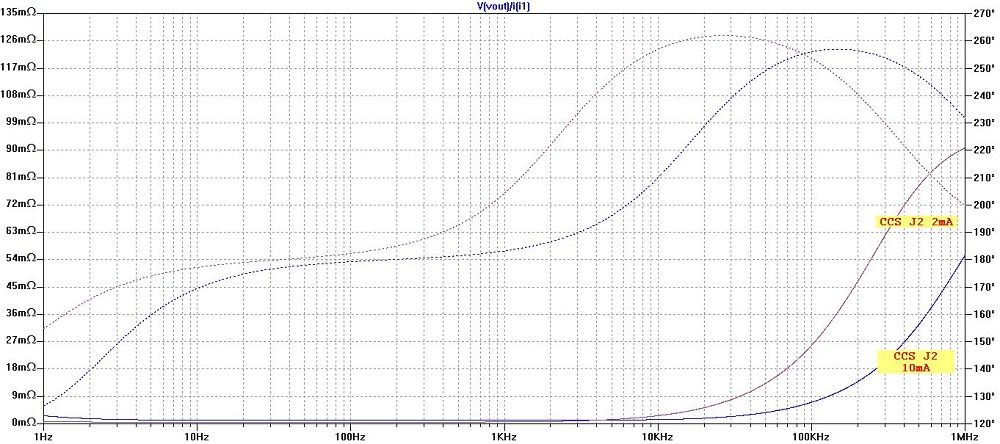

I forgot to show simulated shunt regulator output impedance and how the J2 and J3 source currents influence it.



[zs_]

Hi Damir,
have just searched the thread for transistors matching criteria with no success yet, will you please point at?
another question: any further spec on the D1-red LED ? (e.g. Uf@I ...)
thanks
zs.



[dadod]

Hi Damir,
have just searched the thread for transistors matching criteria with no success yet, will you please point at?
another question: any further spec on the D1-red LED ? (e.g. Uf@I ...)
thanks
zs.

It looks that after this forum was udated the links in first post do not work correctly, I edited some of them like list of matched bjts and how to match them.
Damir



[zs_]

Thanks for the update ...
best
zs.



[potepuh]

Boards received, thanks.



[chakaandgeorgie]

Boards received. Many thanks



[baggerbole]

Boards arrived in perfect condition,
Thanks Damir!



[HRDSTL]

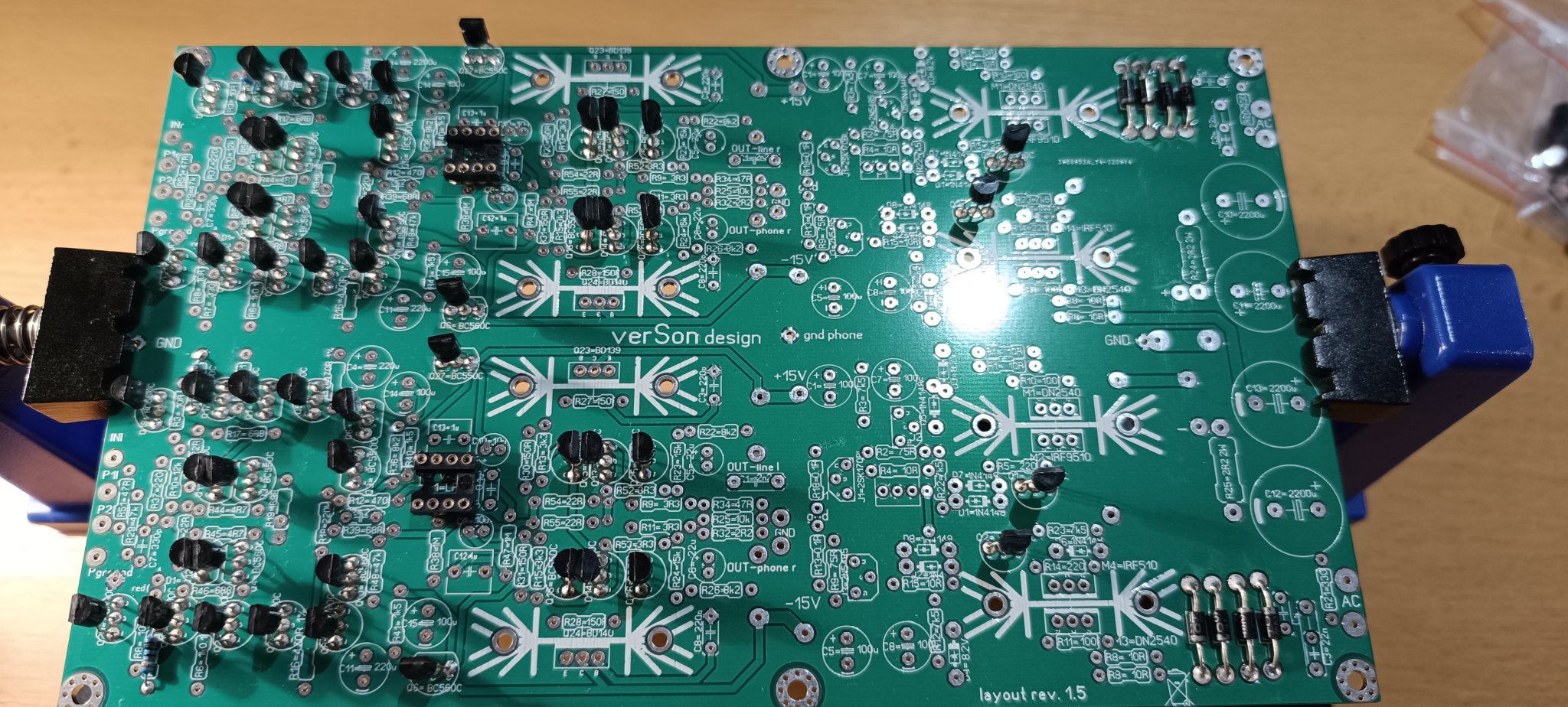

I started to slowly fit the parts....
Today I also received the board for the WHAMMY, and I will be ordering the board for the DCG3 headphone amplifier from Salas. There are never enough headphone amplifiers.

I'm already curious about the duel of these 3 opponents:

1. Gainwire MK3
2. WHAMMY with Burson V6 Vivid
3. DCG3



[dadod]

How are we going to call it, threeel? It's going to be very interesting comparison.



[chat72]

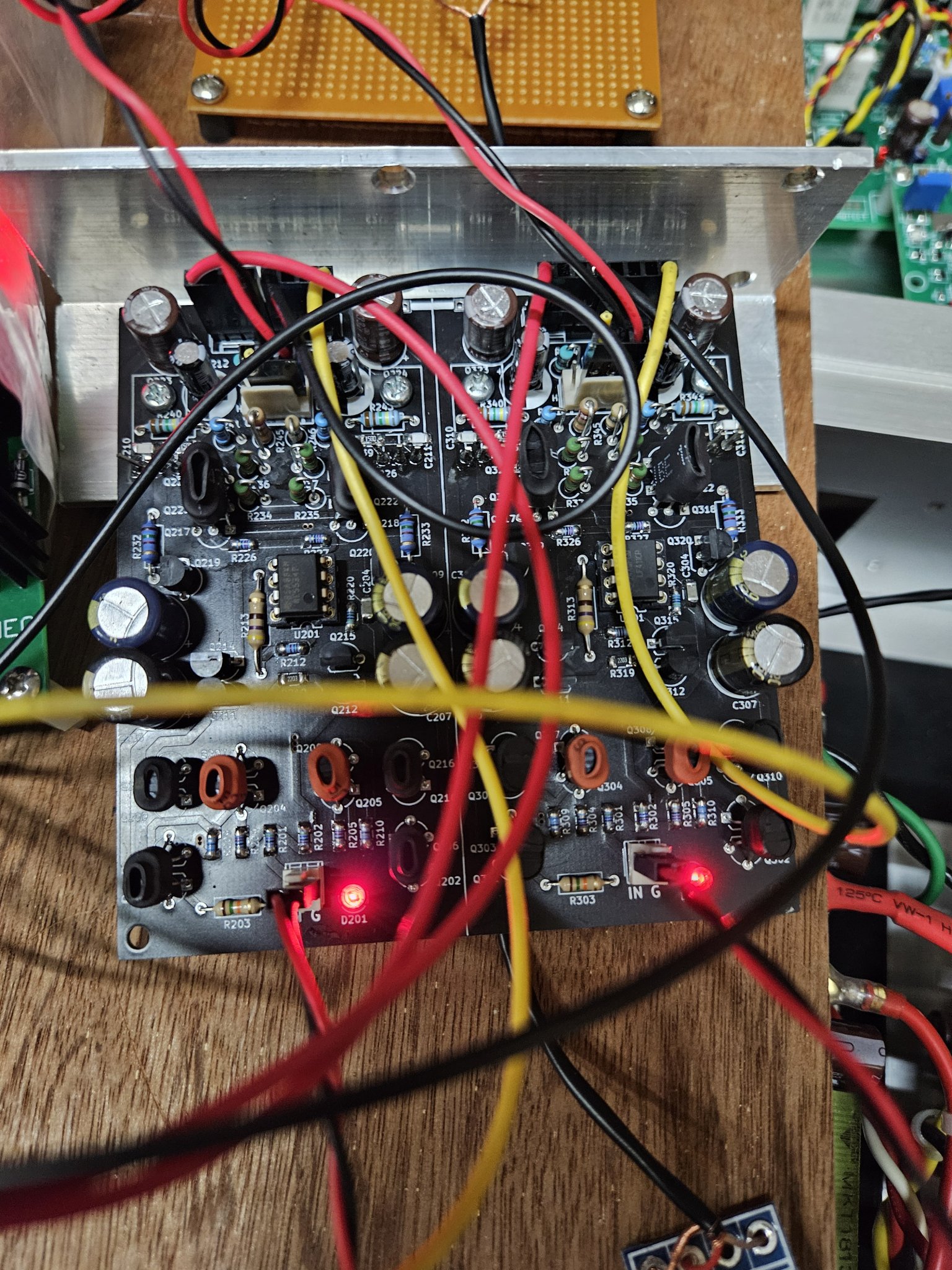

I just finished and test today. My own layout. Sound very good bass is fast lively sound.
The picture is quit messy but dead quiet.



[HRDSTL]

@dadod
What is your opinion on the inclusion of dc protection (SSR) between GainWire and headphone. Is such protection justified or unnecessary since GainWire contains a dc servo?



[dadod]

No need for dc protection, I never used any type.



[dadod]

I started to slowly fit the parts....
Today I also received the board for the WHAMMY, and I will be ordering the board for the DCG3 headphone amplifier from Salas. There are never enough headphone amplifiers.

I'm already curious about the duel of these 3 opponents:

1. Gainwire MK3
2. WHAMMY with Burson V6 Vivid
3. DCG3

Any duel executed?
