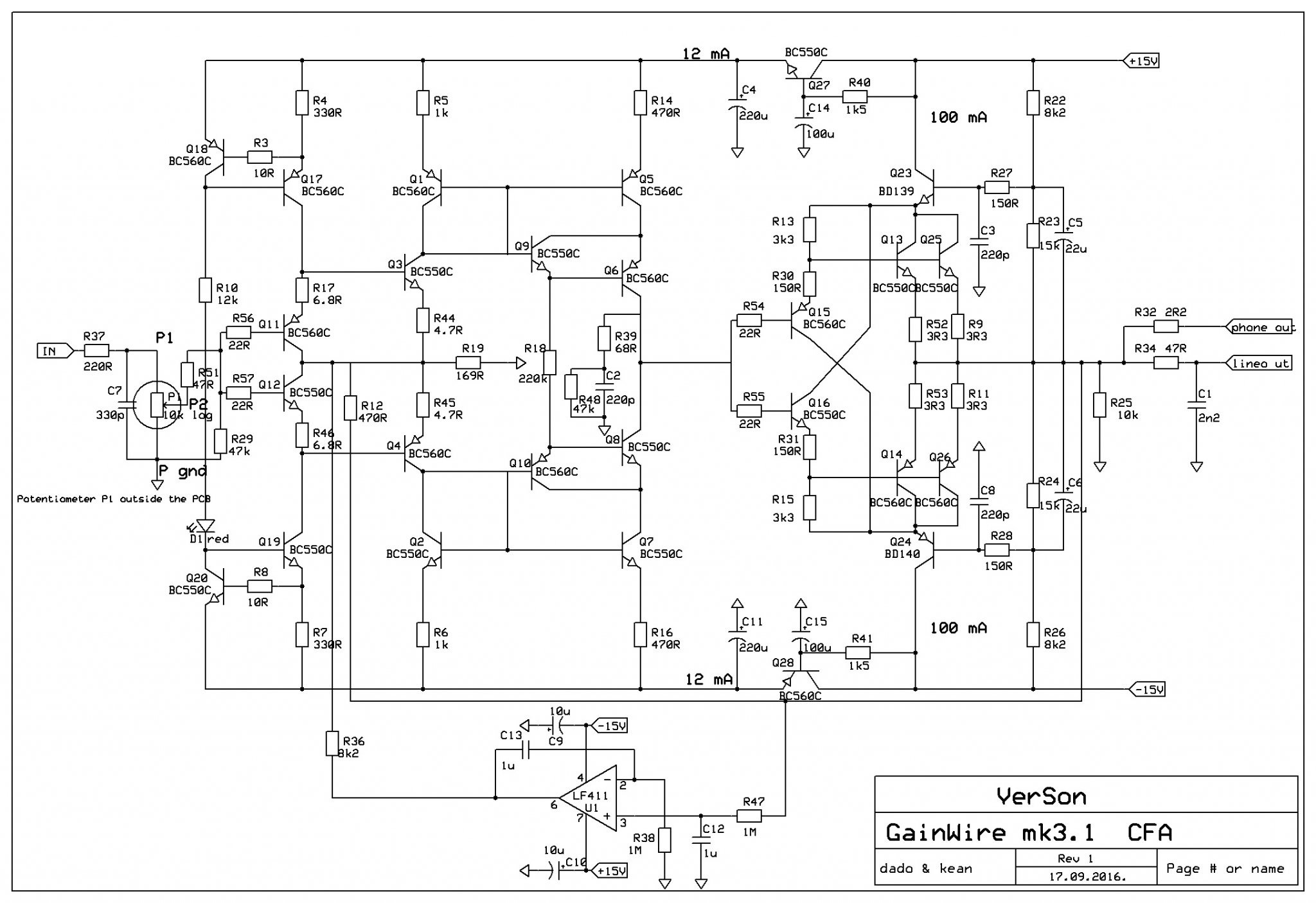

Shematics of pre/shunt reg.

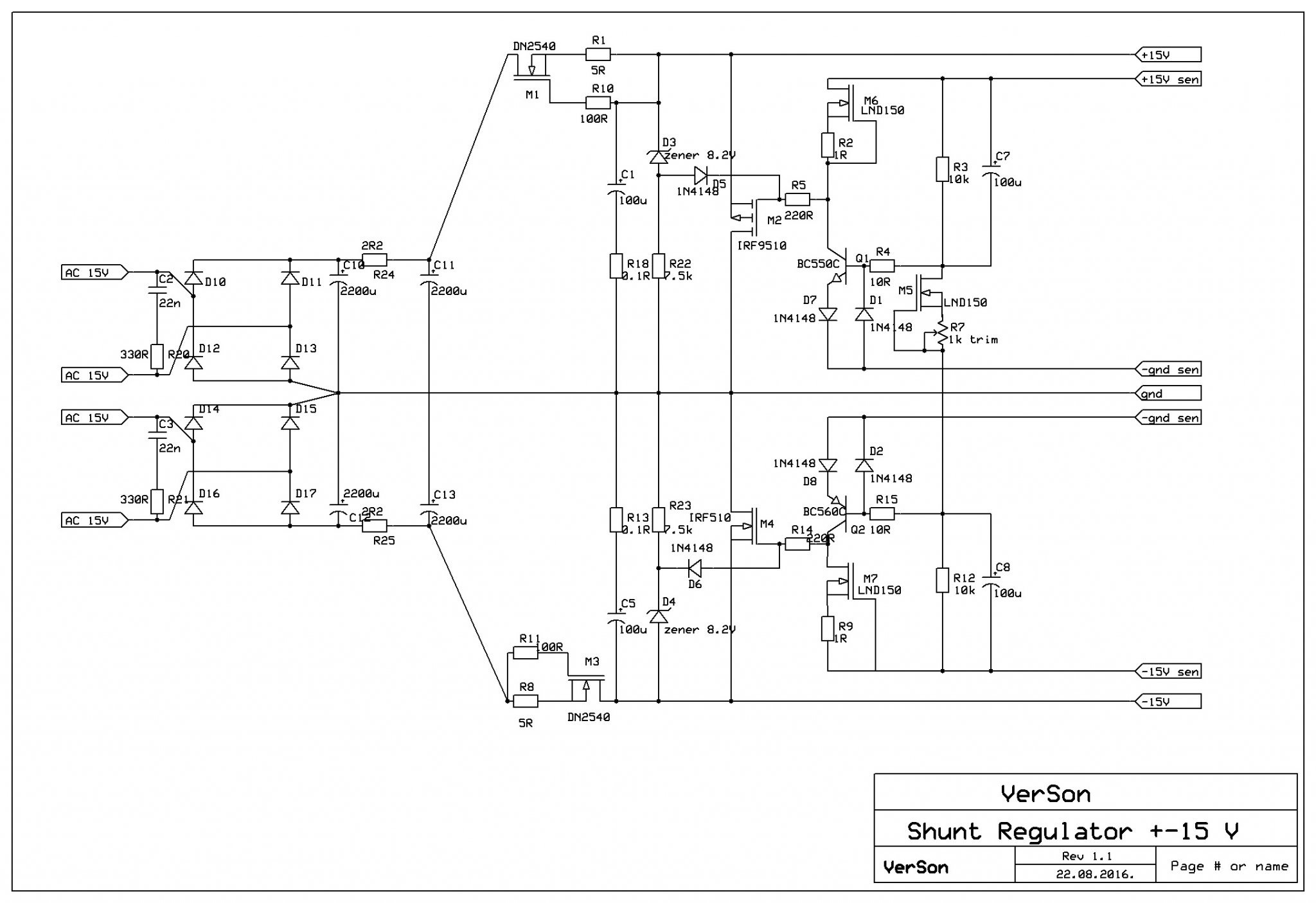

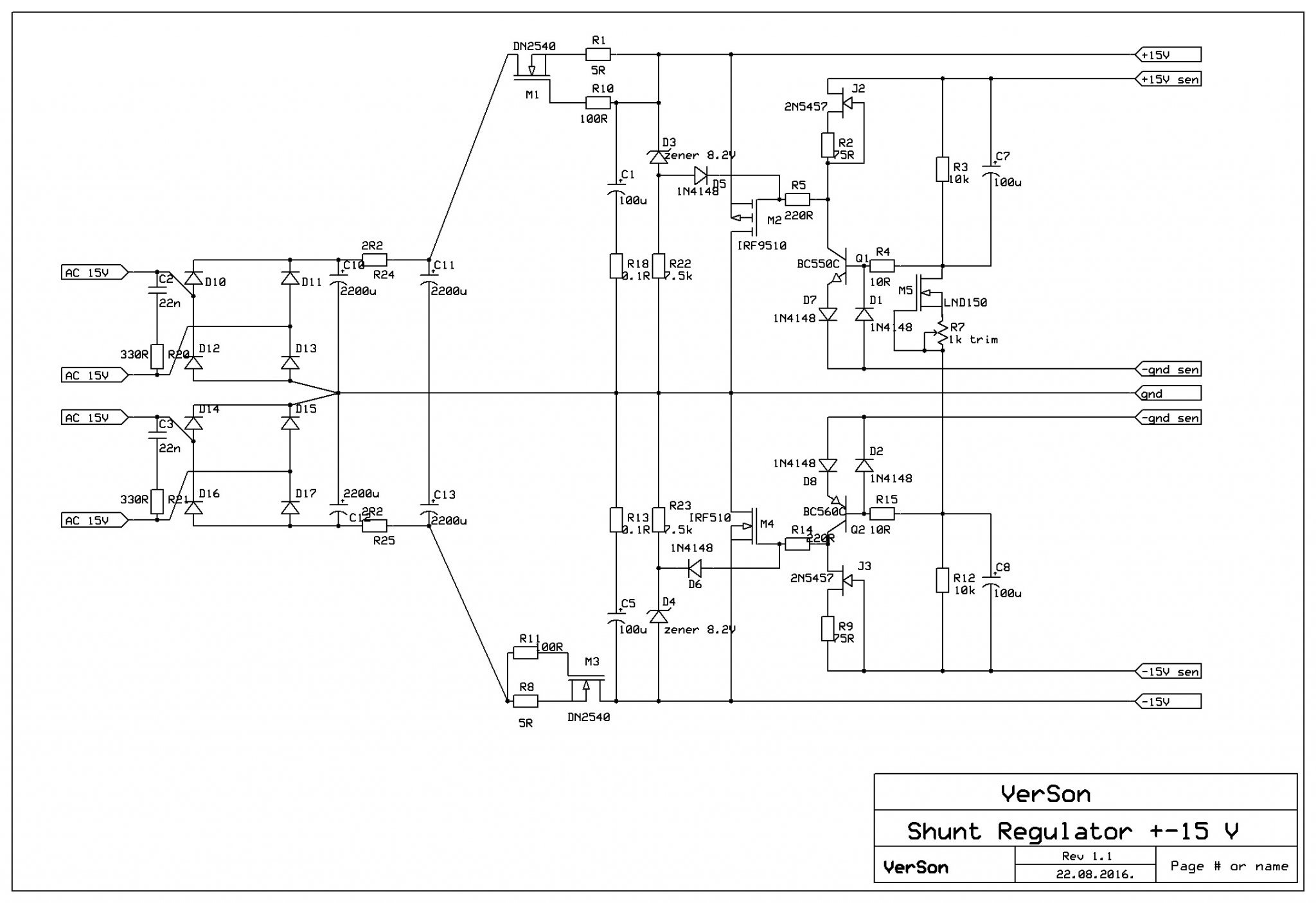

There are three shunt regulator shematics with different transistors used in positios J1, J2 and J3. Because there is hard to find JFETs like 2SK170 and others, there is LND150 deplationmode mosfet. The layout stays the same, just pinout is different and some resistors value.
Damir
There are three shunt regulator shematics with different transistors used in positios J1, J2 and J3. Because there is hard to find JFETs like 2SK170 and others, there is LND150 deplationmode mosfet. The layout stays the same, just pinout is different and some resistors value.
Damir
Attachments
Ok, but I need minimum 5 boards to order.😉
put yourself if interested on the list below, please
list:
zs_ ? boards
put yourself if interested on the list below, please
list:
zs_ ? boards
I will take a few weeks at see side and not be at my home, and will order 5 or 10 pcs (if there will be more candidates until than) when I back.
BR Damir
list:
zs_ 2 boards
Potepuh. 1 board
vac231 1 board
sorenb 2 board
Msander68 1 board
Total 7
Damir,
Firstly, well I built your Mk3. Maybe you remember I purchased one board during 2021 July. I would like say, it is end game for me. You do not need anything else then this pre-amp. Compared with Elektor Pre amp I had before the one with MAT02 it is more warm sound, and I find myself stamping to the beat nowadays. Well done. It really rocks.
Anyhow, do you have the possibility to make one excel file BOM. According to your post #342 some values has changed.
there is one post somewhere in this tread with one Excel file with part no from Mouser. Super convenient. Just copy an purchase. So please with sugar on the top can you do this as a favor for us? / Brgds Mikael.
Firstly, well I built your Mk3. Maybe you remember I purchased one board during 2021 July. I would like say, it is end game for me. You do not need anything else then this pre-amp. Compared with Elektor Pre amp I had before the one with MAT02 it is more warm sound, and I find myself stamping to the beat nowadays. Well done. It really rocks.
Anyhow, do you have the possibility to make one excel file BOM. According to your post #342 some values has changed.
there is one post somewhere in this tread with one Excel file with part no from Mouser. Super convenient. Just copy an purchase. So please with sugar on the top can you do this as a favor for us? / Brgds Mikael.
Hi Mikael,
I'll try when I come back from my " vacation" on island Pag, but I'am not good in that kind of work, better in technical staf, like electronic design.
BR Damir
