Well boys, one of my students found an earlier model schematic
Was a little deceptive to me
I found, as usual, copy of Doctor Marshall Leach schematic.
I do not think Leach amplifier is bad.... i just think it is a little bit old, even beeing very good... also that needs really matched components as it is completelly simetrical.
The schematic i have received is form an earlier model, made 5 years go...but repeating the same topologie.
I felt sad... a new pants, new shirts, and an old schematic inside (I know it is proved, tested, reliable and good)...but copy..when we can make this better, our own ideas and circuits developed here, or at least, something from the last 10 years.
Here is the schematic to close the "Machine" chapter.
regards,
Carlos
Was a little deceptive to me
I found, as usual, copy of Doctor Marshall Leach schematic.
I do not think Leach amplifier is bad.... i just think it is a little bit old, even beeing very good... also that needs really matched components as it is completelly simetrical.
The schematic i have received is form an earlier model, made 5 years go...but repeating the same topologie.
I felt sad... a new pants, new shirts, and an old schematic inside (I know it is proved, tested, reliable and good)...but copy..when we can make this better, our own ideas and circuits developed here, or at least, something from the last 10 years.
Here is the schematic to close the "Machine" chapter.
regards,
Carlos
Attachments
Hi Carlos,
Nordic has done a fantastic job on developing the DX Corporation PCBs. IMHO, speed is not the problem. The amount of output and improvment in just the last few months is phenominal. The devil IS in the detail.
You'd be better off offering more support rather than airing your frustrations in public.
I challange you to do a standard DX amplifier schematic and PCB, BOM finished, complete, ready for production by Thursday. We'll be wating for the pictures to be published here.
Get working on that, and you might have your version of the DX P1 finished by Saturday afternoon. 😀
regards
Nordic has done a fantastic job on developing the DX Corporation PCBs. IMHO, speed is not the problem. The amount of output and improvment in just the last few months is phenominal. The devil IS in the detail.
You'd be better off offering more support rather than airing your frustrations in public.
I challange you to do a standard DX amplifier schematic and PCB, BOM finished, complete, ready for production by Thursday. We'll be wating for the pictures to be published here.
Get working on that, and you might have your version of the DX P1 finished by Saturday afternoon. 😀
regards
Well Greg, i think you have something to say
It seems you are not very happy with me.
I am sorry .. i am what i am dear Greg.
I am studying to be very fast into circuit board layout programs.
If i perceive myself unable to make it fast i will give up and will find people better than i am to allow me to be focused into things i can be more efficient.
Life goes fast dear Greg.. yesterday i was a very young boy preparing Rockets to be tested into Copacabana beach sand (not to put fire into the appartment as i have made once!)....now i have 56 man!.... no way to spend long time in anything, as perfection do not exists.... if you prepare a board to be perfect and waste too much long time, and decide to give it another look,you will see that something could be made even better... and this can make you to start all over again... to be efficient we need to reduce our obsessive behavior to match our modern world reality..... if we do not control those things we gonna have a lot of things we start and never finished...because we are never satisfied with anything...we have to learn to say "it is enougth" to ourselves, or the Madona of Michelangelo would never be ready.
Computers were made to turn our life easier, to allow us to be more efficient, and this means production versus time.
No sense to spend more than 1 day to prepare a board that we can make with a pen and papper in 2 hours, and spend more two hours to adjust size, distance and to make a good technical draw enougth to prepare old silk screen material....if software and computer will not allow us to be more efficient, better to return to the manual work, as non perfect details will not make electrons flow slow, also they will not feel drunk to make curves!
regards,
Carlos
It seems you are not very happy with me.
I am sorry .. i am what i am dear Greg.
I am studying to be very fast into circuit board layout programs.
If i perceive myself unable to make it fast i will give up and will find people better than i am to allow me to be focused into things i can be more efficient.
Life goes fast dear Greg.. yesterday i was a very young boy preparing Rockets to be tested into Copacabana beach sand (not to put fire into the appartment as i have made once!)....now i have 56 man!.... no way to spend long time in anything, as perfection do not exists.... if you prepare a board to be perfect and waste too much long time, and decide to give it another look,you will see that something could be made even better... and this can make you to start all over again... to be efficient we need to reduce our obsessive behavior to match our modern world reality..... if we do not control those things we gonna have a lot of things we start and never finished...because we are never satisfied with anything...we have to learn to say "it is enougth" to ourselves, or the Madona of Michelangelo would never be ready.
Computers were made to turn our life easier, to allow us to be more efficient, and this means production versus time.
No sense to spend more than 1 day to prepare a board that we can make with a pen and papper in 2 hours, and spend more two hours to adjust size, distance and to make a good technical draw enougth to prepare old silk screen material....if software and computer will not allow us to be more efficient, better to return to the manual work, as non perfect details will not make electrons flow slow, also they will not feel drunk to make curves!
regards,
Carlos
Yes TAJ... at least they have made some make up on it
The same Marshal Leach schematic is presented into another famous amplifier used in "Trio elétrico"..those big trucks with enormous power and people playing music over the roof.
It is Cygnus 400, Cygnus 800 and Cygnus 1800.... all them the same..... well...they have changed the parts number.
regards,
Carlos
The same Marshal Leach schematic is presented into another famous amplifier used in "Trio elétrico"..those big trucks with enormous power and people playing music over the roof.
It is Cygnus 400, Cygnus 800 and Cygnus 1800.... all them the same..... well...they have changed the parts number.
regards,
Carlos
destroyer X said:
Hi Carlos
How true this statement is....🙂 ......

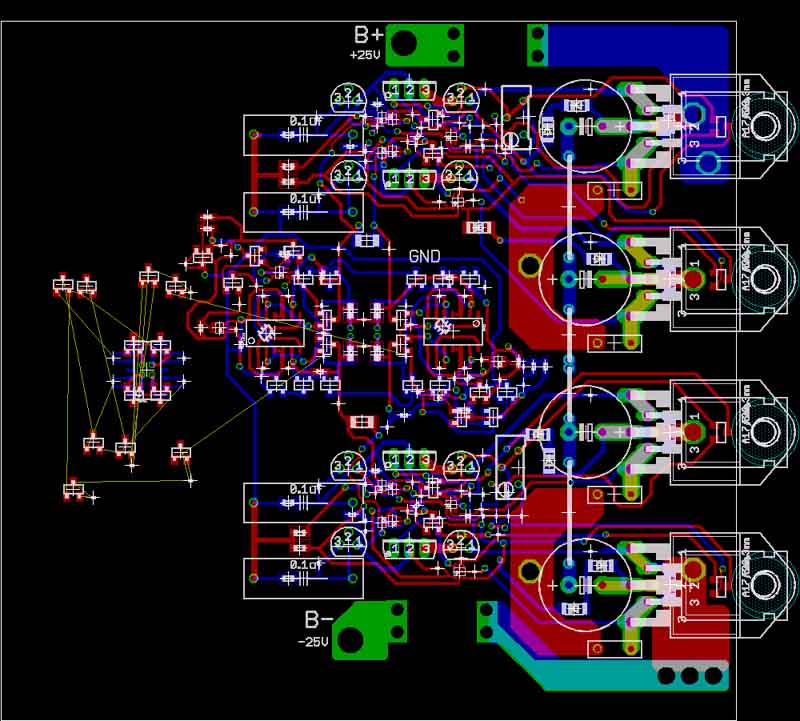

I finished the PCB drawing for my new Bridge Amp, but alas I didn't like the layout. The signal wires were too curvey😀 and the components were not properly placed so I started all over again. This PCB takes a while to make in Eagle, but if I am going to pay a months rent to have it manufactured, it MUST be optimized. If that takes me another week or two to redraw it correctly, then so be it. However, I'm a few years away from 56... 25 years away....
This is how far I am at this point, still 3 circuit sections to build, much work yet to do but that's another thread...😛
Attachments
Yes Nordic, i understand this clearly too
There are different point of views, world has room to everybody, i
am happy that i am the one that thinks my wife is beautifull, i can see she looks alike a parrot, but i feel her beautifull in my heart...we need our own illusions, and some beliefs are not more than illusions...if not, we gonna trow our children into the garbage can, because some of them are ugly, noisy and stupid...so.... we have feelings, and illusions to felt them wonderfull.
we say:
"No, he is very healthy, because of that he runs into the house and use to broke everything"... this is because he is clever, and about the school, his grade is very bad because teachers are not prepared to face gênius!"
That wife that jumped over the wall and scape with the neigthboor to Hawai and never return, we say she needs an adventure life, and that we were not the good husband to her...we never say theres a beach (understood beach bad pronunciated be a foreigner) there...hahahahha...Hawai has beaches..bit..... beaches.
Oh!.... i feel very happy that you could undertand me CBS, and this because you are young, modern because of that, and have outstanding intelligence... this seems to me that i may be into the correct track about the subject....modern days no more room to work slowly, we gonna be replaced by others more fast, or machines will take our jobs..we have to make efforts to be efficient.... so, production versus time is extremelly important... at least my whole life was conducted this way and i had Chief position, the boss, all my time long, i think because i use to make my stuff to conduct his way.
Nordic is partner, he is my employee because of that.... we have to make our business run oiled and perfectly,we have to discuss and to figth... i am his employee too...i have to give him all he need to make his motion oiled...we are not more into the relatioship of cooperative friends, where i had to accept everything from him as a "gift from the skies" as everything was one before was just a contribution, a friendly cooperation...now is business...and the target is invade forum folks houses with, at least one Dx amplifier.....also dear Nordic do not have to accept everything as good to him too...now as a business the target is production, reasonable quality, some profit (number of folks of diy building our products into a non profit base), low time production, efficiency and not too much defects (but we can have some).... we can call back, we can make recall as even Ford does!
Not more children playing!..we are an enterprise...me, another one that cannot appear as partner and Nordic... the future Dx Corporation..the one that will be alive will see this as a reality..something that will comes true because i will always trying to reach the target.
And in future, Doctor Hugh Dean will be with me, even if i had to buy all his production to force him to enter the Corporation.....ahahahha...we can arrange buyers and make him busy... and them to tell them the truth and invite him to join the business (sorry, brazilian trick not so decent!)
the picture is my ex wife in Miami, a couple of years ago...now she is my girlfriend... man!... i have never imagined how better is this kind of life!..we leave in harmony now a days.
Also i have not to be hidden, have not to silent about, i am not shy, i have nothing to fear, have never visited police, never arrested, never in jail, have never robbered any bank and i am not afraid to say what i think.... i use to tell directly and clear when i dislike something.
regards,
Carlos
There are different point of views, world has room to everybody, i
am happy that i am the one that thinks my wife is beautifull, i can see she looks alike a parrot, but i feel her beautifull in my heart...we need our own illusions, and some beliefs are not more than illusions...if not, we gonna trow our children into the garbage can, because some of them are ugly, noisy and stupid...so.... we have feelings, and illusions to felt them wonderfull.
we say:
"No, he is very healthy, because of that he runs into the house and use to broke everything"... this is because he is clever, and about the school, his grade is very bad because teachers are not prepared to face gênius!"
That wife that jumped over the wall and scape with the neigthboor to Hawai and never return, we say she needs an adventure life, and that we were not the good husband to her...we never say theres a beach (understood beach bad pronunciated be a foreigner) there...hahahahha...Hawai has beaches..bit..... beaches.
Oh!.... i feel very happy that you could undertand me CBS, and this because you are young, modern because of that, and have outstanding intelligence... this seems to me that i may be into the correct track about the subject....modern days no more room to work slowly, we gonna be replaced by others more fast, or machines will take our jobs..we have to make efforts to be efficient.... so, production versus time is extremelly important... at least my whole life was conducted this way and i had Chief position, the boss, all my time long, i think because i use to make my stuff to conduct his way.
Nordic is partner, he is my employee because of that.... we have to make our business run oiled and perfectly,we have to discuss and to figth... i am his employee too...i have to give him all he need to make his motion oiled...we are not more into the relatioship of cooperative friends, where i had to accept everything from him as a "gift from the skies" as everything was one before was just a contribution, a friendly cooperation...now is business...and the target is invade forum folks houses with, at least one Dx amplifier.....also dear Nordic do not have to accept everything as good to him too...now as a business the target is production, reasonable quality, some profit (number of folks of diy building our products into a non profit base), low time production, efficiency and not too much defects (but we can have some).... we can call back, we can make recall as even Ford does!
Not more children playing!..we are an enterprise...me, another one that cannot appear as partner and Nordic... the future Dx Corporation..the one that will be alive will see this as a reality..something that will comes true because i will always trying to reach the target.
And in future, Doctor Hugh Dean will be with me, even if i had to buy all his production to force him to enter the Corporation.....ahahahha...we can arrange buyers and make him busy... and them to tell them the truth and invite him to join the business (sorry, brazilian trick not so decent!)
the picture is my ex wife in Miami, a couple of years ago...now she is my girlfriend... man!... i have never imagined how better is this kind of life!..we leave in harmony now a days.
Also i have not to be hidden, have not to silent about, i am not shy, i have nothing to fear, have never visited police, never arrested, never in jail, have never robbered any bank and i am not afraid to say what i think.... i use to tell directly and clear when i dislike something.
regards,
Carlos
Attachments
Dx Precision is alike a Cannon shot... very strong, very fast and very controled
powerfull bass... made to sound good and to make powerholic very happy and also to win competition into your living place surroundings... to move heavy speaker and to play into room shacking levels.
Even playing low volume it seems that have a loudness contour attached.... loudness on... and it has not
Voices are beautifull, trebles are fair and can be into the same ratio if you reduce the bass adjusting the input condenser.
Give yourself a chance to have something very good, very cheap as we are not having profit...enjoy Dx sonics and i am sure you will be satisfied.
If you already have Dx Standard and Dx HRII... for sure you will smile a lot, will dance and will feel strong emotions in your life.
Satisfation guaranteed or i will eat the boards you said no good!
Tripple guarantee of reliability, and based into tests, into Dx Standard reliability and into HRII reliability.
Life sometimes is hard..good music and love are the answer, put a Dx Amplifier in your life.
The happy Amplifier!
regards,
Carlos
powerfull bass... made to sound good and to make powerholic very happy and also to win competition into your living place surroundings... to move heavy speaker and to play into room shacking levels.
Even playing low volume it seems that have a loudness contour attached.... loudness on... and it has not
Voices are beautifull, trebles are fair and can be into the same ratio if you reduce the bass adjusting the input condenser.
Give yourself a chance to have something very good, very cheap as we are not having profit...enjoy Dx sonics and i am sure you will be satisfied.
If you already have Dx Standard and Dx HRII... for sure you will smile a lot, will dance and will feel strong emotions in your life.
Satisfation guaranteed or i will eat the boards you said no good!
Tripple guarantee of reliability, and based into tests, into Dx Standard reliability and into HRII reliability.
Life sometimes is hard..good music and love are the answer, put a Dx Amplifier in your life.
The happy Amplifier!
regards,
Carlos
billabong said:
I know squat about this amp stuff and have already exposed myself as an amp idiot.
I was only questioning the use of the BG NX as a by-pass as I know how good they work by themselves as an input cap as on Hugh's amps. Don't get caught up in theoretical values as the ones I've used are much larger than required but work a treat.
I've heard great results using BG N in the signal path but only in digital devices such as Peter Daniel's NOS DAC. These weren't my choices but those of the respective designers and I have tried their methods in other products with great success.
One that springs to mind is a P3A that I got humming along nicely and out of 1uF MKT, 2.2uF Auricap and 22uF Nichicon ES, the Nichicon killed the others in sound.... a huge surprise to me and look at the value.... book thrown out the window. 😉
Re: Dx Precision is alike a Cannon shot... very strong, very fast and very controled
You're supposed to be on a diet and losing weight, so no eating PCBs for you. 😀
How many calories in a PCB? 😉
destroyer X said:
You're supposed to be on a diet and losing weight, so no eating PCBs for you. 😀
How many calories in a PCB? 😉
I don't think you can go too high in value on that cap, for that type of filter, one can go too low though and start loosing octaves off the bottom....
Ahahaha... calories on pcboard was funny
And i have to go to dictionary to find the word squad, or squat..will read once more.
regards folks
Carlos
And i have to go to dictionary to find the word squad, or squat..will read once more.
regards folks
Carlos
Hi Carlos,
Hey! Who's the big guy next to her in the photo?
I didn't know that you were so open minded...
Cheers,
M
Hey! Who's the big guy next to her in the photo?
I didn't know that you were so open minded...
Cheers,
M
I think your dictionary won't help with 'squat'. The dictionary will say something like "bend down like a woman peeing" (That would be Todd's Pragmatic English Dictionary, some are more conservatively worded). In Rabbitz context, it's slang and it means "nothing". English has a lot of slang. Particularly the word 'nothing' for some reason; zilch, diddly, nada, beans, etc. Not vanilla beans though, you'd have to look under 'plain' for that.
..Todd
..Todd
Just butting in with a question here 🙂
Would it be much hassle to use 48V rails? I have a nice 2x35V 500VA transformer I could use if so. I see that the zeners in the regulators would need to be changed, perhaps replace the 33v one with a 22v one?
Would any other changes be needed?
Would it be much hassle to use 48V rails? I have a nice 2x35V 500VA transformer I could use if so. I see that the zeners in the regulators would need to be changed, perhaps replace the 33v one with a 22v one?
Would any other changes be needed?
Thank you Todd..... very good language explanation
Max..... that one in the picture is Fred, the one that had Barney as the best friend. (at least in Brasil).... do you remember Max?
Baaarney!
Her eyes are beautifull, a little bit green mixed with ligth brown, have honey collor shines and some gray too...incredible!
The one that was operating the photo machine was me....so.... latter, at nigth, she was with me while Fred was in another place...just a picture...no problems!
............................................................................
Jaycee
No problems at all, but please, test your transfomer under load conditions, you gonna have around 100 and 180 watts, power to each channel, so, force your supply to drain this power and measure your voltage under load....both rails loaded...positive to ground and negative to ground with power resistors... them decide the zener voltage having a better "reality" informations to decide about.
regards,
Carlos
Max..... that one in the picture is Fred, the one that had Barney as the best friend. (at least in Brasil).... do you remember Max?
Baaarney!
Her eyes are beautifull, a little bit green mixed with ligth brown, have honey collor shines and some gray too...incredible!
The one that was operating the photo machine was me....so.... latter, at nigth, she was with me while Fred was in another place...just a picture...no problems!
............................................................................
Jaycee
No problems at all, but please, test your transfomer under load conditions, you gonna have around 100 and 180 watts, power to each channel, so, force your supply to drain this power and measure your voltage under load....both rails loaded...positive to ground and negative to ground with power resistors... them decide the zener voltage having a better "reality" informations to decide about.
regards,
Carlos
Pitch of the BOM parts
Niko,
Had a chance to look at your recently published Precision BOM today. I am grateful for your work on it and your stellar contribution to the cause of DX bliss, so thank you!
However, I'm worried -- worried that those small pitched parts are carried over to the PC board design. I hope that the PC board will be more generous with pitch. (It would be nice to see a picture of the board design now that it has been prototyped - perhaps my gripes would go away when I see the beautiful spacious board layout).
Most metal film resistors of 1/4 watt are almost 7mm long - could we have 10 mm for all those 1/4watt resistors on the PC board?
There is a bunch of 100n capacitors that you have as 3x7.5. MKP Wima capacitors are 5x7.5. for 100n/100Vdc, and they are the smallest polypropylene caps that I know of and can get in the States.
On a different note - I spotted three difference between the BOM and schematic that I wanted to point out. (I know there had been a few mods, but these I have not seen):
1) BOM listed 470 uF for C21, C22 --- The schematic 1000 uF. (I would like to use much larger, like on the HRII)
2) C7 listed as 470 uF -- schematic 1000 uF
3) I don't see the 3k6 resistor that Carlos specified to replace VR1
Thanks
Francois
Niko,
Had a chance to look at your recently published Precision BOM today. I am grateful for your work on it and your stellar contribution to the cause of DX bliss, so thank you!
However, I'm worried -- worried that those small pitched parts are carried over to the PC board design. I hope that the PC board will be more generous with pitch. (It would be nice to see a picture of the board design now that it has been prototyped - perhaps my gripes would go away when I see the beautiful spacious board layout).
Most metal film resistors of 1/4 watt are almost 7mm long - could we have 10 mm for all those 1/4watt resistors on the PC board?
There is a bunch of 100n capacitors that you have as 3x7.5. MKP Wima capacitors are 5x7.5. for 100n/100Vdc, and they are the smallest polypropylene caps that I know of and can get in the States.
On a different note - I spotted three difference between the BOM and schematic that I wanted to point out. (I know there had been a few mods, but these I have not seen):
1) BOM listed 470 uF for C21, C22 --- The schematic 1000 uF. (I would like to use much larger, like on the HRII)
2) C7 listed as 470 uF -- schematic 1000 uF
3) I don't see the 3k6 resistor that Carlos specified to replace VR1
Thanks
Francois
Francois,
You missed the latest schematic at post #570. It is still missing the output fuse and output section bypass caps - these and probably some minor changes, if determined, will come in another schematic, when Todd has the time.
billabong.
You missed the latest schematic at post #570. It is still missing the output fuse and output section bypass caps - these and probably some minor changes, if determined, will come in another schematic, when Todd has the time.
billabong.
Re: Pitch of the BOM parts
Thanks Billabong - I have indeed missed the schematic of post #570.
Sorry Nordic, I thought I was helping to eliminate errors, but turned out to be the one that erred.
Francois
Francois G said:
Thanks Billabong - I have indeed missed the schematic of post #570.
Sorry Nordic, I thought I was helping to eliminate errors, but turned out to be the one that erred.
Francois
