There is a sprint layout file somewhere page 90 to 95 with amp and psu pcb,there are more than one so look for the last one posted. It is not tested and you will be on your own making it work.
It is tested
Plz share d2000 toner transfer pcb in pdf form thanks
Dude...it's all there, just dig a little.
post #875 and you can add DC protect with triac
What is DC Threshold to avtivate the TRIAC ?
8 V DC Output ?
What is maximum output power from AMP for DC Prorection ?
Can 2000W amp use this circuit ?
[/ATTACH]
There is some mistakes...
Attachments
Ohh i got a headache from reading . This work this dont work change this change that .Please some one give me a layout or anything else for d200 for transformer (46-0-46)ac 650w for stereo please someone to gide me with psu, protection and psb for d200 or d200.1or d200.2 and d200.3 Thanks idont have experienced with electronic only for hobby

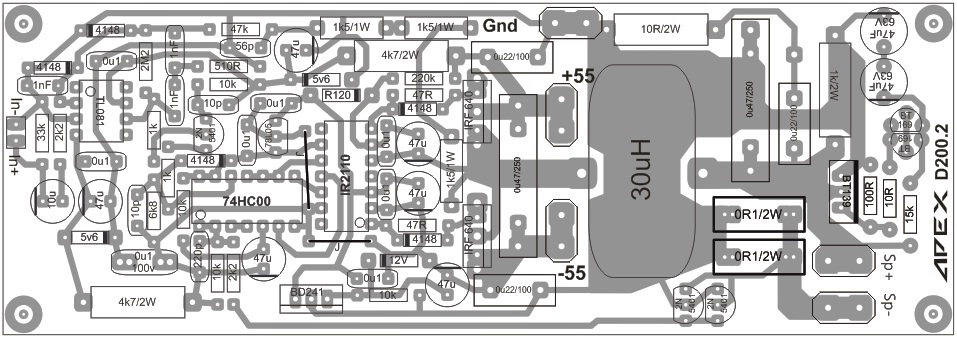

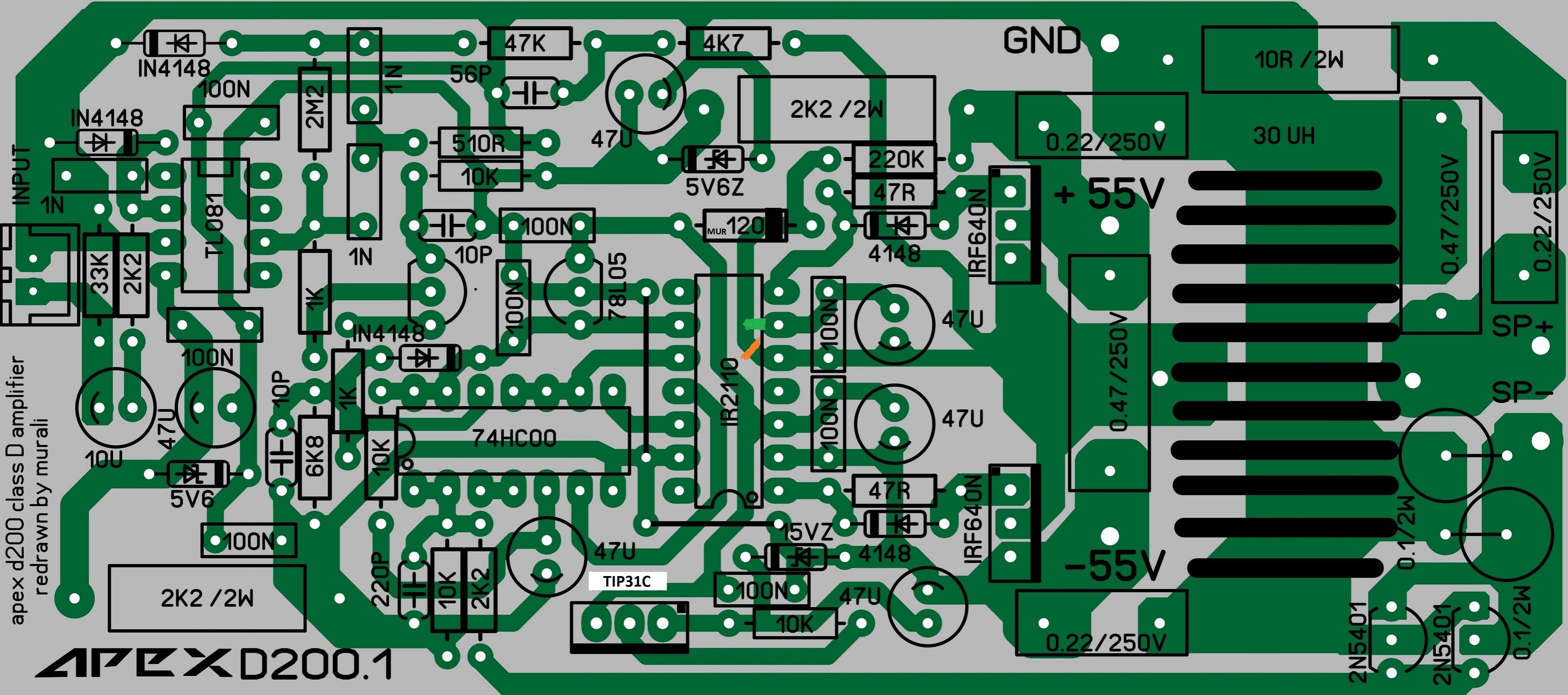

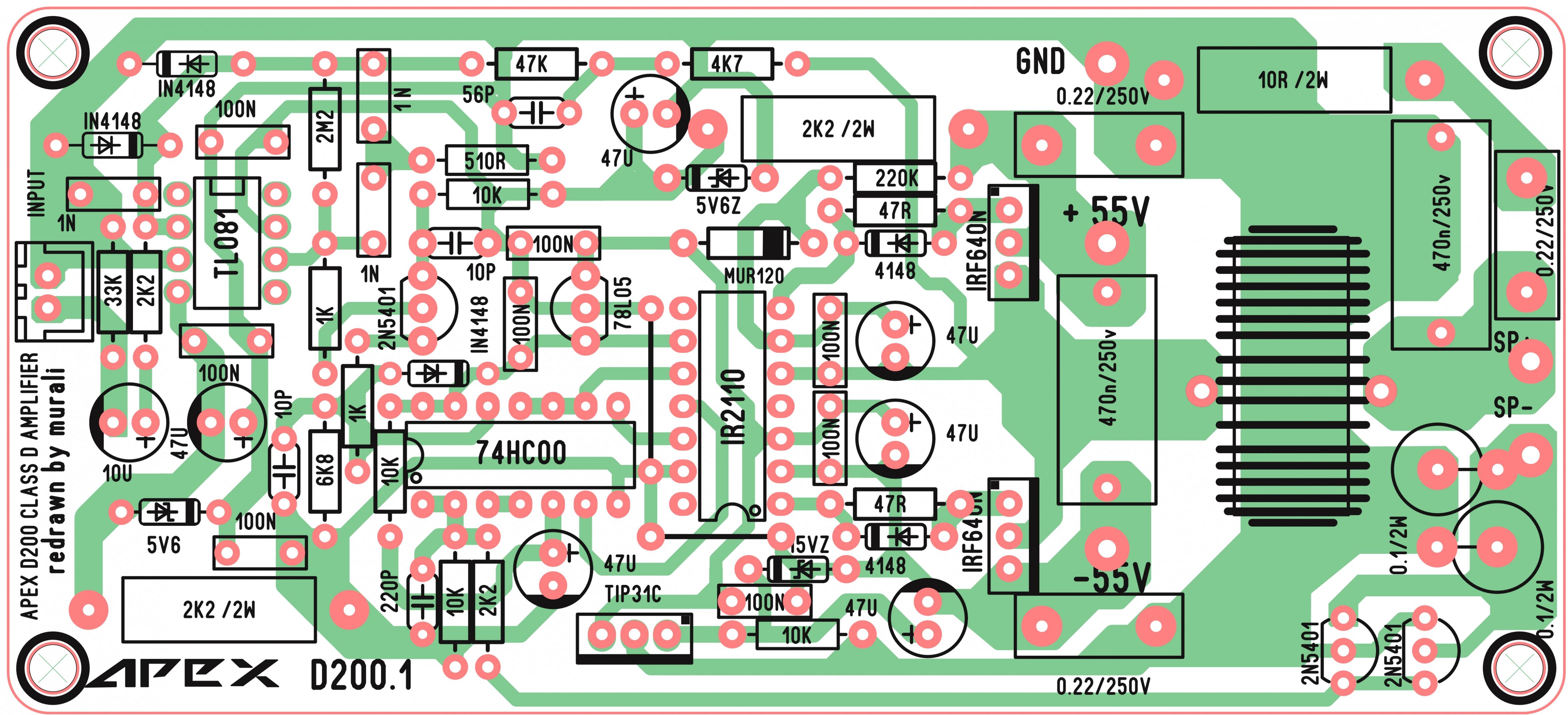

here is the lay file
smurali is this working pcb to order a parts
