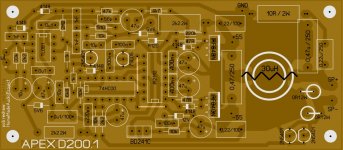

Hi Mile ,can you help me finding a working(tested) pcb and schematic for this Class D amplifier?

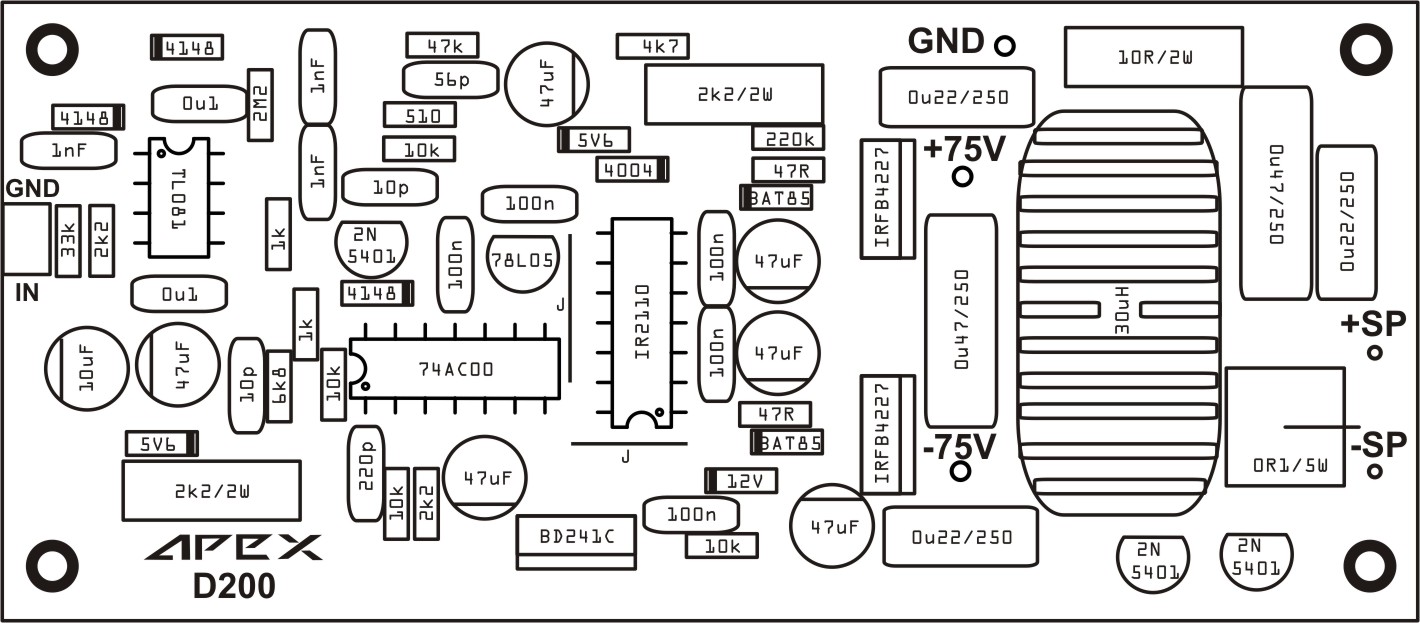

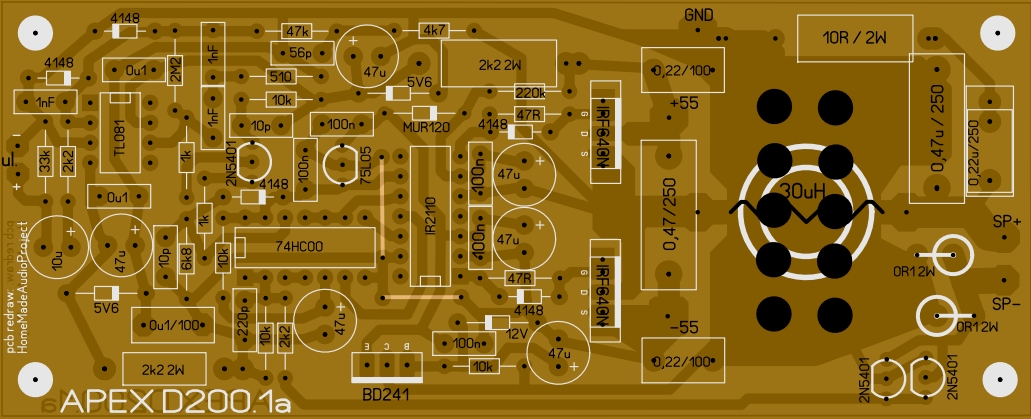

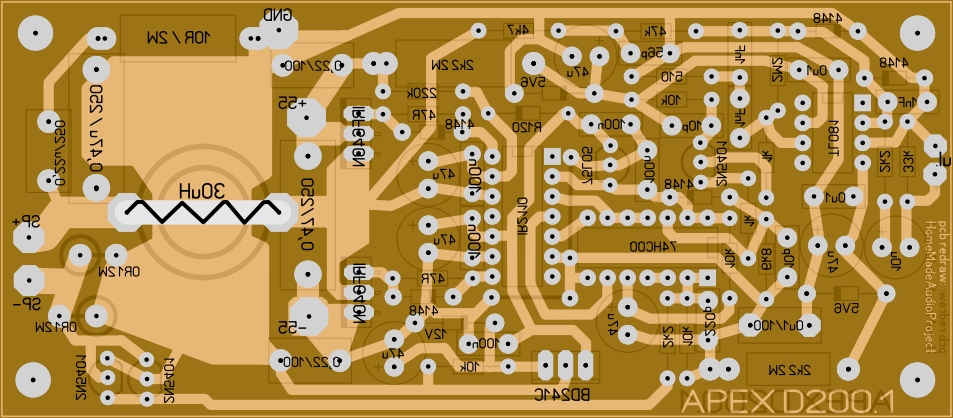

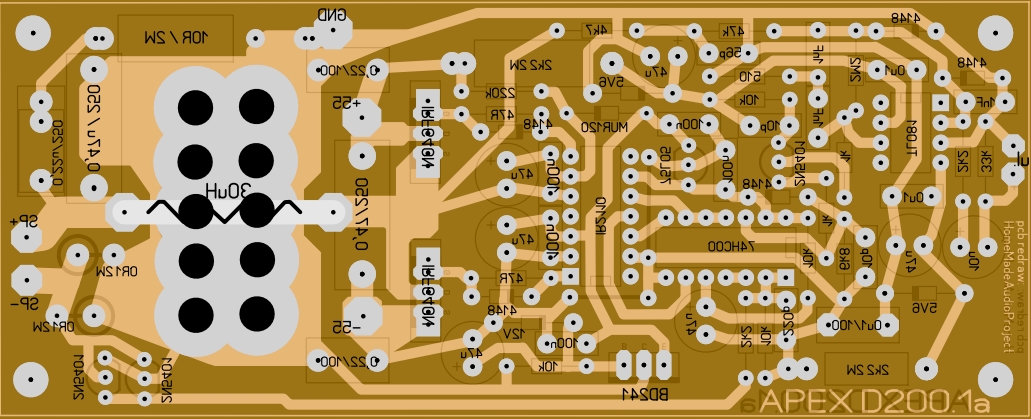

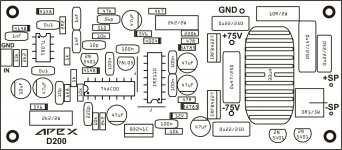

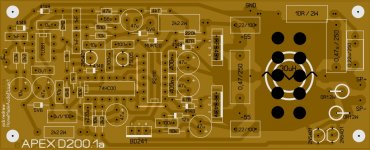

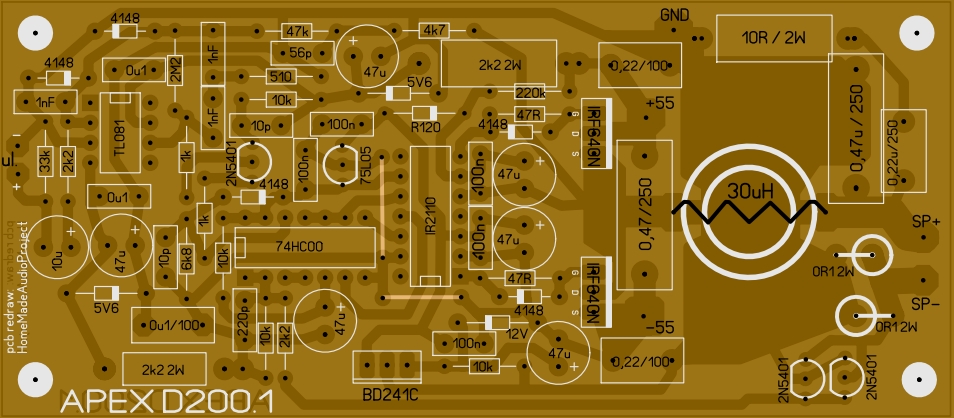

this should help. i did my APEX D200.1 (not 1a) files,but 1a files should work as well.
https://www.youtube.com/watch?v=mzD6gF11zV8
https://www.youtube.com/watch?v=_3bwwVTK0So
https://www.youtube.com/watch?v=v9wqH0emxnw
Attachments
Hello Mr. Apex. I really liked your topic. I want to repeat D200 amplifier. But I can not find the scheme for him. Please share scheme. ilya_simonuk@mail.ru

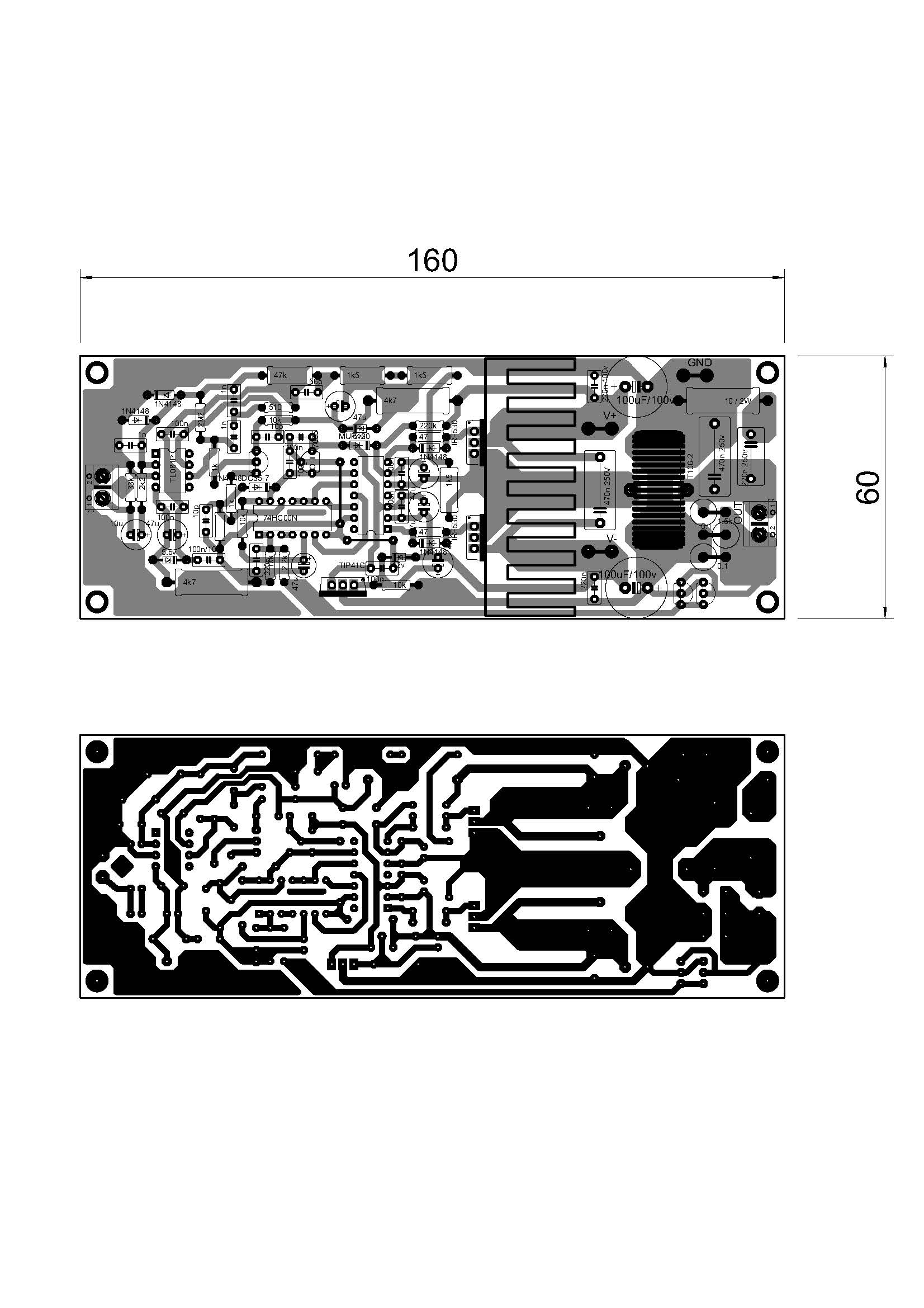

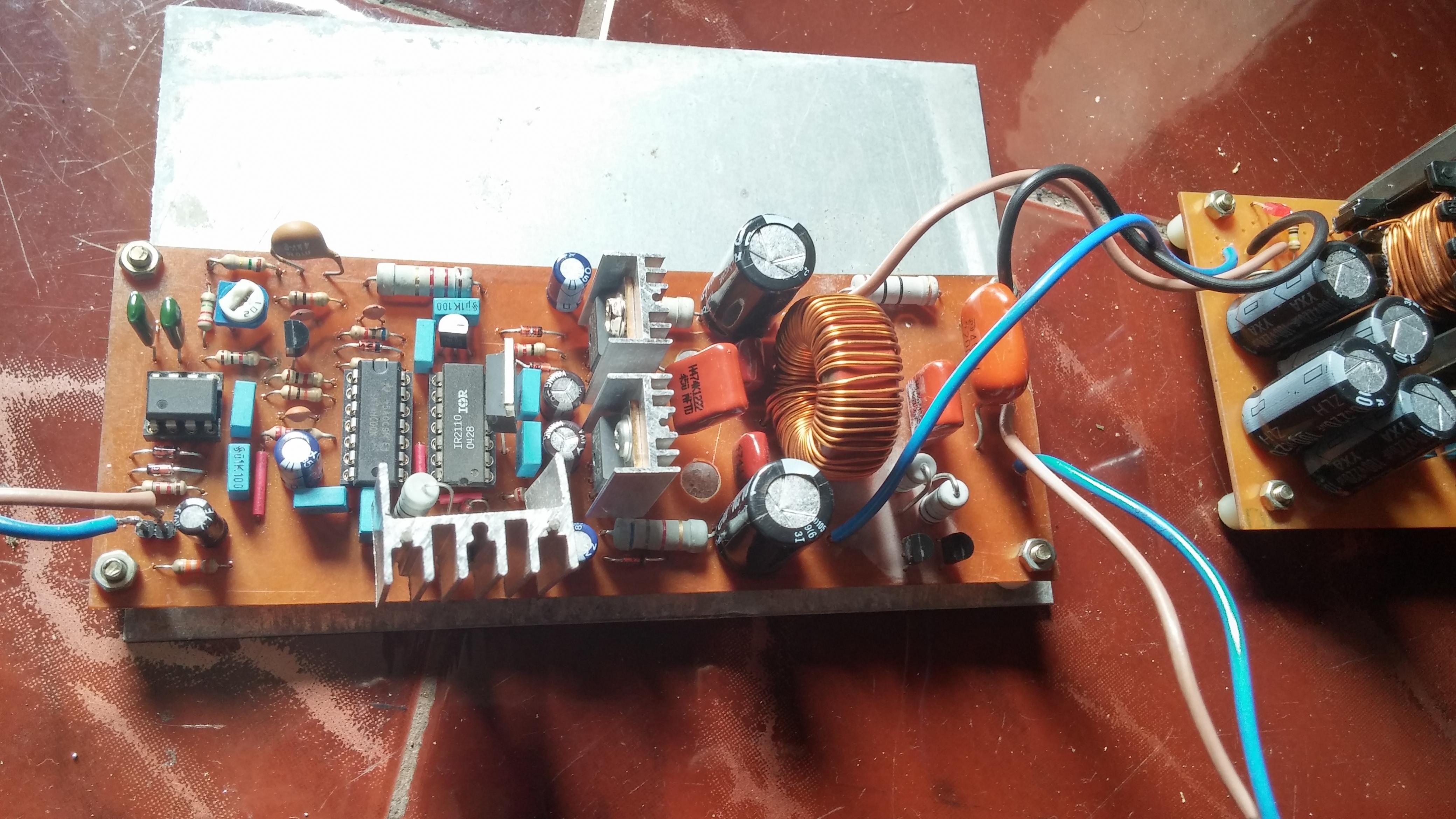

I used your files. Thanks borads collected today.
I have all the resistors in .25 watt will it work or must i use .5 watt
thanks to you and also to 44250 for the files,
have a good time listening this amplifier! 🙂
I first assemble the power Class D but there are obstacles hoarseness can you help me, sorry I use googel translate, Greetings
Mr Apex, i have uf4007 and 1n5819 diode, it's necessary to use uf4004 and 1n4148?
Inviato dal mio Z00D utilizzando Tapatalk
Inviato dal mio Z00D utilizzando Tapatalk
D200 - Manoj MOD
Thanks Abetir for sharing the PCB! 🙂
Tested with +/-45 and works fine!
But when I increase the voltage up to +/-80 I couldn't stop the switching noise. It also crashes Radio signals.
Used IRF640. Also tested with IRF740
Changed gate resisters from 10/22/47 ohms
Inductor T106-2 54 turns (tried 44 to 60 turns)
for MUR120 I used UF4007 then replaced with BYV29-200
Nothing could stop the noise under high voltage
Also noticed +ve rail voltage goes up to 120v only when the amp is connected to speakers. Powered by SMPS switching at 53kHz
Any suggestions please??
Thanks Abetir for sharing the PCB! 🙂
Tested with +/-45 and works fine!
But when I increase the voltage up to +/-80 I couldn't stop the switching noise. It also crashes Radio signals.
Used IRF640. Also tested with IRF740
Changed gate resisters from 10/22/47 ohms
Inductor T106-2 54 turns (tried 44 to 60 turns)
for MUR120 I used UF4007 then replaced with BYV29-200
Nothing could stop the noise under high voltage
Also noticed +ve rail voltage goes up to 120v only when the amp is connected to speakers. Powered by SMPS switching at 53kHz
Any suggestions please??
