For home subwoofer audio use where continuous averate output will not exceed 30%, yes.
It can output 2KW power for 10 seconds.
I have tested the black 1000W smaller version and it can output 1KW for 1 minute. I don't want to push these since it is for a client.

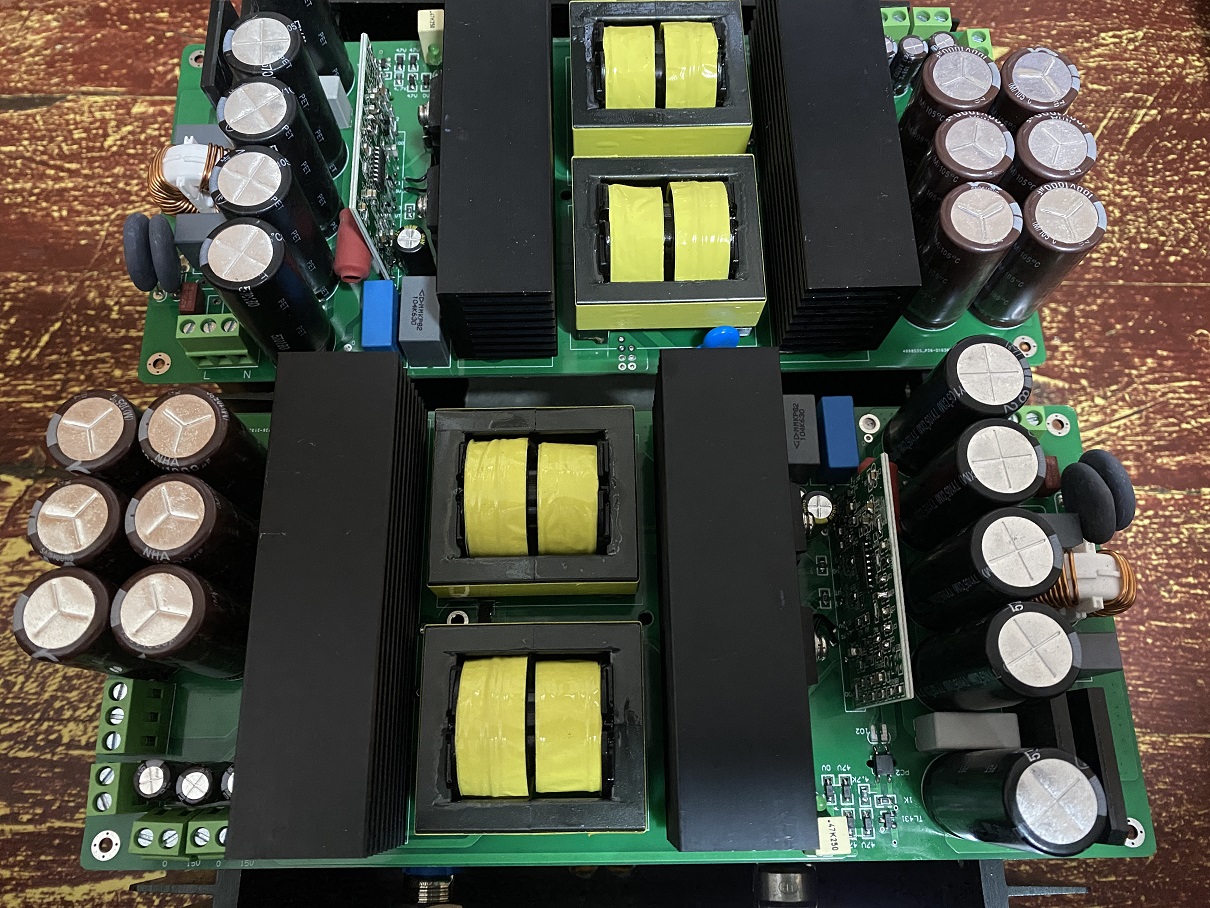

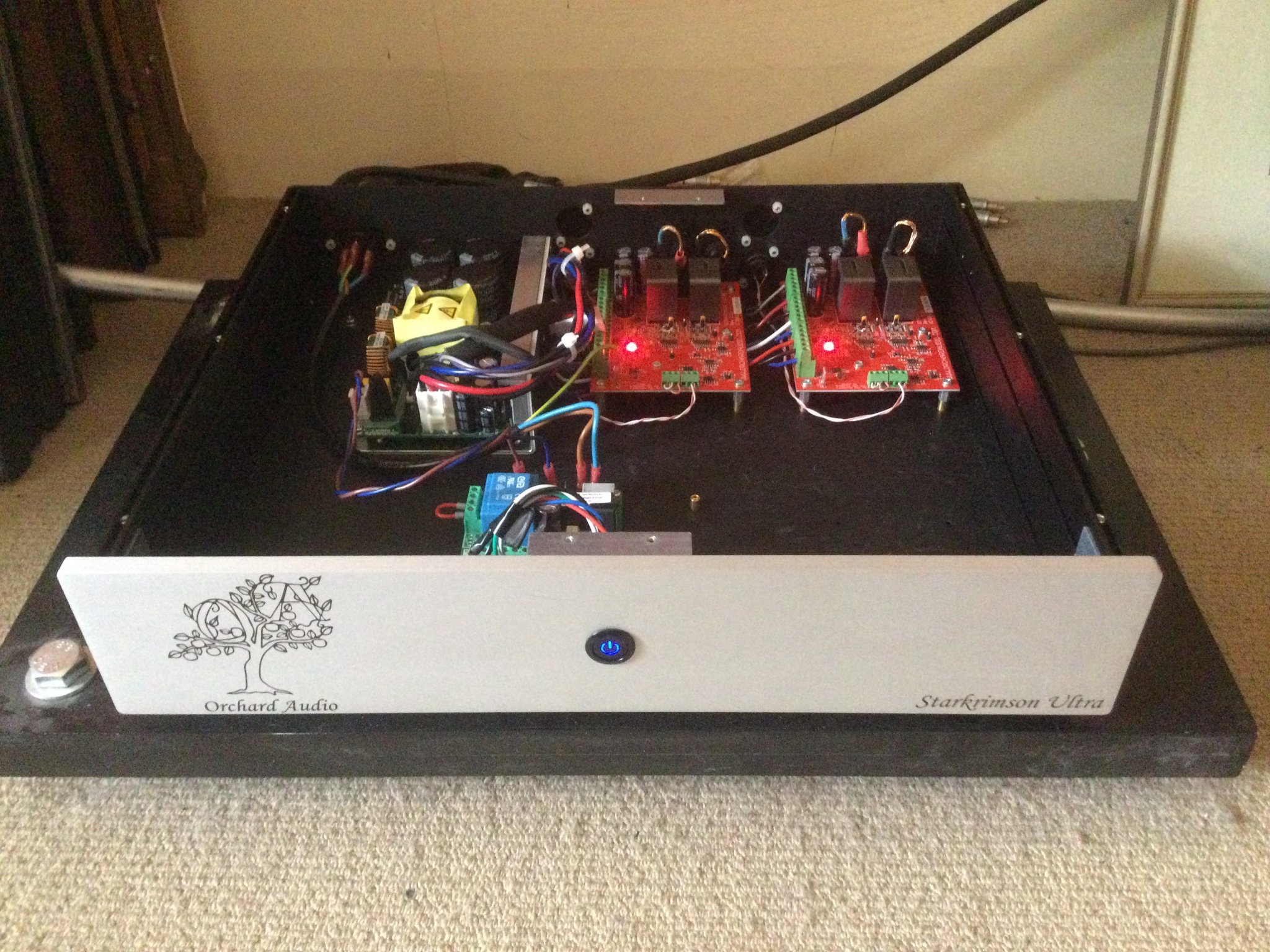

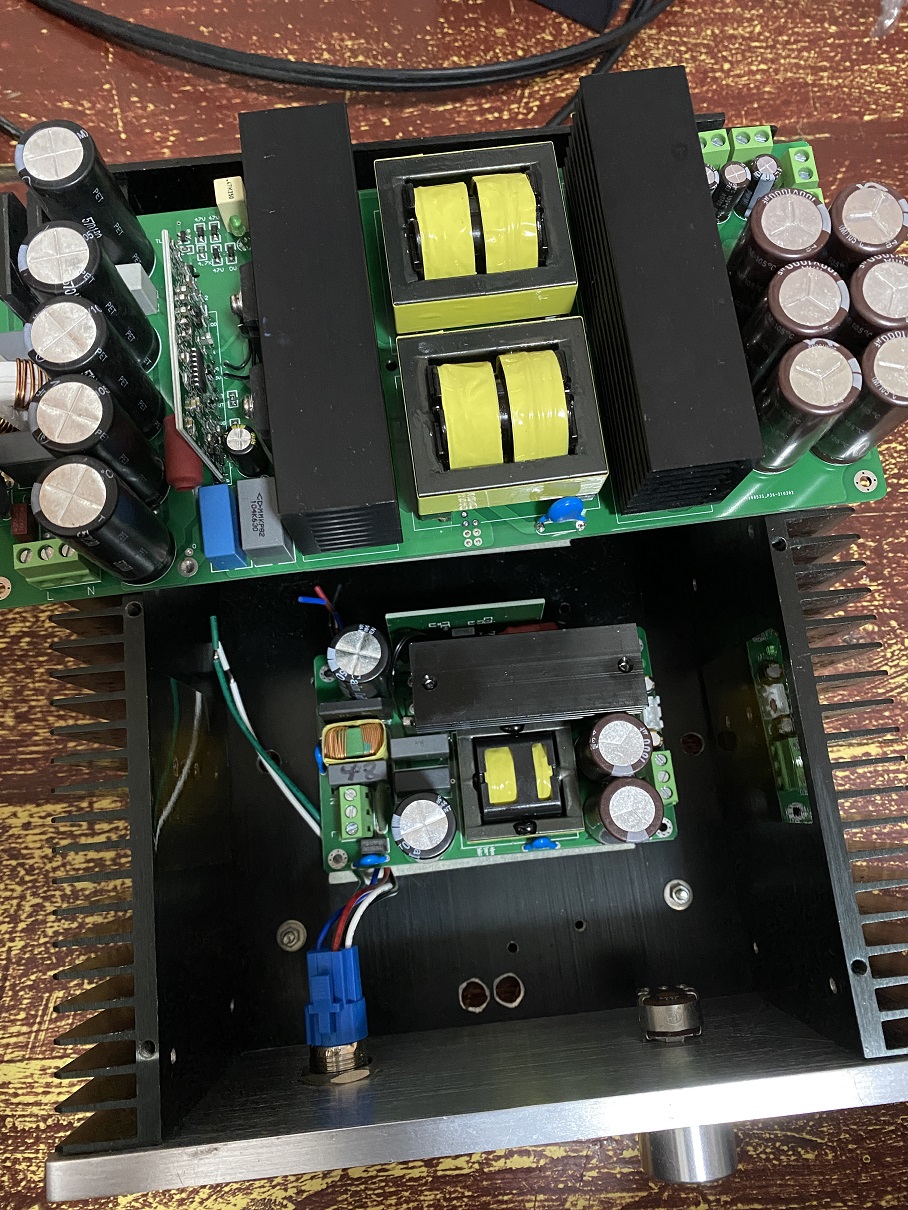

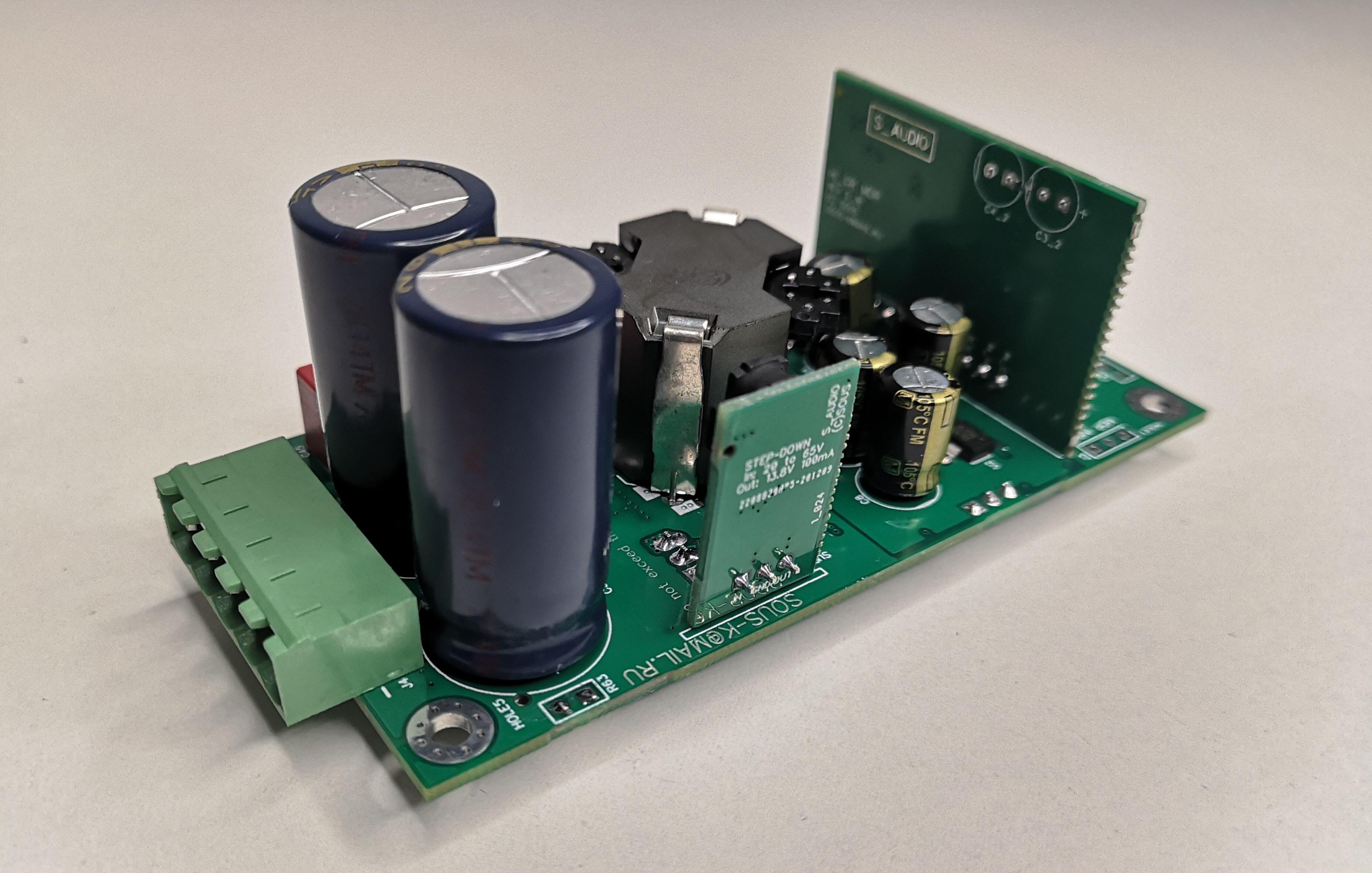

More pics. I also have a tiny SMPS for my GB150D
Attachments

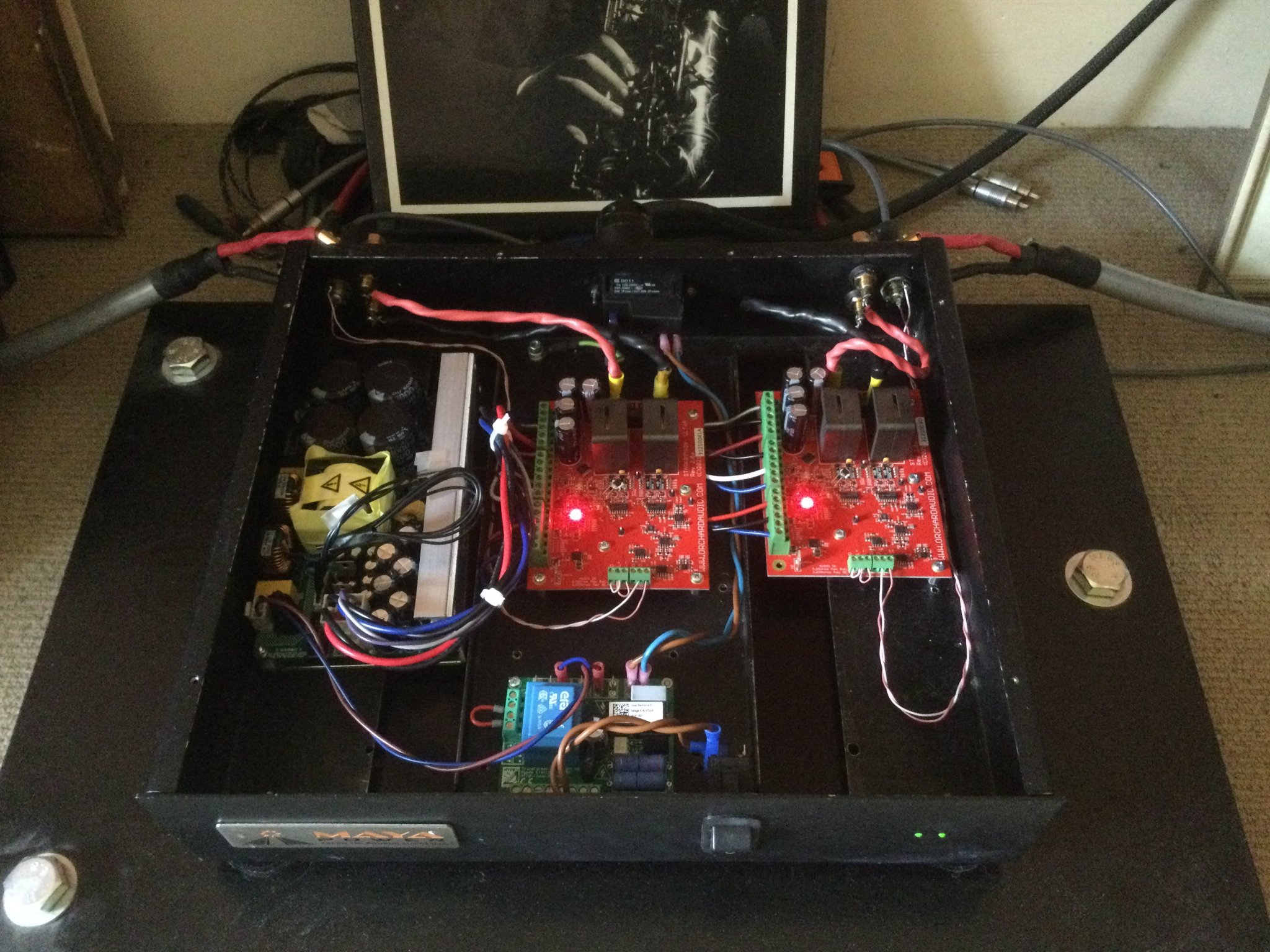

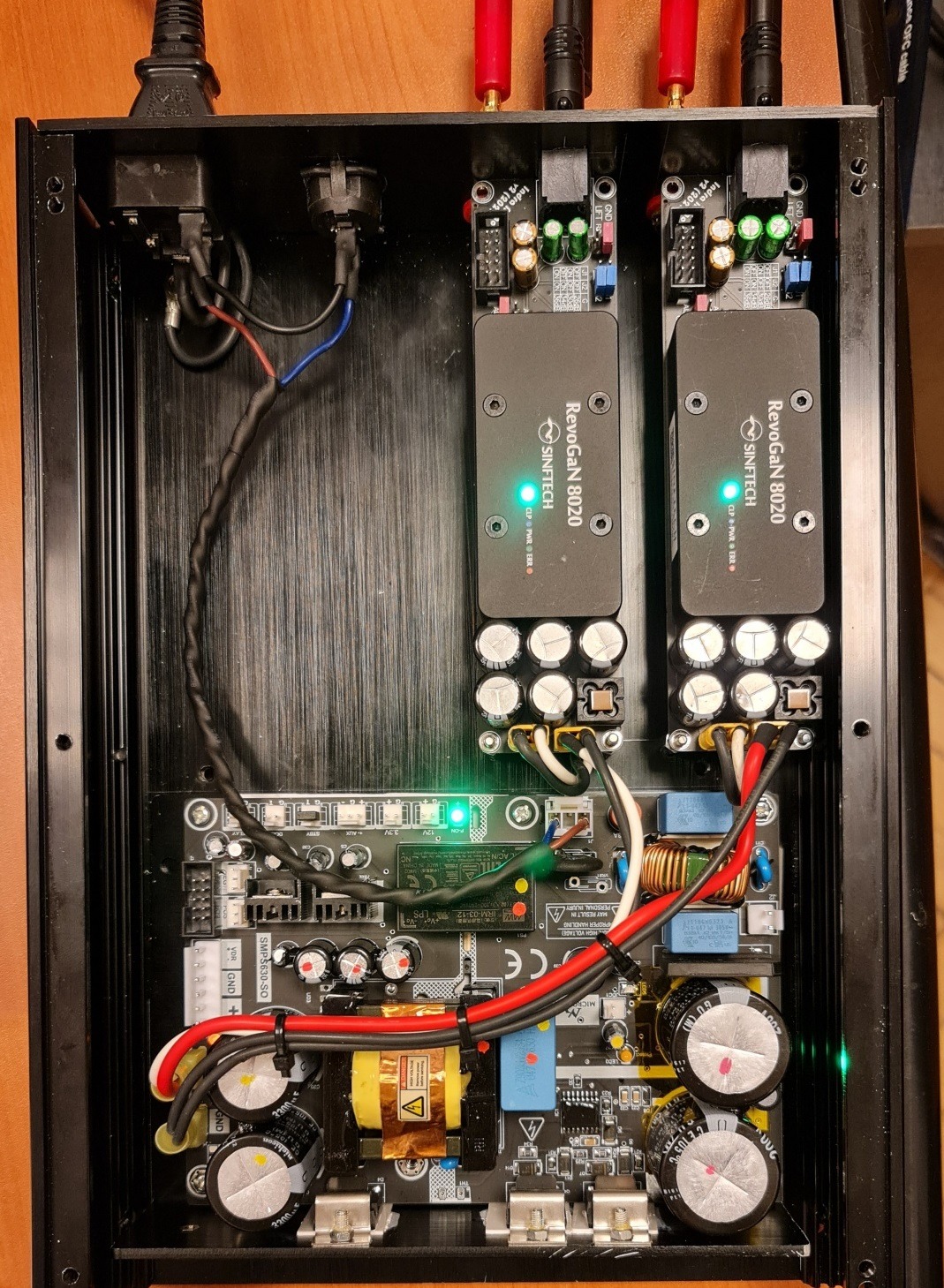

I would suggest, that you shorten the input cables. It looks like the do a roundtrip just above the SMPS transformer.
To earth it, would you take the bottom connector and connect that to the case...or possibly to the stanchions for the amp board?
Hi,
Just wanted to share some pictures of my last amp. It is not a DIY amp but made in the USA by Classdaudio. Will share soon my impressions in a new thread.
This a Gan Amplifier (Gallium Nitride) fully balanced with ajustable gain.
RMS Power Per Channel 8 Ohms 200 WRMS Continuous (400W Peak)
RMS Power Per Channel 4 Ohms 300 WRMS Continuous (500W Peak)
Power Supply 600W Bipolar LLC Resonant Converter
Just wanted to share some pictures of my last amp. It is not a DIY amp but made in the USA by Classdaudio. Will share soon my impressions in a new thread.
This a Gan Amplifier (Gallium Nitride) fully balanced with ajustable gain.
RMS Power Per Channel 8 Ohms 200 WRMS Continuous (400W Peak)
RMS Power Per Channel 4 Ohms 300 WRMS Continuous (500W Peak)
Power Supply 600W Bipolar LLC Resonant Converter
What a silly heat-sink design and orientation.
Just a aluminum plate on the bottom would have done better.
(and is also much easier in production and assembly)
And that is definitely not a 600W continues power supply.
More around 100-150W or so.
Just a aluminum plate on the bottom would have done better.
(and is also much easier in production and assembly)
And that is definitely not a 600W continues power supply.
More around 100-150W or so.
the heatsinks are unnecessary ... but are there to hide the discrete components underneath (discrete amp) :
600W LLC PSU, information shared bu the manufacturer... not me ) But I would say more 400W
Anyway : it sounds absolutely good and surprisingly powerful (200W / 8R)
600W LLC PSU, information shared bu the manufacturer... not me ) But I would say more 400W
Anyway : it sounds absolutely good and surprisingly powerful (200W / 8R)
Last edited:
Finished integrated 4-Channel Amp in JVC vintage housing.
- miniDSP 2x4 HD
- 2 x ICEpower incl. ICExtend
- DAC AKM 4490
- Bluetooth APTX HD
- Additional TDA 7498 amp for measuring
- Linear 12 V power supply
- miniDSP 2x4 HD
- 2 x ICEpower incl. ICExtend
- DAC AKM 4490
- Bluetooth APTX HD
- Additional TDA 7498 amp for measuring
- Linear 12 V power supply
Last edited:
Congratulations on finishing this project!
Takes much effort to really integrate all the modules so they sing well together.
Some photos are gone unfortunately but I saw them all yesterday, impressive!
My last prototype amp based on the brand new "AboutAudio" modules, made 100% in Italy. This is a class D amp, did not have the time to test yet ) Will share impressions soon
Looks awesome! Well done! Did you build the linear psu yourself? I'd love to find a manufactured external psu for my class d builds in a nice case but seems diy is the only affordable route?
@nonills & rrobot
Thanks! The linear power supply comes from audiophonics and delivers 40 watts at 12 V, more than enough for the application. Therefore i could add two power outlets: one with 5 V DC and the other one with 12 V DC. The 5 V are generated through a DC-converter which is delivering the 5 V trigger signal for the ICExtend as well.
DSP, DAC, Bluetooth, headphone amp, input selector and the additional measuring amp (TDA 7492) are driven by the external power supply.
And fortunately there's no hiss or nasty noise above the music signal, the IcePower amps are doing a real good job.
Here's another try to get somes pictures online.
Thanks! The linear power supply comes from audiophonics and delivers 40 watts at 12 V, more than enough for the application. Therefore i could add two power outlets: one with 5 V DC and the other one with 12 V DC. The 5 V are generated through a DC-converter which is delivering the 5 V trigger signal for the ICExtend as well.
DSP, DAC, Bluetooth, headphone amp, input selector and the additional measuring amp (TDA 7492) are driven by the external power supply.
And fortunately there's no hiss or nasty noise above the music signal, the IcePower amps are doing a real good job.
Here's another try to get somes pictures online.

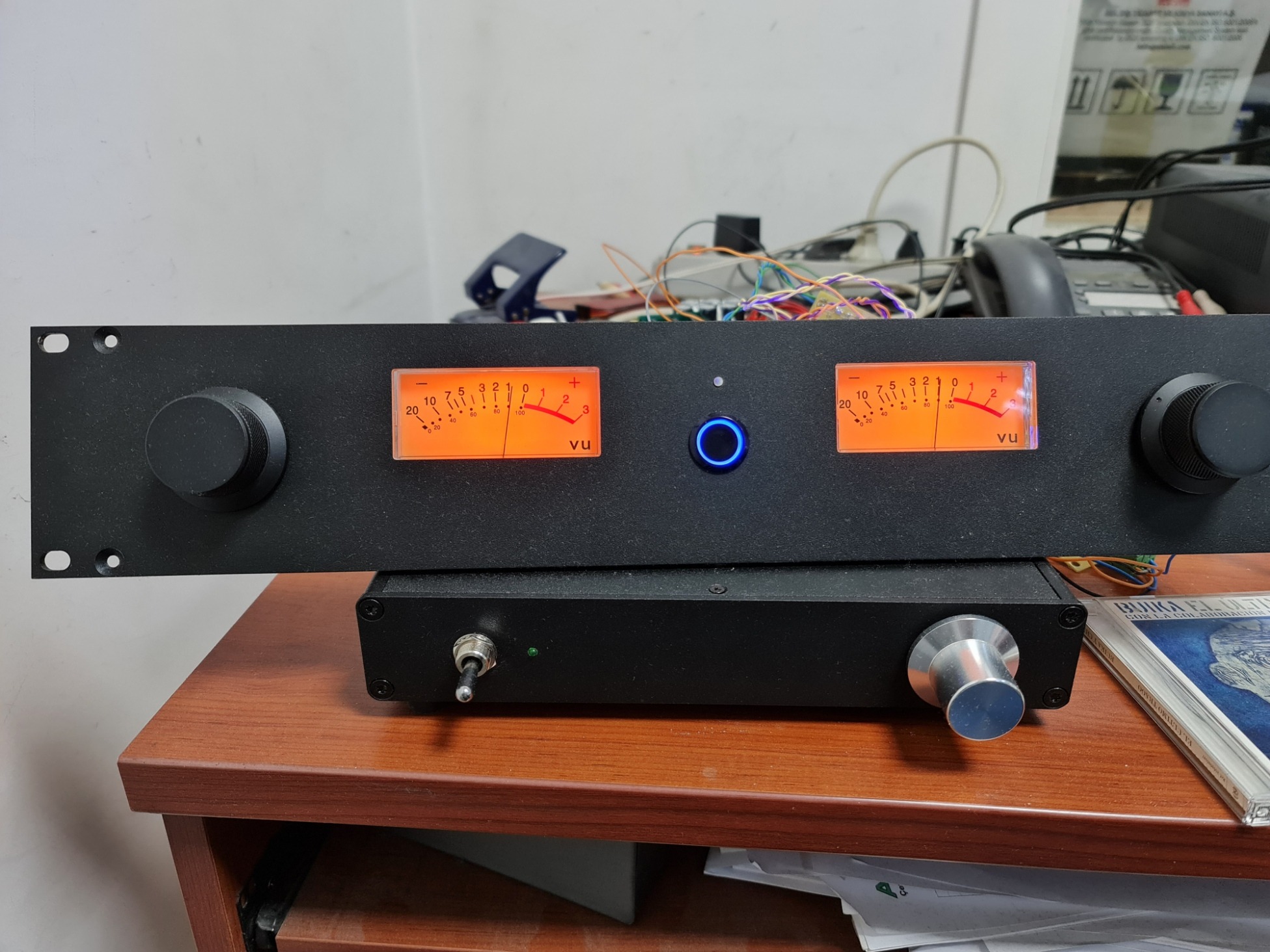

Here the front panel of my lcpf600 amplifier and my finished Shui Yuan TPA3255 amplifier are stacked for comparison.

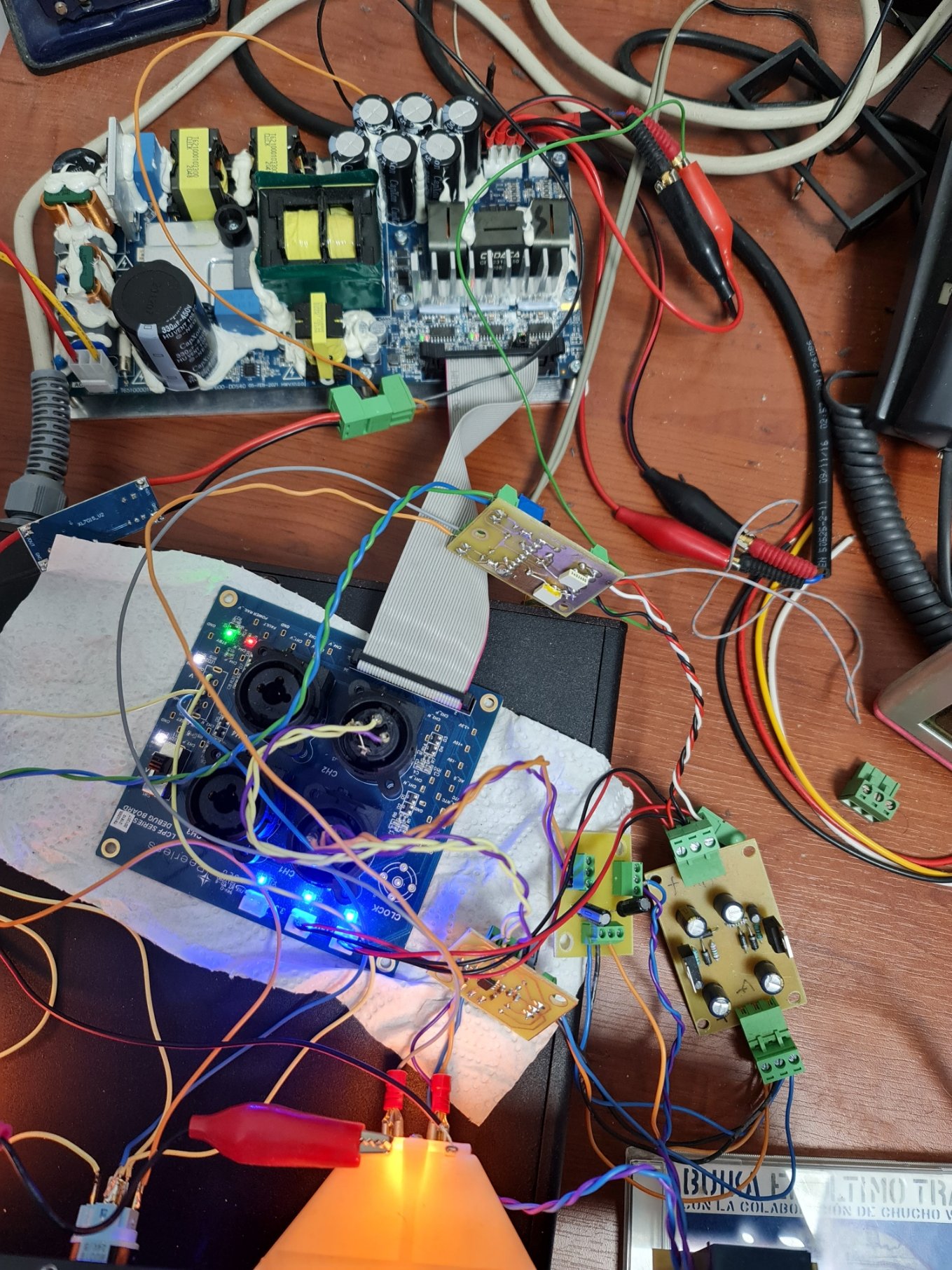

In the second photo, unboxed LCPF600 amplifier, its debug PCB, my own designed SE-XLR converter (OPA1632), analog vu meter driver board and LM317/337 regulator board are seen.
In the second photo, unboxed LCPF600 amplifier, its debug PCB, my own designed SE-XLR converter (OPA1632), analog vu meter driver board and LM317/337 regulator board are seen.

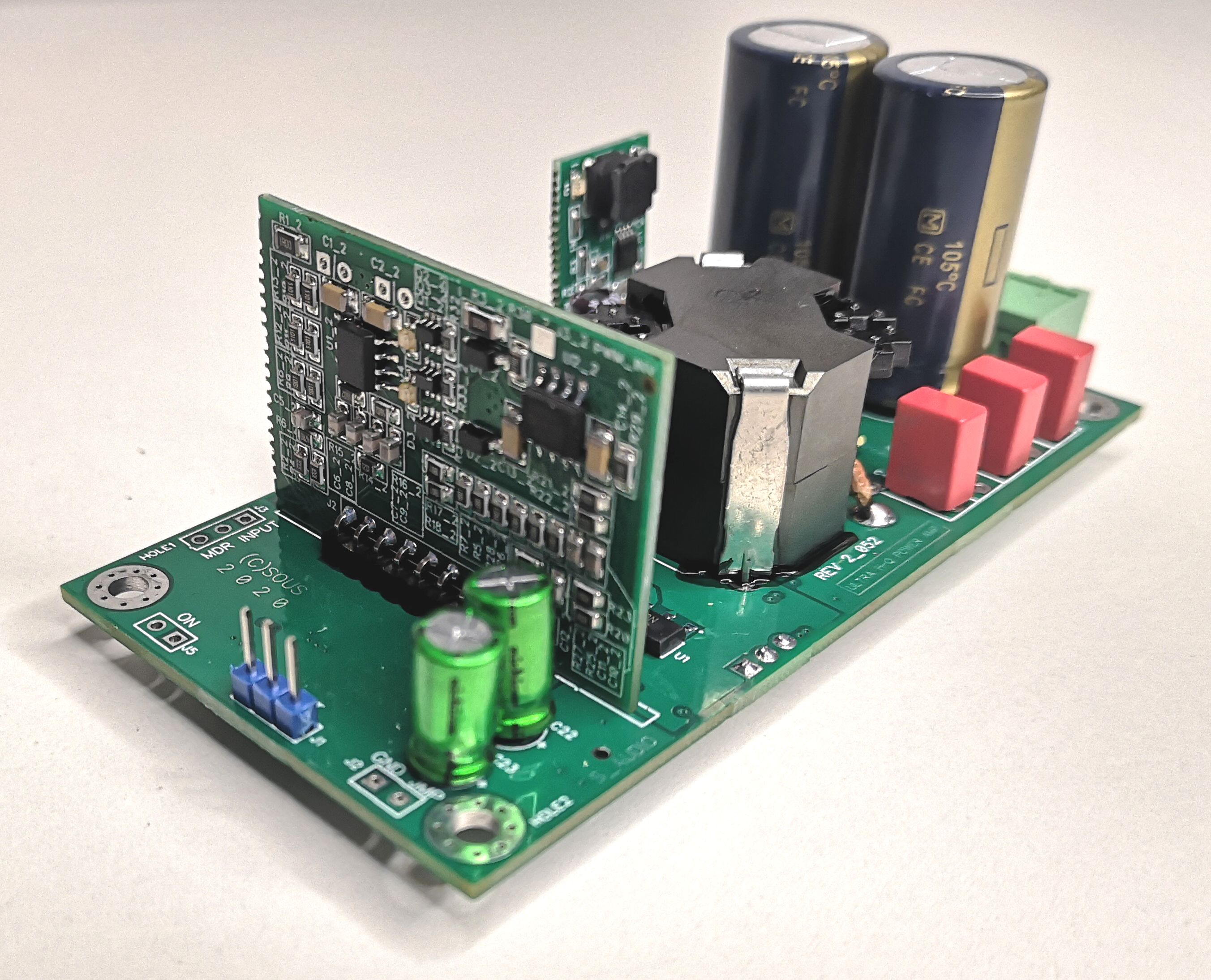

A year ago I heard on the forums the first discussions about GaN amplifiers.
Searching the net, I stumbled upon the Revogan 8020.
http://revogan.sinftech.com/en/order/http://revogan.sinftech.com/wp-content/uploads/2021/03/Eng-RevoGaN-8020-Short-Description-1.pdfLuckily for me, Pavel, the author of this amplifier, was very receptive to my questions and very prompt in any action. With its help I received 4 modules of Revogan 8020. With great distrust (I could not believe that such a small module is able to output 500 Wat 🙂) I connected them to my system and let it heat up a 30 min. From the first sounds ... I think my jaw hangs down in amazement 🙂 I received an exceptional and strong bass punch in the chest, beautiful voices, without any harshness, very very natural, and the most spectacular ... a lot of microdetails I hadn't heard before. And I forgot why I wanted to measure, adjust ... I just listened to music for about 3 hours. Simply, amazing how much pleasure I received listening to my favorite songs, no fatigue, no desire to shut down the system. Sincere congratulations to the author for this Revogan 8020 .
Now I know what I will use in my active 3-way Open Baffle system (I had completely different plans 🙂) I can't wait to use them!
And I forgot to say, compared to the NCore400 I have, the Revogan 8020 (after my ears) sounds much more natural (especially at high frequencies)
Searching the net, I stumbled upon the Revogan 8020.
http://revogan.sinftech.com/en/order/http://revogan.sinftech.com/wp-content/uploads/2021/03/Eng-RevoGaN-8020-Short-Description-1.pdfLuckily for me, Pavel, the author of this amplifier, was very receptive to my questions and very prompt in any action. With its help I received 4 modules of Revogan 8020. With great distrust (I could not believe that such a small module is able to output 500 Wat 🙂) I connected them to my system and let it heat up a 30 min. From the first sounds ... I think my jaw hangs down in amazement 🙂 I received an exceptional and strong bass punch in the chest, beautiful voices, without any harshness, very very natural, and the most spectacular ... a lot of microdetails I hadn't heard before. And I forgot why I wanted to measure, adjust ... I just listened to music for about 3 hours. Simply, amazing how much pleasure I received listening to my favorite songs, no fatigue, no desire to shut down the system. Sincere congratulations to the author for this Revogan 8020 .
Now I know what I will use in my active 3-way Open Baffle system (I had completely different plans 🙂) I can't wait to use them!
And I forgot to say, compared to the NCore400 I have, the Revogan 8020 (after my ears) sounds much more natural (especially at high frequencies)
Attachments

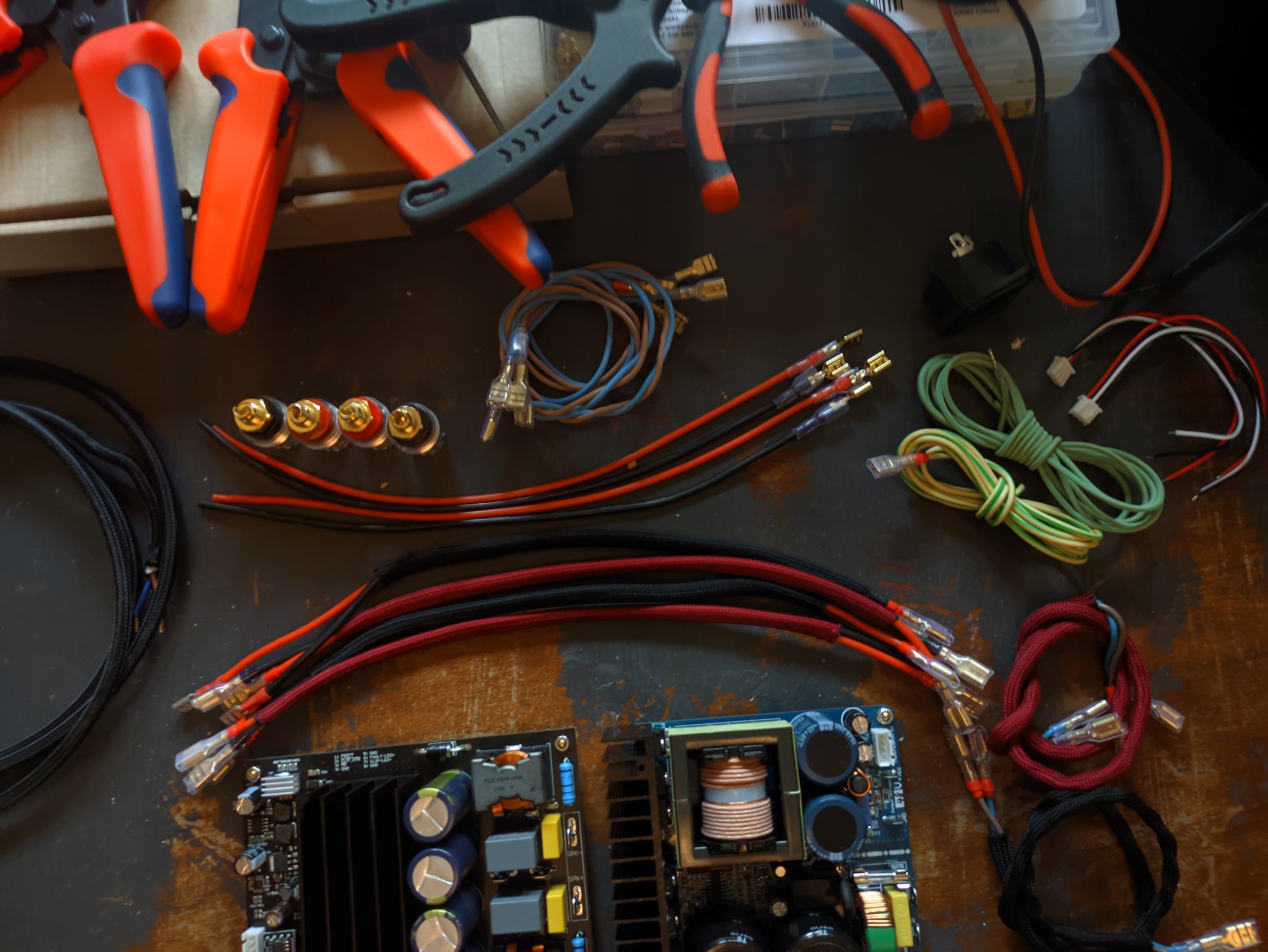

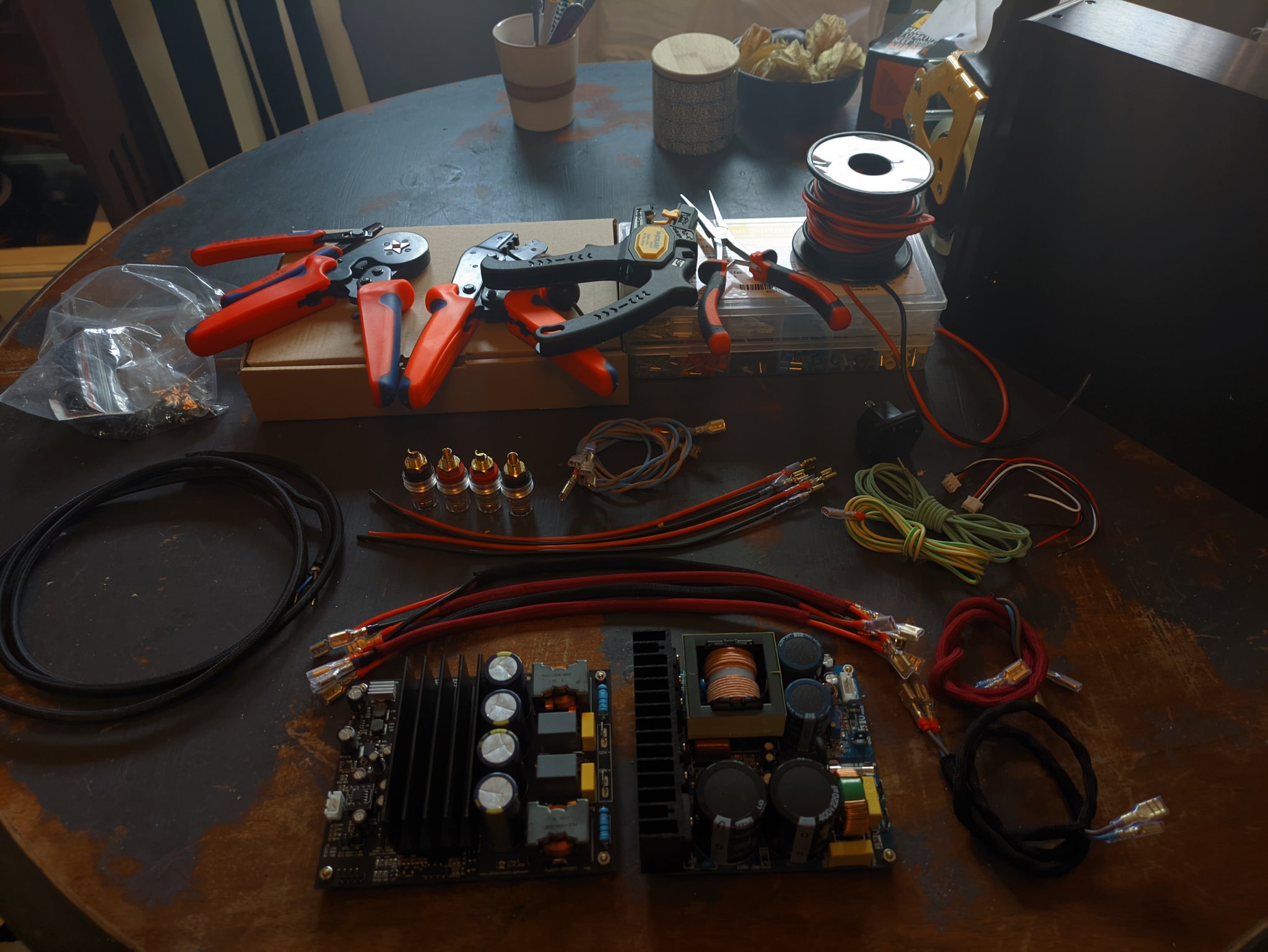

I was under the impression i have everything that I need but I don't. Waiting patiently for brass pcb standoffs, two neutrik xlr sockets, ring and spade shaped Terminal connectors and some late Christmas presents as well.
I am building two mono amps based on sylph-d400m tpa3255 boards connex smps600rs 230v 48v

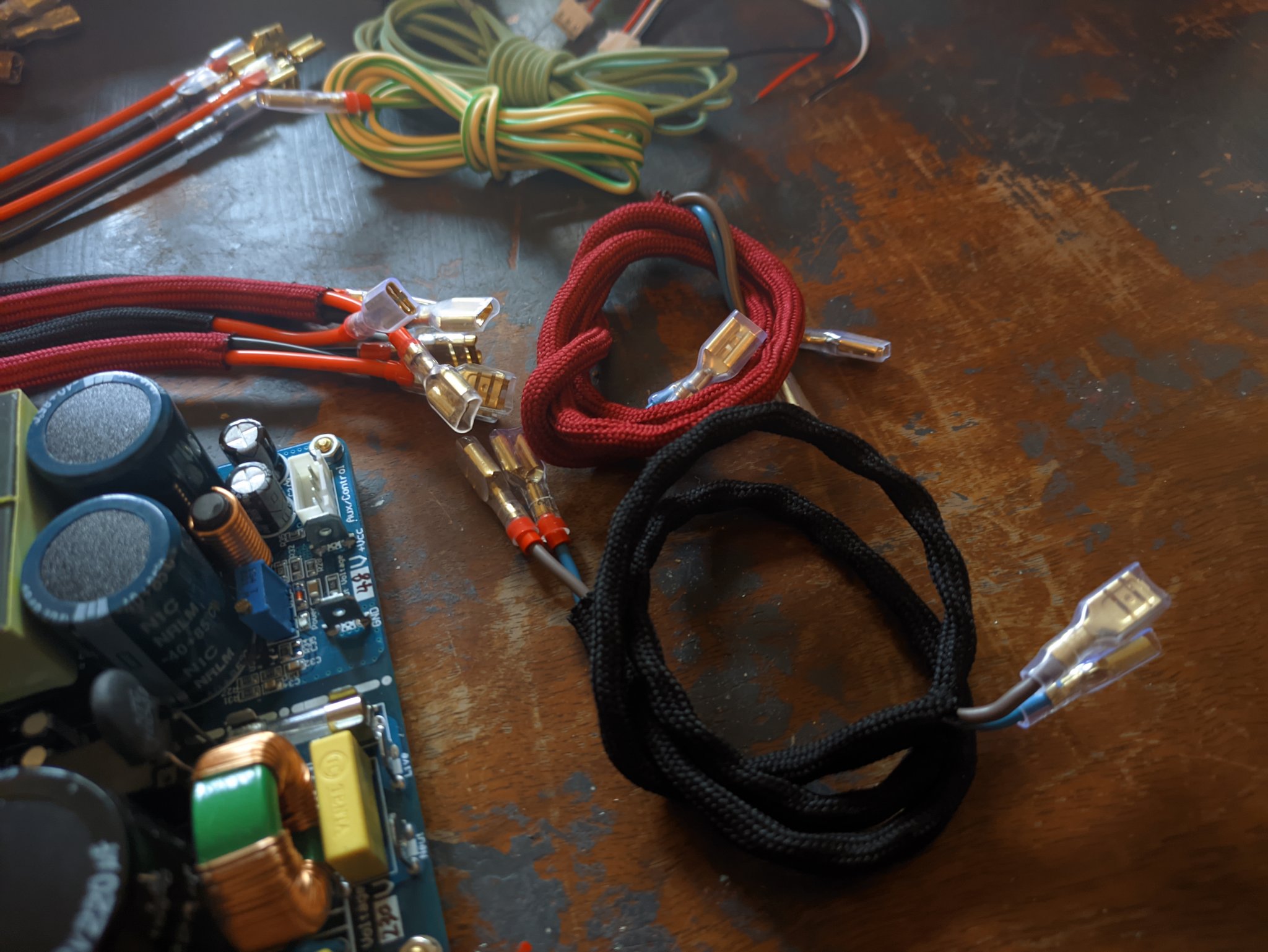

All cables are almost done
Backplate need to be drilled for banana terminals and xlr socket
I am building two mono amps based on sylph-d400m tpa3255 boards connex smps600rs 230v 48v
All cables are almost done
Backplate need to be drilled for banana terminals and xlr socket
