Chip Amp Photo Gallery

[1543]

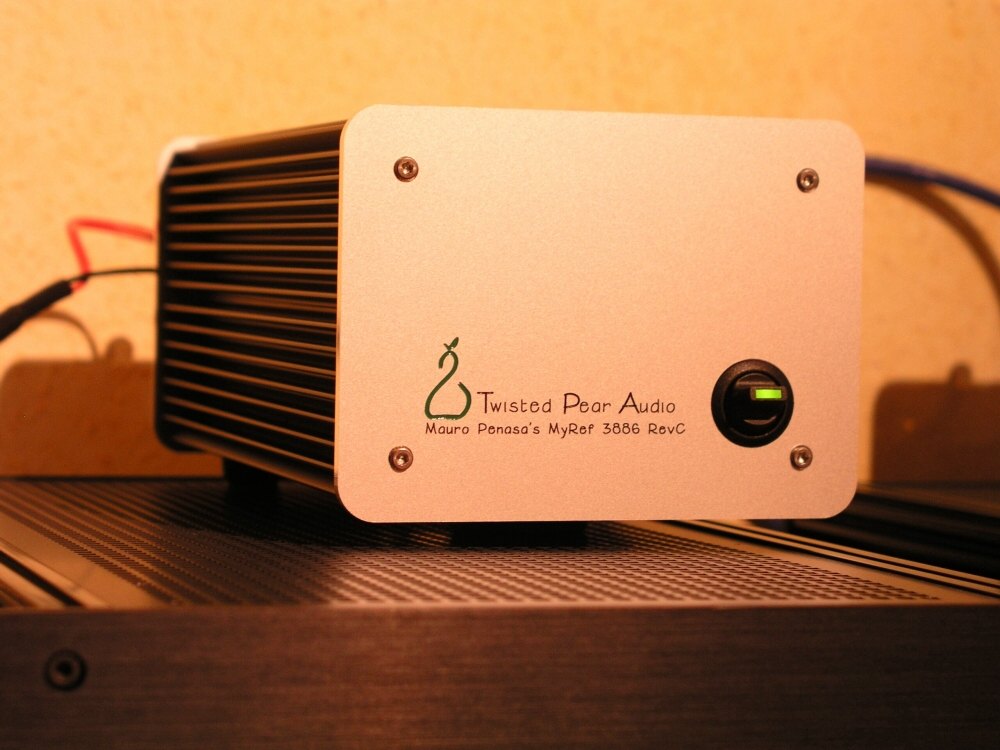

heatsink enclosure for 3886 RefC

.



[MashBill]

Re: heatsink enclosure for 3886 RefC

.

Who makes that case? It looks nice! Good job!

Bill



[1543]

Hi,

the cases consists of heatsink profiles from http://www.fischerelektronik.de and milled front plates from www.schaeffer-apparatebau.de / www.frontpanelexpress.com.

Arne



[VT67]

1543

Indeed a sharp looking amp.
Did you ordered those alu profiles directly from Fischer Elektronik or through a retailer?

Regards



[1543]

Hi GeWa,

I have ordered the alu profiles in meter pieces directly from Fischer. They were expensive, probably you can get them cheaper from a retailer like Schuro.

Regards
Arne



[troystg]

Jimbo and 1543-

Both beautiful.

Any chance to see the insides? To me that is where the real art happens.

But they are visually impressive also. 😉



[1543]

Hi Troy,

here you can see the inside of the amp

An externally hosted image should be here but it was not working when we last tested it.

Arne



[jimbo1968]

Any chance to see the insides? To me that is where the real art happens.

Inside of mine is here:

http://www.diyaudio.com/forums/showthread.php?postid=878343#post878343



[RDV]

Inside of mine is here:

http://www.diyaudio.com/forums/showthread.php?postid=878343#post878343

You never said if you fixed the motorboating?

RDV



[DJ Exprice]

You never said if you fixed the motorboating?

RDV

Motorboating? What?

Here's a pic of a TDA2009 amp I made:

An externally hosted image should be here but it was not working when we last tested it.

I recently took out the PCB and I am trying at make a nicer case for it that has more room and that i can have nicer sound quality.



[RDV]

Motorboating? What?

A non-technical term for low frequency oscillation usually caused by uneven power supply filtering.

RDV



[matjans]

HUMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMM

(kiss)



[veteran]

Arne (1543), can you tell more about prices - especially this front panel. Your enclosure look great!



[1543]

Hi veteran,

the frontplates were 28,70€ each and the heatsink profiles costs around 50€ for each amp.

Arne



[gmilitano]

CMoy Headphone Amplifier

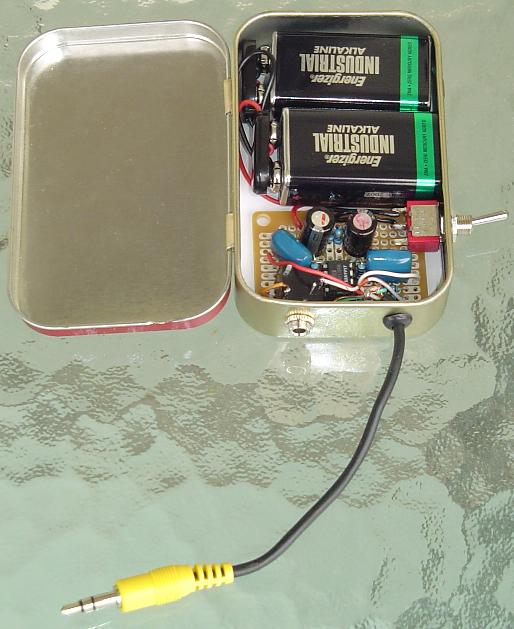

Attached is my latest project. A CMoy headphone amplifier. It uses the OPA2132PA opamp.

On the success of this project, I want to try a desktop unit with volume control, bigger input caps, regulated power supply and bypass caps on the chip.

There are a couple more pictures and details at my website.

Overall, the CMoy performs well and it increases listening pleasure with a good set of headphones.

Cheers,
Gio.



[Voltaic]

Looks better covered up...

-Mal

Nice looking design, if you took those two aluminum profiles, stacked them end to end, and offset them by 12.25° it would be the profile of the patronis towers in singapore. wow, definately not an architecture student here~

Can't wait to post my GC amp, ordering the PCBs tommorrow and doing my parts-sourcing this weekend, I finally get to use this pair of 22,000uF caps I've had sitting on my bech for 3 years YAY

-cheers,
Daniel



[enzedone]

Rebuilt LM4780

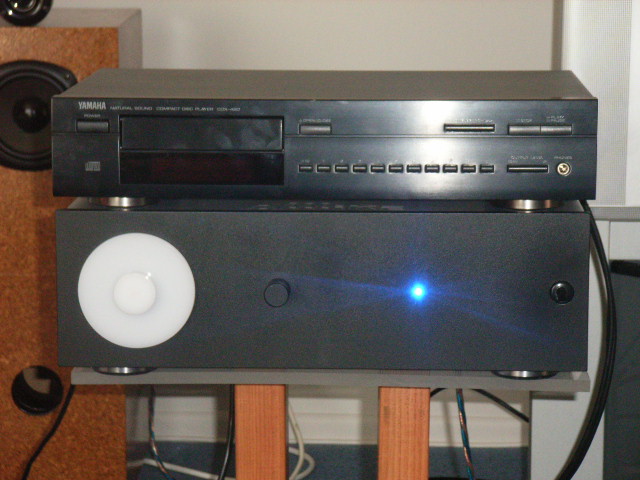

Well after cooking the first set of chips my first Lm4780 is up and running.
This has been a long process(1 year) since I first ordered the chips from National.
This one sounds way more dynamic if i could use that term without getting too airy fairy. I think this has to do with the power supply, as this one was built with a dual mono and it is a parallel design. I used two 300va trannies and four bridge rectifiers.
I think this made all the difference, more power😉
Anyway its not perfect, as there are a few things I'm still sorting(tweaking) as you do..............



[enzedone]

Inside

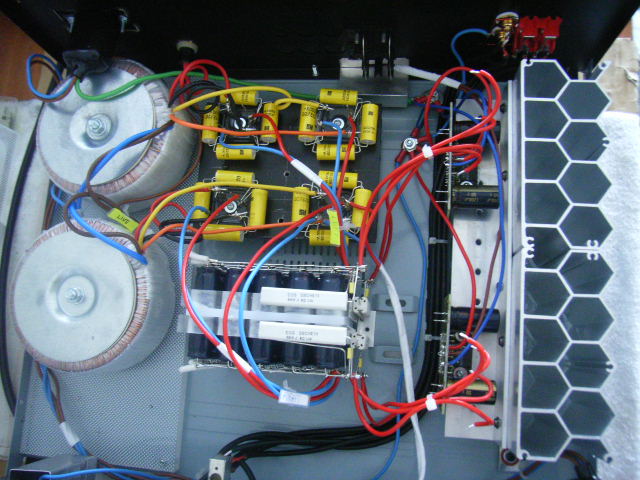

Here's a pic of the inside



[enzedone]

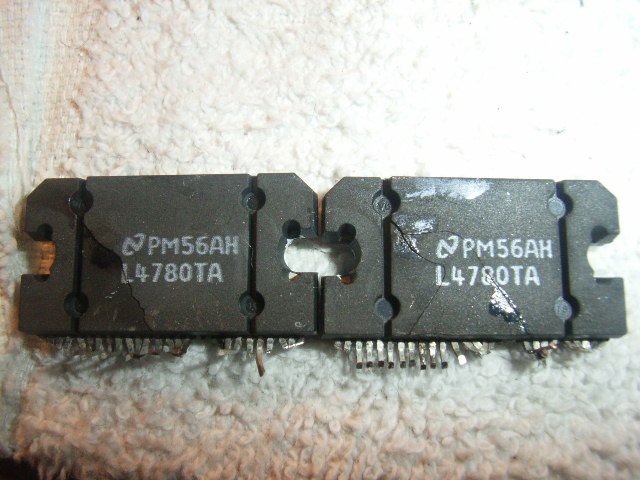

Cooked chips (fish anyone?)

Here they are..............mmmmmmmmmmmm smell lovely.



[enzedone]

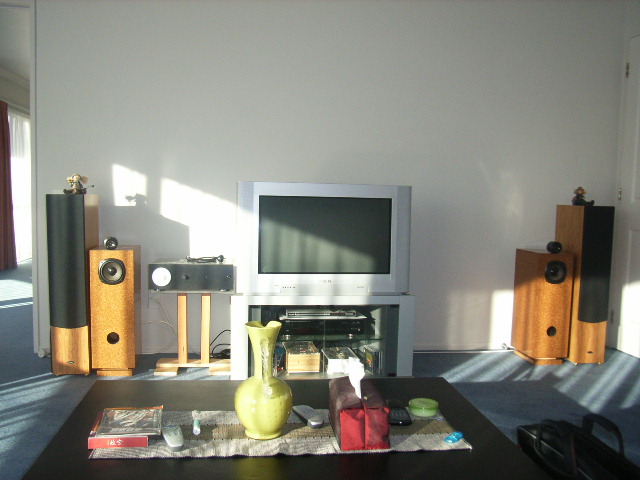

Finally listening

And now it's working.........................yeah😀
