Chip Amp Photo Gallery

Jump to Latest
#241

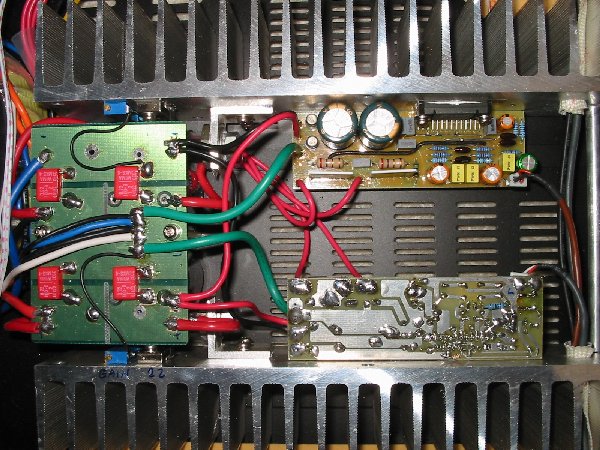

Close up of the amplifier modules


Attachments

  • lm4780 reg ps hs.jpg
    lm4780 reg ps hs.jpg
    99 KB · Views: 6,291
#244

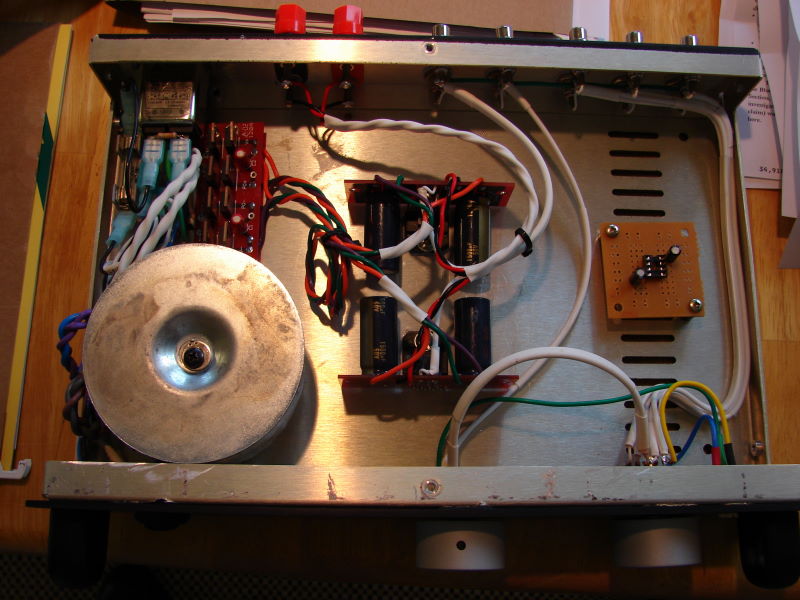

Last one...

Case was Par-Metal Series 20
PCB's were BrianGT's excelent LM3875 premium kits
All else was Steve's @ Apex.jr <-- Great stuff at good prices...

As you can see the buffer is not installed yet.. But there is room.. 😀

Work still in progress... :smash:


Attachments

  • dsc00435.jpg
    97.3 KB · Views: 6,210
#249
stk4048XI

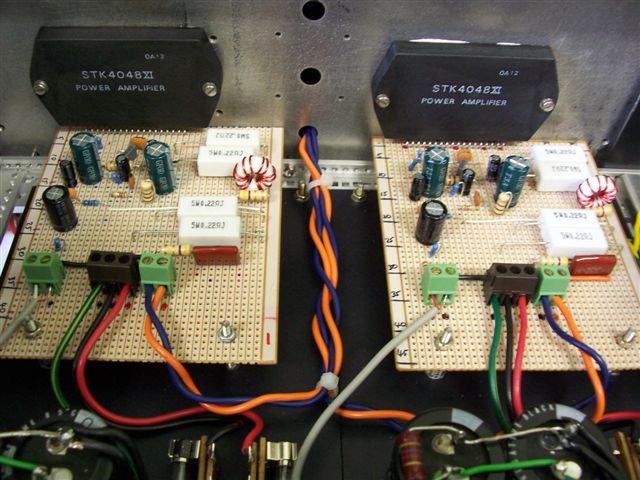

Here is a closeup of the vero board design.
No oscillations. No problems at all.
135 watts at 100Hz 8 ohm
156 watts at 1khz 8ohm
205 watts at 100hz 4ohm
245 watts at 1khz 4 ohm
all at about +/- 57 volts
twin 300va toroidals
20,00mfd per channel
totally separate channels


Attachments

  • stk_amp2.jpg
    75.7 KB · Views: 5,197
#250
OK here goes...

This is the Amp I built from Brian's 3886 kit... The toroid was picked up on ebay and has 25v secondaries. The case is scrap aluminium & teak from old school science benches . The hardware was from CPC. It was in construction for about a year and was then spurred on when I blew my daily amp.

I have run (and blown) a series of vintage transistor amps in the past including Armstrong 521, Leak Delta & early Sony amps. Of these the Leak sounded best but nothing like how good this amps sounds. It is simply amazing in comparison.

I'm now interested in building a tube pre-amp to go with it if anyone has any suggestions...

Thanks for looking...

An externally hosted image should be here but it was not working when we last tested it.
http://www.oxtonspeed.com/gallery2/v/album/Chipamp/

#254

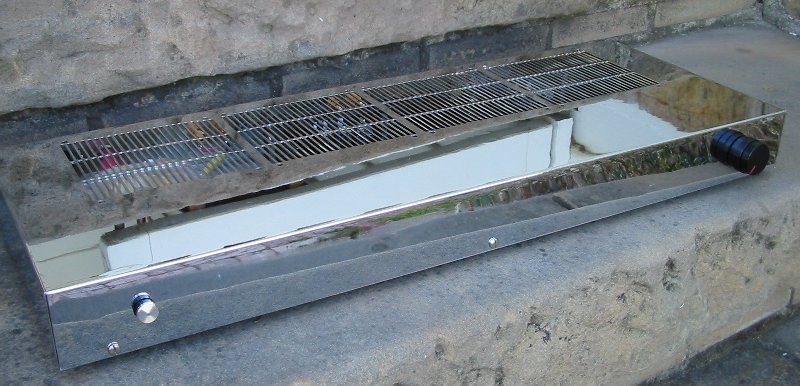

Check that mirror finish on top... 2 part - glatex 8, couple of layers.

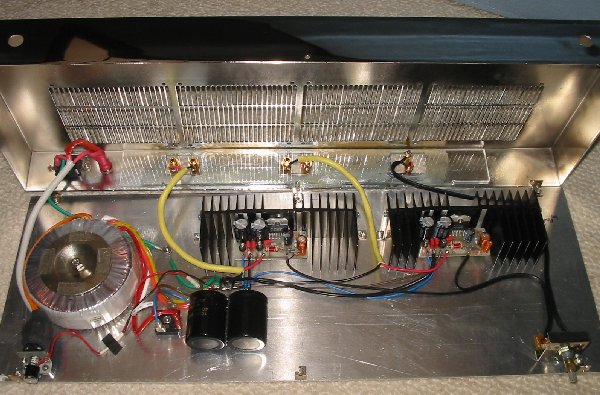

Brute force construction.
This amp is a gift for mother in law... she will never see the inside

The heatsink sits over three holes that lines up with the holes in the top.
It uses Rod elliot P05a PSU and the second version of his hifi preamp with balance and volume control using opa2132.


it is a bit of a mess, I was just going to put the little veroboard IGCs in and a PSU and well, you see what happens... once I liked the sound enough, I left it as is, the wires is a mess as they have to be pushed to their right places as you push the box together the rear slides in like a drawer

#255


Better pics of My_Ref_C



It is a pseodo-plywood... I got the outer layer as offcut strips from the DIY shop and sanded them smooth. the wood is very hard and polishes to a shine with 60 sandpaper- I went to 1200

Because of the limited material ( I literaly had a piece as big as my hand left when I was done), I made an unusual constructrion.

The box is made of 5 sides the 3 outher sides have thick marineply boards underneath, the top is 3mm ply with the "veneers" on top.

The rear slides in and has those beveled tops to keep it in position.

I was going to come back to the case to add some vents, but with those giant heatsinks it hardly goes above ambient for a very long time.



Earth decoupling network is with the transformer, as this is offboard...

#257

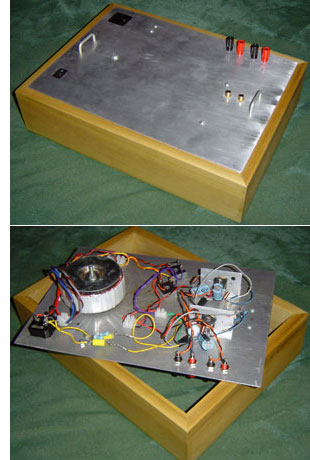

Top Plate GC 3875

Took awhile to get the parts but it went together quickly. Had to as it was going to be making music for a party. Took about an afternoon. Sounds good and still have a lot to do to it yet.


Attachments

  • topplategc3.jpg
    37 KB · Views: 4,647
